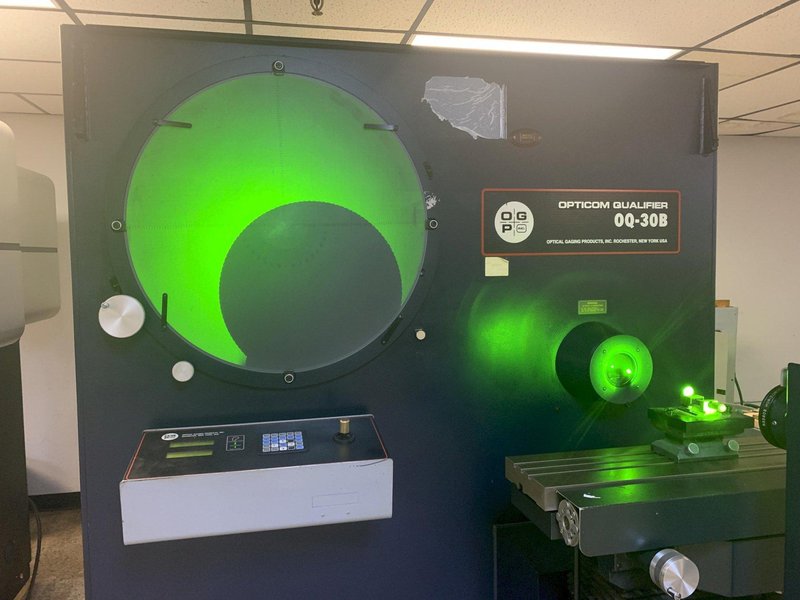

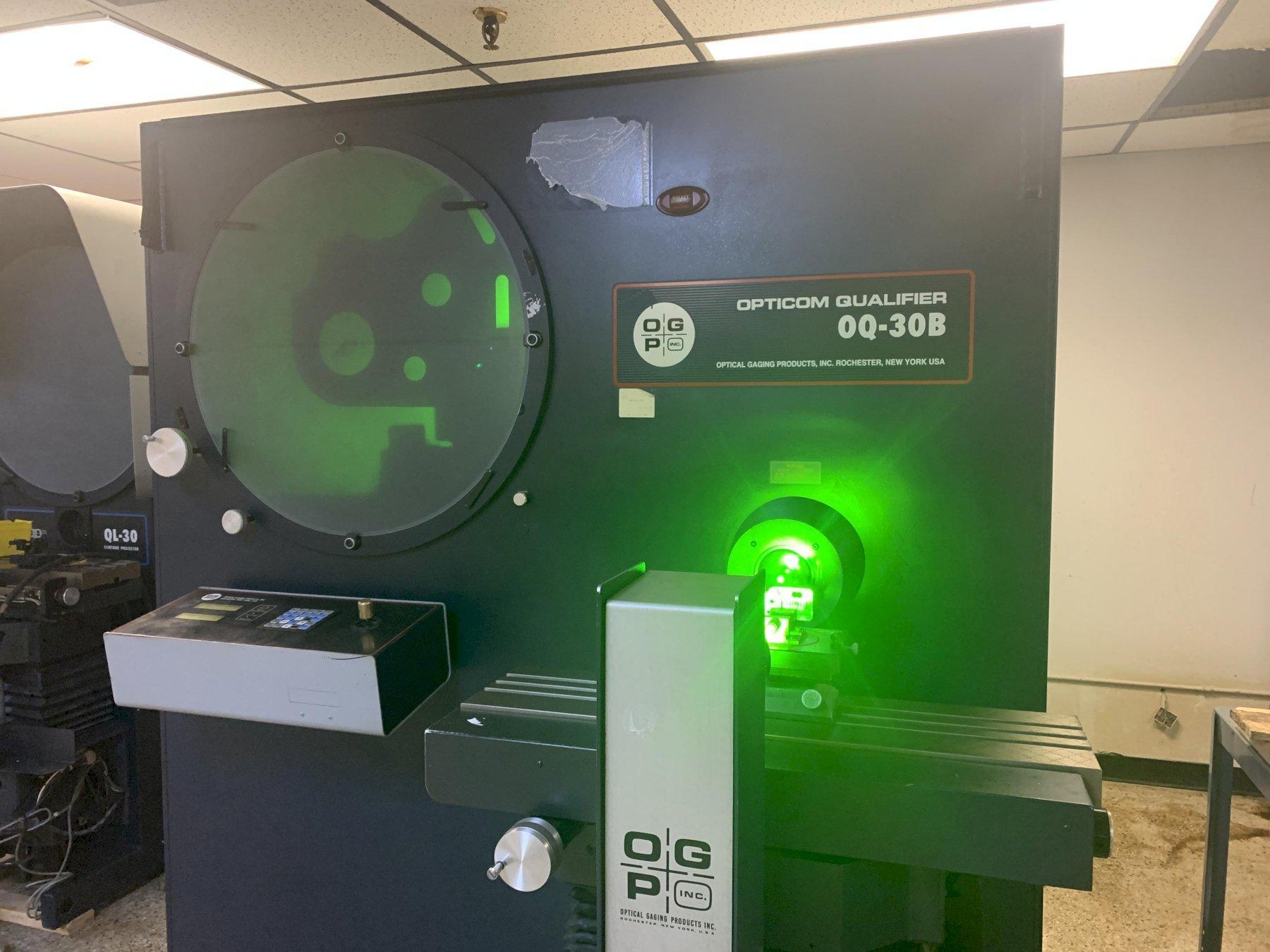

30" OGP Model OQ-30B Heavy Duty Side Screen Optical Comparator and Measuring Machine, S/N OQB30195.

30" OGP Model OQ-30B Heavy Duty Side Screen Optical Comparator and Measuring Machine, S/N OQB30195.

Name: 30" OGP Model OQ-30B Heavy Duty Side Screen Optical Comparator and Measuring Machine, S/N OQB30195.
Brand: OGP
SKU: 34965
Availability: InStock

Brand

OGP

Location

Ohio

Specifications
Files & Videos

Specifications:

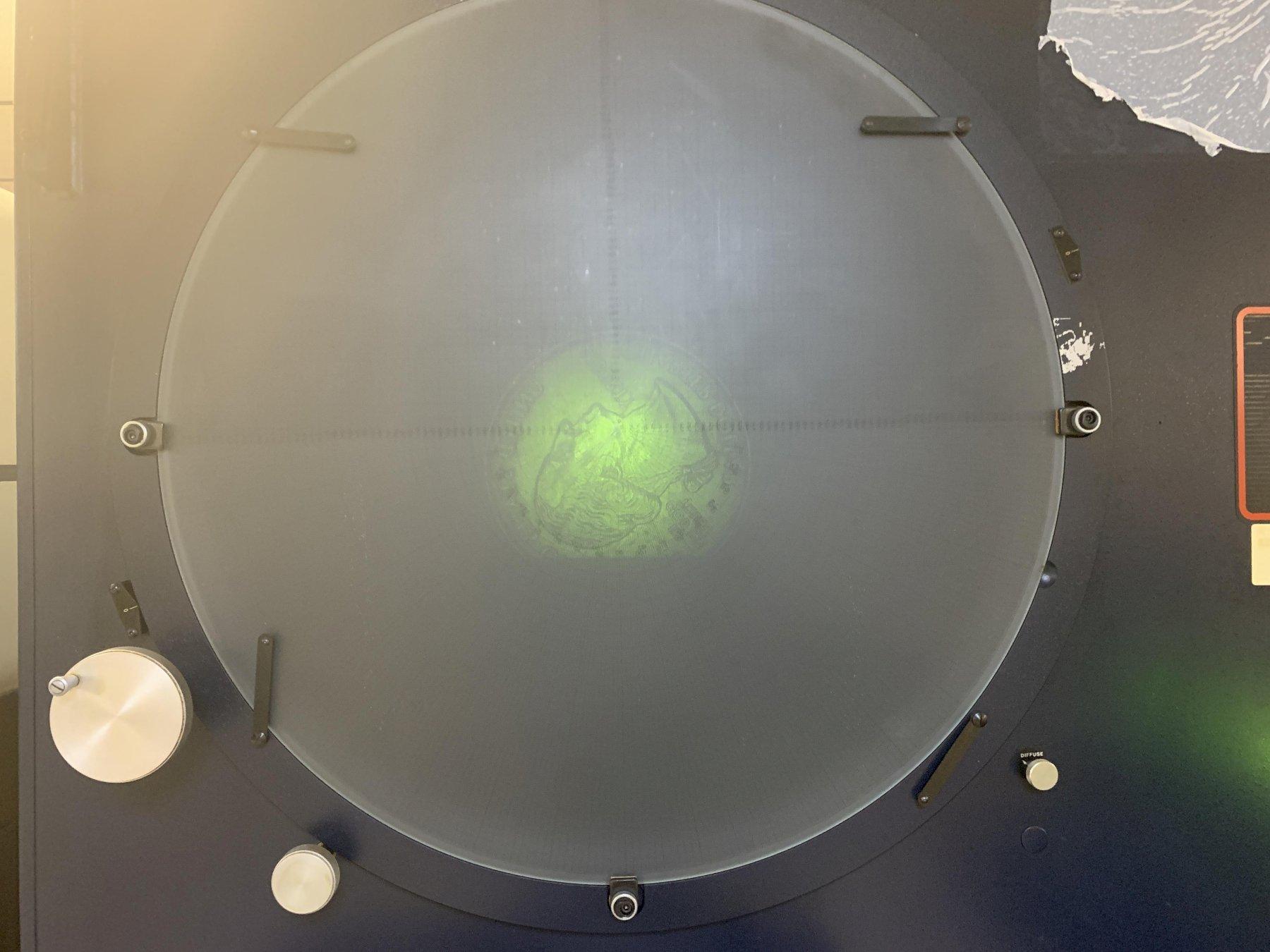

Screen Size - 30" Diameter Viewing Area
Table Size - 8" x 32"
Horizontal Measuring Range - 15"
Vertical Measuring Range - 10"
Focus Travel - 3"
Screen Rotation - 360º
Table Load Capacity - 550 Lbs.
Constant Working Clearance - 10.4"
Throat Clearance - 21.1"
Image Type - Fully Corrected
Scale Resolution - .00004"
Electrics - 1/60/115 VAC
Dimensions, Approx - 72" W x 89-3/4" L x 77-3/4" H
Weight, Approx - 4000 Lbs.

Equipped with:
Side Screen Design

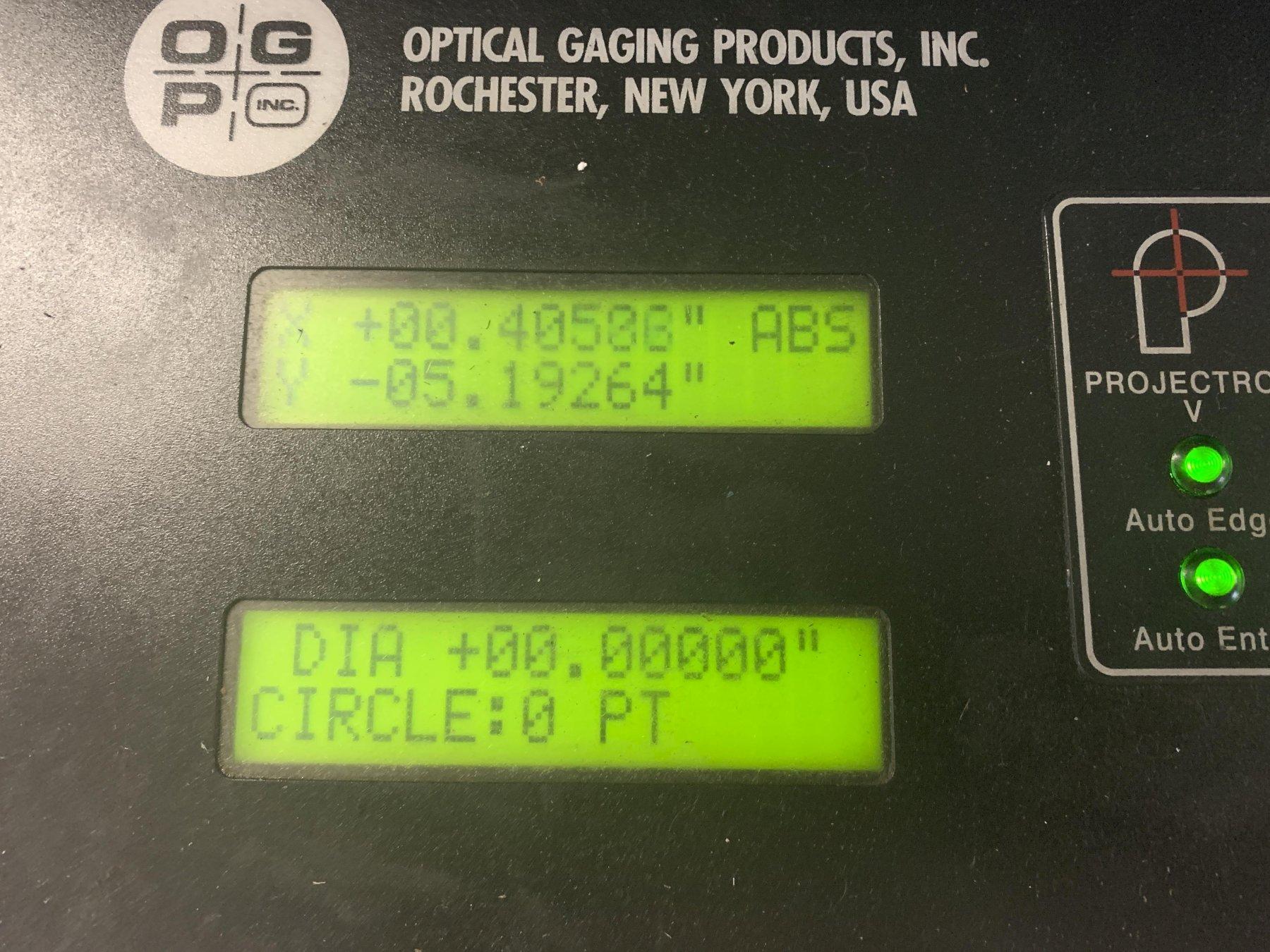

OGP Geometric Measuring Processor (DRO)
Digital Angle Display
Projectron V Internally Mounted Automatic Edge Detection
Motorized Lens Turret with 10x, 20x, 50x, 100x lenses
Motorized Table Travels with Joystick Control
Mercury Arc Projection
Mercury Arc Surface Illumination
Overhead Visor and Curtains
Operation Manual

Notes:
New arrival, availability pending
Specifications subject to independent verification by the buyer.

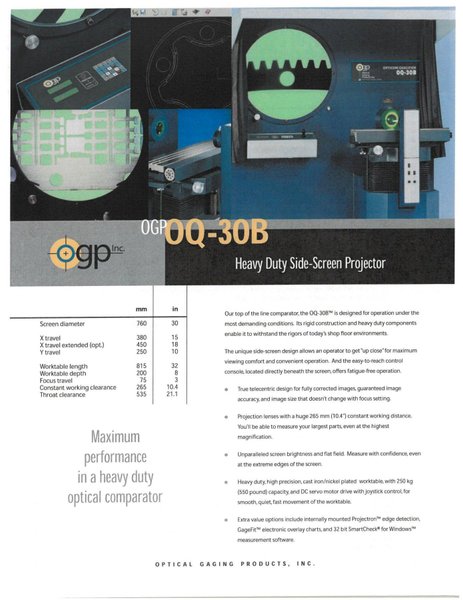

Factory Literature is for reference only. There may be discrepancies.
Shipping quotes available on request.
AMC has previously sold 121 preowned OGP Comparators
