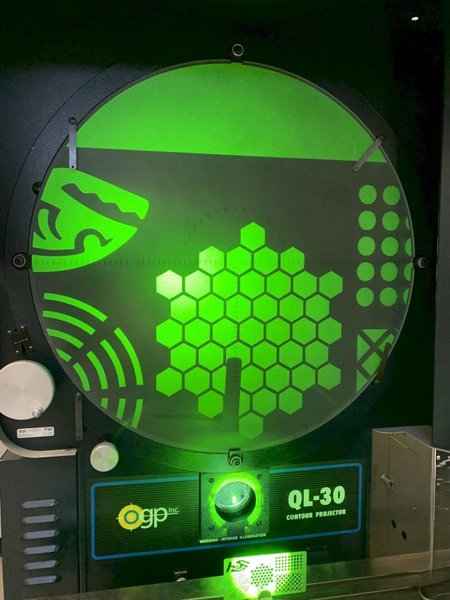

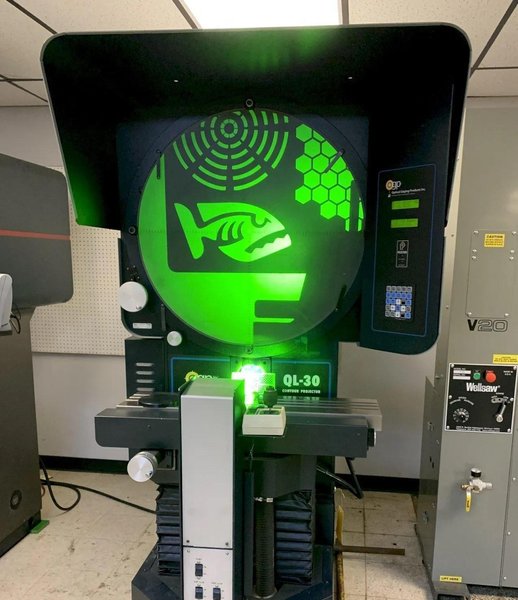

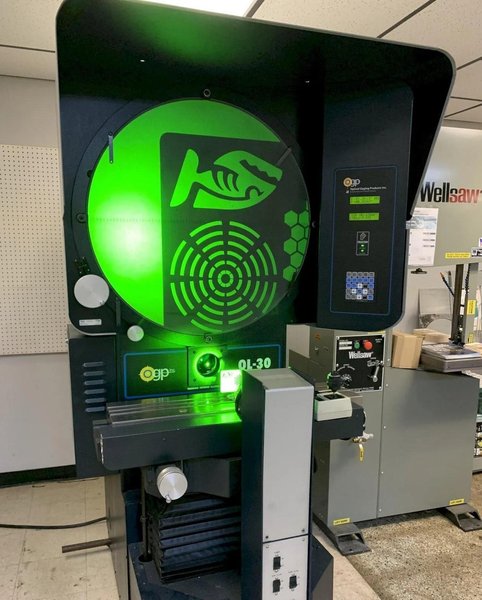

30" OGP (Optical Gaging Products) Model QL30 Optical Comparator & Measuring Machine
Brand
Category
Type
Model
QL30
Stock #
34930
Year
2006
Condition
Used
Location
Ohio
|
Specifications:

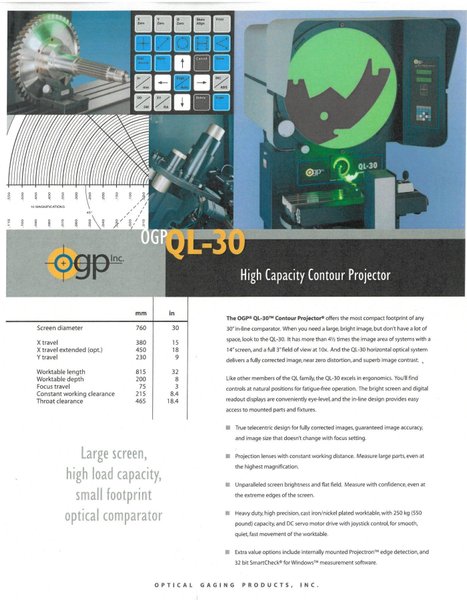

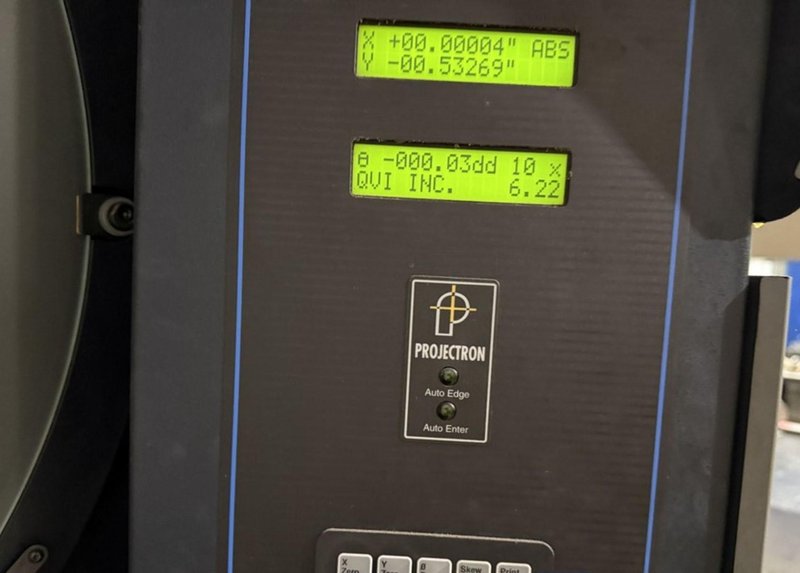

Screen Diameter - 30" Table Size - 8" x 32" Table Horizontal Travel - 15" Table Vertical Travel - 9" Table Helix Adjustment - ± 15º Focus Adjustment - 3" Constant Working Clearance - 8.4" Collimator to Focal Plane - 10" Throat Clearance - 18.4" Table Load Capacity - 550 Lbs. Power Requirements - 115 VAC, 50/60 Hz, 1 Ph Approx Dimensions - 71" FB x 42" LR x 80" H Approx Net Weight - 1700 Lbs. Equipped with: OGP Geometric Measuring Processor / Digital Readout System 0.00004" Resolution Scales Projectron Internally Mounted Edge Detection Digital Angle Display Power Table Travels with Joystick Control Power Lens Turret with (X) Lenses - pending LED Projection Lighting Upgrade Mercury Arc Surface Illumination Helix Table Unreversed Image Operator Manual (.pdf) Notes: Availability pending. Needs cleaned and serviced. Specifications subject to correction and independent verification by the buyer. Shipping quotes available on request. Number of OGP QL machines previously sold by AMC - 29 |
