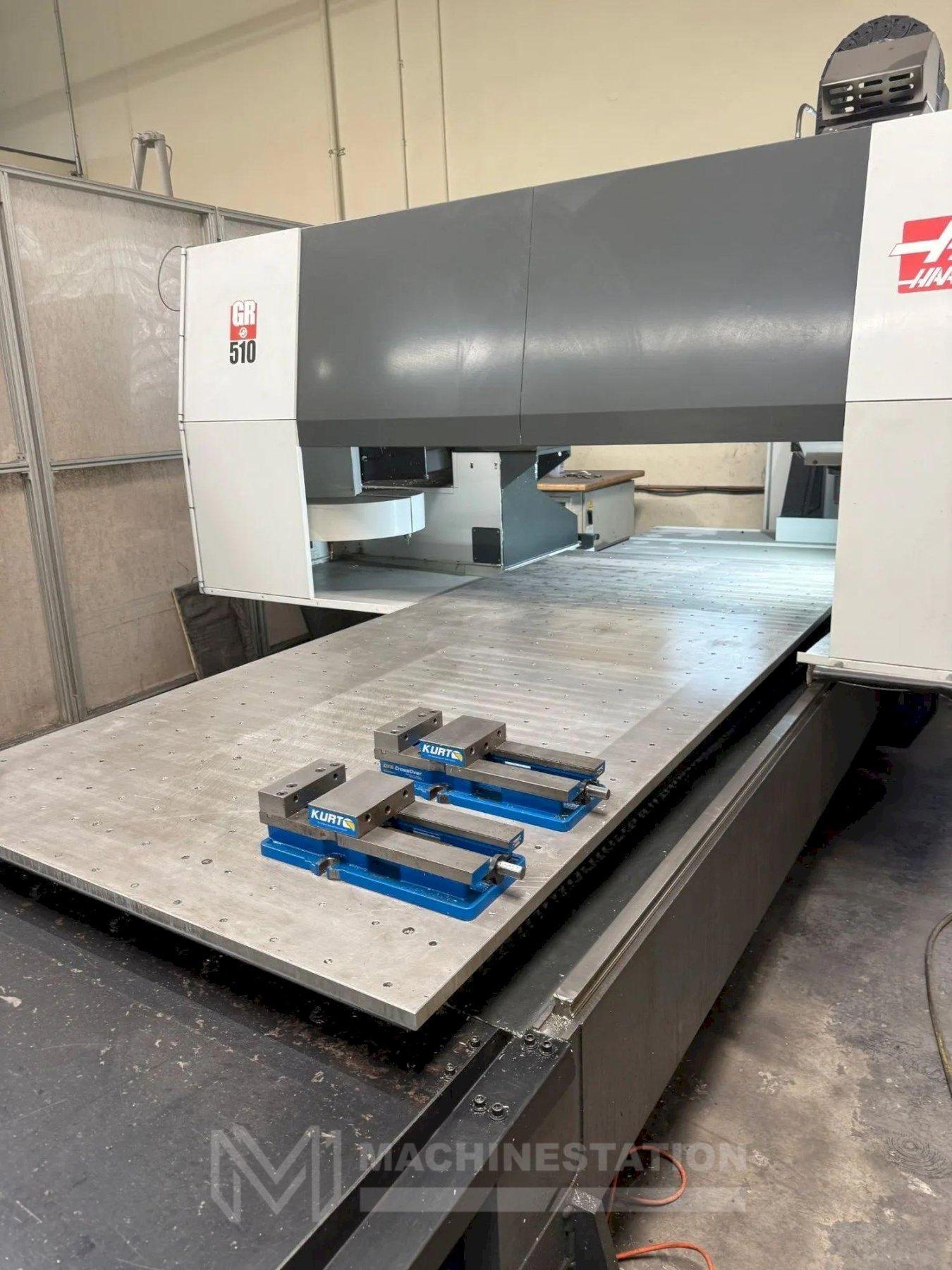

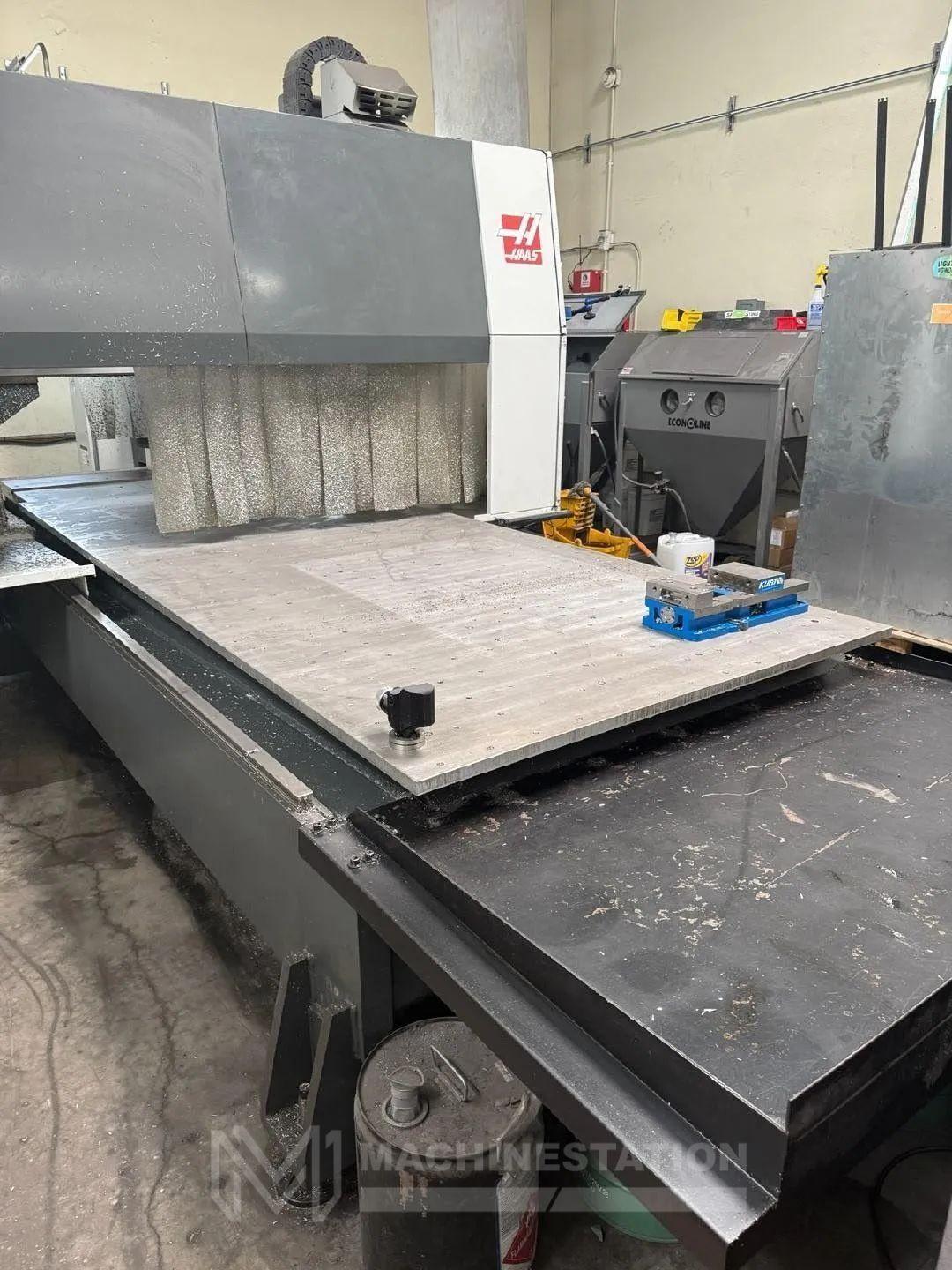

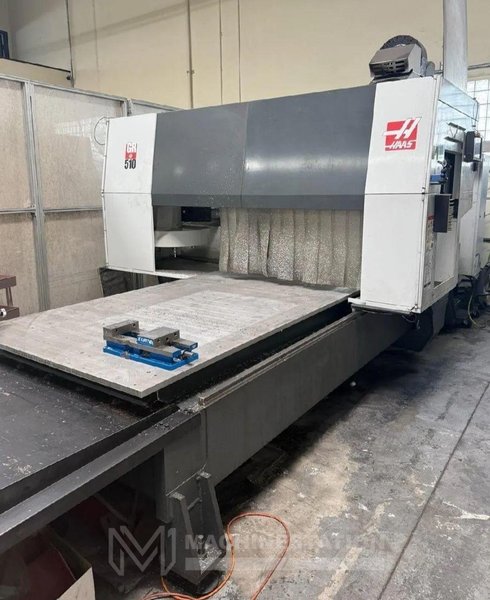

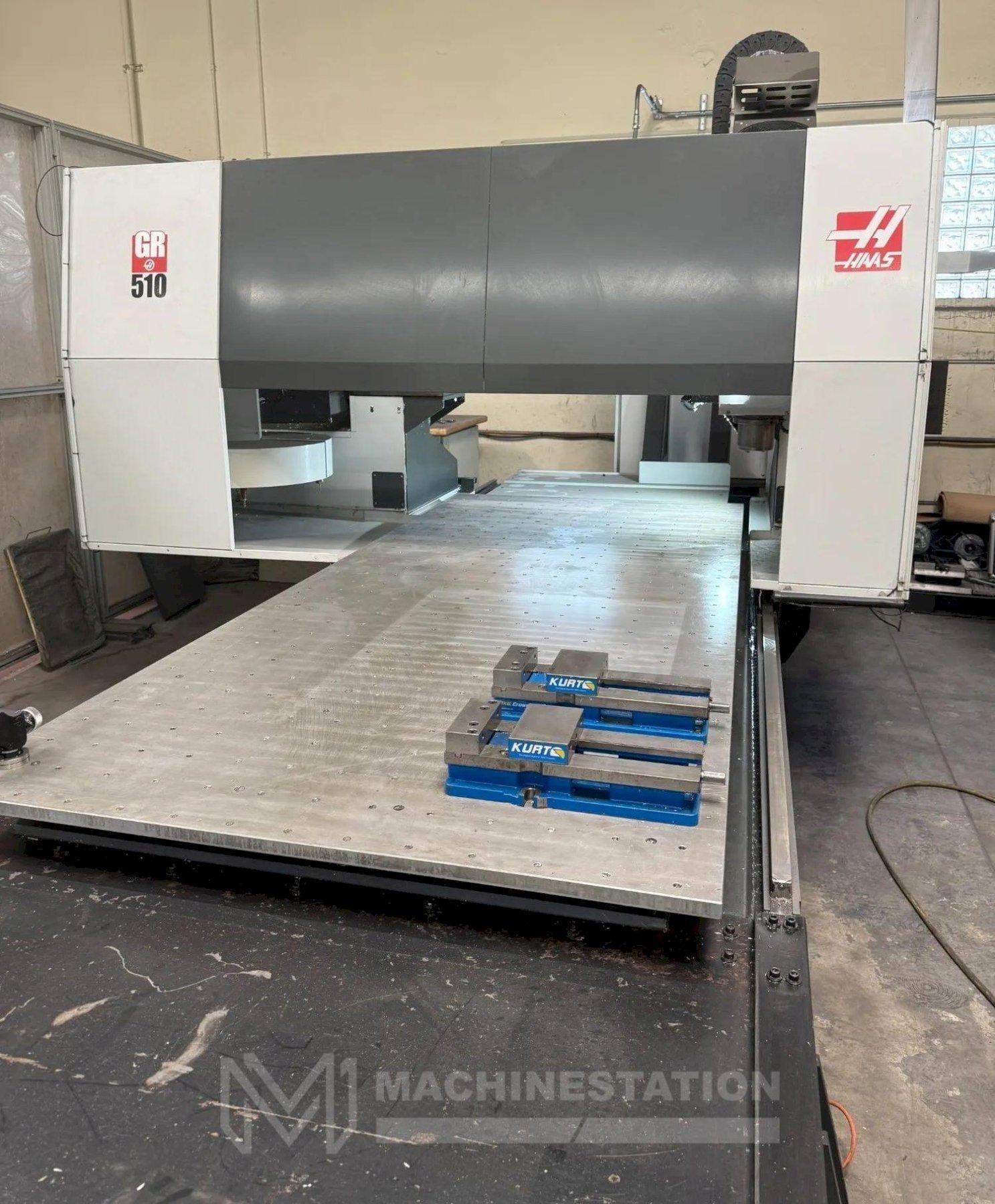

Haas GR-510 CNC Gantry Router – 2022 Mill

Brand
HAAS
Category
Milling Machines
Type
Millers, Gantry/Bridge
Model
Haas GR-510
Stock #
115094
Year
2022
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: GR-510
Year: 2022
Condition: Used – Excellent

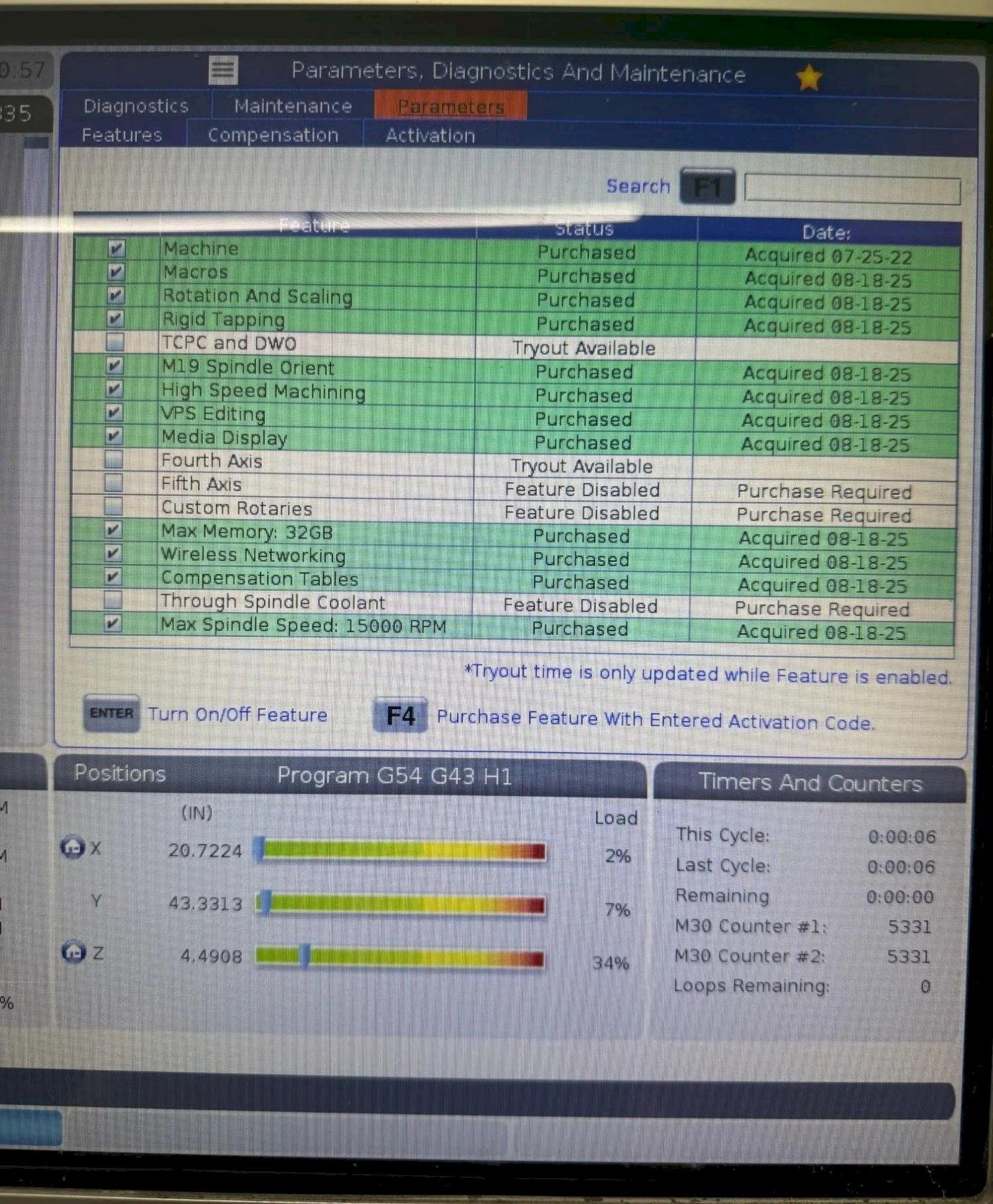

Features:
Haas CNC Control
15,000 RPM High Speed Spindle (Upgraded $12,595 value Included)
20 Station Automatic Tool Changer (Upgraded $5,595 value Included)
WIPS – Wireless Intuitive Probing System (Upgraded $6,395 value Included)
High Speed Machining (Upgraded $3,895 value Included)
Rigid Tapping (Upgraded $1,895 value Included)
Spindle Orientation
Visual Part Programming System
User-Definable Macros
Coordinate Rotation and Scaling
Remote Jog Handle
32 GB Expanded Memory (Upgraded $1,695 value Included)
8 additional M Codes
Early Power-Failure detection
Coolant System
Chip Strainer



Travels:
X-Axis: 121″
Y-Axis: 61″
Z-Axis: 11″
Spindle Nose to Table (Min.- Max.): 2.5″ – 13.5″



Feed Rates:
Cutting Feed Rates: 800 Inch per Minute
Rapid Traverse Rates:
X Axis: 800 Inch Per Minute
Y Axis: 2100 Inch Per Minute
Z Axis: 1100 Inch Per Minute



Table:
Length: 122″
Width: 53″
Max Weight on Table: 6,000 lbs
Between Columns: 62″



Spindle:
Taper Size: 40
Speed Range: 15,000 RPM
Spindle Power: 15 HP



Automatic Tool Changer:
Capacity: 20 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″



General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 206″ x 111″ x 108″ High
Weight: 19,400 lbs
