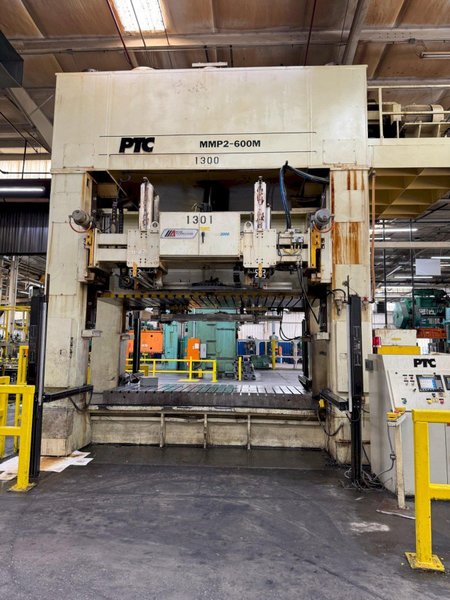

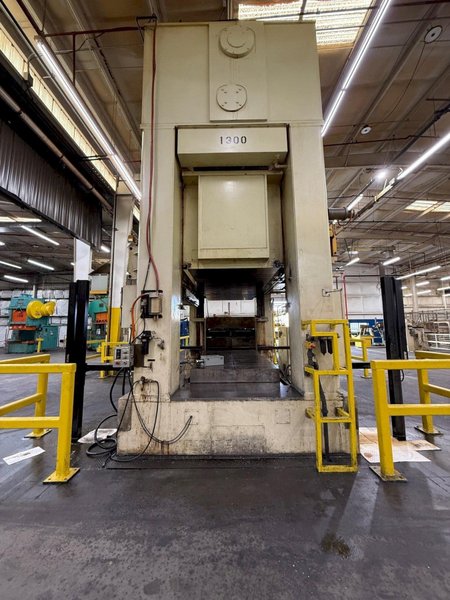

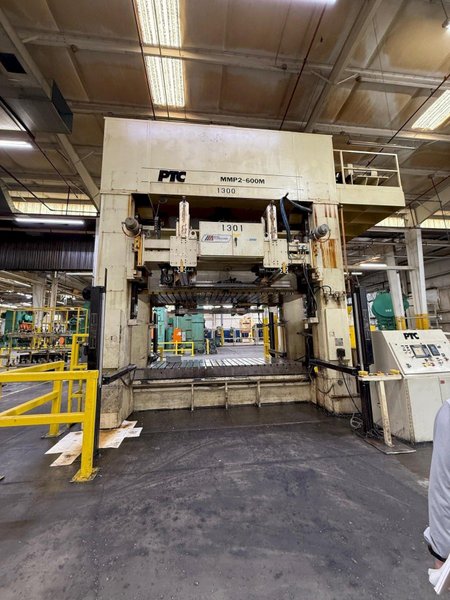

600 ton PTC Transfer / Progressive Die Press Model MMP2-600M Straight Side Mechanical Press For Sale, Year 2003

600 ton PTC Transfer / Progressive Die Press Model MMP2-600M Straight Side Mechanical Press For Sale, Year 2003

Name: 600 ton PTC Transfer / Progressive Die Press Model MMP2-600M Straight Side Mechanical Press For Sale, Year 2003
Brand: PTC
SKU: 2963
Availability: InStock

Brand

PTC

Location

Michigan

REQUEST FINANCING

Specifications
Files & Videos

Tonnage	600
Stroke	22 inches
Shut Height	54 inches
Adjustment	12 inches
Bed Size	144" LR x 60" FB
Ram Area	144" LR x 60 FB
SPM	15-35

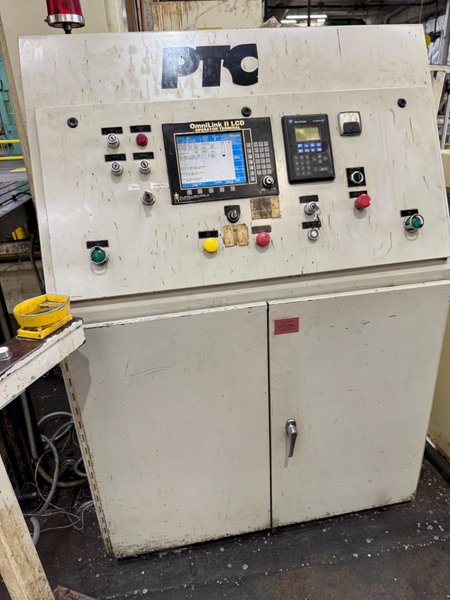

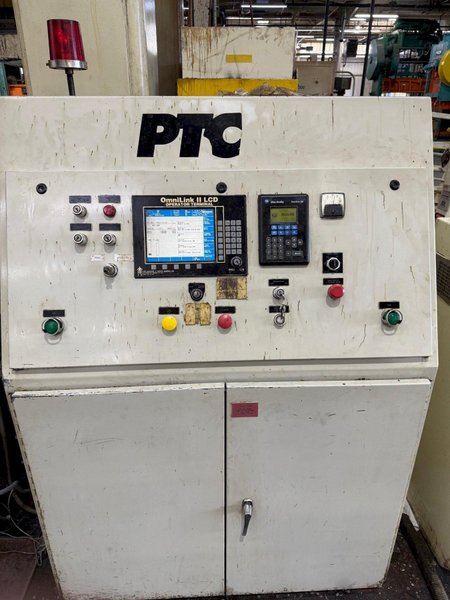

Preliminary Specifications 600 - Metric Ton Metal Stamping Press 660 - US Ton Capacity PTC Press Model MMP2-600M Transfer Press and Progressive Stamping Press 22" Stroke 54" Shut Height 45" Shut Height over Bolster 12" Motorized Adjustment 144" LR x 60" FB Bed Area 144" LR x 60" FB Slide Area 15-35 VSPM Equipment and Features Air Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster Allen Bradley Variable Speed Drive 70" Wide Windows Heavy Duty Construction 9" Thick Bolster Plate Omni Link II LCD Press Controls Atlas Technologies Servo Transfer - With Allen Bradley Controls Overall Height 21' 3" Floor to Top of Motor Can be seen under power upon request in the plant! A PTC 660-ton mechanical transfer press, such as the Model MMP2-600M, is an industrial machine used for high-volume metal stamping and forming. These presses are known for their speed and precision, using a series of dies to perform multiple operations on a single part in one continuous cycle. With a 660-ton capacity, they are capable of handling heavy-duty applications. The "transfer" feature automates the movement of the workpiece between stations, increasing efficiency and reducing labor costs. In addition to being efficient, the transfer feature ensures part consistency by minimizing manual handling and potential errors. This type of press is commonly used in the automotive and appliance industries to produce complex parts like vehicle body panels or washing machine tubs. The advanced control systems on modern presses allow for precise management of speed, force, and timing.
