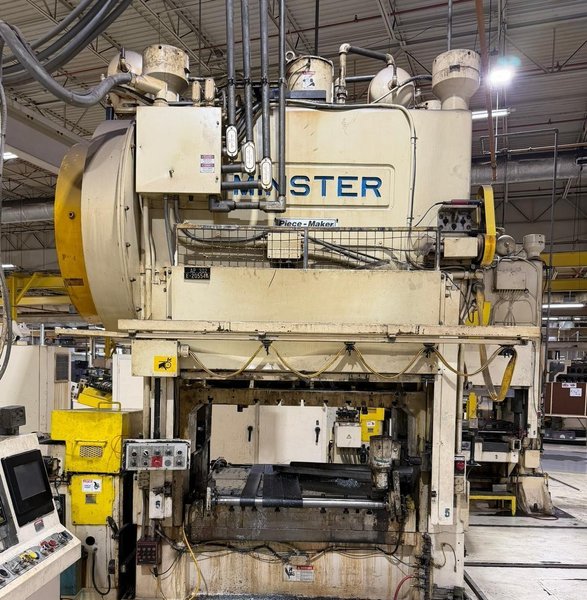

150-ton Minster "Piece-Maker" Back Geared Straight Side Press Model P2-150-60 For Sale, Year 1996 - Includes Coil Feed Line

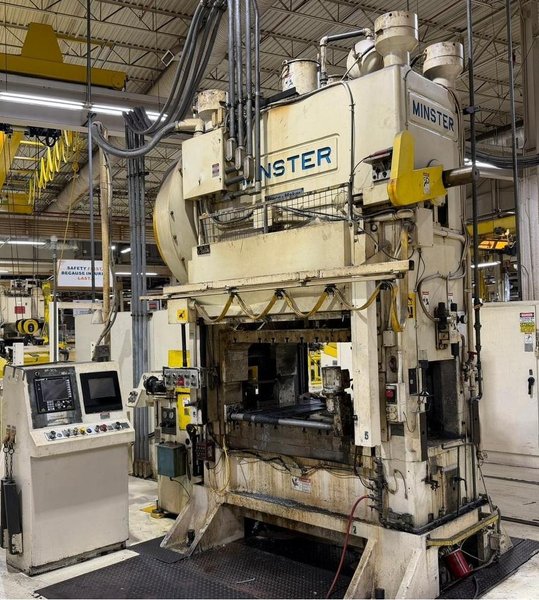

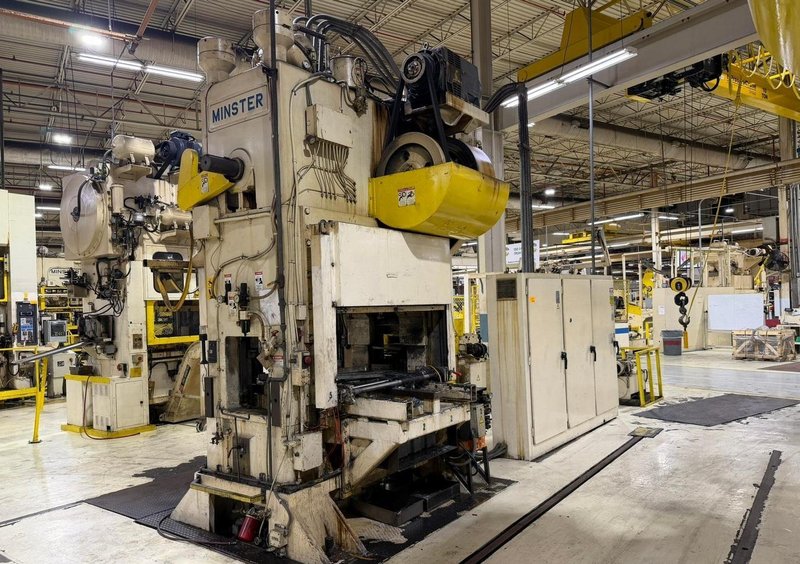

150-ton Minster P2-150-60 Geared Press For Sale

"Piece-Maker" Straight Side Metal Stamping Press

Includes Fully integrated Minster 10,000 lbs. x 20" Servo Coil Feed Line

Year 1996 - Can be Seen Under Power!

Standard Press Specifications

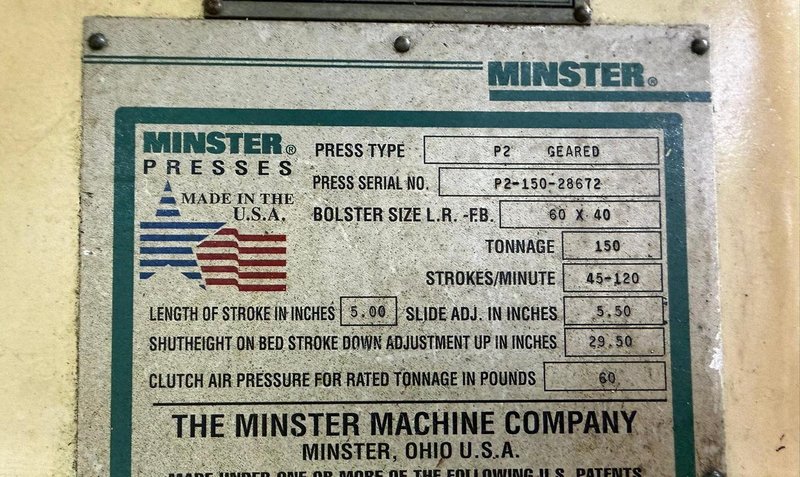

Minster Press Serial Number P2-28672 Geared
150-ton Capacity
5" Stroke
29.5" Shut Height on Bed (SDAU)
23.5" Shut Height on Bolster (SDAU)
5.5" Motorized Adjustment
60" LR x 40" FB Bed Area
60" LR x 40" FB Slide Area
45-120 Variable Stroke Per Minute

Equipment and Features
Minster Combination Pneumatic Clutch and Brake
Air Counterbalances
Minster Monitor Flow Lubrications System
Single Geared
Air Operated Flywheel Brake
Two Point Eccentric Shaft
Eight adjustable bronze gibs
T-Slotted Ram
25 HP, 1800 RPM, 60 Cycle Main Motor
Hydraulic Tie Rod Nuts

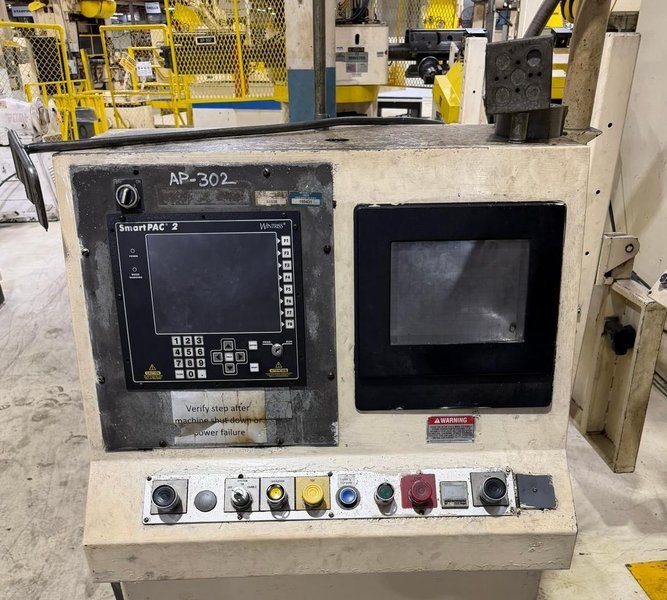

Press Controls Include:
Toledo Transducer PW4 Load Analyzer with four (4) strain links mounted on uprights
Allen Bradley PLC-5/30 programmable controller
Allen Bradley "Panel View" operator interface for the press and ancillary equipment

• Tool storage (8 digit number) for 50 tools.
• Limit switch settings stored with tool number.
• Automatic press shut height and speed (SPM)  adjustment set from tool number.
• All feed parameters including feed length, feed timing to press stroke, material acceleration, stock guide width, and material pass line setting set from tool number.

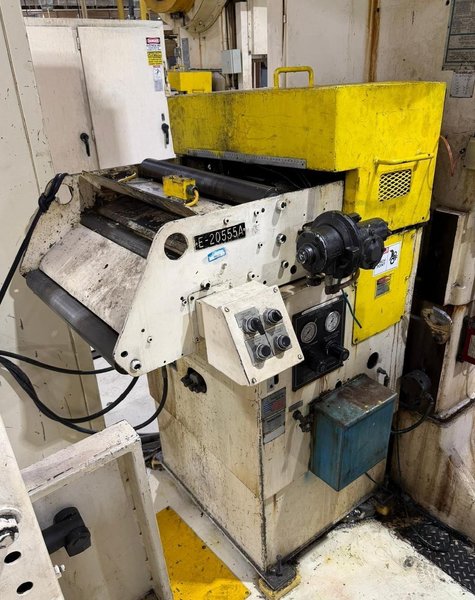

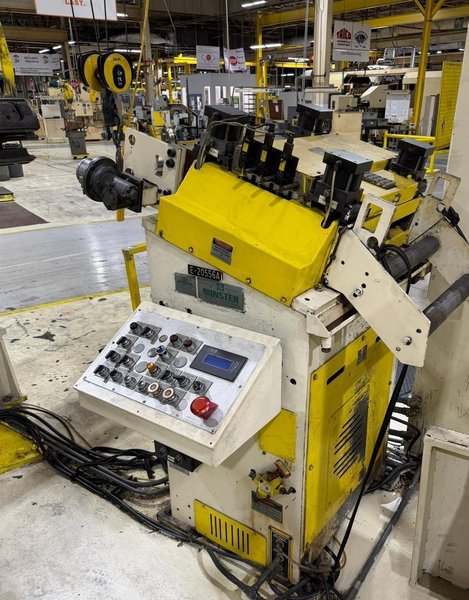

• Straightener work roll and stock guide settings set from tool number.
• Programming of die protection inputs (8 channels) to match die sensing for tool number
• Programming of parts counters for tool numbers.
• Programming of auxiliary equipment timing to press stroke such as air blowoffs, spray lubrication, and die functions.
• Operator prompting and diagnostic capability.
• Controls die clamping.

6" Thick Bolster Plate
20" Wide Windows
Floor Standing with Vibro-Dynamic Floor Pads

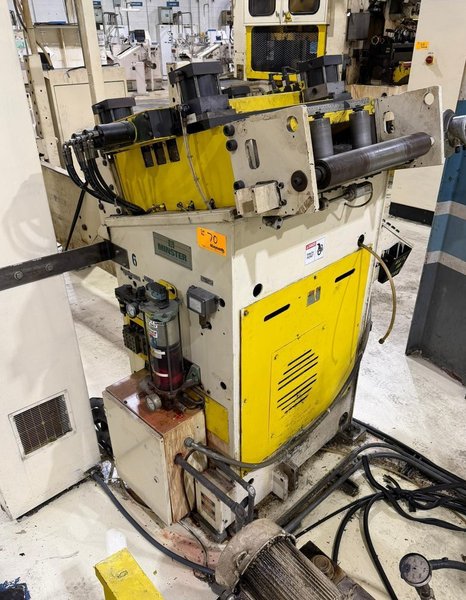

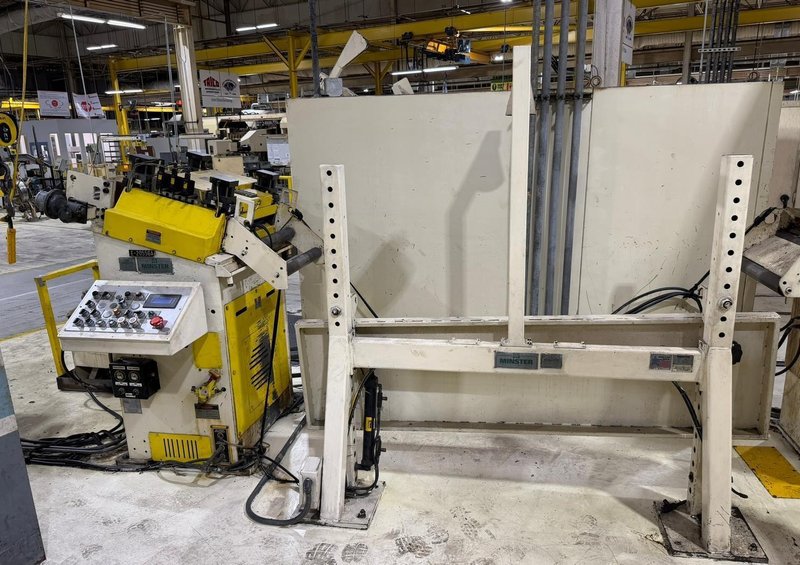

Minster Conventional Coil Feed Line Specifications:
10,000 lbs. Coil Weight Capacity (per side)
20" Maximum Coil Width
.110" Capacity at Full Material Width
.020" Minimum Thickness Material
.200" Maximum Thickness at 5" Width
20"-24" Coil I.D. Range
60" Maximum Coil O.D.
Left to Right Feed Direction
60-600 IPM Line Speed

Minster Conventional Coil Feed Line Equipment and Features:

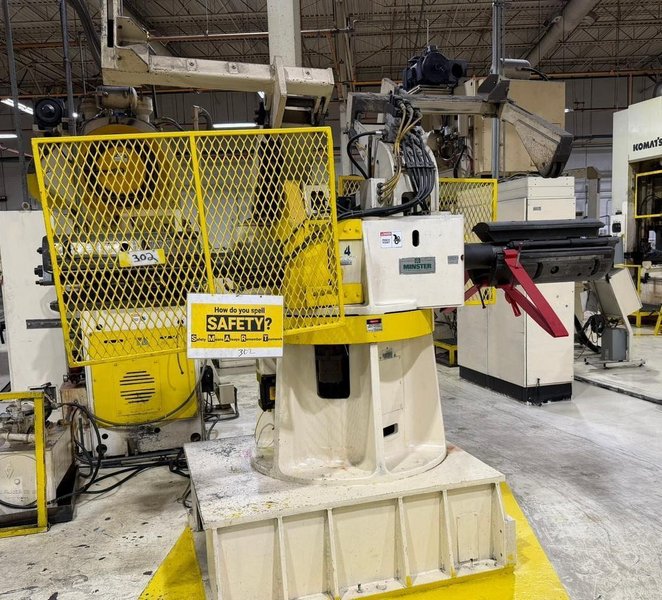

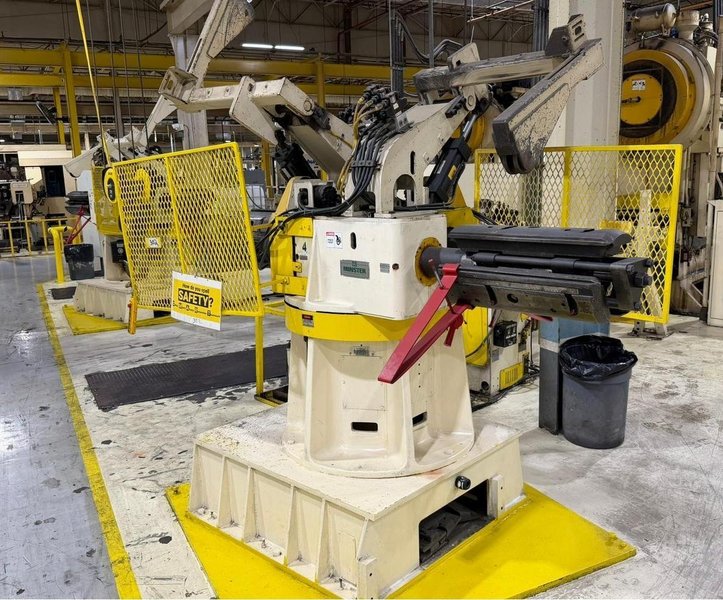

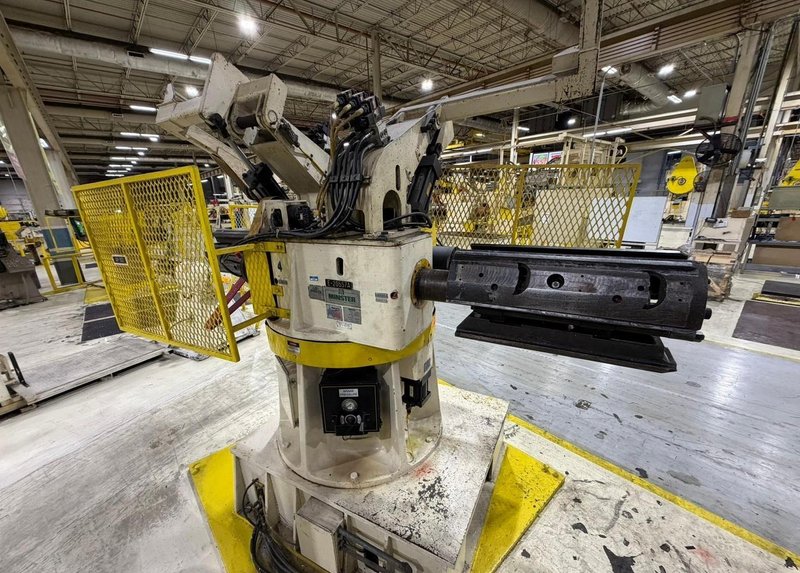

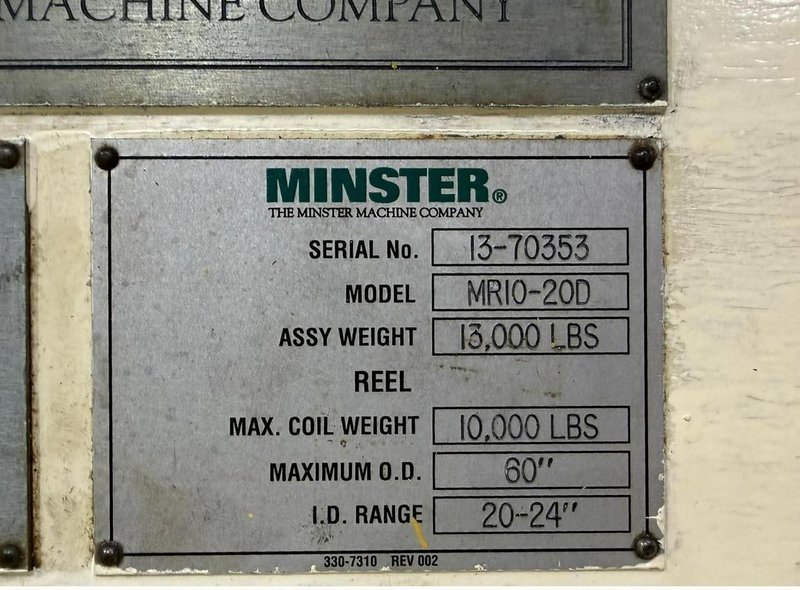

Minster Pull Off Double End Coil Reel Model# MR10-20D, SN/ 13-70353
Three leaf mandrel coil reel per side
Coil reel keeper arms
Hydraulic mandrel expansion
Air drag brakes mounted on main coil reel spindles
Outboard air regulators for drag brake adjustments
Hydraulic threading drives for jog forward and reverse
Hydraulic operated coil hold down arms
Motorized coil hold down arm end wheels
Air operated turret locking pin
Hydraulic turret rotation
Self Contained Hydraulic Unit
