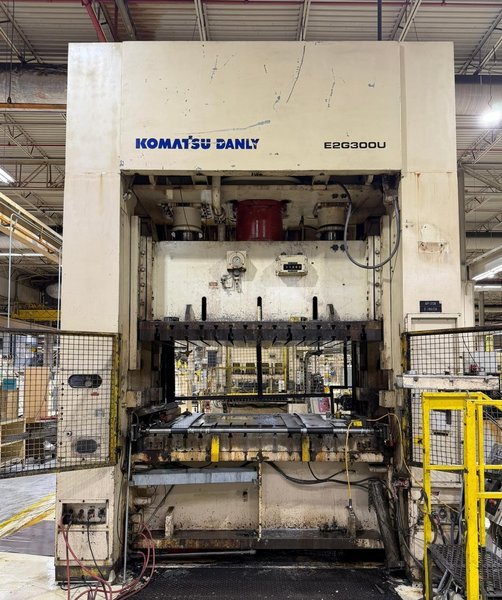

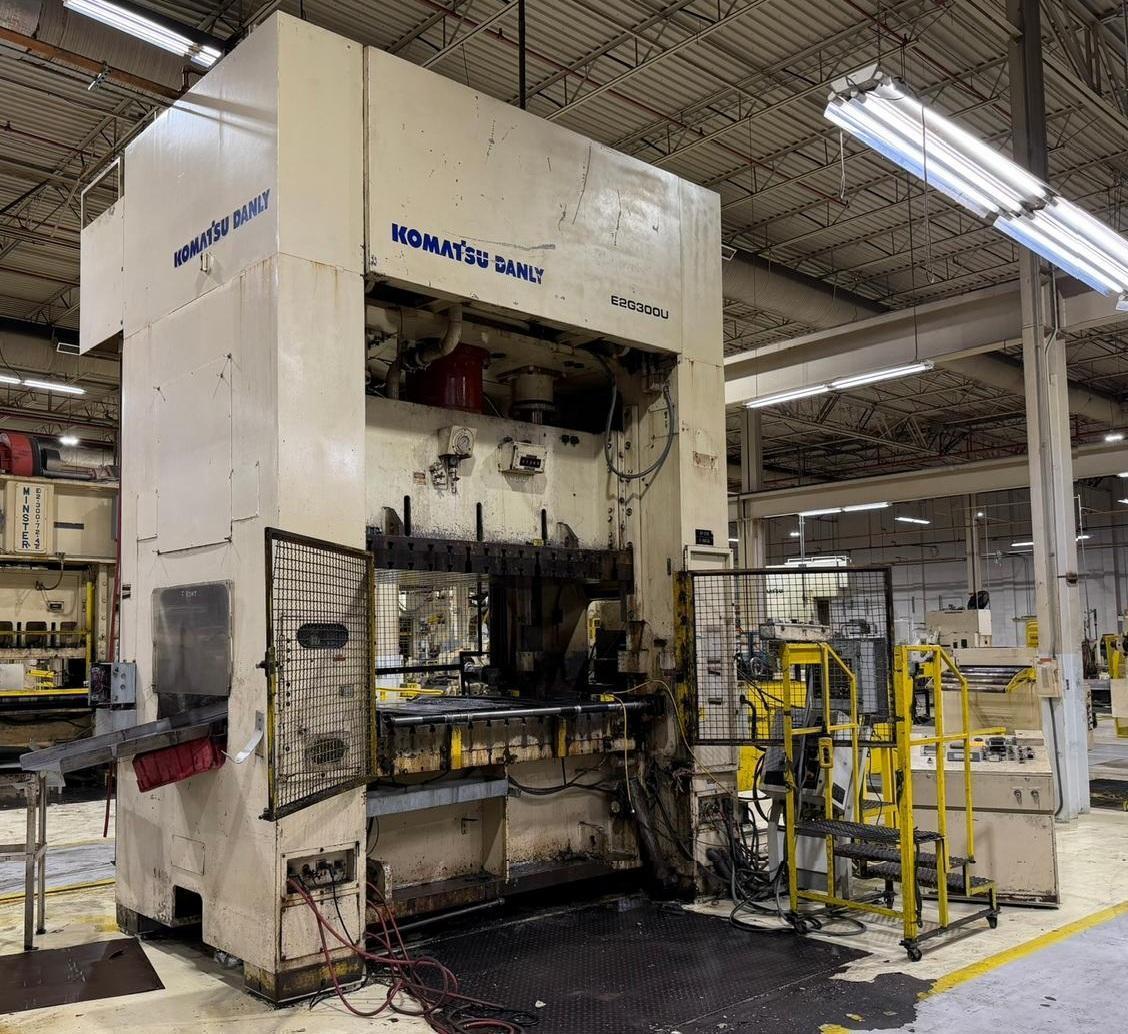

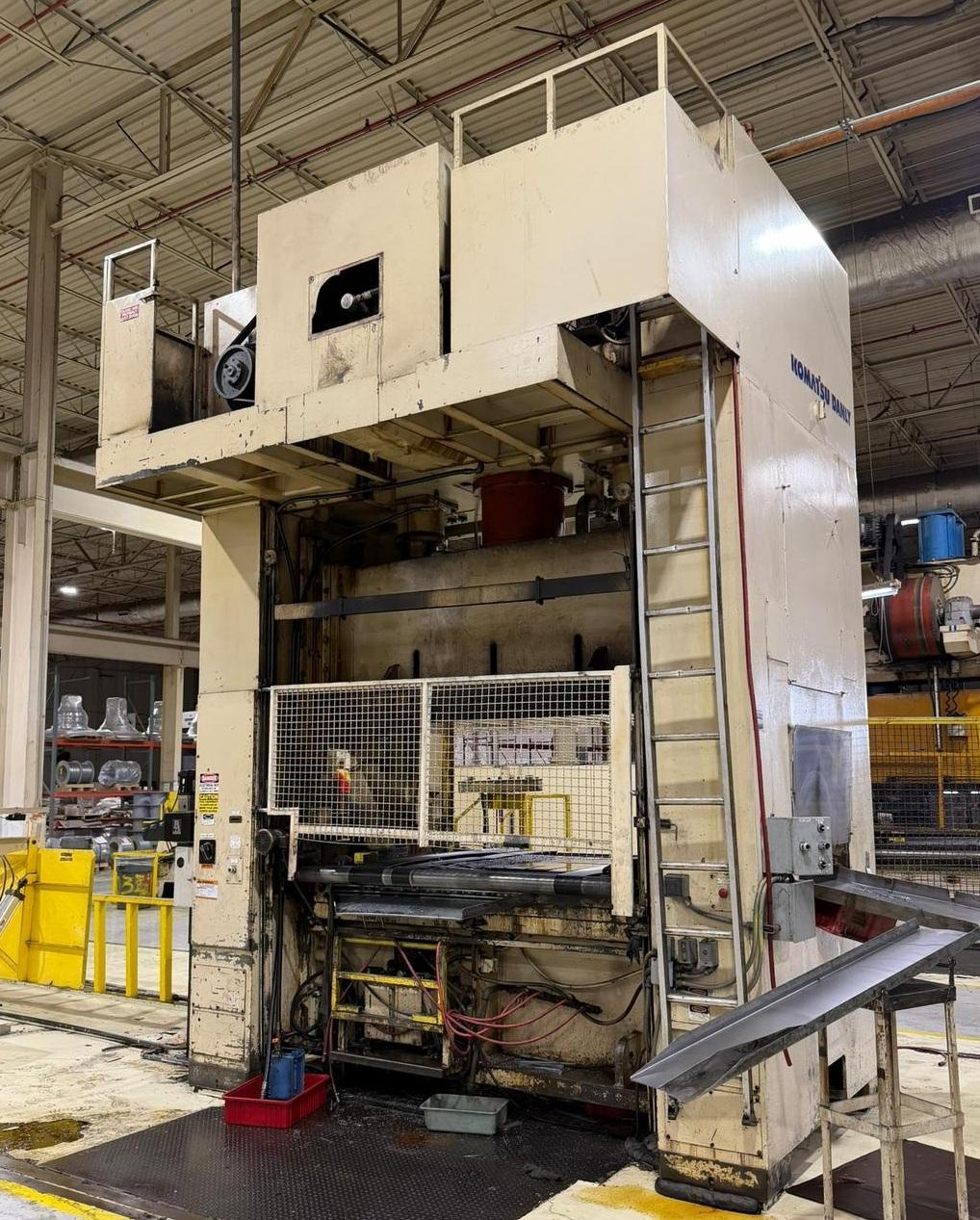

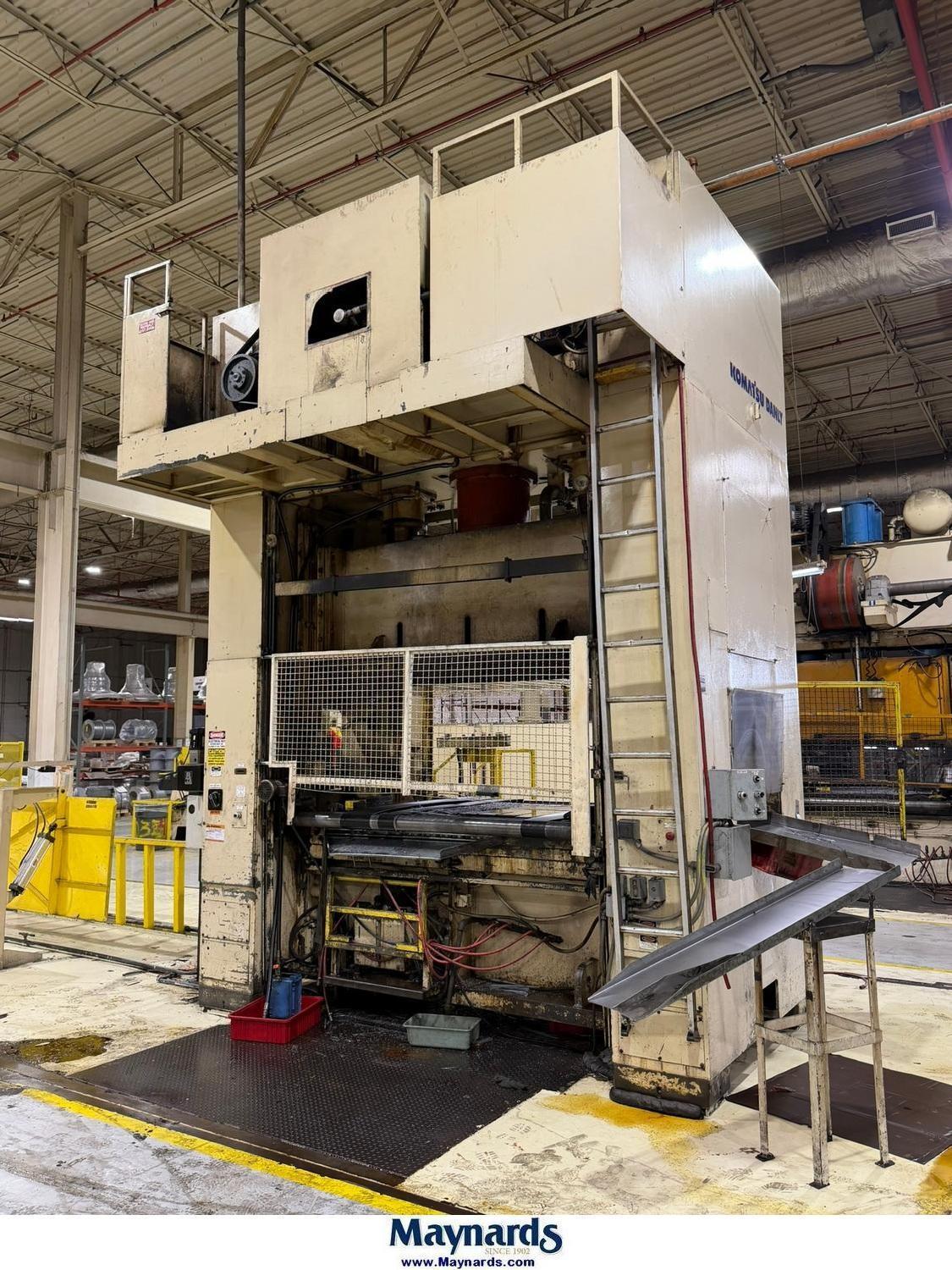

1991 KOMATSU E2G-300U 300 Ton Straight Side Press - Used Metal Stamping Press
Brand
Category
Model
E2G-300U
Stock #
3037
Year
1991
Condition
Used
Location
Michigan
| Tonnage | 300 |
| Stroke | 14 inches |
| Shut Height | 39.8 inches |
| Adjustment | 10.2 inches |
| Bed Size | 98.4 LR x 49.2 FB |
| Ram Area | 98.4 LR x 49.2 FB |
| SPM | 20-40 VSPM |

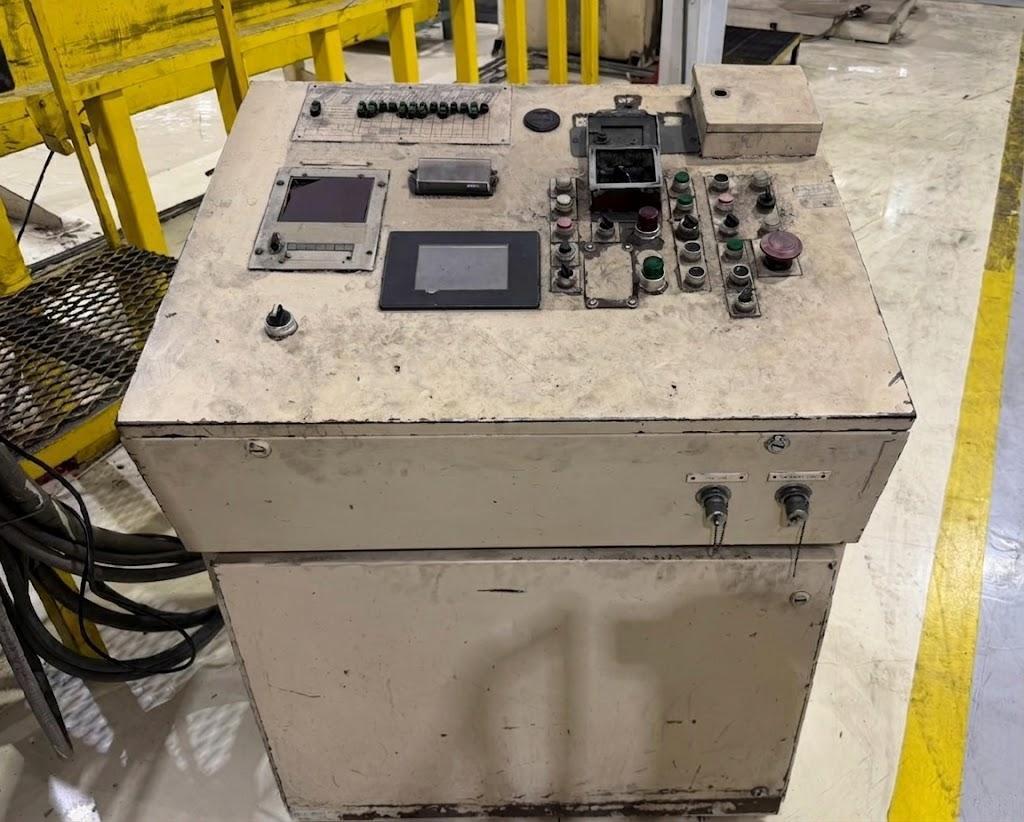

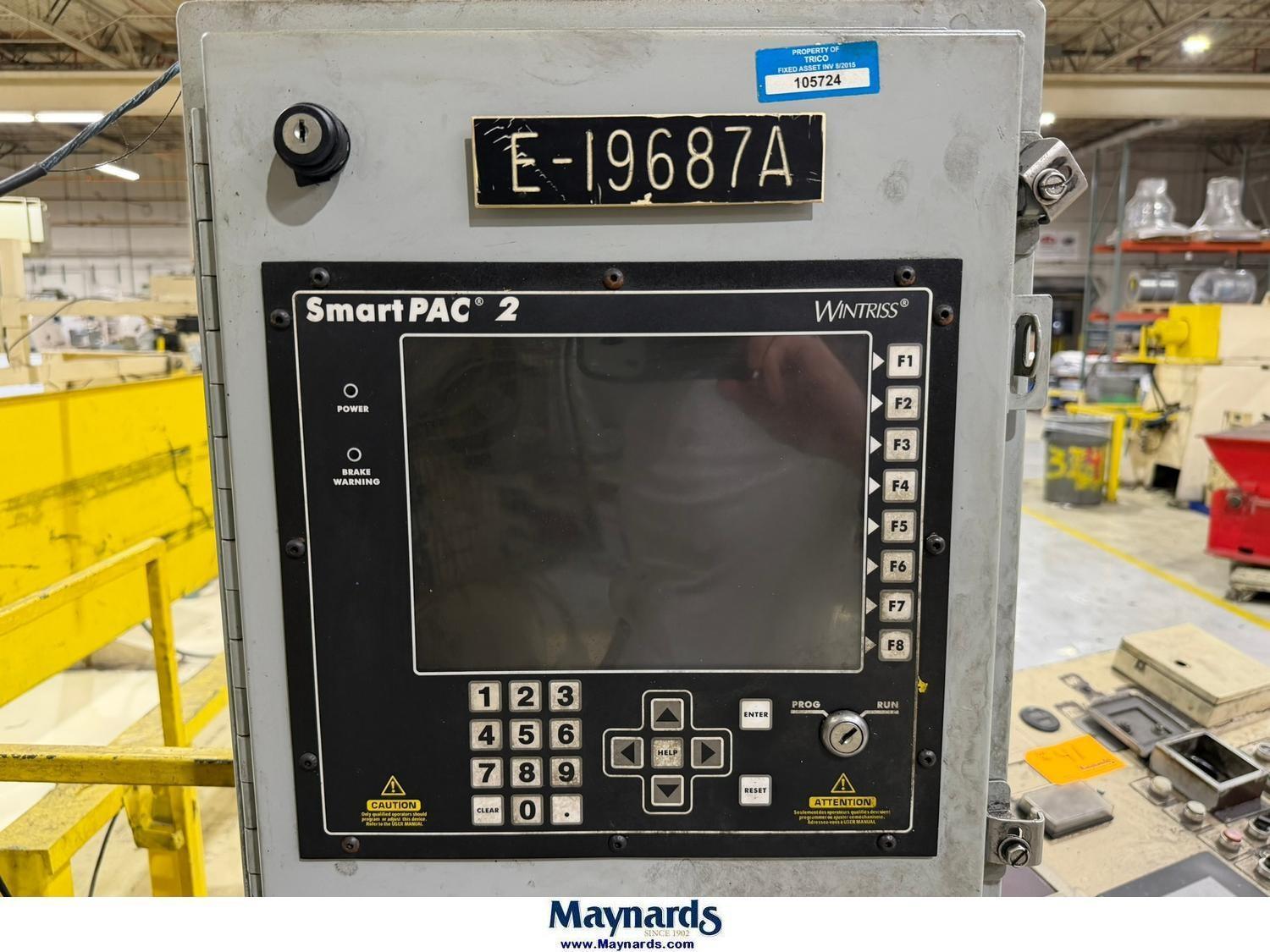

Komatsu 300-Ton Metric Capacity Straight Side Press For SaleMechanical Press Model E2G-300UYear 1991 - Under Power!Preliminary Specifications 300-ton Metric Capacity 330-ton US Capacity Rated @ 1/2" Off Bottom Dead Center 14.2" Stroke 32.3" Shut Height Over Bolster 39.8" Shut Heigh On Bed 10.2" Adjustment 98.4" LR x 49.2" FB Bed Area 98.4" LR x 49.2" FB Slide Area 20-40 VSPM Equipment and Features Hydraulic (Air Actuated) Clutch and Brake Air Counterbalances Recirculating Lube System T-Slotted Ram and Bolster 7.5" Thick Bolster Plate 36" Wide Windows in Side Columns Hydraulic Overloads Wintriss Smart Pac 2 Press Controller 60 HP Main Drive Motor 480V/60 HZ/3 Phase Power 8-Point Gibbing Vibro Dynamic Isolation Pads Floor Standing Dimensions: 18'4" Overall Height - Floor to Top of Press 149" LR x 118" FB Foot Print Can be seen under power in the S&G Press Livonia Michigan Warehouse! |
|
