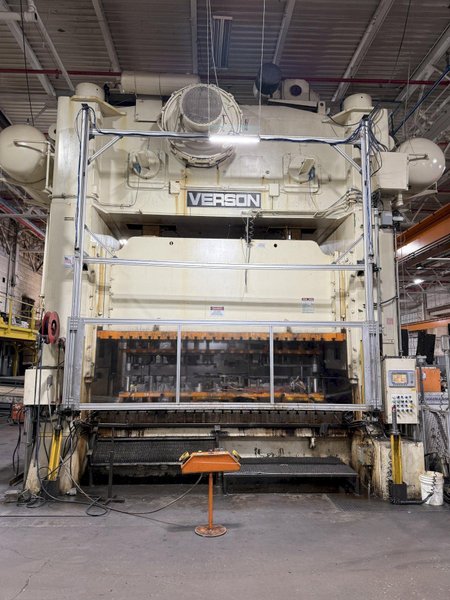

1250 ton Verson Press REBUILT - Straight Side Progressive Die Mechanical Stamping Press For Sale - Model S2-1250-156-60t, Year 1995

1250-ton Verson Straight Side Stamping Press
Progressive Die Stamping Press For Sale
Model S2-1250-156-60t
Year 1995

Standard Specifications
1250-ton Capacity
16" Stroke
46" Shut Height on Bed (SDAU)
36" Shut/Die Height on Bolster (SDAU)
14" Motorized Adjustment
156" LR x 60" FB Bed Area
156" LR x 60" FB Slide Area
20-40 Variable Strokes Per Minute

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
159" Between Drip Trays
10" Thick Bolster Plate
Hydraulic Tie Rod Nuts
250 HP Main Motor
10 HP Slide Adjust Motor

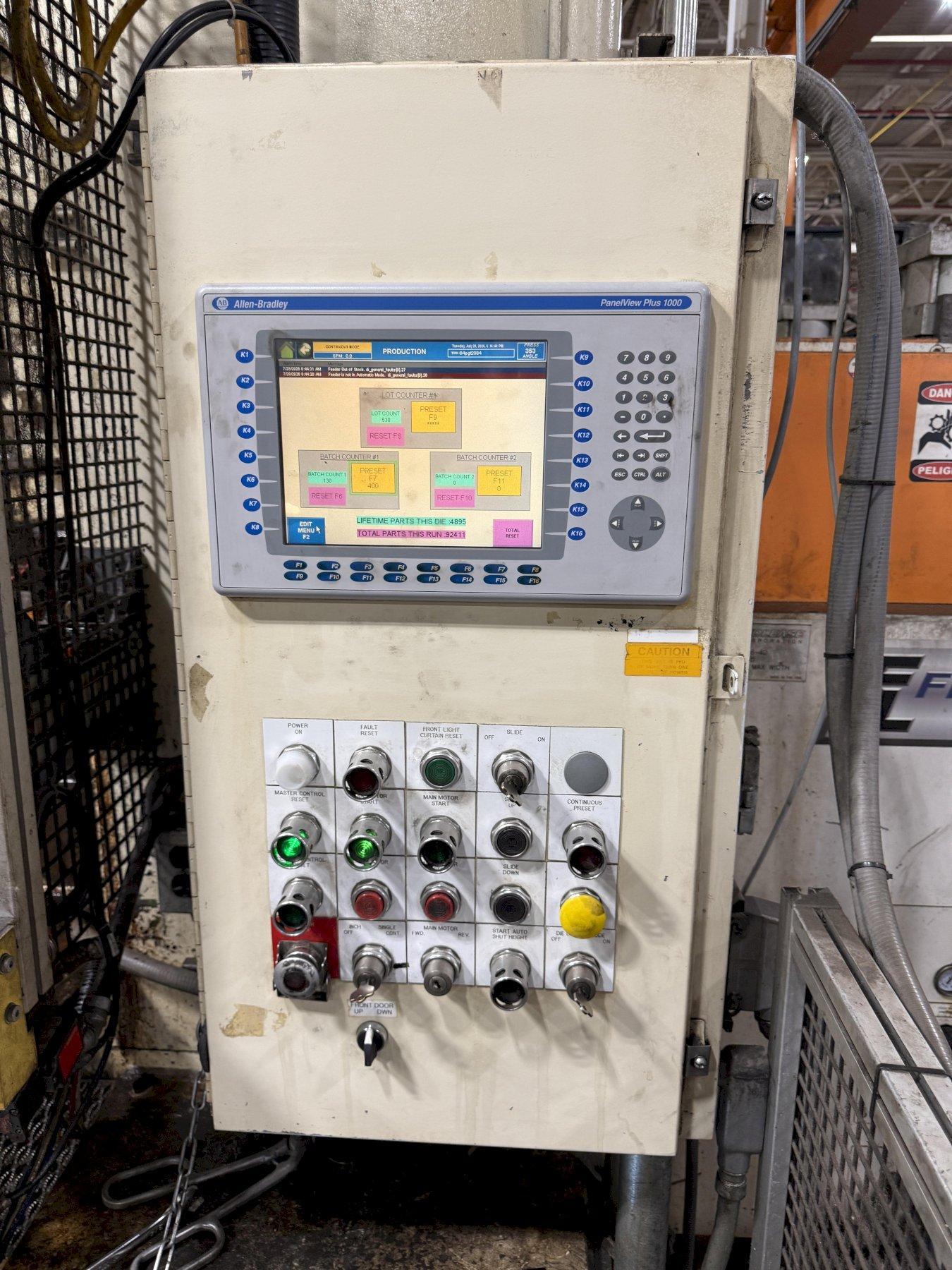

Updated Allen Bradley Press Controls
60" Wide Windows
Flush Floor Design

Total Press Weight - 344,200 lbs.
Overall Height - 312" Tall - 282" Above the Floor

This 1250-ton Verson straight-side stamping press (Model S2-1250-156-60t) is a high-capacity progressive die stamping press for sale at S&G Press & Machinery Sales. Manufactured in 1992, this heavy-duty mechanical press features a generous 156" LR x 60" FB bed and slide area, a 16" stroke, a 36" shut height on bolster (SDAU), and variable speeds of 20 to 40 SPM, making it an exceptional centerpiece for demanding automotive and industrial metal stamping operations. Built with 60" wide side windows, 159" between drip trays, a 10" thick bolster plate, and a flush floor design, it provides the clearance, tonnage, and flexibility required for complex progressive die tooling setups. To ensure maximum production uptime, reliability, and precision performance, this press is being sold fully reconditioned with rebuilt clutch and brake assemblies, rebuilt slide, rebuilt air counterbalances, and replaced slide bushings. Additionally, it comes equipped with updated pneumatic and lubrication systems, hydraulic tie rod nuts, a 250 HP main motor, a 10 HP slide adjustment motor, and updated Allen-Bradley press controls for enhanced operational safety and automation integration. At S&G Press, quality and precision are paramount: all rebuilding, machining, and reconditioning work is performed strictly in-house by our own expert team of technicians, ensuring complete quality control and mechanical excellence from start to finish.

Contact S&G Press & Machinery Sales today for complete specifications, pricing, or to arrange an inspection of this 1250-ton Verson progressive die press.
