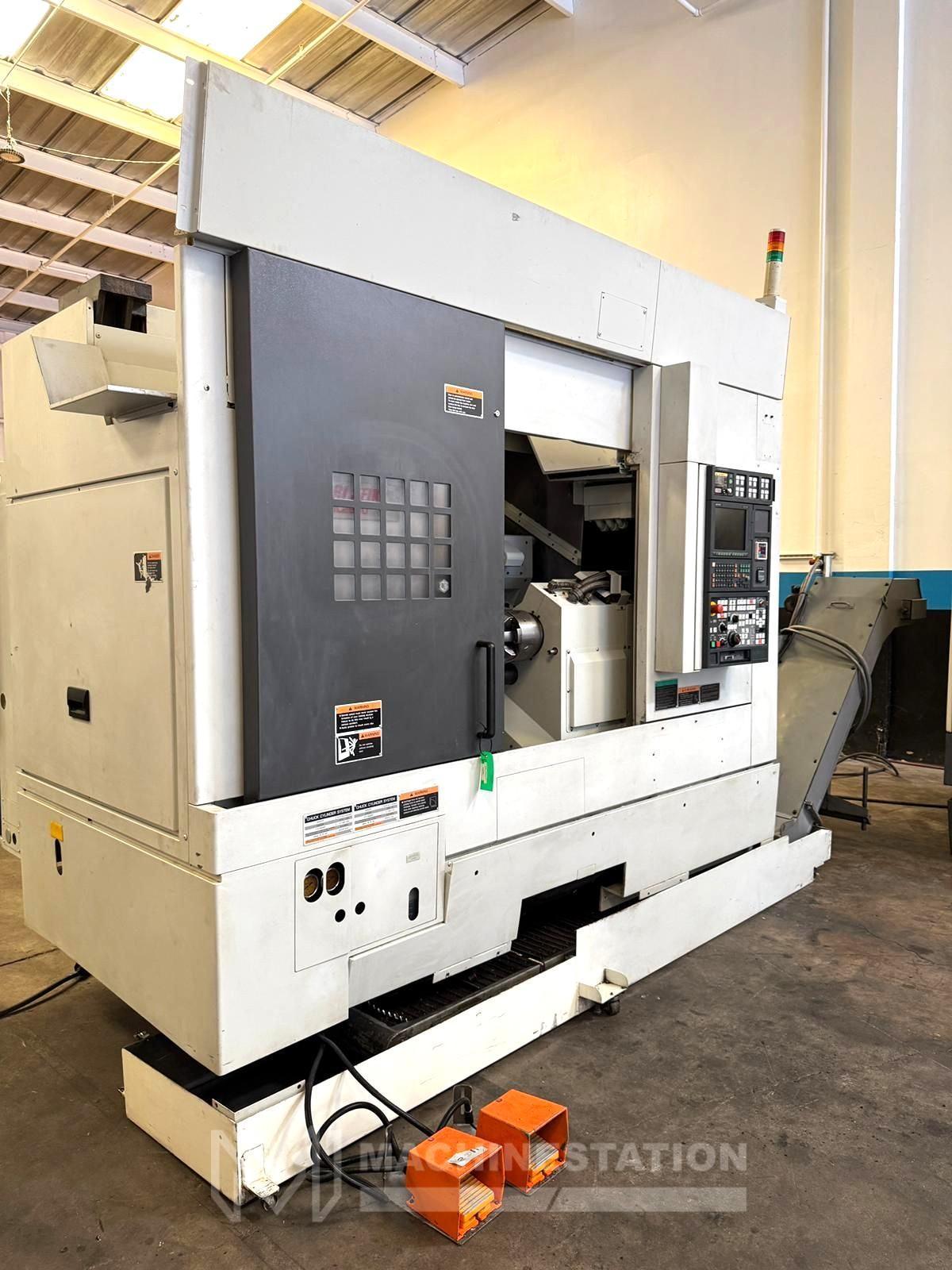

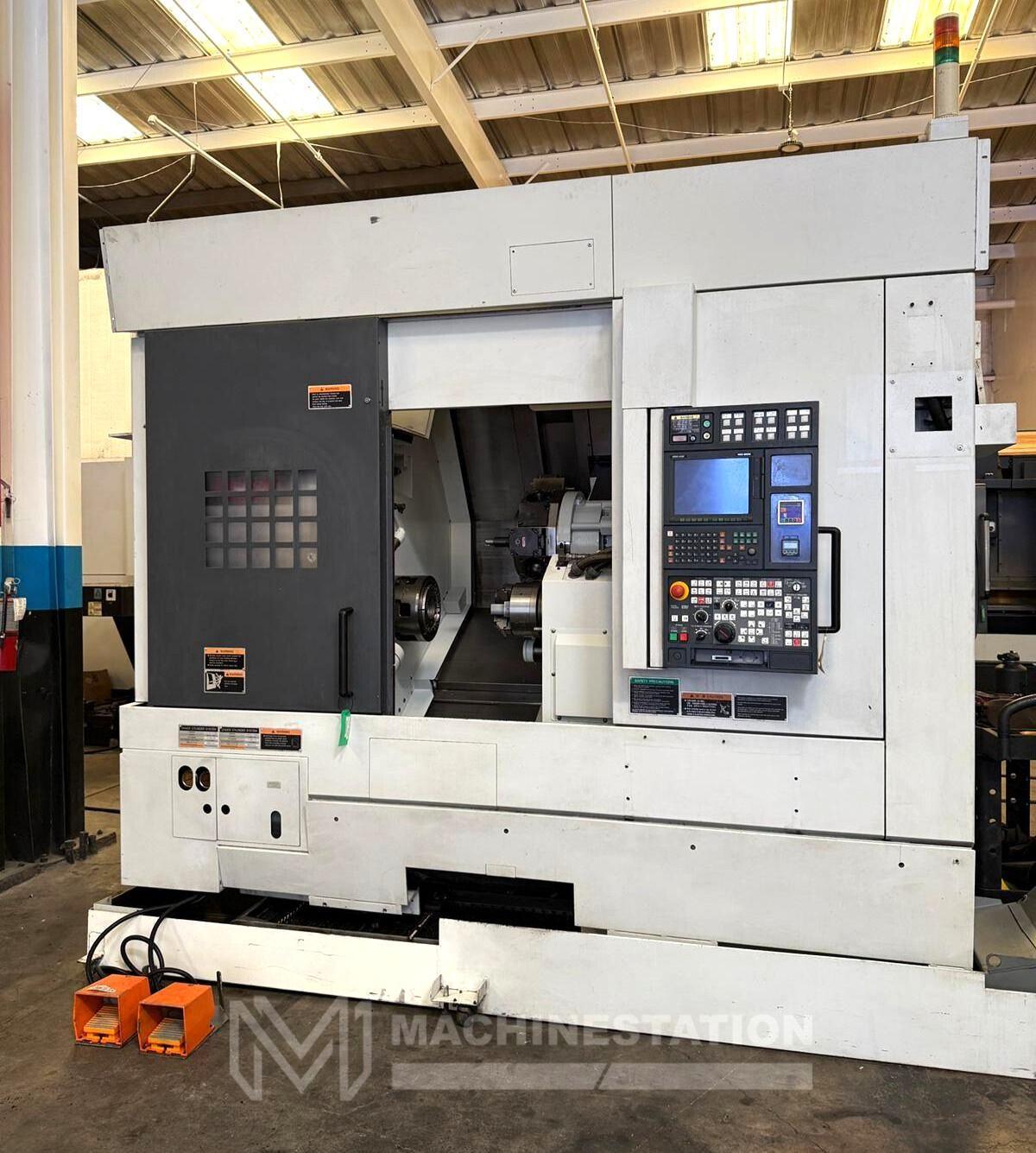

Mori Seiki NL2500SMC/700 CNC Turning Center – Sub Spindle Live Tool Lathe

Brand
MORI SEIKI
Category
Lathes & Turning Machines
Type
Turning Centers
Model
: Mori Seiki NL2500SMC/700
Stock #
112788
Year
2008
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Mori Seiki
Model: NL2500SMC/700
Year: 2008
Condition: Used – Good
Equipped With:

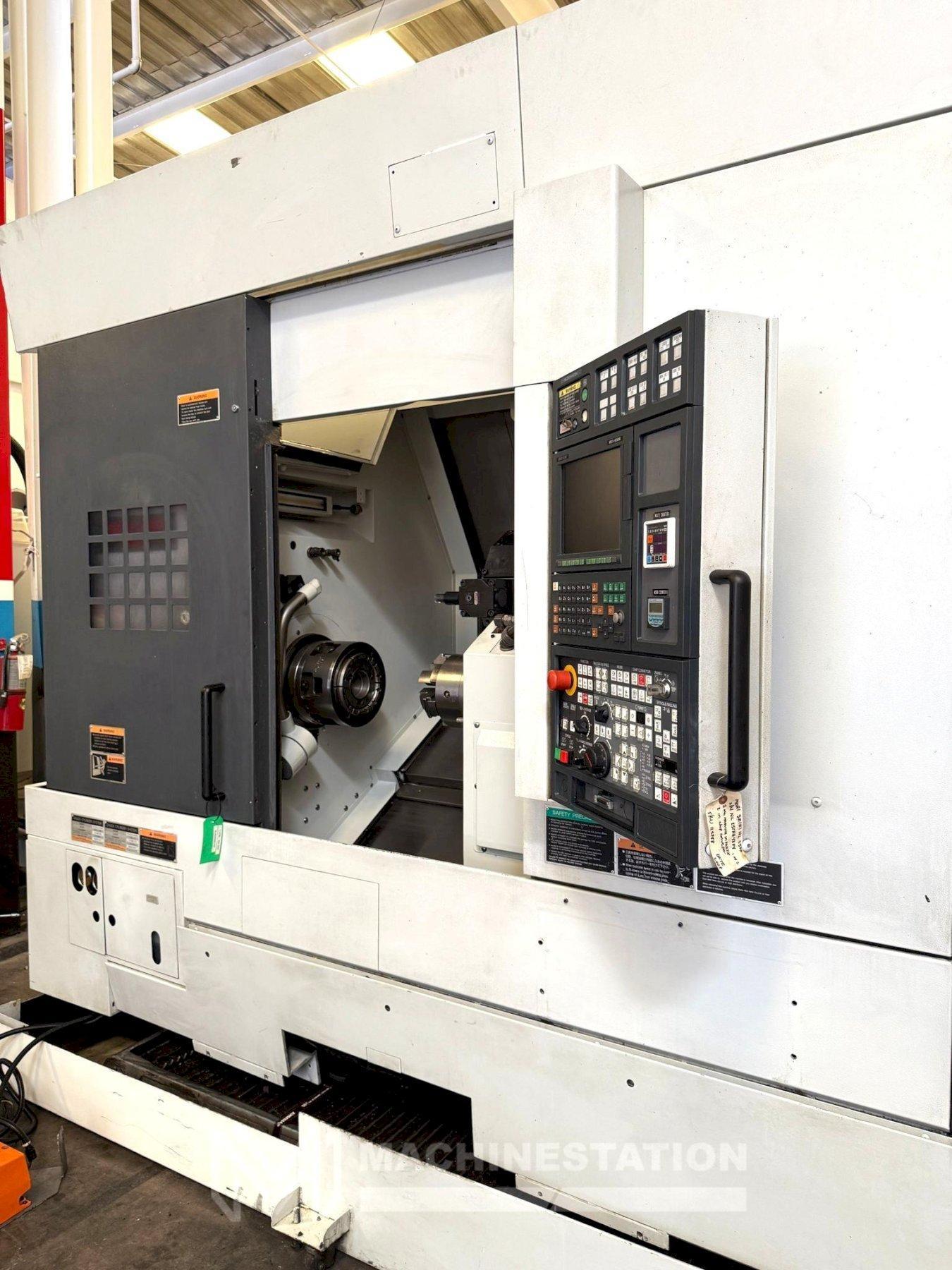

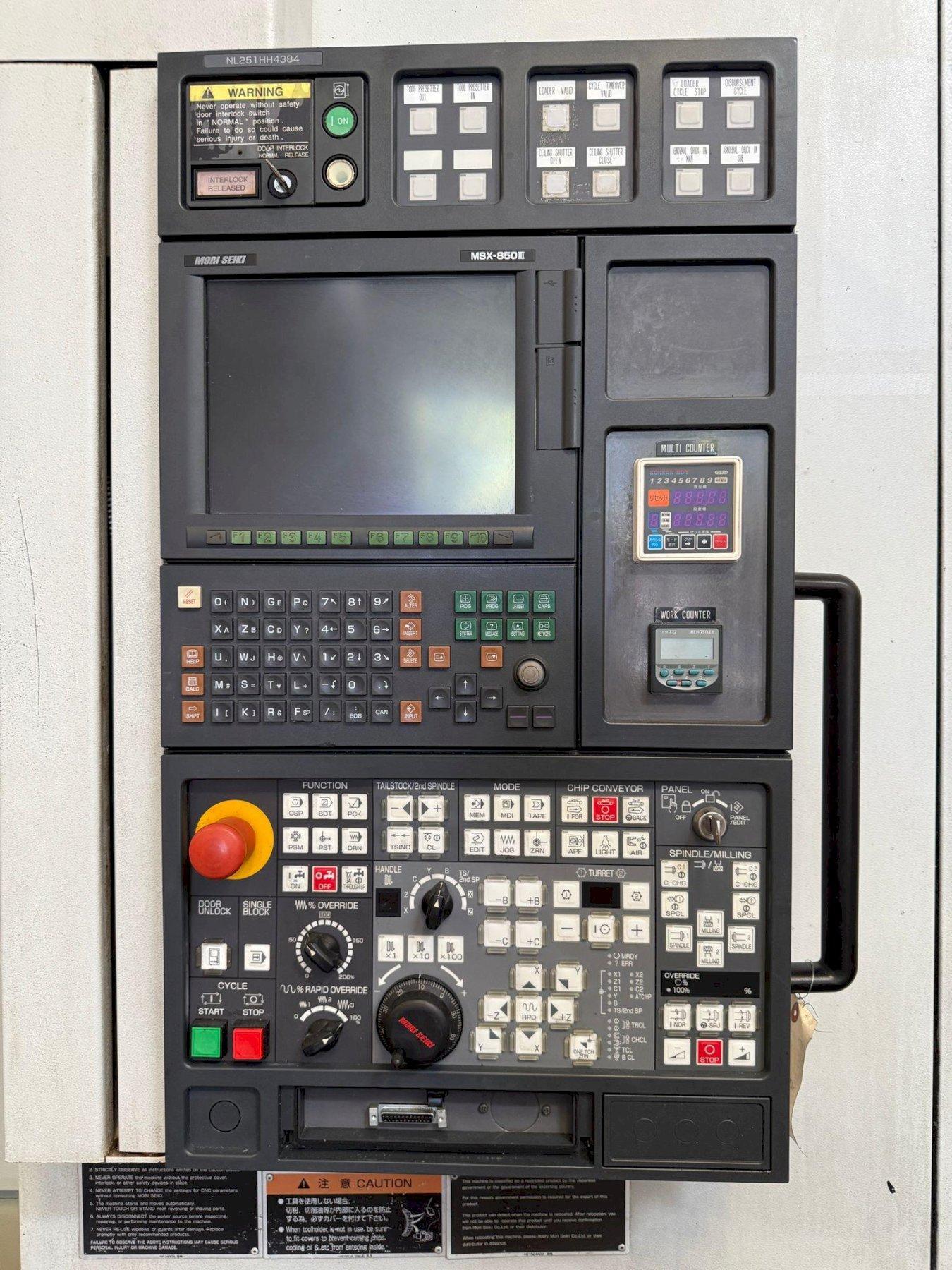

Mori Seiki MSX-850III CNC Control
Heavy Duty Box Way Construction

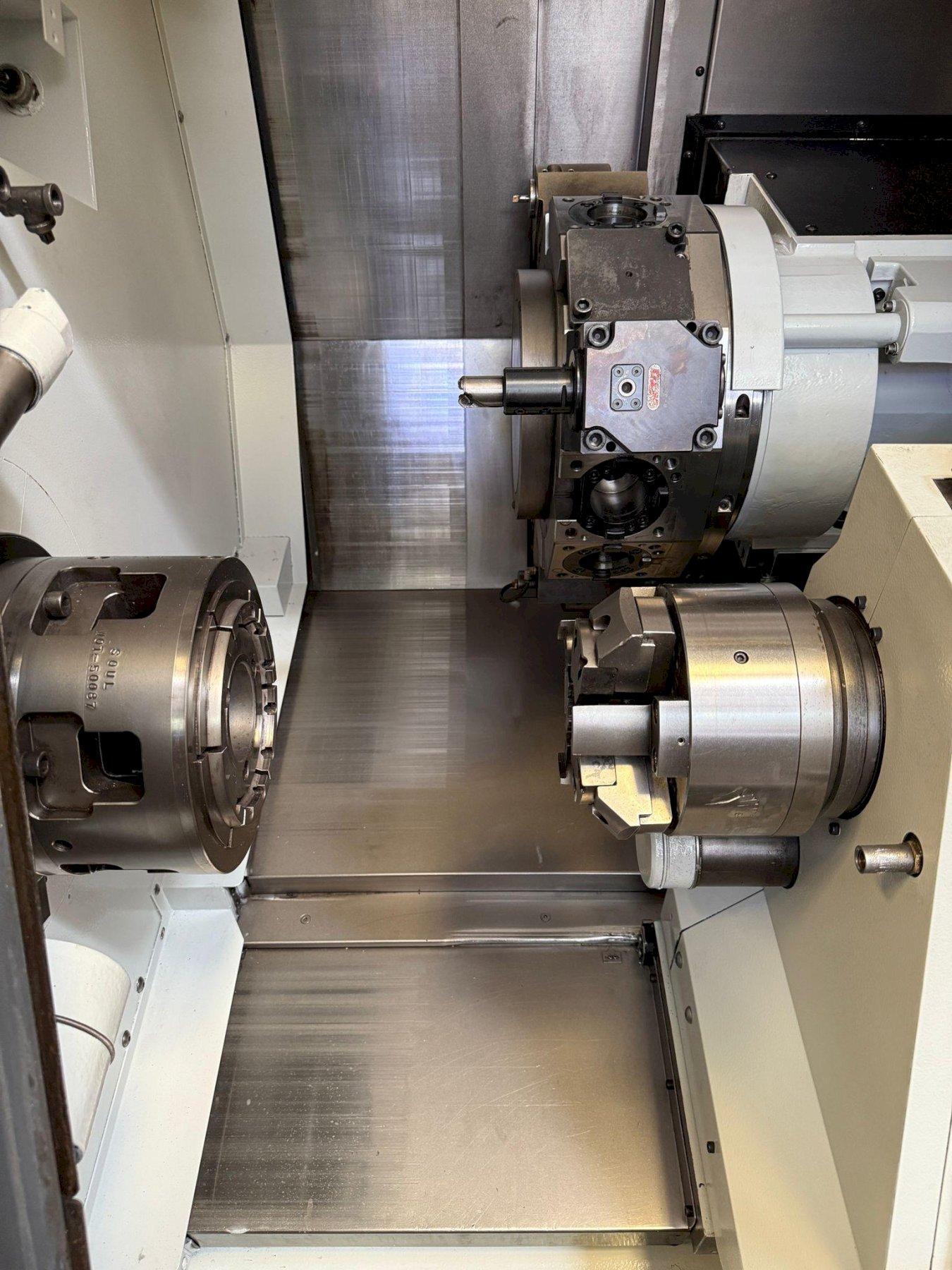

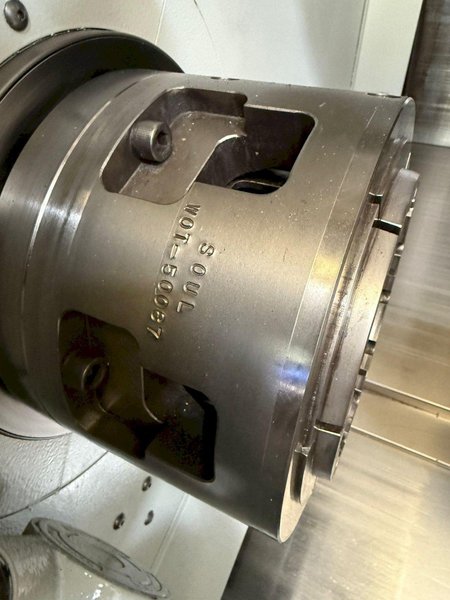

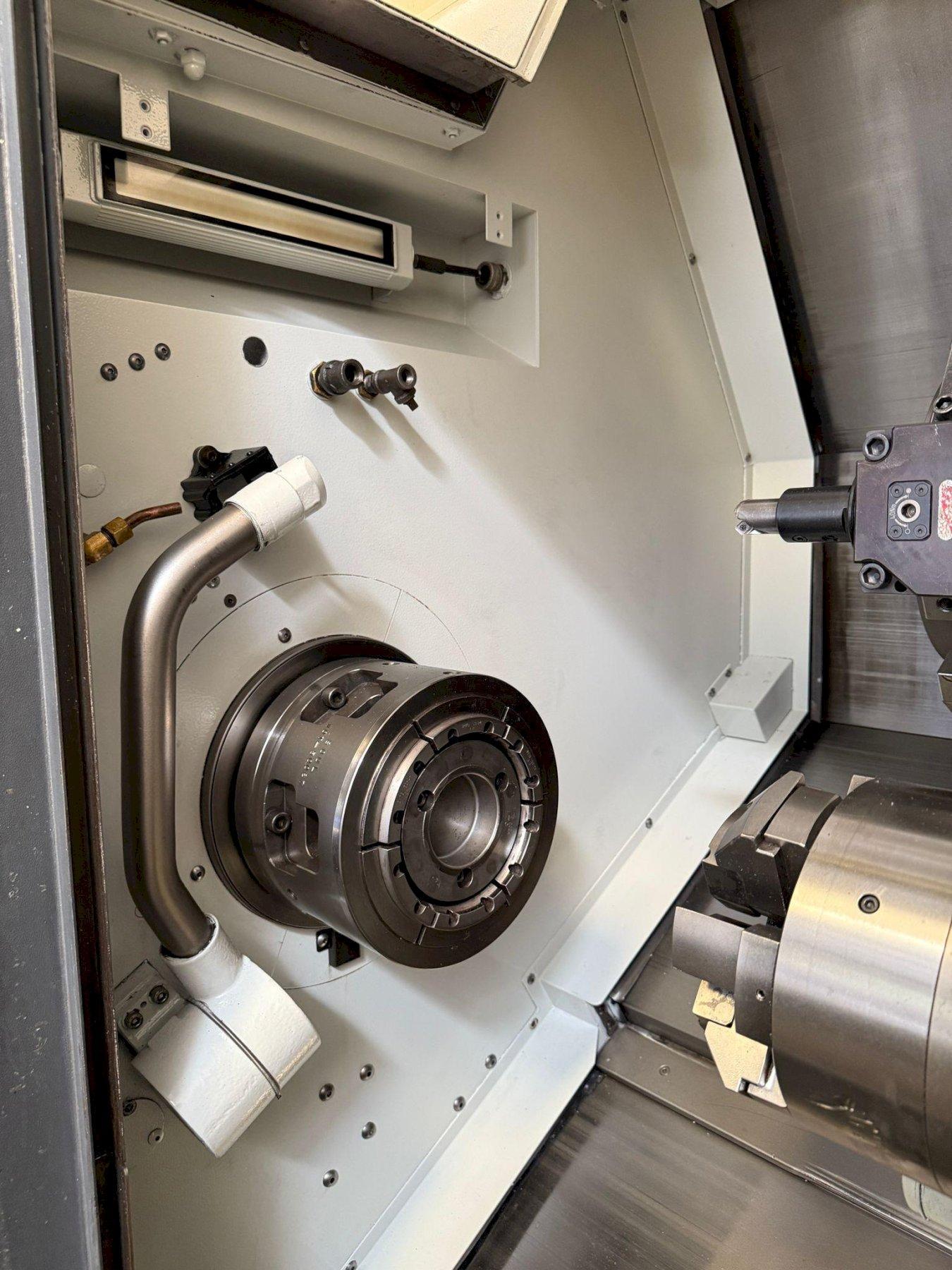

Soul Collet Chuck on Main Spindle (Capable 10″ Chuck)

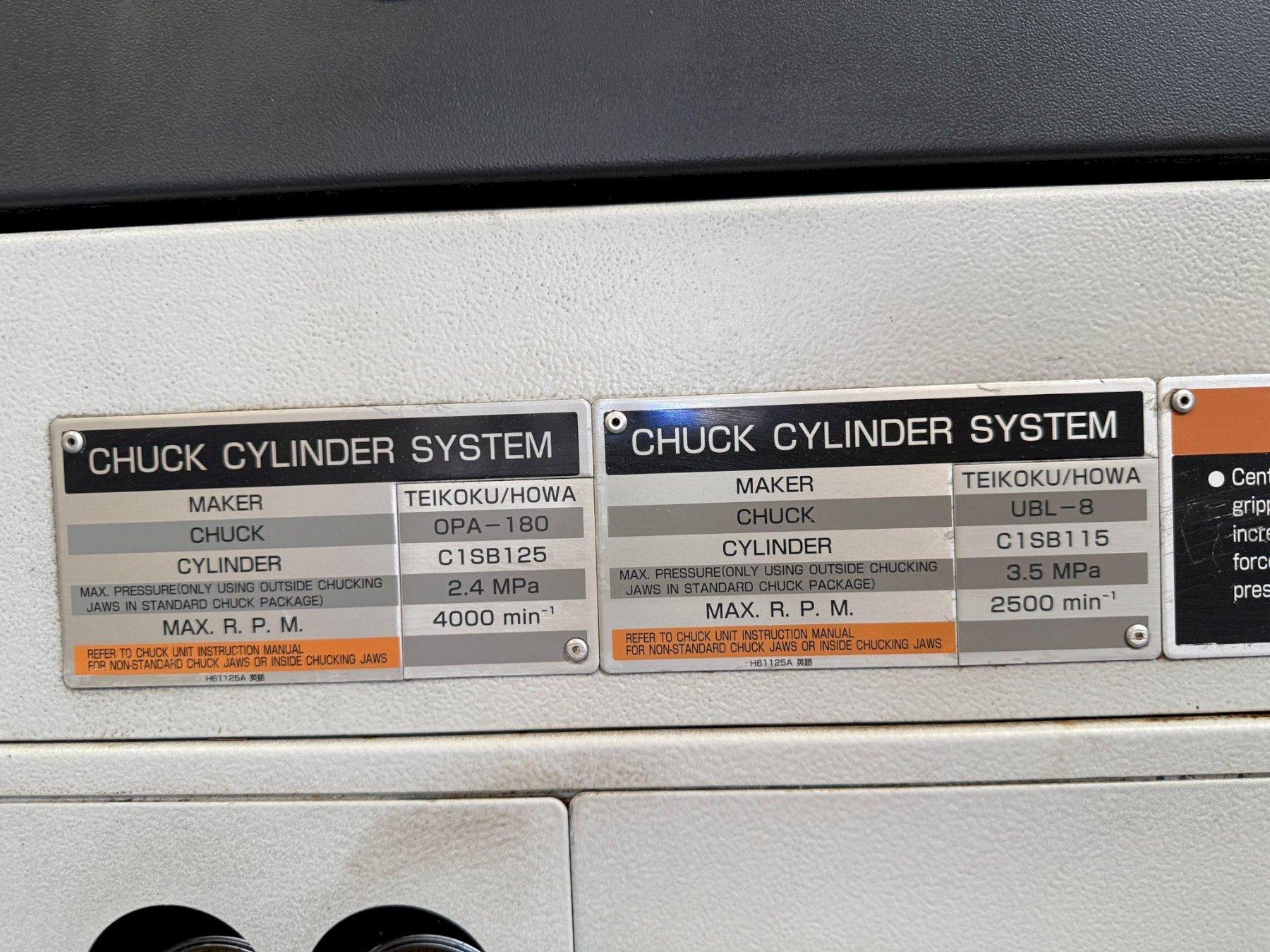

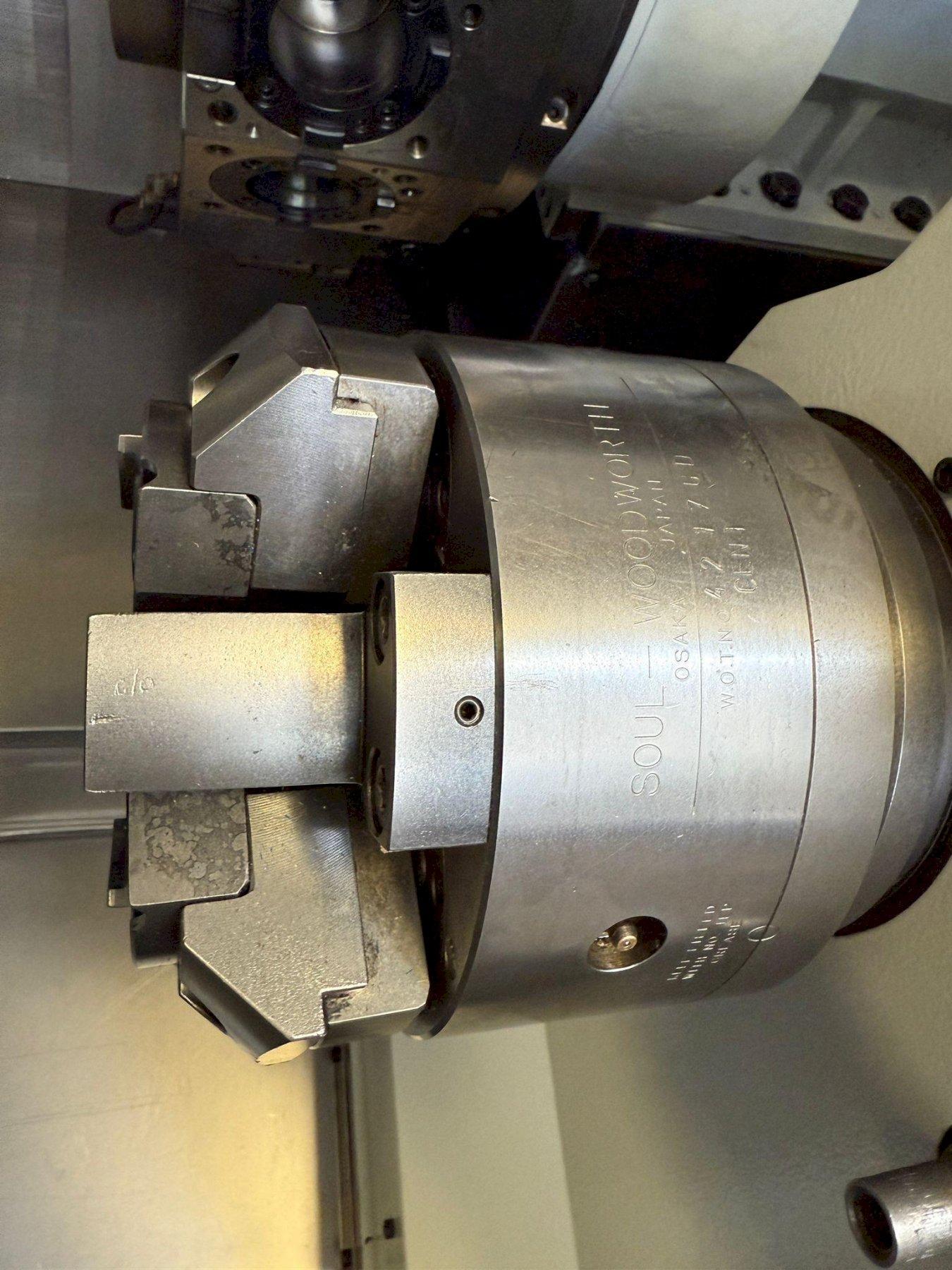

Soul Woodworth UBL-8 6-Jaw Chuck on Sub Spindle
C Axis Capable

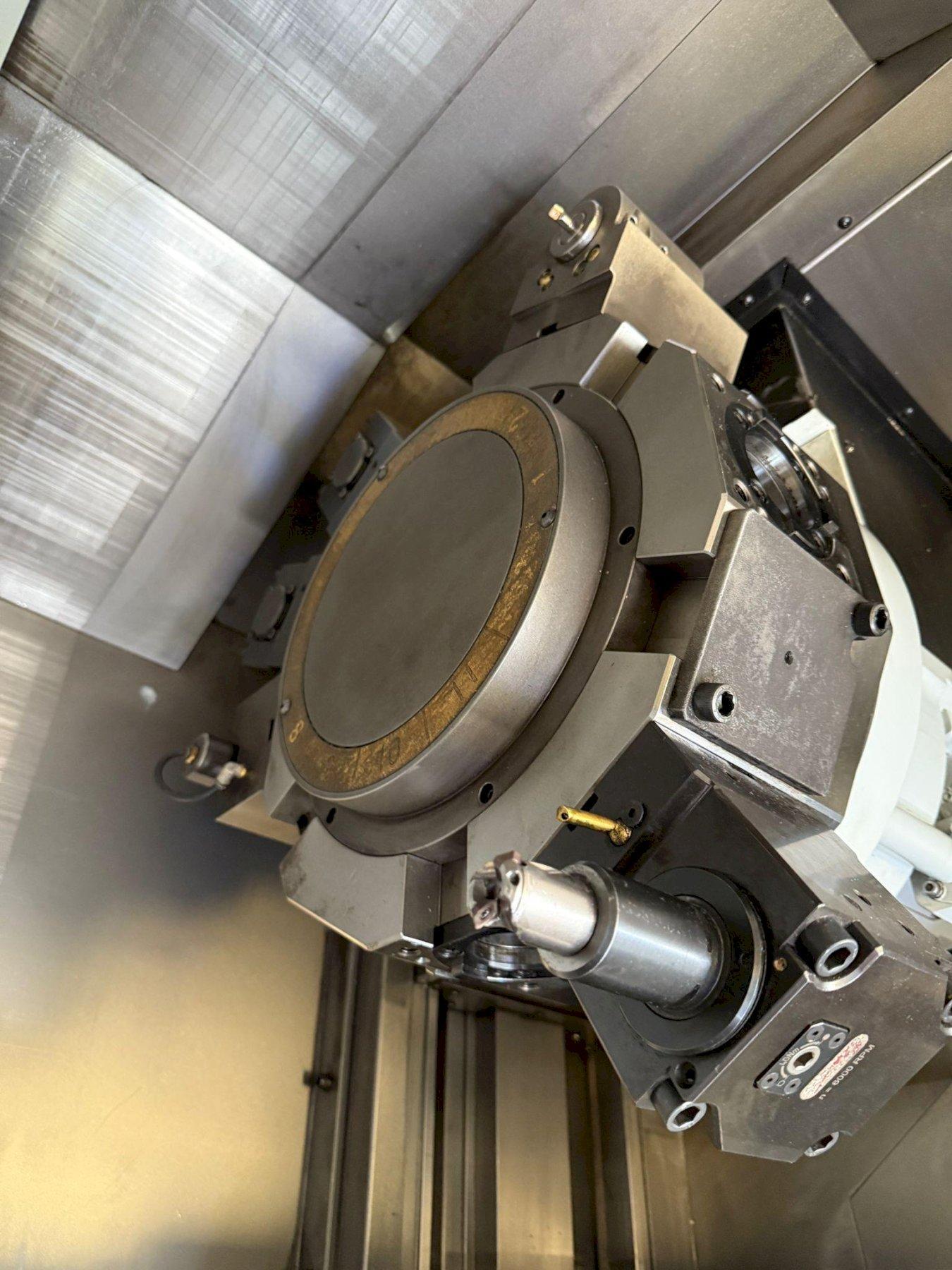

12 Station High Speed Live Tool Turret
25 HP Spindle Power
Tool Presetter
PCMCIA Card Slot
Rigid Tapping
Coolant System
Chip Conveyor

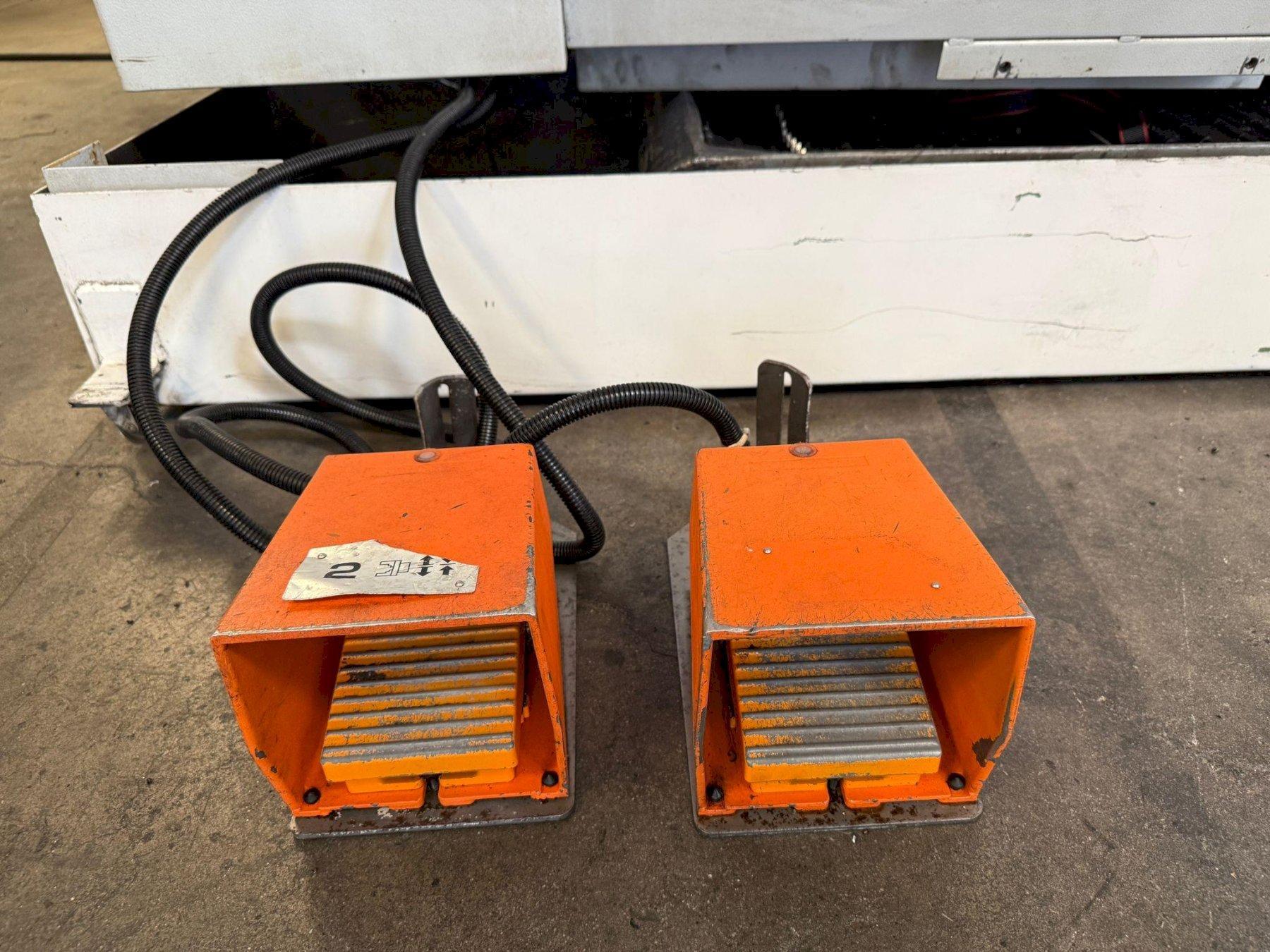

Foot Switches
Live & Statics Tool Holders (Mounted on Turret as shown in the images)
Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 27.7″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″
Travels:
X Axis Travel: 10.2″
Z Axis Travel: 31.2″
B Axis Travel (Sub Spindle): 28.9″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP
Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT
General:

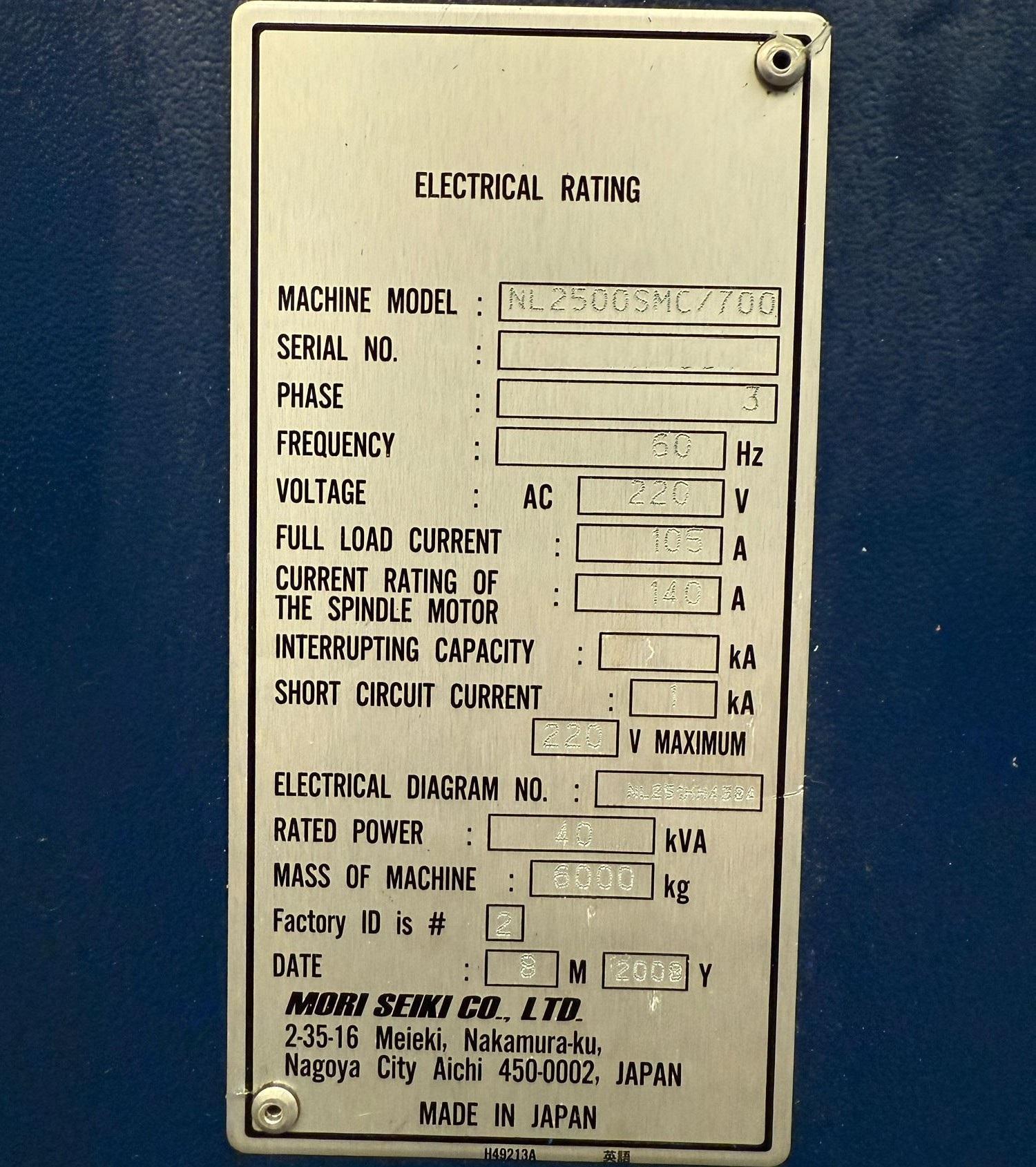

Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 40 kva
Overall Dimensions: 122″ x 78.7 ″ x 83.5″ High
Weight : 13,200 lbs Approx.

Tags:DMG, DMG MORI, DMG Mori Seiki
