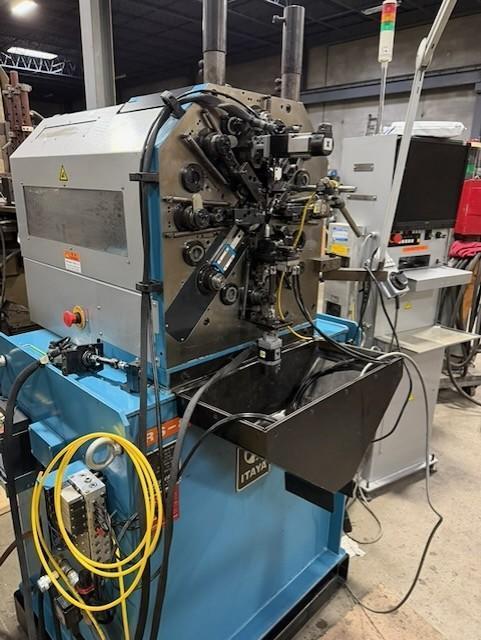

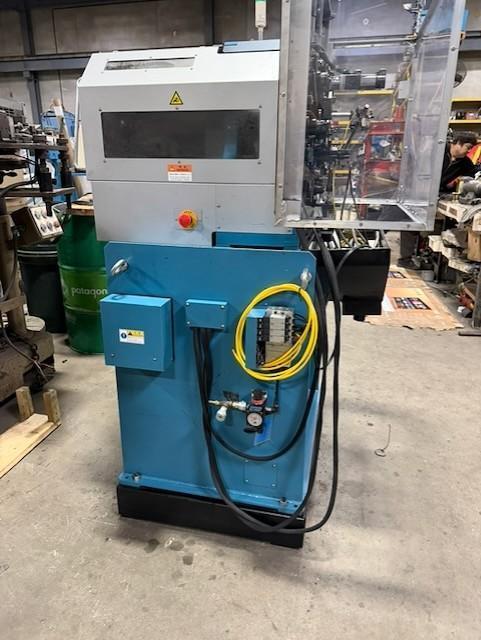

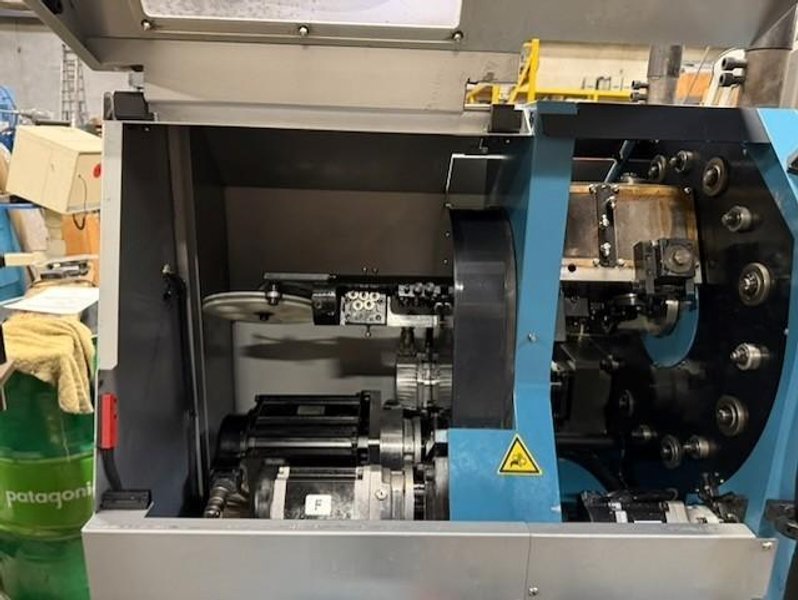

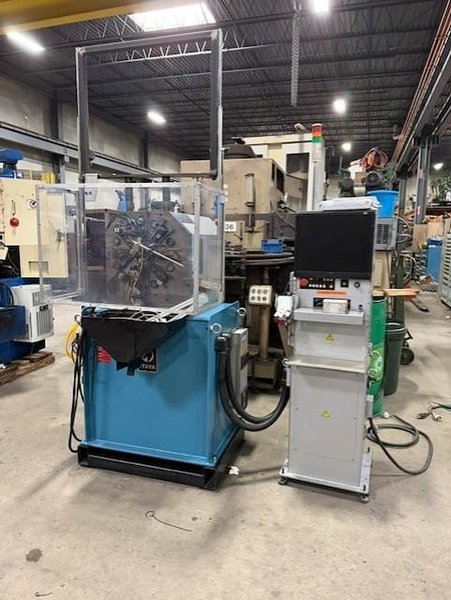

ITAYA RS-8 CNC WIRE FORMER
Brand
Category
Type
Model
Not specified
Stock #
116945
Year
2017
Condition
Used
Location
Illinois
|
SPECIFICATIONS:
Wire Diameter: .0078" (0.2mm) - .0314” (.8mm)
Maximum Spring Diameter: .393" (10mm)
Maximum Spring Length: 2.36" (60mm)
Camshaft Characteristics: Min. Increment: Plus or Minus 0.05 Degrees
Max. Increment: Plus or Minus 359.9 Degrees
Max Speed: 400 rpm
Wire Feed Characteristics: Min. Increment: .0007"(.02mm)
Max. Increment 393" (9999.98mm)
Max. Feed Speed: 367 ft/min" per min.(112 m/min)
Slide Axis:Min. Increment: .01
Max. Increment 99.999
Max. Speed: 800 rpm
Rotary Wire
Memory: 4000 steps per program,
Program Storage: 200 program 3.5" floppy disk
Power: Wire Feed 750W, Camshaft 750W , Slide 50W
Power Consumption: (200v/3/60): 10A
Dimensions: Machine 58" x 26" x 32" HxWxD, Weight: 1100 lbs.

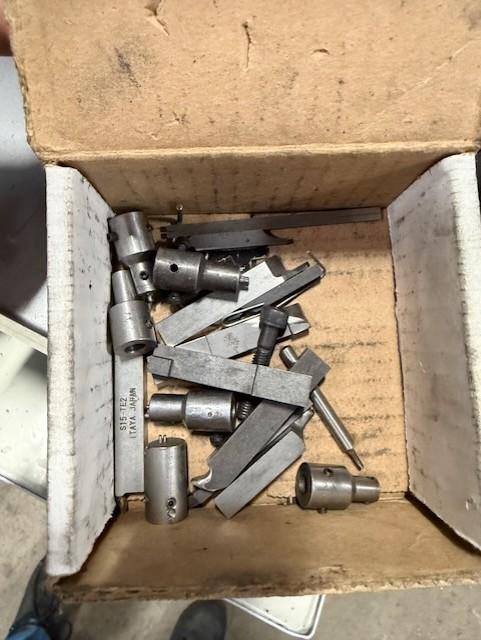

Tools are same as MCS-8G
Rotary Quill
Rotary wire
2 Spinners
YEAR 2017 |
