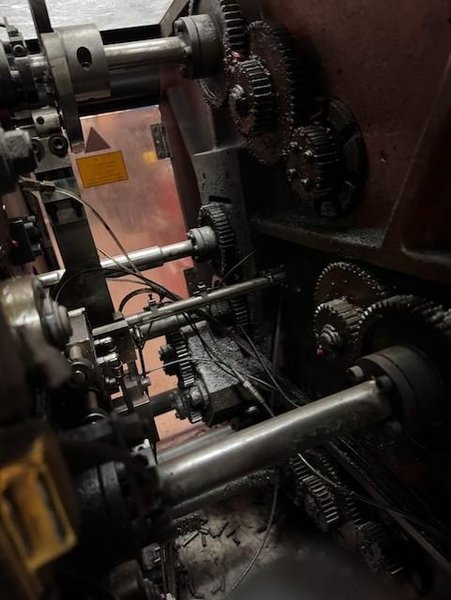

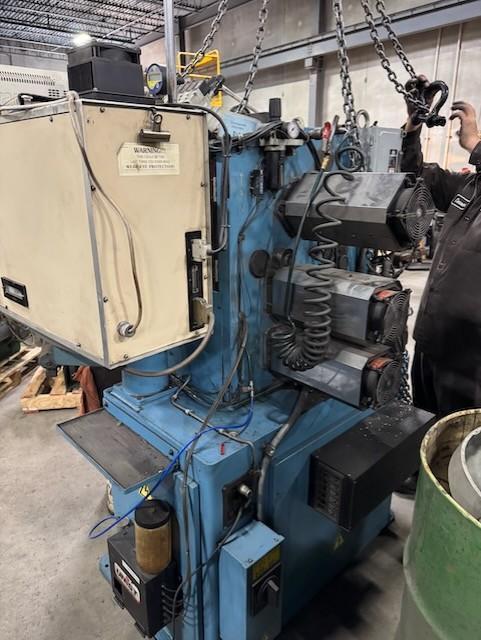

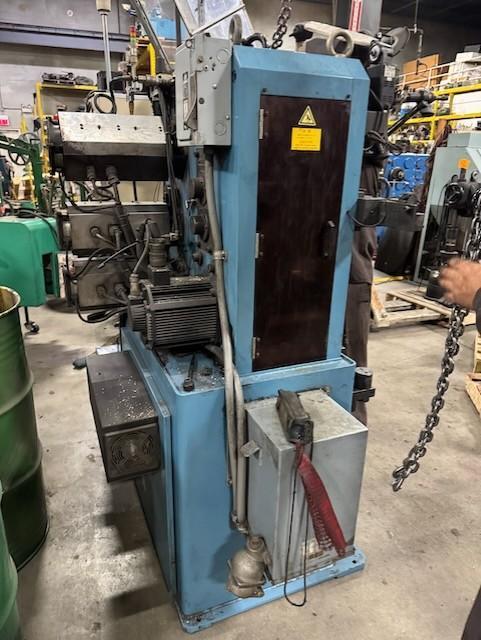

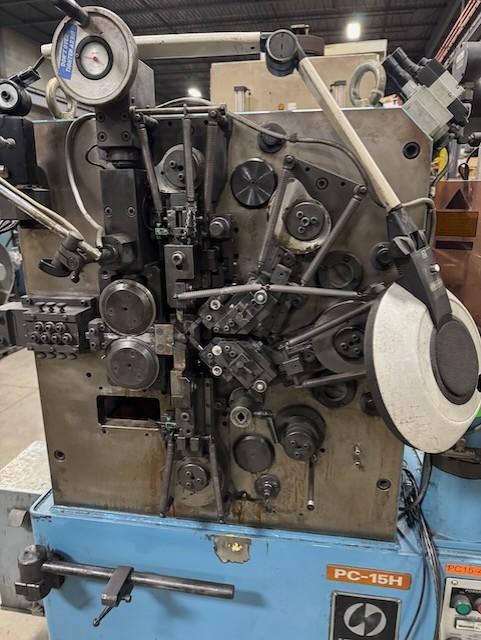

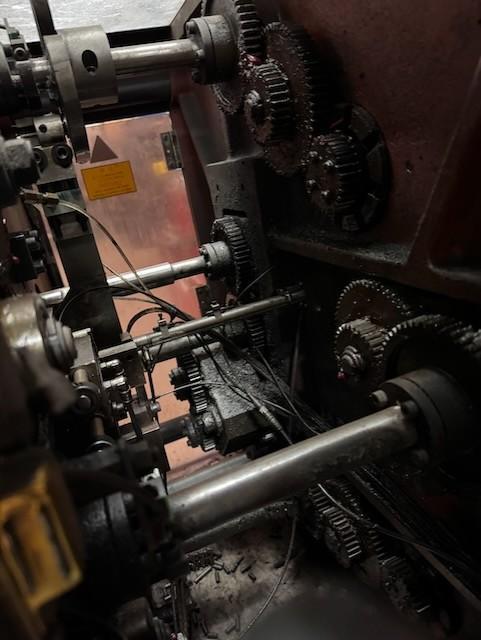

ITAYA PC-15H CNC SPRING COILER
Brand
Category
Type
Model
Not specified
Stock #
116943
Year
1998
Condition
Used
Location
Illinois
|
SPECIFICATIONS:
Forming Capacity: Wire Diameter: .011" - .059" (.3-1.5 mm)
Outside Diameter: 1.57" (40 mm) max.
Feed Axis:Minimum Increment: .002" (.05 mm)
Maximum Increment: 393.698" (9999.95 mm)
Maximum Wire Speed: 3543"/min (112.5 ,m/min)
Pitch & Diameter Axis: Minimum Increment: .0004" (.01 mm)
Maximum Rotation: 300 rpm
Cut Axis: Maximum Rotation: 300 rpm Servo Motor:
Feed Axis: 1.5 kw
Pitch Axis: .75 kw
Diameter Axis: .75 kw
Cut Axis: .75 kw
Peripheral Device: Input: 8 Ports
Output: 8 Ports Power Source: AC 200V, 3 Phase, 10 Amp
Floor Space: Floor Space: 70” x 71” x 34” HxWxD, Weight: 2270 lbs.
Installation Area: 65" (1652 mm) W x 32" (815 mm) D
Weight: 2270 lbs. ( 1050 kg)
Computer Characteristics: Control Unit: 32 Bit Micro Processor
Equipped with: MPG

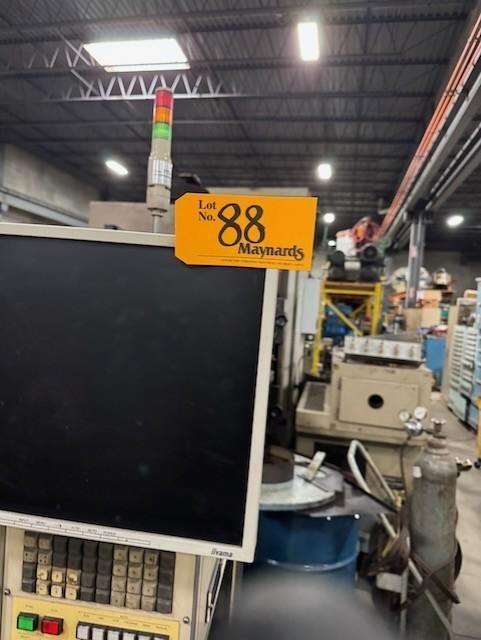

Flat Screen
Single Plane Straightener

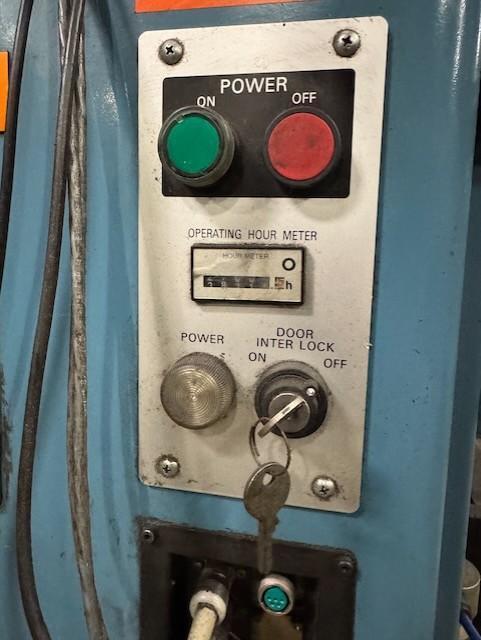

38000 hrs.

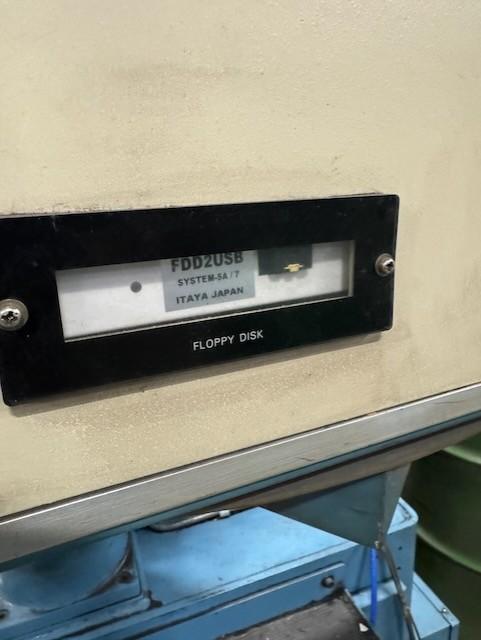

Flash Drive
YEAR 1998 |
