ITAYA PC15 CNC SPRING COILER
Brand
Category
Type
Model
PC15
Stock #
115202
Year
Not specified
Condition
Used
Location
Not specified
|

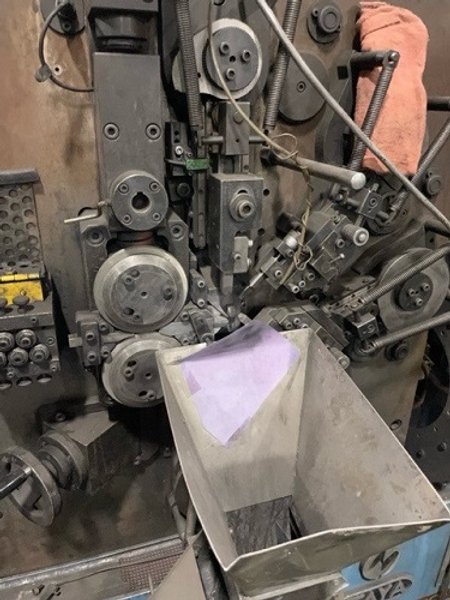

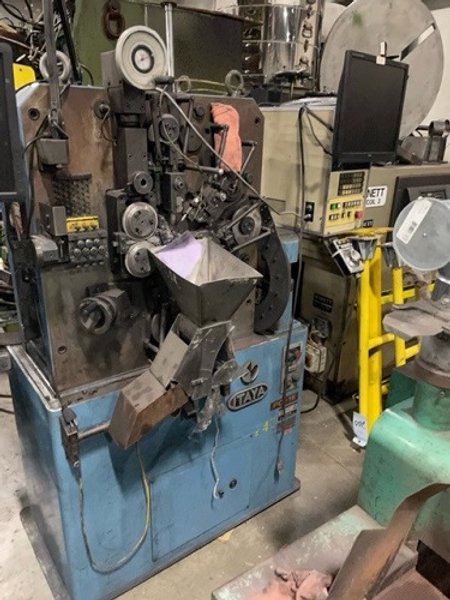

ITAYA PC-15 CNC SPRING COILER
Forming Capacity: Wire Diameter: .011" - .059" (.3-1.5 mm)
Outside Diameter: 1.57" (40 mm) max.
Feed Axis: Minimum Increment: .002" (.05 mm)
Maximum Increment: 393.698" (9999.95 mm)
Maximum Wire Speed: 3,543.3"/min (90 ,m/min)
Pitch Axis: Minimum Increment: .0004" (.01 mm)
Maximum Rotation: 300 rpm
Cut Axis: Maximum Rotation: 300 rpm
Feed Axis: 1.5 kw, Pitch Axis: .75 kw, Diameter Axis: .75 kw, Cut Axis: .75 kw
Peripheral Device: Input: 8 Ports, Output: 8 Ports
Power Source: AC 200V, 3 Phase, 10 Amp
Floor Space: 70" x 71" x 34" HxWxD, Weight: 2270 lbs.

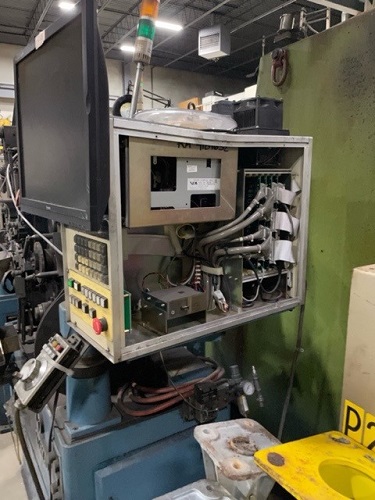

Computer Characteristics: Control Unit: 32 Bit Micro Processor
Internal Memory: 300 Step, External Memory: 3.5" Floppy Disk
Equipped with:
Spring Gage, Sorting Chute
MPG
Flat Screen
Single Plane Straightener, Cast Disc
46120 hrs.
|
