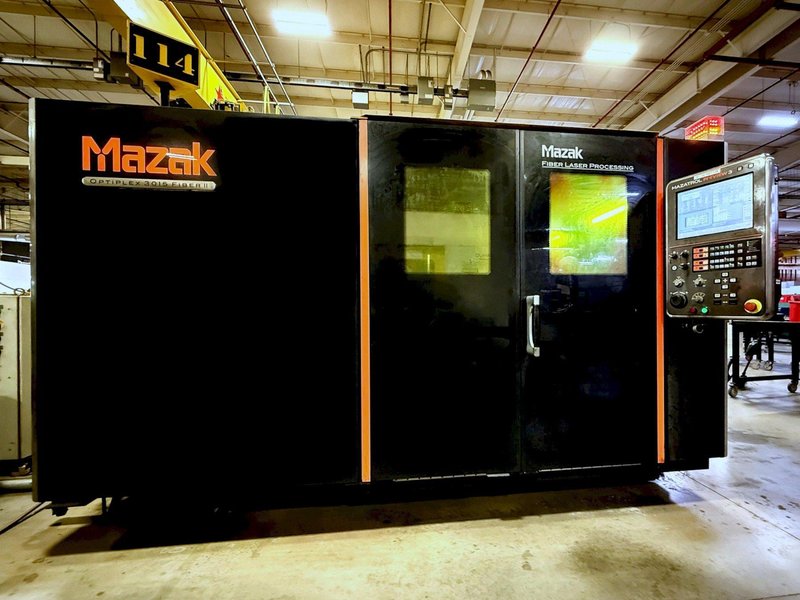

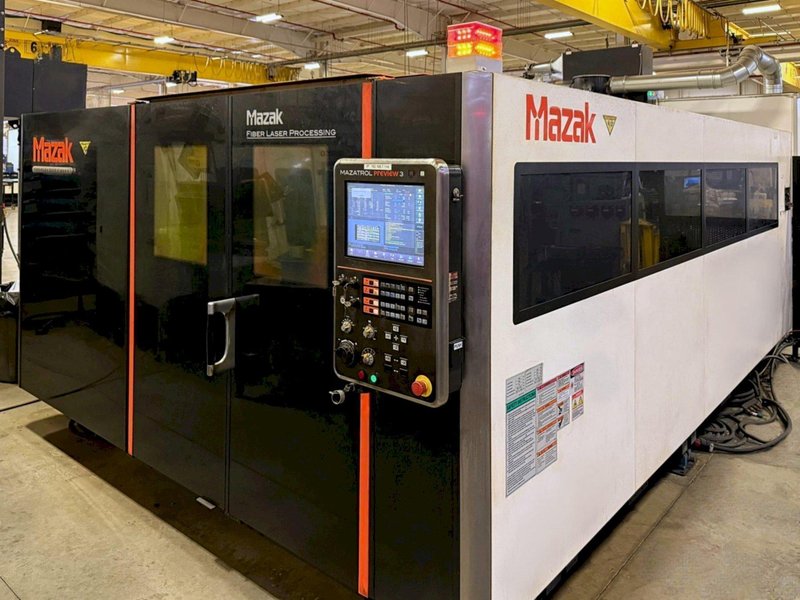

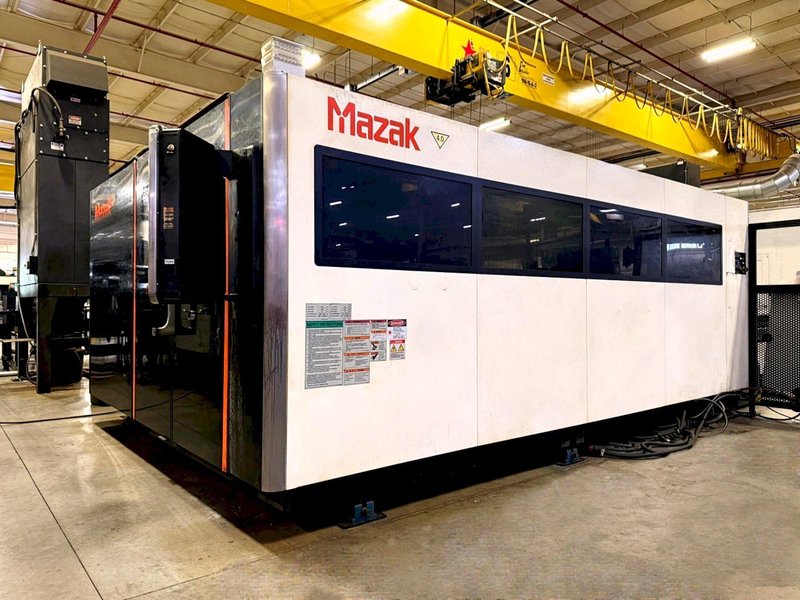

Mazak Optiplex 3015 Fiber
Brand
Category
Type
Model
Optiplex 3015 Fiber II
Stock #
100587
Year
2015
Condition
Very Good
Location
Not specified

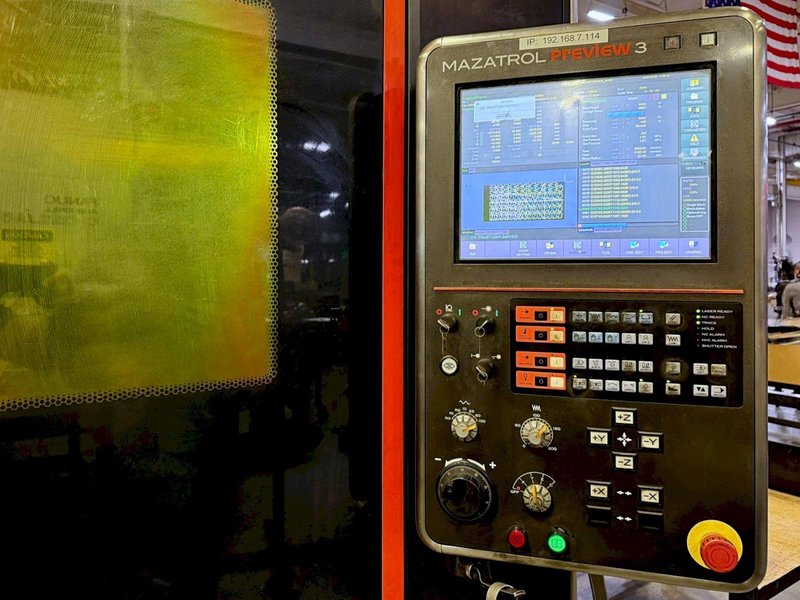

| Control | Mazatrol Preview 3 W/CPU 64 bit |
| Type | Fiber Laser |

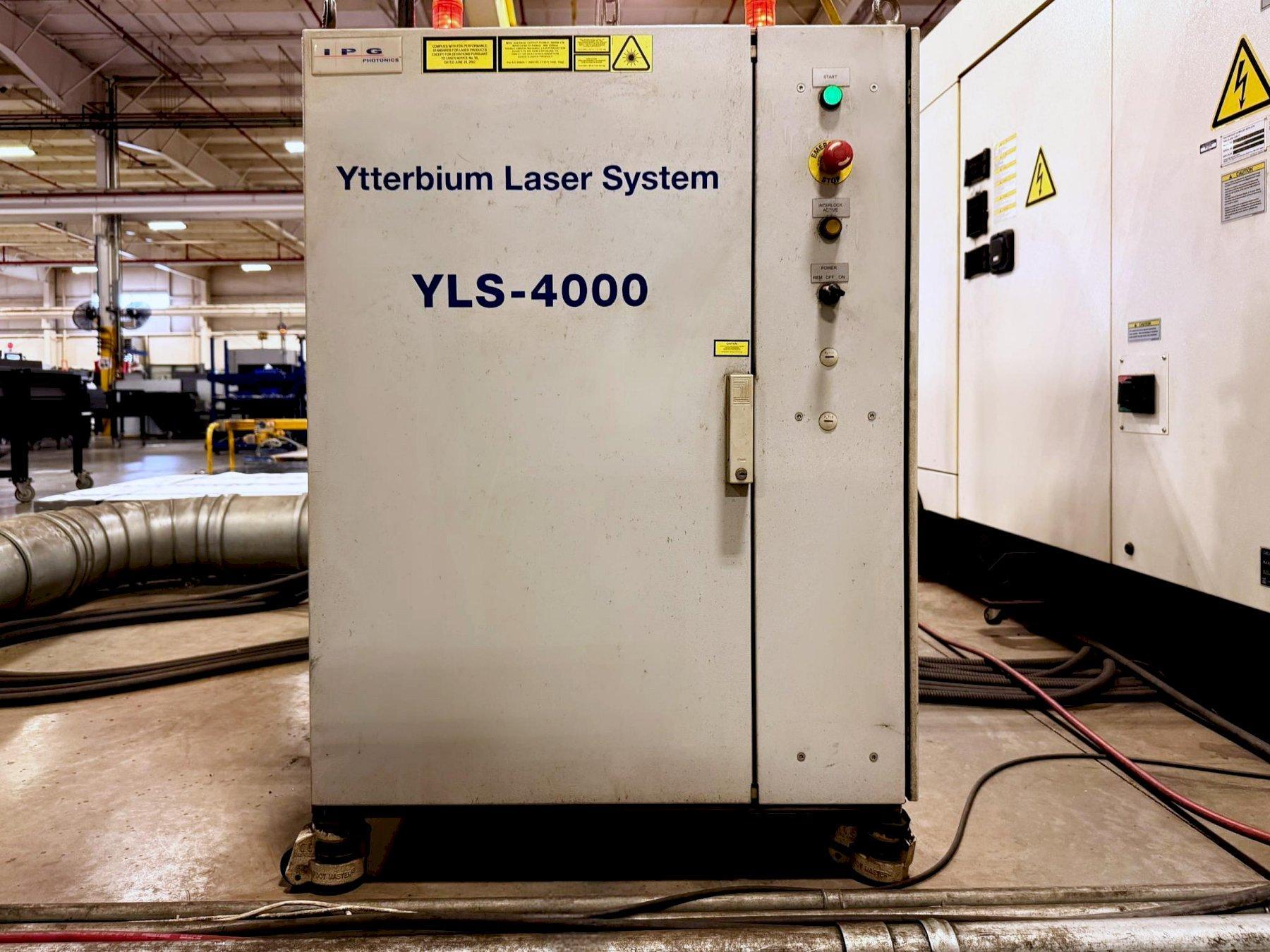

| Resonator | IPG Fiber Laser Source |
| Power Output | 4000 Watts |
| Max. Workpiece Dims. | 60.039" x 120.078" |
| Max. Workpiece Weight | 2,050 lbs. |
| Y Axis Travels | 122.05" |
| X Axis Travels | 62.20" |
| Z-Axis Travel | 4.33" |
| Drive Type X/Y Axis | Rack and Pinion Drive |
| Drive Type Z-Axis | Ball Screw Drive |
| Machine Structure | Flying Optics |
| Work Table Height | 35.43" |
| Number Of Controlled Axis | 3 |
| Position Detection System | Encoder |
| Min. Command Unit | 0.0001" |
| Rapid Travel Speed (X,Y-axis) | 4,724 IPM |
| Pos. Accuracy X, Y Axis | 0.0002"/19.69" |
| Pos. Accuracy Z | 0.0004"/3.94" |
| Max Thickness Mild Steel | 1.0” |
| Max Thickness Stainless Steel | 0.75” |
| Max Thickness Aluminum | 0.63” |
| Total Electrical Requirement | 71 Kva |
| Footprint | W 394" x D 240" |
|

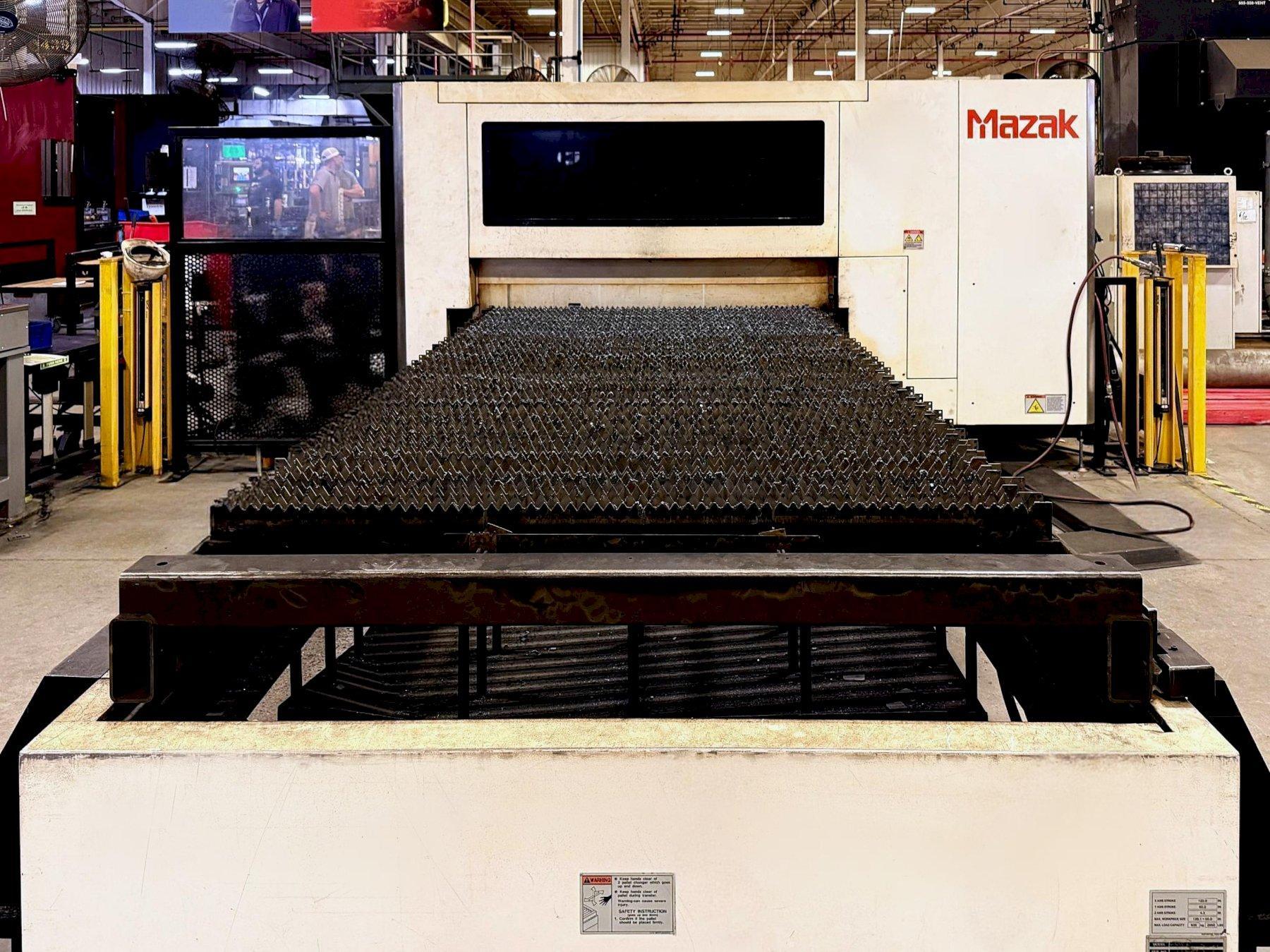

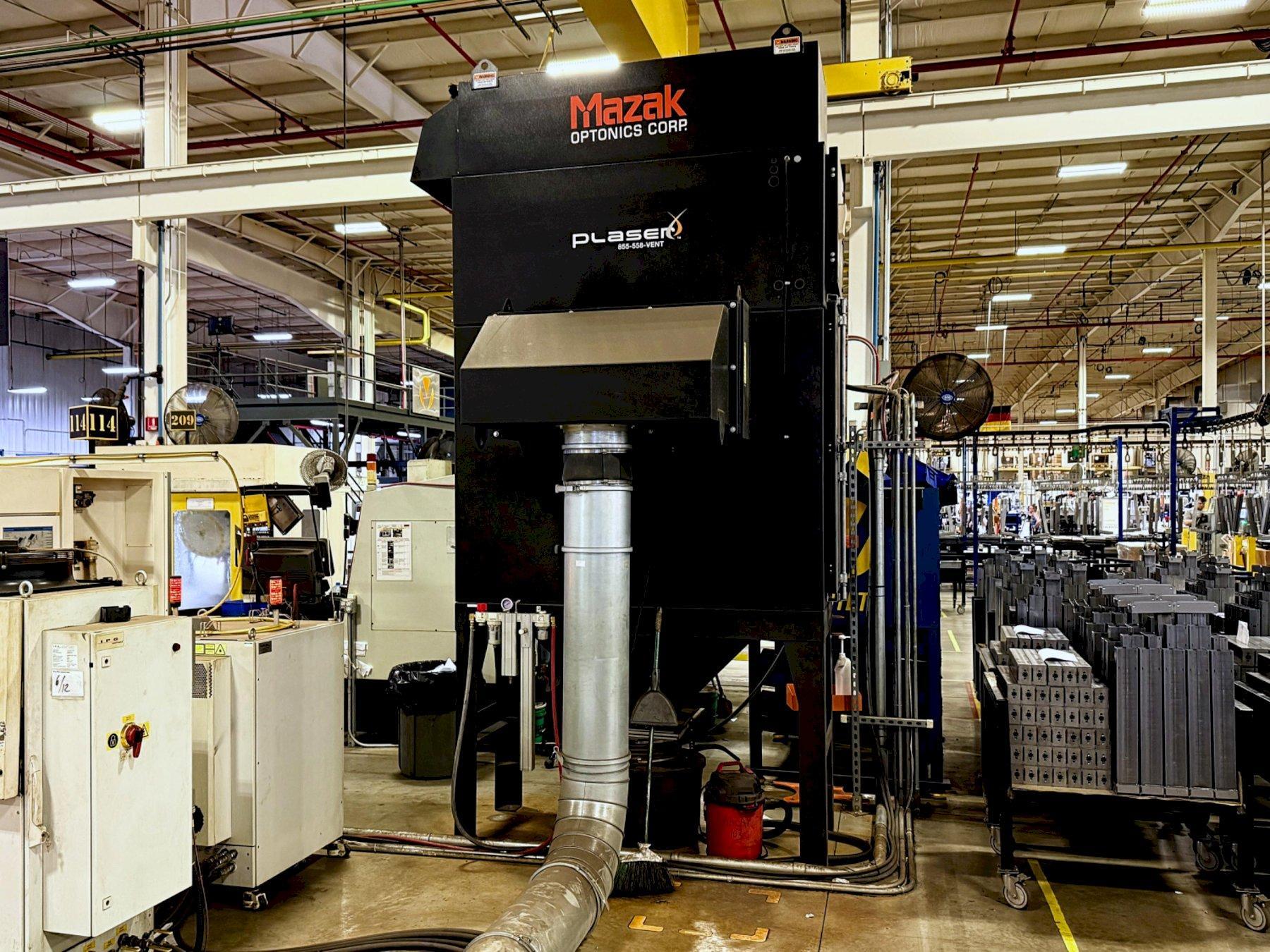

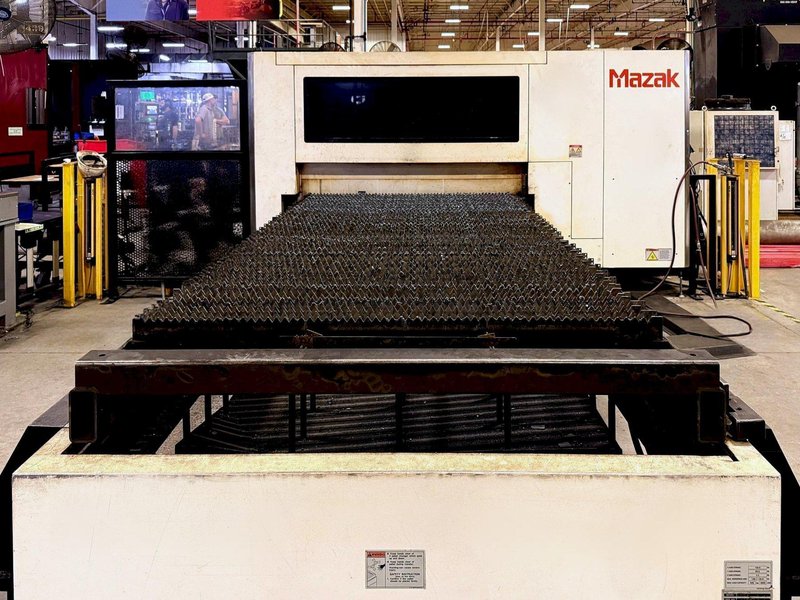

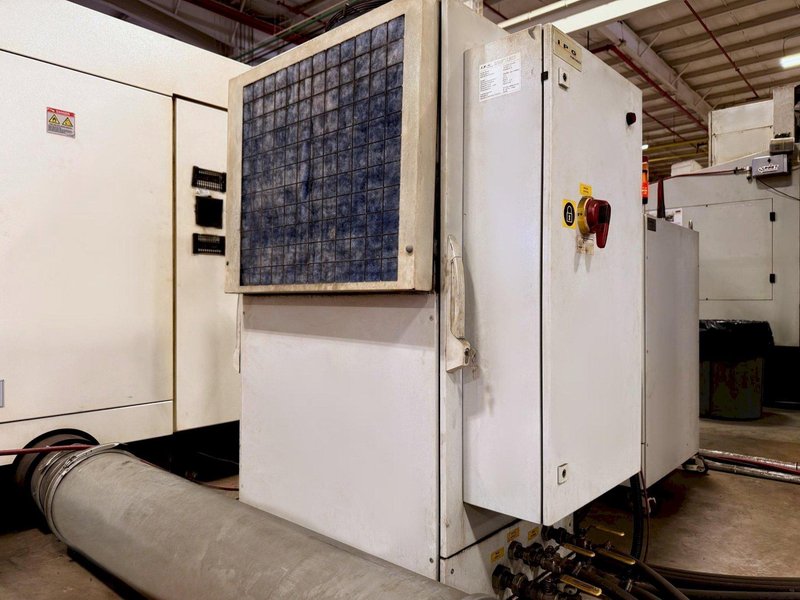

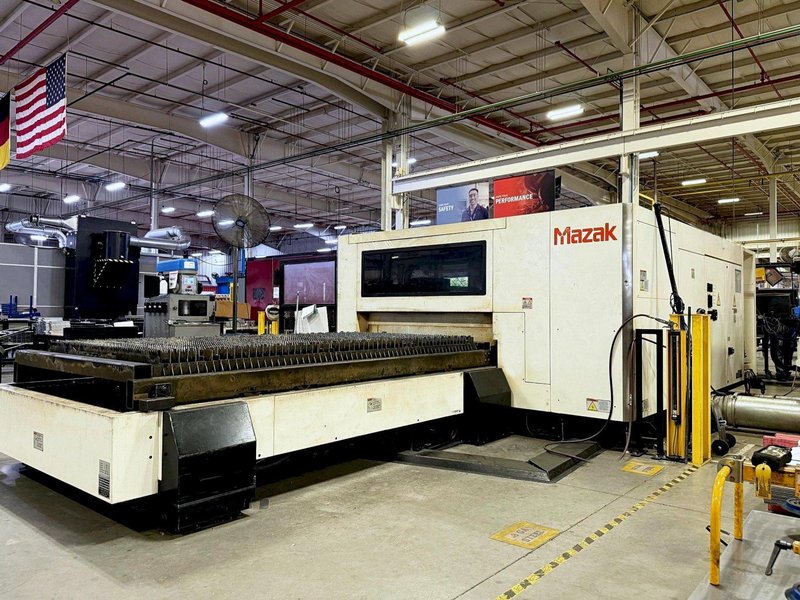

Equipped With: IPG 4KW (4000 Watt) Fiber Laser Resonator 5′ x 10′ Dual Pallet Shuttle IPG Chiller Unit Plaser RoboVent Dust Collector |
|
