Mazak Optiplex 3015 Fiber II 2020

Brand
Model
Optiplex 3015 Fiber II
Stock #
100385
Year
2020
Condition
Like New
Location
Not specified
Control Mazatrol Preview 3 W/CPU 64 bit
Type Fiber Laser
Resonator IPG Fiber Laser Source
Power Output 4000 Watts
Max. Workpiece Dims. 60.039" x 120.078"
Max. Workpiece Weight 2,050 lbs.
Y Axis Travels 122.05"
X Axis Travels 62.20"
Z-Axis Travel 4.33"
Drive Type X/Y Axis Rack and Pinion Drive
Drive Type Z-Axis Ball Screw Drive
Machine Structure Flying Optics
Work Table Height 35.43"
Number of Controlled Axis 3
Position Detection System Encoder
Min. Command Unit 0.0001"
Rapid Travel Speed (X,Y-axis) 4,724 IPM
Pos. Accuracy X, Y Axis 0.0002"/19.69"
Pos. Accuracy Z 0.0004"/3.94"
Max Thickness Mild Steel 1.0”
Max Thickness Stainless Steel 0.75”
Max Thickness Aluminum 0.63”
Total Electrical Requirement 71 Kva
Footprint W 394" x D 240"

Equipped With:

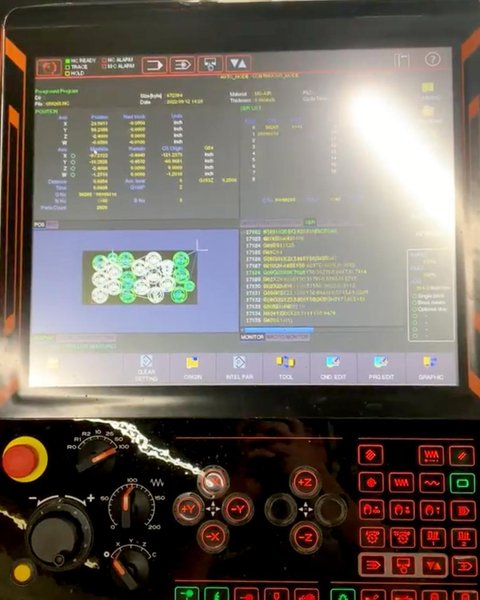

Mazak Mazatrol Preview 3 CNC Control

Display Screen 19 in SXGA Color TFT

Memory Capacity 16 GB
Program Memory Capacity 1 GB

IPG 4KW (4000 Watt) Fiber Laser Resonator
Position Detection System Encoder

Minimum Command Unit 0.0001 in

Program Input System EIA/ISO

High Accuracy Nozzle Kit

Nozzle Centering Camera

5′ x 10′ Dual Pallet Shuttle

Chiller Unit

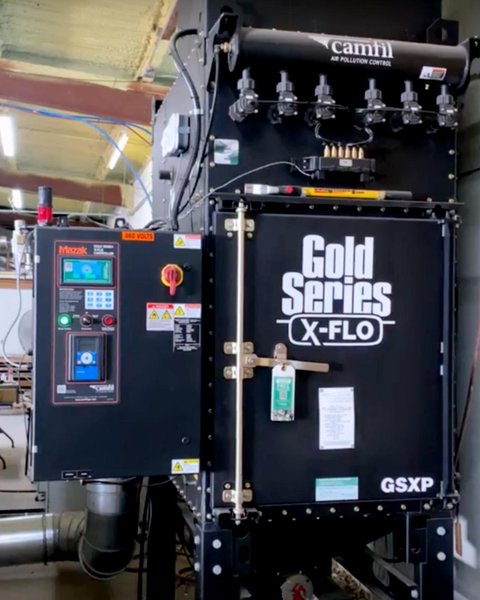

Dust Collector
