Title: Mazak Optiplex 3015 Fiber II 2017
Type: Laser Cutters
Brand: MAZAK
Model: Optiplex 3015 Fiber II
Year: 2017
Message
Information

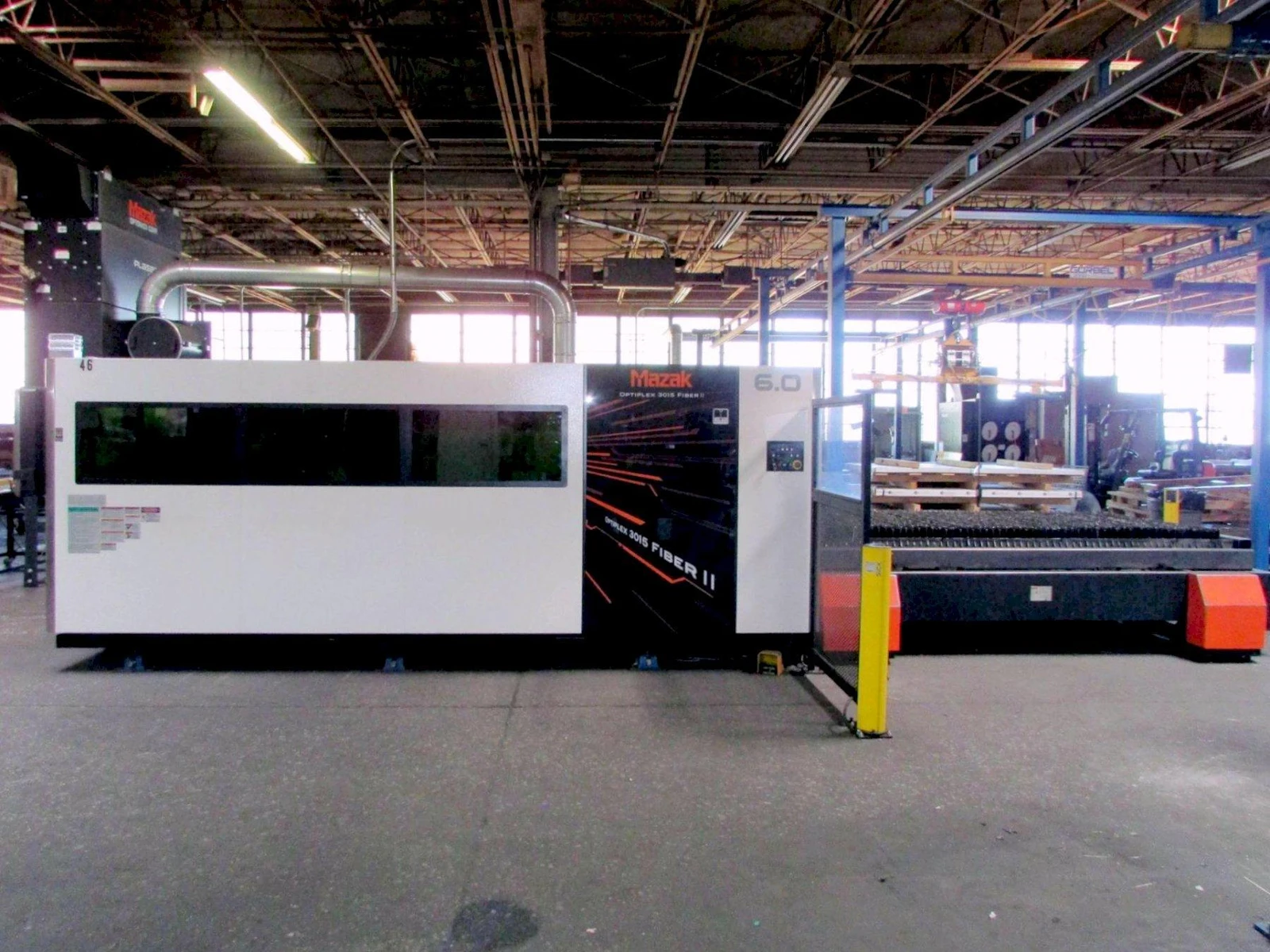

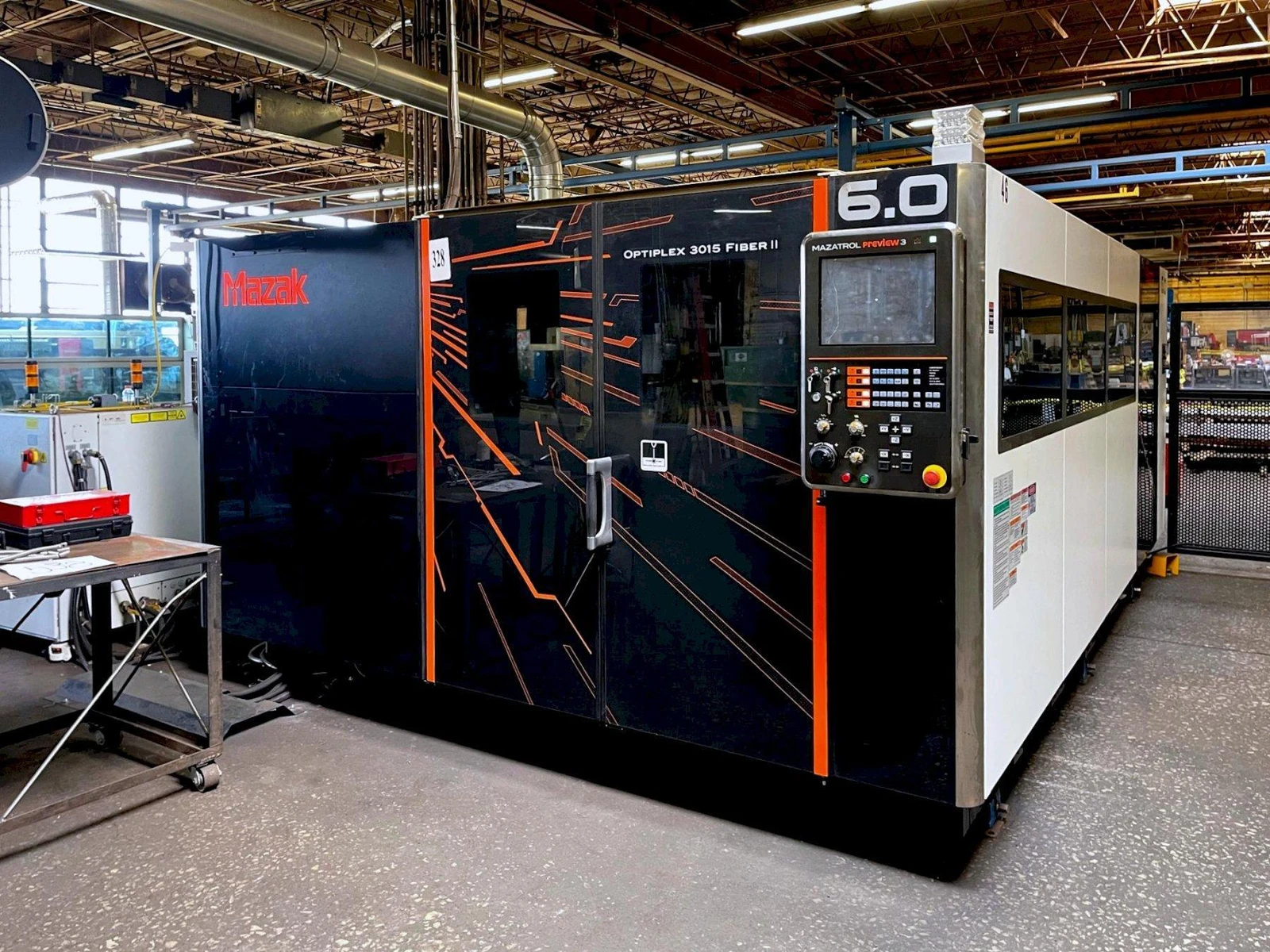

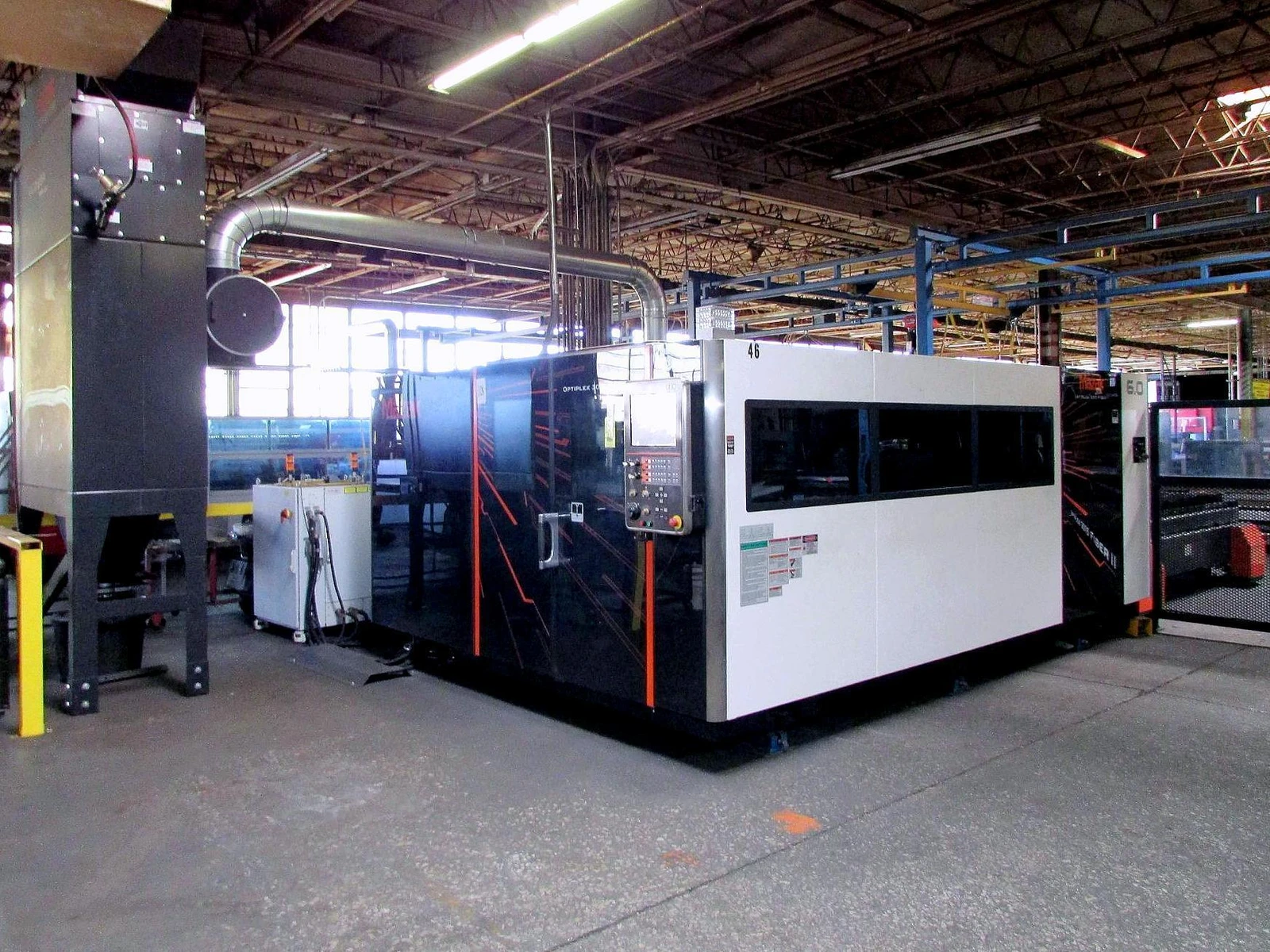

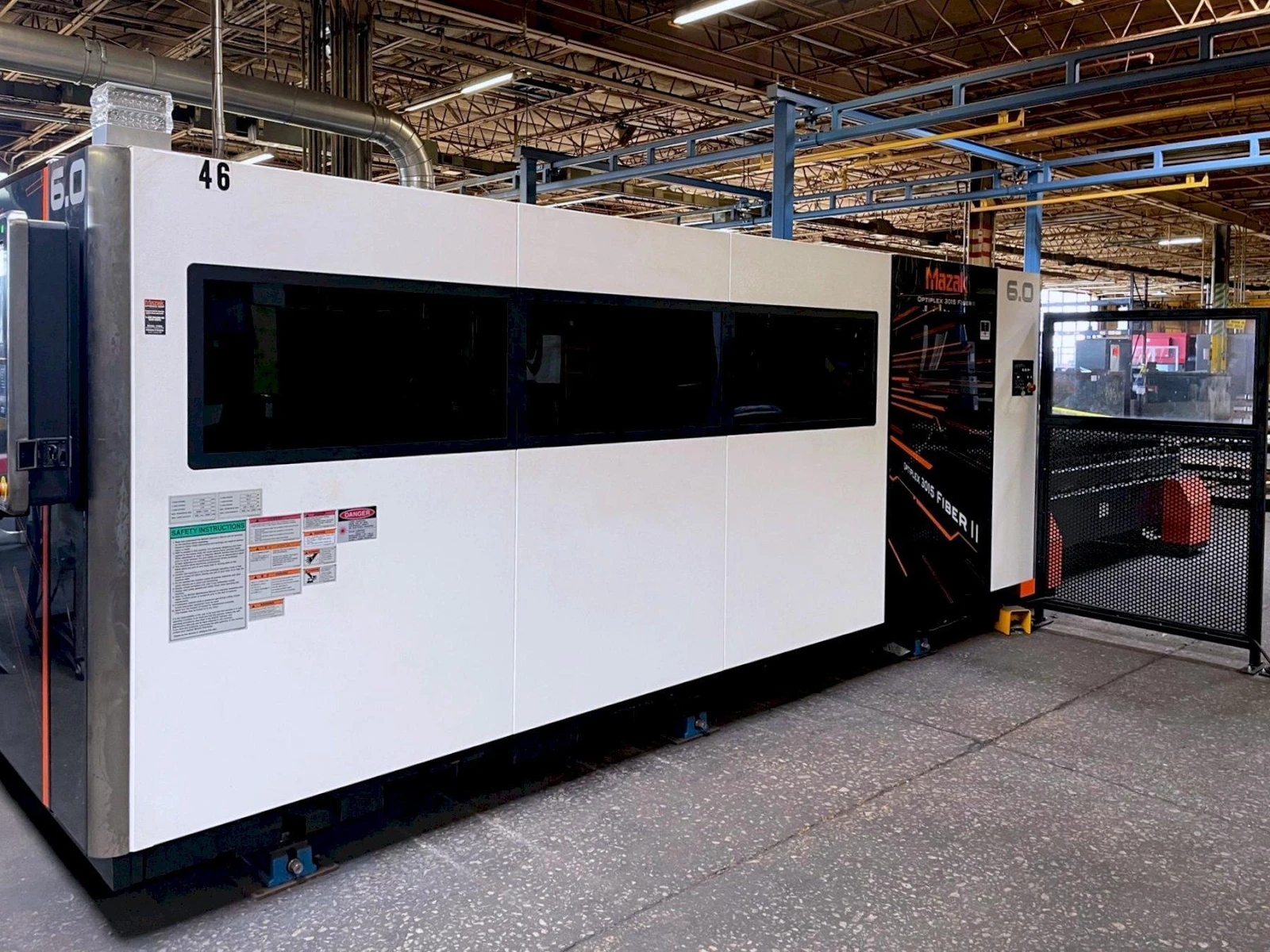

Mazak Optiplex 3015 Fiber II 2017

Brand
Model
Optiplex 3015 Fiber II
Stock #
100293
Year
2017
Condition
Very Good
Location
Not specified
Control Mazatrol Preview 3 W/CPU 64 bit
Type Fiber Laser
Resonator IPG Fiber Laser Source
Power Output 6000 Watts
Max. Workpiece Dims. 60.039" x 120.078"
Max. Workpiece Weight 2,050 lbs.
Y Axis Travels 122.05"
X Axis Travels 62.20"
Z-Axis Travel 4.33"
Drive Type X/Y Axis Rack and Pinion Drive
Drive Type Z-Axis Ball Screw Drive
Machine Structure Flying Optics
Work Table Height 35.43"
Number of Controlled Axis 3
Position Detection System Encoder
Min. Command Unit 0.0001"
Rapid Travel Speed (X,Y-axis) 4,724 IPM
Pos. Accuracy X, Y Axis 0.0002"/19.69"
Pos. Accuracy Z 0.0004"/3.94"
Max. Processing Feedrate X,Y Axis 2,362 IPM
Max Thickness Mild Steel 1.0”
Max Thickness Stainless Steel 0.75”
Max Thickness Aluminum 0.63”
Total Electrical Requirement 71 Kva
Footprint W 394" x D 240"

Equipped With:

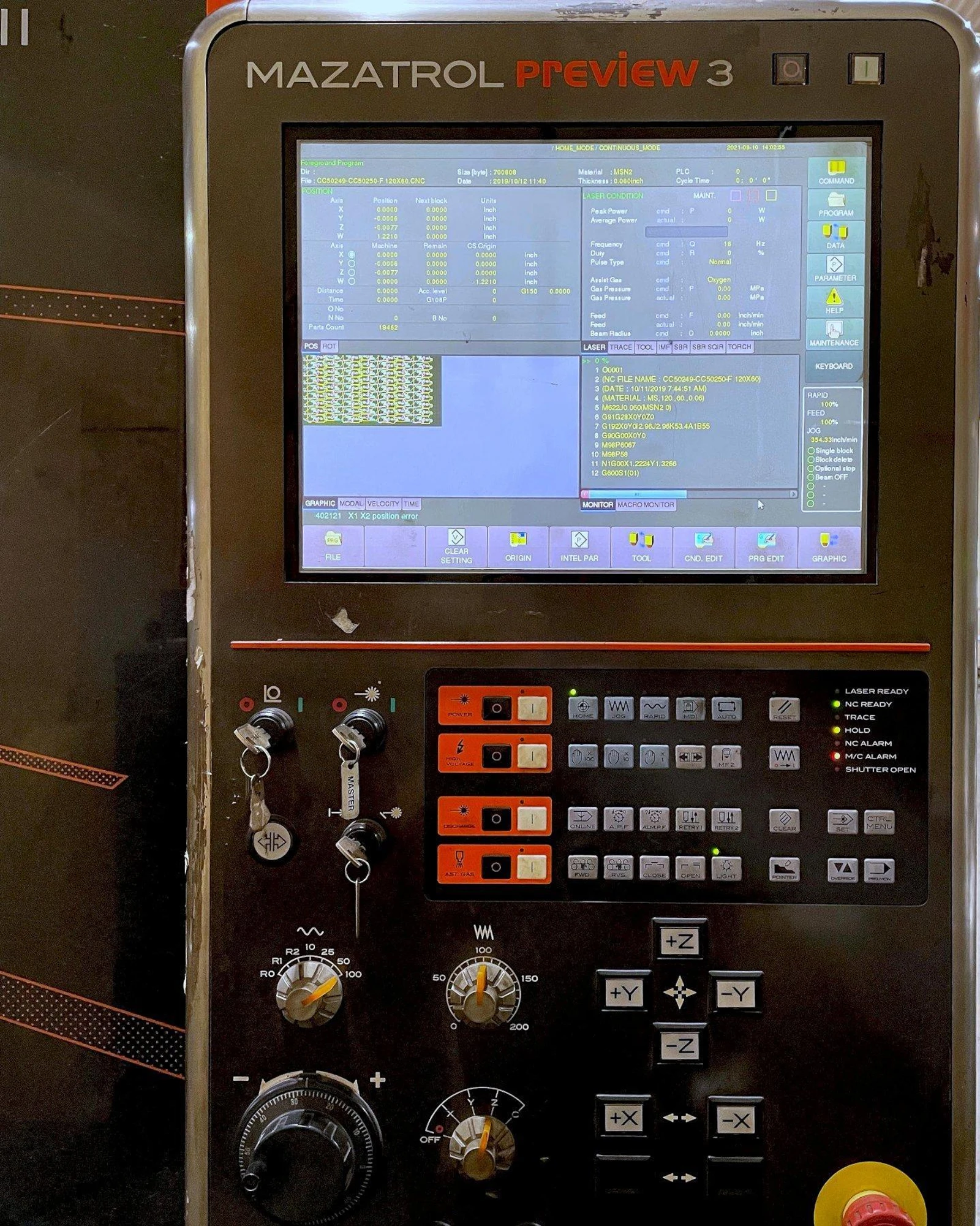

Mazak Mazatrol Preview 3 CNC Controls

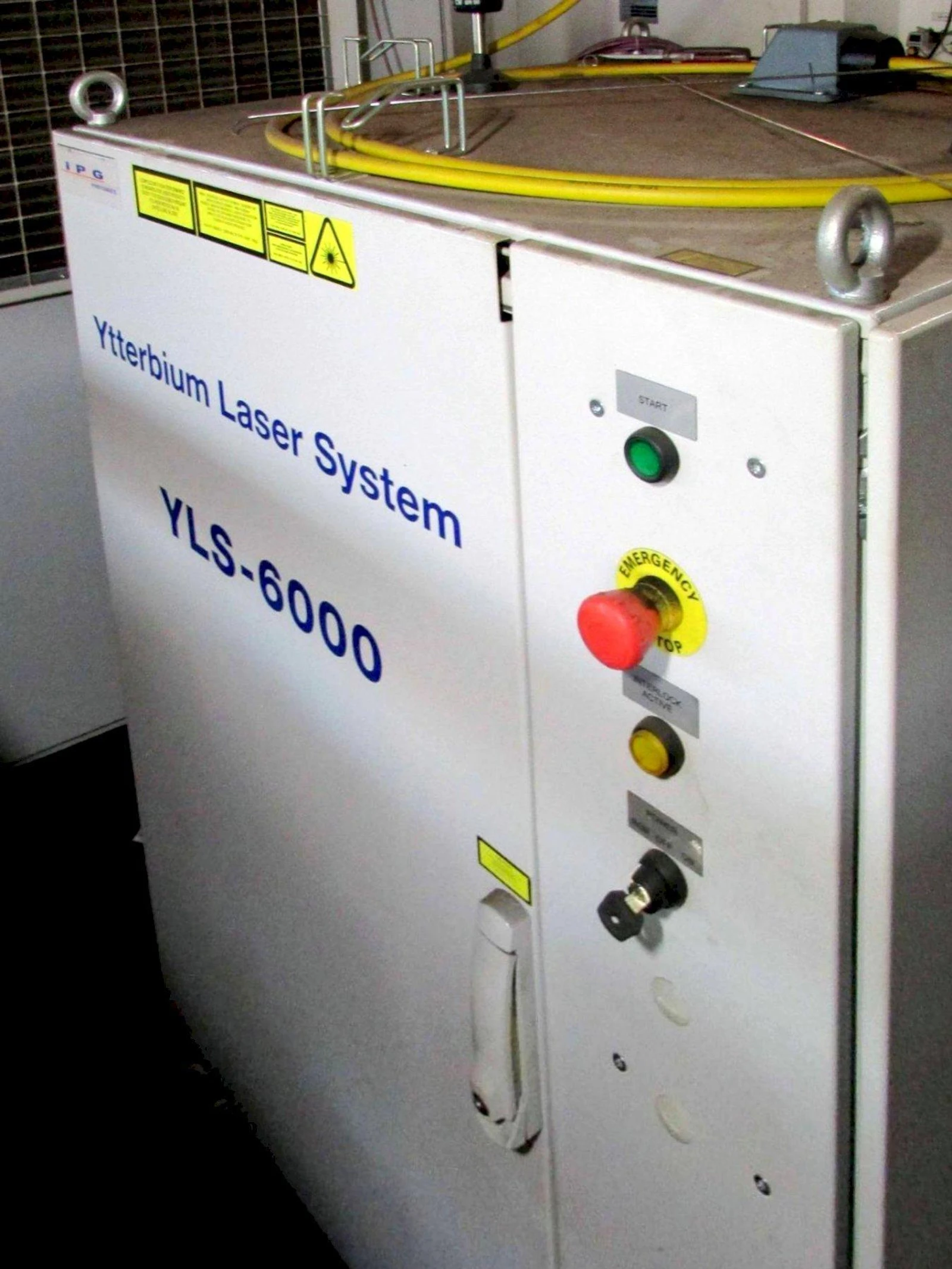

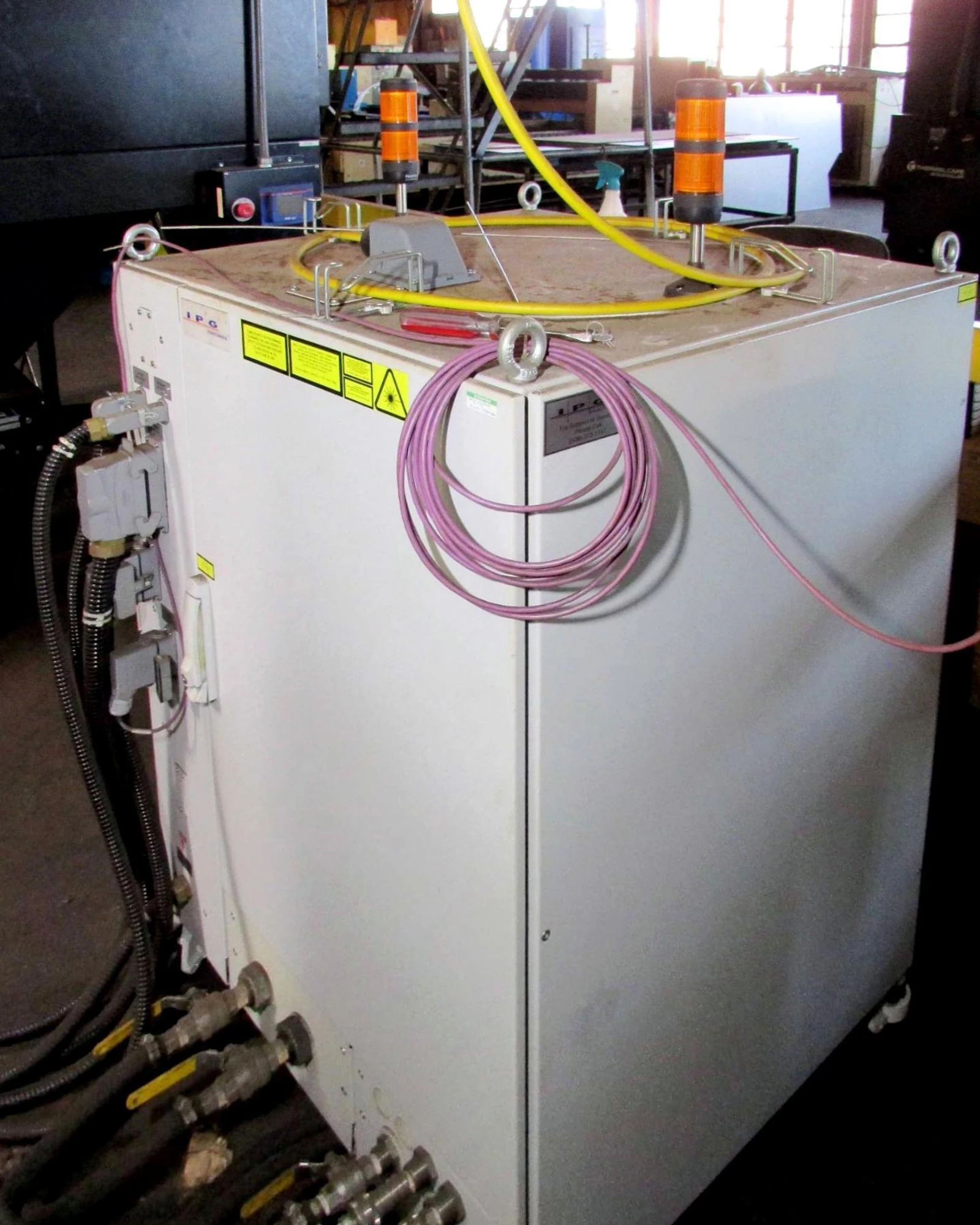

IPG 6KW (6000 Watt) Fiber Laser Resonator

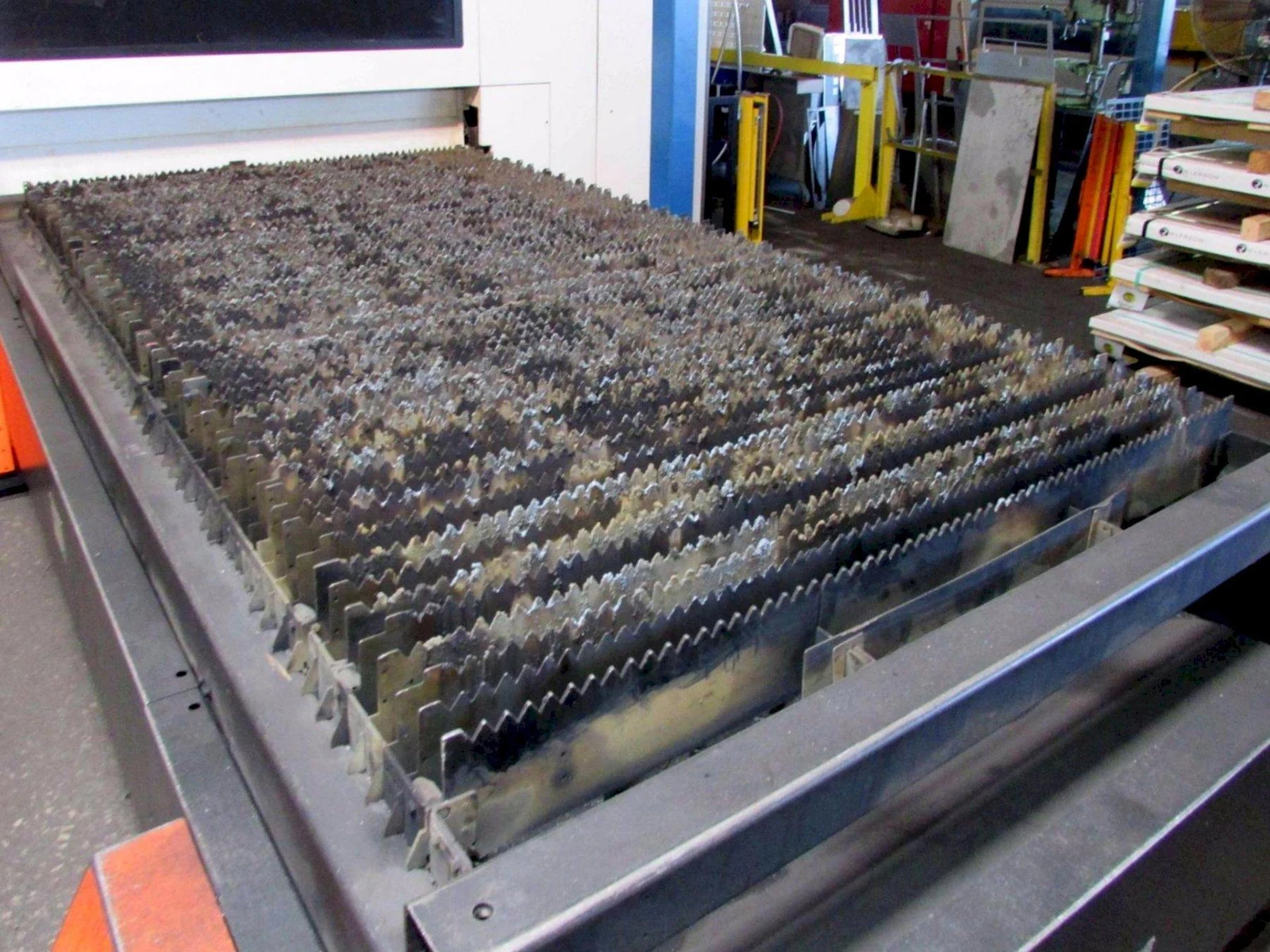

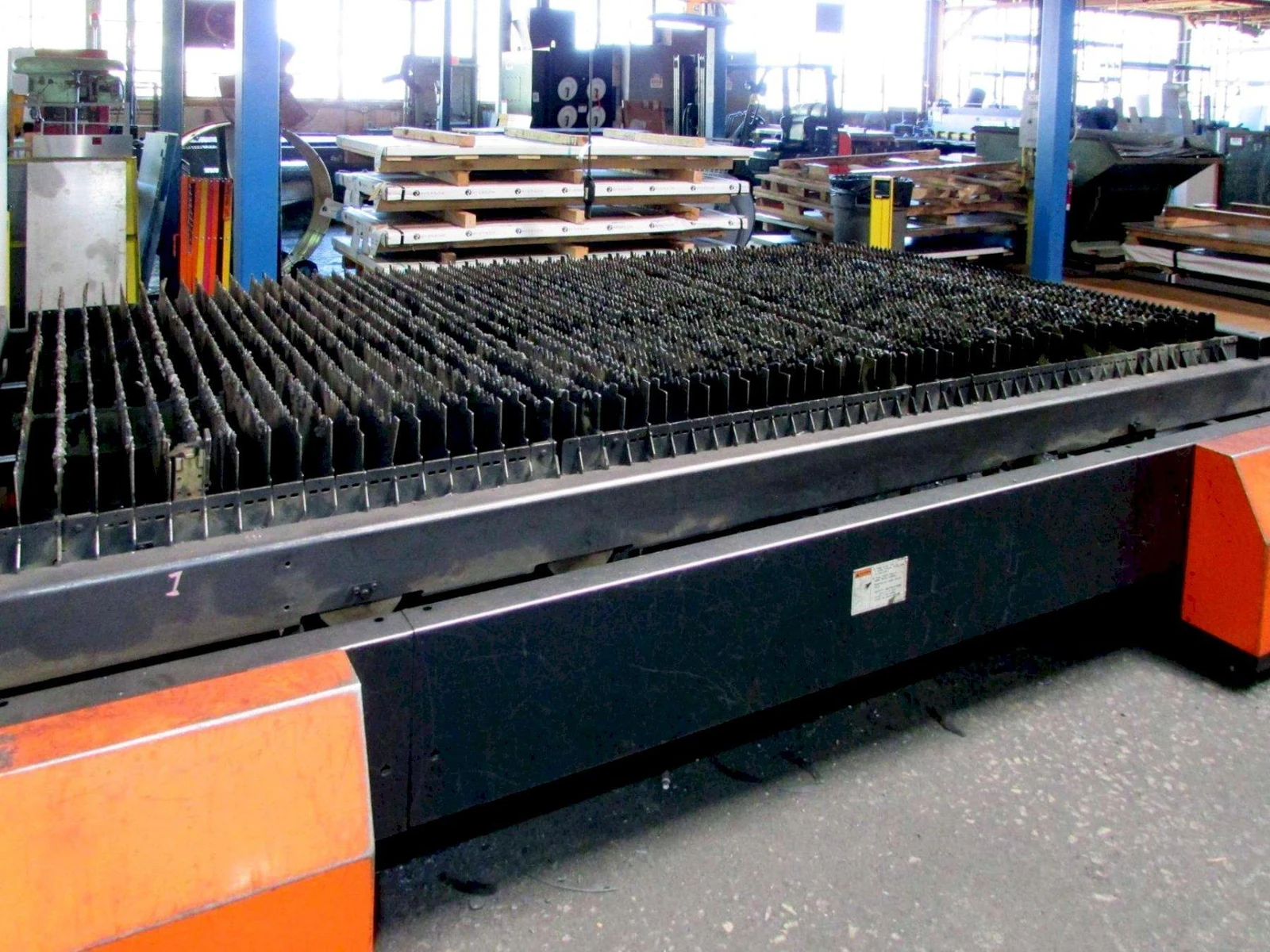

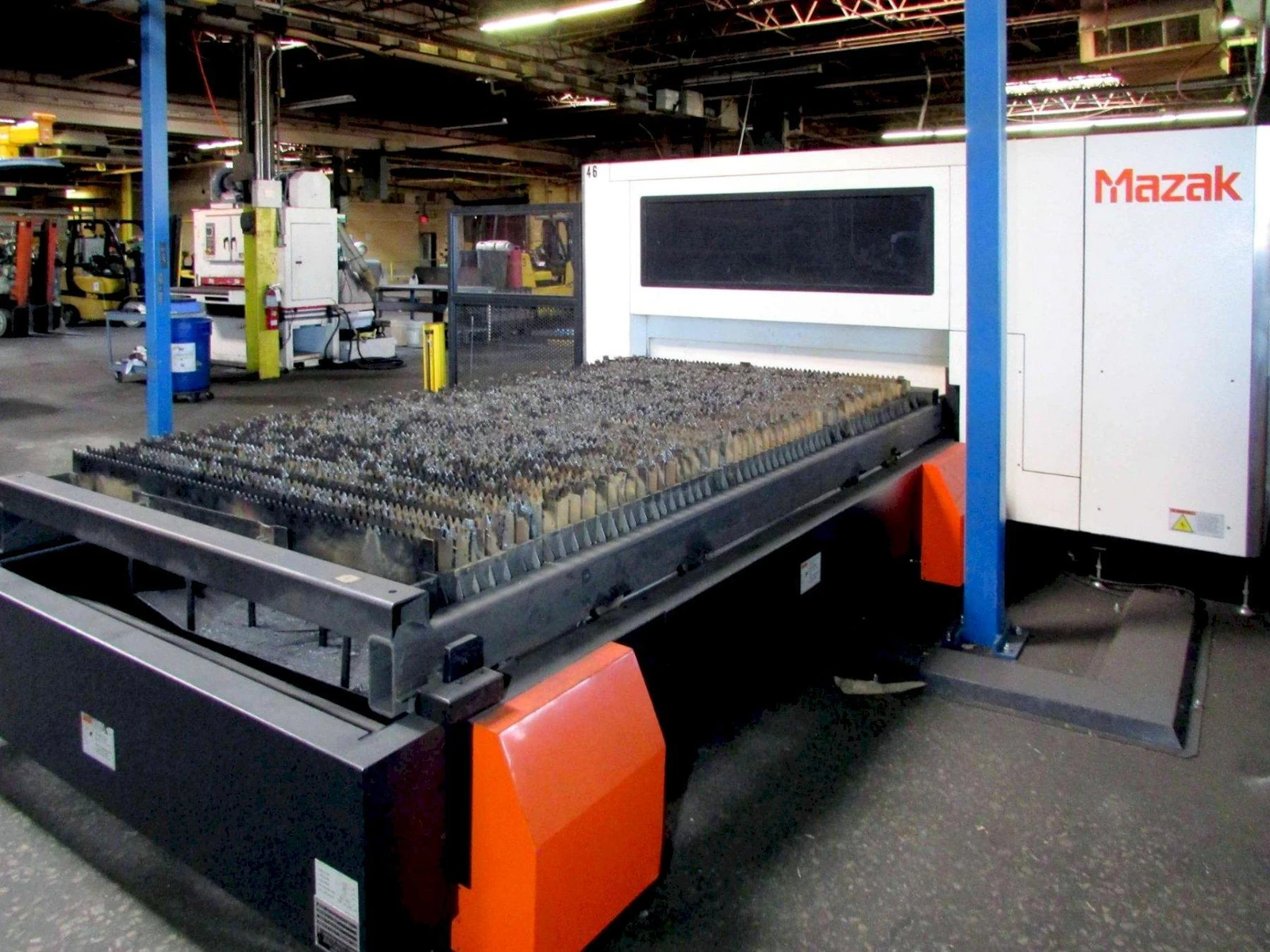

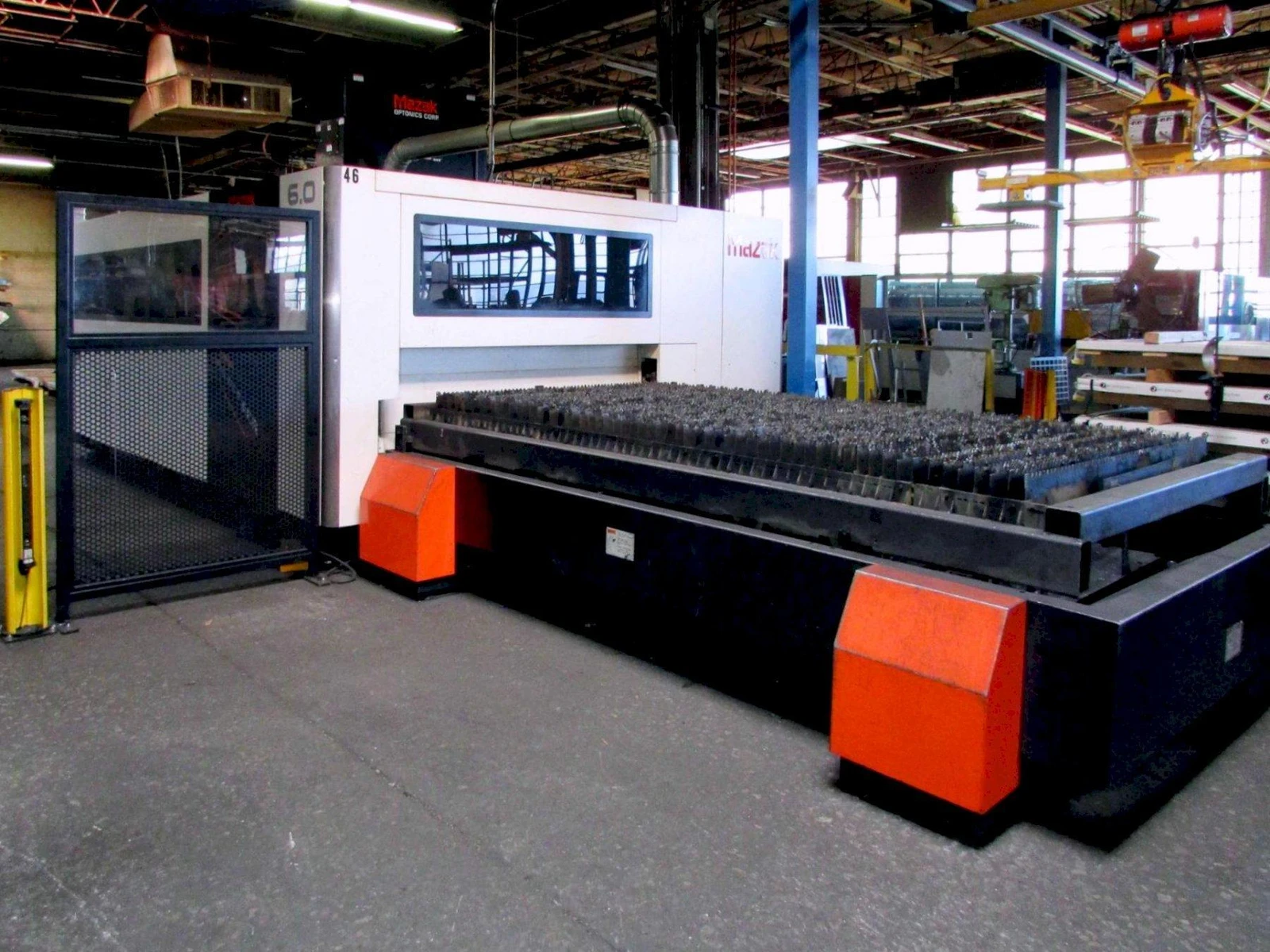

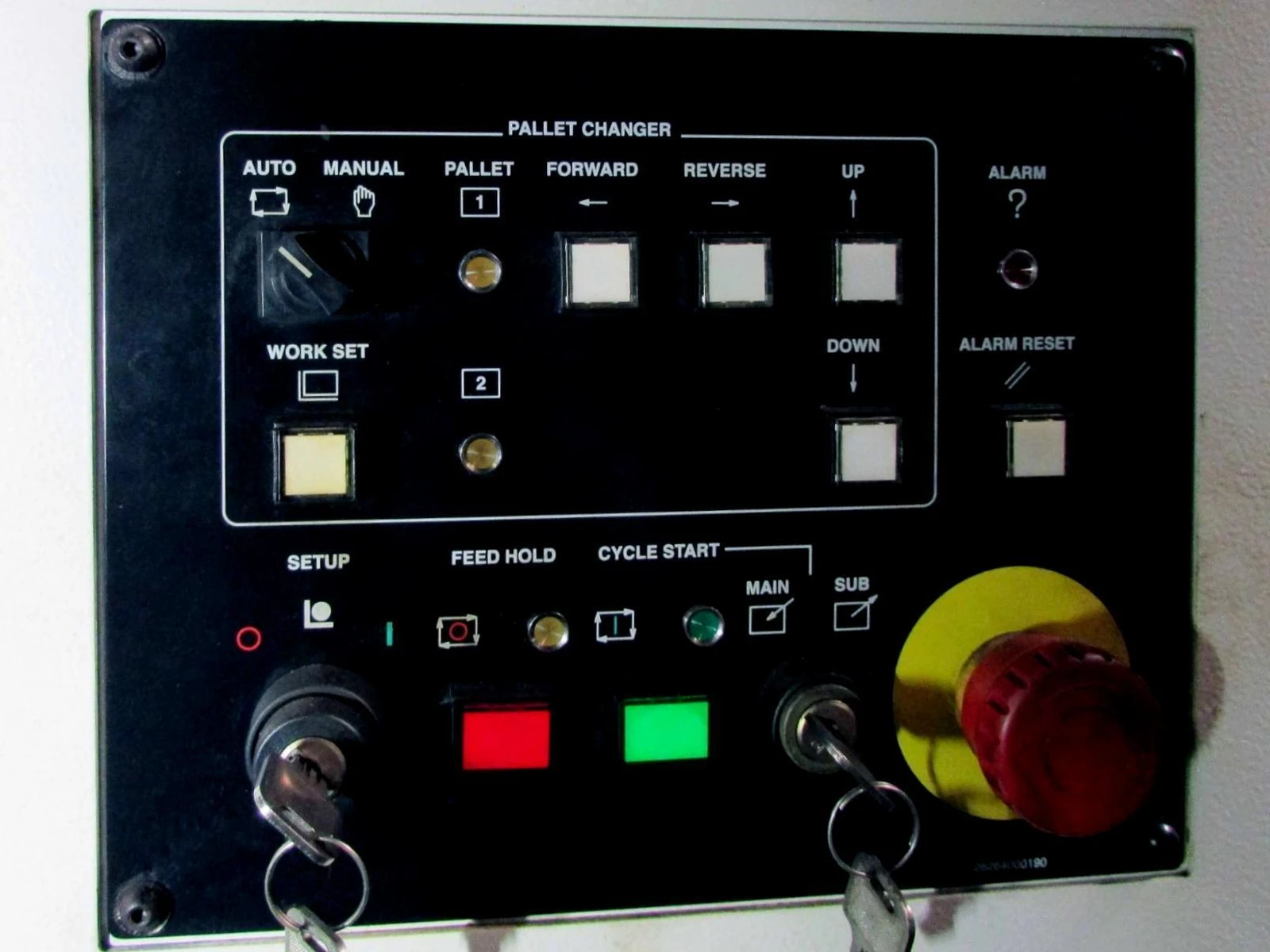

5′ x 10′ Dual Pallet Shuttle

light curtain safety barrier

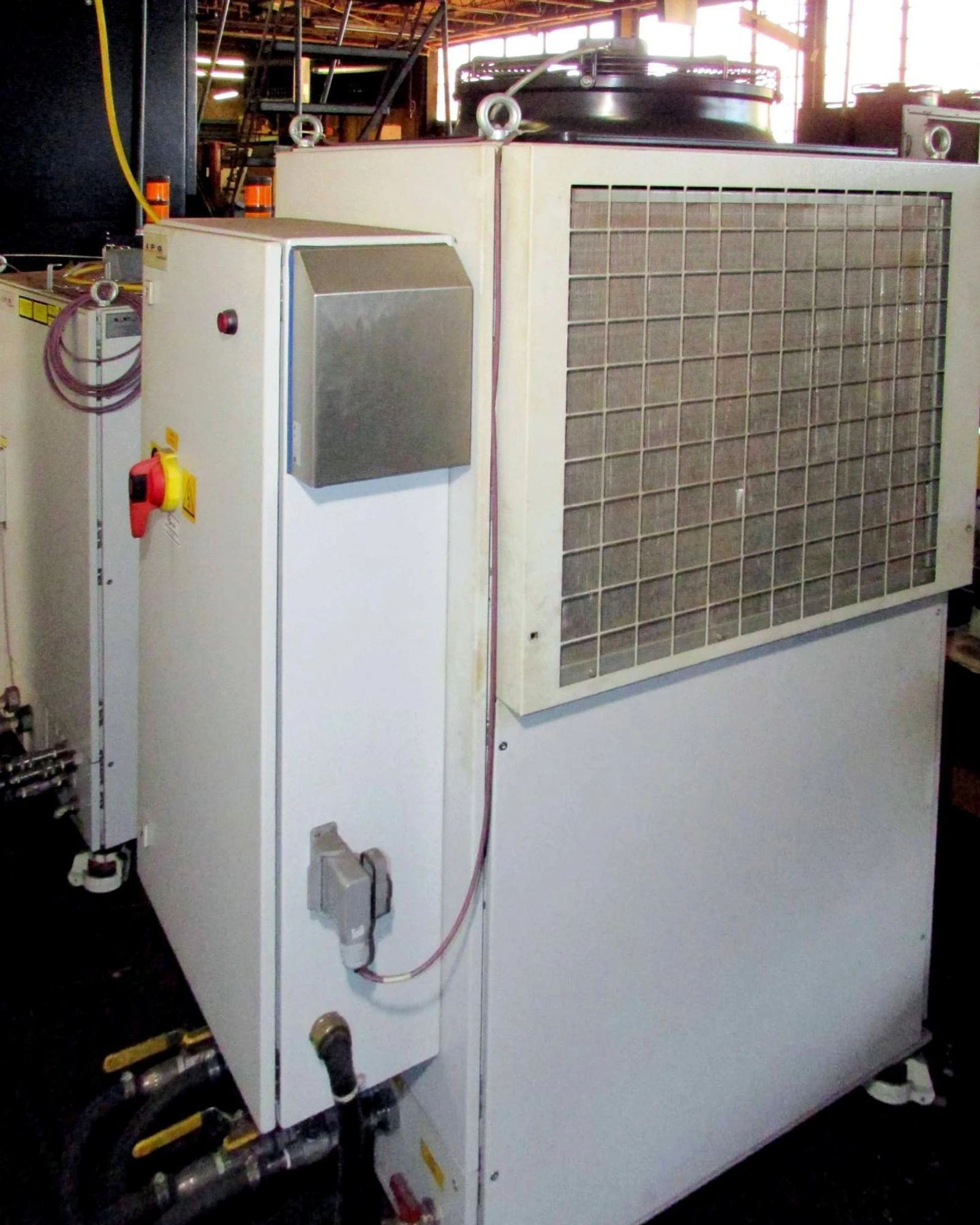

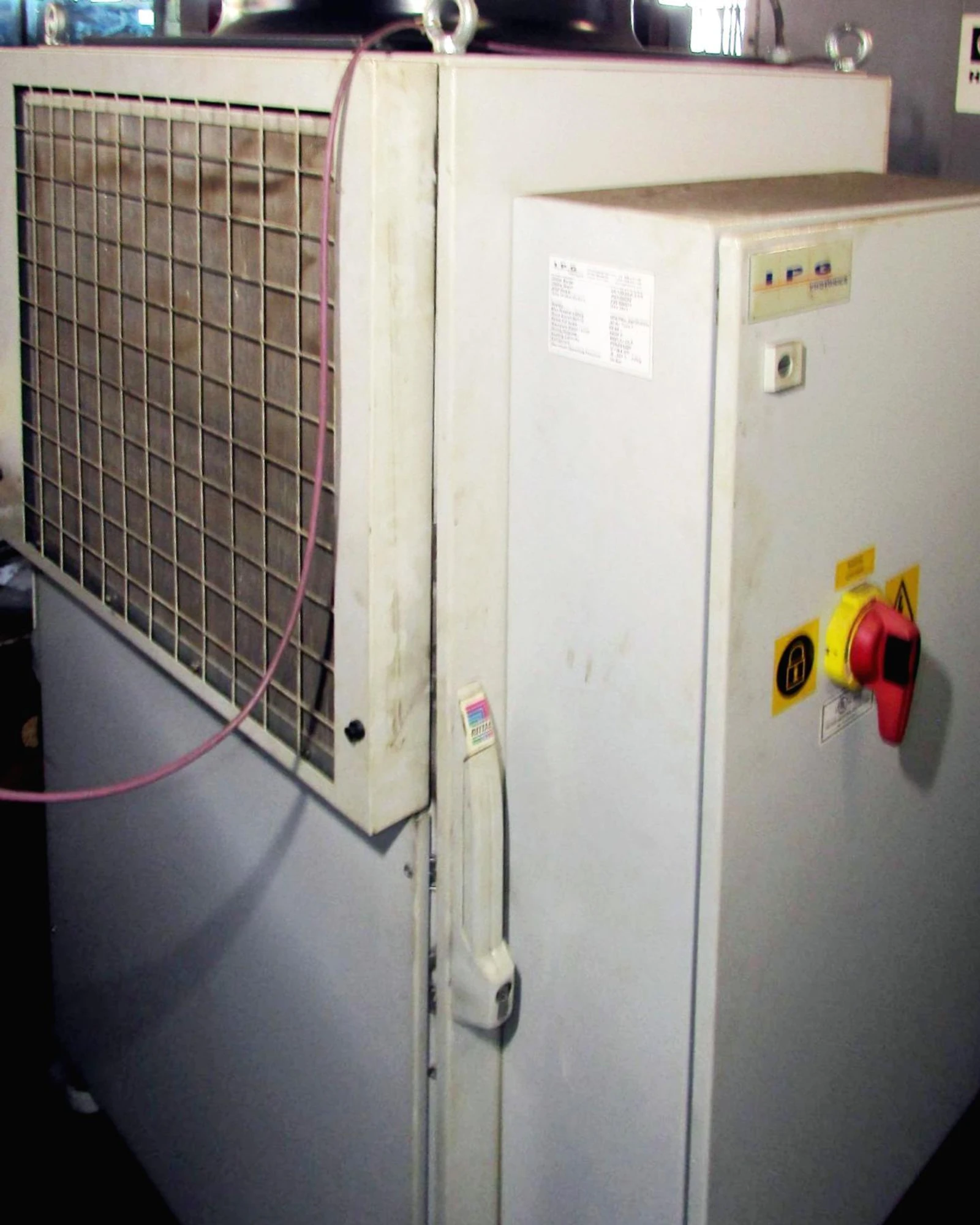

Chiller Unit

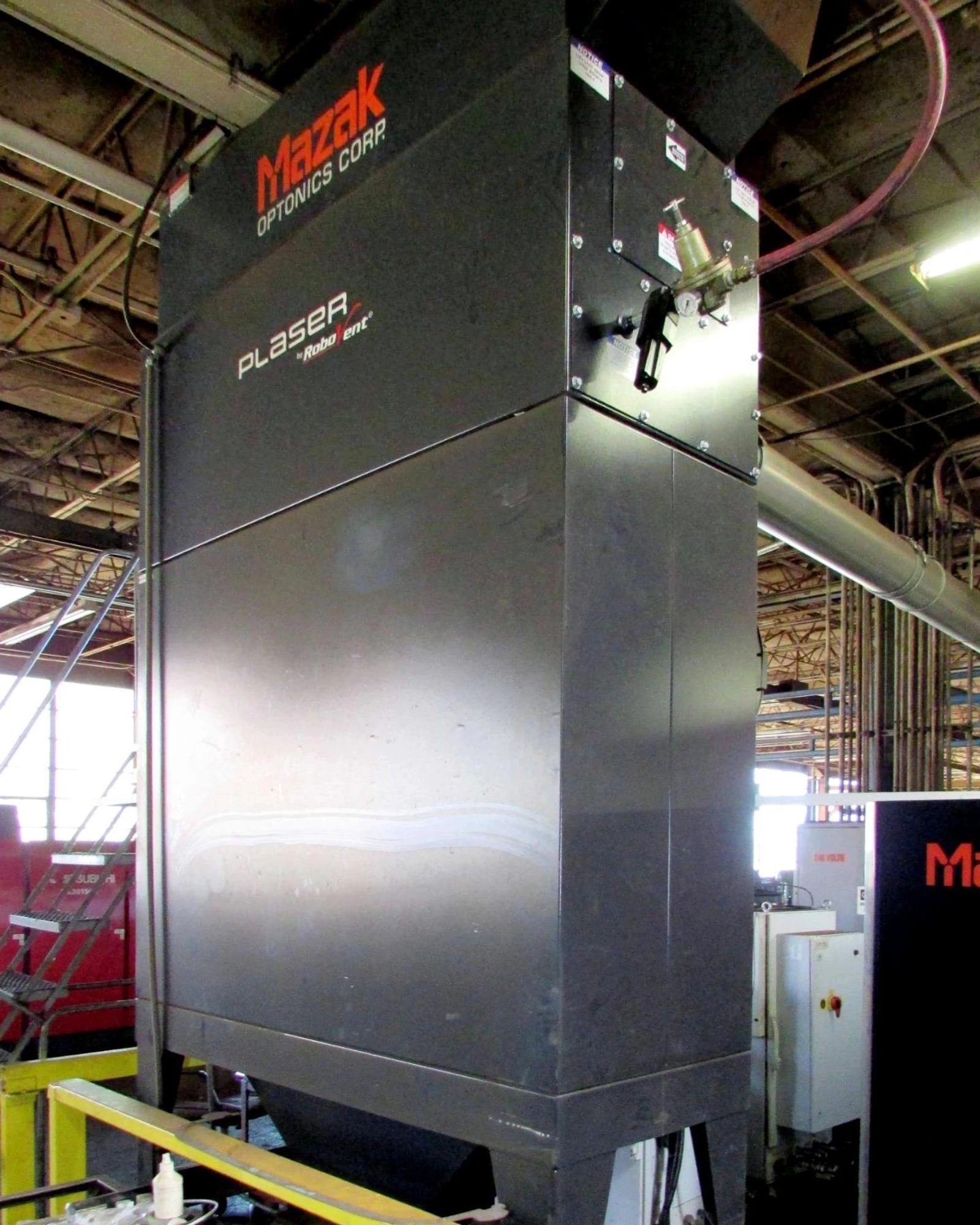

Plaser Dust Collector

No files or videos to display
