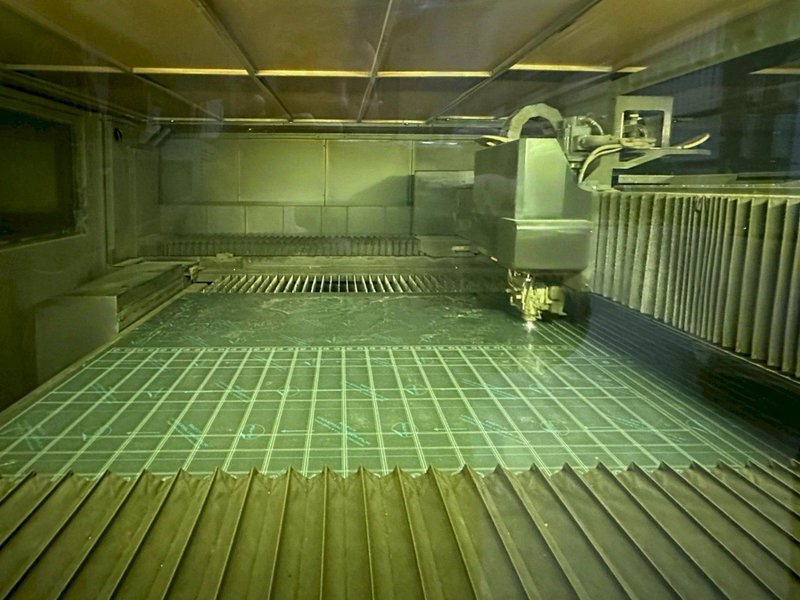

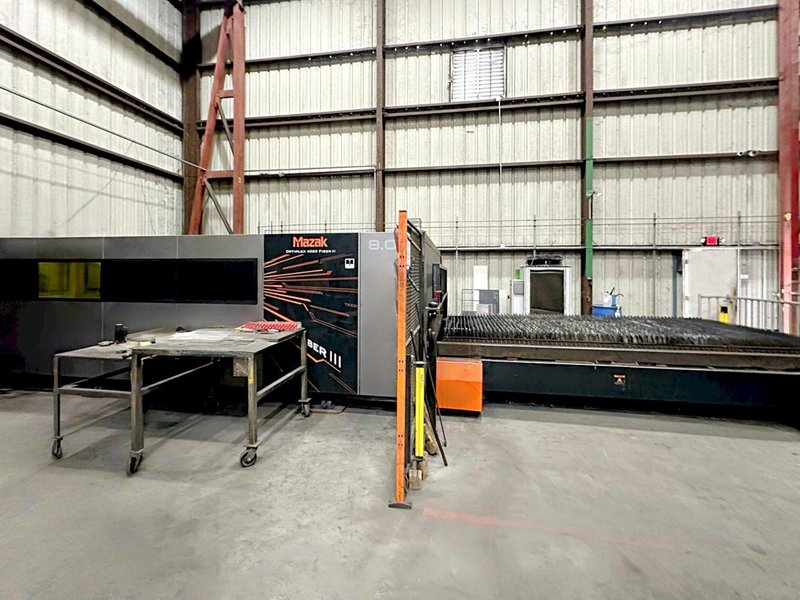

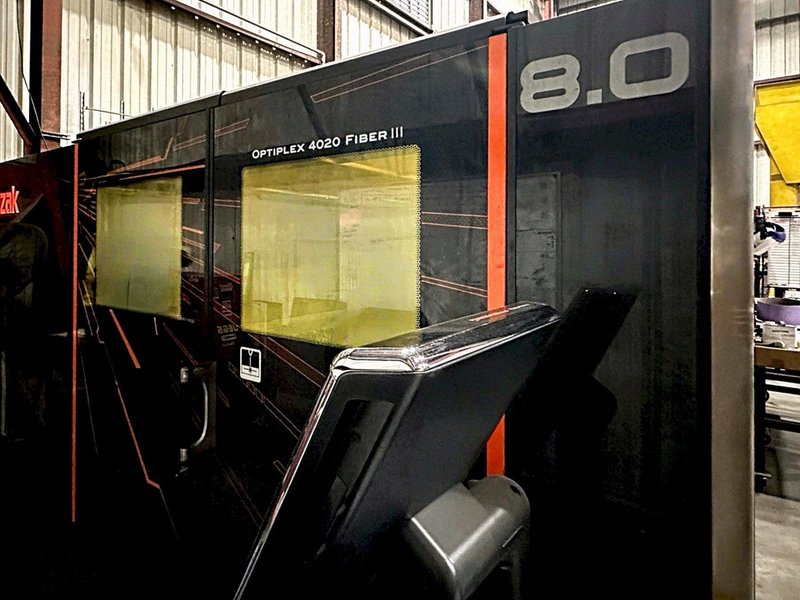

Mazak Optiplex 4020 Fiber III

Name: Mazak Optiplex 4020 Fiber III
Brand: MAZAK
SKU: 100654
Availability: InStock

Brand

MAZAK

Not specified

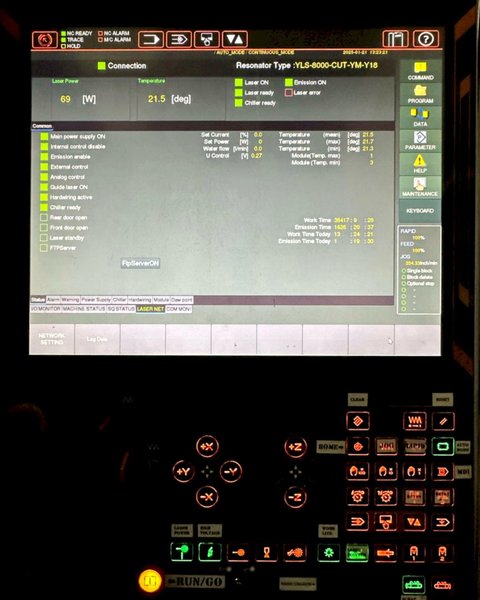

Control	Mazak Preview G
Display Screen	15” Color LCD
Position Detection System	Encoder
Program Input System	EIA/ISO
Machine Structure	Flying Optics
Laser Type	Fiber
Power Source	IPG YDS 8000 Generator
Max Power Output	8,000 Watts
Min. Command Unit	0.0001”
Max Workpiece Dimensions	78.74" x 157.48"
Max Workpiece Weight	3,527 Lbs
Travels X Axis	160.43"
Travels Y Axis	81.10"
Travels Z Axis	4.33"
Motion Drive System X, Y	Rack & Pinion Drive
Motion Drive System Z	Ball Screw Drive
Number Of Control Axes	3
Rapid Travel Speed X, Y Axis	4,725 IPM
Pos. Accuracy X, Y Axis	0.002"/19.68"
Pos. Accuracy Z Axis	0.0004"/3.94"
Repeatable Accuracy X, Y Axis	0.0012"
Max Material Thickness Mild Steel	1.00”
Max Material Thickness Stainless Steel	1.00”
Max Material Thickness Aluminum	0.75”
Max. Material Thickness Copper	0.63″
Max. Material Thickness Brass	0.38″
Total Electrical Requirement	105 kVA
Machine Unit Weight	47,024 Lbs.

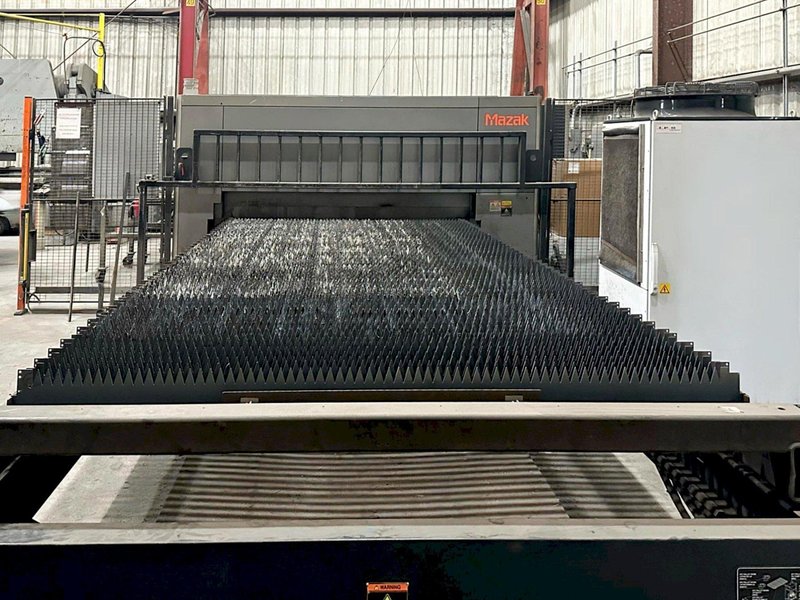

Equipped With: Mazatrol PREVIEW G CNC Control 15” LCD Color Touch Screen IPG YDS 8000 Generator & Fiber Optic Delivery System Highspeed Cutting Head Scrap Conveyor Intelligent Monitoring Functions High Speed Automatic 2 Pallet Changer 4th Assist Gas Piping Regulator Start-Up Kit II IPG Chiller Unit Dust Collector
