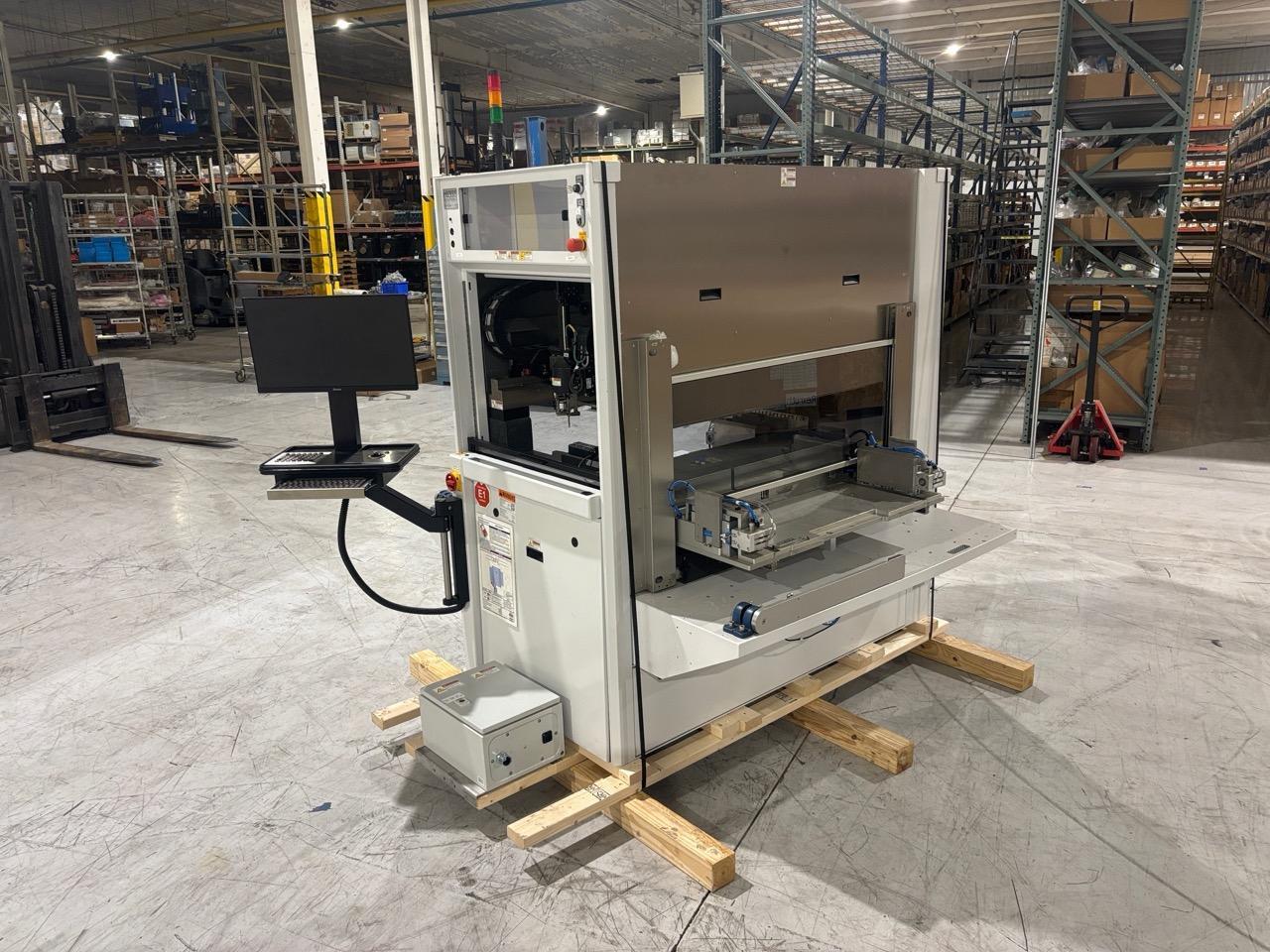

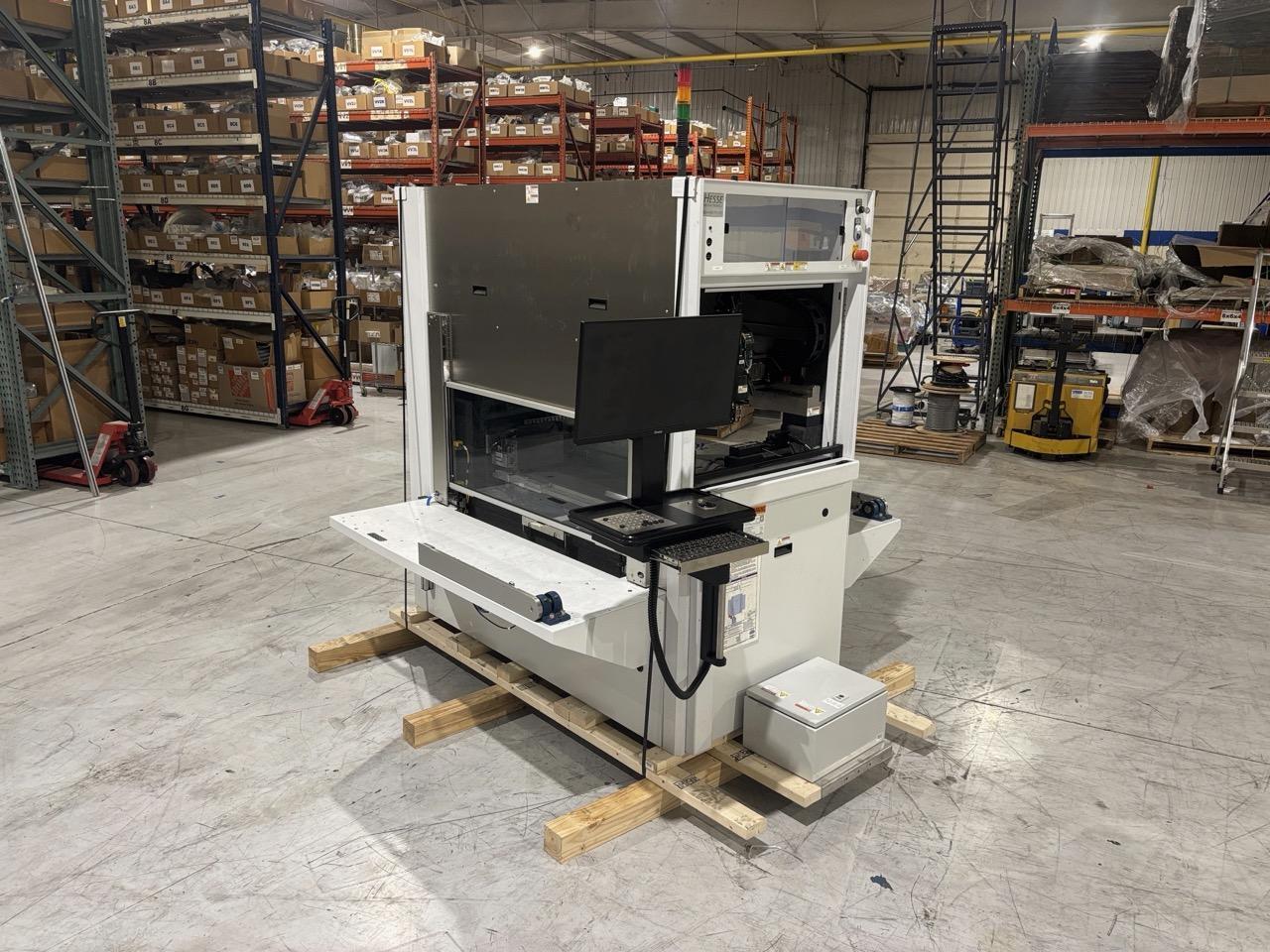

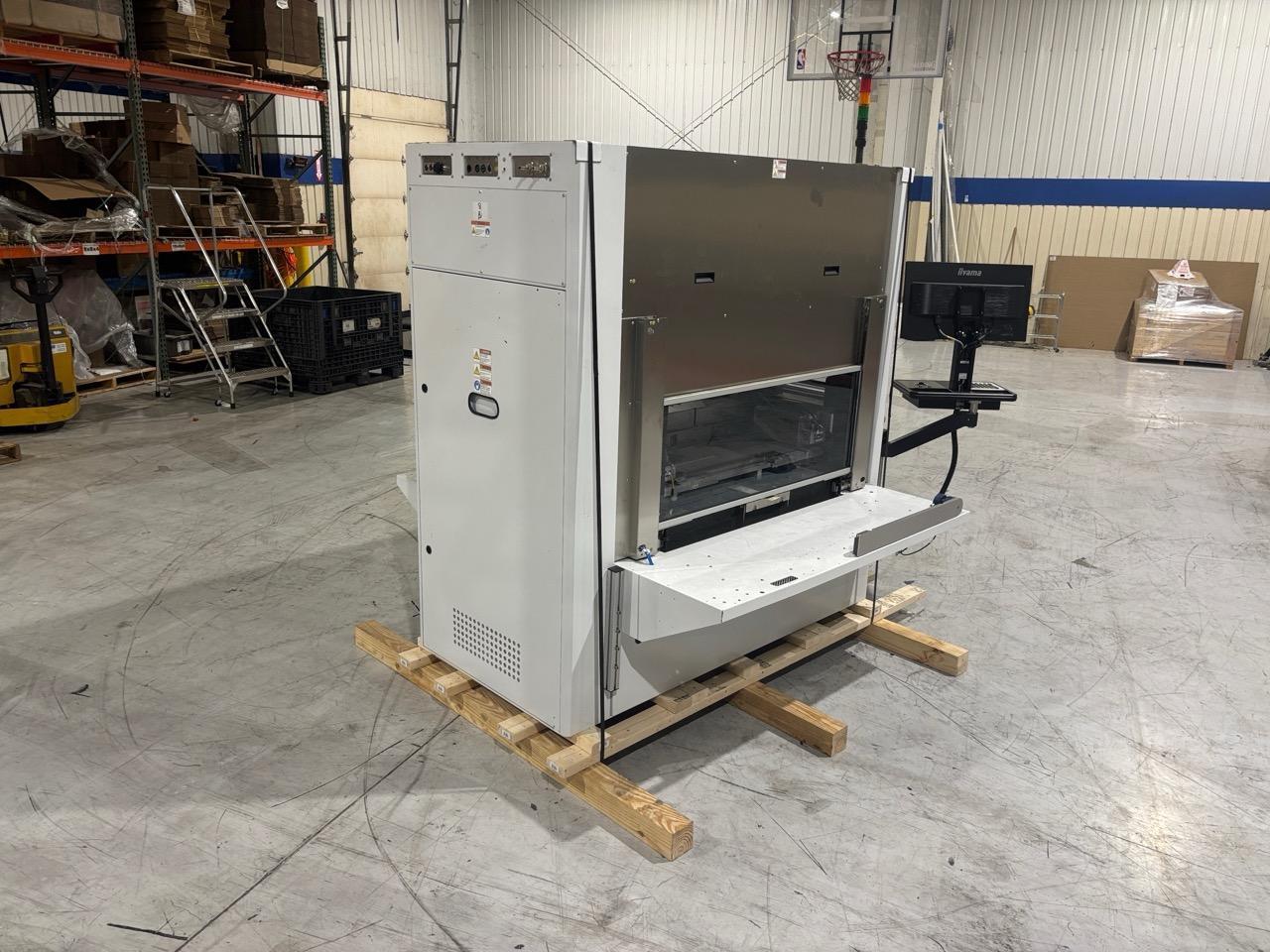

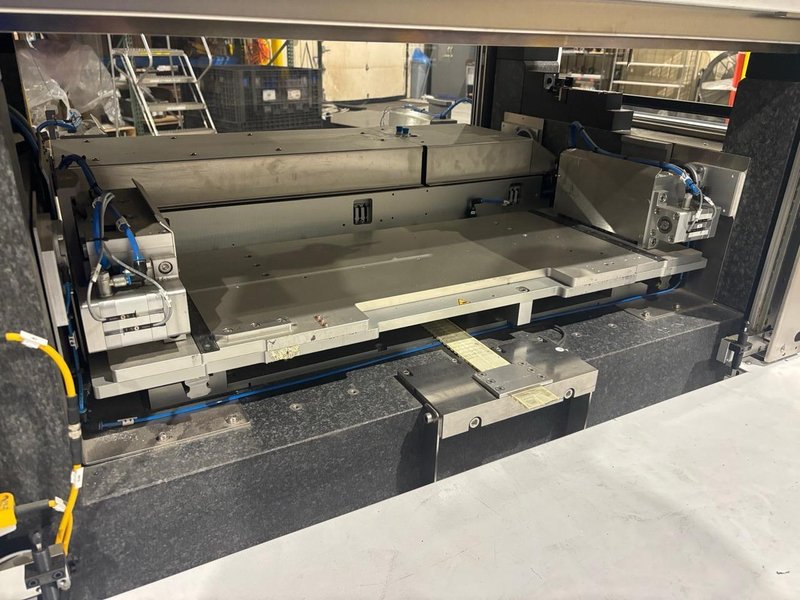

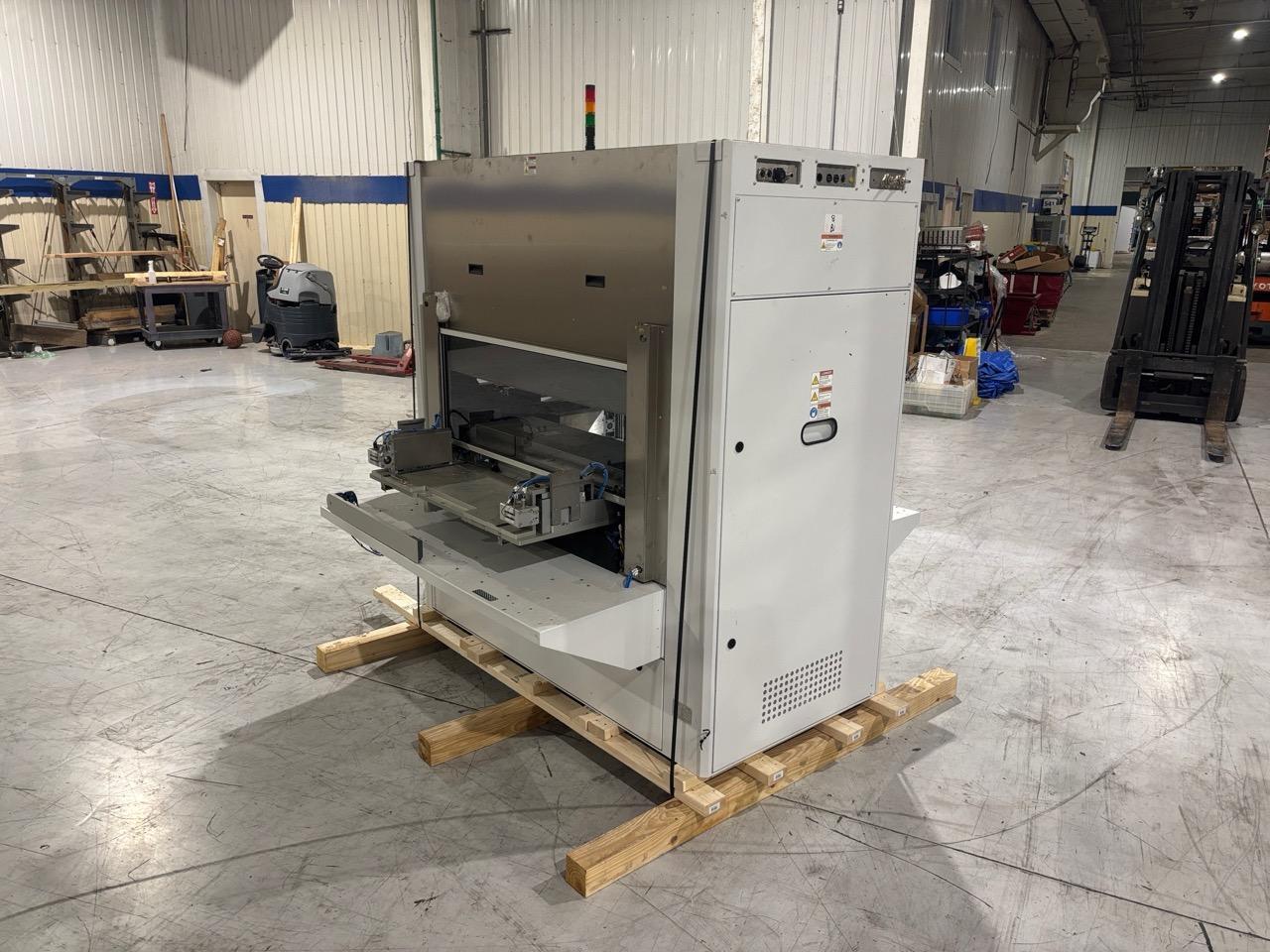

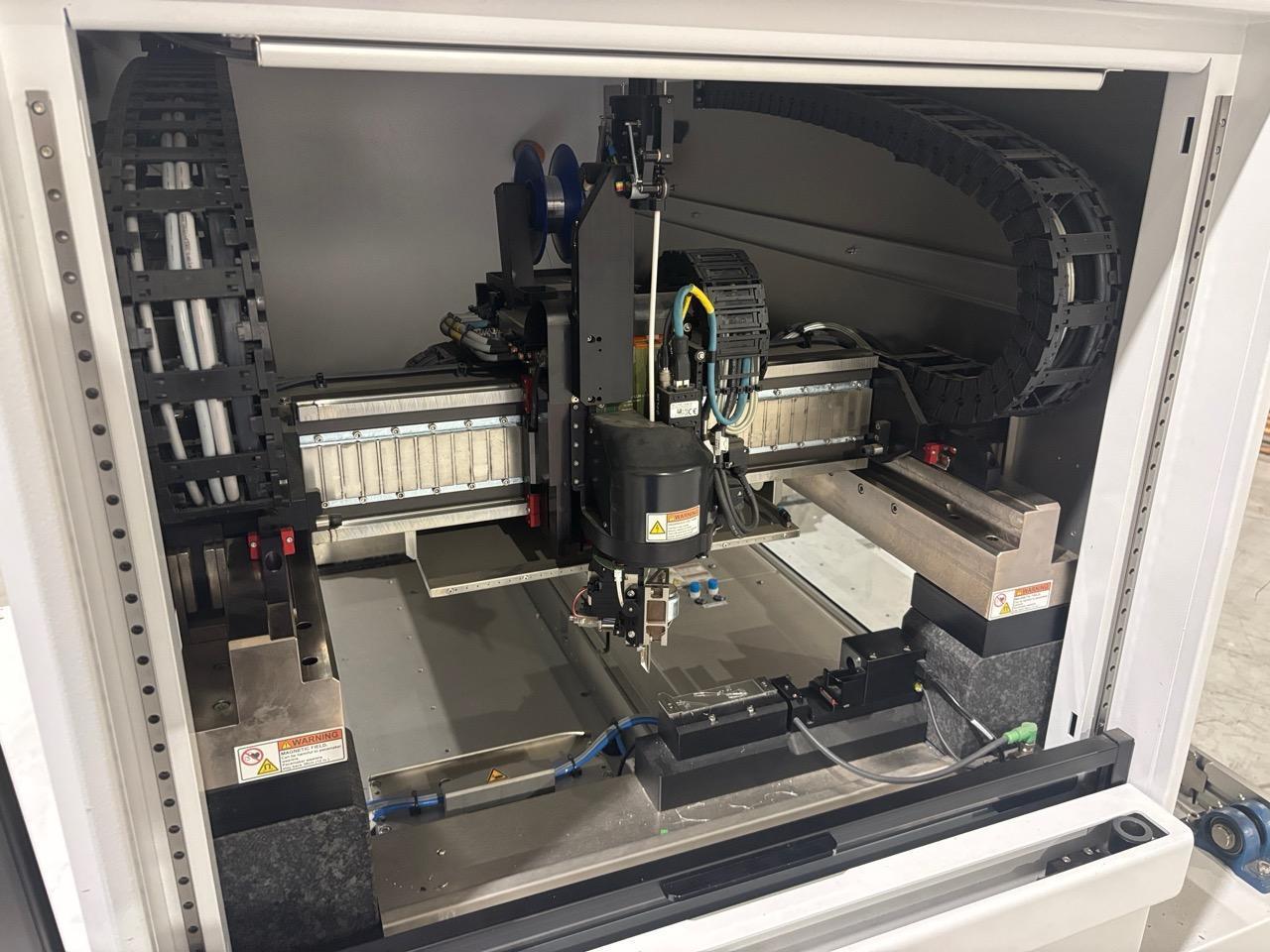

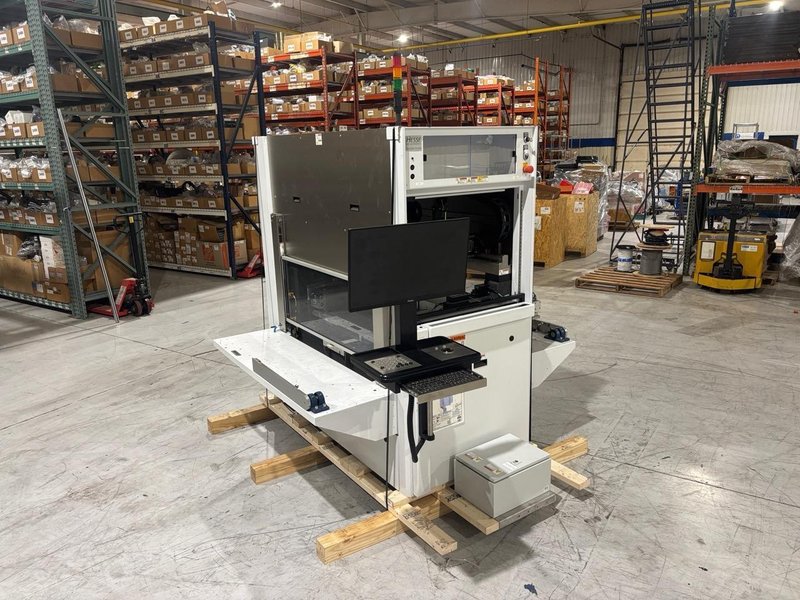

Hesse BJ985 Wire Bonder – 2021 – Heavy Wire Wedge Bonder for Power Electronics & Semiconductors

Wire Materials: Aluminum (Al), Copper (Cu), Aluminum-Copper (AlCu)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Wire Diameter Range: 50 μm – 600 μm (2 mil – 24 mil)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Ribbon Dimensions: 250 μm x 25 μm up to 2000 μm x 400 μm (10 mil x 1 mil up to 80 mil x 16 mil); Copper ribbons up to 200 μm thickness

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bondhead Frequency: 60 kHz (alternative frequencies available upon request)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting Methods: Active, Passive, Air Cut (for frontcut)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Working Area X-Axis: 370 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Y-Axis: 870 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Z-Axis: 42 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,P-Rotation: 440°

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,230V AC, 50-60 Hz, 1 Phase Current: 4.5A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Footprint (W x D x H): 880 mm x 1780 mm x 1912 mm (excluding monitor and light tower)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 1800 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
