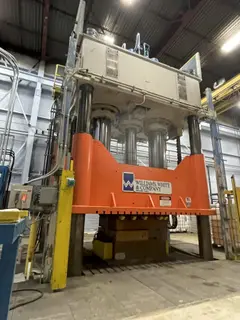

2000 Ton WIlliams & White 4 post down acting Hydraulic press. Rebuilt 2023

Standard Catalog Specifications (subject to verification)

Model H-2000-120-96
2000 ton capacity
72"   stroke
84"   daylight opening
12"    closed daylight
120"  L R x 96" F B between tie bars,
4".     thick bolster plate

Capacities
-----------
200-2000 Pressing
18-180       stripping
40 tons     Net Lift@fast open

Operating speeds
-----------------
1000   IPM fast close
200.    IPM slow close
20-35.IPM pressing to 2000 tons
20-200 IPM stripping
 600.     IPM fast open

Motor and controls
-------------------
200  HP-1200 rpm main motor 575-3-60HZ
Allen Bradley PLC programmable controls

overall dimensions Approx:
---------------------------
320" above floor Height
324,000 LBS aproximate overall weight

This machine has been completely rebuilt and not put back into service. The press is standing in plant for immediate sale.
