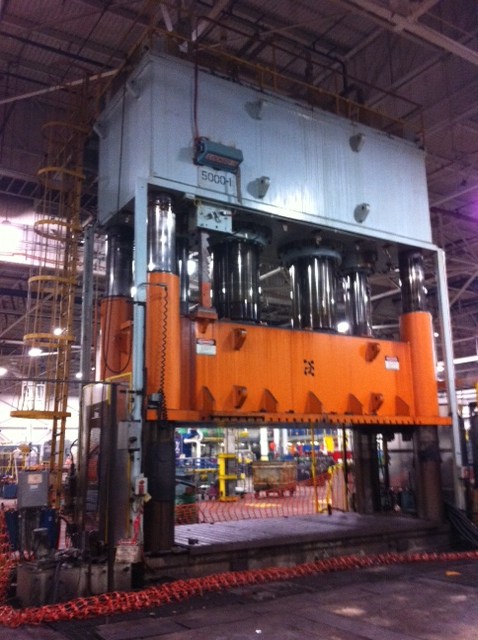

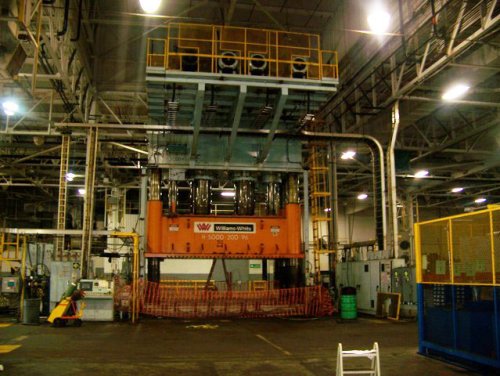

5000 Ton, WILLIAMS & WHITE DOWNACTING HYDRAULIC PRESS MODEL, H-5000-200-96, 72"Str, 112"DLO, 200" x 96"BA, 40" SH ,1997
Brand
Category
Type
Model
H-5000-200-96
Stock #
6662
Year
1997
Condition
Good
Location
Michigan
|
PRELIMINARY SPECIFICATIONS

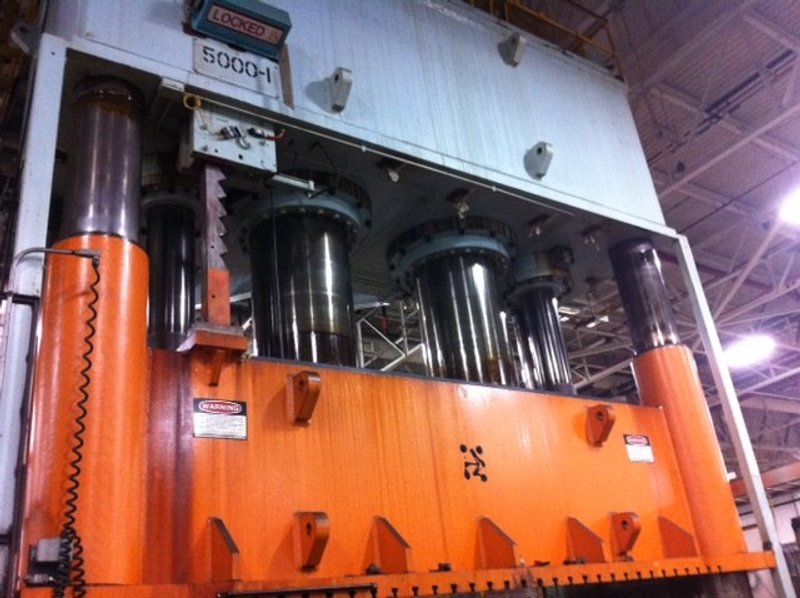

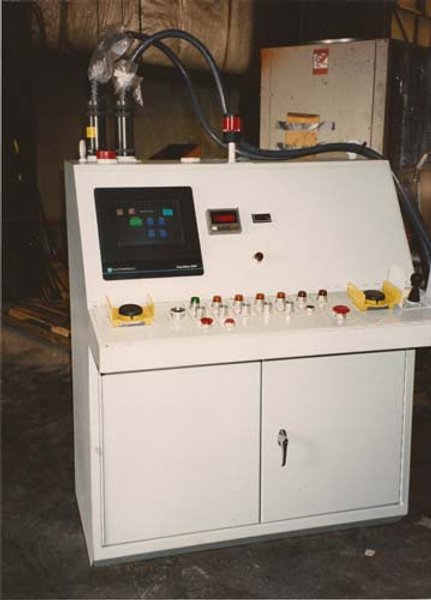

5000 Ton Capacity 72" Stroke 112" Daylight 40" Shut Height 200" x 96" (R-L X F-B) Bed Area 20" Floor to Bed Bolster OPERATING SPEEDS 800 IPM Fast Close 25 - 275 IPM Intermediate Pressing 6-60 IPM Pressing 30-200 IPM Stripping 800 IPM Fast Open EQUIPMENT & FEATURES (2) 35" Diameter Main Cylinders Top Mounted Hydraulics (4) 250 HP Motors 480 Volt, 3 Phase, 60 Hertz Electrical Enclosure Enclosed Fan Cooled Allen-Bradley PLC-5/40 Series Processor with Allen-Bradley PanelView ColorTouchScreen Desk Top Style Operator Control Console Station (Push Buttons, Selector Switches, Operator Interface, Helm Tonnage Monitor, Inch Handlever) |
