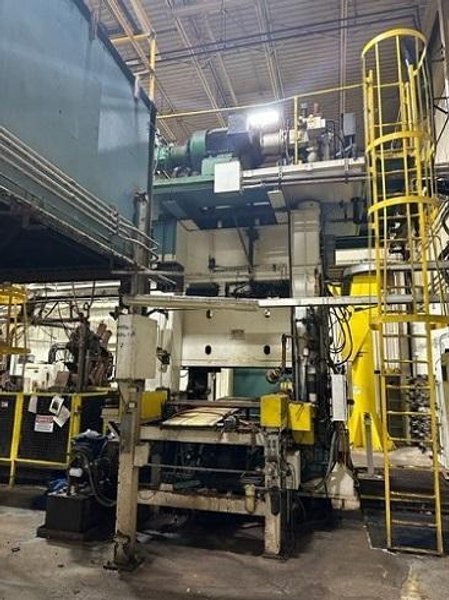

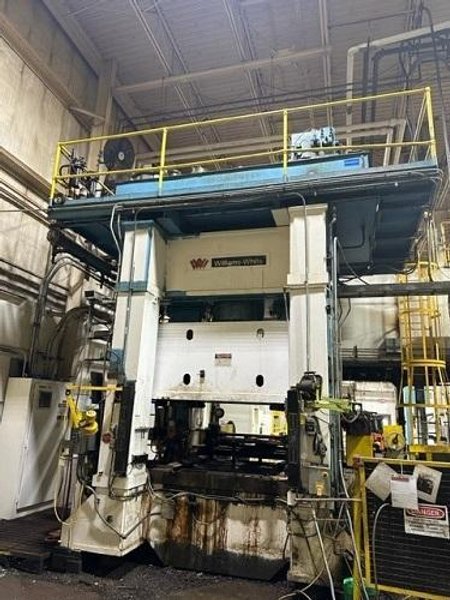

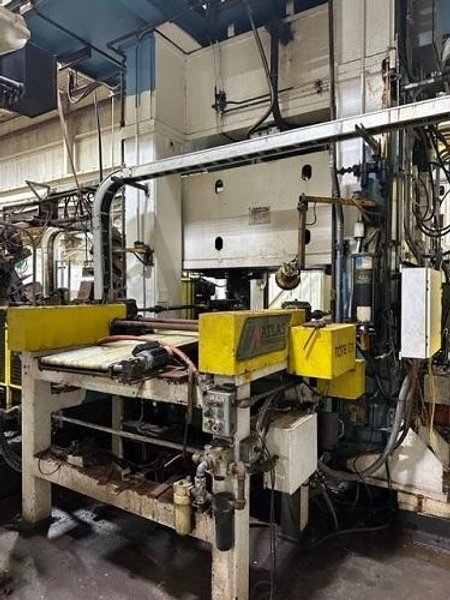

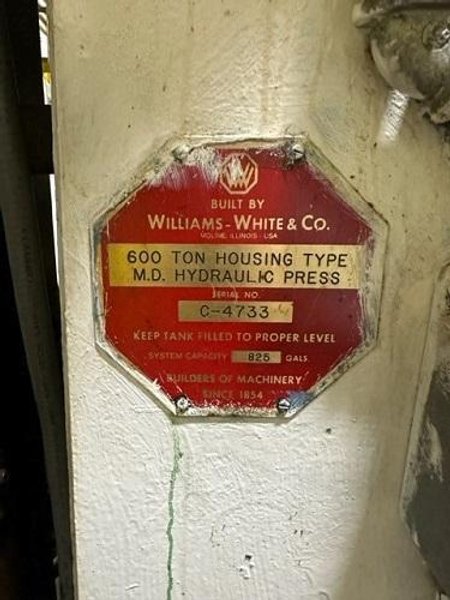

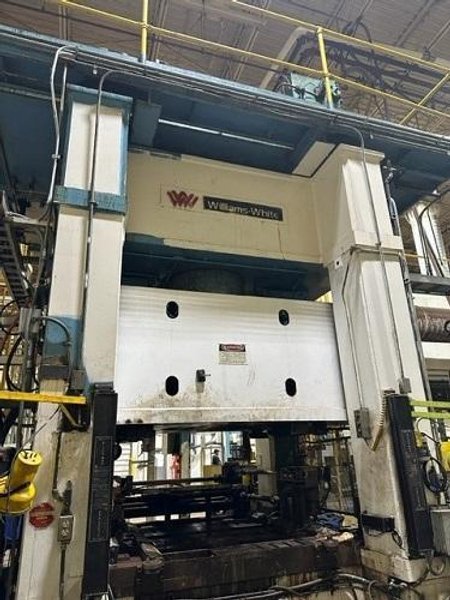

600 TON WILLIAMS & WHITE HYDRAULIC PRESS
Brand
Category
Type
Model
Not specified
Stock #
116111
Year
Not specified
Condition
Used
Location
Not specified
|
600 TON WILLIAM & WHITE HYDRAULIC PRESS
TONNAGE (US TONS)
PRESSING - 600
STRIPPING - 60
NET LIFT @ FAST OPEN - 5
ECCENTRIC LOAD CAPCITY (INCH TONS)* - 4800
** AN OUT OR PARALLEL CONDITION WILL NOT EXCEED 0.005 INCHES PER FOOT WITH
ZERO GIB CLEARANCE. THIS IS BASED ON A MAXIMUM OFF-CENTER LOAD OF 4800 INCH
TONS **
DIMENSIONS (INCHES)
DAYLIGHT (OVER BED BOLSTER) - 36
STROKE OF MAIN SLIDE - 16
SHUT HEIGHT - 20
DIE SPACE (RIGHT TO LEFT x FRONT TO BACK) - 72x60
BETWEEN HOUSING (RIGHT TO LEFT x FRONT TO BACK) - 74x62
BED BOLSTAR THICKNESS - 4
FLOOR TO BED BOLSTER - 45
OPERATING SPEEDS (INCHES/MIN)
FAST CLOSE - 1200
PRESSING - 20-240
STRIPPING - 25-250
FAST OPEN - 1200
MECHANICAL SPECS
FRAME TYPE - PRESTRESSED "H" FRAME HOUSING TYPE
PRESTRESS STYLE - HYD. NUTS WITH HAND PUMP
GUIDE STYLE - 8 POINT SQUARE
LUBRICATION - TRABON AUTOMATIC LUBRICATION SYSTEM
PRESS BASE - SELF-CONTAINED LEVELING/VIBRATION ISOLATION MOUNTS
HYDRAULIC SPECS
MAIN CYLINDER QUANTITY, SIZE & TYPE - (1) 19-1/4" x 18" DIAMETER DOUBLE ACTING
SYSTEM WORKING PRESSURE - 4123 PSI
MAIN OIL RESERVOIR
LOCATION - OVERHEAD
AIR FILTRATION - 10 MICRON
PRESS PRIMARY PUMP
QUANTITY AND TYPE - (2) REXROTH AXIAL PISTON #A4VSO500
CONTROL - "VS" ELECTRONIC VOLUME WITH "DLC/100" ELECTRONIC HORSEPOWER LIMITING
AUXILLARY PUMPS QUANTITY & TYPE (2) VICKERS VANE #2520V
|
