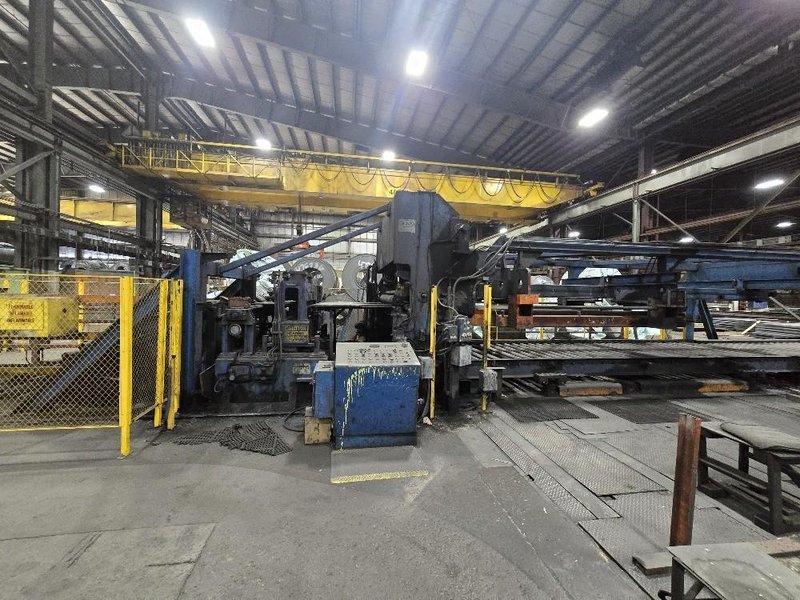

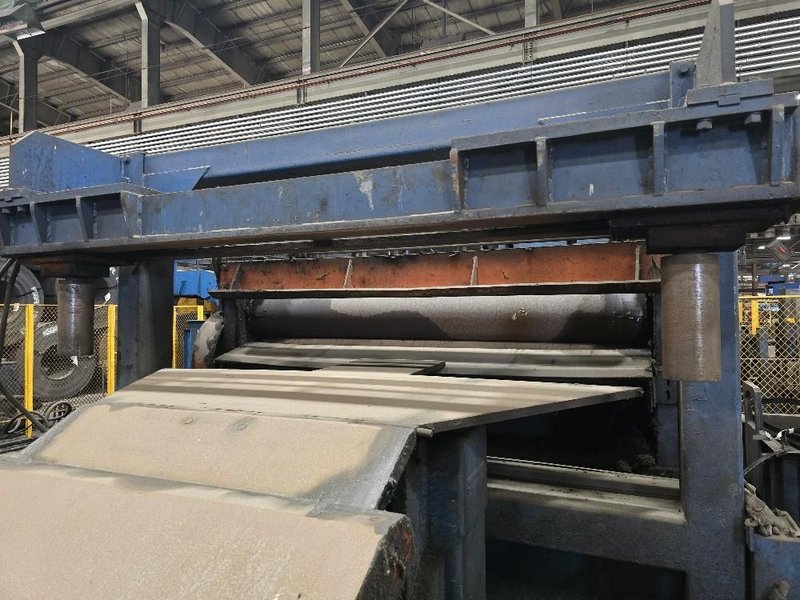

72" x .250" x 80,000# BRADBURY CUT TO LENGTH LINE

72” x .250” x 80,000# “BRADBURY” ROLL FEED CUT TO LENGTH LINE

MANUFACTURER – BRADBURY

YEAR – 1985/1986

LINE DIRECTION – LEFT to RIGHT

MATERIALS – HOT ROLLED STEEL (PICLED OR BLACK)

THICKNESS – .250” MAX., .050” MIN.

COIL WIDTH – 72” MAX.

COIL WEIGHT – 80,000# MAX.

COIL OUTSIDE DIAMETER – 72” MAX.

COIL INSIDE DIAMETER – 18” MIN. TO 32” MAX,

SHEET LENGTH – 240” (20’-0”) MAX., 900” (75’-0”) MAX. WITH SPECIAL HANDLING

SHEET WIDTH – 72” MAX.

PACK HEIGHT – 36” MAX. INCLUDING SKID

PACK WEIGHT – 40,000# MAX.

LEVELER TYPE – 17 ROLL HYDRAULIC

LINE SPEED – 300 FPM MAX.

UNCOILER DRIVE – ELECTRIC FEEDUP DRIVES w/ WATER-COOLED BRAKES

SIDE TRIMMER DRIVE – 100 HP, DC

SCRAP CHOPPER DRIVE – 50 HP, DC

LEVELER DRIVE – 400 HP, DC

ROLL FEEDER DRIVE – 100 HP, DC

MAIN SHEAR DRIVE – 50 HP, AC

LINE COMPONENTS:

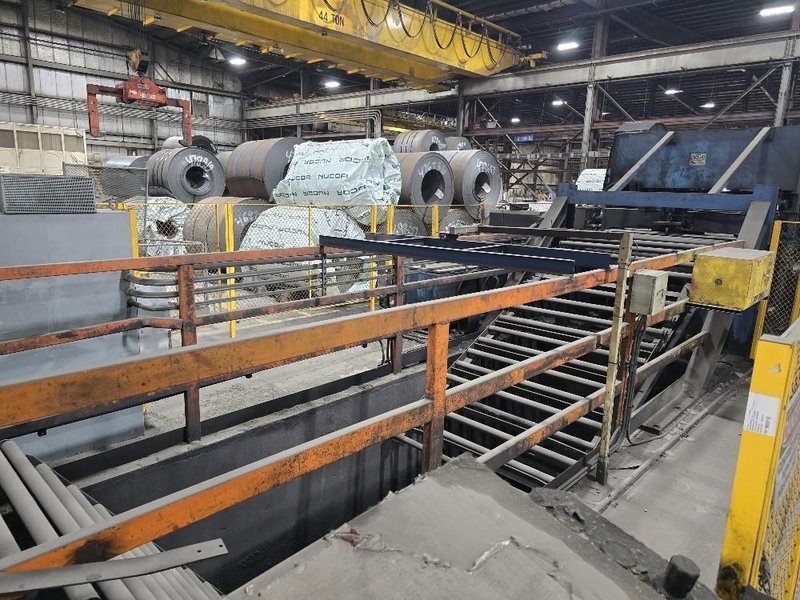

96” (8’0”) & 186” (15’-6”) Driven V-Roll Storage and Loading ConveyorS

End Traveling Floor Level Coil Loading Car w/ V-Roll Deck

DUAL CONE UNCOILER w/ WATER-COOLED BRAKES & ELECTRIC FEEDUP DRIVES

FLOOR MOUNTED HOLD DOWN ROLL w/ HYDRAULIC FEEDUP DRIVE

PIVOTING AND TELESCOPING PEELER BLADE

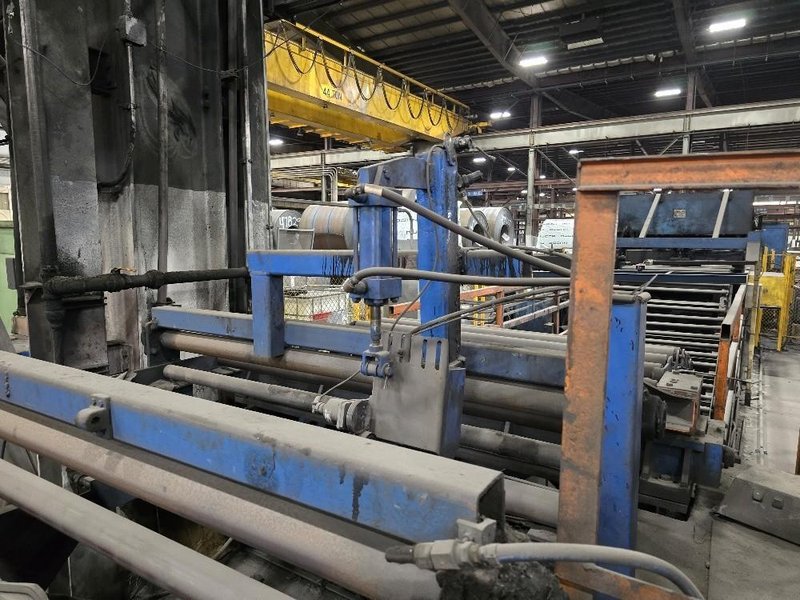

ROLLER TYPE SIDE GUIDES

ENTRY PINCH ROLLS w/ 3 ROLL BREAKER & HYDRAULIC FEEDUP DRIVE

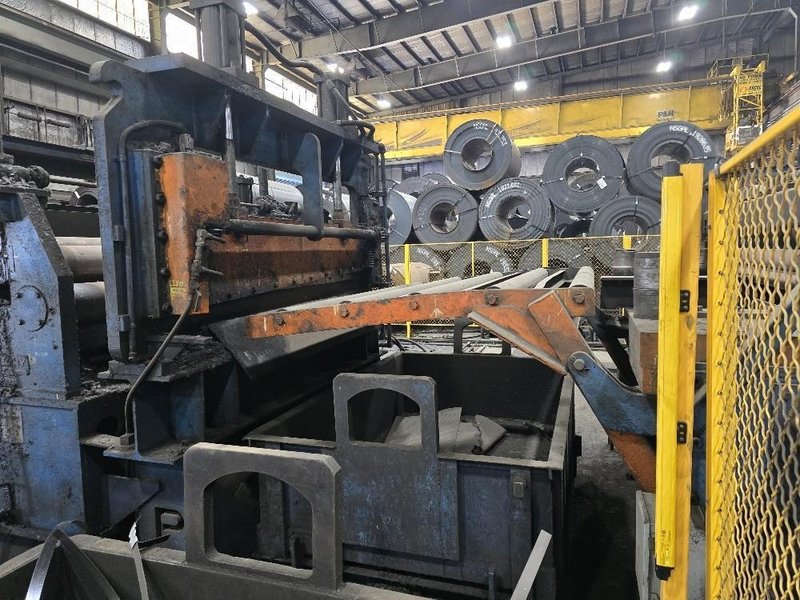

ENTRY CROP SHEAR w/ PIVOTING THREAD TABLE

TRAVERSING SCRAP CART

ROLLER TYPE SQUARING GUIDES

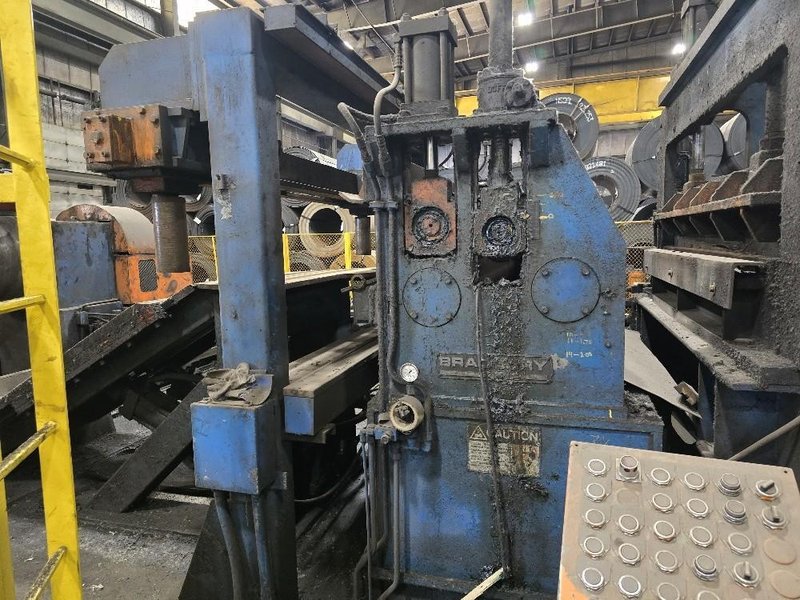

STUB ARBOR SIDE TRIMMER w/ POWERED WIDTH ADJUST

DUAL ARBOR ROTARY SCRAP CHOPPERS

HINGED STEEL BELT SCRAP CONVEYOR

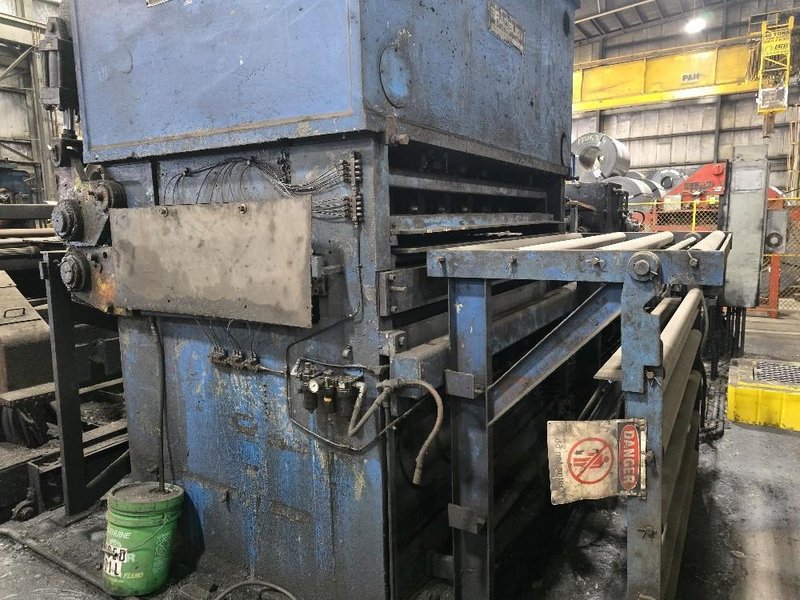

17 ROLL, 3.5” DIAMETER, 4 HIGH HYDRAULIC ROLLER LEVELER w/ ENTRY PINCH ROLLS & 7 BACKUP FLIGHTS

ROLLER TYPE STRIP INSPECTION TABLE w/ PIVOTING SECTION & MIRROR FOR BOTTOM SIDE INSPECTION

TOP SIDE STRIP MARKING SYSTEM

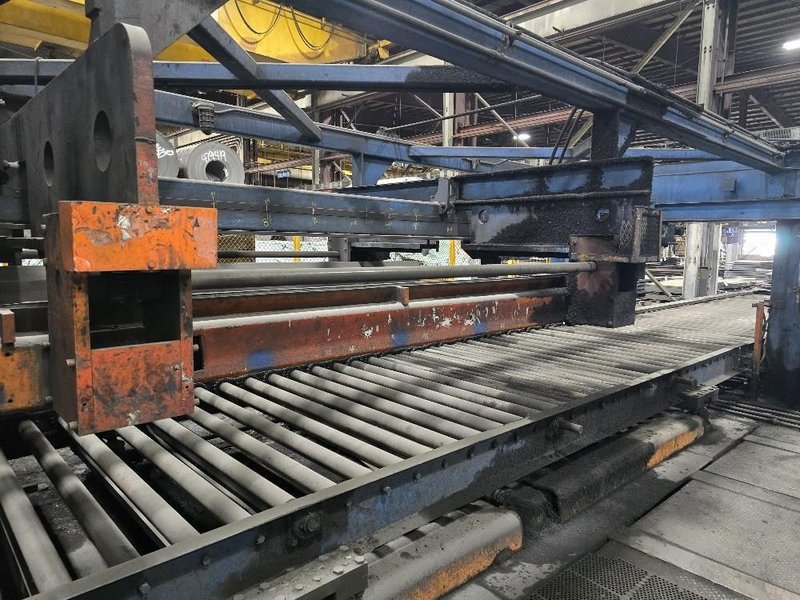

LOOPING PIT QUADRANT TABLES w/ SQUARING GUIDES

ROLL FEEDER w/ HARDENED STEEL ROLLS

HIGH SPEED MECHANICAL CUT OFF SHEAR w/ AUTOMATIC CLEARANCE ADJUSTER

CUT SHEET INSPECTION CONVEYOR w/ NON-MARKING BELTS

STACKER ENTRY PINCH ROLLS

13 FOOT DROP TYPE SHEET STACKER w/ ADJUSTABLE END STOP

24 FOOT ELEVATING STACKER LIFT CONVEYOR w/ END DISCHARGE ROLLERS

48 FOOT STACKER RUNOUT CONVEYOR w/ END DISCHARGE ROLLERS

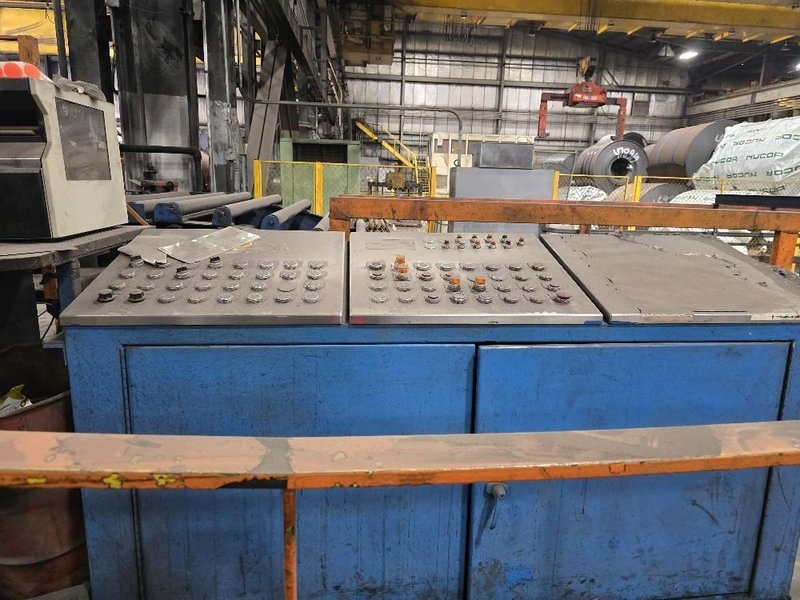

OPERATOR CONTROL STATIONS

AC CONTROLS

VARIABLE SPEED DRIVE CONTROLS

CLOSED LOOP HYDRAULIC SYSTEM

CLOSED LOOP WATER COOLING SYSTEM
