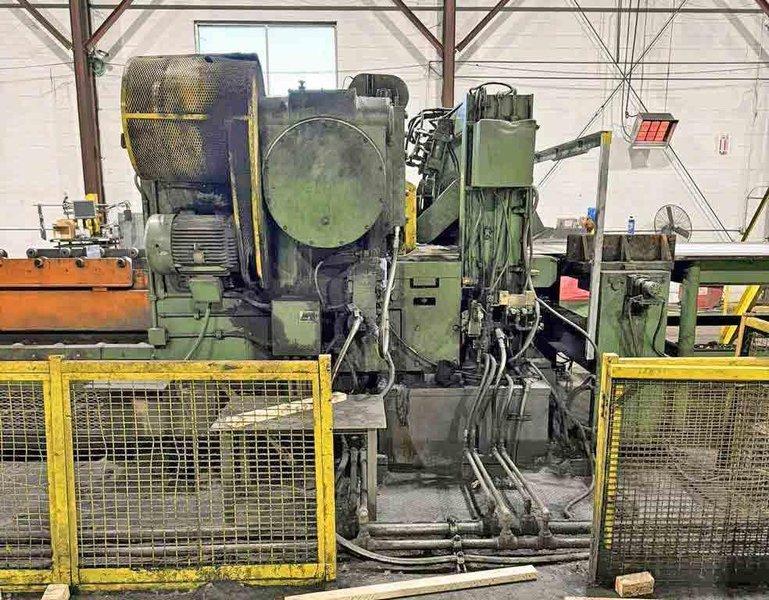

72" x 0.500" x 60,000# Herr Voss Cut To Length Line STOCK# 4397

72" x 0.500" x 60,000# Herr Voss Cut To Length Line STOCK# 4397

Name: 72" x 0.500" x 60,000# Herr Voss Cut To Length Line STOCK# 4397
Brand: Unknown
SKU: 4397
Availability: InStock

Brand

Not specified

Location

Ohio

Specifications
Files & Videos

YEAR: 1995
Strip Width: 30" to 72"
Strip Thickness: 0.096" - 0.500" @ 40,000 PSI
Coil I.D. Range: 20" to 30"
Coil O.D. Range: 39" to 84"
Coil Weight: 60,000 lbs.
Sheet Length: 24" to 24'
Stack Height: 18" (including skid)
Max. Stack Weight: 40,000 lbs.
Line Speed: 175 FPM
Consisting of the following:
-Entry Coil Staging Ramp:
3 Coil Positions
Hydraulic Transfers
-Pit Type Coil Lift:

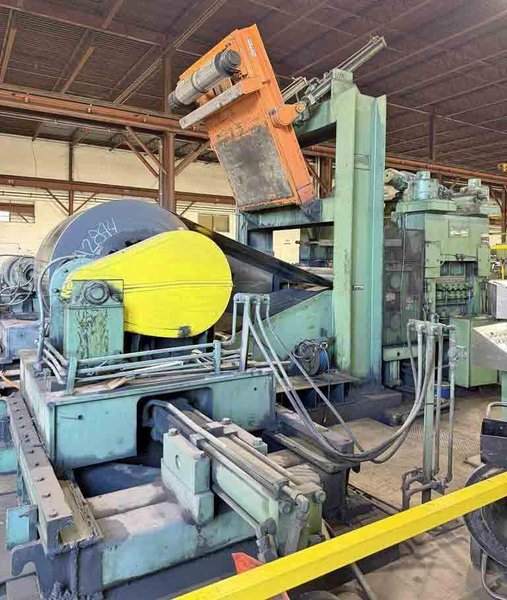

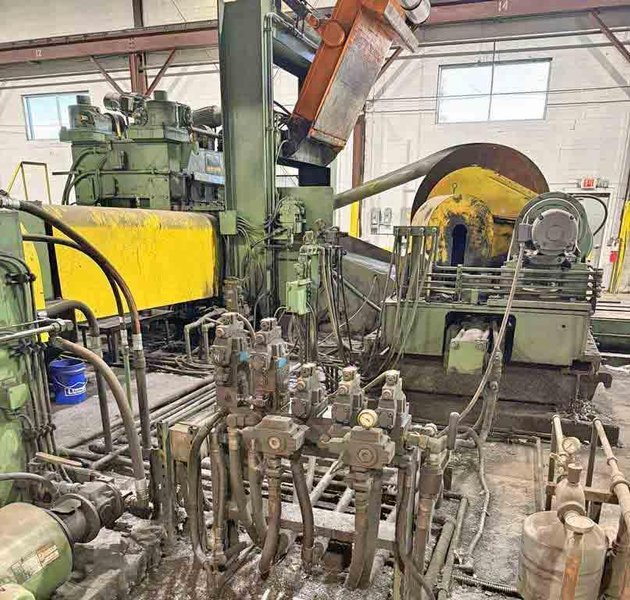

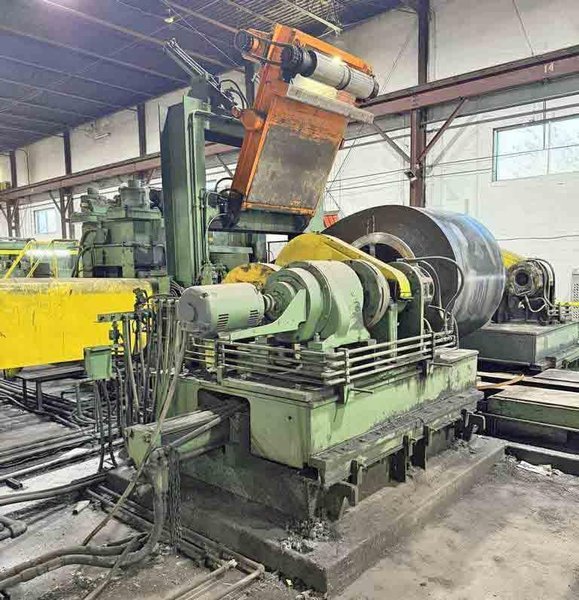

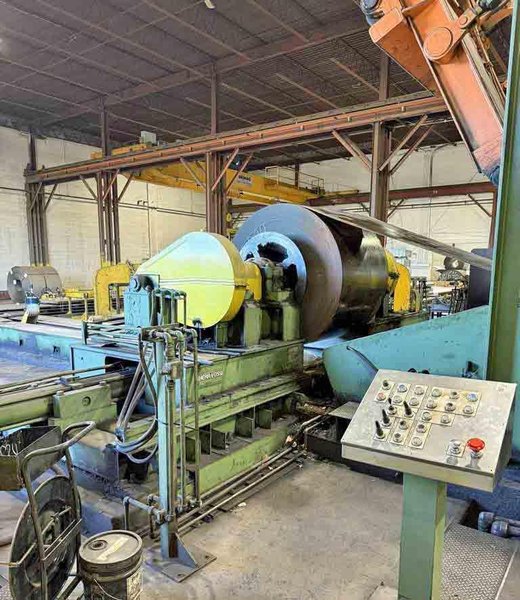

-Double Cone Uncoiler:
Water Cooled Drag Brake on both Heads
Powered Threading Drive
Sliding Base

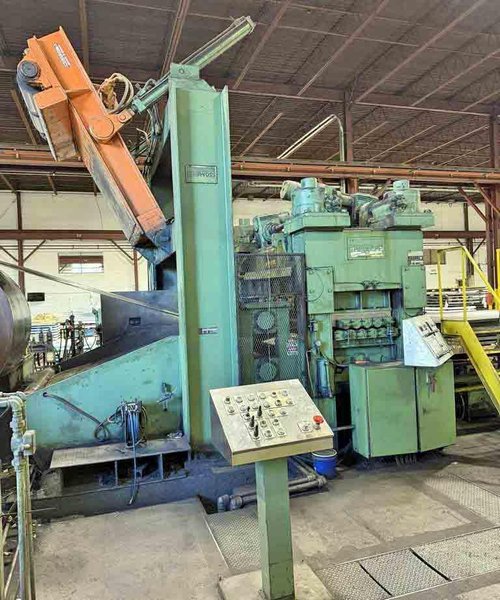

-Entry Station:
Heavy Duty Motorized Overarm Holddown Roll
Articulation Peeler Table

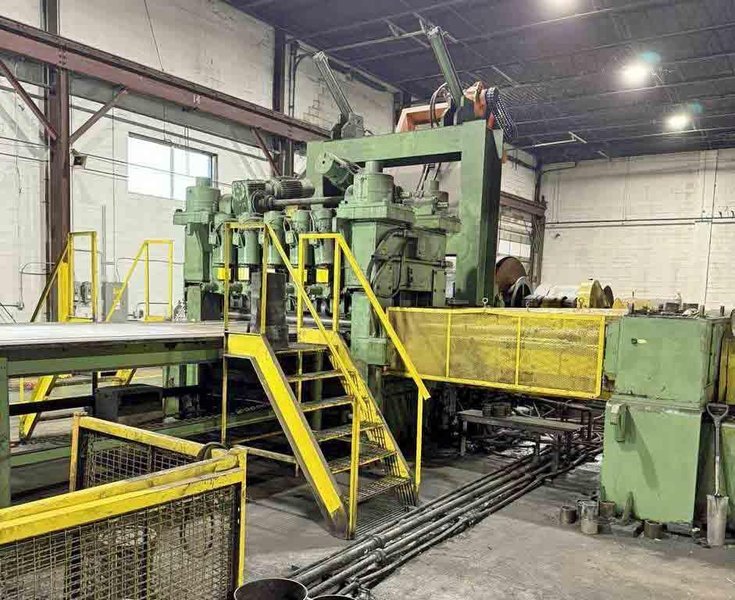

-Herr Voss Precision Leveler:
Model VKL 88/4.5-11/5-4HI
Capacity: 0.096" - 0.500" @ 40,000 PSI
(0.230" Max. @ 80,000 PSI)
4.5" Dia. x 88" Face Rolls
11 Roll Leveler - 5 over 6
5 Flights of Backups
200 HP DC Motor, 850/1700 RPM, 500 V, W/Blower
Line Speed: 175 FPM
-Inspection Conveyor:
10' Long
-Side Guide Unit:
Hydraulic Motor powered Adjustment
-Measuring Roll:

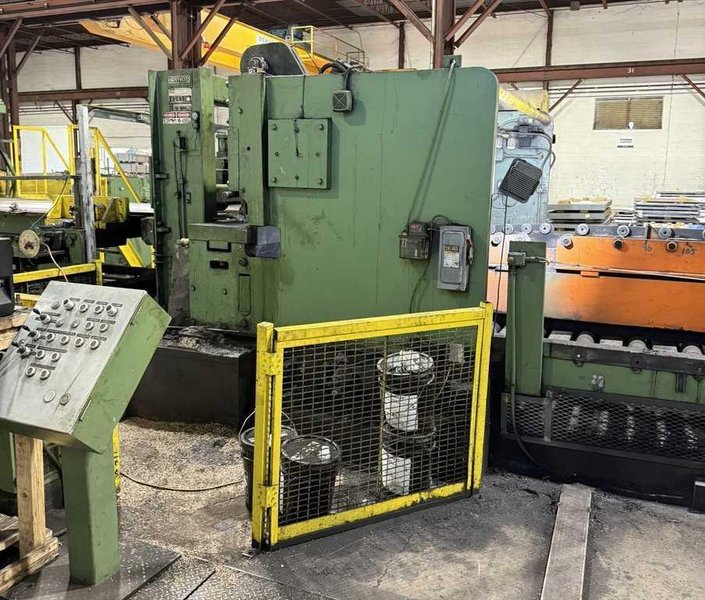

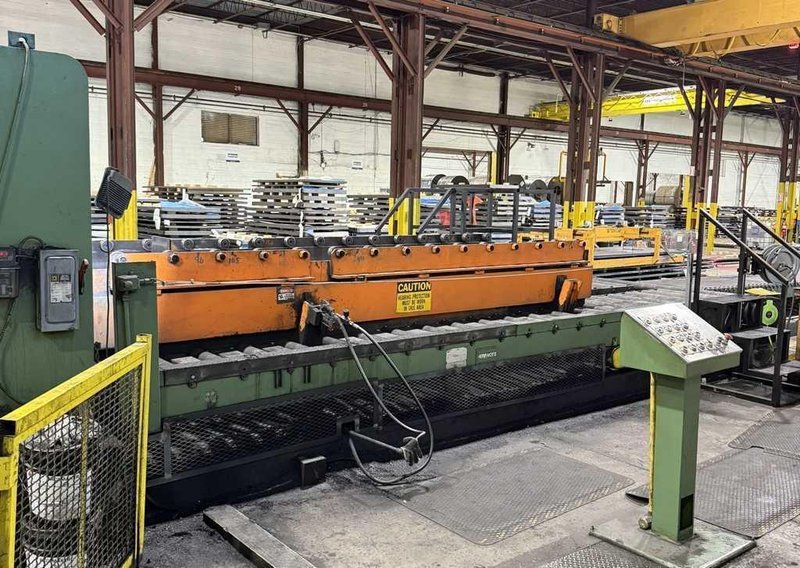

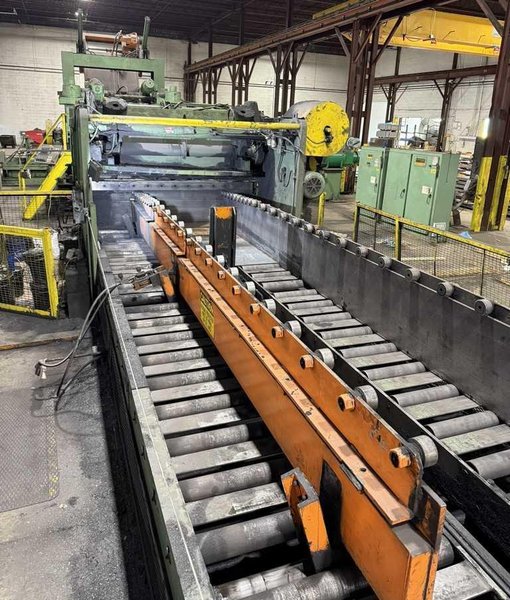

-Mechanical Downcut Shear:
Air Clutch and Brake
AC Motor Driven Flywheel

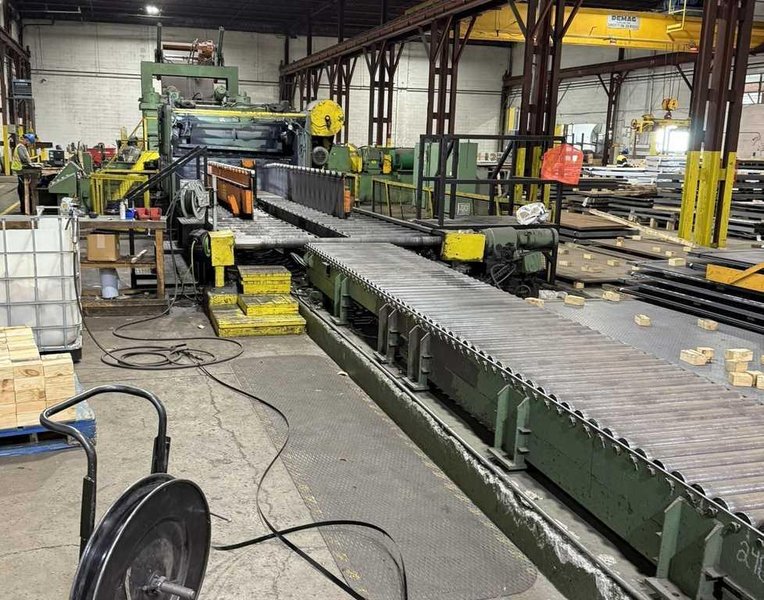

-Drop Stacker:
21' Long, End Discharge
Powered Roller Conveyor, 28' Long
-In-Line Powered Runout Conveyor:
30' Long

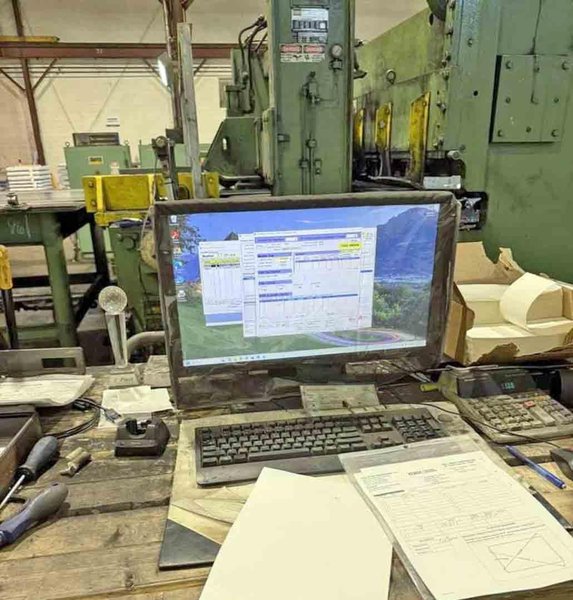

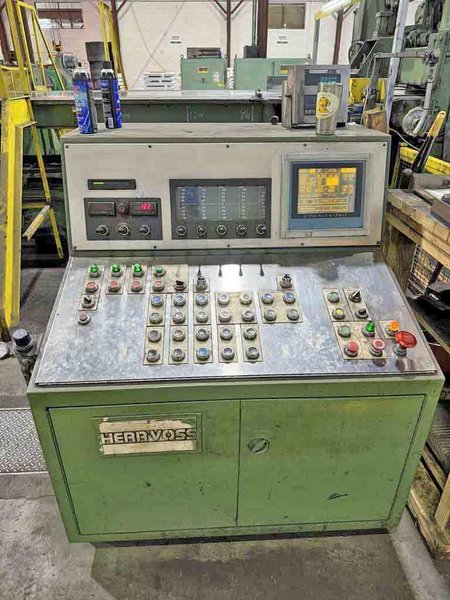

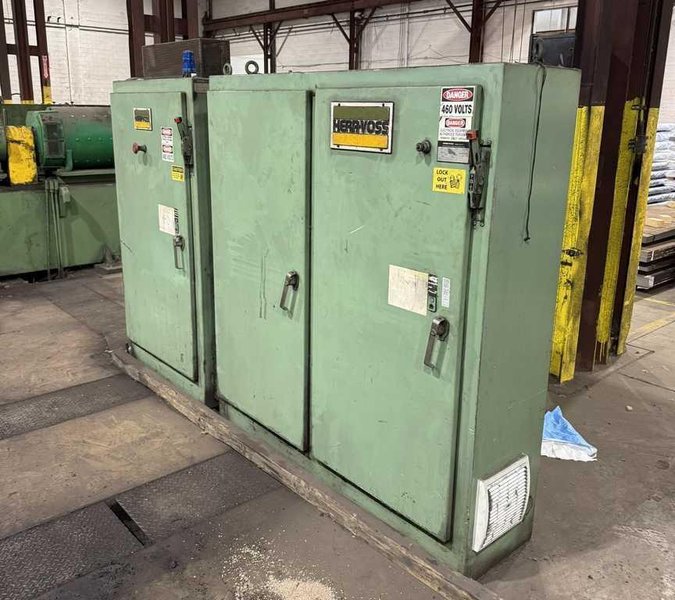

-Controls & Hydraulics:
-Spare Parts:

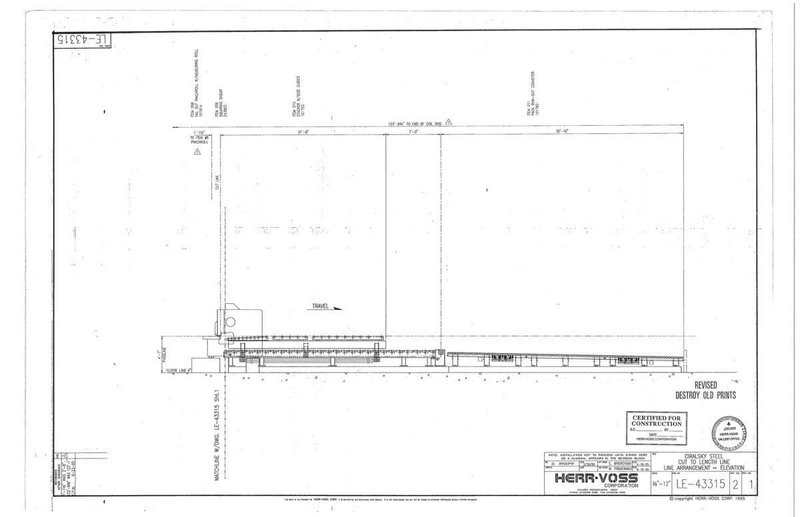

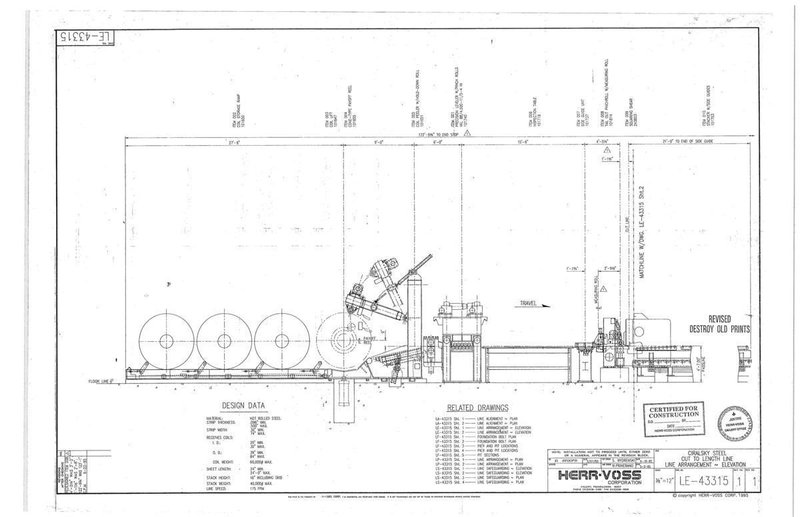

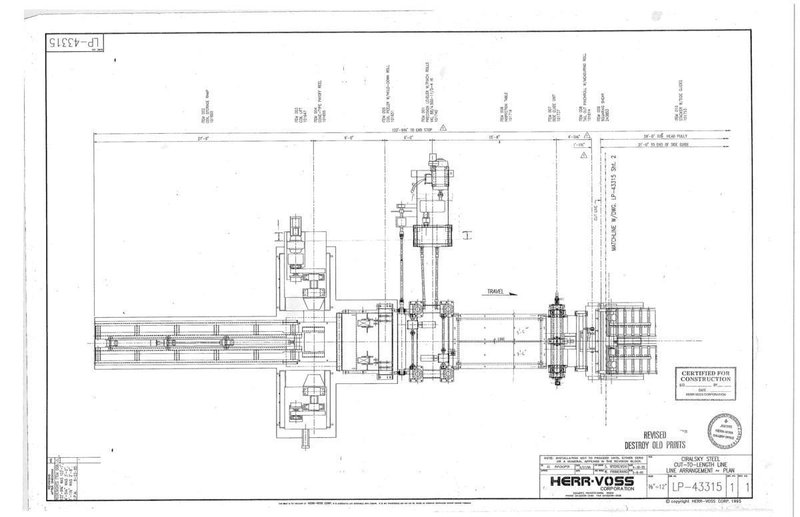

-Overall Line Length: 123' (Including Entry 3 Coil Staging Area)
-Line Direction: Left to Right
-Installed and Under Power; Toledo, OH.
