Upgrade: 2008
Coil Width: 1830 mm
Coil O.D.: 28" - 60" (710 mm - 1525 mm)
Coil I.D.: 20" - 24" (510 mm - 610 mm)
Coil Gauge: 0.024" - 0.078" (610 mm - 1981 mm)
Coil Weight: 44,000 lbs. (19,963 kg)
Material Process: Cold Rolled Steel 50,000 PSI Yield
Exit Sheet Width: 24" - 72" (610 mm - 1830 mm)
Exit Sheet Length: 14" - 144" (355 mm - 3660 mm)
Stacker: Magnet Design with Transfer Bed
Line Speed: 250 FPM
Cuts Per Minute: 40
Direction of Travel: Right to Left (Viewed from Operator Side)
Entry Coil Car: Above Ground, 40,000 lb. Capacity, 24" Lift
Entry Reel Mandrel Dia.: 20" - 24" Expanding - 4 Segment (508 mm - 610 mm)
Loop Table: Pit Type with Catenary Guide Conveyor (Looper)
Main Shear Type: Mechanical Downcut
Approx. Line Dimensions: 90' x 30' Width

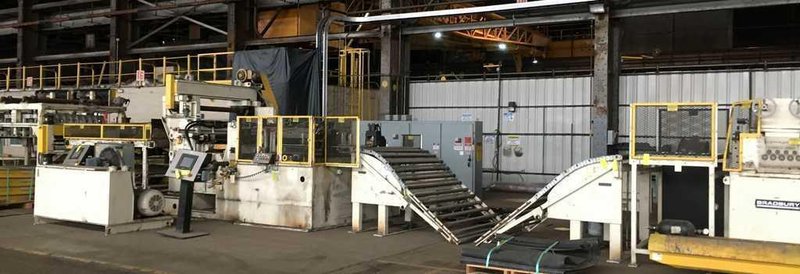

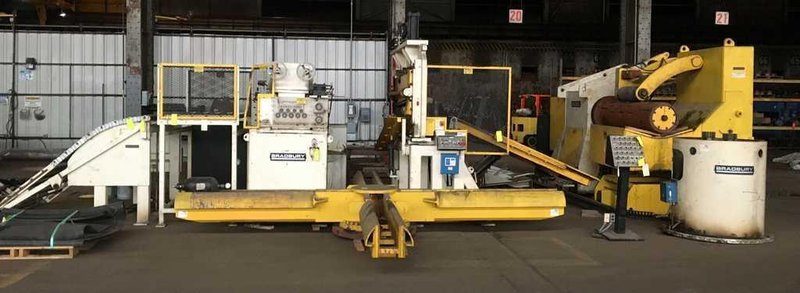

Consisting of the following:
-Entry Turnstile

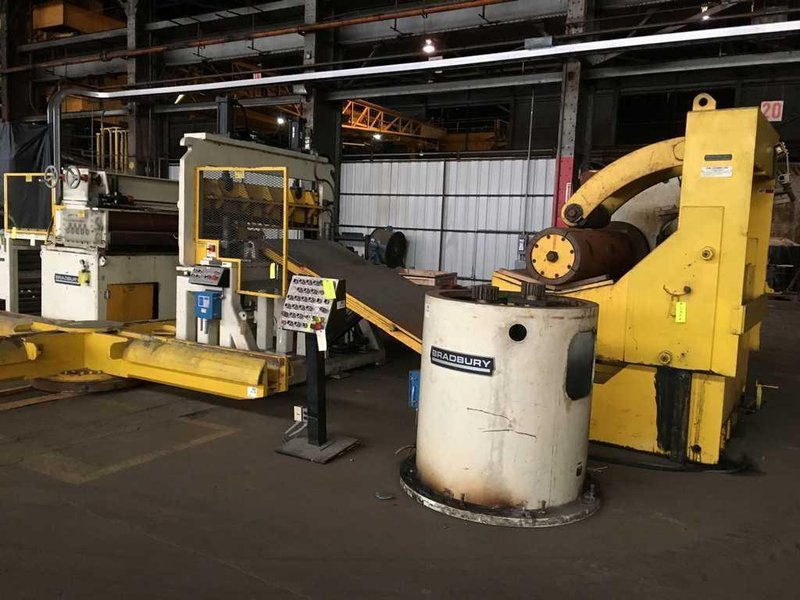

-Payoff Reel
-Above Ground Coil Car
-Entry Crop Shear and Peeler
-Roller Flattener
-Catenary Guide Assembly (Looper)
-Main Shear Assembly on Common Base with Notcher, Side Trimmer
and Scrap Chopper.

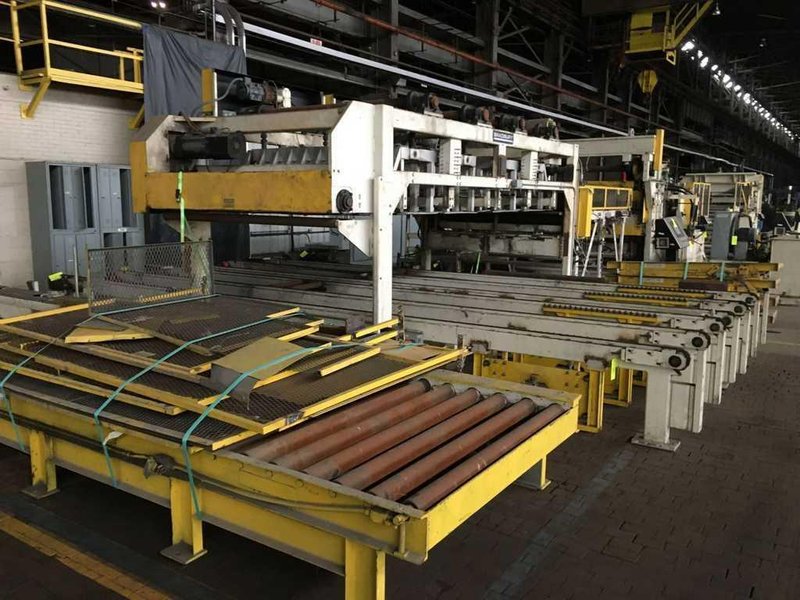

-Magnetic Stacker
-Stack Transfer Conveyor
-Runout Table Section |
