48" x 4.75" x 20,000# Braner Slitting Line

YEAR: 1965

Braner Slitting Line

-48" Wide
-20,000 lb. Capacity
-Line Direction: Left to Right

Consisting of the following:

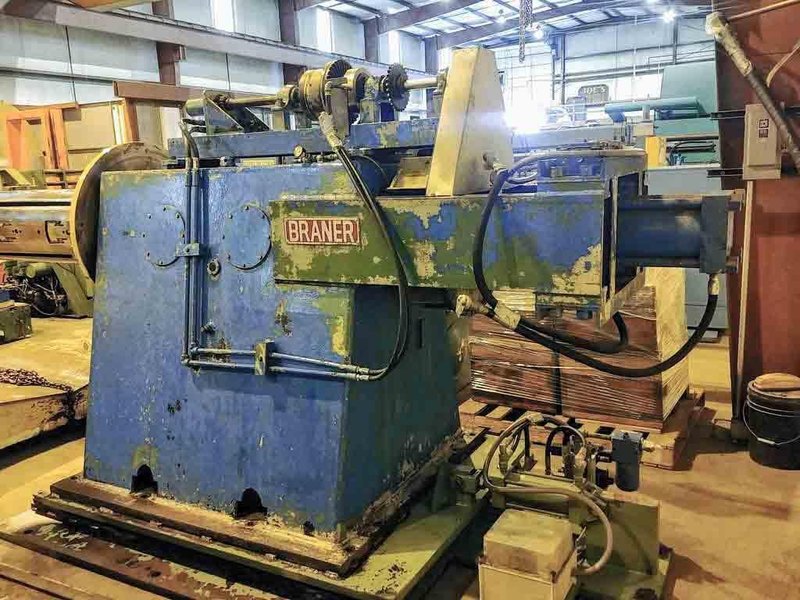

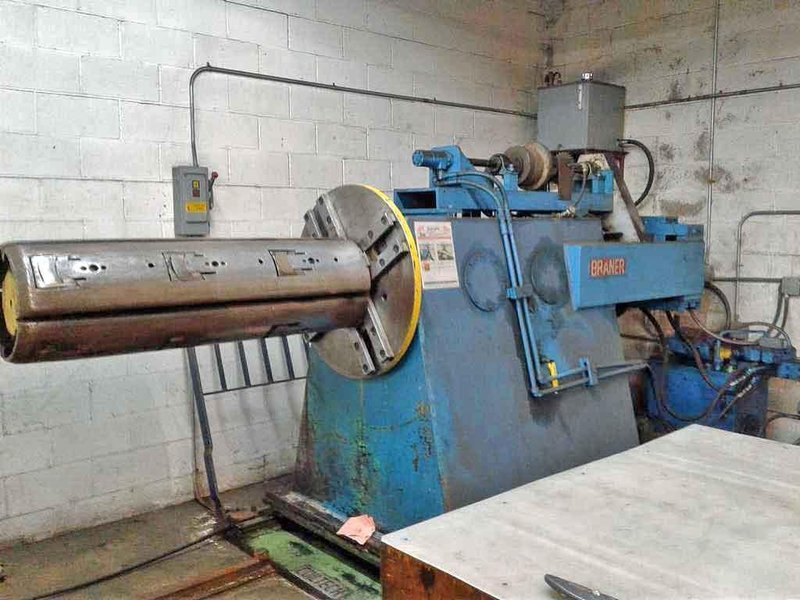

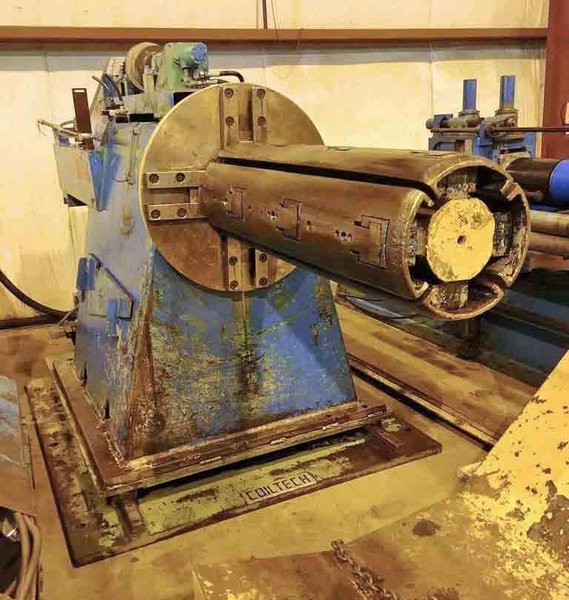

-Mandrel Uncoiler: Braner
(4) Segment Mandrel
51" Face Mandrel
Hydraulic Expansion Range: 15" - 20.5"
Coil I.D. Range: 16" - 20"
Sliding Base
Hydraulic Motor Feedup w/Air Clutch
Fawick Air Brake
Passline: 51.5" from Floor to center of Mandrel
Base Plate: 67" L - R x 78" F - B
Overall Size: 161" L x 68" W x 78" High

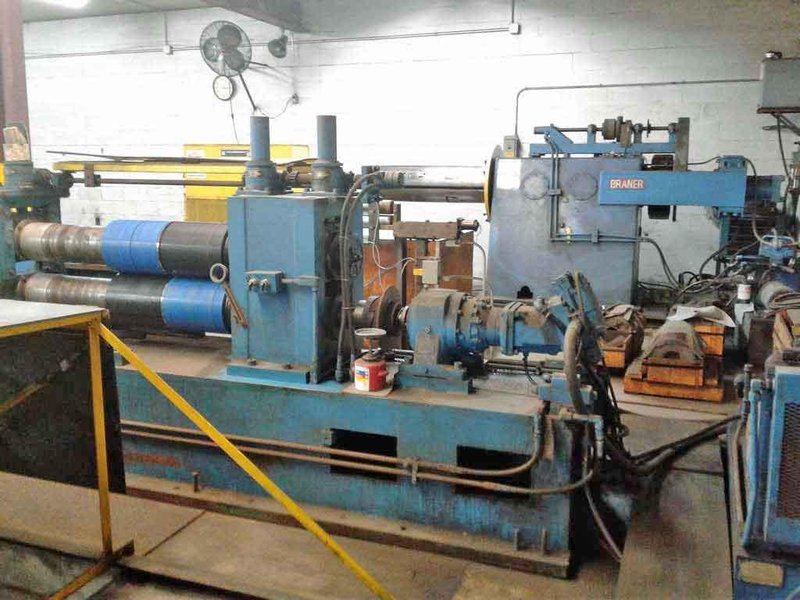

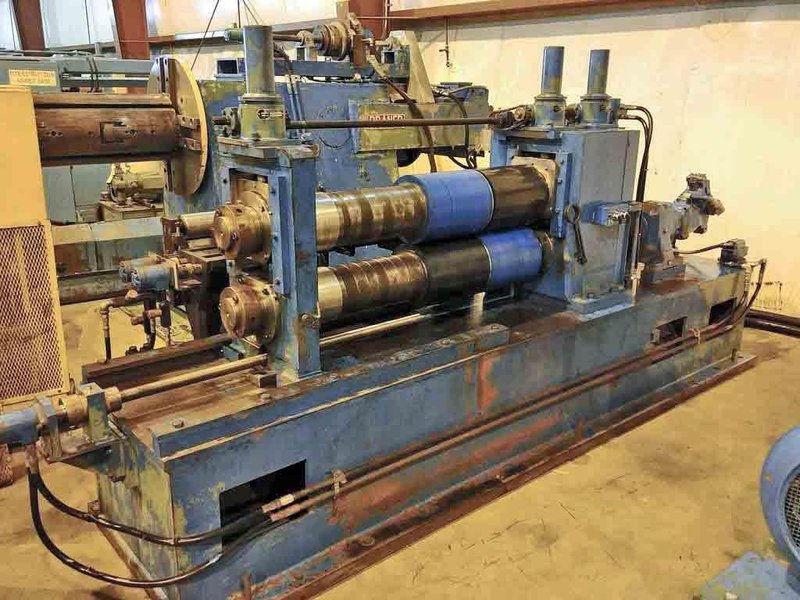

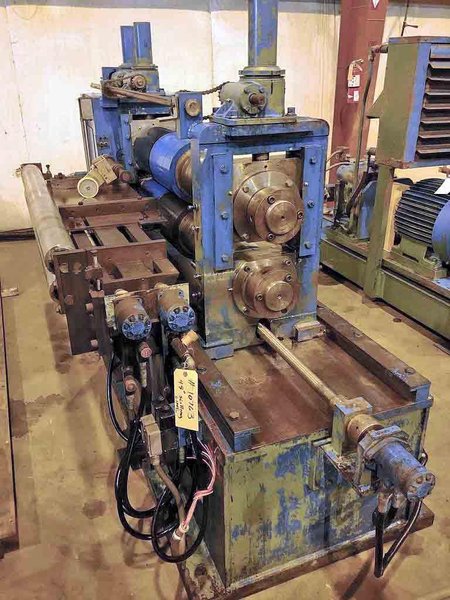

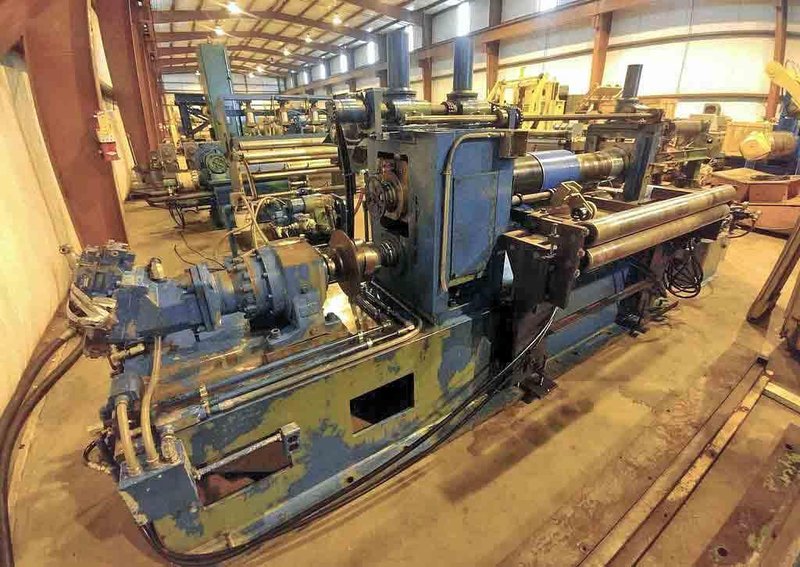

-Slitter Head: New in 1985
4.75" Dia. x 50" Face Arbors
Outboard slides in to 24" wide
Entry Passline Rolls
4" Dia. x 56" Face
Entry Side Guides
Hydraulic Motor Adjustment
Parallel Arbor Adjustment
Outboard Support moves in to approx. 26" for heavier gauge slitting
Hydraulic Motor Driven
Passline: 38"
Overall Size: 157" L x 48" W x 69" High

-(2) Scrap Winders:
Manual Scrap Ball removal
Air Motor Driven
Less Oscillate Wind Assembly

-Recoiler:
16" Dia. x 52" Face Drum
Hydraulic Grip and Expand (Gripper Bar Missing)
Hydraulic Pushoff
Hydraulic Drive Motor; Sundstrand Sauer Danfoss
Model 27-3052; S/N 01-HSF-851443
Reducer w/12.5:1 ratio

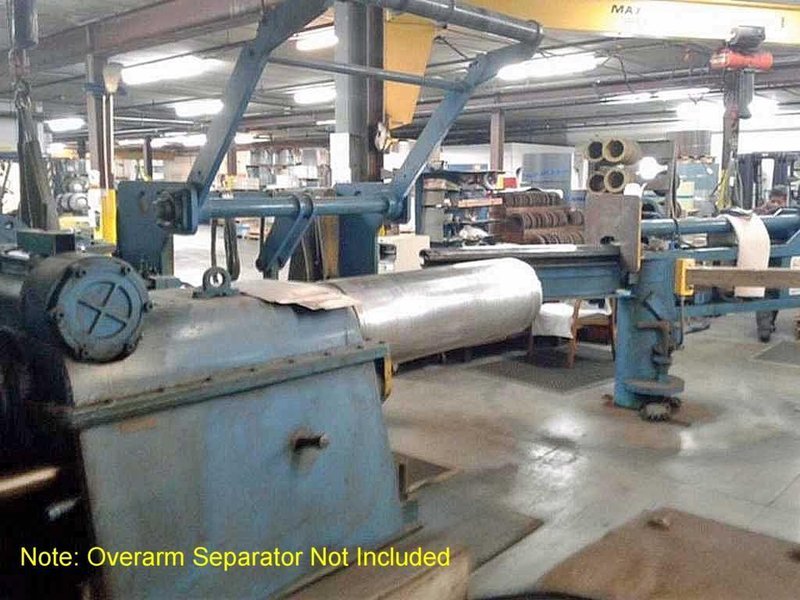

Less Overarm Separator
Passline: 26" from Floor to center of Drum
Overall Size: 134" L x 68" W x 48" High

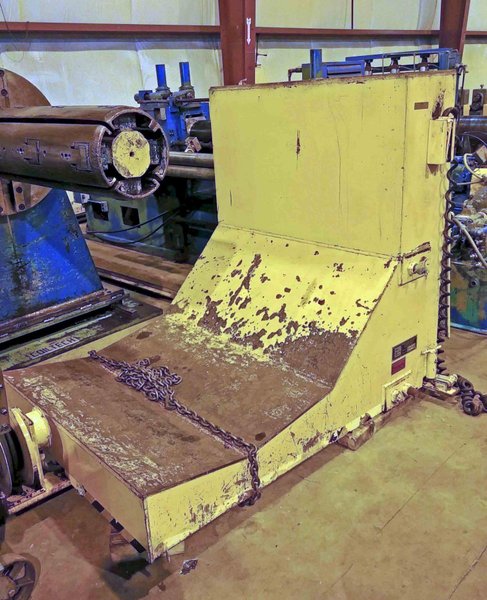

-One Arm Turnstile:
Manual Rotation
Hydraulic Pushoff
Self-Contained Hydraulics

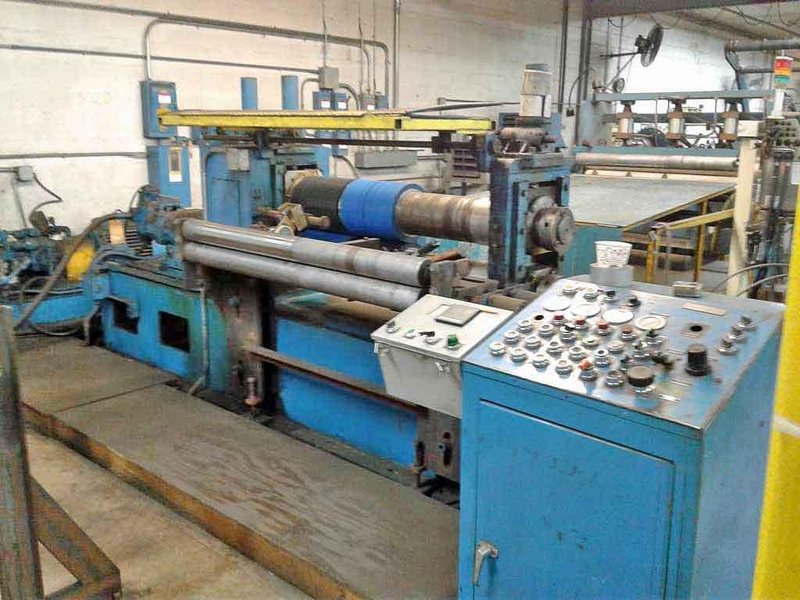

-Main Operators Control Panel:

-Main Hydraulic Unit #1:
For use with Slitter Head Drive
Overall Size:

-Main Hydraulic Unit #2:
For use with Recoiler Drive
With Cooler
Overall Size: 96" L x 32" W x 66" High

-(2) Additional Hydraulic Units:

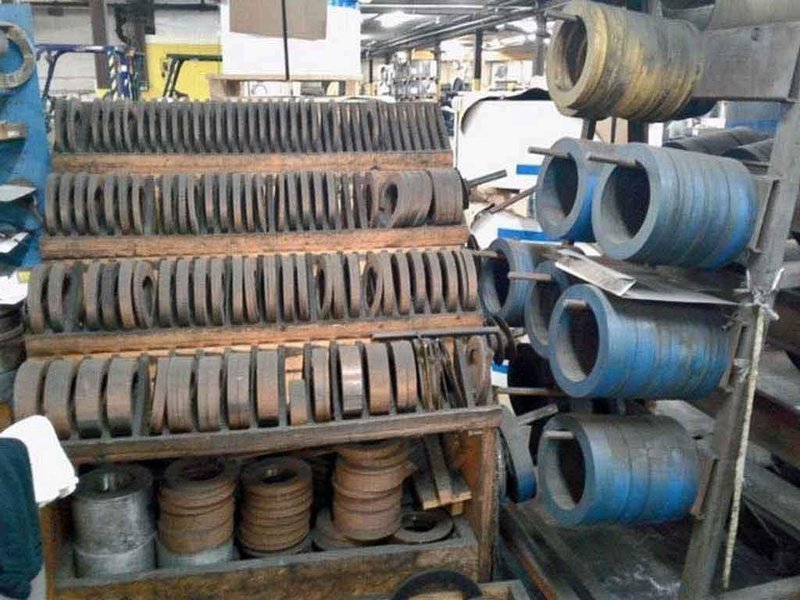

-Slitter Tooling:

-Note: Video of line running available.

-Removed and in Storage: Toledo, OH.
