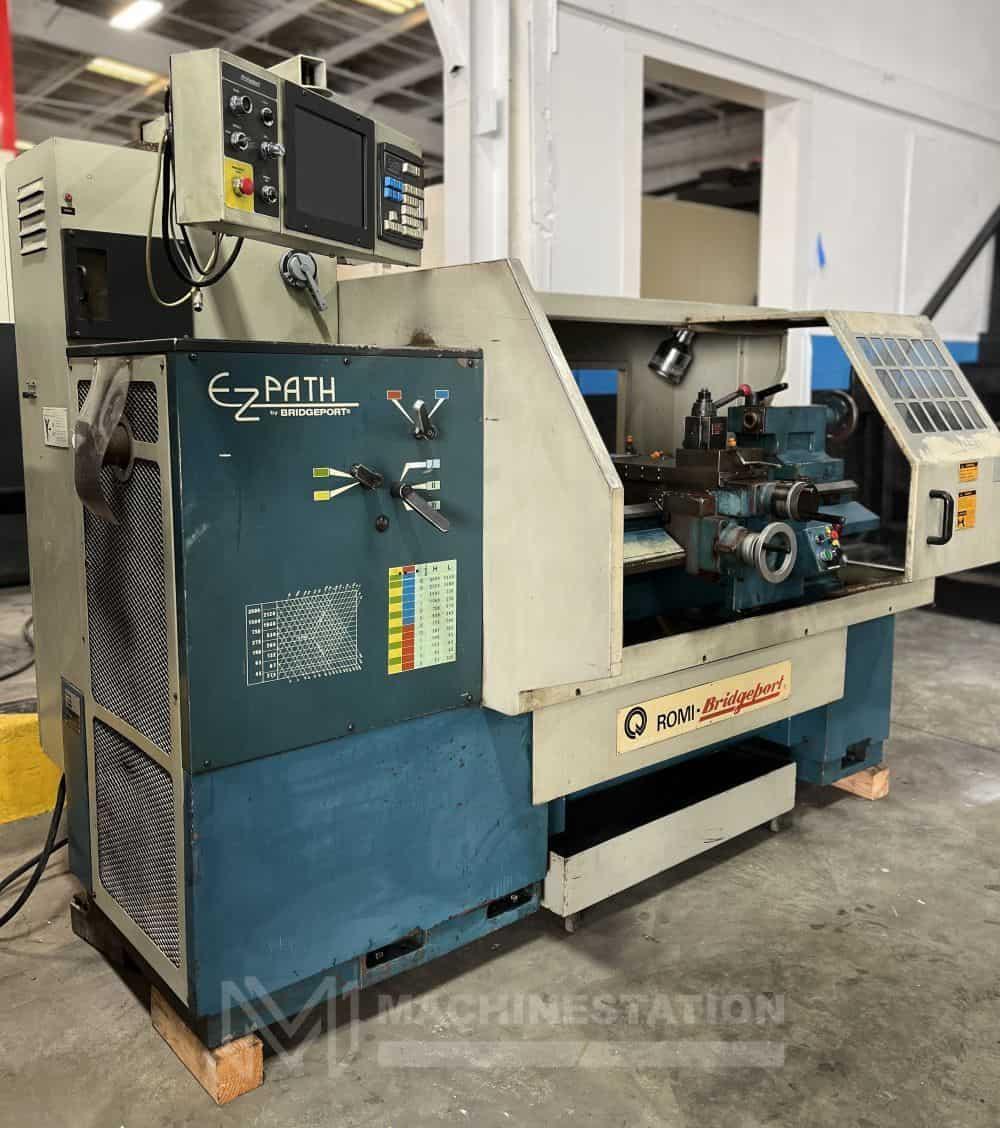

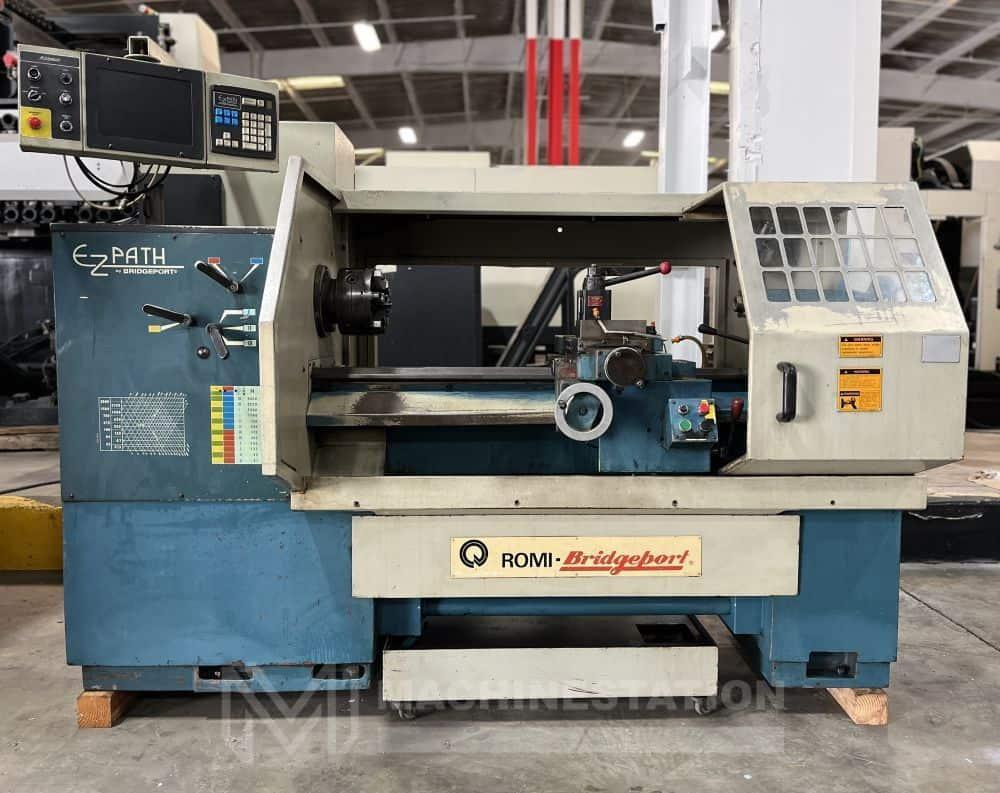

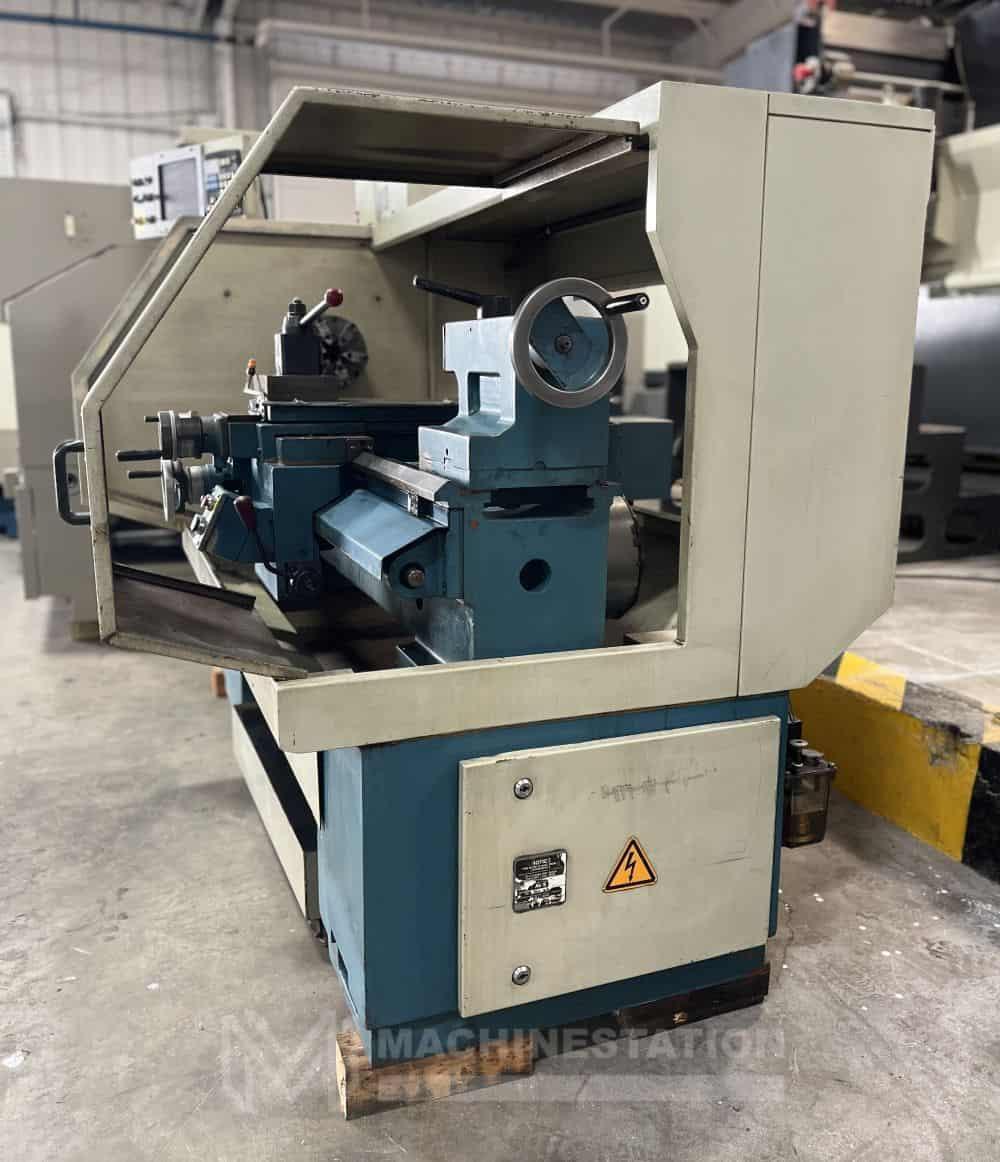

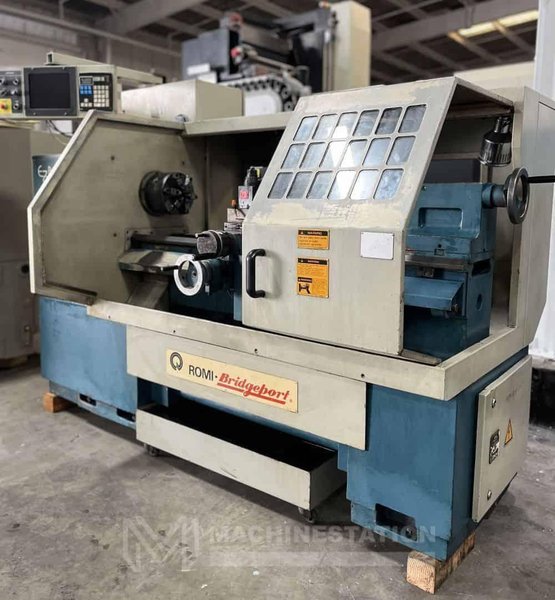

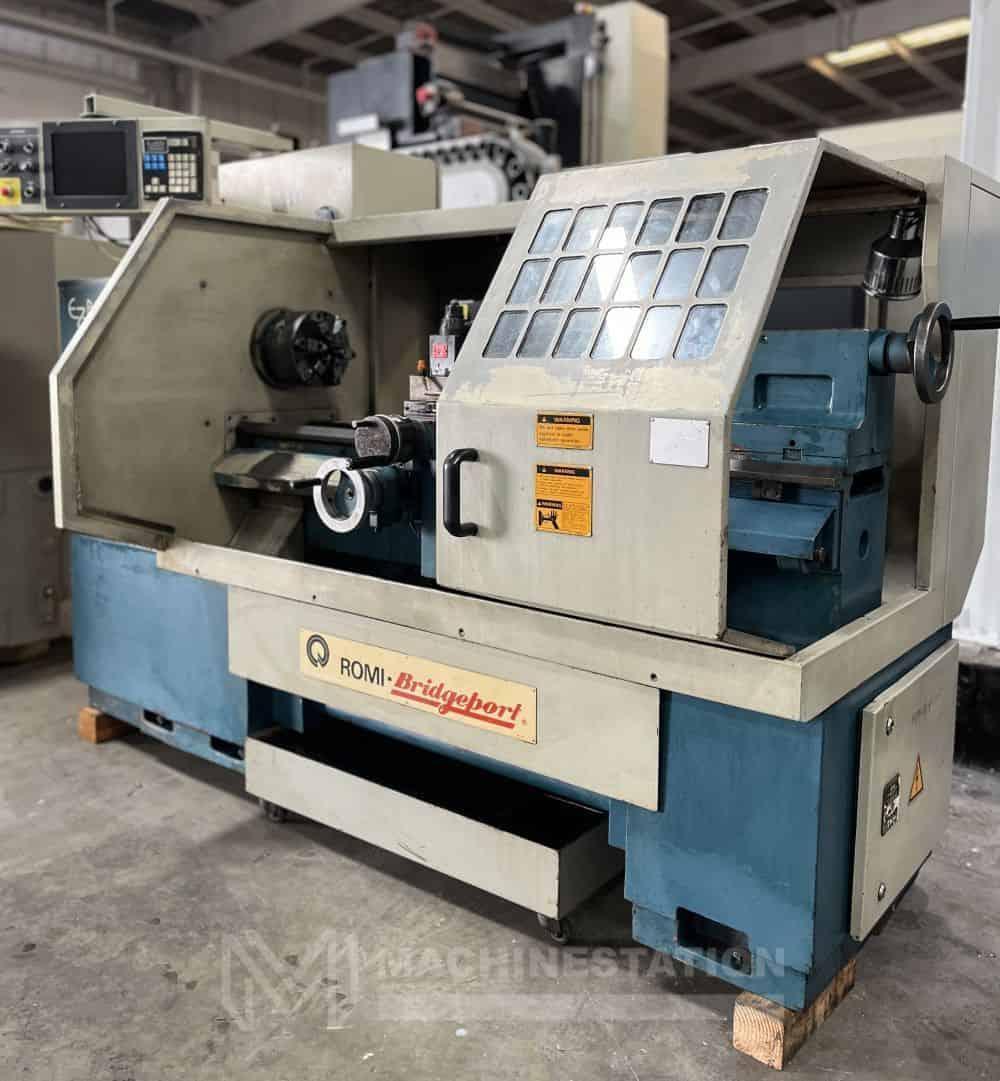

Romi Bridgeport EZ Path CNC Engine Lathe

Romi Bridgeport EZ Path CNC Engine Lathe

Brand

BRIDGEPORT ROMI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Romi Bridgeport
Model:	EZ Path

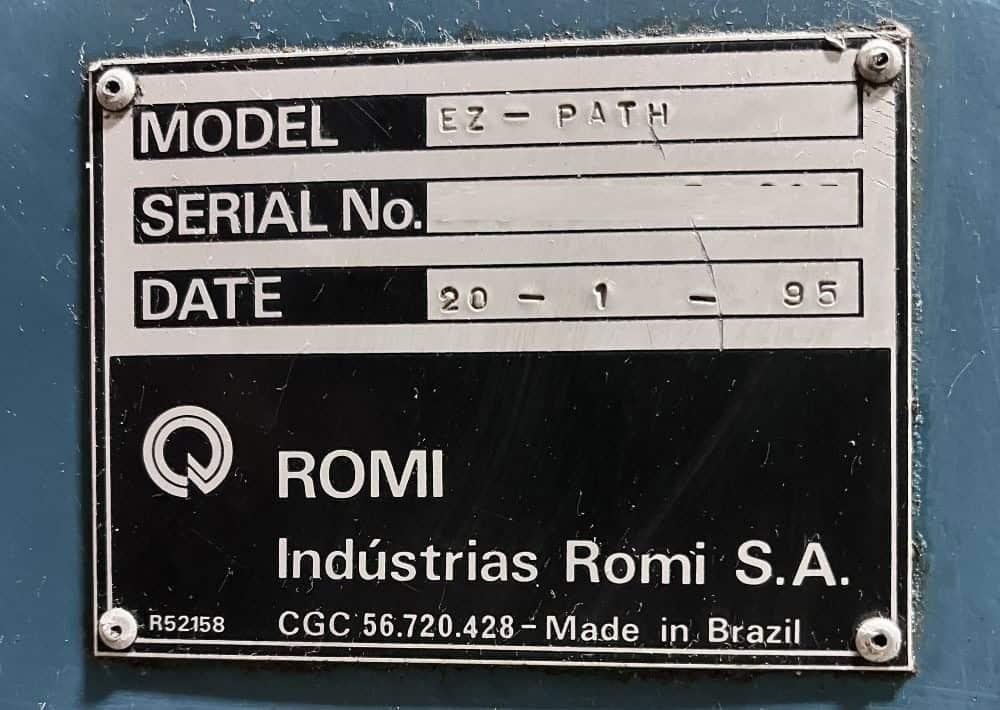

Year:	1995
Condition:	Used – Good

Equipped With:

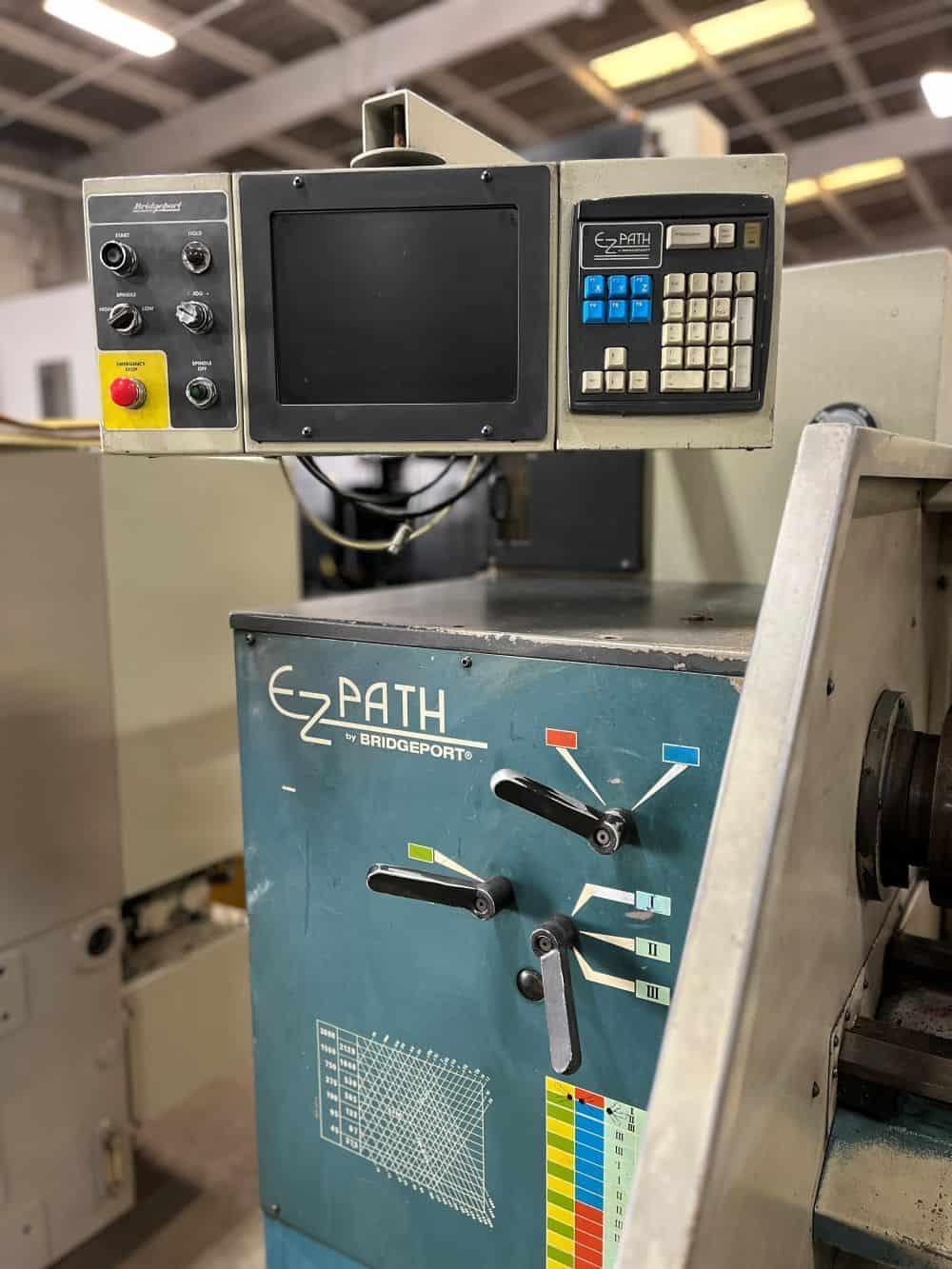

Bridgeport EZ Path CNC Control

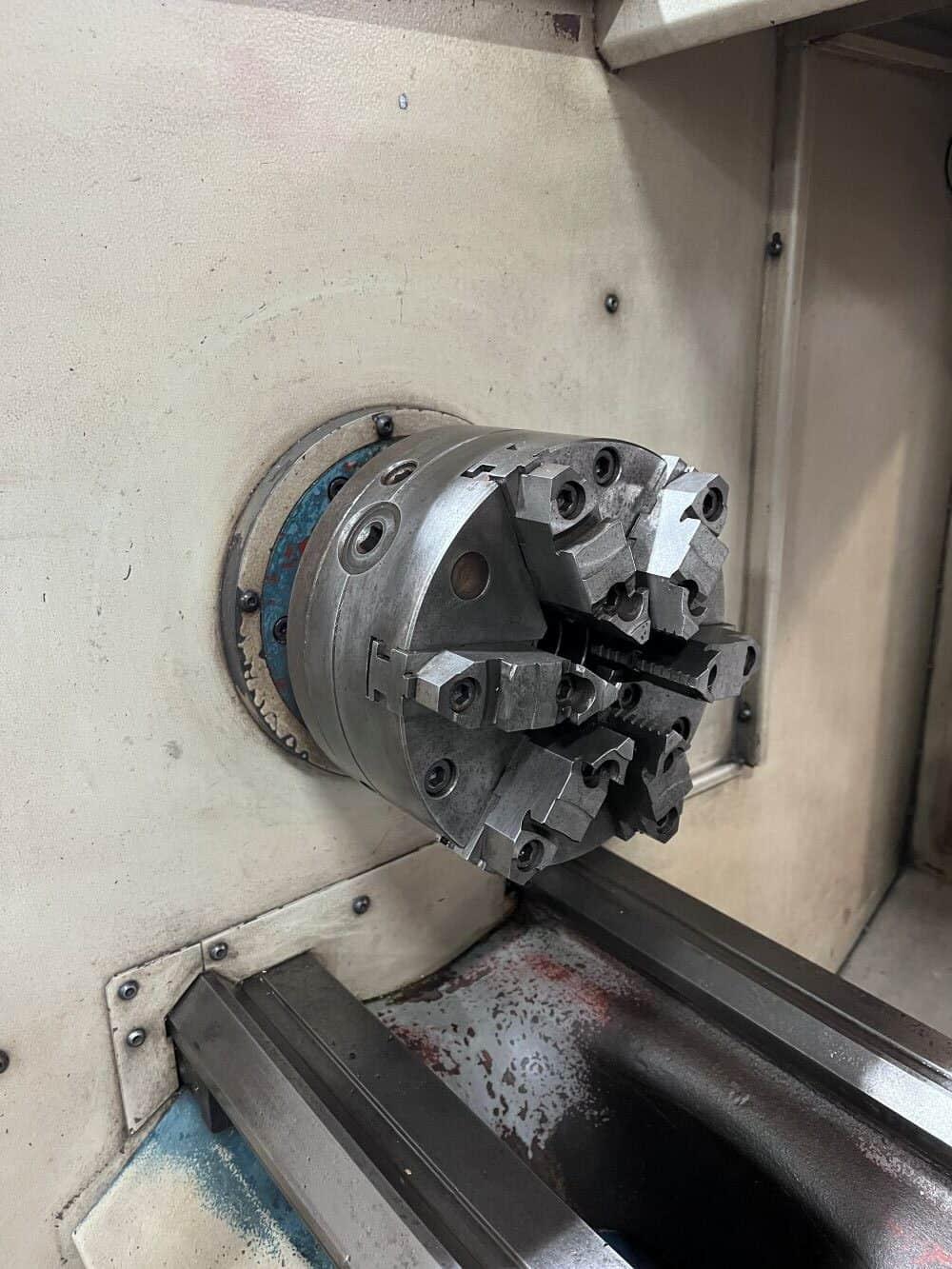

10″ 6-Jaw Chuck

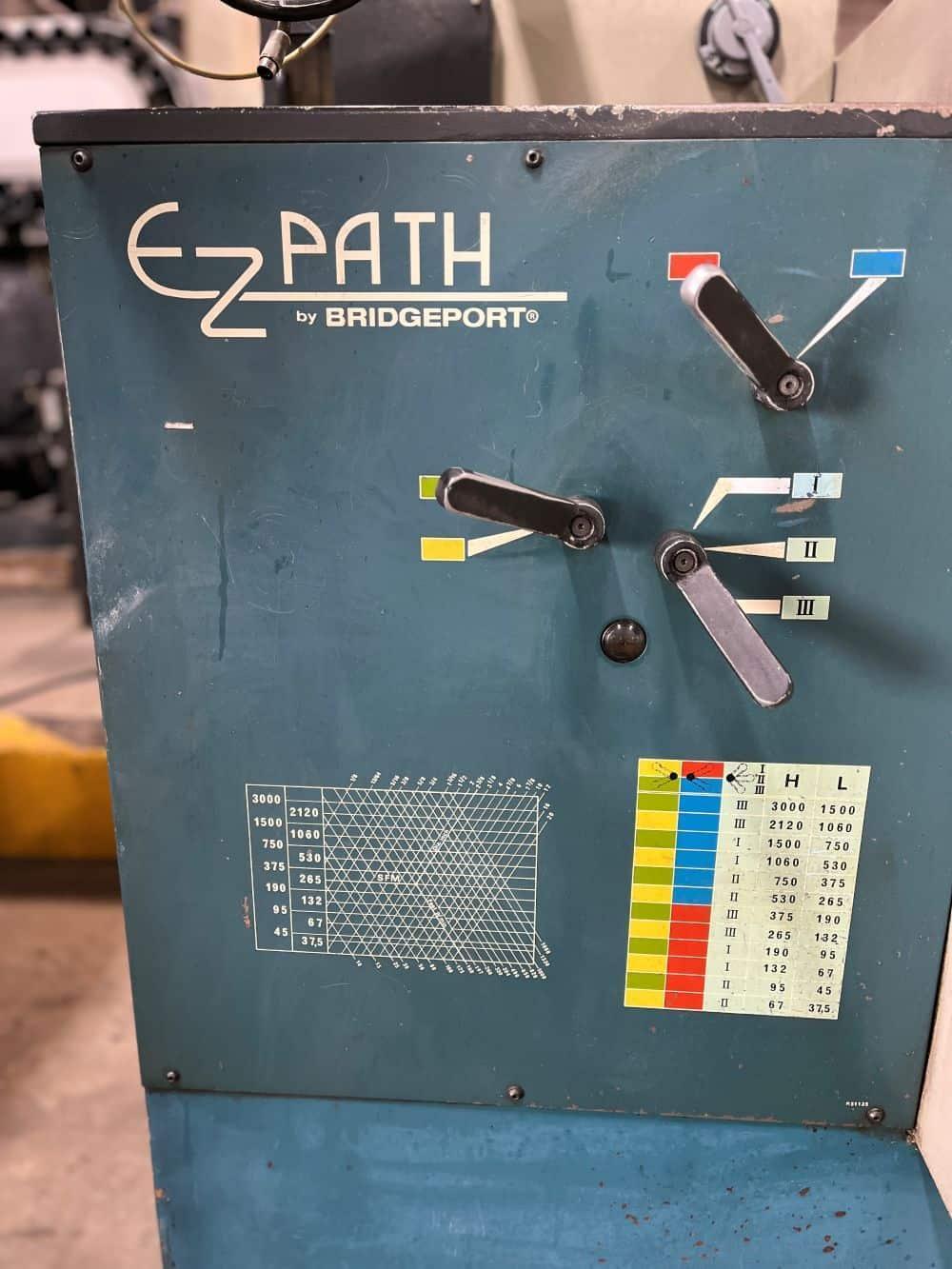

Geared Headstock

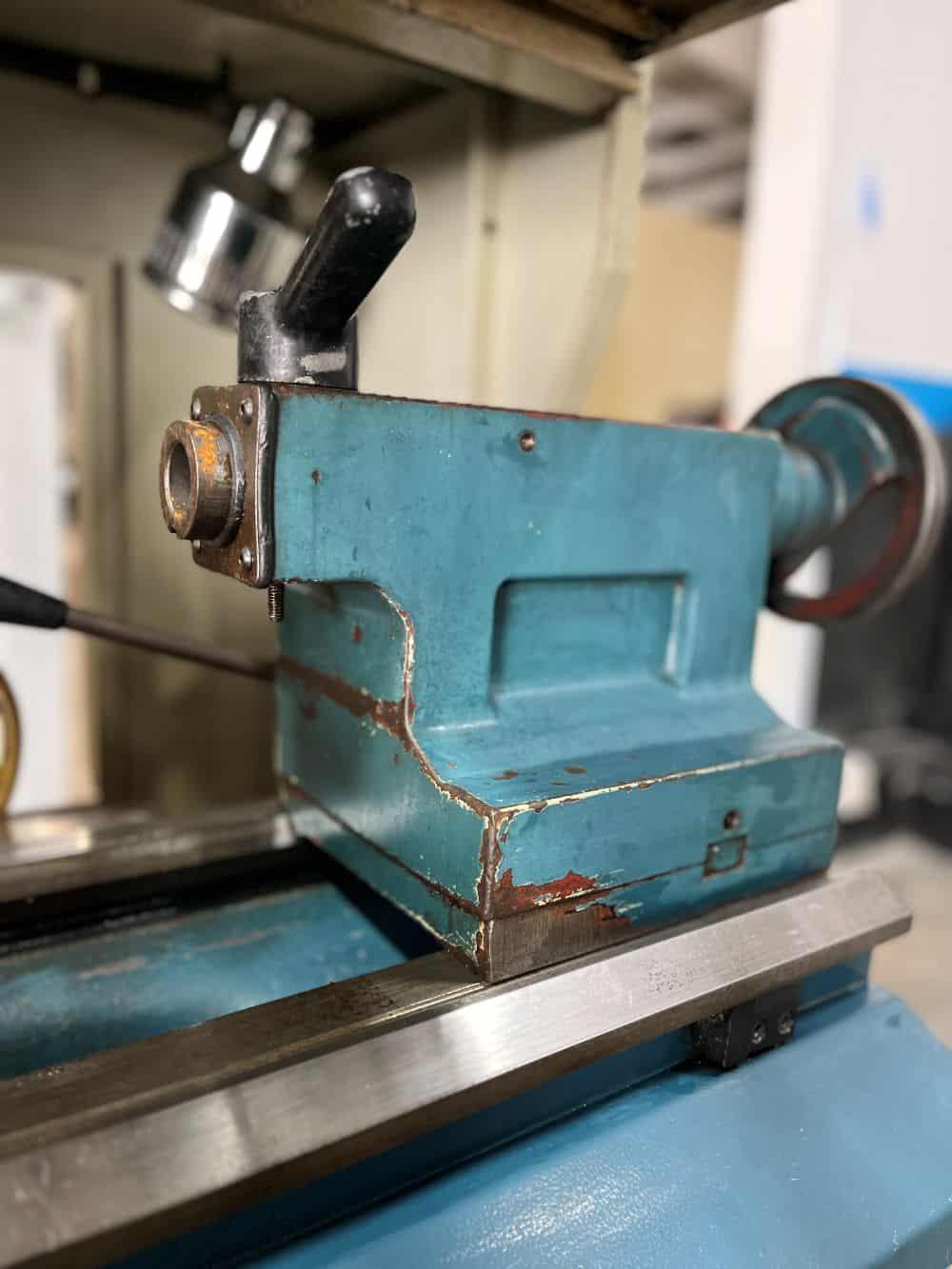

Manual Tailstock

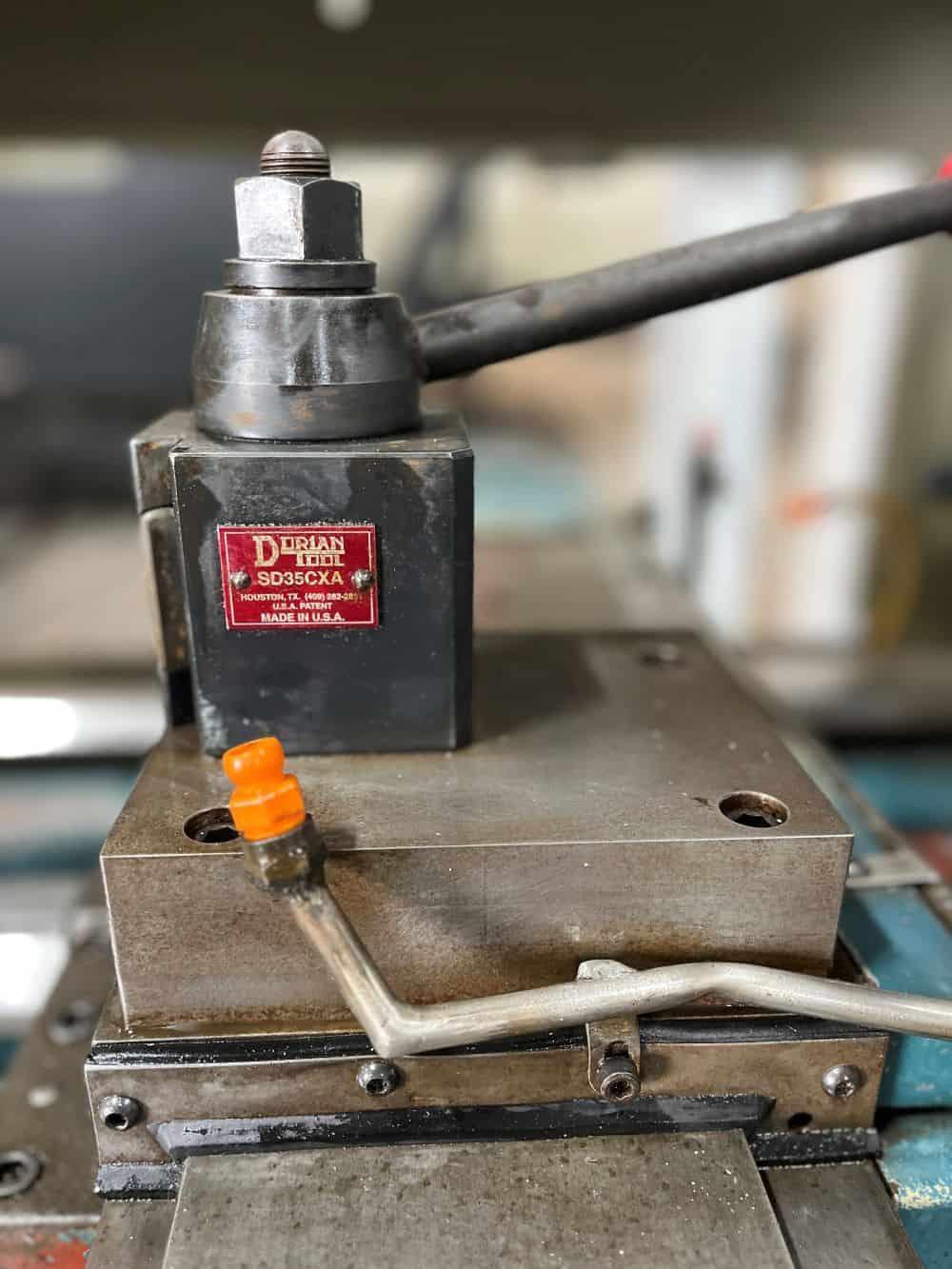

Tool Post
Dual Electronic Handwheel
Inch/Metric Threading
Coolant system with Chip Pan

Capacity:
Max Height of Centers: 8.46″
Max Swing Over Bed : 17.0″
Max Swing Over Cross Slide: 8.0″
Max Swing Over Carriage Wings : 15.75″
Bed Width x Height: 12″ x 13″
Distance Between Centers : 40.0″

Travels:
X Axis Travel (Cross Slide): 8.66″
Z1 Axis Travel (Longitudinal) : 40.0″

Feedrate:
Rapid Traverse X Axis: 295 IPM
Rapid Traverse Z Axis: 394 IPM

Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.09″
Spindle Speed: 50 – 4000 RPM
Spindle Motor: 10 HP

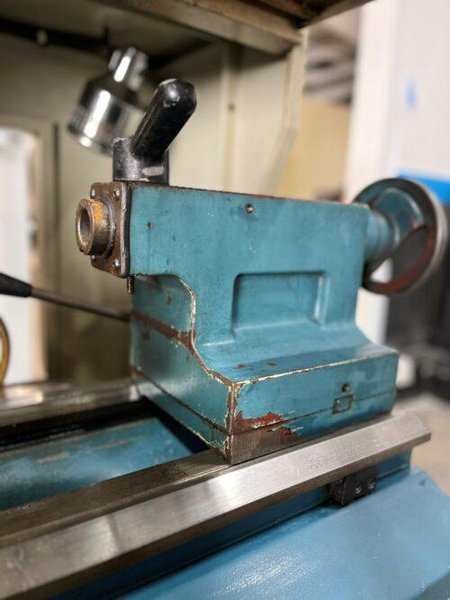

Tailstock:
Tailstock Type: Manual
Taper: MT-4
Maximum Quill Travel: 4.7″
Quill Diameter: 2.36″

General:
Power Requirement: 460v / 3 phase / 60 Hz
Overall Dimensions: 98″ x 51″ x 60″ High Approx.
Machine Weight: 4000 lbs. Approx.
