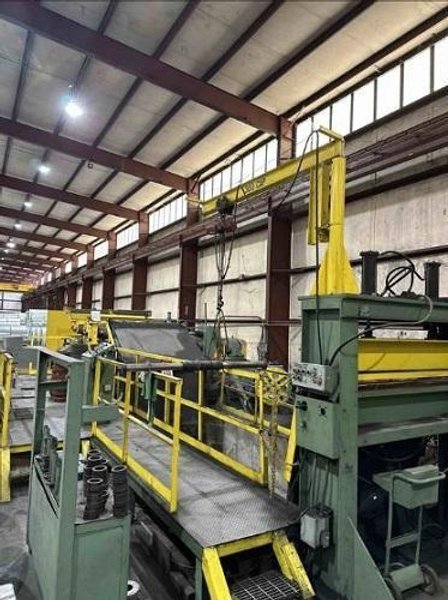

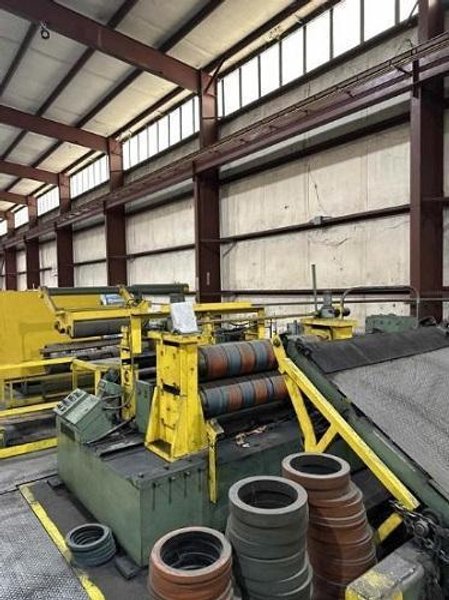

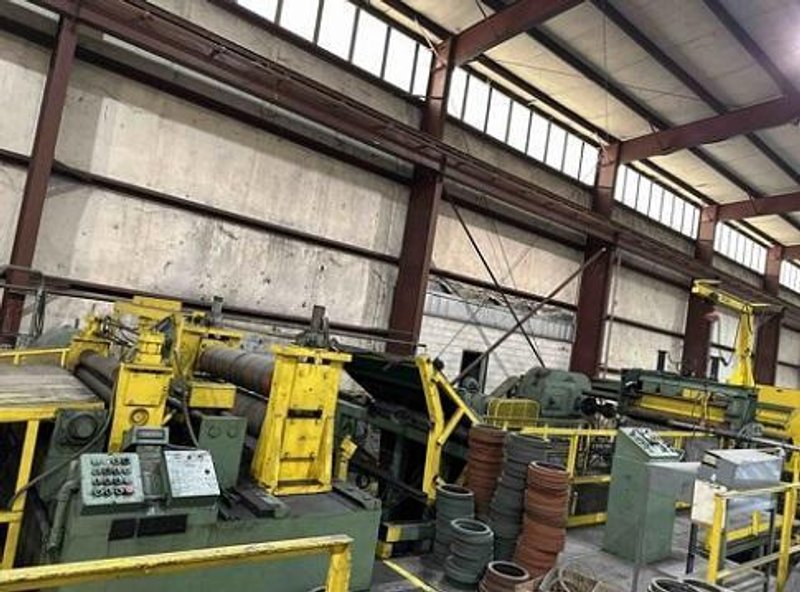

DELTA 60" X .187" X 40,000LBS LOOP SLITTING LINE

DELTA 60" X .187" X 40,000LBS LOOP SLITTING LINE

SPECIFICATIONS:

MAKE: DBI (DELTA)

MATERIAL WIDTH: 12" - 60"

MATERIAL THICKNESS: 020" - .187"

COIL ID: 20" / 24"

COIL OD: 72"

COIL WEIGHT: 40,000LBS

DIRECTION: LEFT TO RIGHT

ENTRY 2-ARM TURNSTILE

POWERED ROTATION

ENTRY L-TYPE COIL CAR

POWERED LIFT AND TRAVERSE

SELF CONTAINED HYDRAULICS

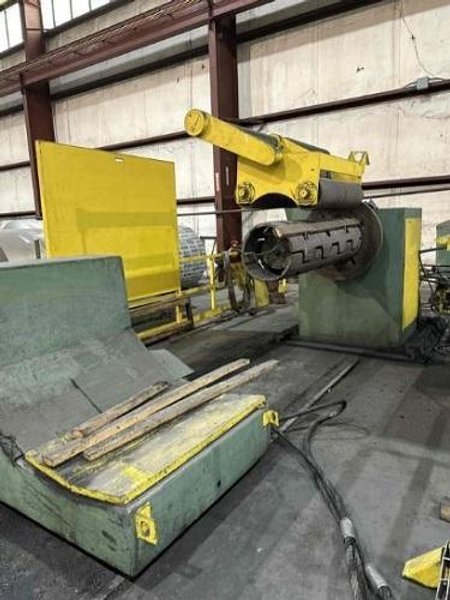

MANDREL UNCOILER

POWERED HOLD - DOWN HEAD

FOUR LEAF MANDEL DESIGN

WATER COOLED BRAKE

FEED MOTOR

SLIDING BASE DESIGN

HYDRAULIC PEELING TABLE

DRIVEN ENTRY PINCH ROLLS

ADJUSTABLE EDGE GUIDES

ONE (1) SLITTING HEAD

NONE REMOVABLE DESIGN

ADJUSTABLE ARBORS

150HP DC MOTOR DRIVE

LOTS OF KNIVES AND TOOLING

PIT ENTRY AND EXIT TABLES

TWO (2) SCRAP WINDERS

HYDRAULIC DRIVE

MANUAL OPEN / CLOSE

DRAG BOARD TENSION STAND

STRIP SEPARATING BAR WITH TOOLING

PNEUMATIC DRAG BOARDS

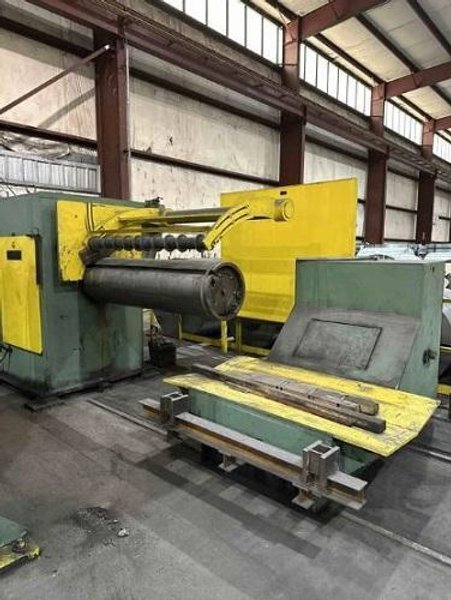

RECOILER

MANUAL GRIPPER

HYDRAULIC PUSH OFF
