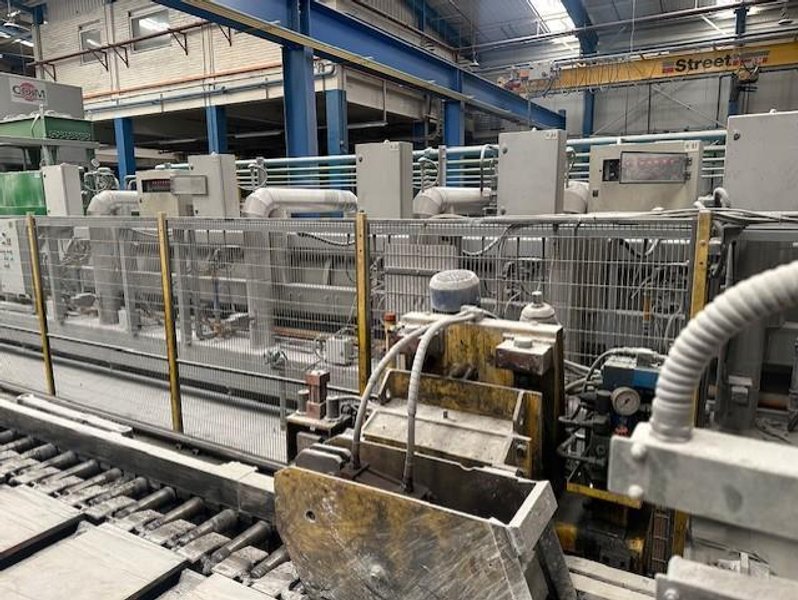

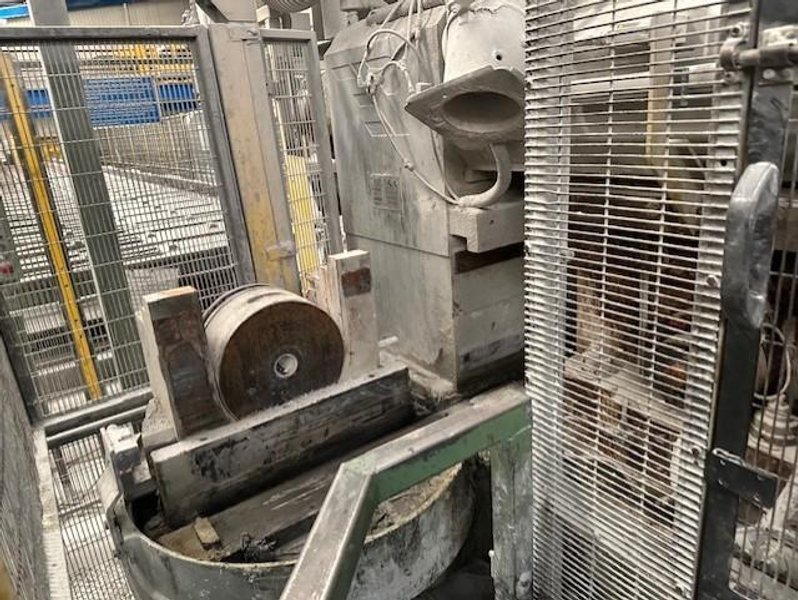

1250 MT PRESEZZI BRASS ROD OIL HYDRAULIC EXTRUSION PRESS LINE W/ OCN HANDLING SYSTEM (NEW 2009)

1250 MT PRESEZZI COPPER & BRASS ROD OIL HYDRAULIC EXTRUSION PRESS LINE W/ OCN HANDLING SYSTEM (NEW 2009)

MANUFACTURER – PRESEZZI / OCN

YEAR – 2009

SERIAL NUMBER – 2671-2009

PRESS TONNAGE – 1250 MT

WORKING PRESSURE – 260 BAR

BILLET DIAMETER – 145MM

BILLET LENGTH MAX – 650MM

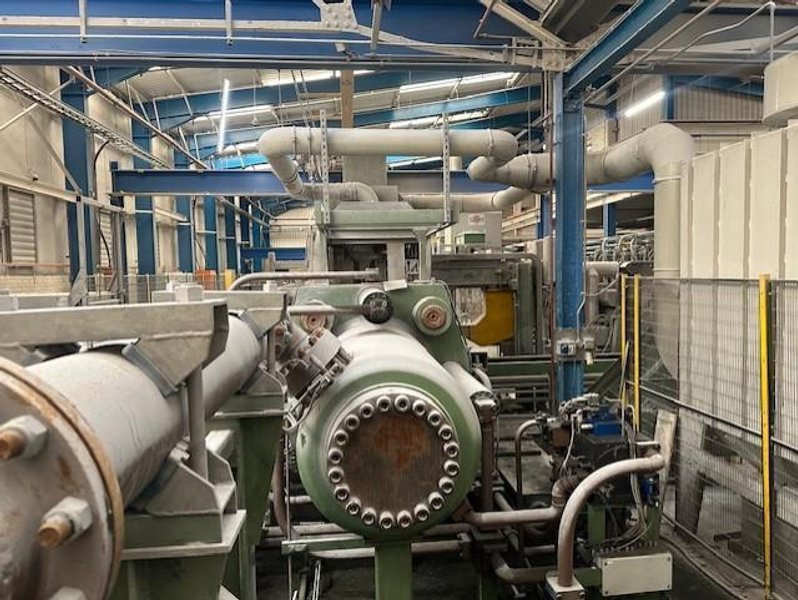

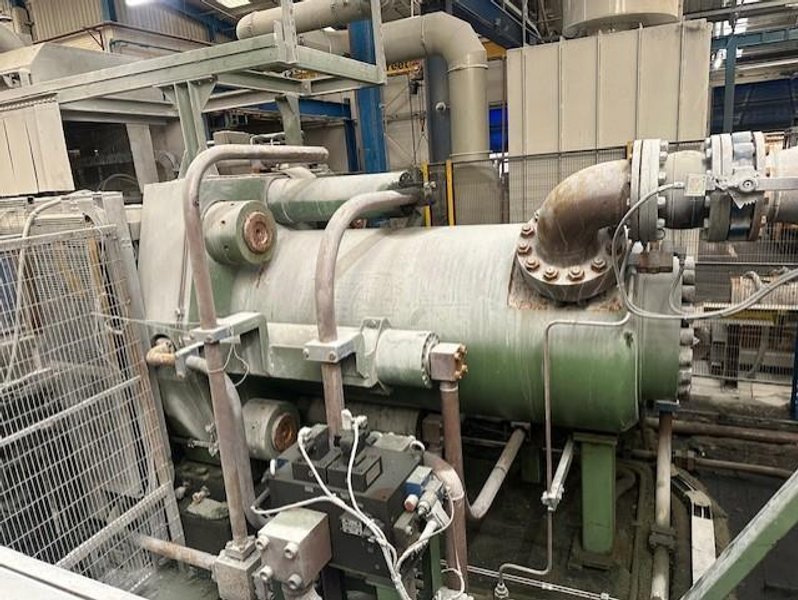

MAIN CYLINDER (SINGLE ACTING)

WORKING PRESSURE – 260 BAR

RAM DIAMETER – 760MM

POWER – 1149 MT

SIDE CYLINDERS (DOUBLE ACTING)

OPERATING PRESSURE – 260 BAR

BORE – 160MM

ROD DIAMETER – 100MM

THRUST FORCE DURING EXTRUSION – 107 TON

THRUST FORCE DURING RETURN – 65 TON

TOTAL MAIN CYLINDER AND SIDE CYLINDER TRUST FORCE – 1256 TON

CONTAINER MOVEMENT (DOUBLE ACTING)

OEPRATING PRESSURE – 260 BAR

BORE – 160MM

ROD DIAMETER – 100MM

SEALING FORCE AT 300 BAR – 107 TON

OPENING FORCE AT 280 BAR – 65 TON

SHEAR CYLINDER (DOUBLE ACTING)

OPERATING PRESSURE – 260 BAR

BORE – 100MM

ROD DIAMETER – 70MM

SHEARING FORCE – 20 TON

ASCENDING FORCE – 10 TON

HIGH PRESSURE REXROTH PUMP GROUP:

MAIN PUMPS

NUMBER OF PUMPS – 3

MANUFACTURED – BOSCH REXROTH

PUMP TYPE – A3VSO0500HSE/30R-PPH13N00

OPERATING PRESSURE – 260 BAR

FLOW RATE – 500 CM3/ROTATION PER PUMP

ROTATION SPEED – 1000 RPM PER PUMP

POWER – 200 KW PER PUMP

AUXILLARY PUMPS

NUMBER OF PUMPS – 1

MANUFACTURED – BOSCH REXROTH

PUMP TYPE – A10VSO140DFR/31R-PPB-12NOO

OPERATING PRESSURE – 160 BAR

FLOW RATE – 140 CM3/ROTATION PER PUMP

ROTATION SPEED – 1500 RPM PER PUMP

POWER – 55 KW PER PUMP

PILOT PUMP

NUMBER OF PUMPS – 1

MANUFACTURED – BOSCH REXROTH

PUMP TYPE – A10VSO45 DFR/31-PPA12NOO

OPERATING PRESSURE – 160 BAR

FLOW RATE – 45 CM3/ROTATION PER PUMP

ROTATION SPEED – 1500 RPM PER PUMP

POWER – 18.5 KW PER PUMP

CONTAINER PUMP

NUMBER OF PUMPS – 1

MANUFACTURED – BOSCH REXROTH

PUMP TYPE – A11VO40DR/10R-NPC12NOO

OPERATING PRESSURE – 300 BAR

FLOW RATE – 40 CM3/ROTATION PER PUMP

ROTATION SPEED – 1000 RPM PER PUMP

POWER – 15 KW PER PUMP

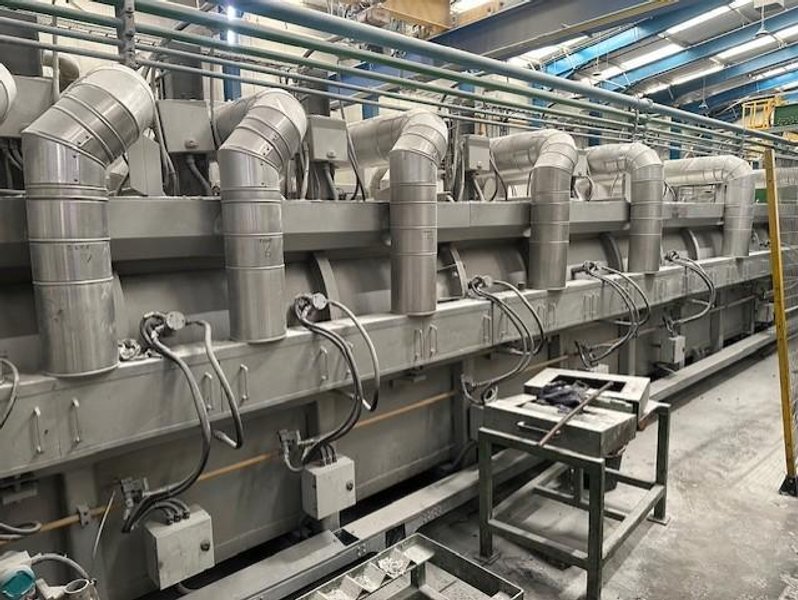

COIM BILLET OVEN SPECIFCATIONS:

COIM AUTOMATED BILLET FURNACE WITH INFEED TABLE

HEATING - 16 BURNERS / 8 ZONES - 2 BURNERS PER ZONE

TEMPERATURE RANGE - 580 - 720°C

LINE SPEED - 1 BILLET PER MINUTE


BILLET LOADING STATION

QUICK CHANGE DIE CHANGEOVER TABLE

PRESS LINE HANDLING SYSTEM / RUNOUT SPECIFICATIONS

MANUFACTURER - OCN

SINGLE PULLER CARRIAGE CAPACITY - 500KG

INPUT MATERIAL MAX LENGTH - 21 METERS

OUTPUT MATERIAL LENGTH - 2 - 9 METERS

ROUND SECTION DIAMETER RANGE - 11 - 65 MILLIMETERS

HEXAGONAL DIAMETER RANGE - 9.5 - 56.3 MILLIMETERS

EXTRUDED BAR QUANTITY - MULTIWIRE FROM 11 TO 19 MILLIMETERS - SINGLE BAR FROM 11 TO 65 MILLIMETERS

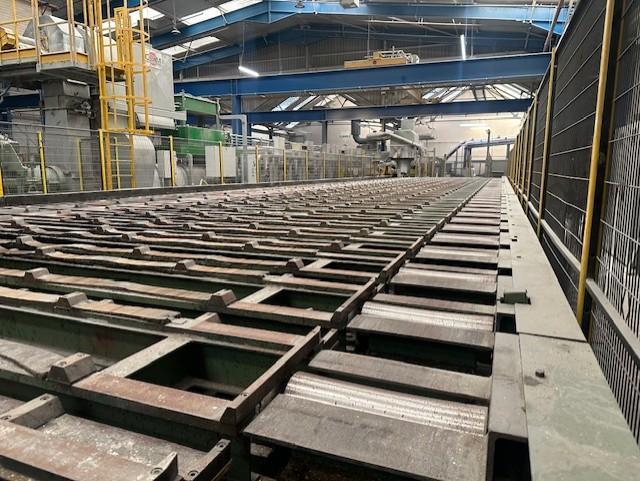

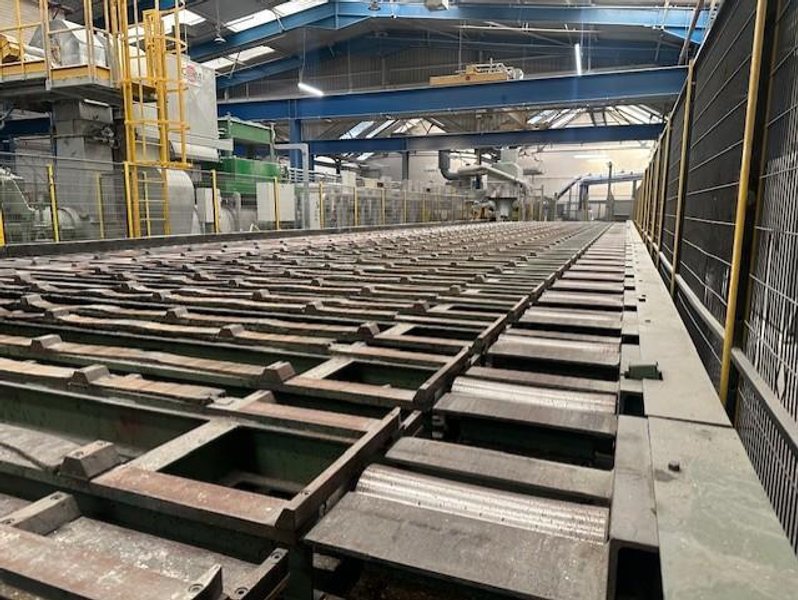

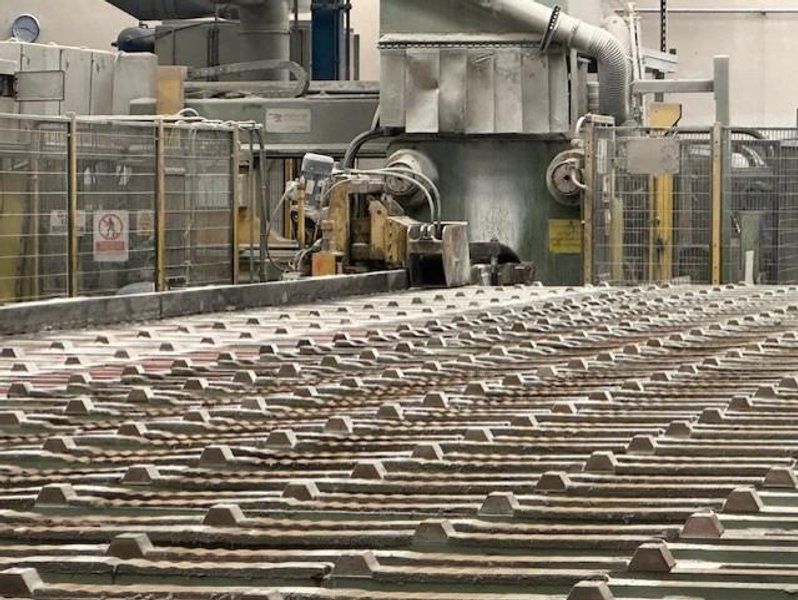

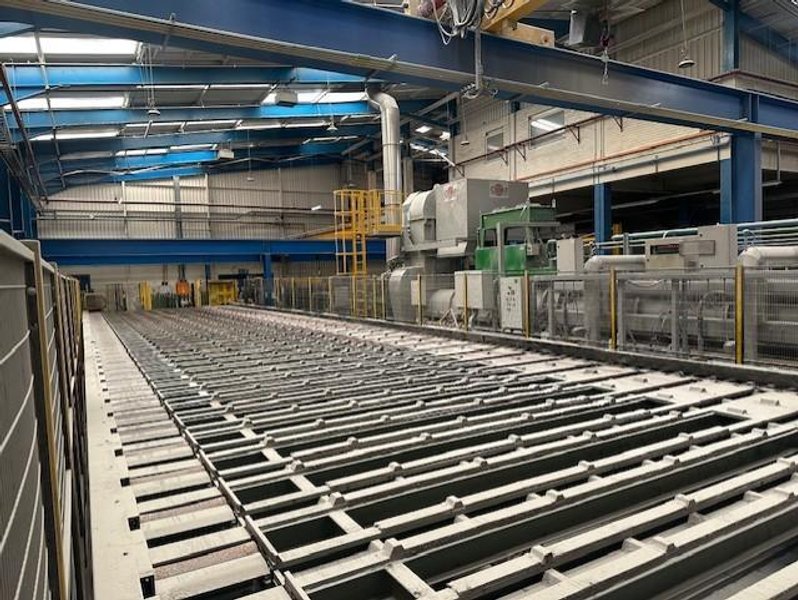

OCN WALKING BEAM COOLING TABLE

OCN EXIT FINISH SAW FEED TABLE

OCN FINISH SAW

OCN EXIT BUNDLING TABLE
