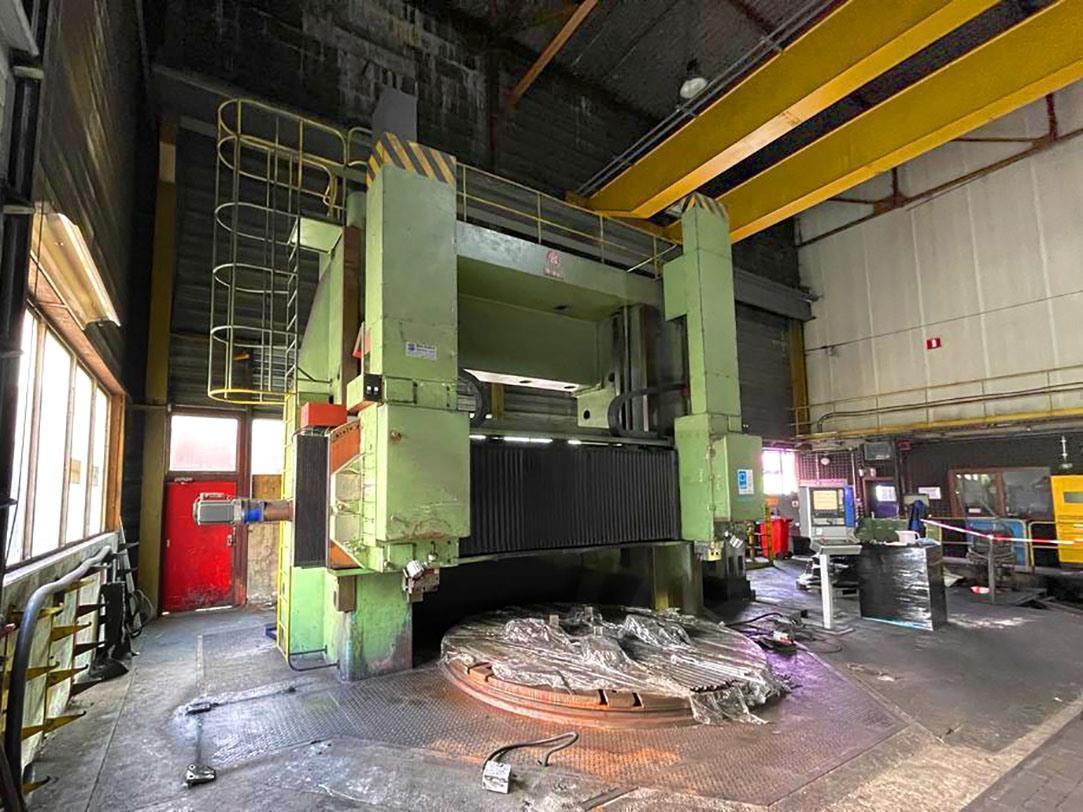

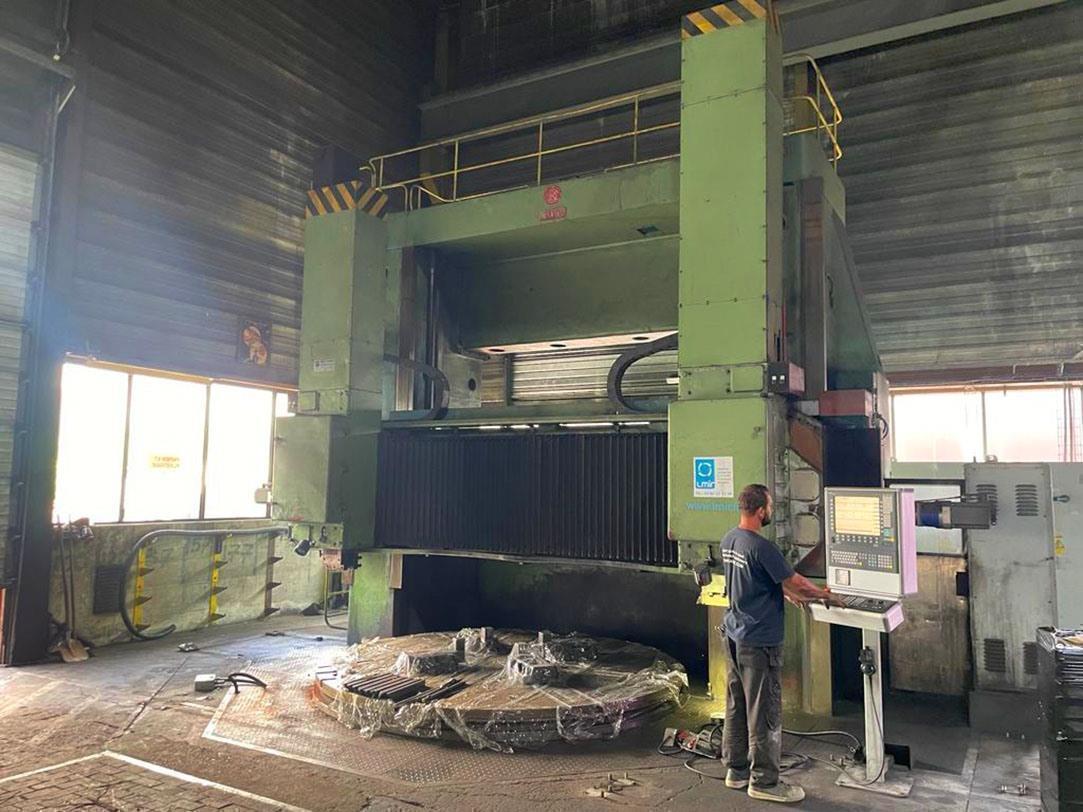

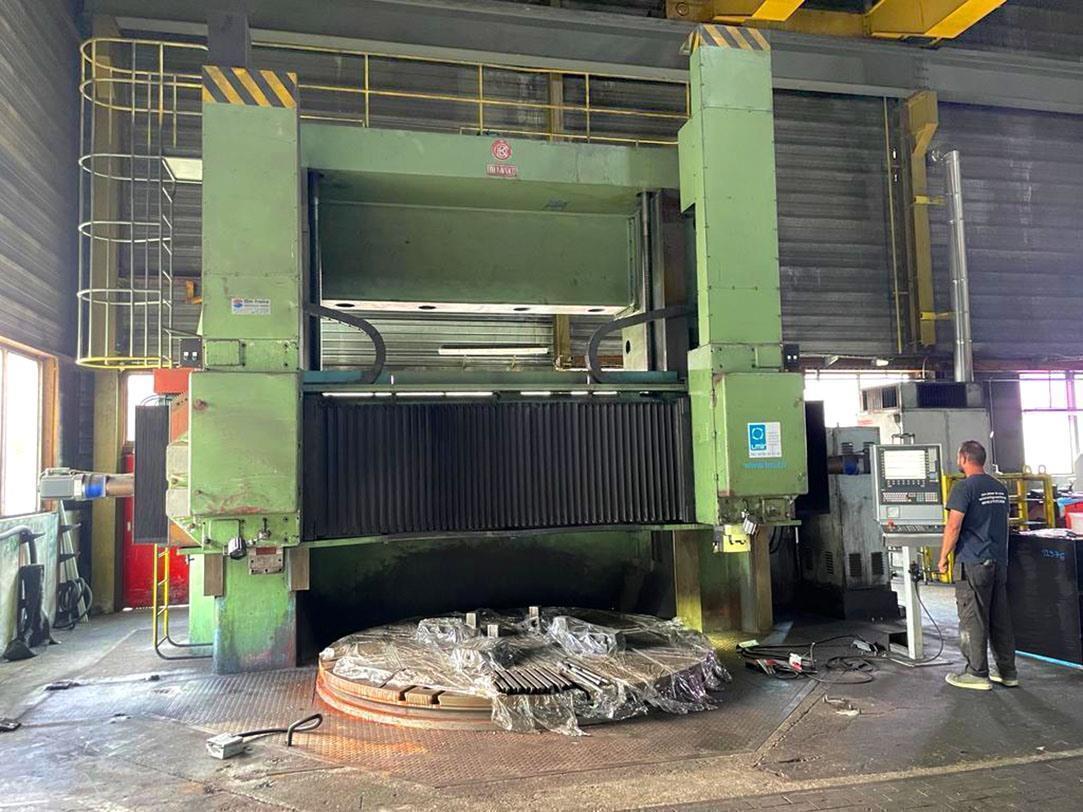

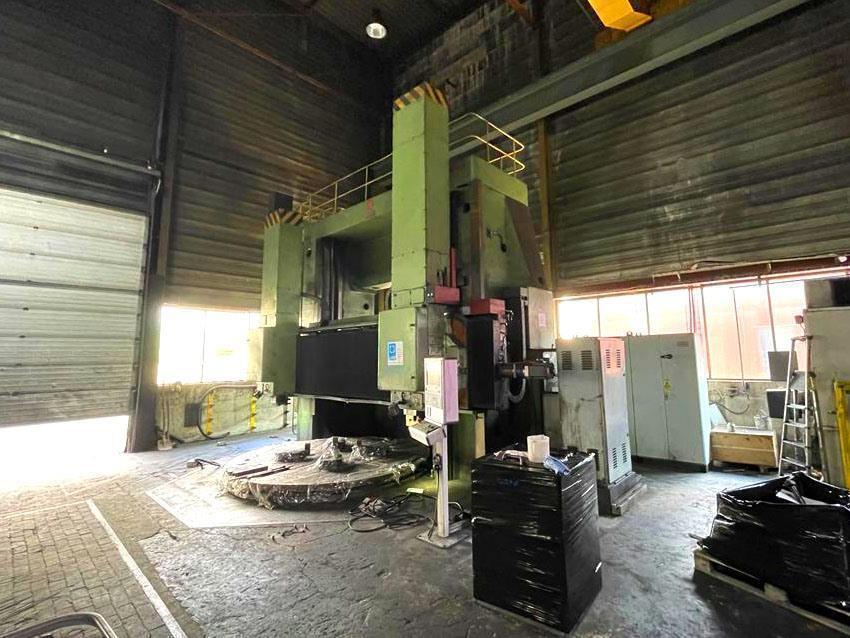

Blansko Tos - SKD 32B Ø 3500 mm CNC

Name: Blansko Tos - SKD 32B Ø 3500 mm CNC
Brand: BLANSKO
SKU: A.12 12976
Availability: InStock

Brand

BLANSKO

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Located in Deinze, Belgium

Technical information

Chuck dia. 3200 mm
Max turningdia -- passage 3500 mm
Power on the spindle 120 kW
Command Siemens 840D
Number of speeds 1 > 22 rpm / 22 > 80 rpm
Power needed 195 kVa
Long 10045 mm
Wide 8120 mm
Height 7155 mm
Weight 65 ton

Additional info

Type: SKD 32B

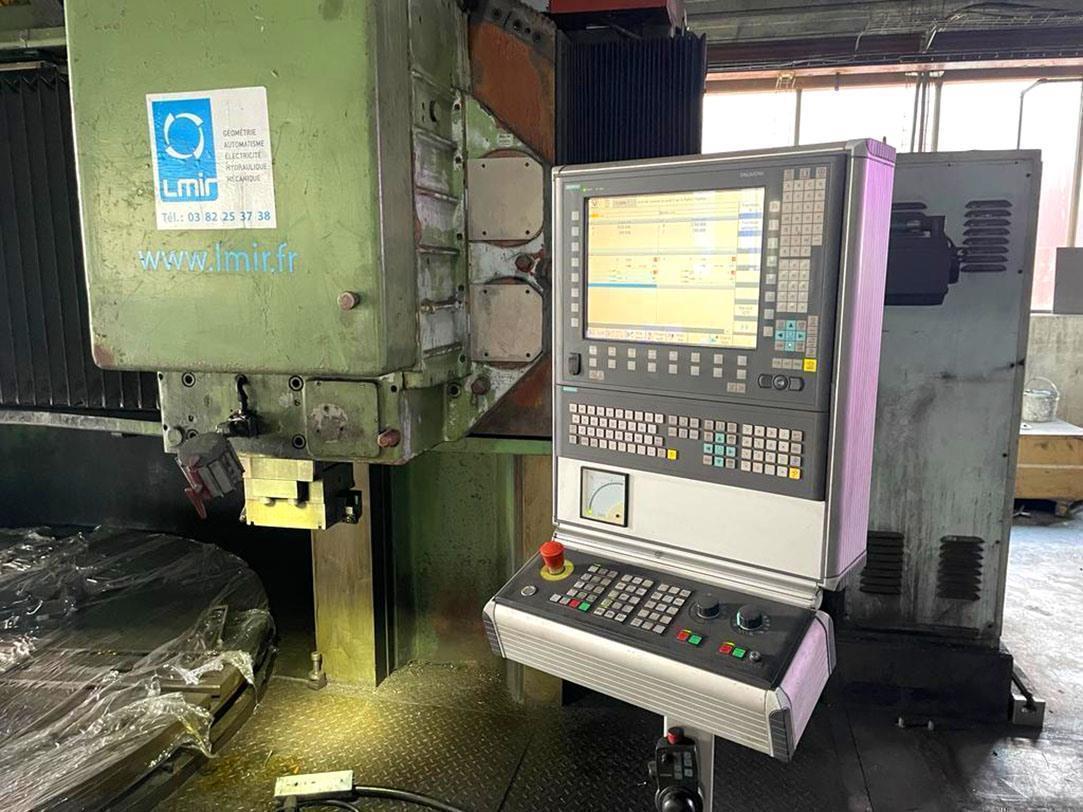

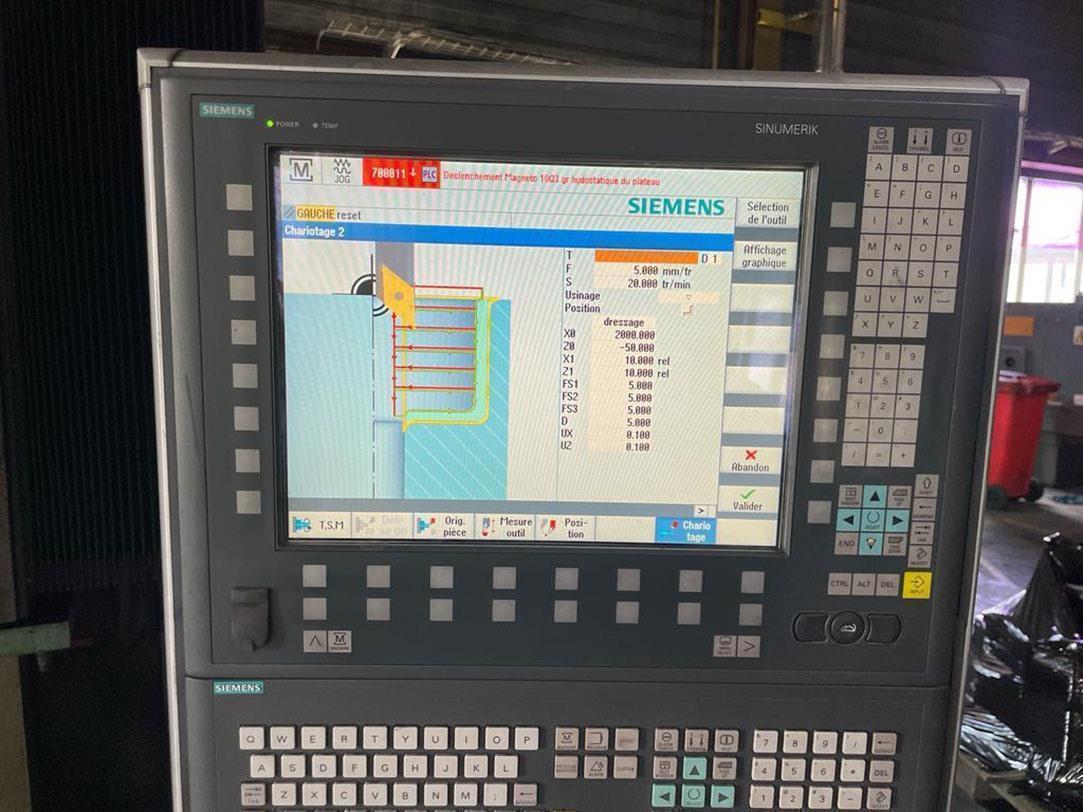

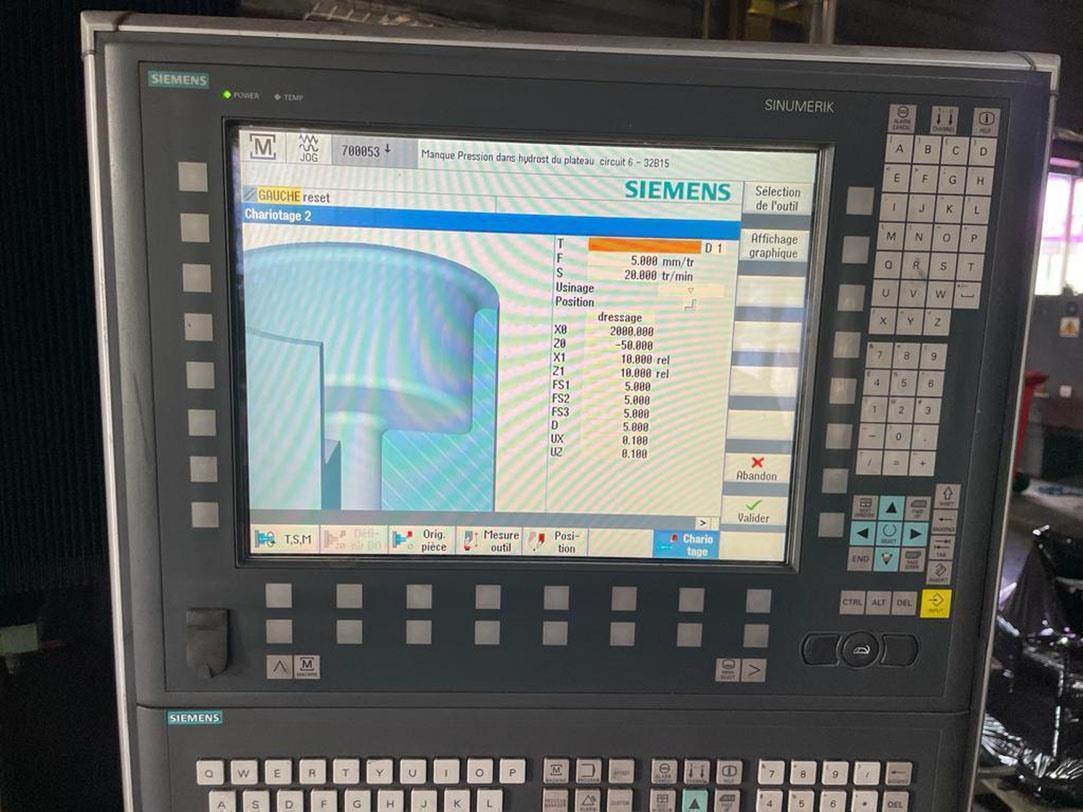

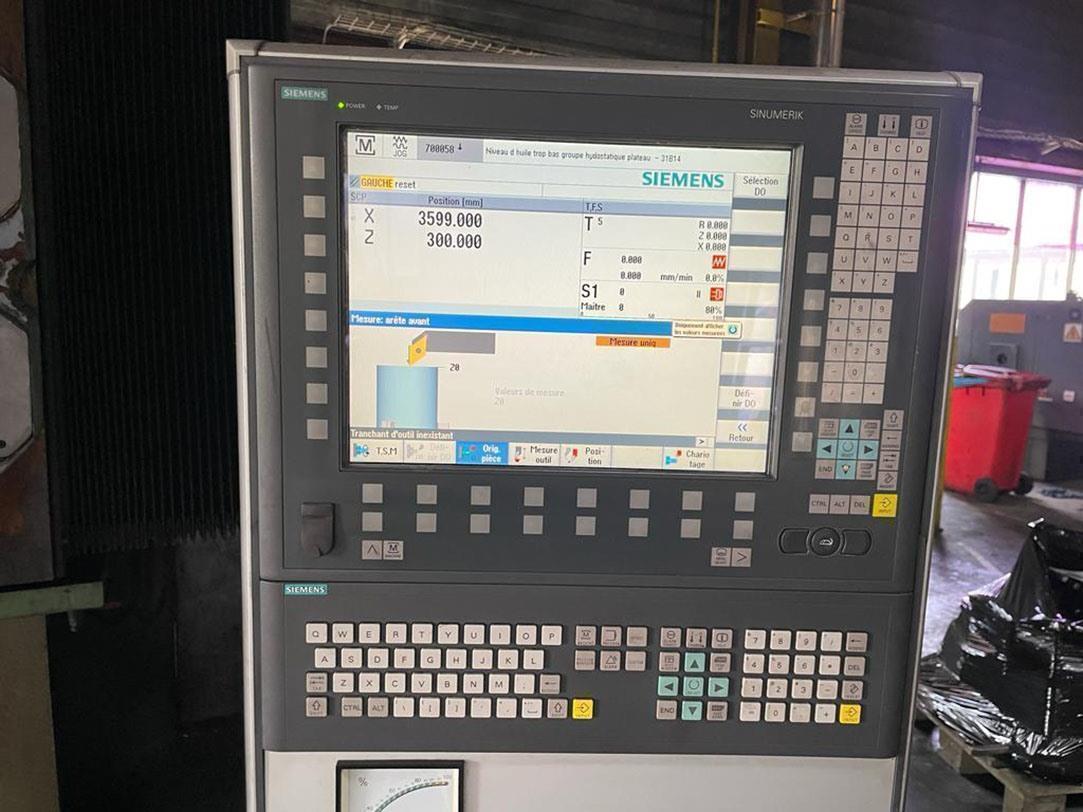

Siemens 840D CNC Control 2017

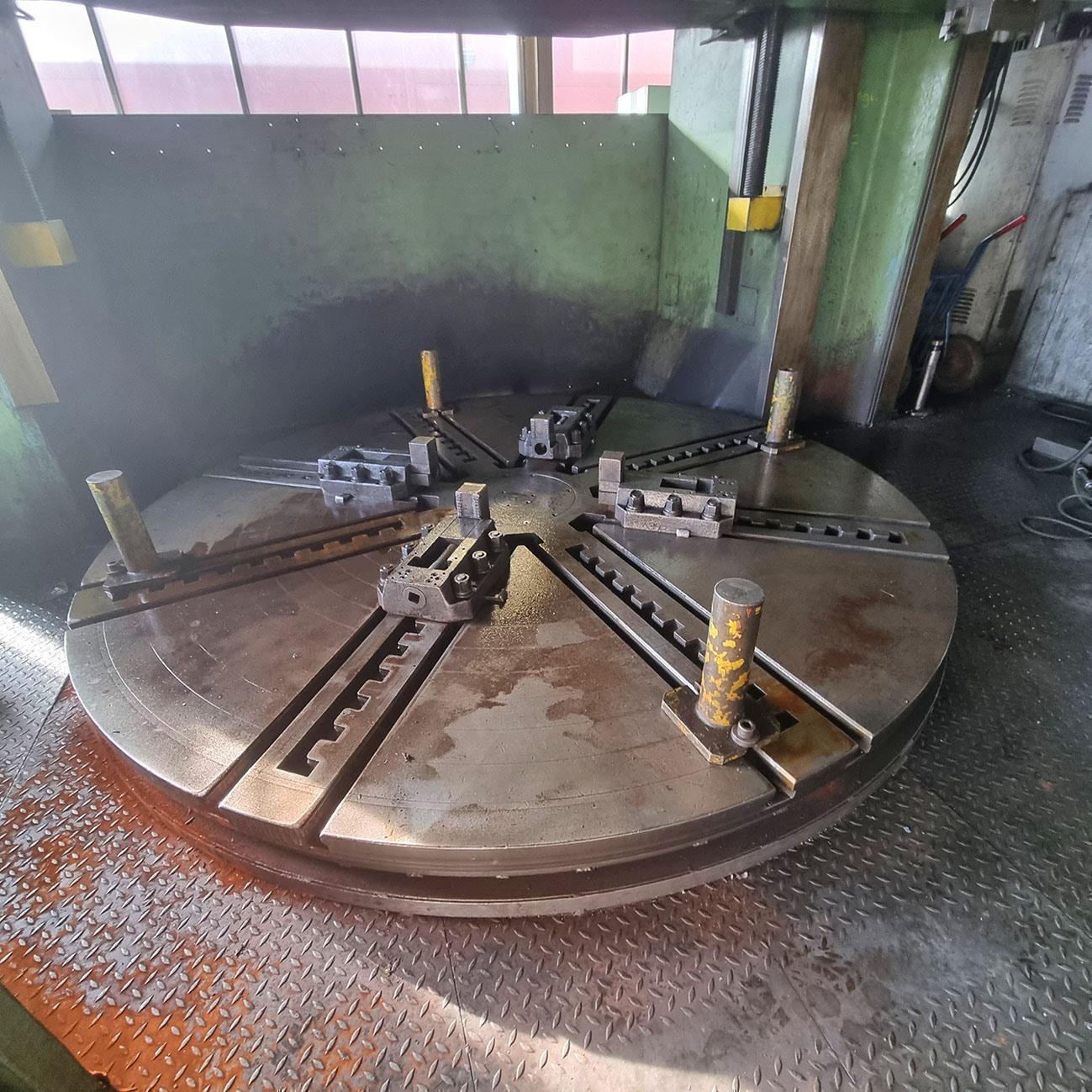

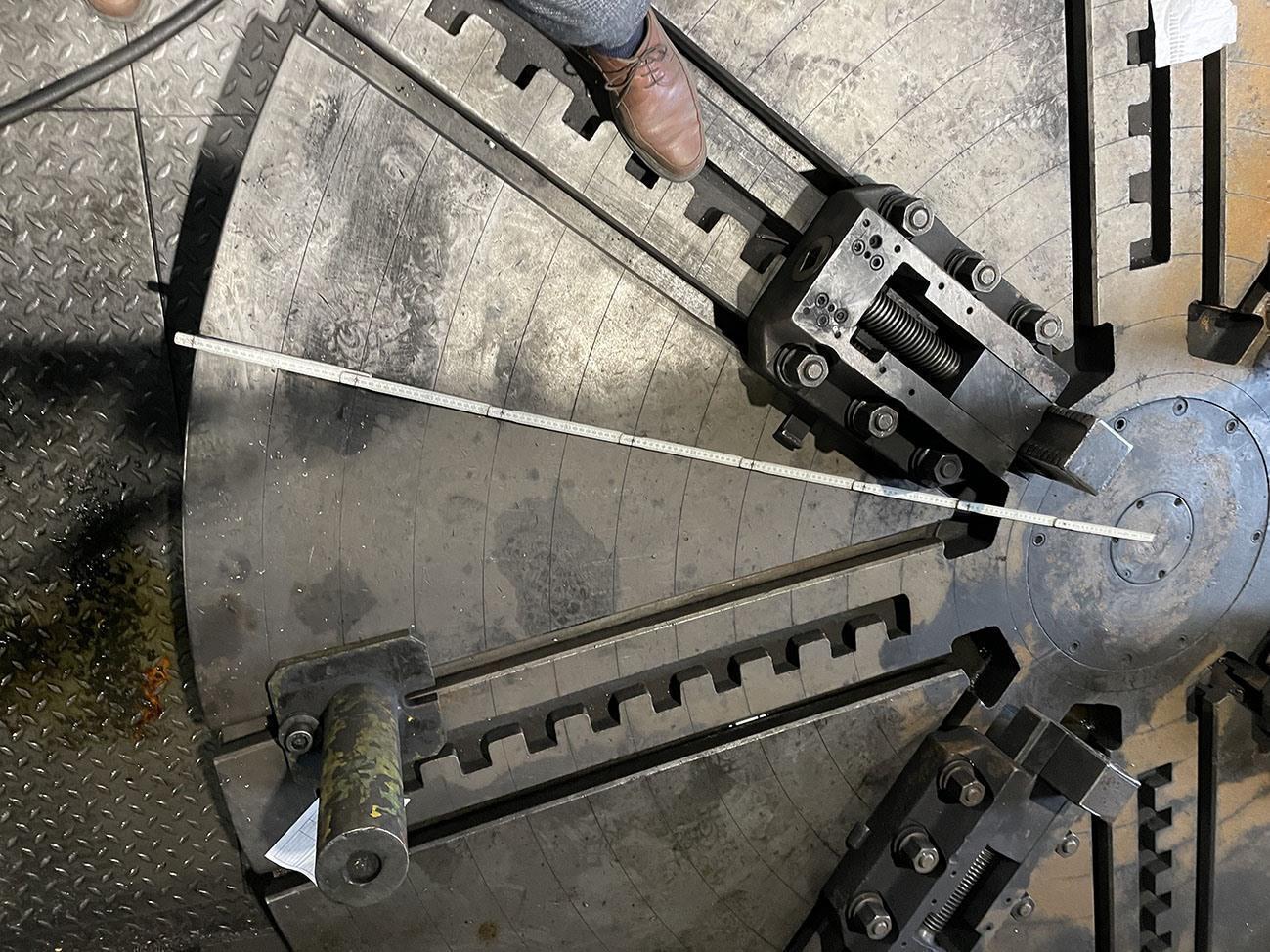

Table diameter: 3200 mm
Maximum swing: 3500 mm
Maximum load on table: 50 tons
Hydrostatic table!!
Power on table: 120 kW
Torsional strength: 132 Kn
2 variable speed gearbox: 0.8 > 22 / 2.8 > 80 rpm
Vertical displacement of the crossbar: 2100 mm
Maximum workpiece height: 2550 mm

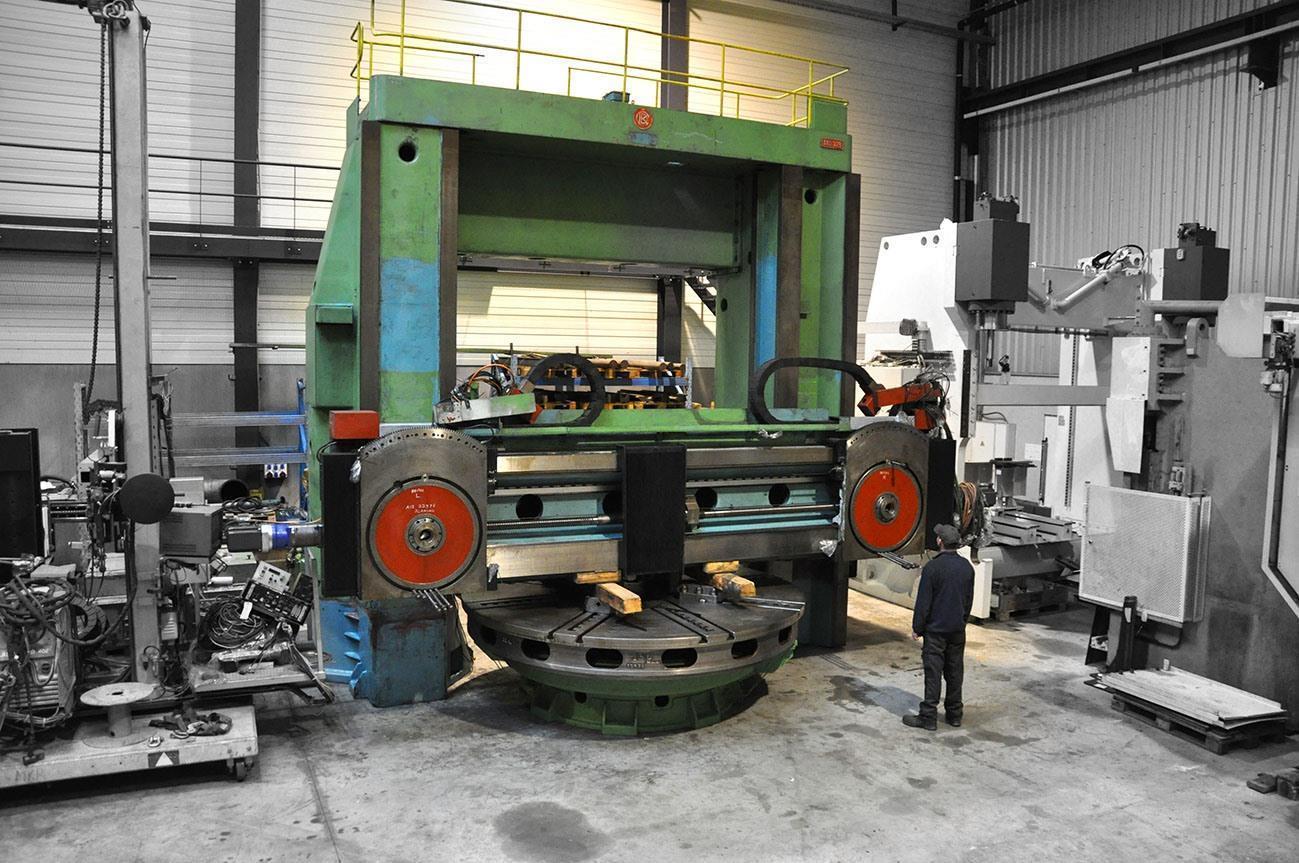

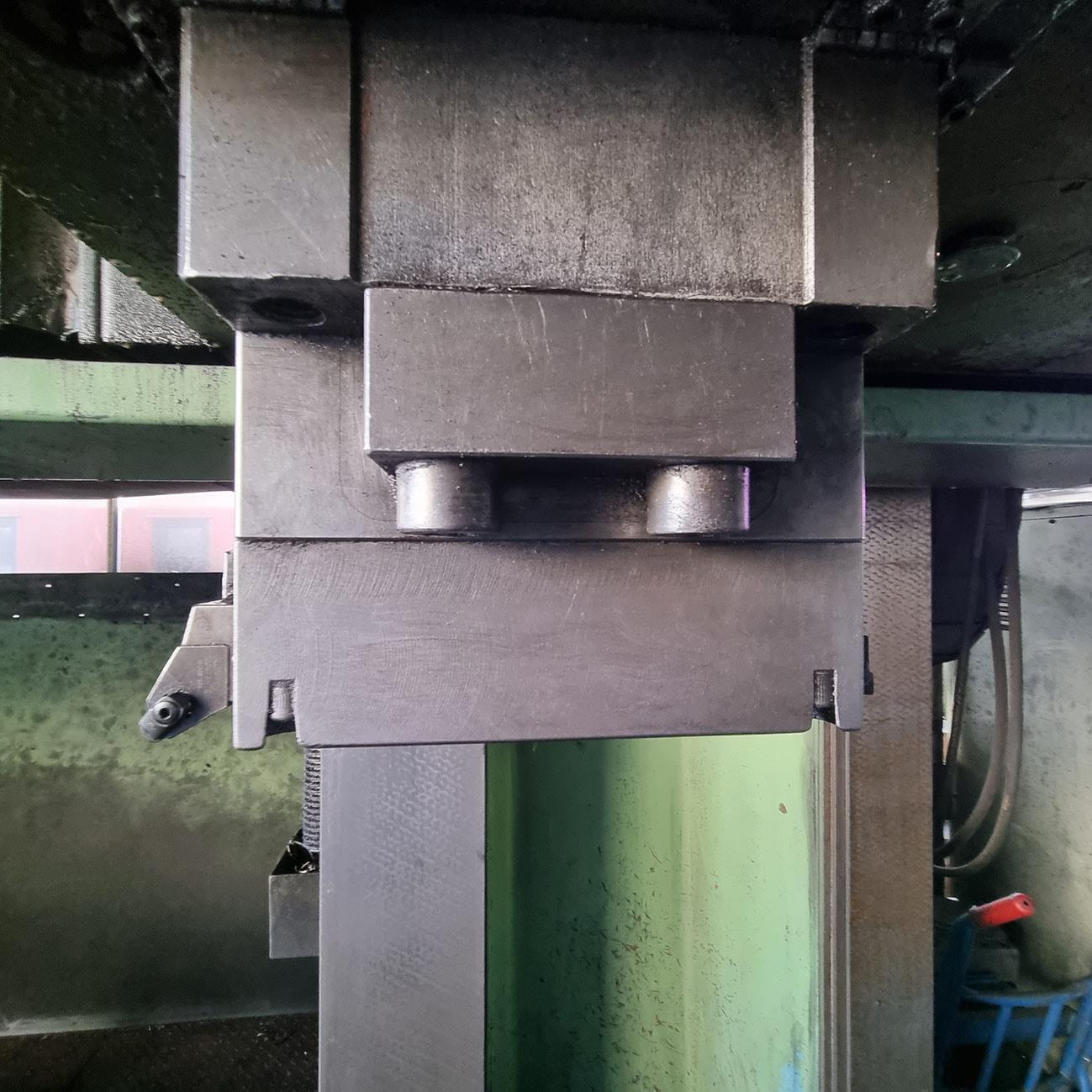

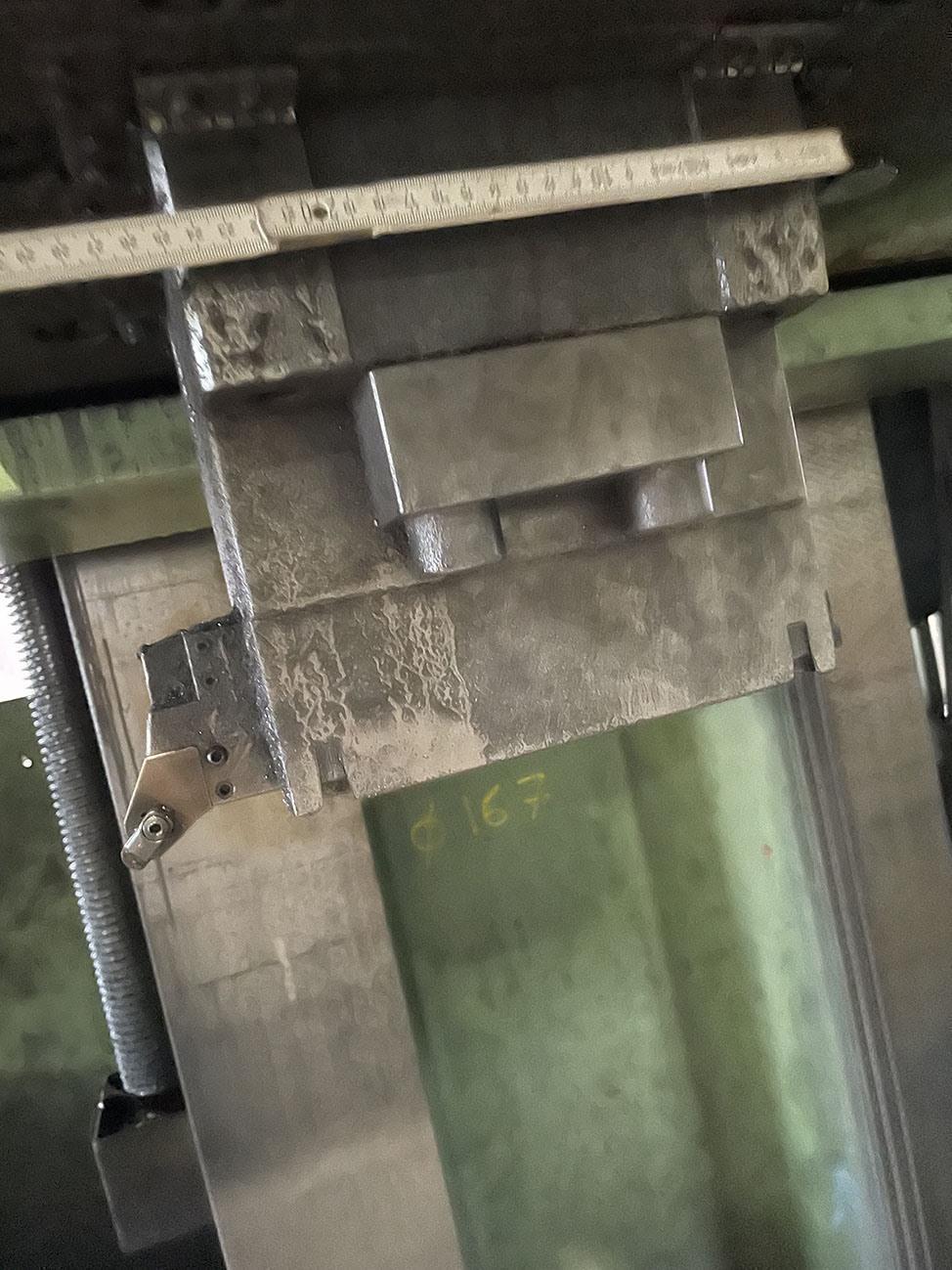

2 tool heads on crossbeam CNC controlled
- horizontal movement of tool head no. 1: 1400 mm
- vertical movement of tool head No. 1: 1500mm
- horizontal movement of tool head no. 2: 1980 mm
- vertical movement of tool head no. 2: 1350 mm
- rotation angle of tool head: -/+ 30°
