90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE MODEL 90CBX8
Brand
Category
Type
Model
90 CB X 8
Stock #
4874
Year
1991
Condition
Used
Location
New Jersey
|

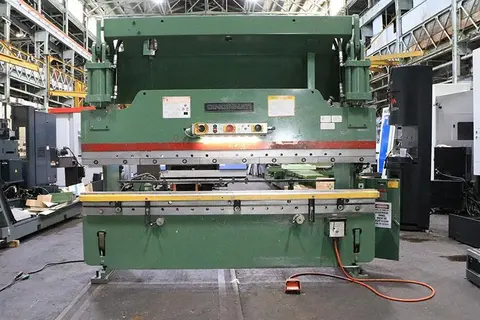

90 TON X 10' CINCINNATI HYDRAULIC PRESS BRAKE
MODEL 90CBX8
S/N 47006 NEW 1991 Specifications: Capacity ............................. 90 tons
Bending capacity ..................... 10' x 12 gauge
..................... 5' x 1/4"
Distance between housings ............ 8' 6"
Stroke ............................... 8"
Throat ............................... 7"
Overall die surface .................. 10"
Die space - open ..................... 15"
Closed ............................... 7"
Ram speed: High ...................... 150 ipm
Medium .................... 71 ipm
Low ....................... 21 ipm
Return .................... 136 ipm
Motor ................................ 15 HP
Approximate overall dimensions ....... 60 D x 120 W x 116 H
Approximate weight ................... 14,000 lbs.
Machine is equipped with:
- Manually adjustable back stops
- Lower die rail
- 3-speed (low / medium / high)
- Adjustable tonnage control
- Adjustable stroke and speed change w/ position indicator
- Single / Inch Modes
- Palm buttons mounted on machine face with E-Stop
- Manuals
FOB: NJ |
