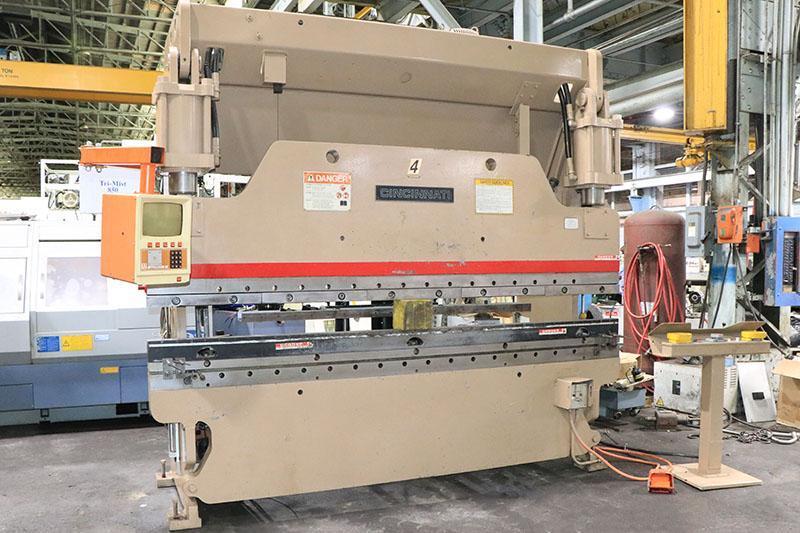

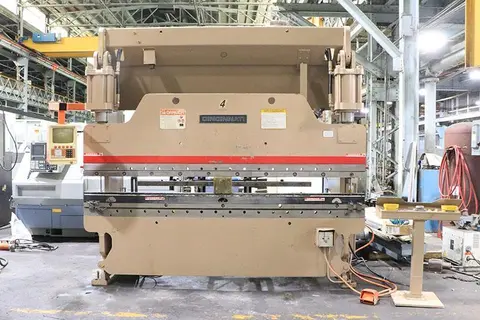

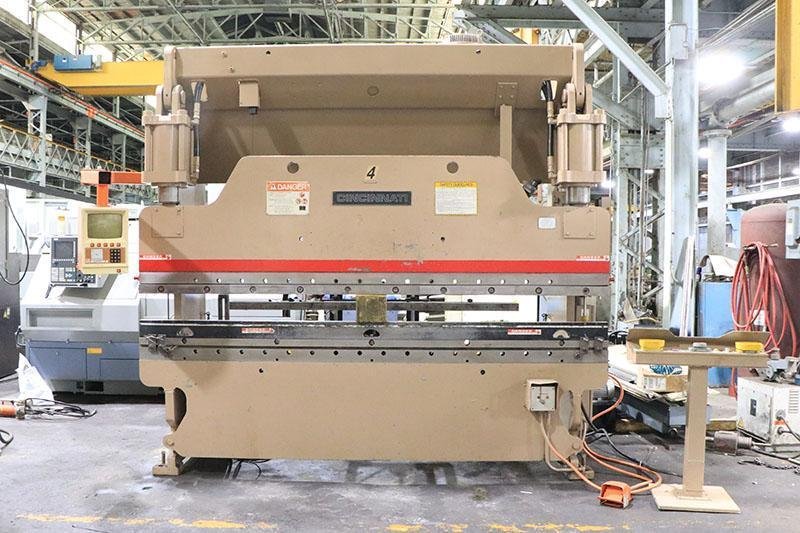

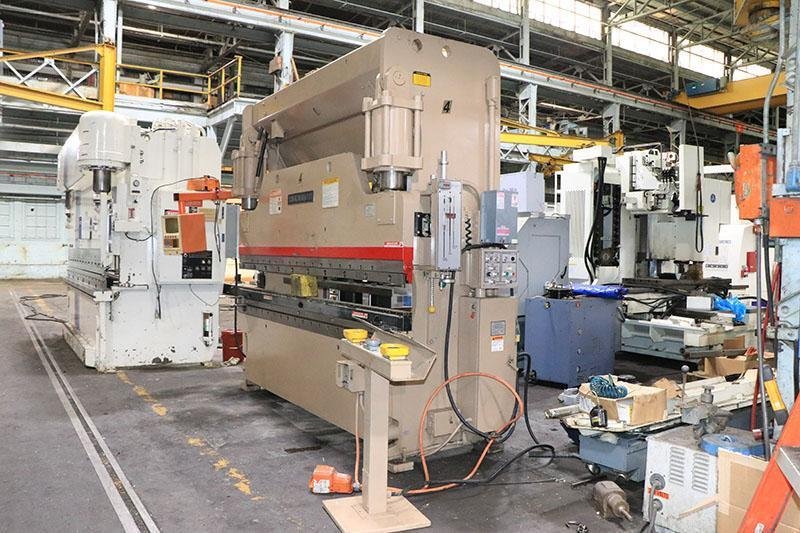

135 Ton x 10 Ft Cincinnati Hydraulic Press Brake Model 135CB8
Brand
Category
Type
Model
135CB8
Stock #
4760
Year
Not specified
Condition
Used
Location
New Jersey
|
Used Cincinnati Hydraulic Press Brake

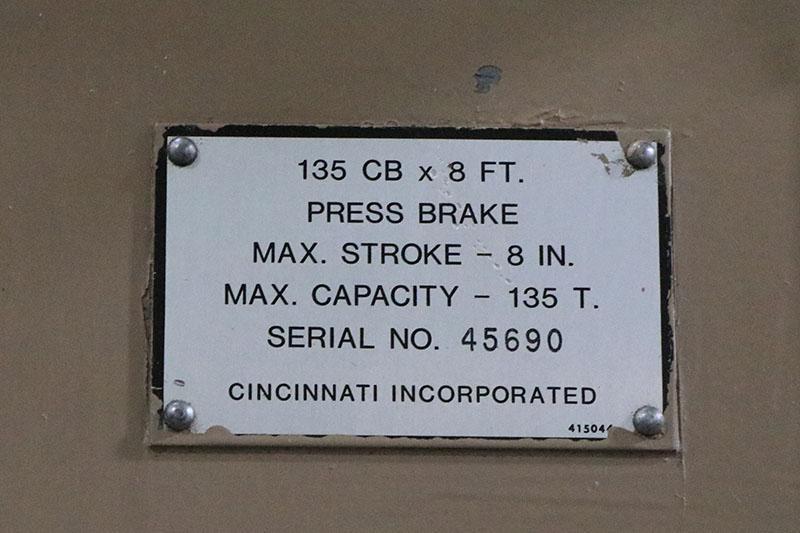

Model 135CB8 Specifications: Capacity ...................................... 135 Ton
Rated Bending Capacities ...................... 10' x 3/16"
Overall Length Bed and Ram .................... 10'
Distance Between Housings ..................... 8'6"
Stroke Length (Adjustable) .................... 8"
Open Height ................................... 15"

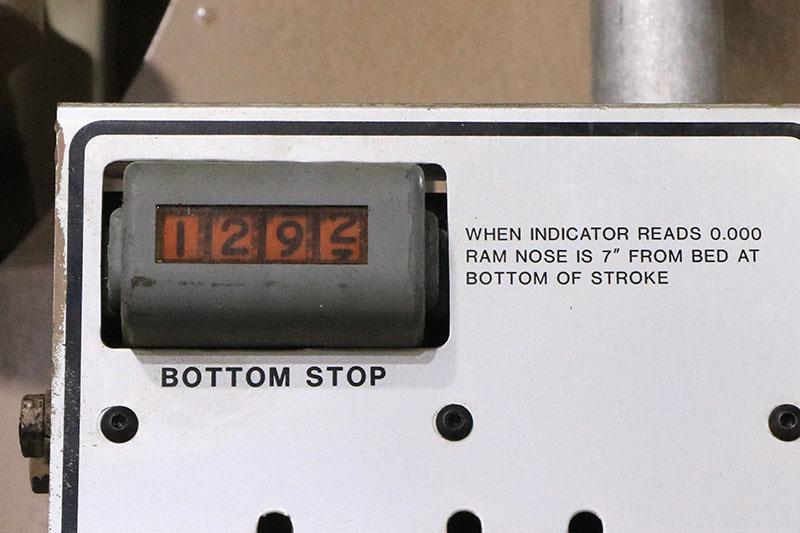

Closed Height ................................. 7"
Throat Depth .................................. 7"

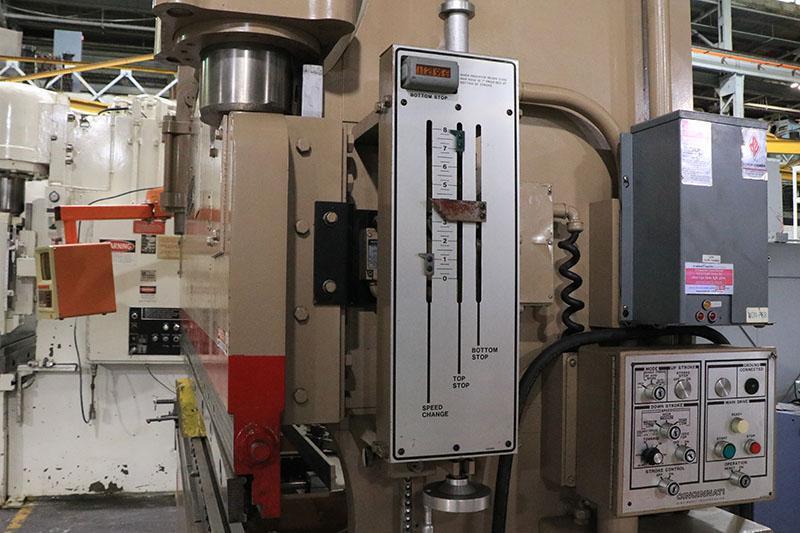

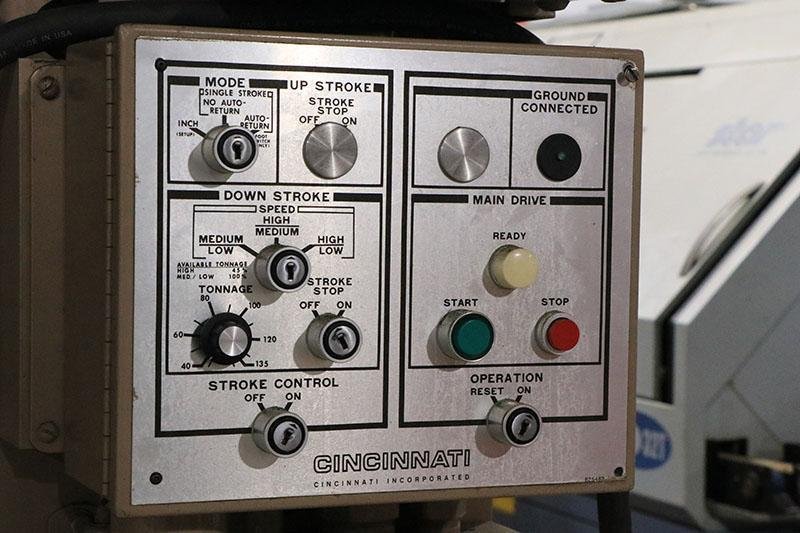

Adjustable Speed Control:
Speeds .............................. 136 IPM - High
.............................. 65 IPM - Medium
.............................. 16 IPM - Low
.............................. 122 IPM - Return
EQUIPPED WITH:

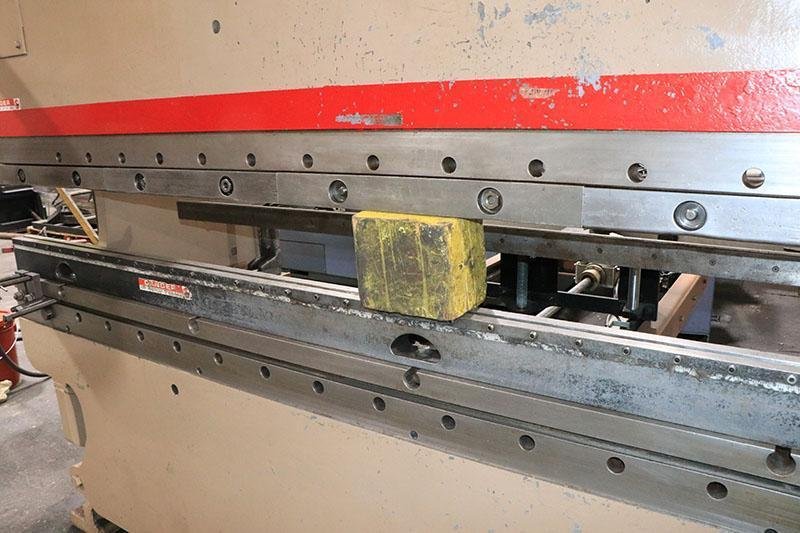

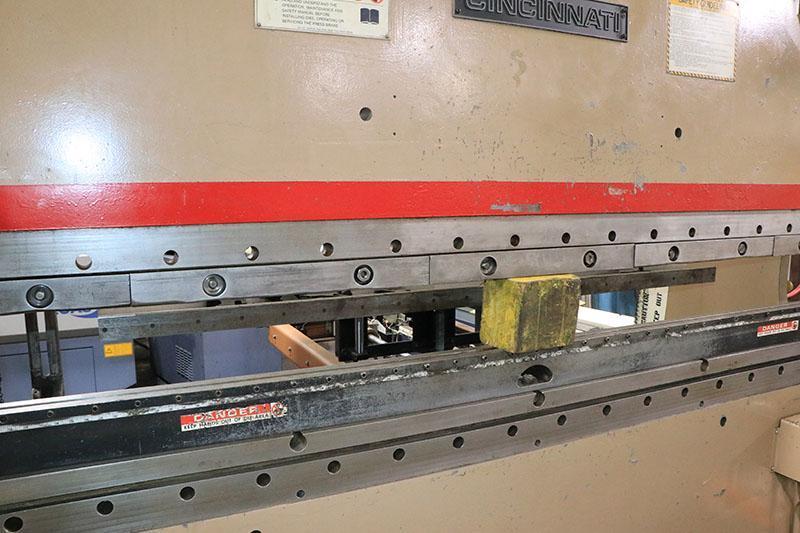

Lower Die Holder
Sectional Ram Clamps
Front Support Arms Adjustable Tonnage Controls Low / Medium / High Speed Modes Electrical Controls

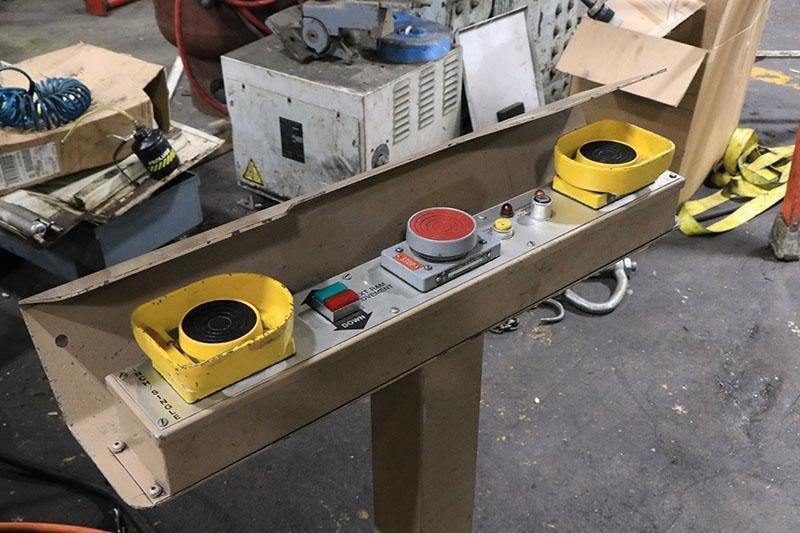

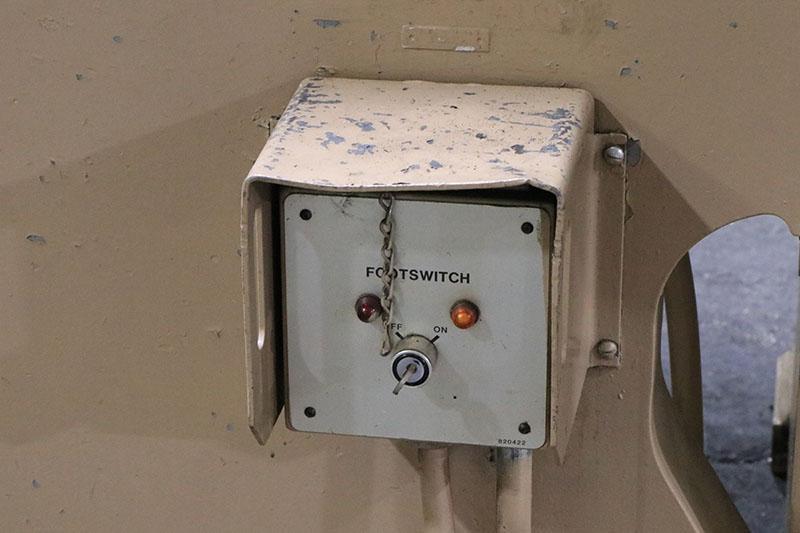

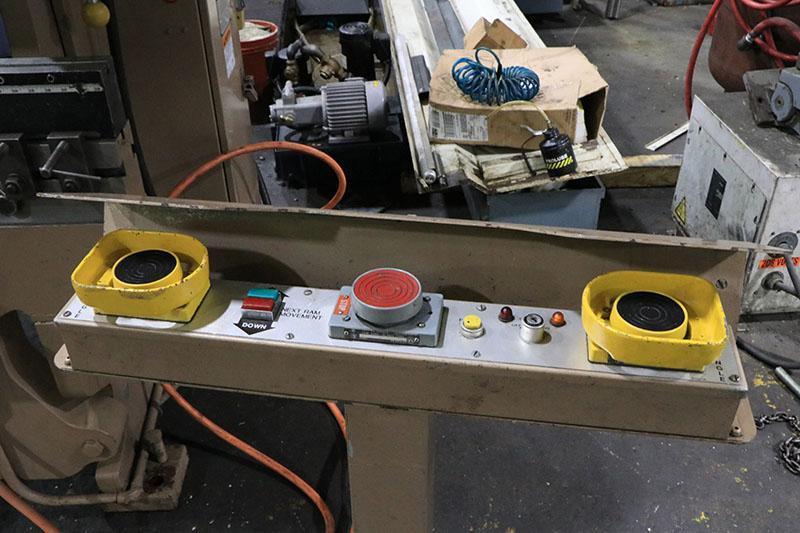

Electric Foot Switch or Dual Palm Button Operation
Main Drive Motor, 25 HP
Weight, Approx.: 16,000 Lbs.
Dimensions, Approx.: 126" L-R x 48" F-B x 122" H FOB: NJ |
