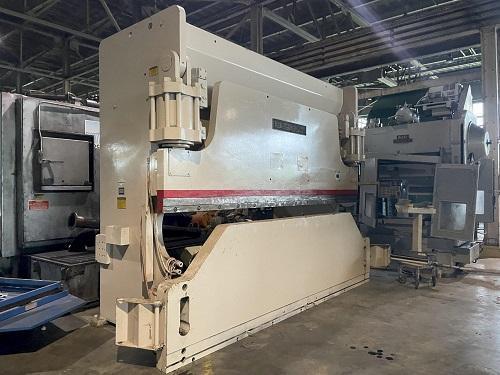

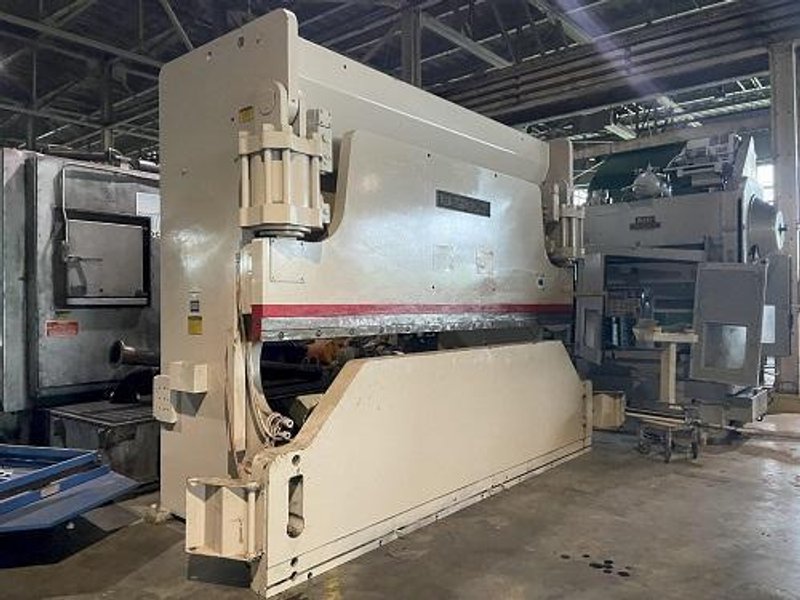

350 TON X 14' CINCINNATI #CBIIX12 HYDRAULIC PRESS BRAKE
Brand
Category
Type
Model
#CBIIX12
Stock #
115315
Year
1996
Condition
Used
Location
Not specified
|
SERIAL ....................... 49394
YEAR NEW ..................... 1996
MODEL ........................ 350 CBII X 12

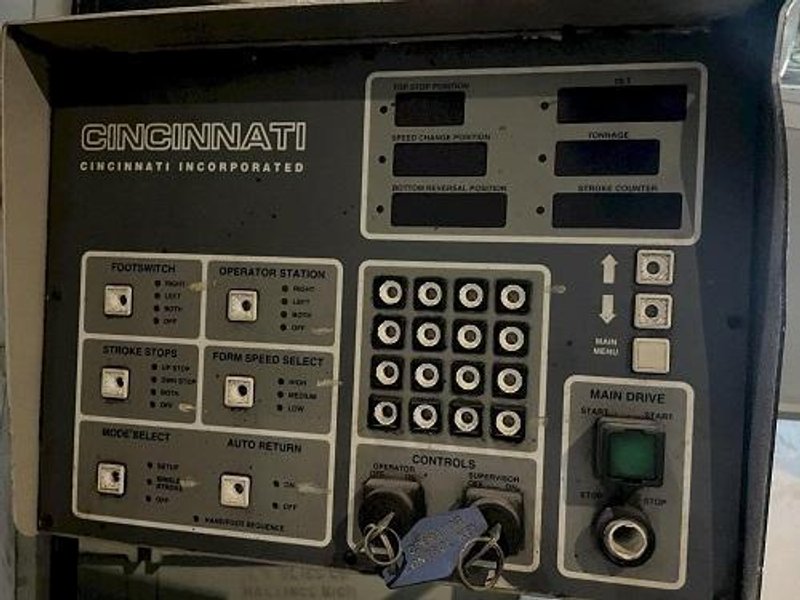

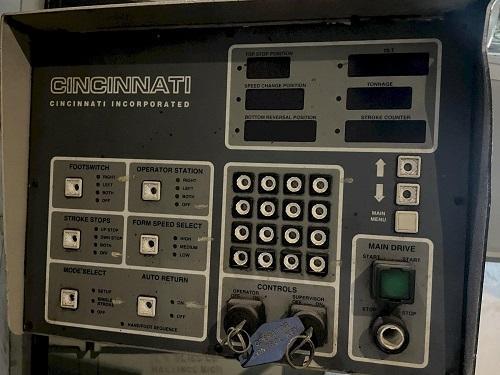

CONTROLS ..................... CINCI CNC PROFORM
CAPACITY ..................... 350 TON
OVERALL LENGTH OF BED & RAM .. 14'
DISTANCE BETWEEN HOUSING ..... 12'9"
STROKE OF RAM ................ 10"
OPEN HEIGHT .................. 18"
THROAT DEPTH ................. 10"
RAM SPEEDS - APPROACH ........ 105 IPM
RAM SPEEDS - PRESSING ........ 5-10-20 IPM
RAM SPEEDS - RETURN .......... 95 IPM
DUAL PALM BUTTONS CONTROLS ... YES
E-STOP BUTTON ................ YES
MOTOR ........................ 15 HP |
