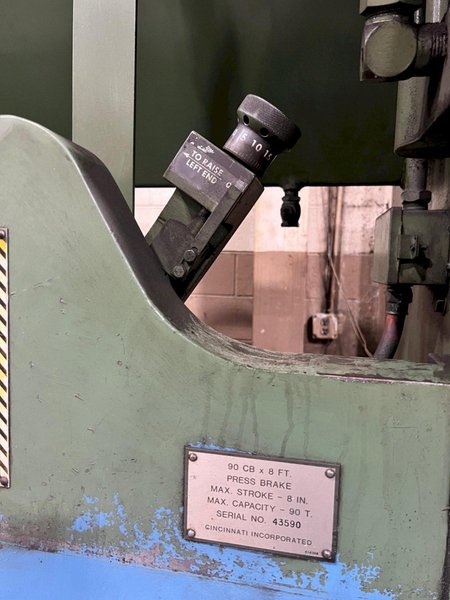

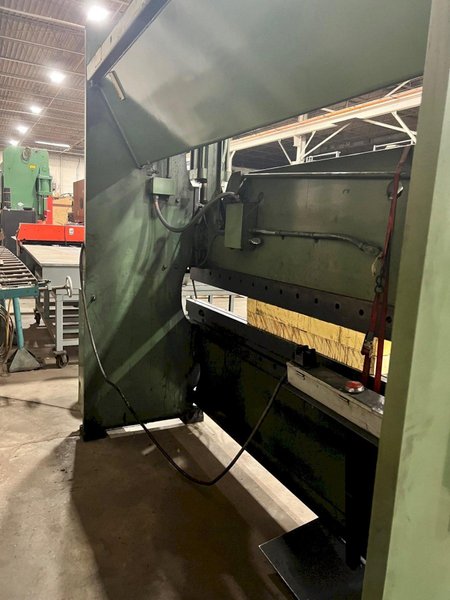

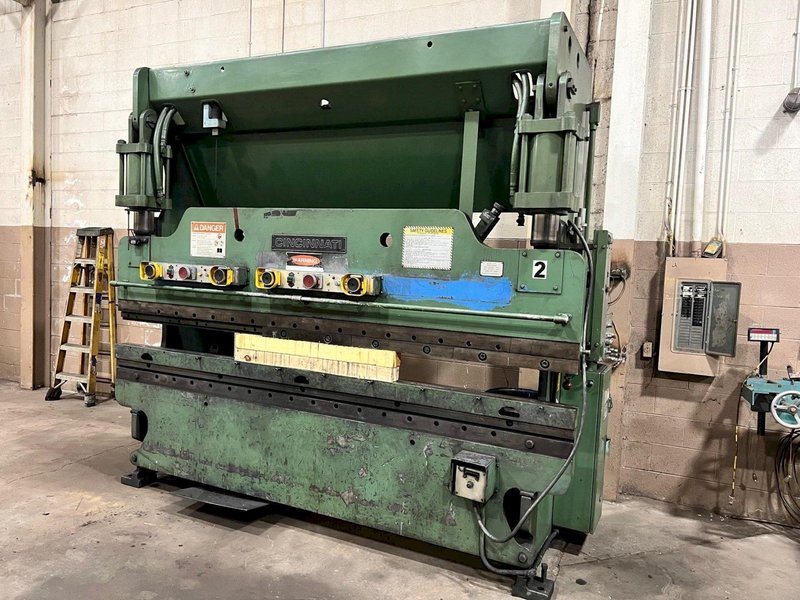

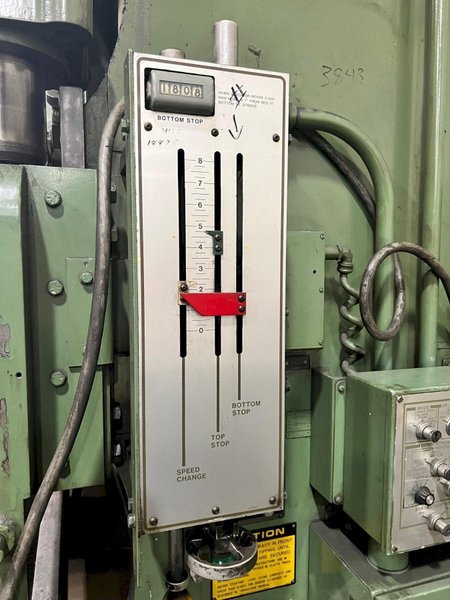

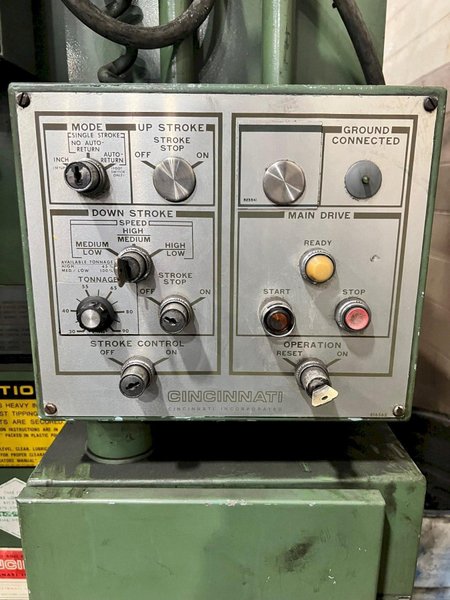

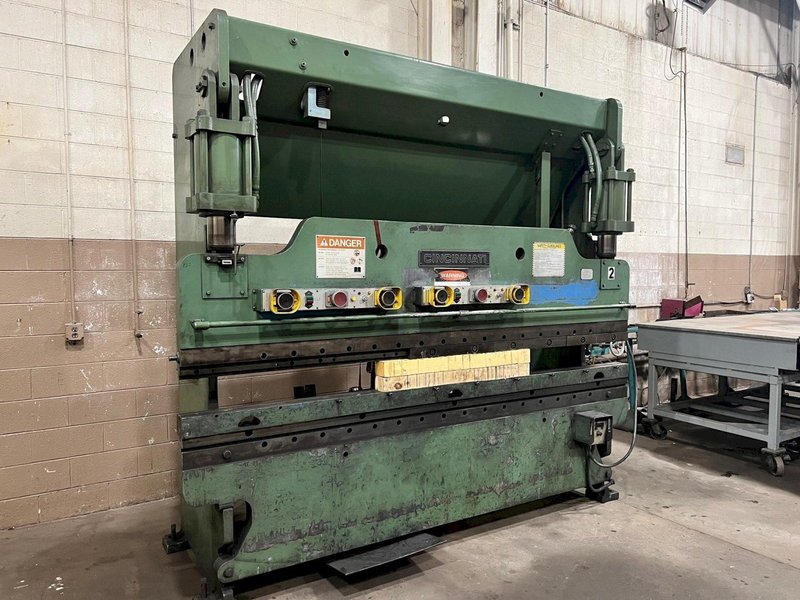

Cincinnati Model C90 Press Brake
Tonnage: 90 tons Hyd/Mech: hydraulic OA Length: 10 feet Stroke: 8 inches CNC Control: no Dimensions: 120" x 40" x 117" Weight: 14500 pounds Specifications Brand: Cincinnati Model: 90CB x 8 Specifications: Tonnage: 90 tons Length of bed: 10' Distance between housings: 8' 6-1/4" Stroke length: 8" Open height: 15" Closed height: 7" Throat: 7" Ram high speed: 150 IPM Ram medium speed: 71 IPM Ram low speed: 21 IPM Ram return speed: 136 IPM Main motor: 15 H.P. Voltage: 220 / 440 volt 3 phase (currently wired 440 volt) Dimensions: 120" x 40" x 117" Weight: 14,500 Lbs. Equipped with: Fast set up* ram stroke control Inch, single, auto stroke settings Full length die holder Sectionalized ram clamps Power ram tilt Tonnage control Low, medium, high ram speeds Palm buttons mounted to ram |
