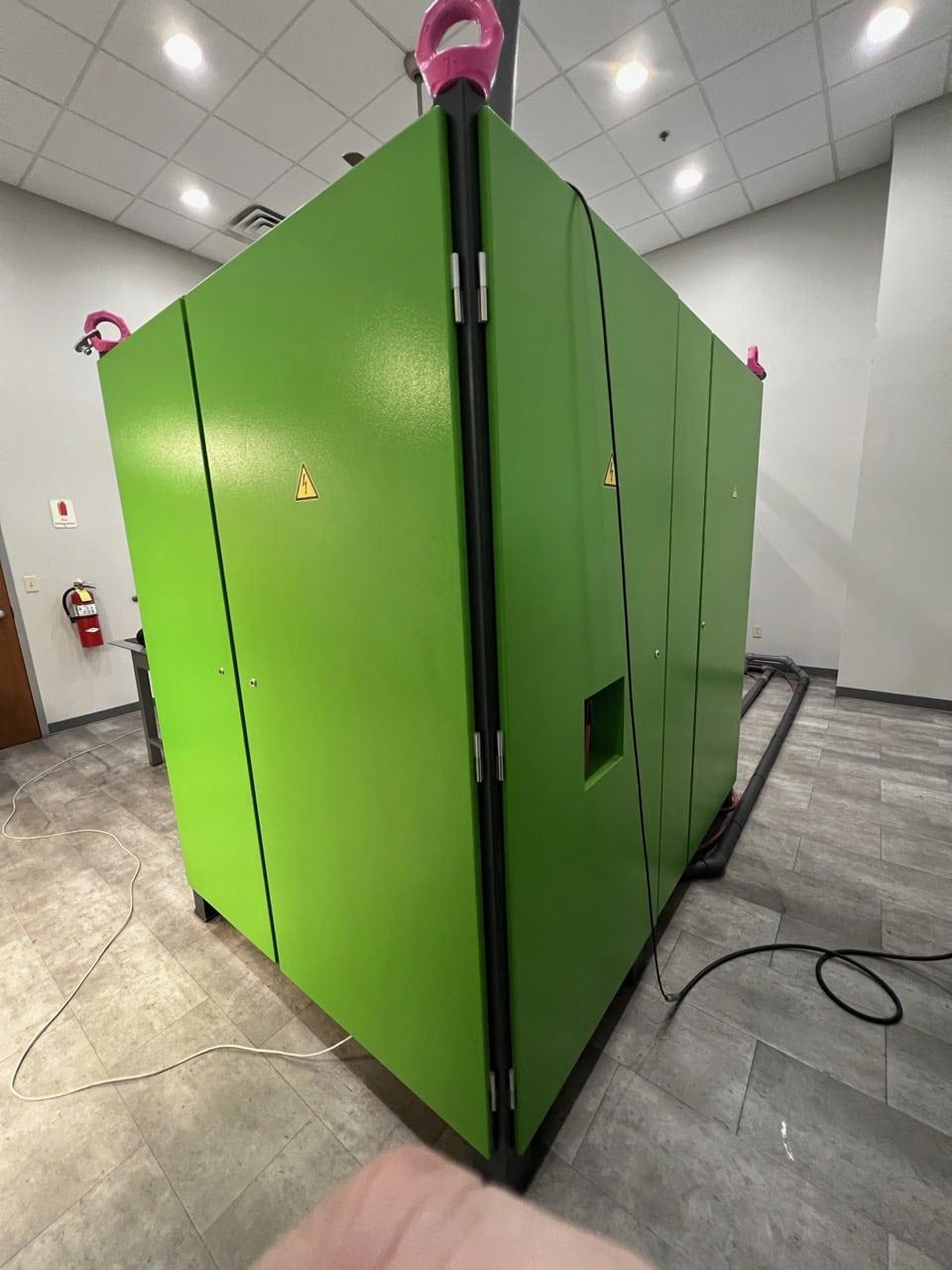

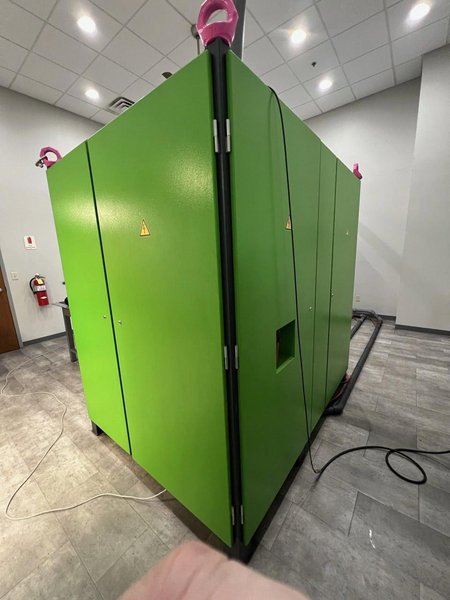

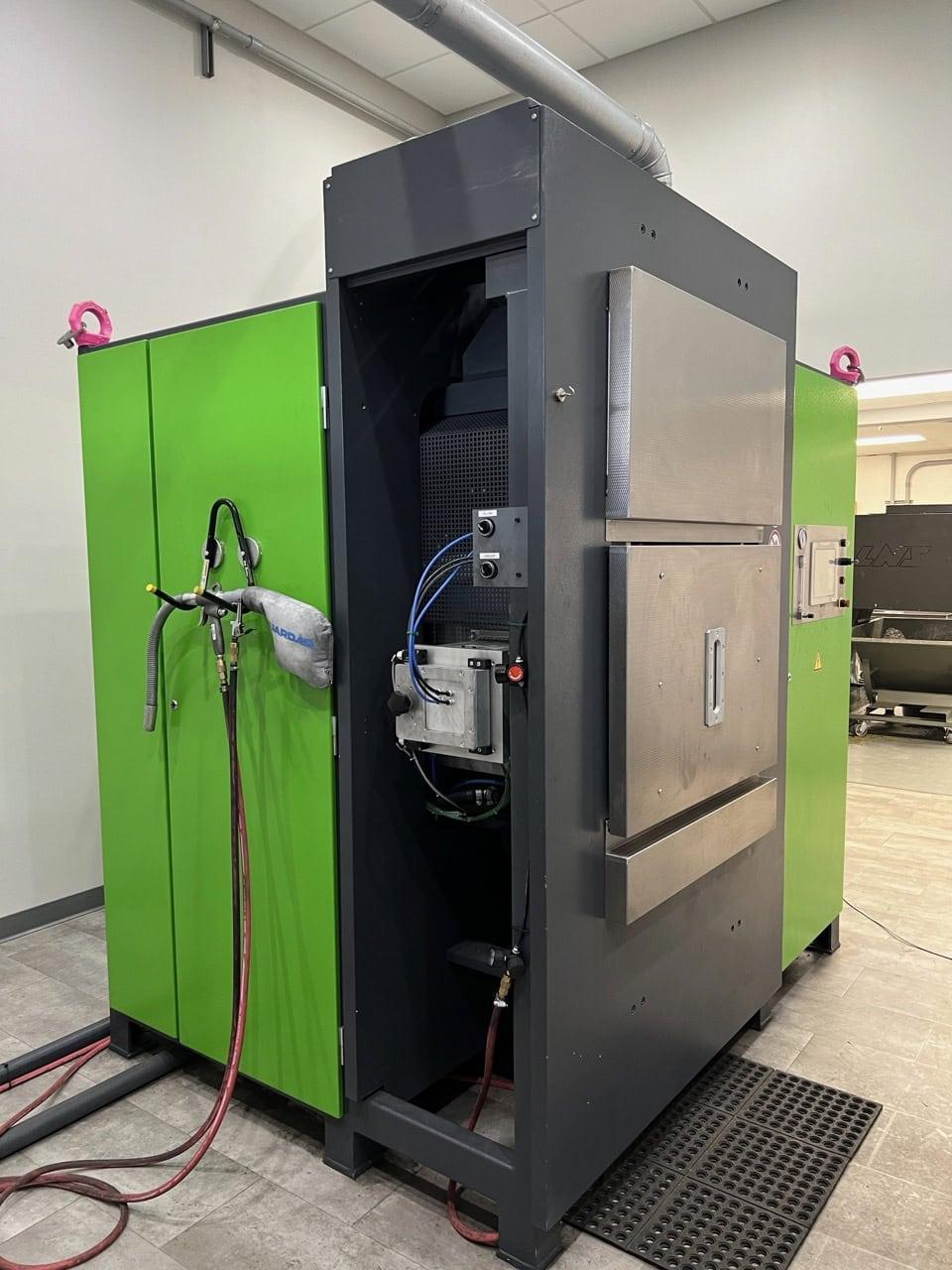

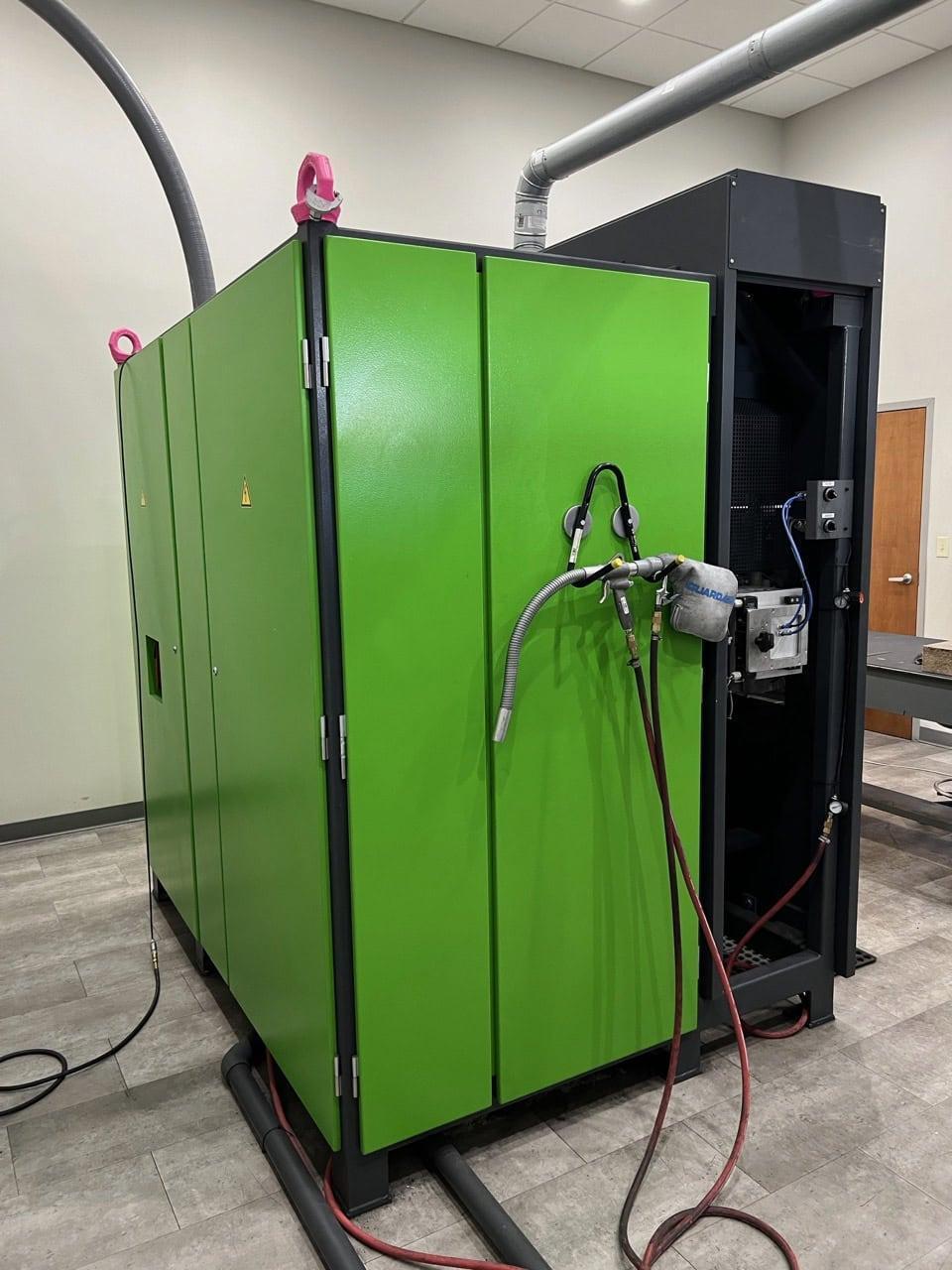

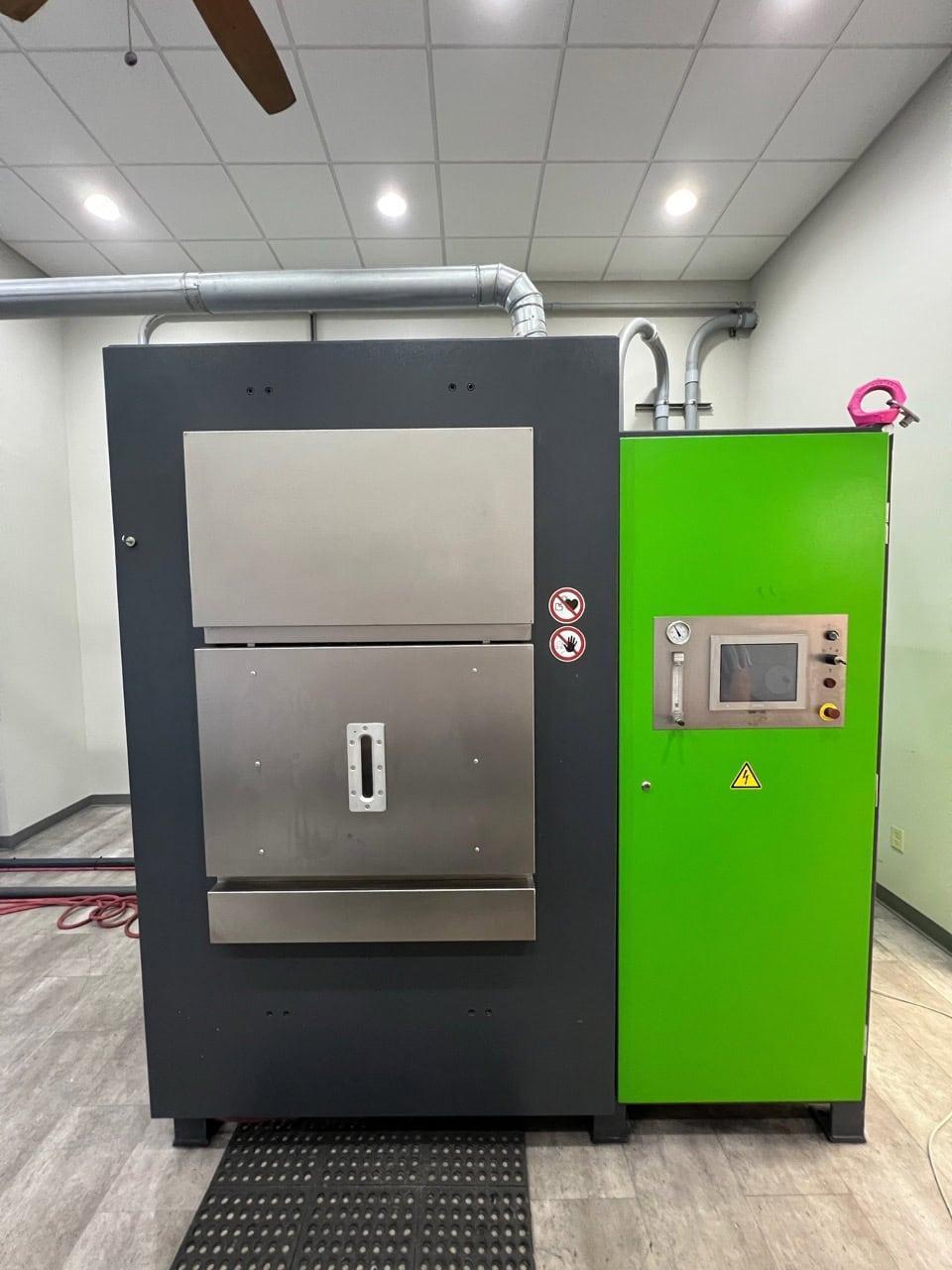

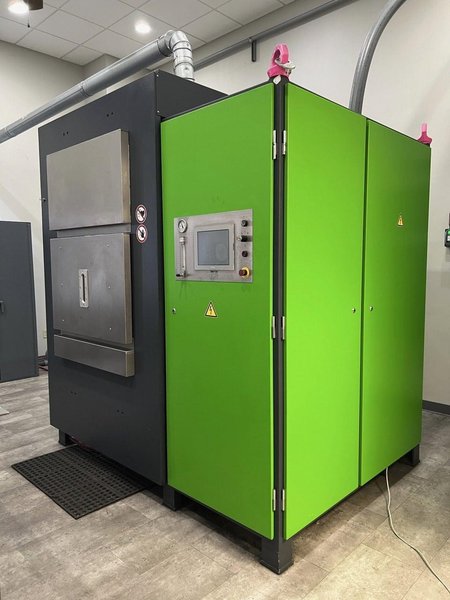

Dr. Fritsch DSP 517 Powder Sintering Press – 2020 – Ideal for Diamond Segments & Ceramics

Pressing Force:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Nominal/Differential Switching: 67.7 T cylinder with N/D switching 4.38 to 51.82T and 5.73 to 67.7T Effective Pressing Area of Cylinder: 23.85 sq.in. and 31.17 sq.in.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Graphite Electrodes:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions: 13.78″ x 13.78″ x 3.149″ Opening Height – Max/Min: 8.85″/2.95″ Specific Resistance: 12 – 14 µΩm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Temperature Control:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,3-fold, with maximum valve control Thermocouple Ni-Cr-Ni: 0 – 2192°F

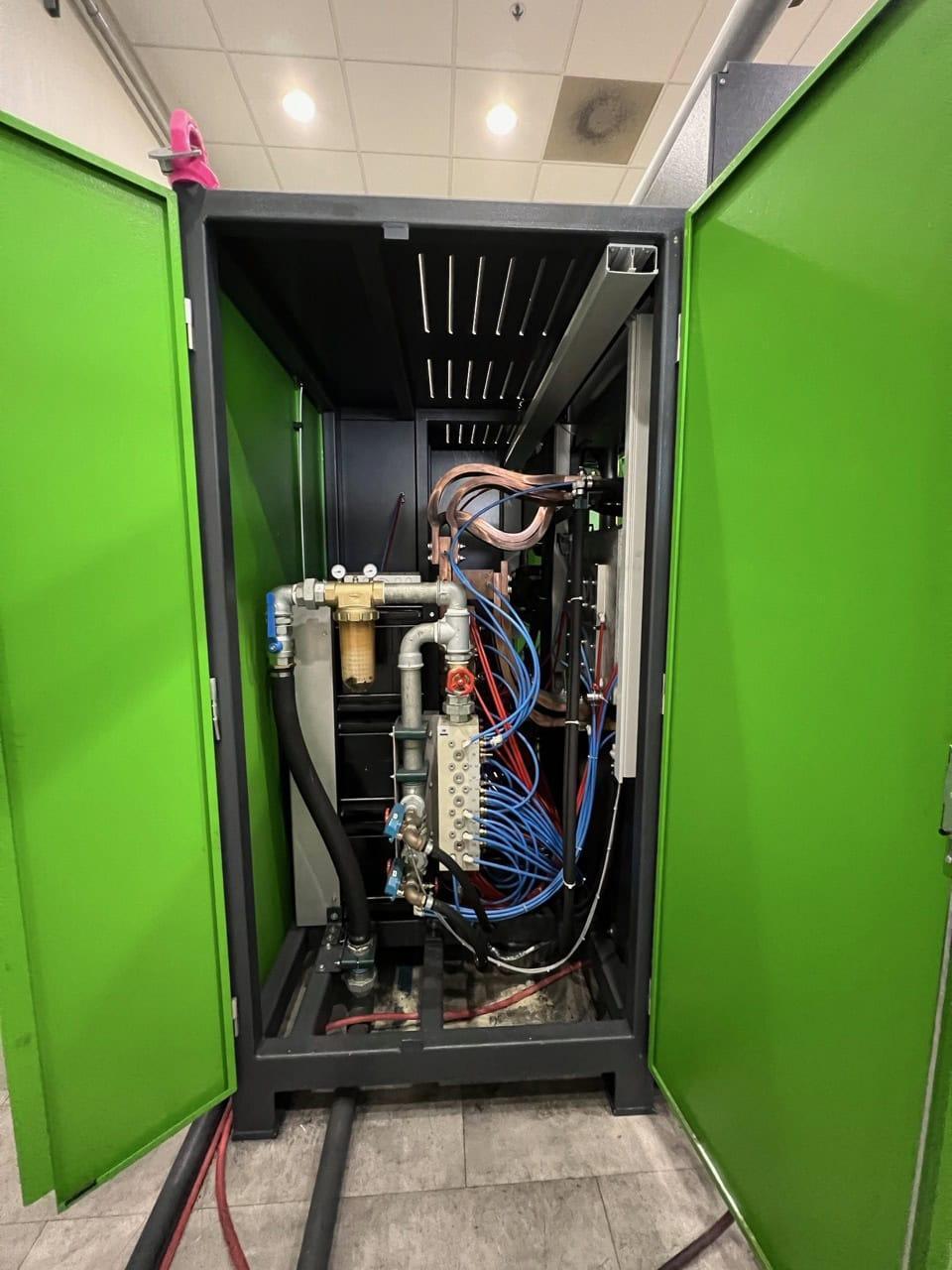

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cooling Water:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Consumption – Approximately: 58.12 gal/min Recommended Water Supply Temperature: 64.4°F – 71.6°F Pressure: 29 – 58 psi Differential Pressure (supply – discharge): 14.5 – 29 psi Supply & Discharge Connection: for external thread 2″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Compressed Air:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Consumption – Approximately: 5.28 gal/min. (depending on process) Pressure: 58 – 87 psi Connection: Hose nozzle for hose with inner Ø 0.314″ – 0.354″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Inert Gas:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Consumption – Approximately: 79.25 – 264.17 gal/min (depending on process) Pressure: 14.5 – 72.52 psi Connection: Plug-Type Adapter for Hose w/outer Ø 0.236″ Types: Nitrogen, forming gas (max. 5% H2), noble gas

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Total Electric Power – Approximate: 250 kVA Heating Power – Maximum: 205 kVA Supply Voltage: 3 x 400V, 50/60Hz Machine Weight – Approximate: 12,250 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH:

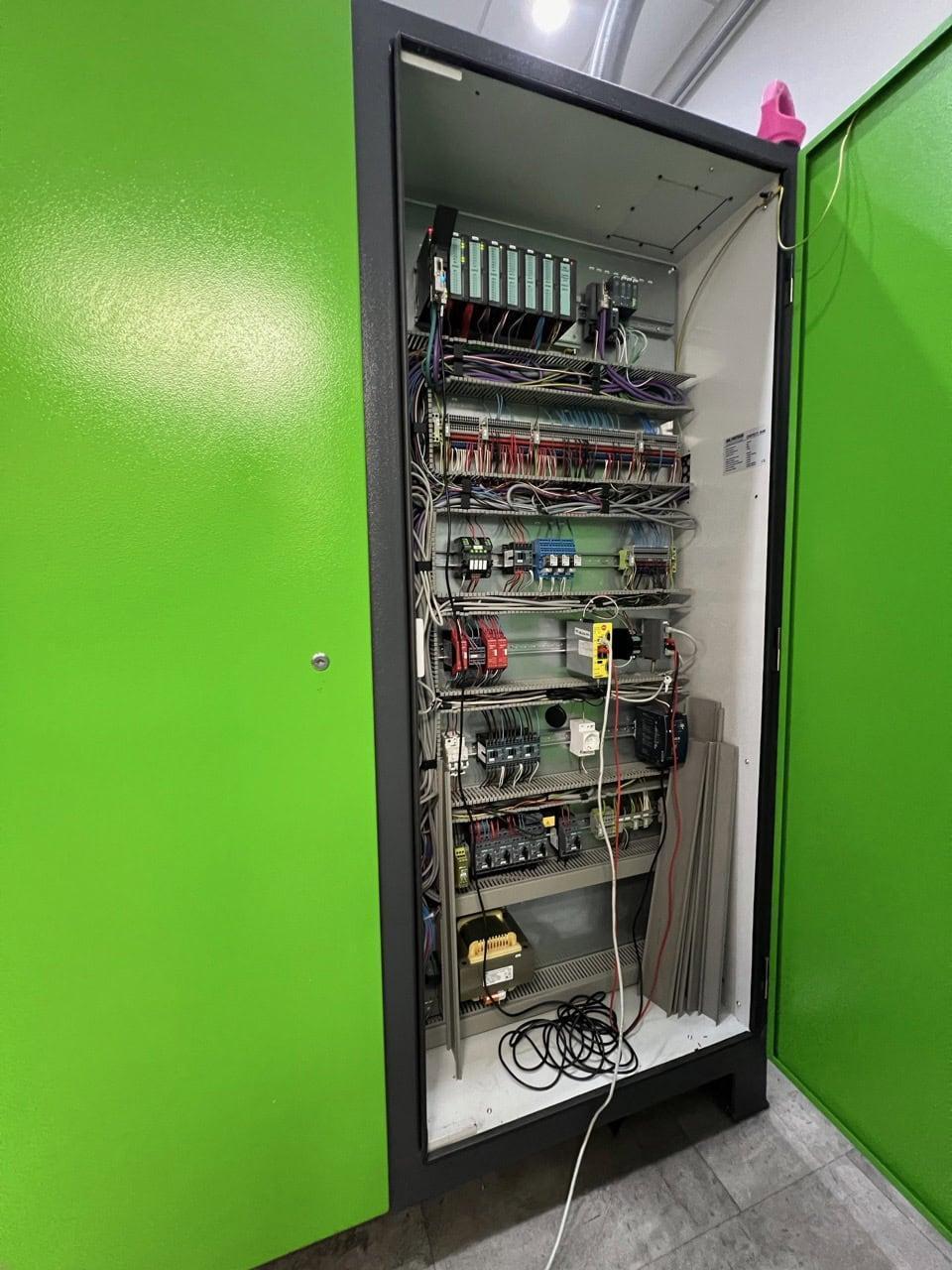

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Programmable Control (Precise control of sintering parameters temperature, pressure, stroke, and time) Touch Screen Panel Large Surface Graphite Electrodes with large opening width enable the sintering of several clamping frames on top of each other. Two Graphite Electrodes Steel set block (for calibrating stroke) Graphite set block (for calibrating thermocouples) Machine Documentation
