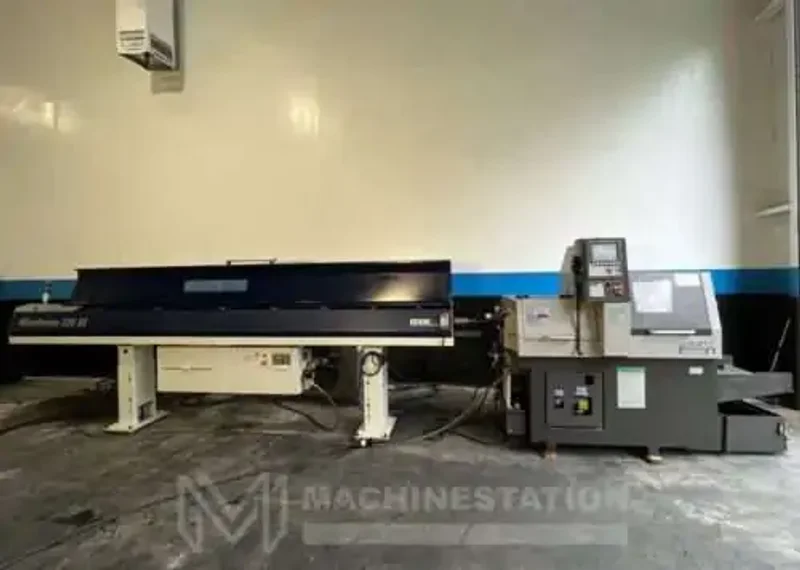

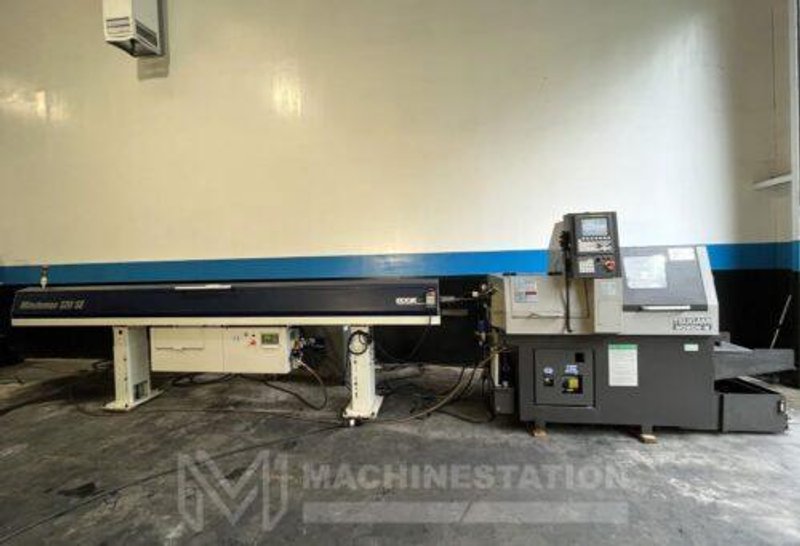

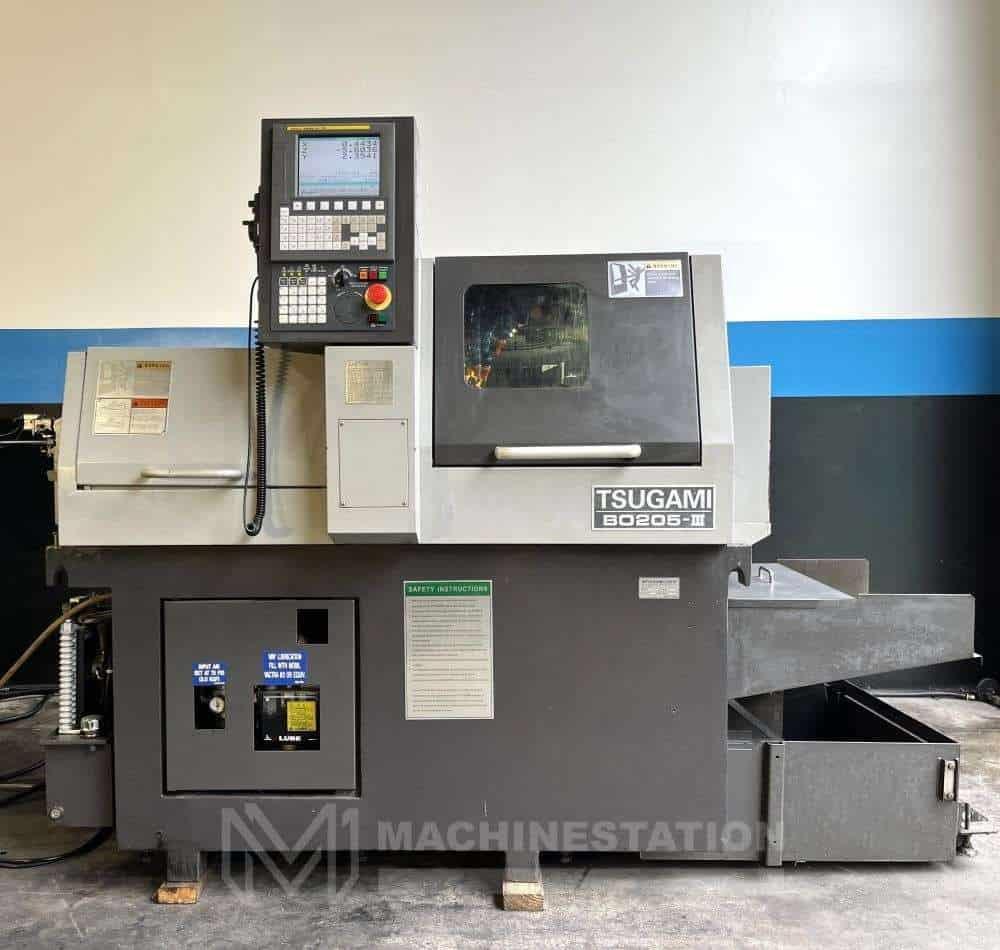

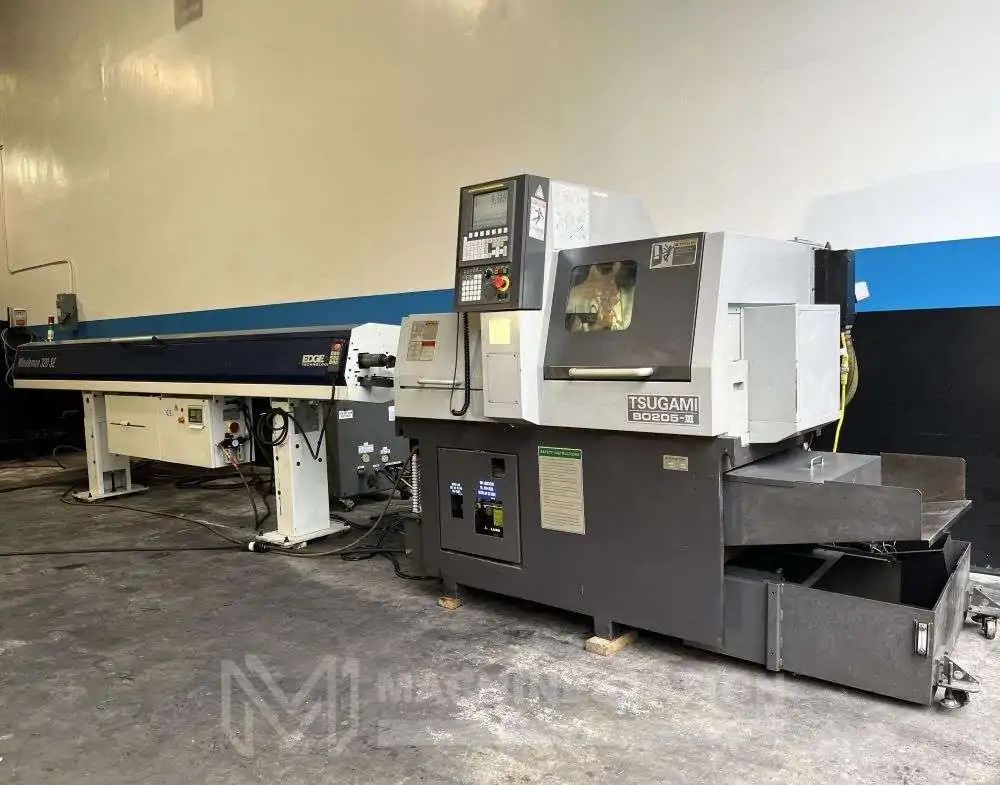

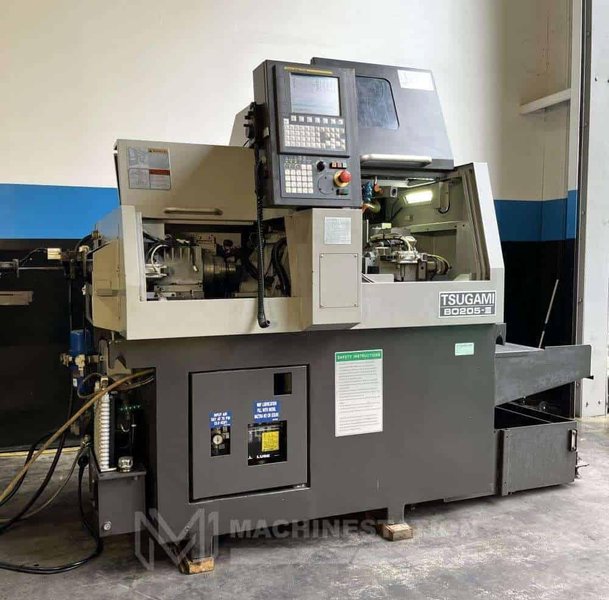

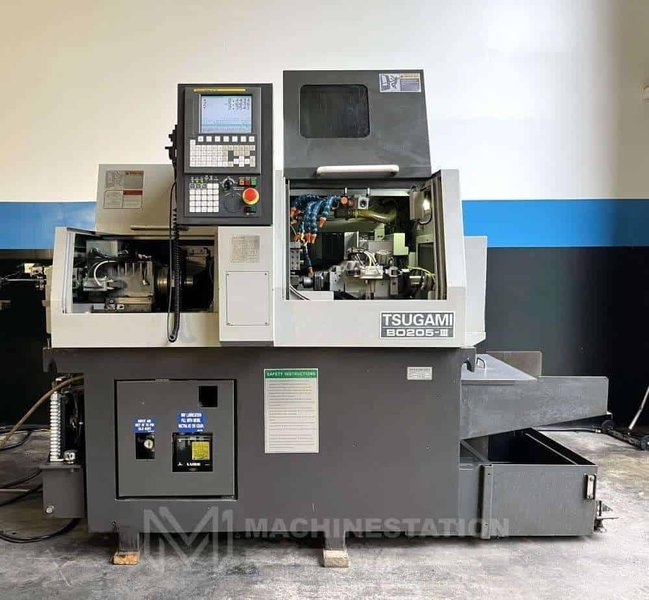

Tsugami B0205-III CNC Swiss Type Automatic Lathe

Tsugami B0205-III CNC Swiss Type Automatic Lathe

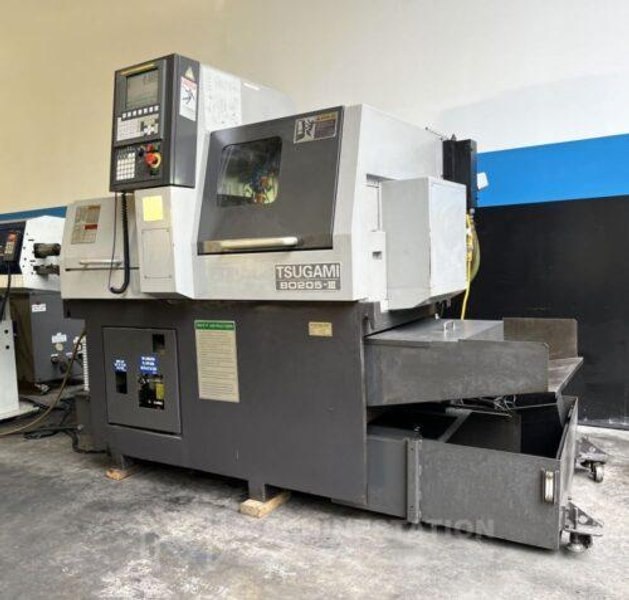

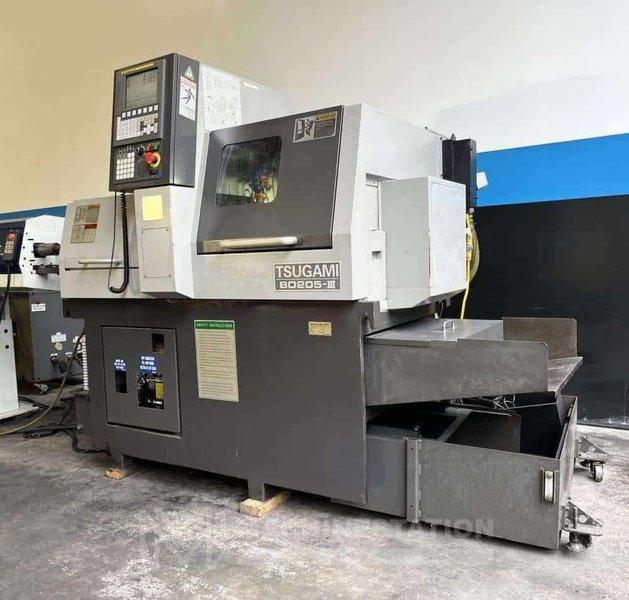

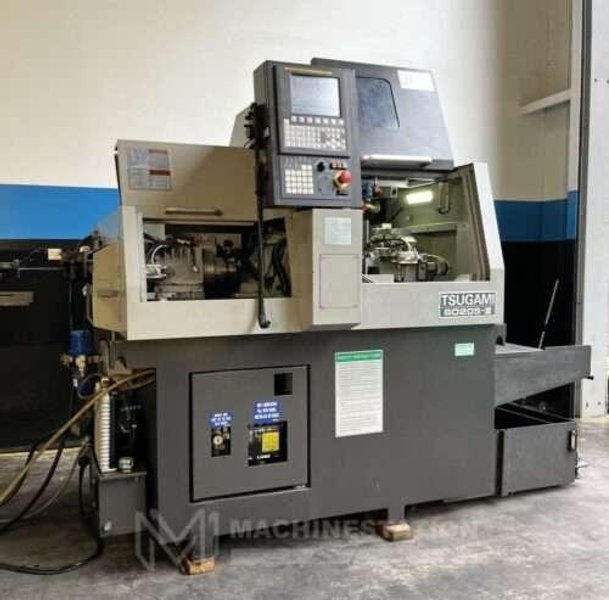

Name: Tsugami B0205-III CNC Swiss Type Automatic Lathe
Brand: TSUGAMI
SKU: 112415
Availability: PreOrder

Brand

TSUGAMI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Make:	TSUGAMI
Model:	B0205-III
Year:	2015
Condition:	Used – Good

Equipped With:

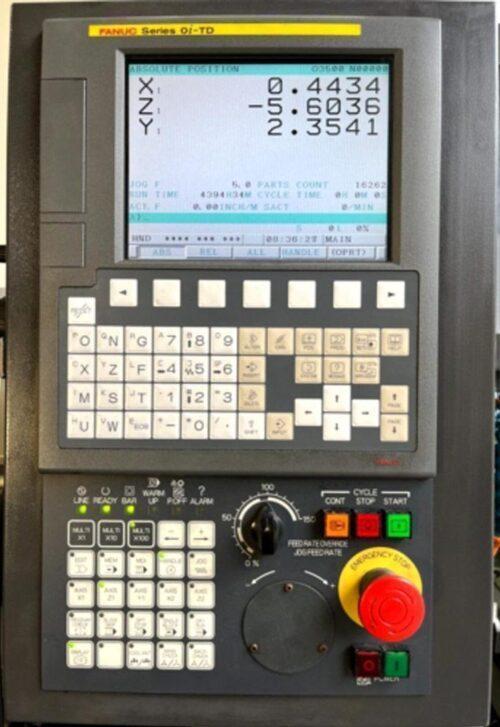

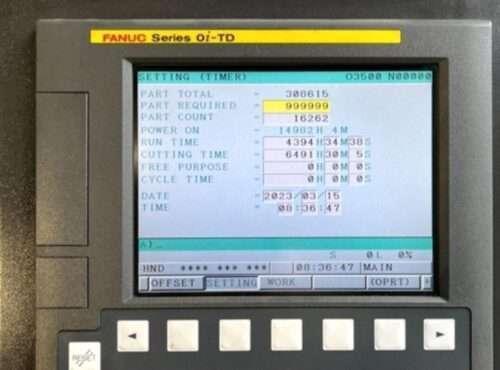

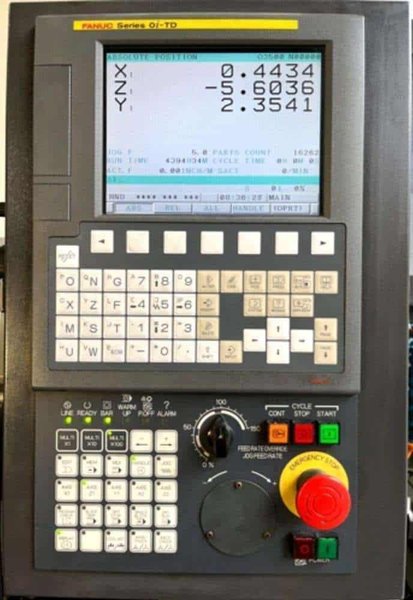

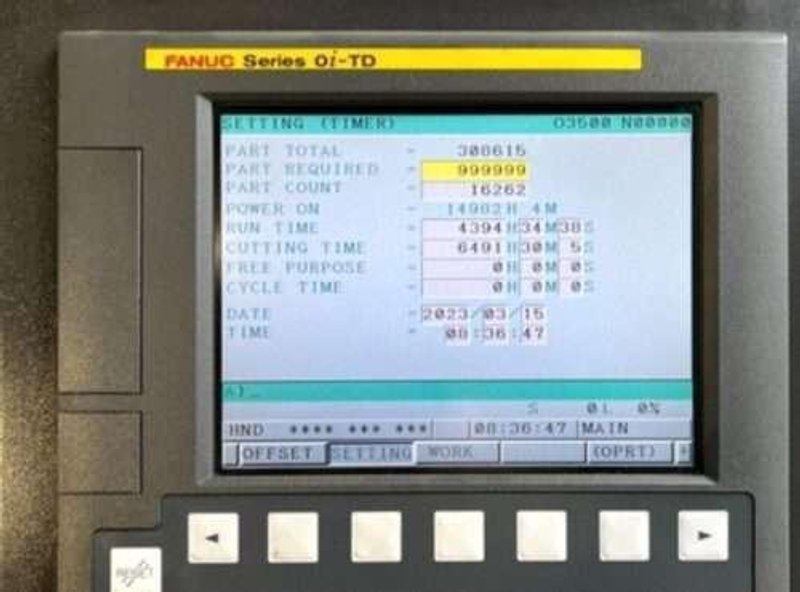

Fanuc Oi-TD CNC Control
Controlled Axes (Liner Axes) X1, X2, Y1, Z1, Z2

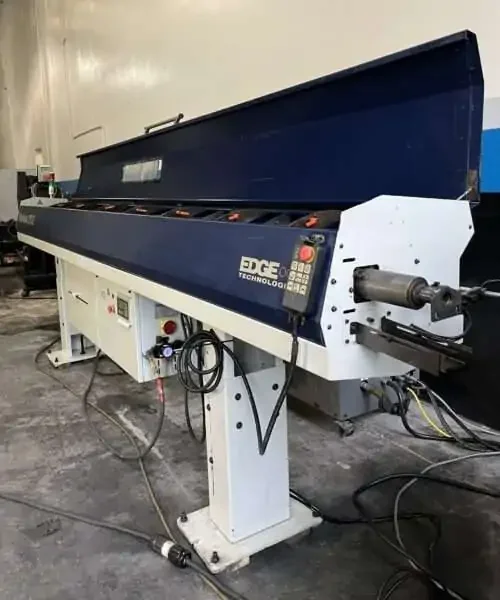

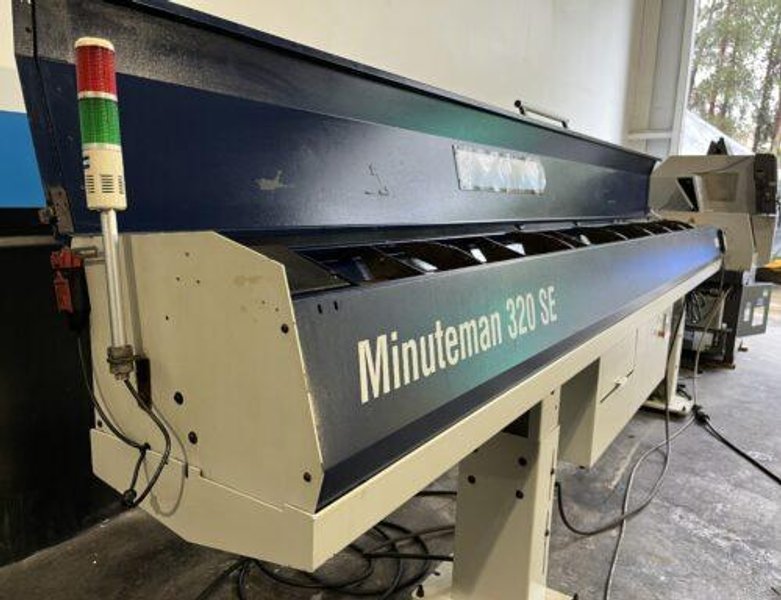

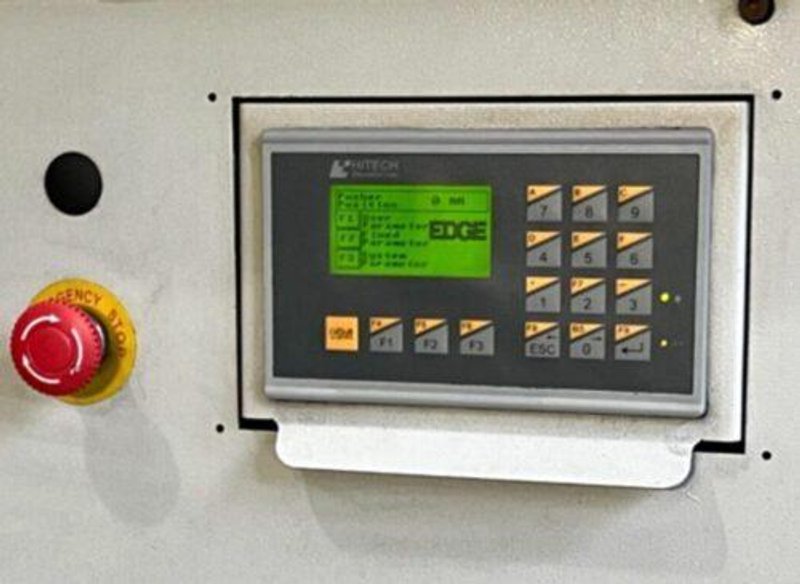

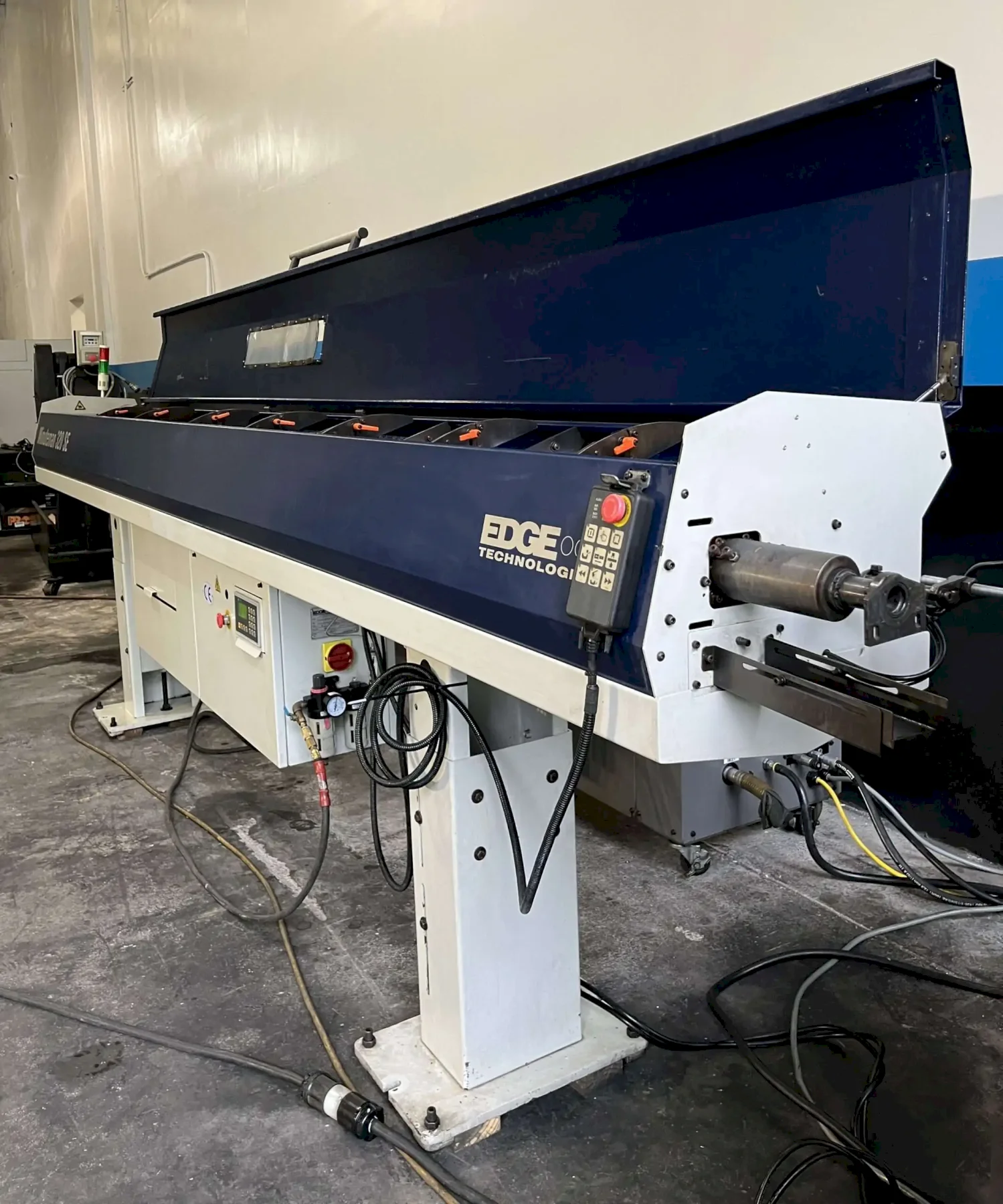

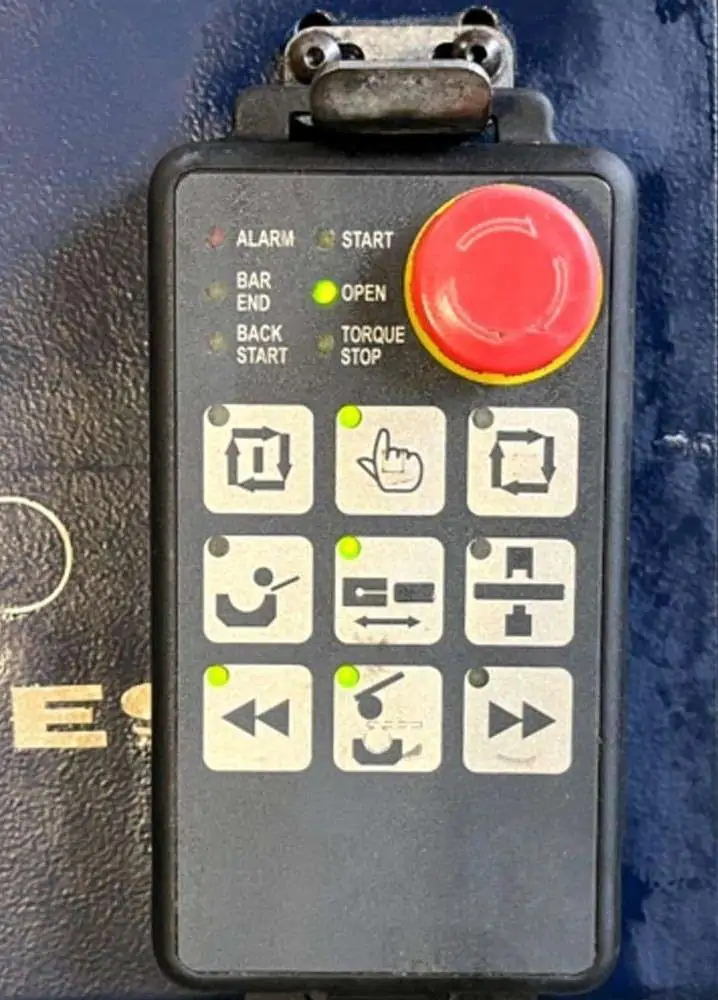

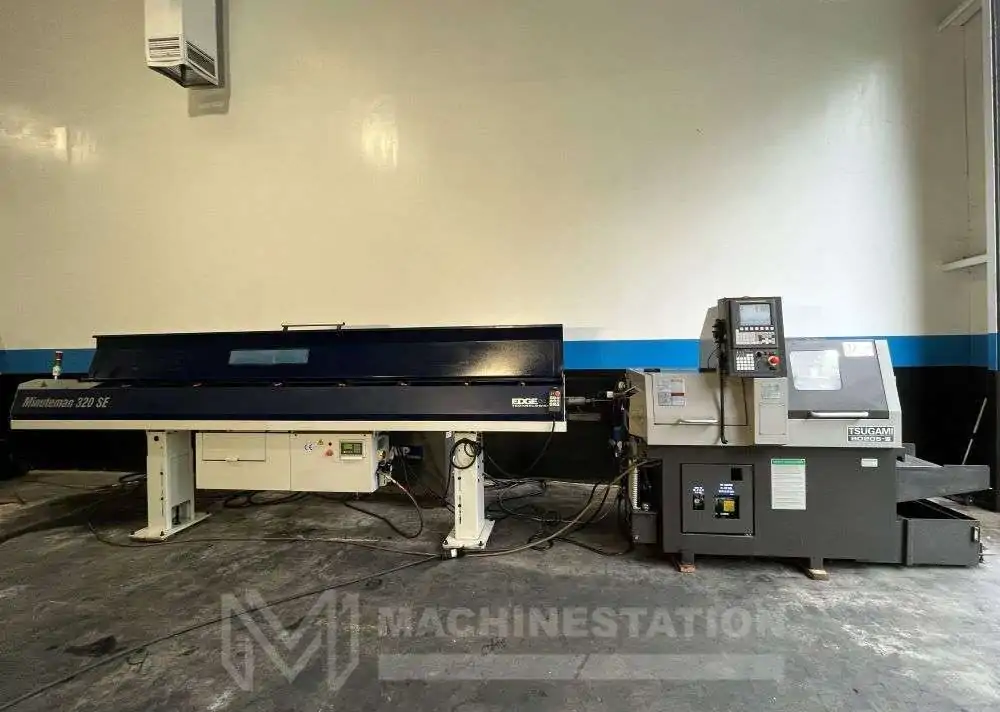

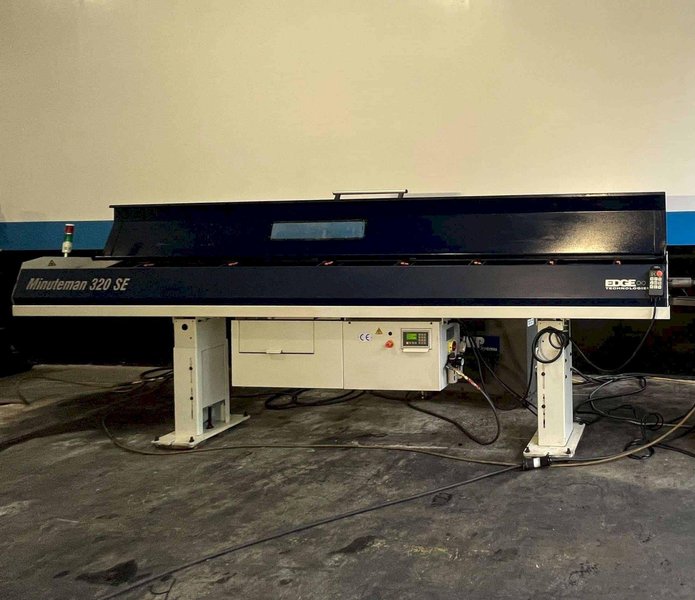

Comes with Edge Minuteman 320 SE Bar Feeder

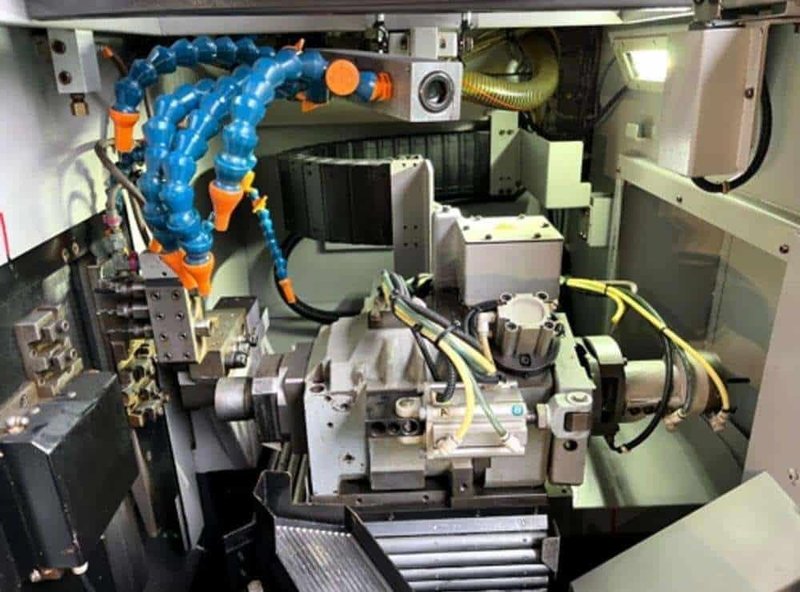

Back Spindle
C & Y Axis Capable
Live Tools Capable
Long Parts Capable
MPG Handwheel Control
Part Catcher
Part Conveyor
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Coolant Tank
Leveling Pads
Books and Manuals

Capacity:
Max Turning Diameter: 0.79″ (20 mm)
Max Turning Length: 8.3″ (210 mm)
Max Turning Length with Gripping Unit: 6.69″ (170mm)
Max Bar Capacity: 0.79″ (20 mm)
Max Tool Positions: 21
Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Main Spindle Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
Max. Back Spindle Tapping Diameter: M8
Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
Max. Cross Tapping Diameter: M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
Max. Back Drilling Diameter: 0.275″ (7 mm)
Max. Back Tapping Diameter: M5

Spindle:
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Bore: 0.79″ (20 mm)
Main Spindle Speed: 10000 RPM
Back Spindle Motor: 3.7 kw
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 12000 RPM
Back Spindle Motor: 2.2 kw

Standard Tools:
OD Tools: 9
Stationary Tools For Front Spindle: 4
Stationary Tools For Back Spindle: 4

Power Driven Tools Attachment:
Power Driven Tools: 4
Driven Tool Speed: 8000 RPM
Driven Tool Motor: 1.2 kw

General:
Power Source: AC 220v / 3-Phase /60 Hz
Power Requirement: 11 kva
Overall Dimensions: 65.16″ X 44.29″ X 66.93″ High without Bar Feeder
Weight: 4409 lbs. Approx.
