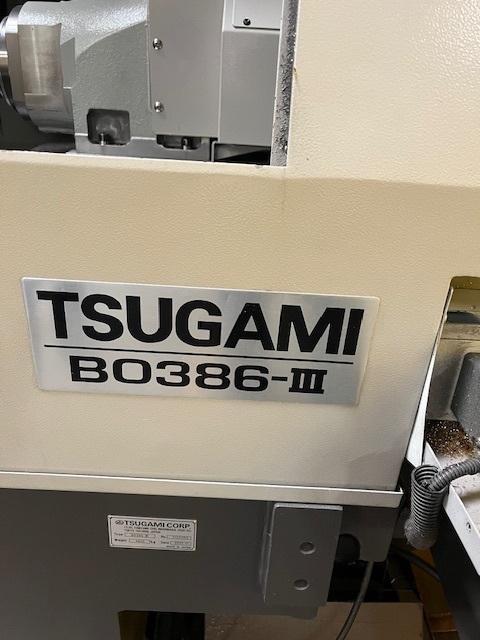

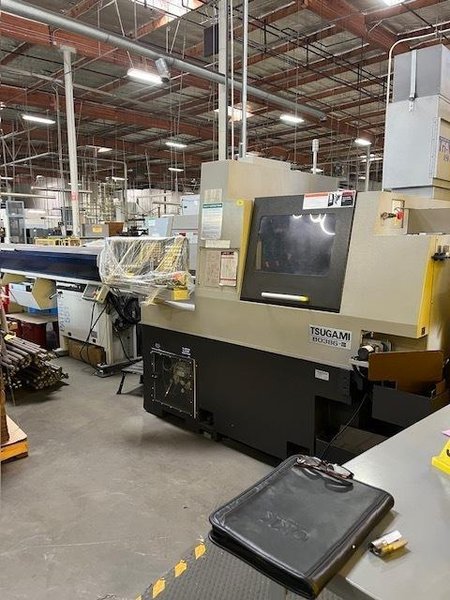

2022 TSUGAMI B0386-III SWISS CNC LATHE with Edge Patriot Barfeed, Low Hours and Loaded with Options
Brand
Category
Model
B0386-III
Stock #
81089090
Year
2022
Condition
Not specified
Location
California
|
Spindle Hole Dia 38 mm

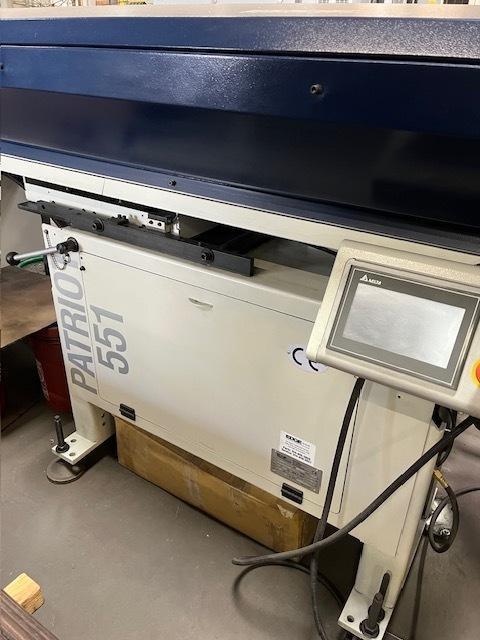

Power 3.7 kW RPM 4,500 RPM 2022 Tsugami B0386-III with Edge Patriot 551 Bar feeder * Fanuc 32i * Run time 590 hours * Cut time 426 hours Maximum Bar Stock: 38 mm / 1.5″ # Axes: 6 Sliding Headstock / Guide Bushing: YES CONVERTIBLE: Run w/o Guide Bushing (chucker): YES Max Headstock Stroke w/ Guide Bushing: 320 mm / 12.6” Max Headstock Stroke w/o Guide Bushing: 70 mm / 2.75” # Tool Positions (std / max): 32/ 42 # Live Tool Positions (std / max): 15 / 26 Control: FANUC 32i-B Main Spindle Speed: 200 – 6,000 rpm Sub Spindle Speed: 200 – 7,000 rpm Live Tool Speed: 6,000 rpm Main Spindle Motor: 7.5 / 11 kW Weight: 4,850 kg / 10,694 lbs. Footprint: W x D x H: 2,240 x 1,515 x 2,050 mm 88″ x 60″ x 81″ EQUIPPED WITH Through Coolant Sub 6 lbs Firetrace Mist Pro 850 Filter Mist Collector Hepa Filter LNS Turbo MH 500 Chip Conveyor Oscillation Cutting On X1 and Z1 Axes Oscillation Cutting On X2 and Z2 Axes SFMOD Smart Flex Guide Bushing Edge Patriot 55 12 Foot Barfeed (2 Channel Sets) Long Pusher Kit High Pressure Coolant with 12 Ports Misc Tooling Watch Video On Our Youtube Channel www.youtube.com/@pmmmachines Buyer Is Responsible For Scheduling Transportation Of All Items, As Well As All Cost To Move It. We Can Provide You With Shipping And Rigging Quotes If You Need Help. Please Contact Us And We Will Assist You With Any Questions You May Have. All Items Are Are Sold "As Is, Where Is”. Specifications, Options, And Additional Accessories Are Quoted To The Best Of Our Knowledge And Are Subject To Buyer's Verification And Correction. |
