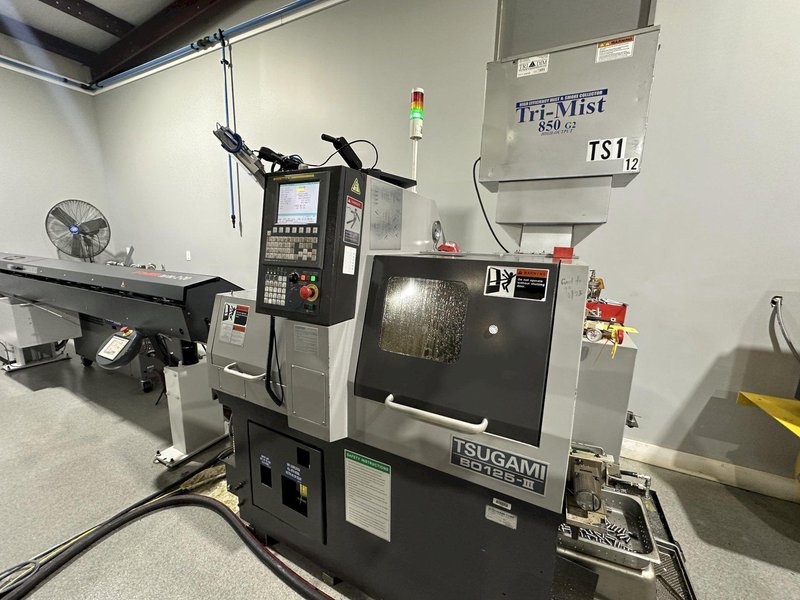

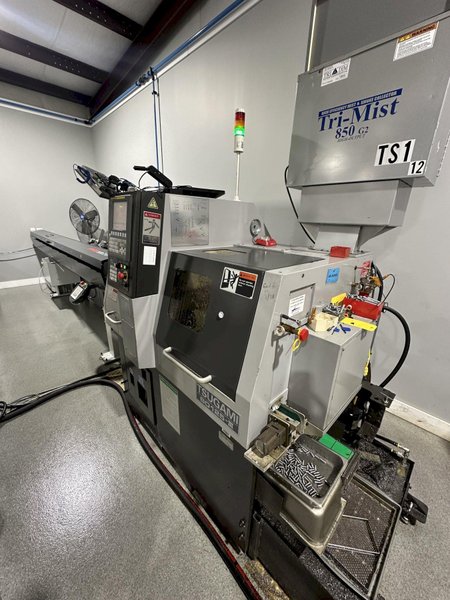

Tsugami B0125 III CNC Swiss Style Lathe For Sale, 2015
Brand
Category
Model
B0125 III
Stock #
K03325
Year
2015
Condition
Used
Location
Virginia
| CNC Control | yes |
| CNC Control | Fanuc 0i-TD |
| # Axis | 5 |
| Live Tooling Speed | 8,000 rpm |
| Tailstock | no |
| Y Axis | yes |
| Bar Feeder | yes |
| Sub Spindle | yes |
| Sub Spindle Speed | 12,000 rpm |
| Machine Dimensions | 66" x 45" x 67" |
| Machine Weight | 4500 pounds |
|
- Fanuc 0i-TD CNC Control

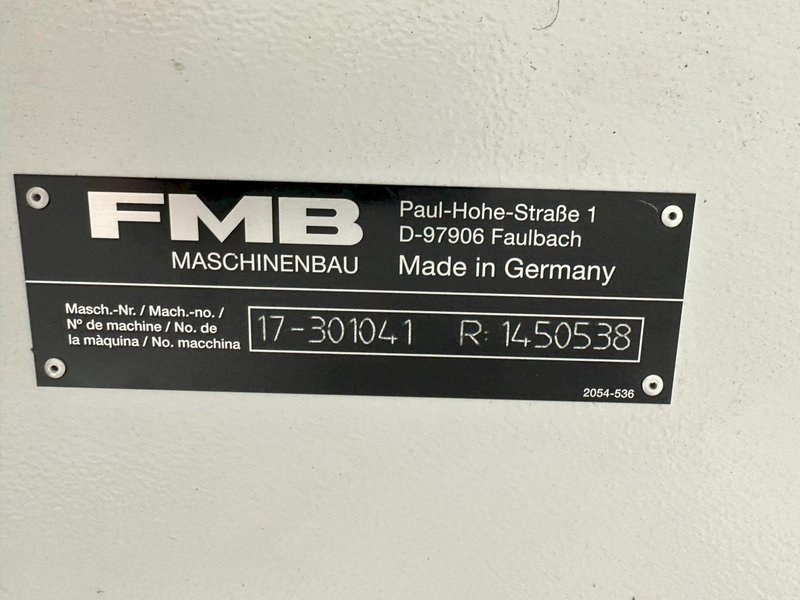

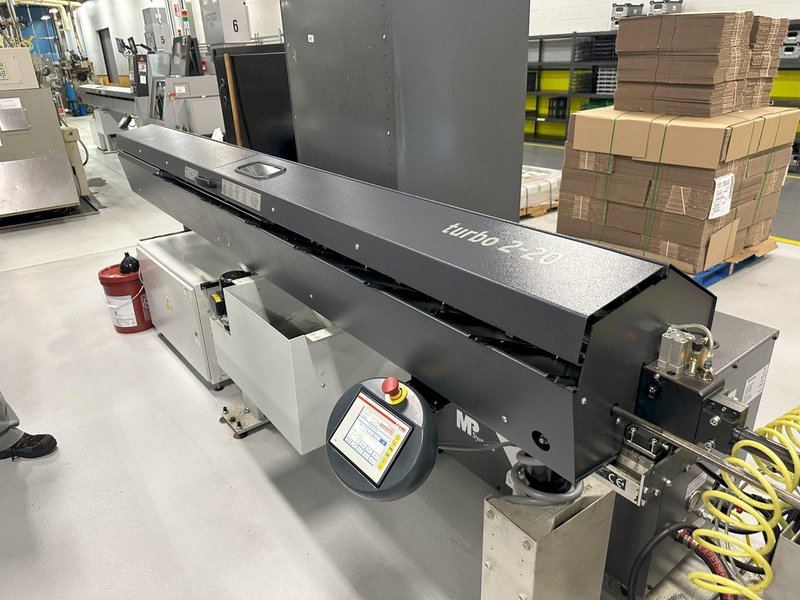

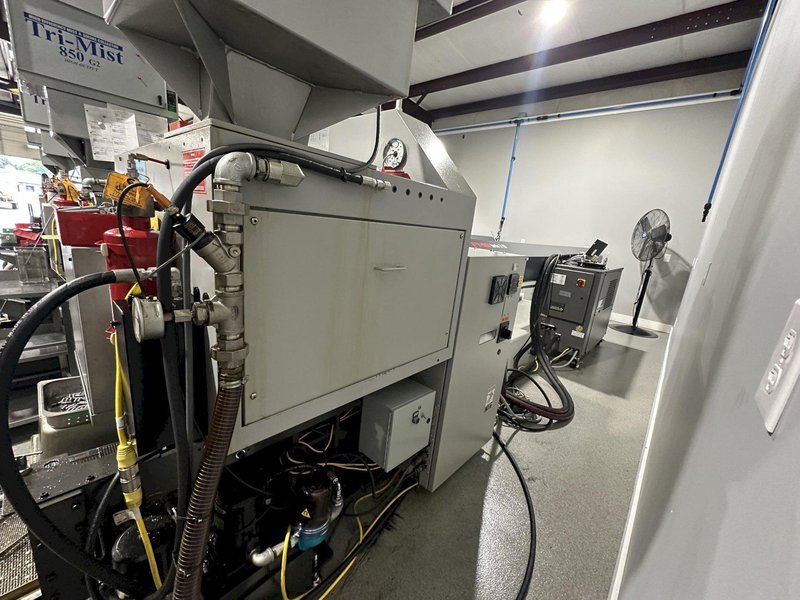

- FMB Turbo 2-20 Bar Feeder - Tri-Mist 850 G2 - Parts Conveyor - MP Coolant System Working Barstock Diameter ø3 mm (.12 in.) to ø12.7 mm (.50 in.)
Max. Machining Length 170 mm (6.69 in.) (Rotary Guide Bushing)
45 mm (1.77 in.) (Chucker Mode)
Max. Main Spindle Drilling Diameter ø7 mm (.28 in.)
Max. Main Spindle Tapping Diameter M6 x 1
Max. Back Spindle Chucking Diameter ø12 mm (.47 in.)
Max. Back Spindle Drilling Diameter ø7 mm (.28 in.)
Max. Back Spindle Tapping Diameter M8
Max. Cross Drilling Diameter ø7 mm (.275 in.)/ER11and ø10 mm (.393 in)/ER16
Max. Cross Tapping Diameter M5 x 0.8 (option)
Max. Tool Spindle Slotting Cutter Diameter ø30 mm (1.18 in.)
Max. Back Live Drilling Diameter ø6 mm (.24 in.)
Max. Back Live Tapping Diameter M5
Main Spindle Speed 200 to 12,000 min-1
Back Spindle Speed 200 to 12,000 min-1 (10,000 max with ejector rod)
Rotary Guide Bushing Speed 200 to 12,000 min-1: Direct-drive rotary guide bushing
200 to 8,000 min-1: Carrier type rotary guide bushing
Live Tool Speed 200 to 8,000 min-1
Total Tool Storage Capacity 21
Tool Size .5 in. x .5 in. square, 20 mm round
Rapid Traverse Rate 32 m/min (105 ft/min)
[(X1/Y1: 24 m/min (78.74 ft/min)] Y2: 15m/min (49 ft/min)
Controlled Axes (linear axes) 5-Axis
Main Spindle 2/3 Hp (1.5/2.2kW)
Back Spindle 2/3 Hp (1.5/2.2kW)
Axis 0.7 Hp (0.5 kW) - X1,X2,Y1,Z1,Z2
Cross Dill 1 Hp (0.75 kW) (Option)
Coolant Pump 0.4 Hp (0.25 kW)
Lubricating Oil Pump 3 W
Power Source Requirement 11 kVA
Compressed Air Requirement 0.4 Mpa or above
Air Discharge Rate 50 NL/min
Coolant Tank Capacity 180 L
Width x Depth x Height 1,655 x 1,135 x 1,700mm
65.16” x 44.29” x 66.93”
Weight 2,000 kg (4,409.25 lbs. |
|
