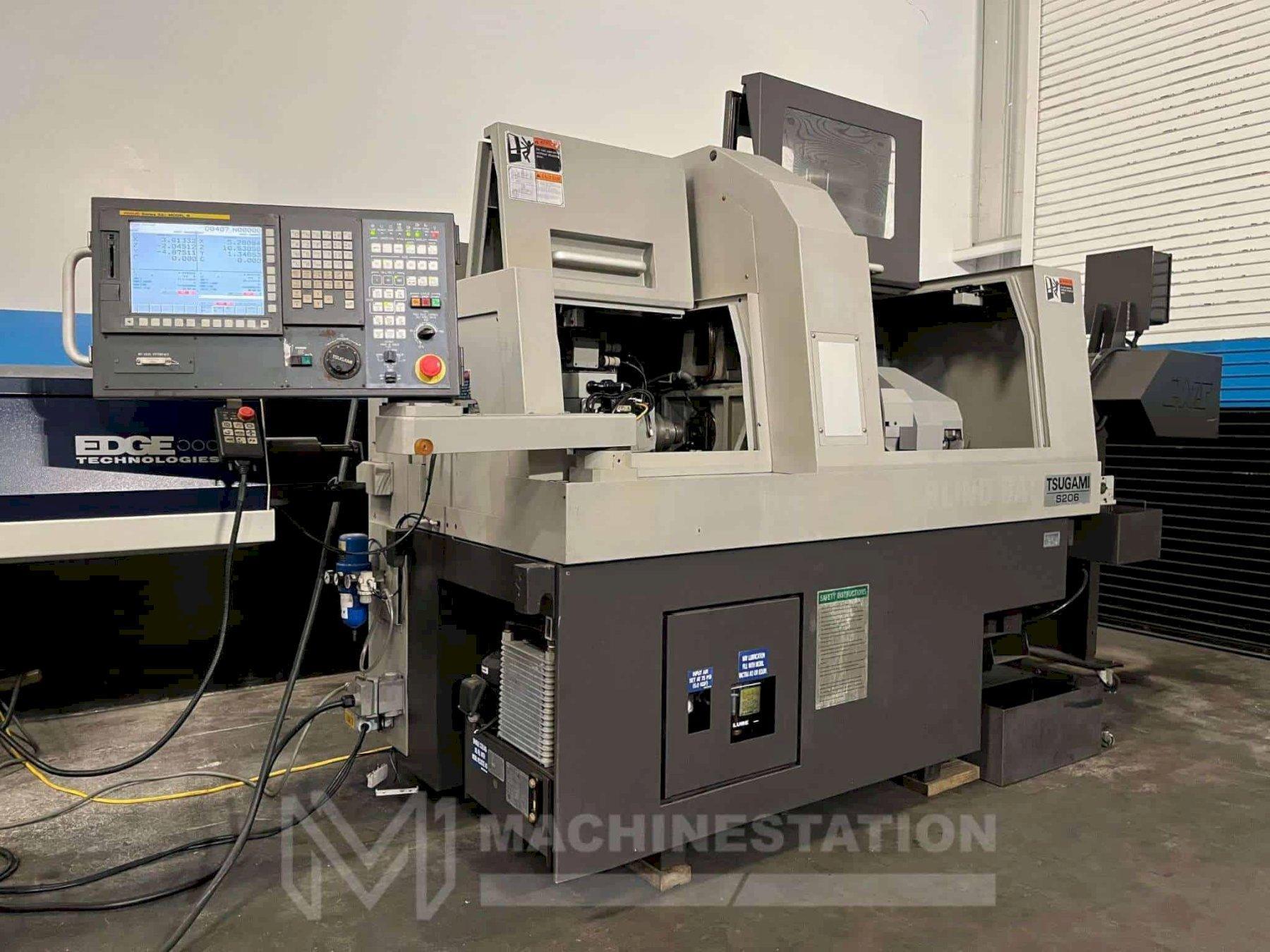

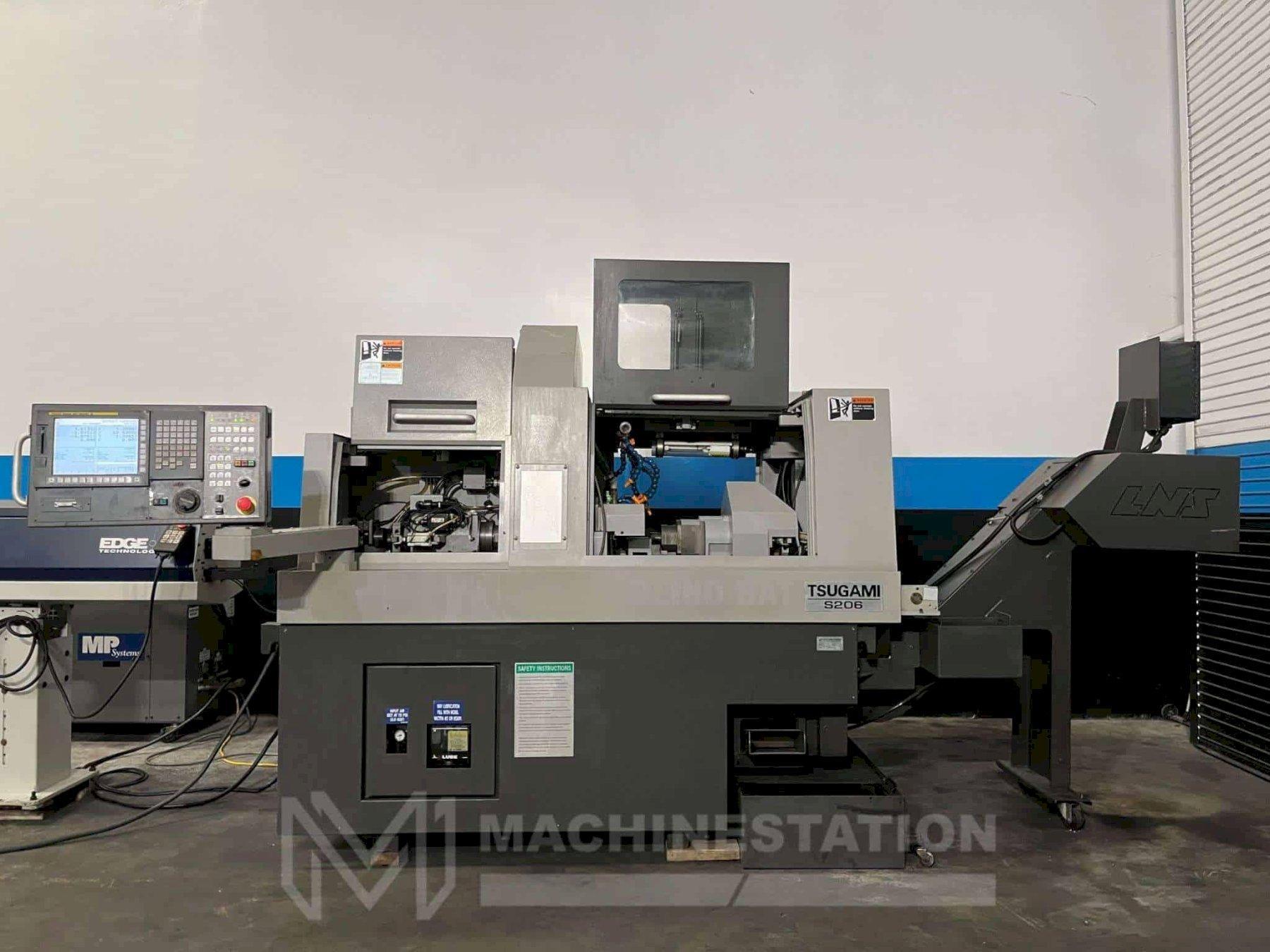

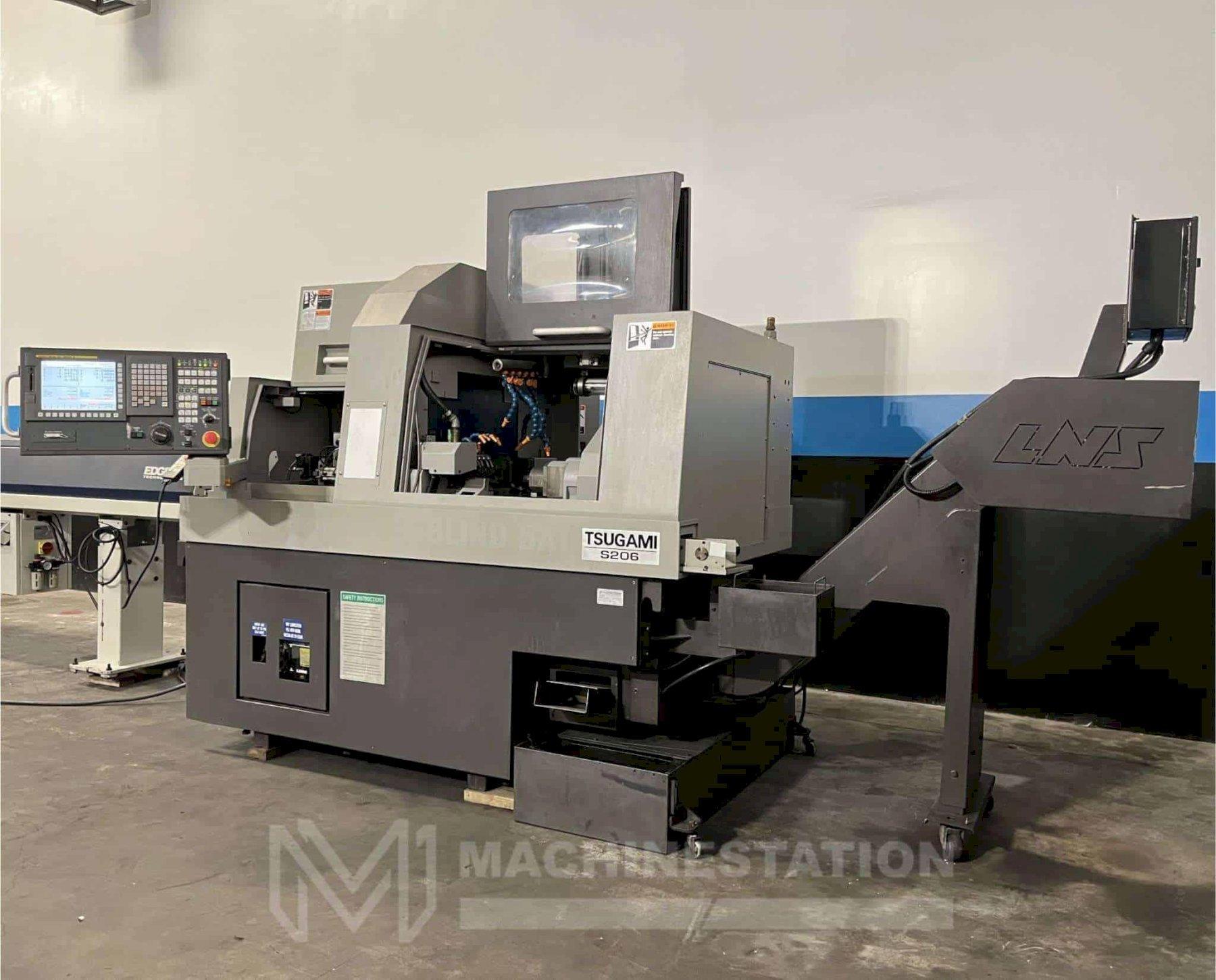

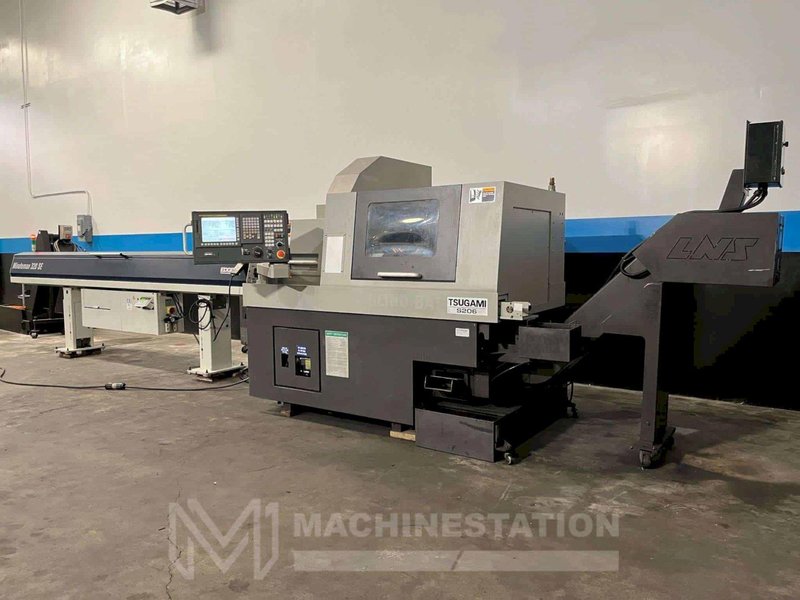

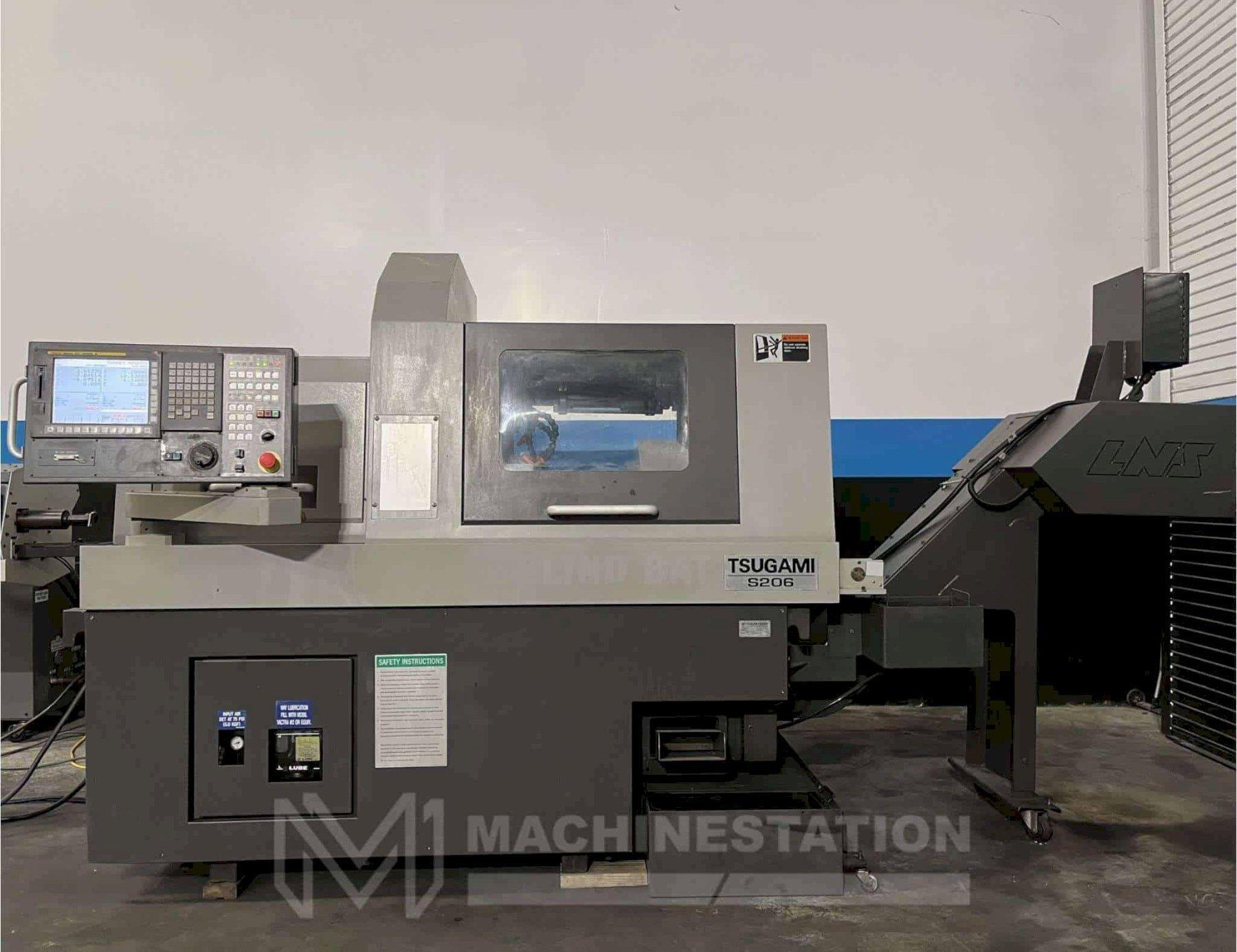

Tsugami S206 CNC Swiss Type Automatic Lathe

Brand
TSUGAMI
Category
Lathes & Turning Machines
Type
Lathes, CNC, Automatic, Swiss Type
Model
Tsugami S206
Stock #
112883
Year
2014
Condition
Not specified

Location

Not specified
REQUEST FINANCING

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make: TSUGAMI
Model: S206
Year: 2014
Condition: Used – Good
Equipped With:

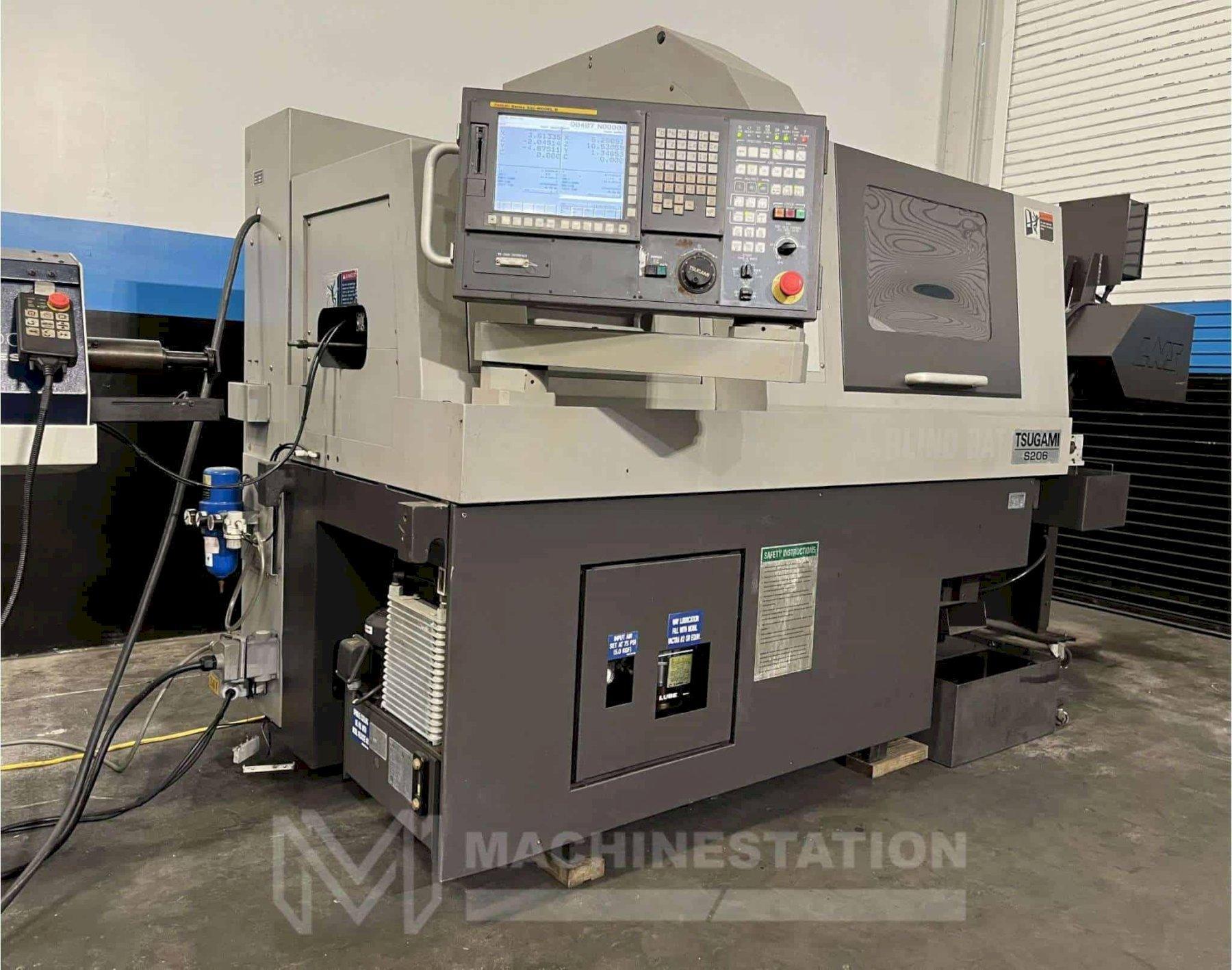

  • Fanuc 32i-MB CNC Control
  • Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2

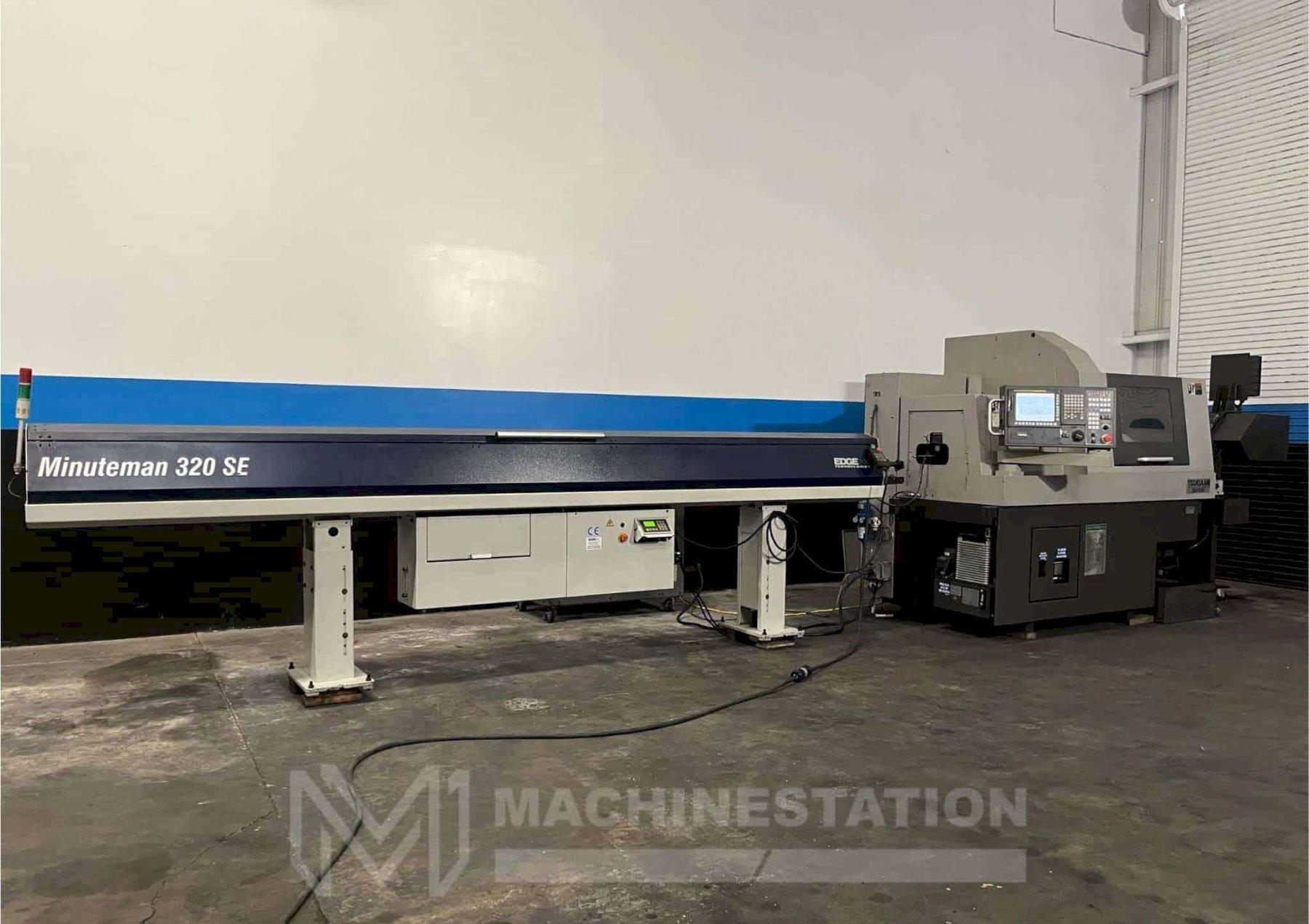

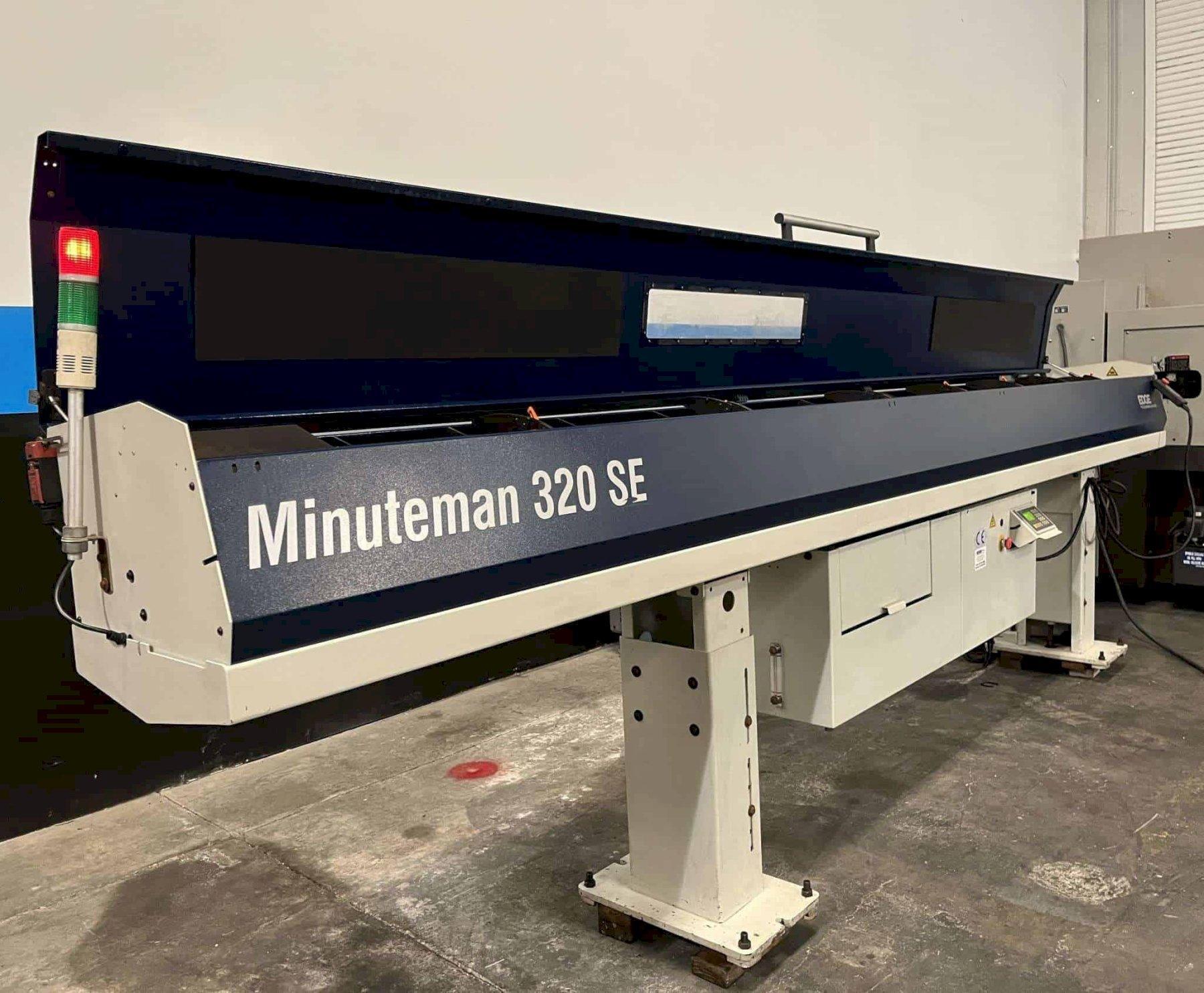

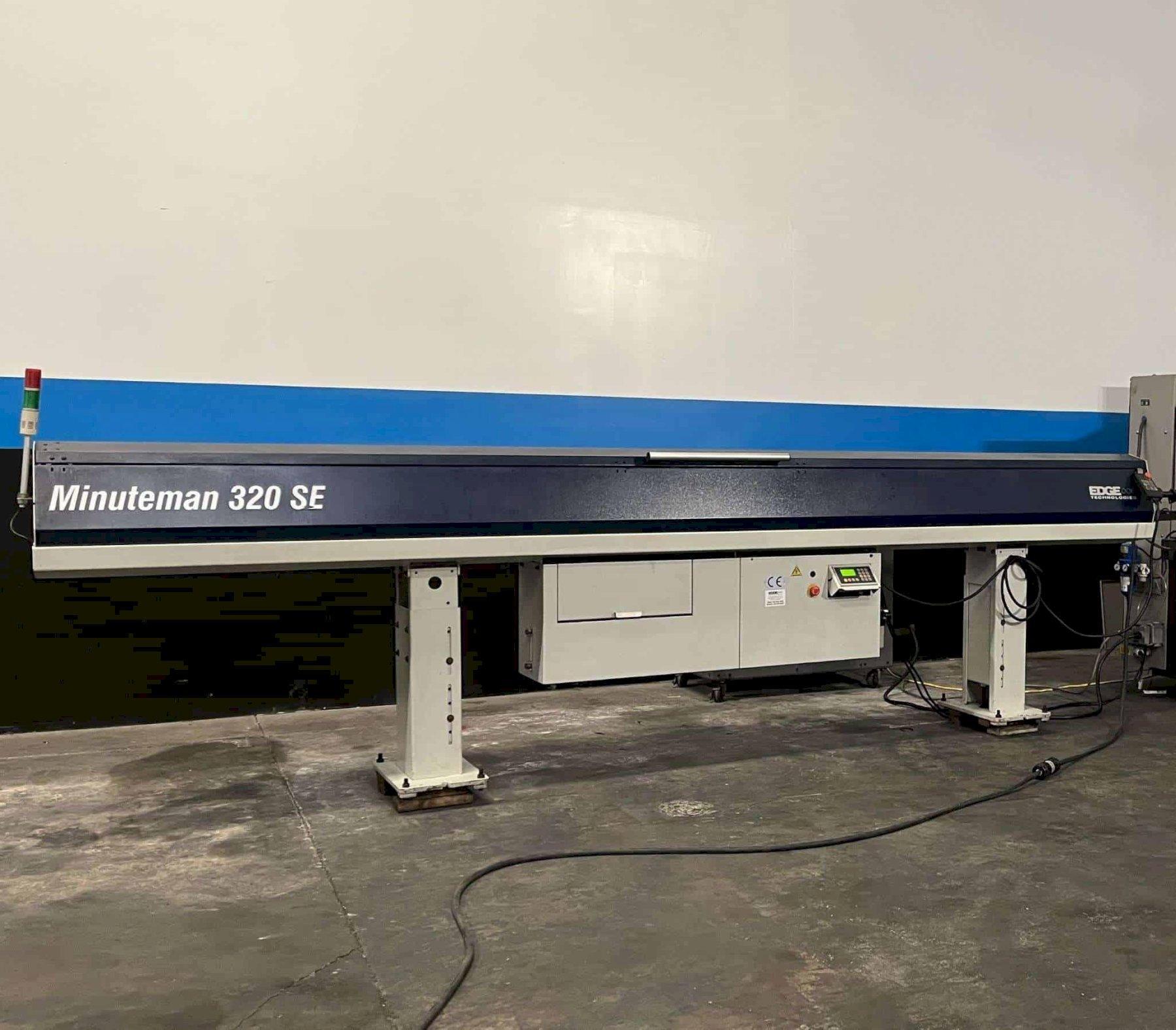

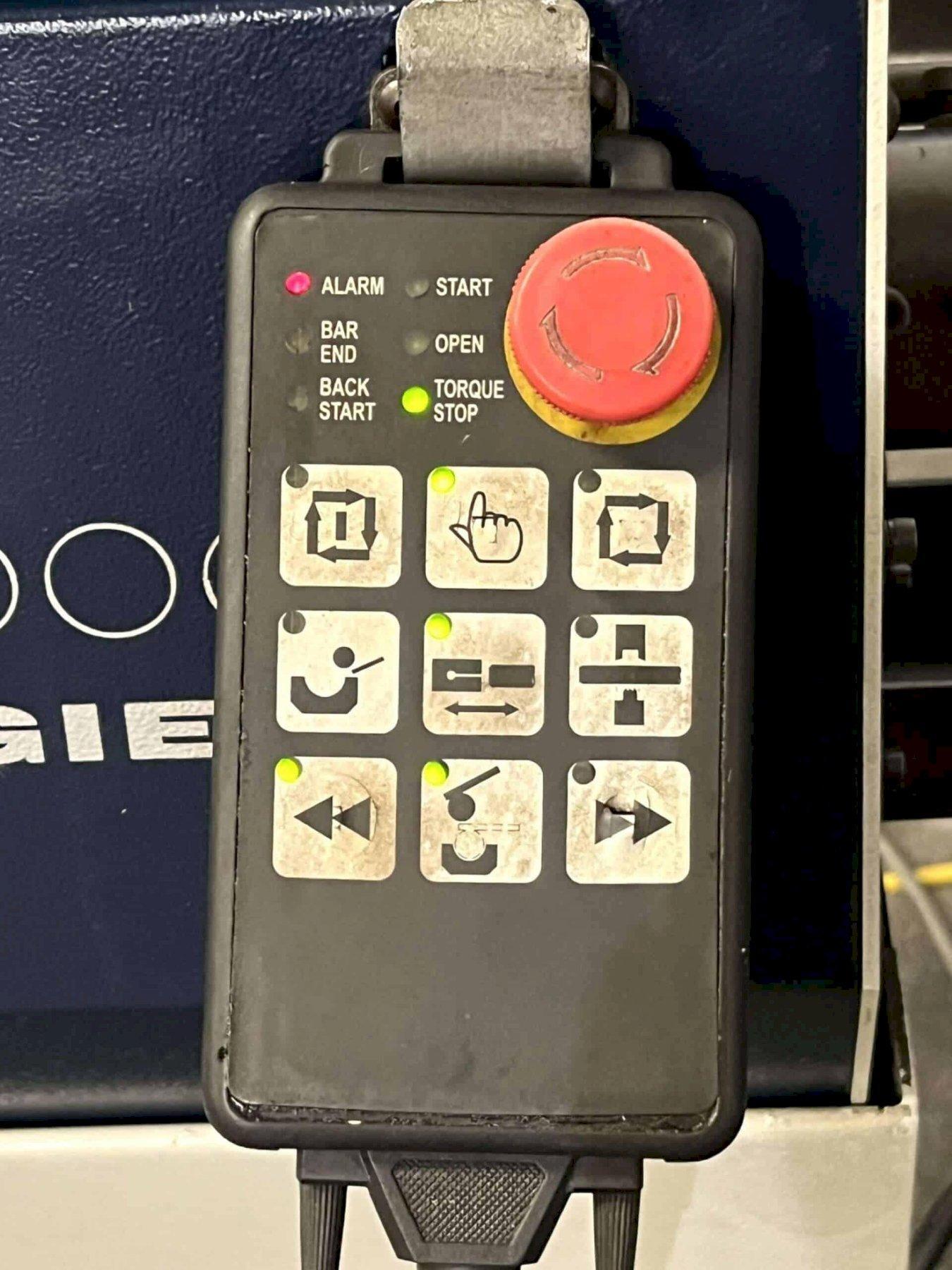

  • Comes with Edge Minuteman 320 SE Bar Feeder

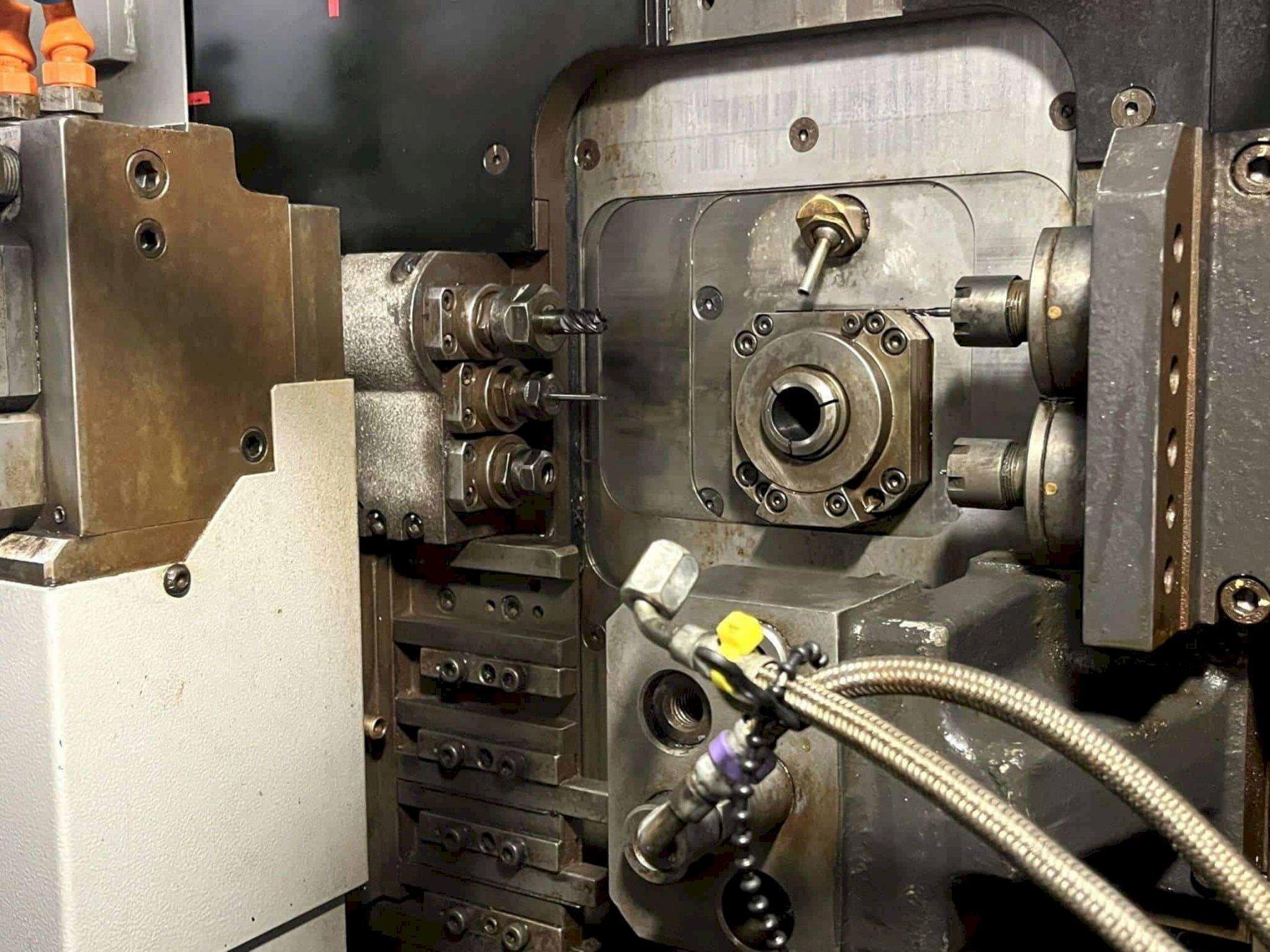

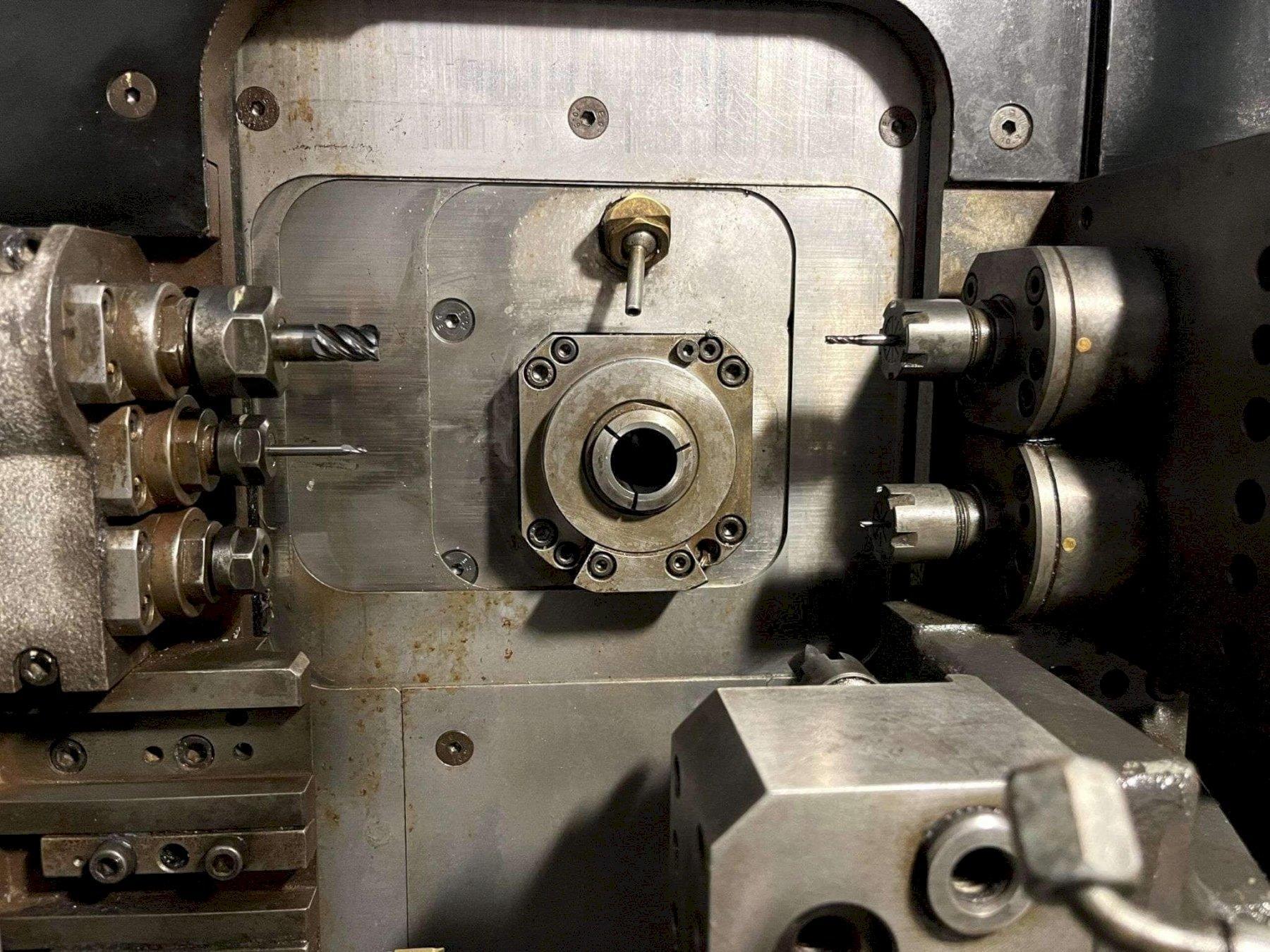

  • Back Spindle
  • Live Tools Capable
  • Long Parts Capable
  • C & Y Axis Capabilities
  • MPG Handwheel Control
  • Main & Back Spindle Synchronization
  • High Speed Rapid Travers: 944 IPM
  • High Speed Program Processing
  • Absolute Position Detection
  • Automatic Lubrication System
  • Part Catcher
  • Part Conveyor
  • Coolant Tank
  • Chip Conveyor
  • Books and Manuals
Capacity:
  • Max Turning Diameter: 0.79″ (20 mm)
  • Max Turning Length: 9.843″ (250 mm)
  • Max Turning Length with Gripping Unit: 8.26″ (210mm)
  • Max Bar Capacity: 0.79″ (20 mm)
  • Max Tool Positions: 25
  • Max. Main Spindle Drilling Diameter: 0.39″ (10 mm)
  • Max. Main Spindle Tapping Diameter: M8
  • Max. Back Spindle Chucking Diameter: 0.79″ (20 mm)
  • Max. Back Spindle Drilling Diameter: 0.31″ (8 mm)
  • Max. Back Spindle Tapping Diameter: M6
  • Max. Cross Drilling Diameter: 0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16
  • Max. Cross Tapping Diameter: M5 x 0.8 (option)
  • Max. Tool Spindle Slotting Cutter Diameter: 1.18″ (30 mm)
  • Max. Tool Spindle Drilling Diameter: 0.314″ (8 mm)
  • Max. Back Tapping Diameter: M5
Spindle:
  • Main Spindle Indexing: 360° (Full C-Axis)
  • Main Spindle Bore: 0.79″ (20 mm)
  • Main Spindle Speed: 10000 RPM
  • Back Spindle Motor: 3.7 kw
  • Back Spindle Indexing: 360° (Full C-Axis)
  • Back Spindle Speed: 12000 RPM
  • Back Spindle Motor: 2.2 kw

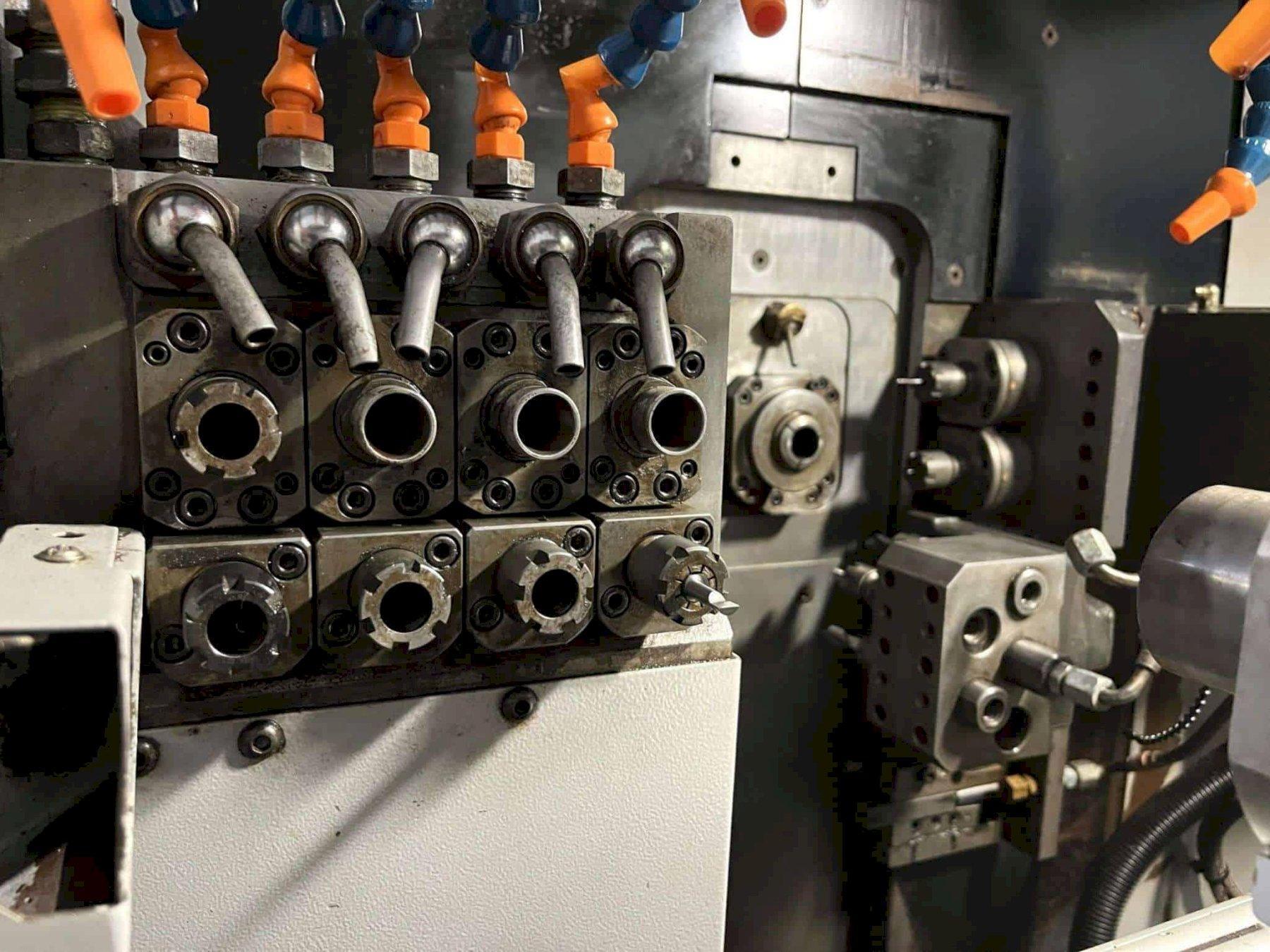

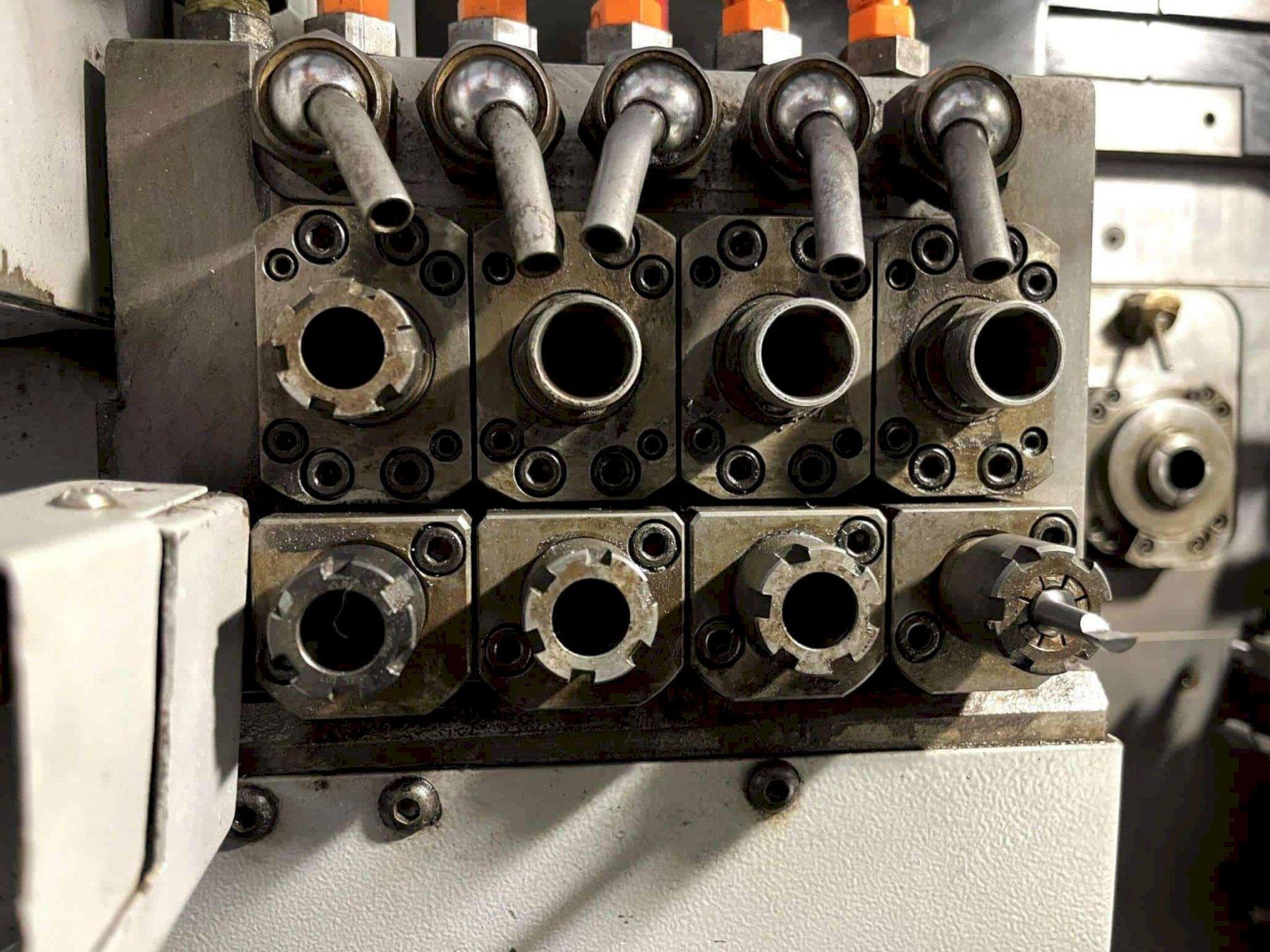

Standard Tools:
  • Cross Turn Stations: 8
  • Cross Drill Stations: 3
  • Main/Sub Drill Stations: 5
  • Sub Drilling Stations: 4
Power Driven Tools Attachment:
  • Live Cross Mill Stations: 2
  • Live Sub Milling Stations: 4
  • Driven Tool Speed: 8000 RPM
  • Driven Tool Motor:.75 kw (Front Tool Post) 1 kw (Rear Tool Post)
General:
  • Power Source: AC 220v / 3-Phase /60 Hz
  • Power Requirement: 12.1 kva
  • Overall Dimensions: 83.07″ X 47.24″ X 74.21″ High without Bar Feeder
  • Weight: 7275 lbs. Approx.
