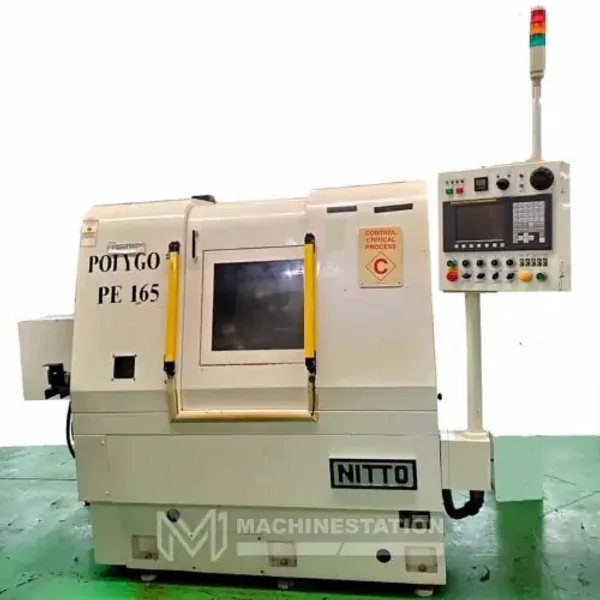

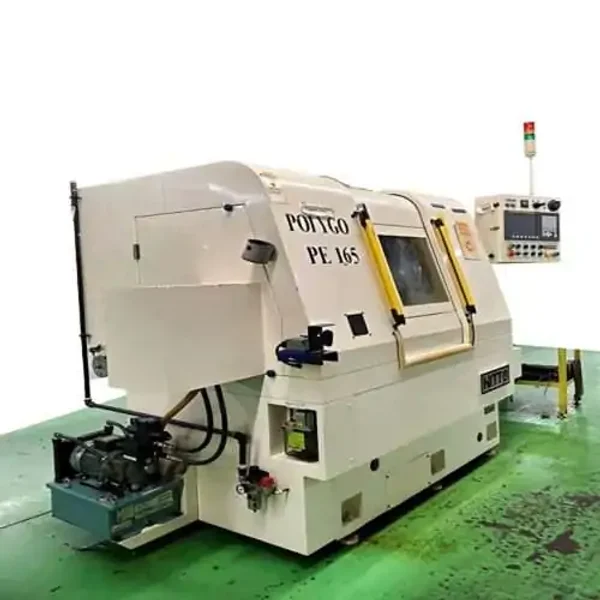

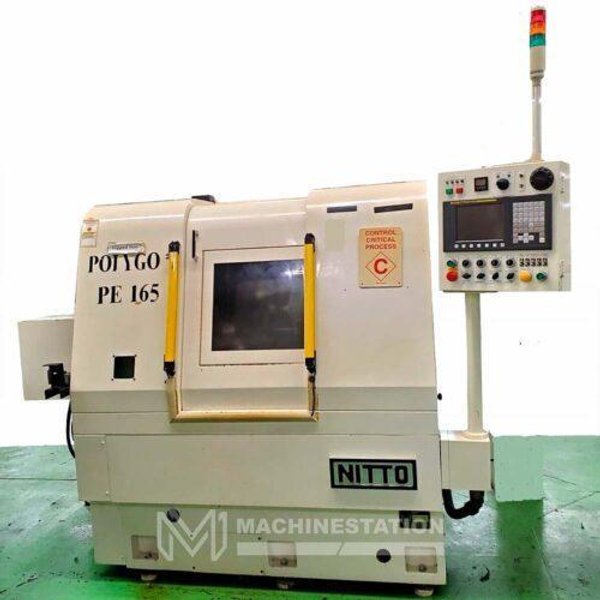

Nitto Polygon PE-165 CNC Polygon Milling Machine

Nitto Polygon PE-165 CNC Polygon Milling Machine

Brand

NITTO POLYGON

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	2261
Make:	Nitto Polygon
Model:	PE-165

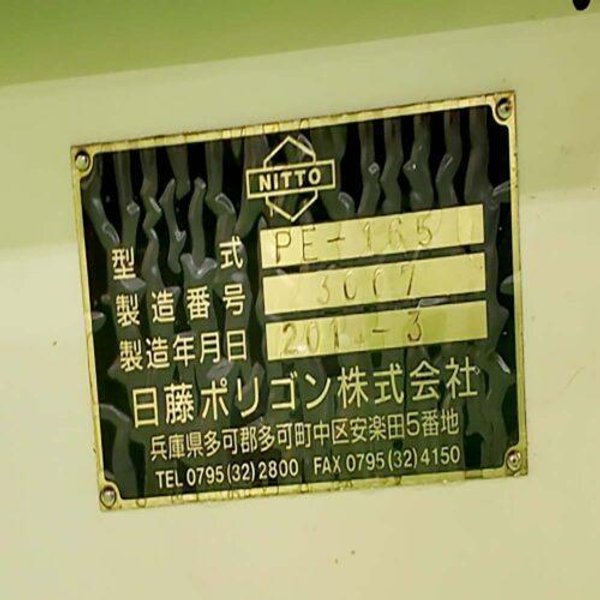

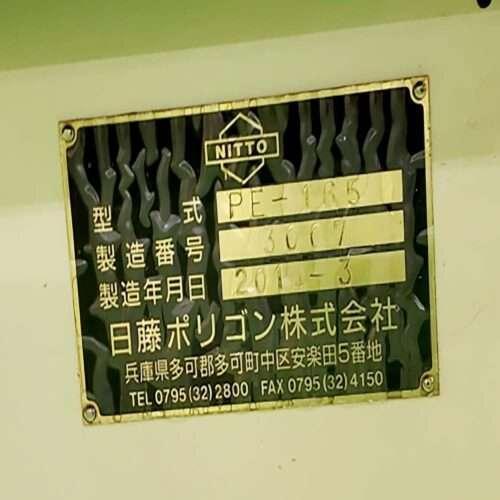

Serial:	3007
Year:	2014

Features:

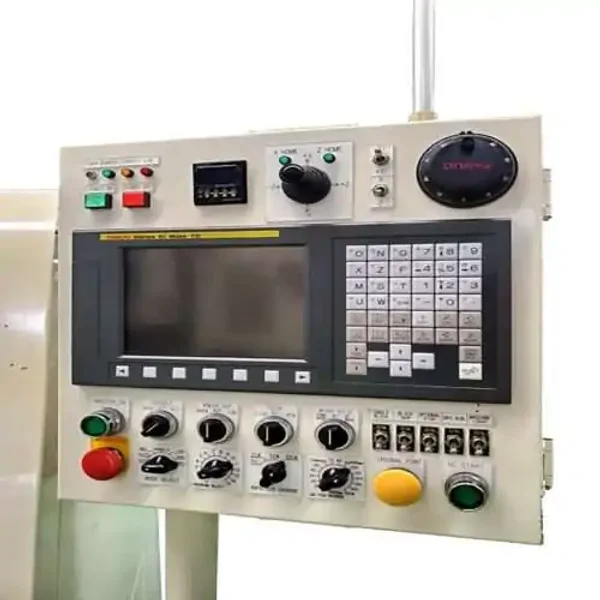

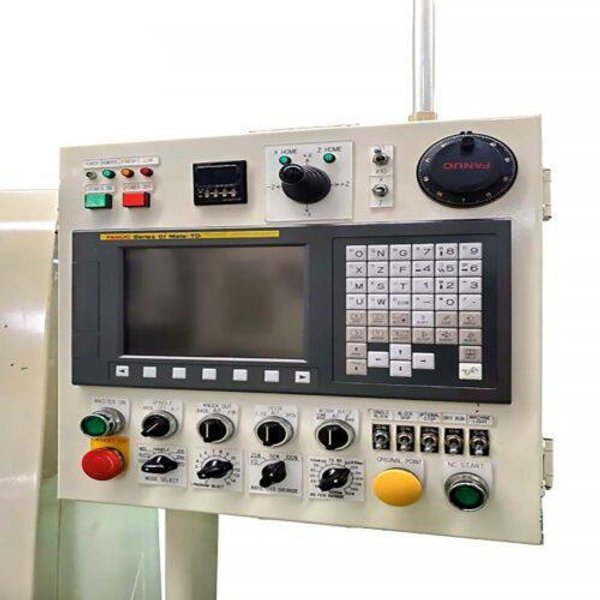

Fanuc Oi-Mate TD series CNC Control
Collet Chuck
A2-6 Spindle Nose
Quick Machining
Fine Finish
Accurate Machining
Simple Operation
Speedy Setup Change
Squire Cutting
Hexagonal Cutting
2 Face Middle Cutting
Clutch Cutting
Multi-Grooving Cutting
USB Drive
PCMCIA Card Slot
Foot Switch
Coolant Tank

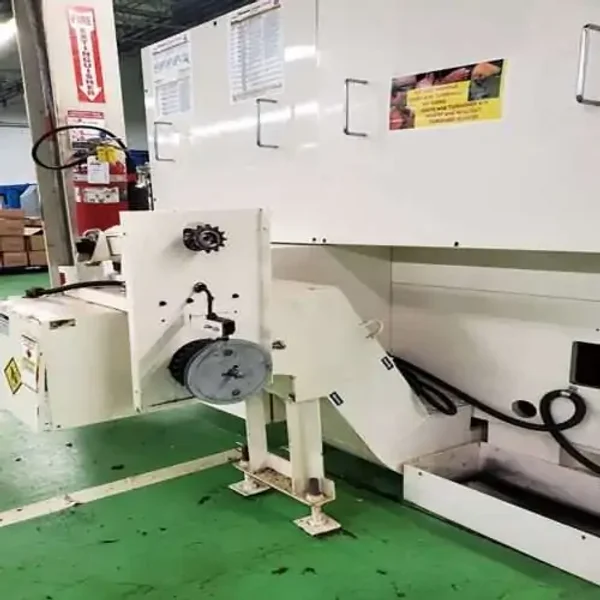

Chip Conveyor
Max Working Diameter: 2.36″
Max Working Length: 6.3″
Max Bar Capacity: 1.57″

Travels:
X Axis Travel: 3.94″
Z Axis Travel: 6.3″
Max Cutting Feed Rate: 393 IPM

Spindle:
Spindle Nose: A2-6
Spindle Bore: 1.77″
Spindle Speed: 100 – 450 RPM

Motors:

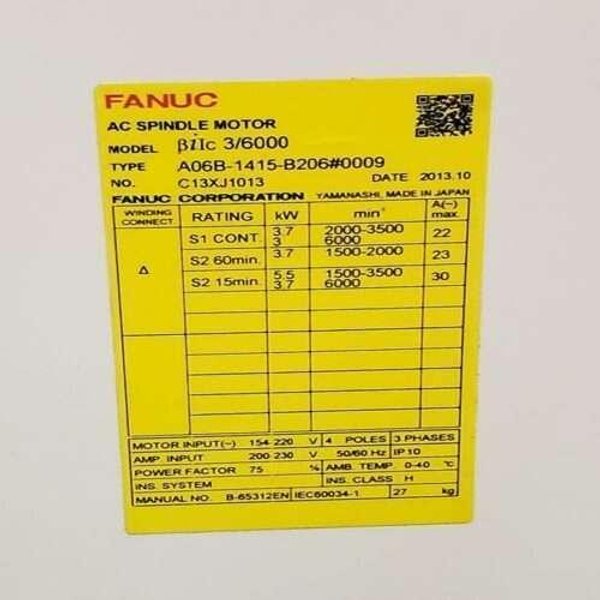

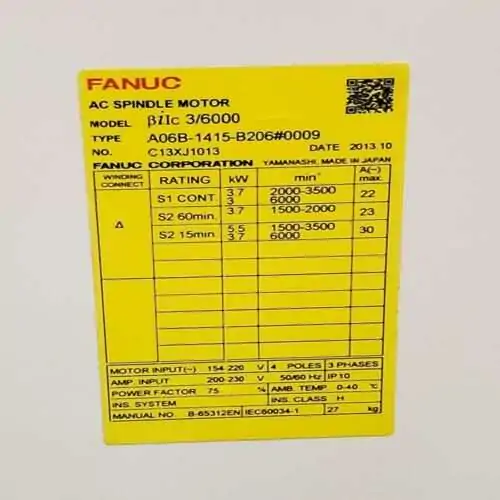

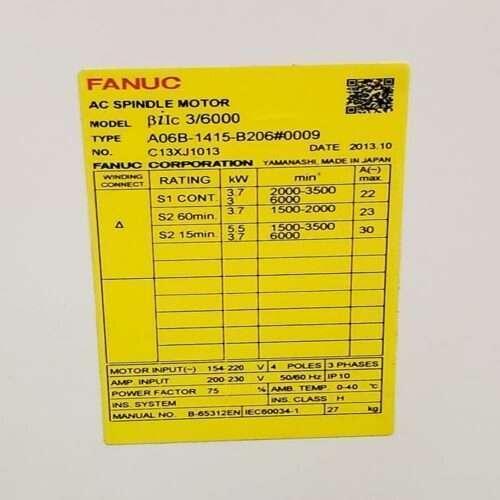

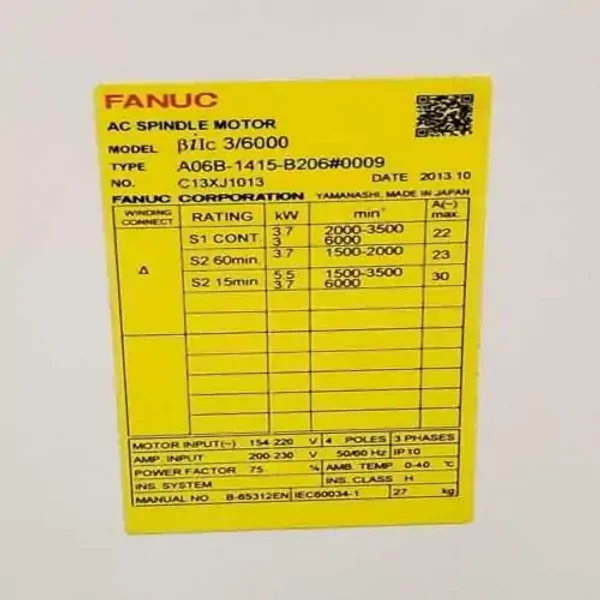

Spindle Motor: 7.5 HP
X Axis Motor: 1.6 HP
Z Axis Motor: 1.6 HP

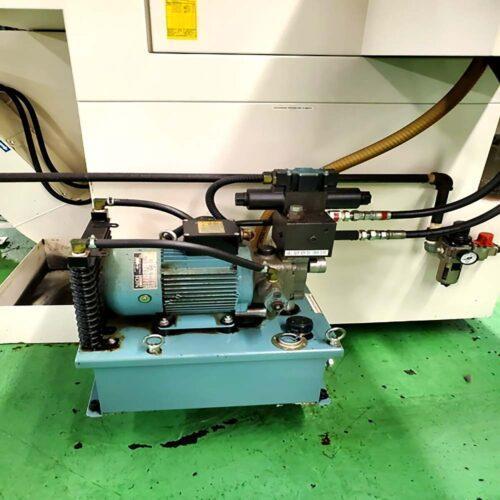

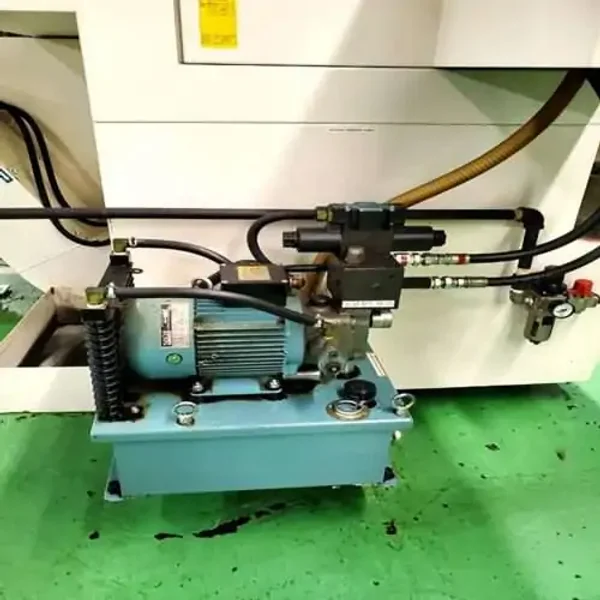

Hydraulic Motor: 1 HP

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power: 23 kva, 220v / 3-Phase
Overall Dimensions: 64″ x 61″ x 77″ High
Weight: 7000 lbs Approx.
