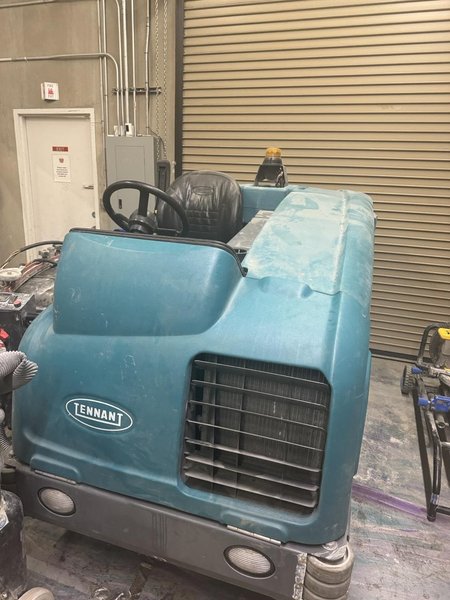

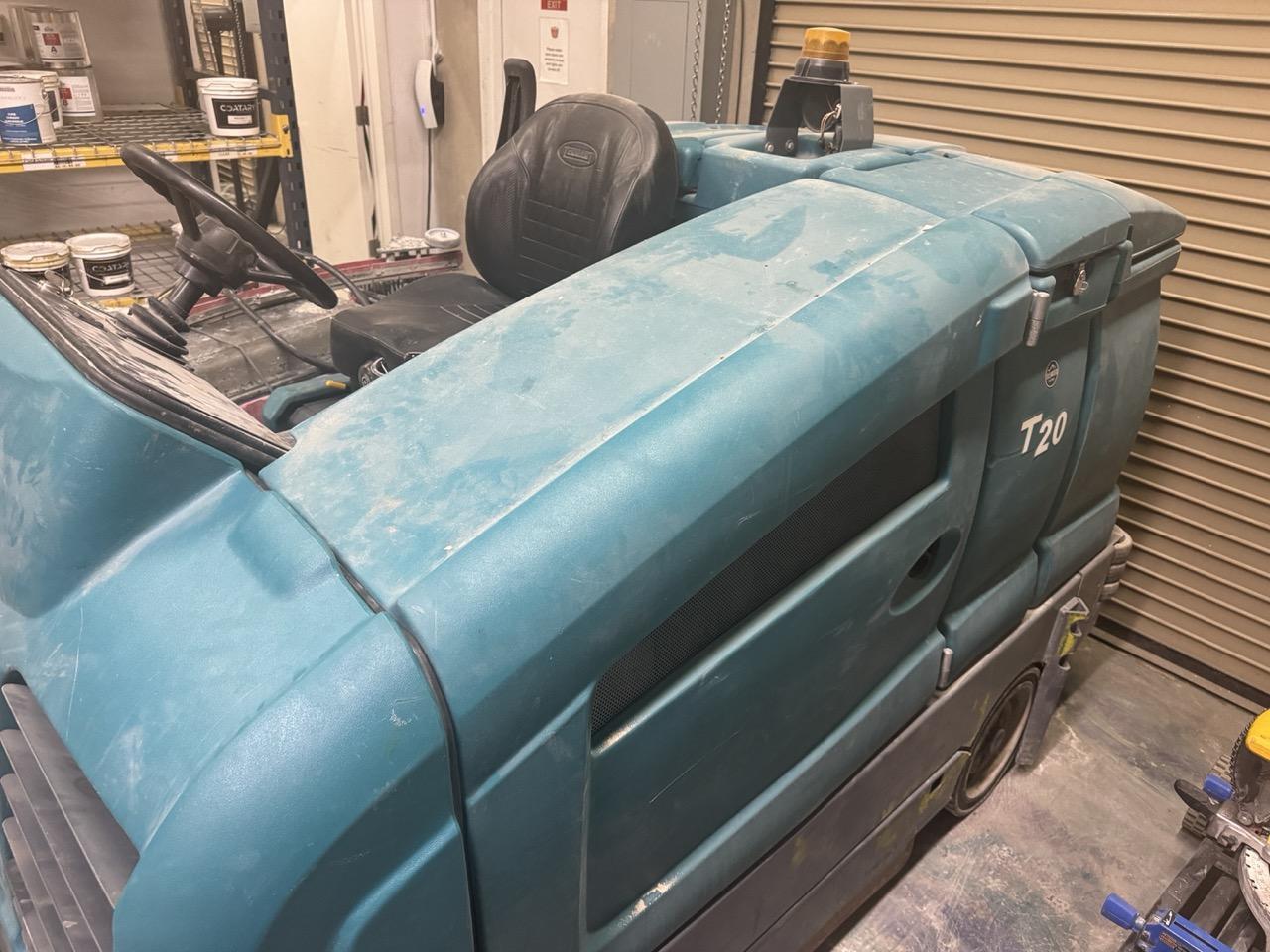

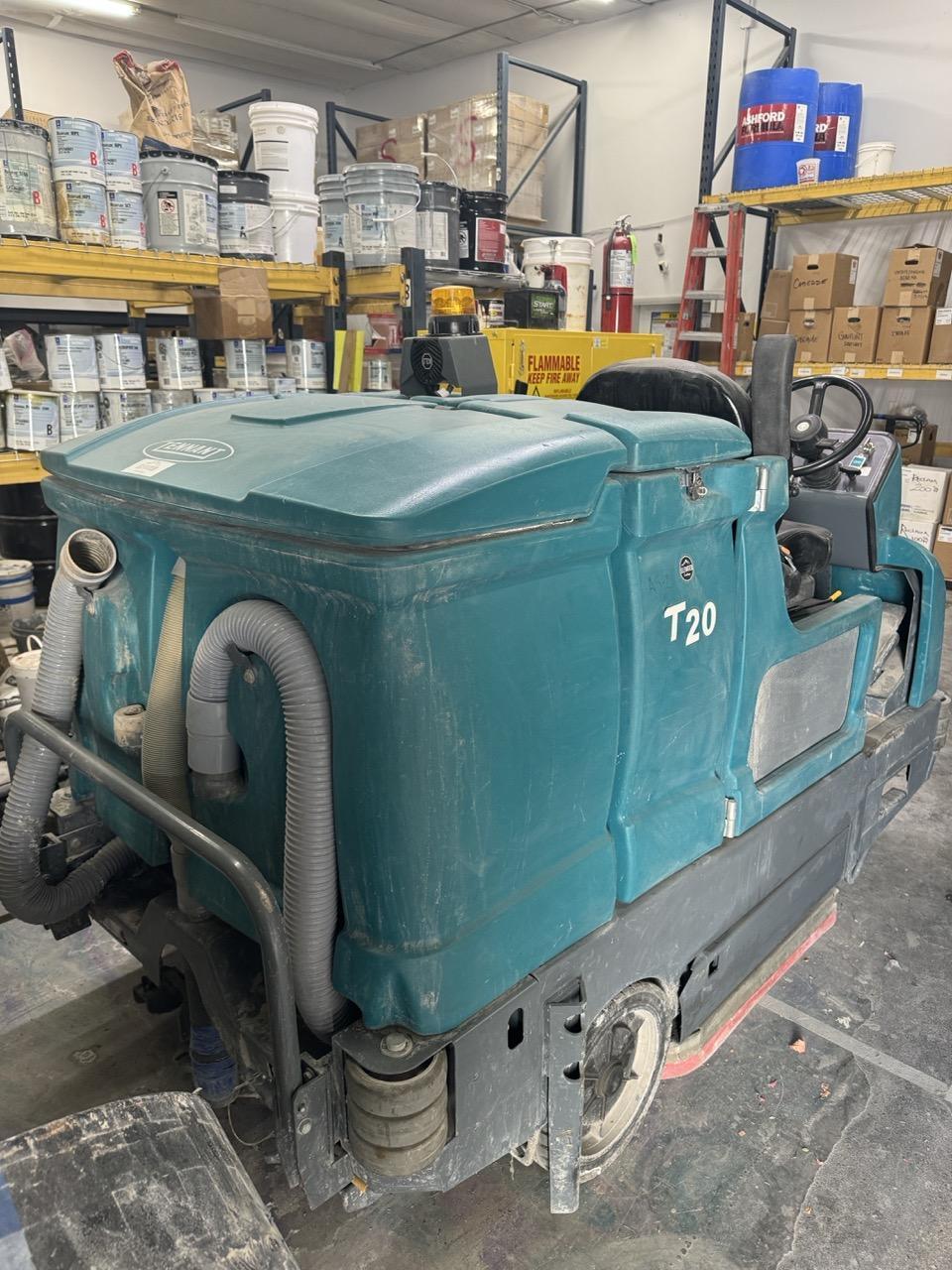

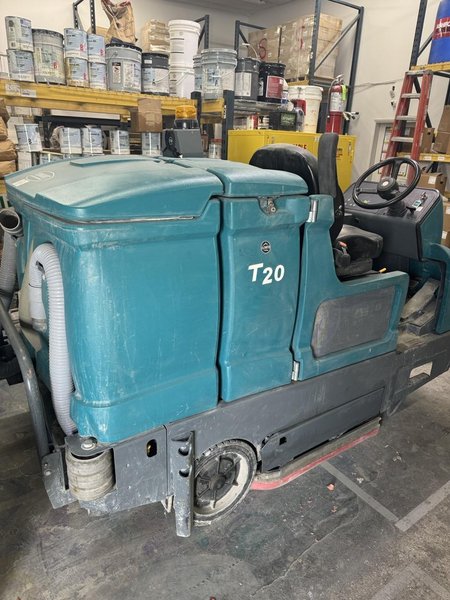

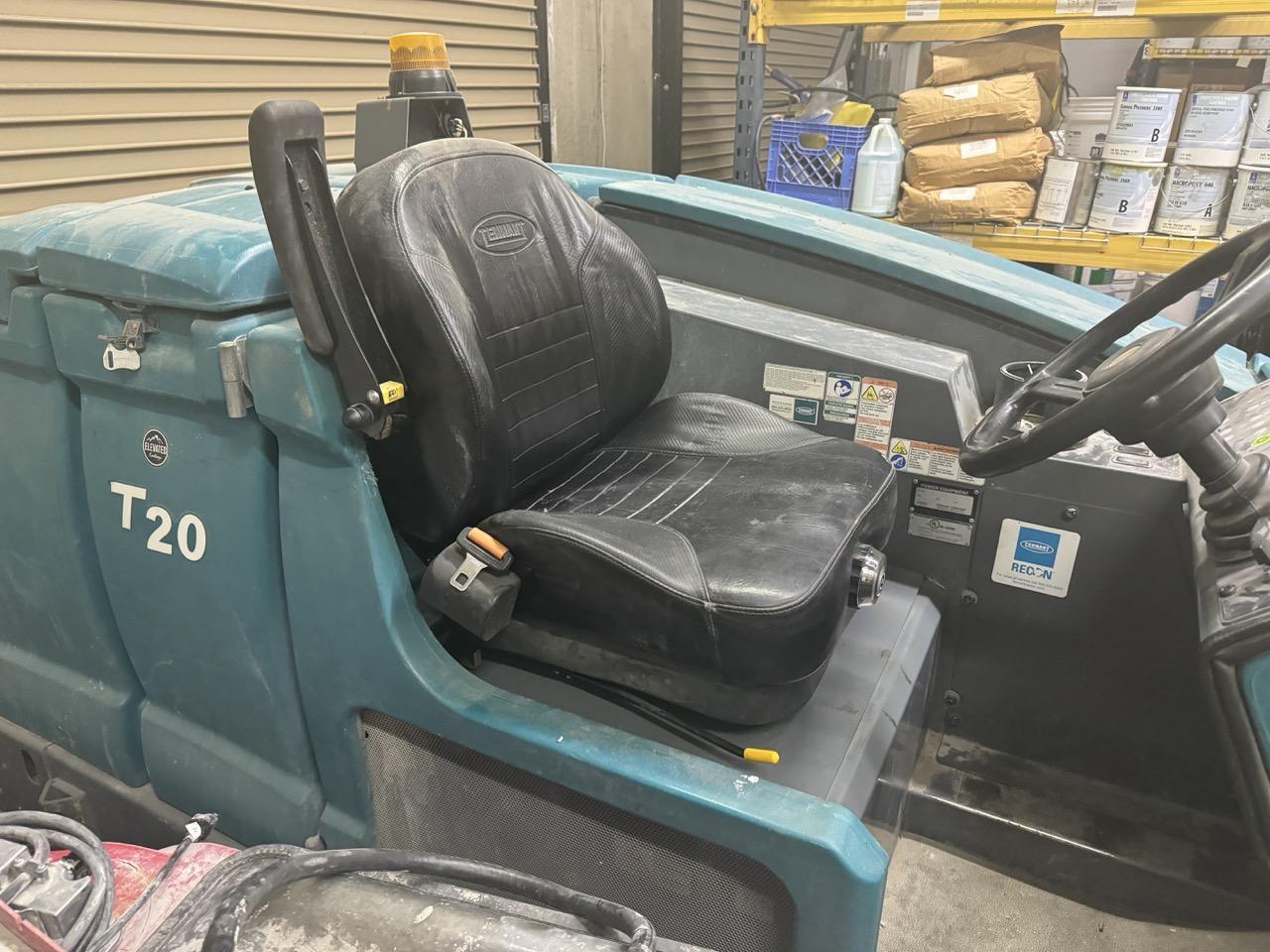

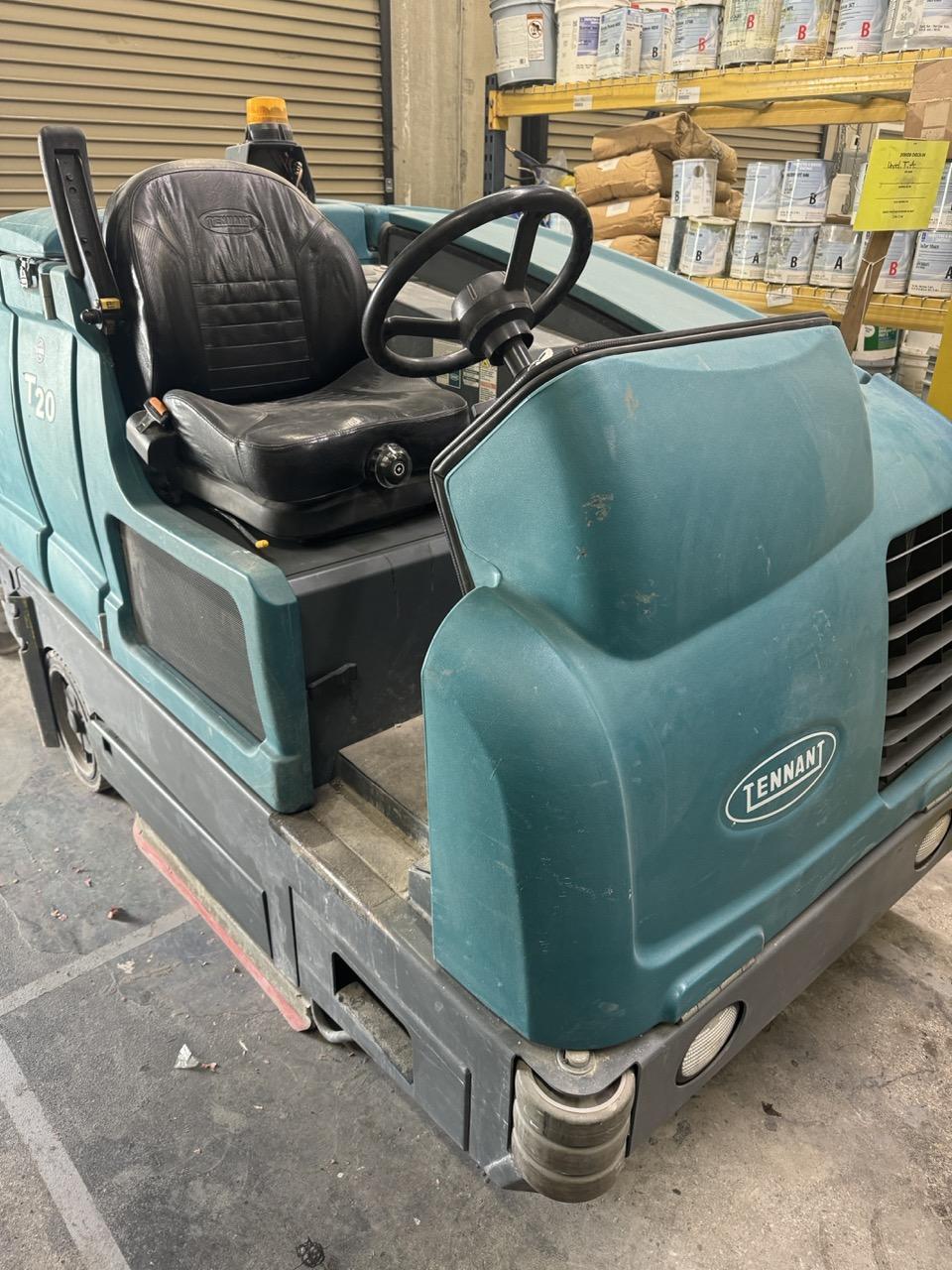

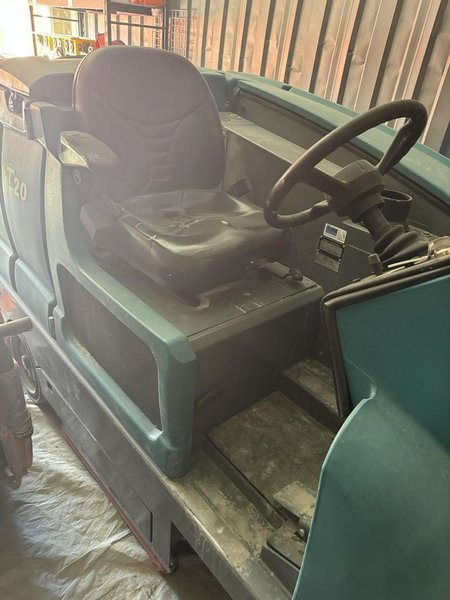

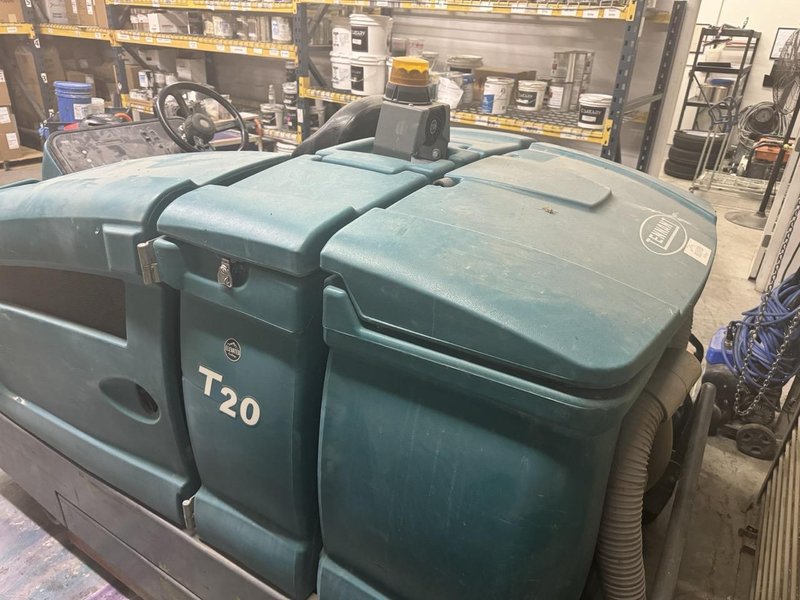

Tennant Floor Scrubber T-20, 2012 – 1 of 2

Cleaning Path:

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cylindrical main brushes: 40 inches

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Disk main brushes: 42 inches (1,070 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With scrubbing side brush: 54 inches (1,370 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,With sweeping side brush (cylindrical only): 56 inches (1,420 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Brush Specifications: Cylindrical brushes: 2 brushes, 12 inches (300 mm) diameter, 480 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Disk brushes: 3 brushes, 14 inches (360 mm) diameter, 230 rpm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Maximum brush down pressure: 425 lbs (193 kg) for cylindrical, 400 lbs (181 kg) for disk

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Tank Capacities: Solution tank: 80 gallons (303 L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Recovery tank: 95 gallons (360 L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Demisting chamber: 15 gallons (57 L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Propulsion System Forward speed: Up to 8.0 mph (12.9 km/h)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Reverse speed: Up to 3.0 mph (4.8 km/h)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Engine options: Gasoline, LPG, or Diesel

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Gradeability: 10° (18%) for transport, 8° (14%) for cleaning

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Dimensions Length: 95 inches Width: 50 inches frame, 51 inches rear squeegee

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Height: 58 inches, 83.5 inches with overhead guard

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Weight: 3,300 lbs empty, 4,900 lbs GVW1

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Minimum aisle turn: 110 inches

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
