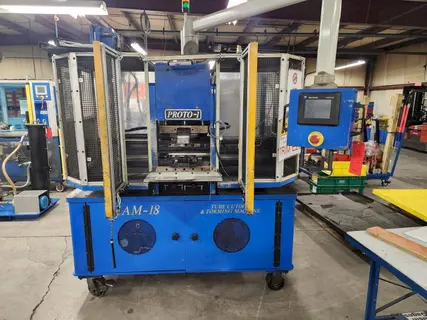

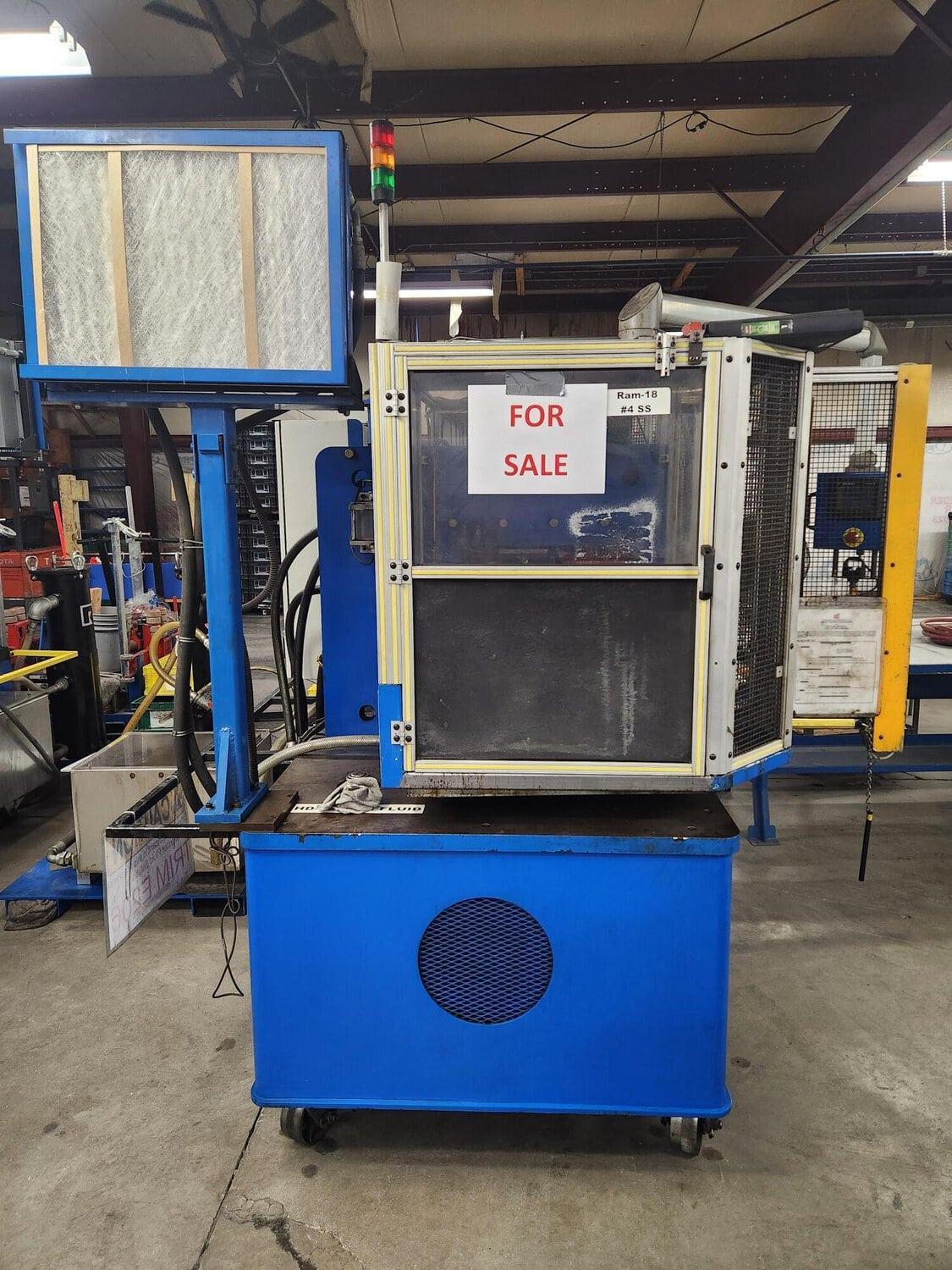

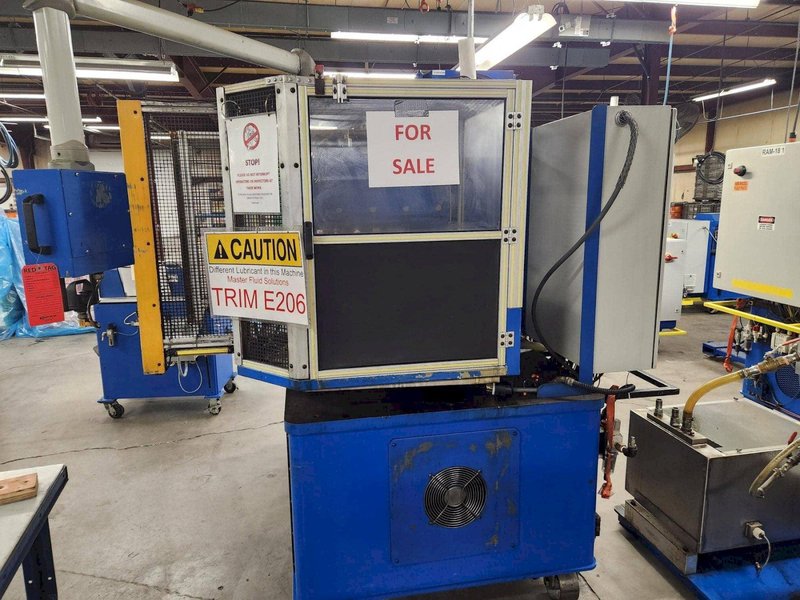

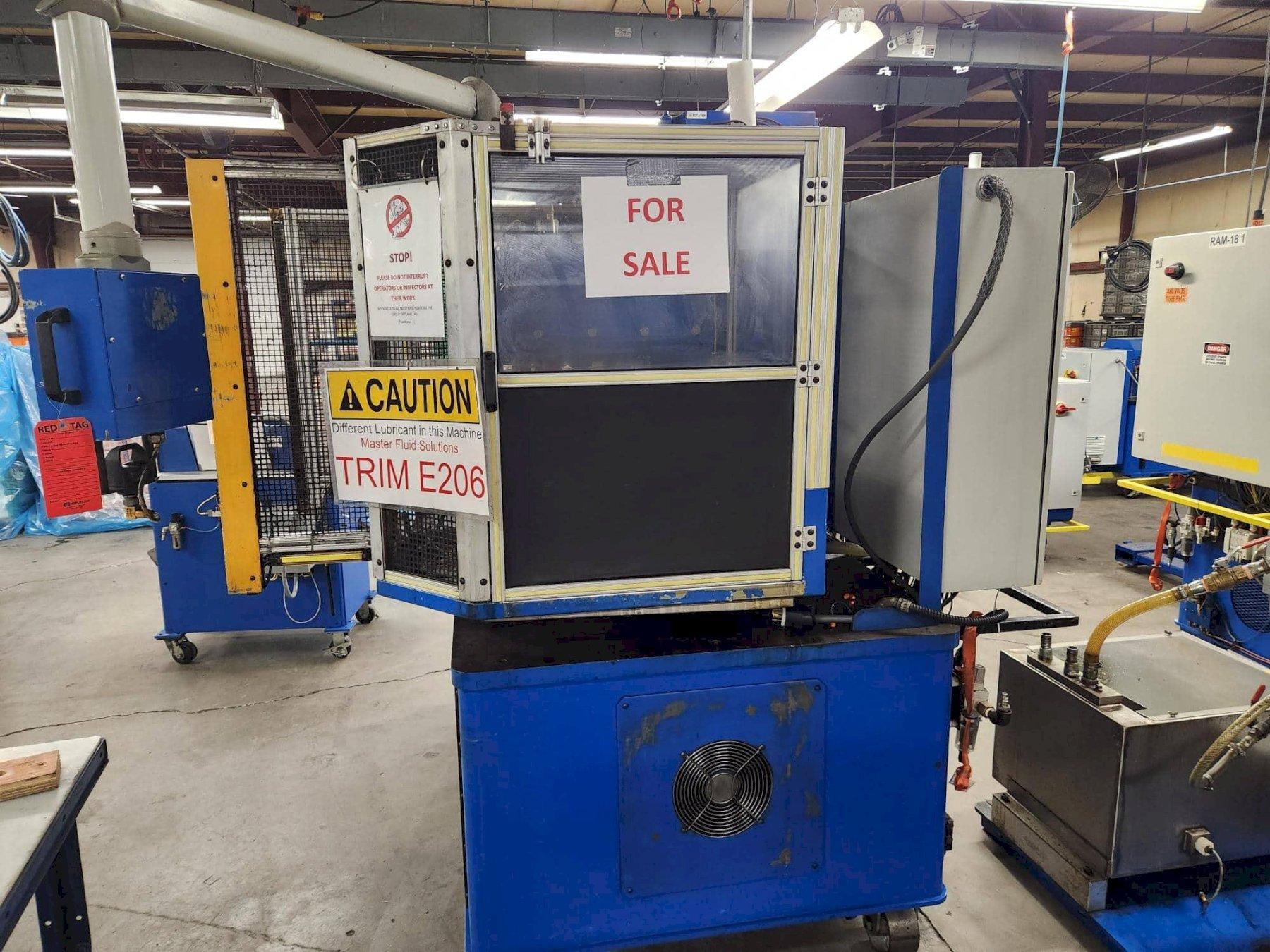

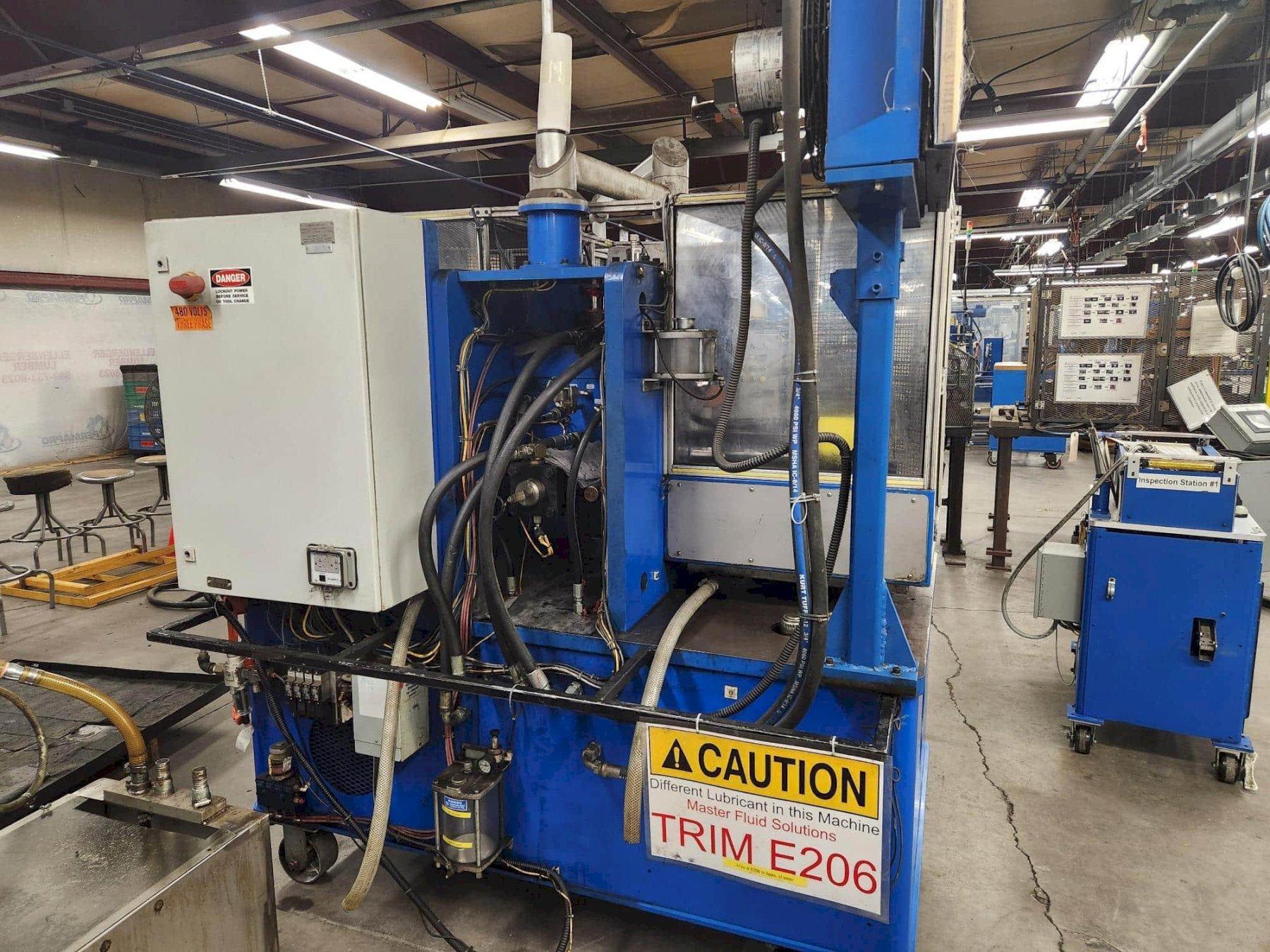

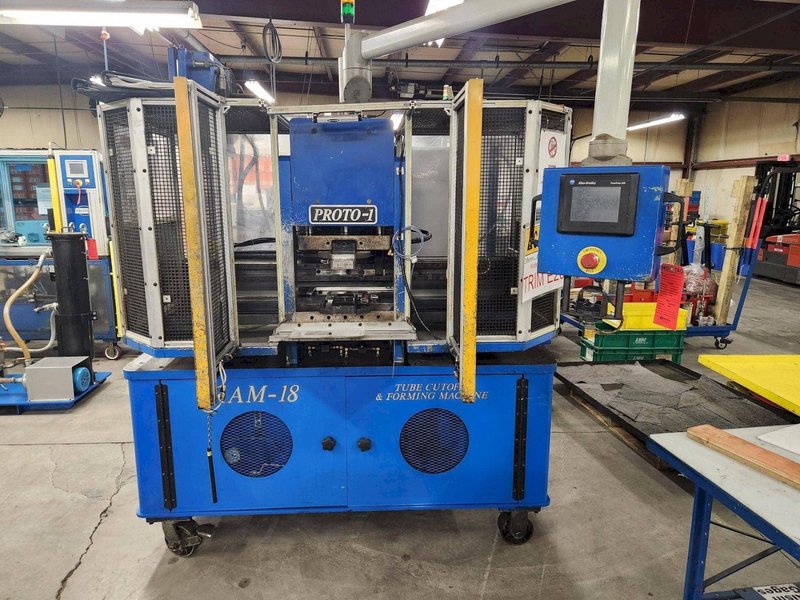

20 Ton Proto-1 Ram 18 Tube Cutoff and Forming Machine, 2010

Tube Diameter: 0.125″ – 2.0″ Tube Wall: 0.020″ – 0.083″ Cycle Time: 8-30 seconds depending on end form and material type Hydraulic Cylinders Clamp: 30 ton vertical with 5″ bore and 4″ stroke Hydraulic Cylinders Ram: 20 ton horizontal with 4″ bore and 6″ stroke Tooling Shuttle Bar: 7 position ram shuttle (1-tube stop and 6-tools) Voltage: 480v/60hz/3phase) Oil Tank: 40 gallons Dimensions: 78.2″ length x 88.0″ width x 98.4″ height

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: – Allen Bradley PLC Controls – Allen Bradley HMI Touchscreen – Hydraulic Oil Cooling: Fan-air Hydraulic Oil Cooling System – Parts/Tooling Flood cooling system w/ drip pan – Finger Switch Cycle Start – FAST Technology

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
