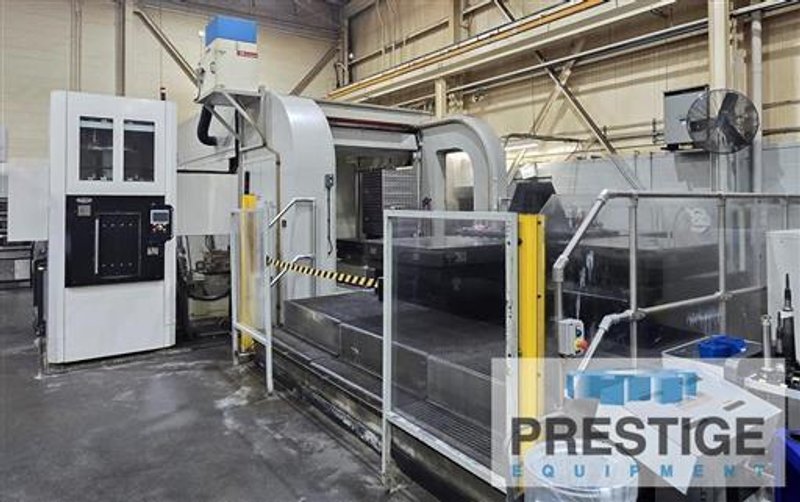

Drills Gun

SPECIFICATIONS:
Table Travel, X-Axis................... 79.92" 79.92"

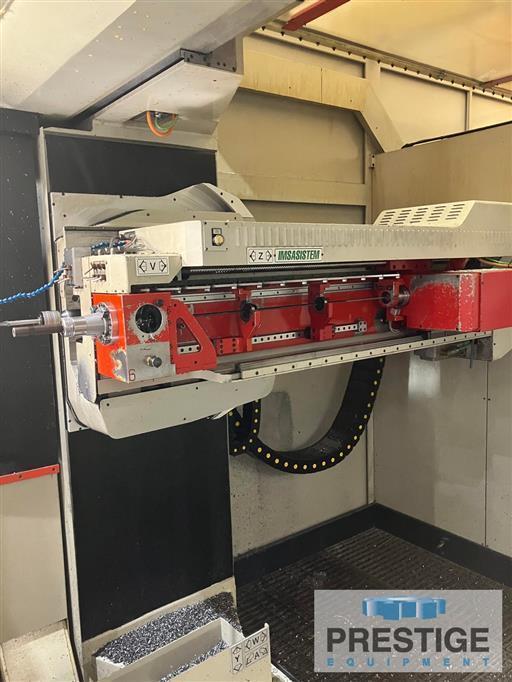

Head Travel, Y-Axis 40"
Max Gun Drilling Depth 43.3"
Drilling Diameter, Optimal .157" to 1.57"
Head Tilt, A-Axis +/- 20 degrees
Tilt Indexing 0.001 Degree

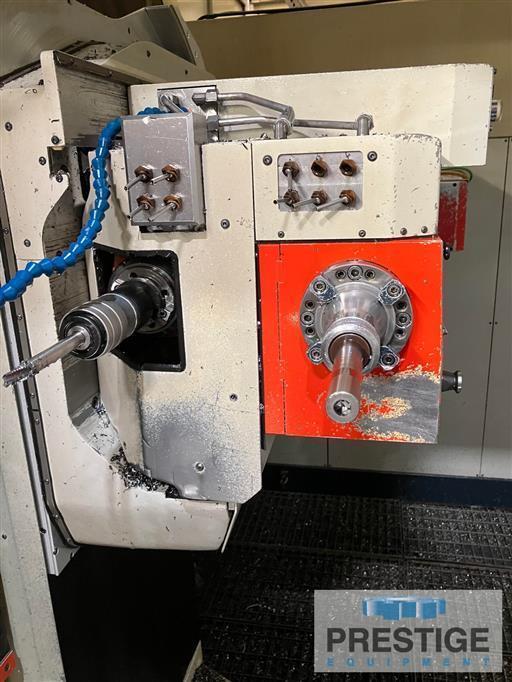

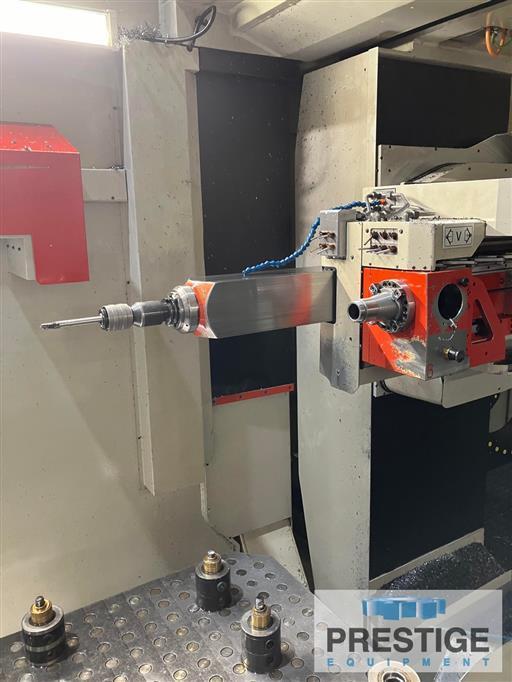

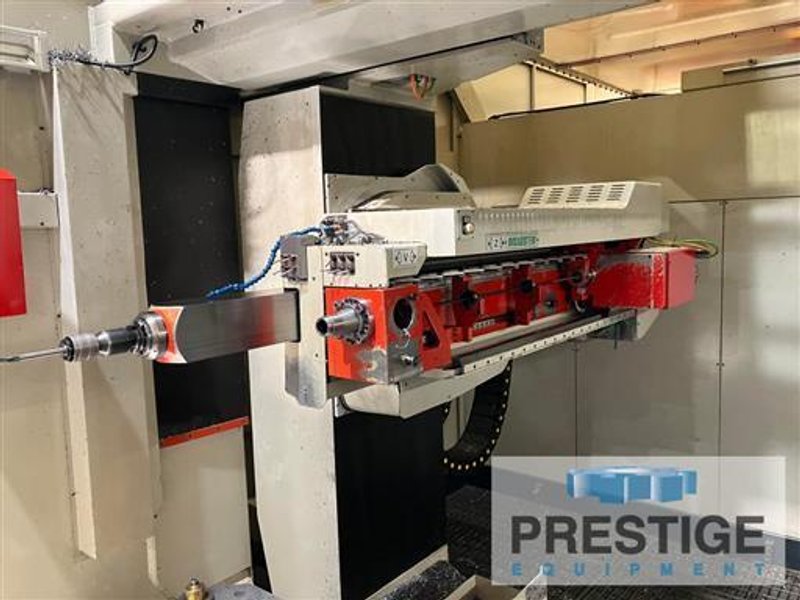

Gun Drill Speed, Max 4200 RPM
Gun Drilling Spindle Motor 12.6 HP / 9 KW
Milling Head Speed, Max 4000 RPM
Milling Spindle Motor 12.6 HP / 9 KW
Milling Head Taper Cat 40

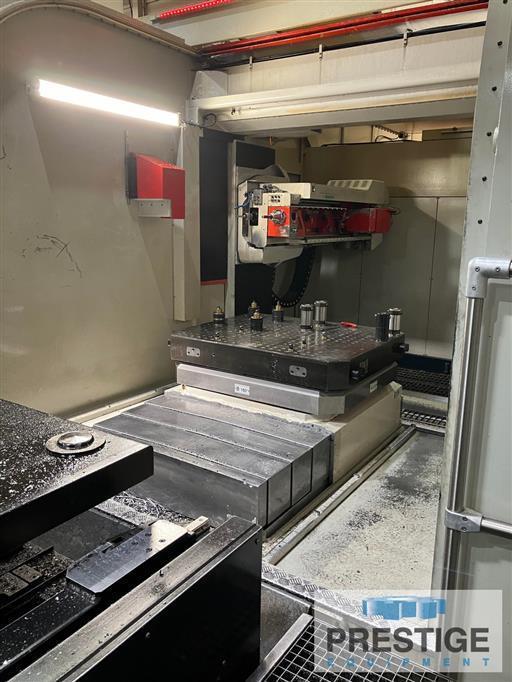

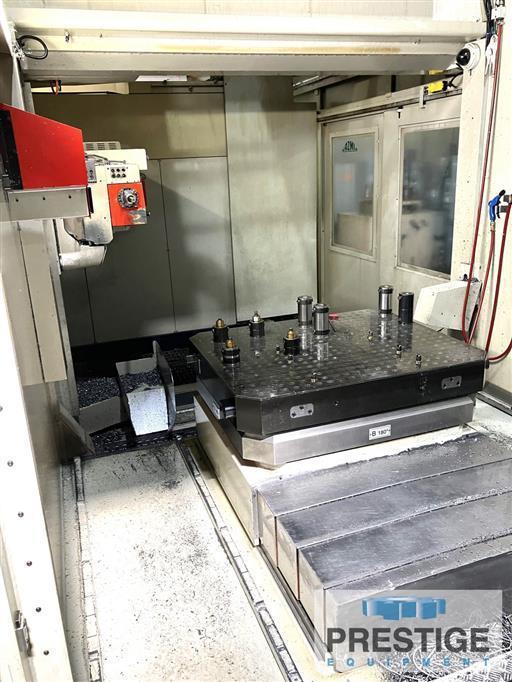

Pallet Size 47.24" x 39.37"
Pallet/Table Weight Capacity 14,300 Lbs.
Number of Pallets 4
Gun Drill Storage/Changer 6-Stations
Milling Head, Tool Changer 60-Station



Equipped With:
Heidenhain iTNC 530 CNC Control

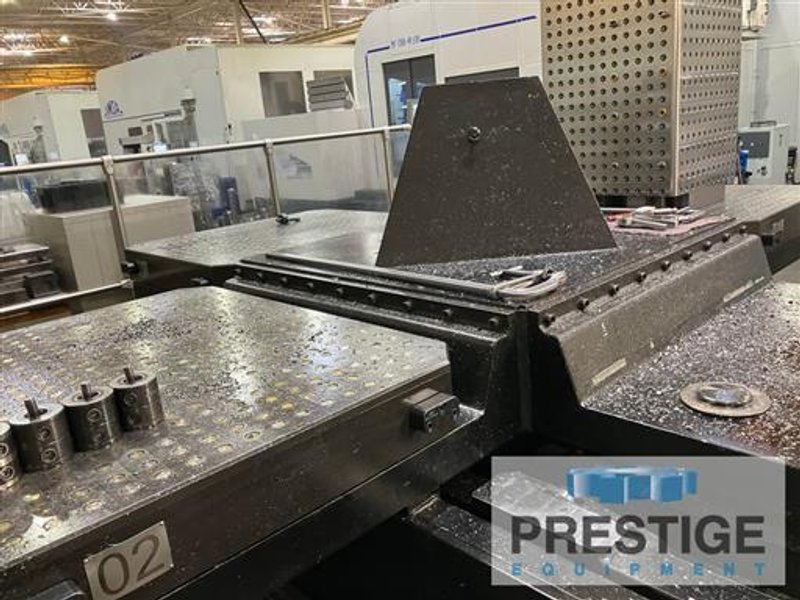

4-Station Pallet Changer
6-Station Gun Drill Automatic Changer/Storage
60-Station Automatic Changer for 40 Taper Milling Tools
Chip Conveyor
Miscellaneous Cat 40 Tool Holders
Manuals
