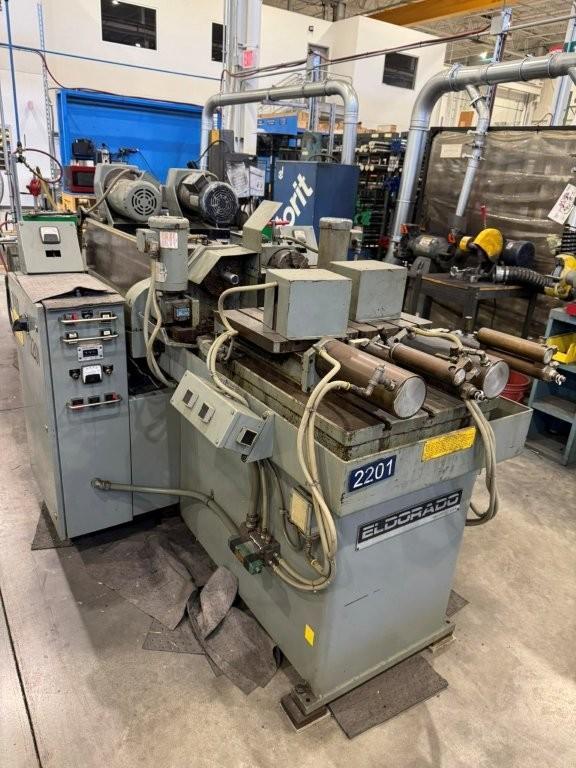

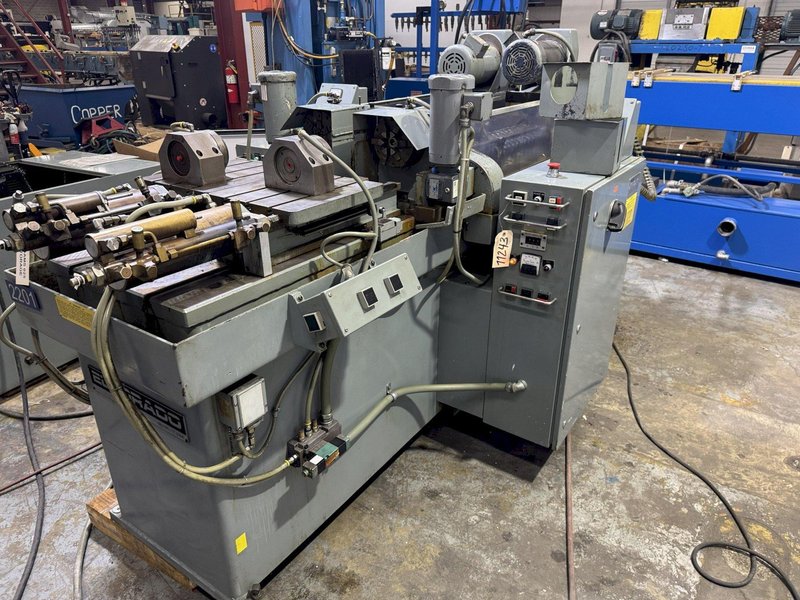

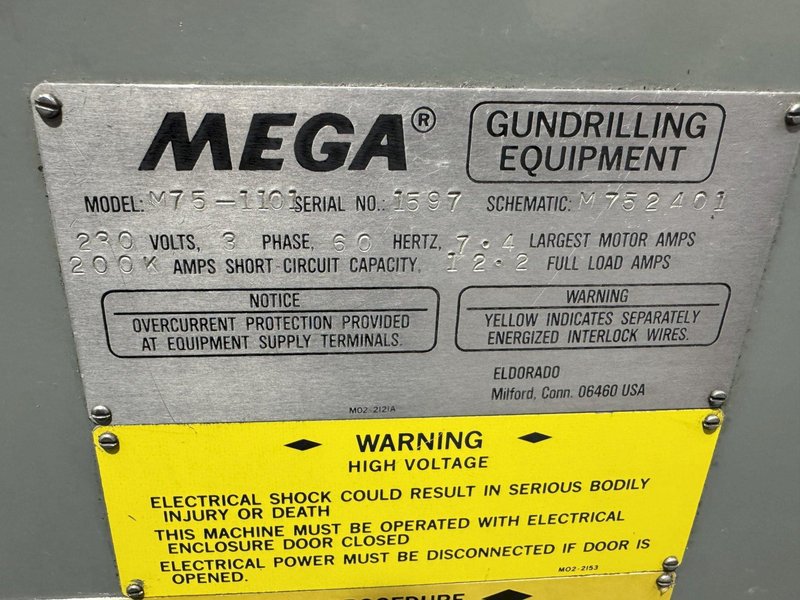

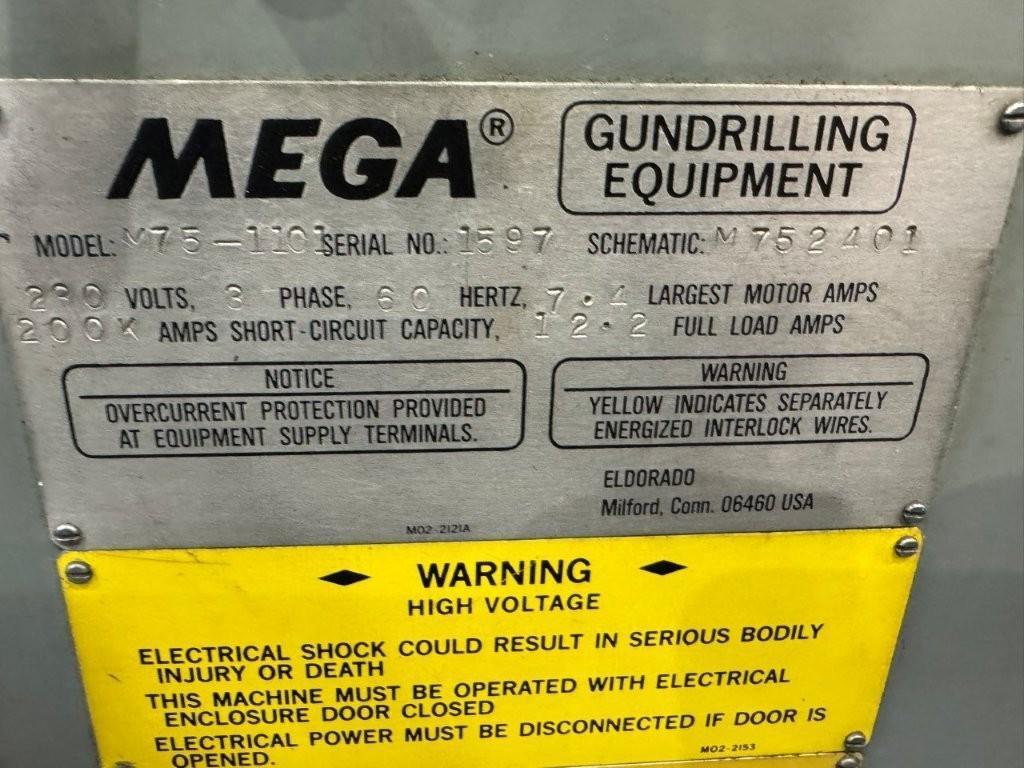

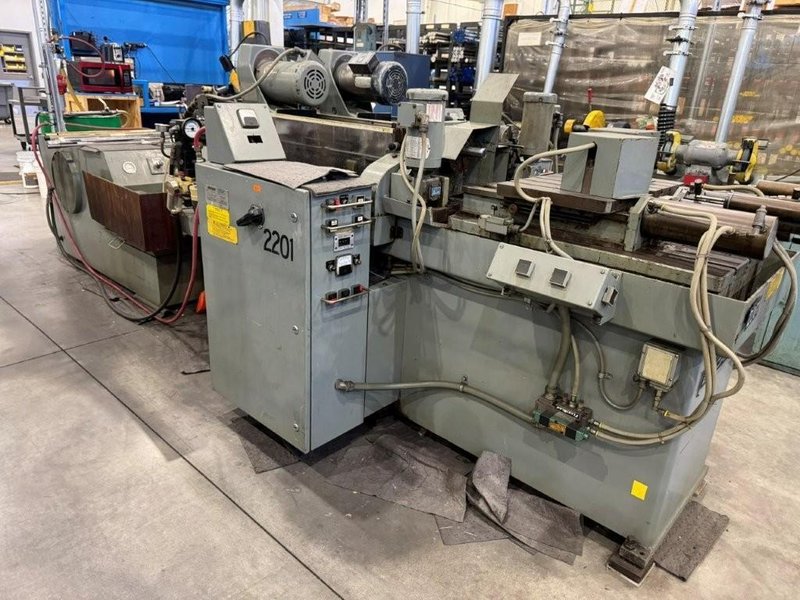

¾” x 30” 2-Spindle Eldorado Mega Model M-75-1041 Precision Deep Hole Gun Drill with Counter Rotation

Name: Used ELDORADO MEGA M-75-1041 For Sale TMV3430
Brand: ELDORADO MEGA
SKU: TMV3430
Availability: PreOrder

Brand

ELDORADO MEGA

Not specified

Drilling Diameter Maximum	.75 inches
Drilling Diameter Minimum	.055 inches
Maximum Drilling Depth	30 inches
Spindle Speeds	1440 - 11,740 RPM
Feed Rate: Drilling	.1 - 99.9 IPM
Feed Rate: Rapid	200 IPM
Straightness Per 12"	.001 inches
Coolant Pressure, Maximum	1500 PSI
Reservoir Capacity	18 GPM
Filtration	5 Micron

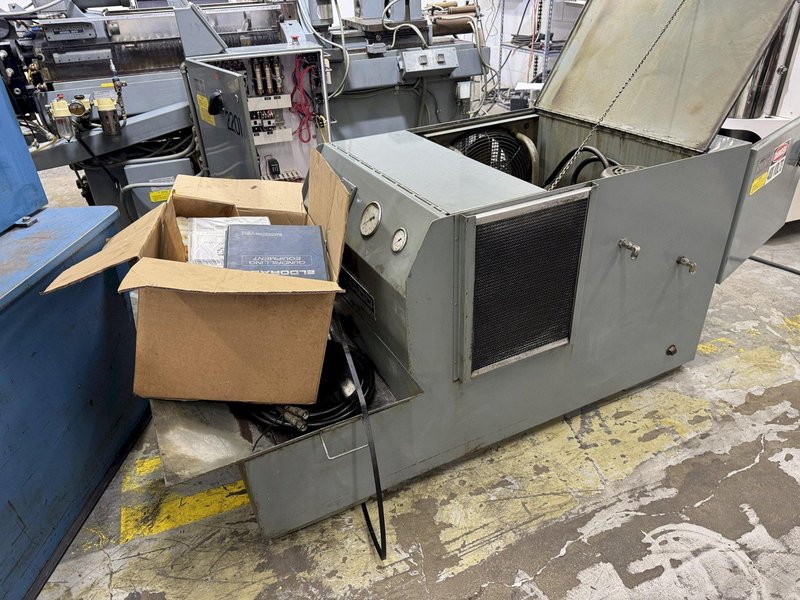

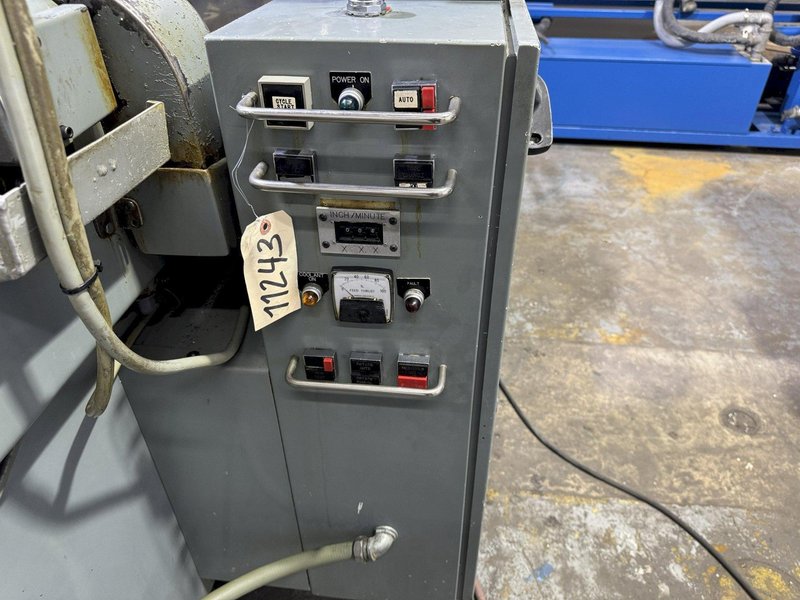

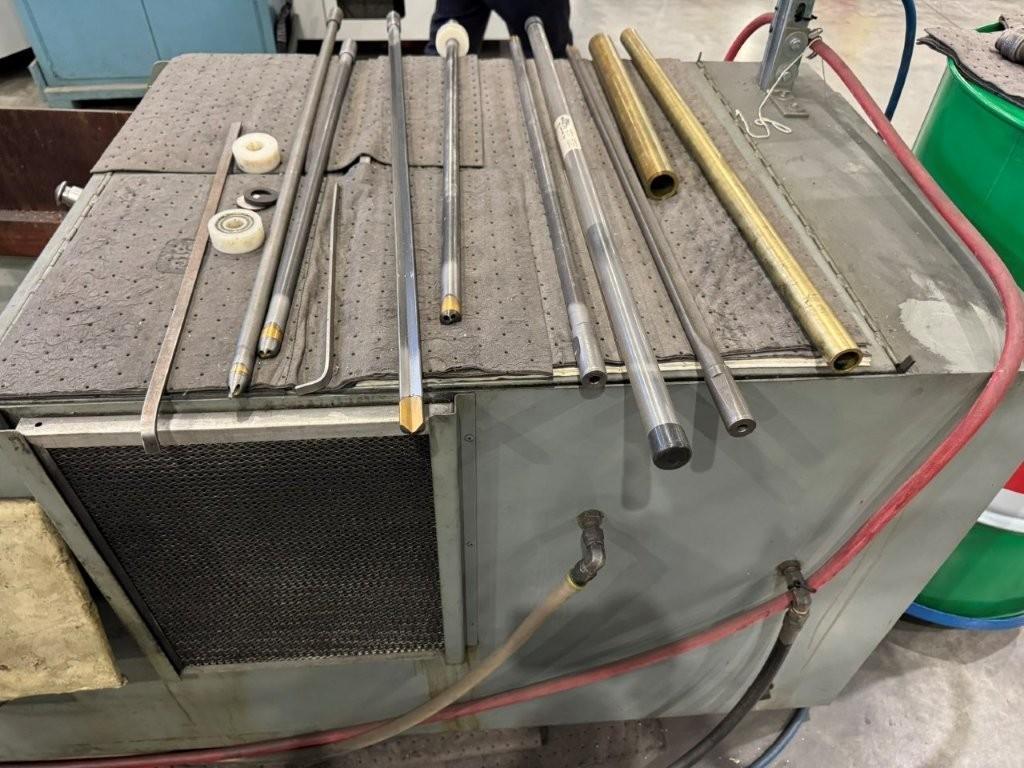

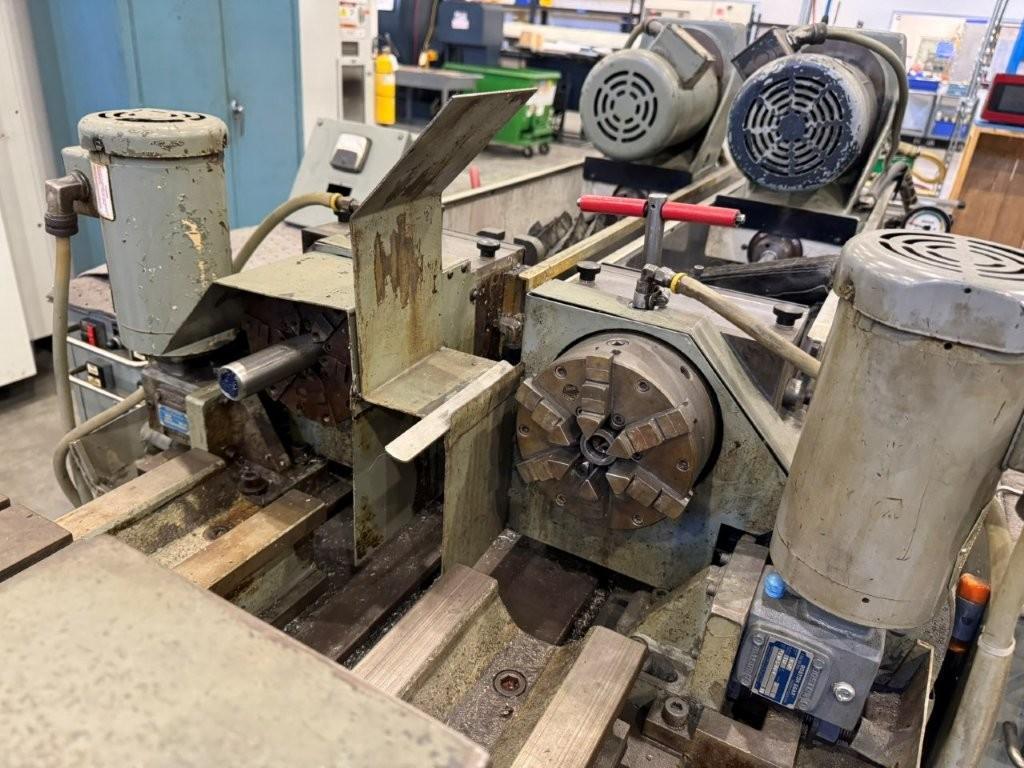

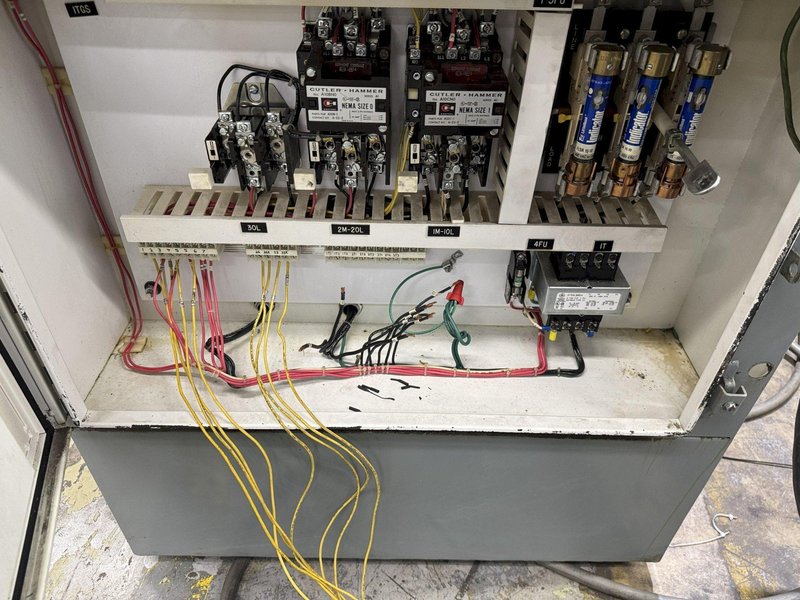

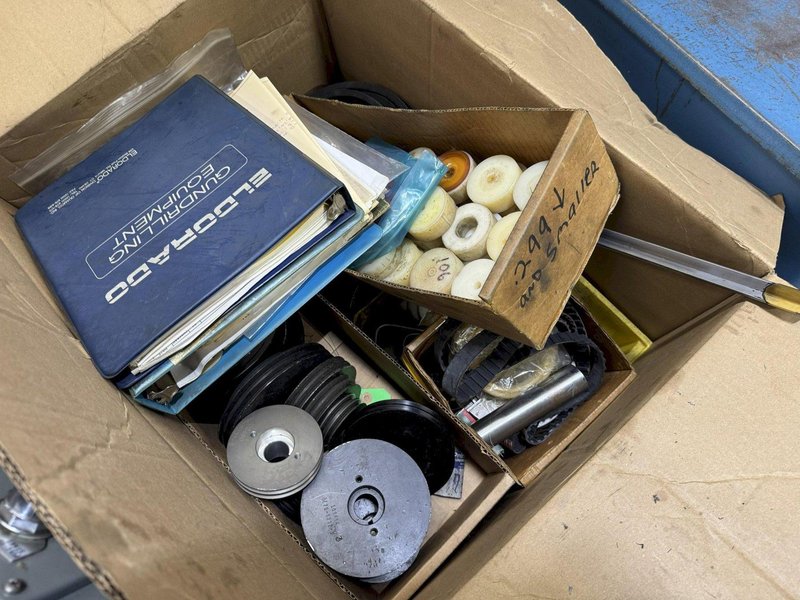

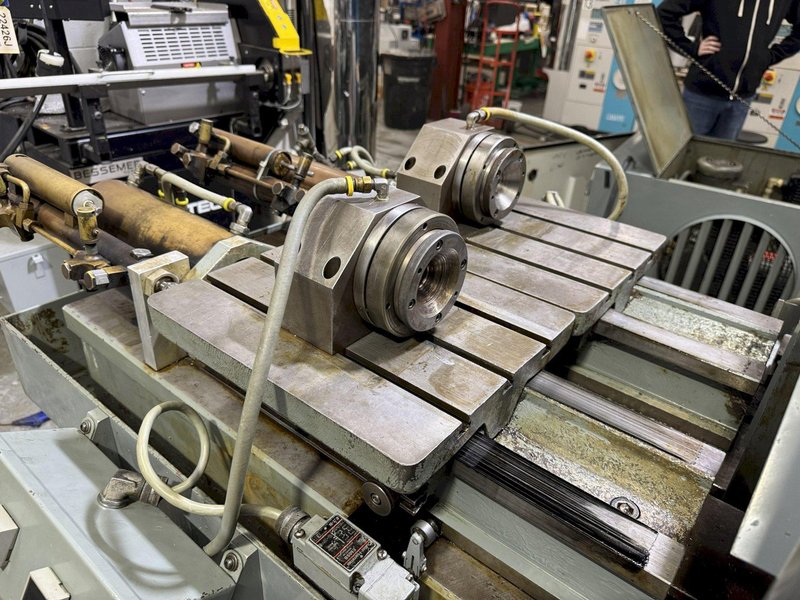

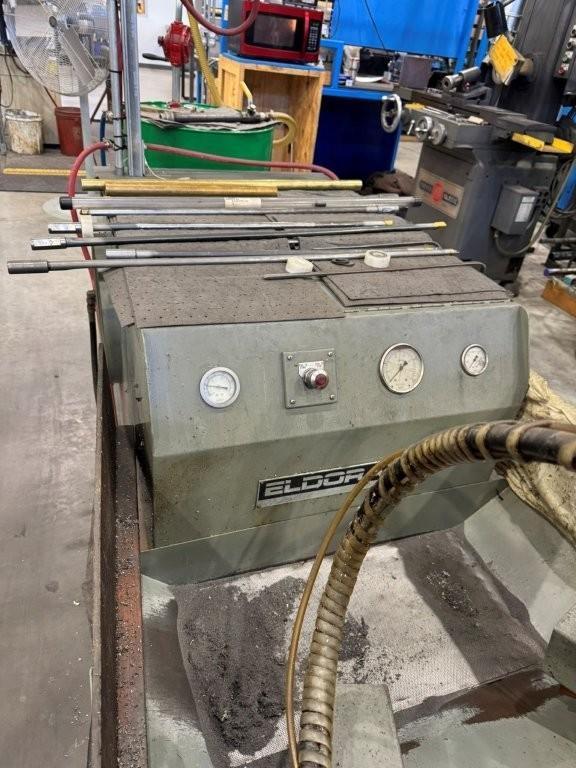

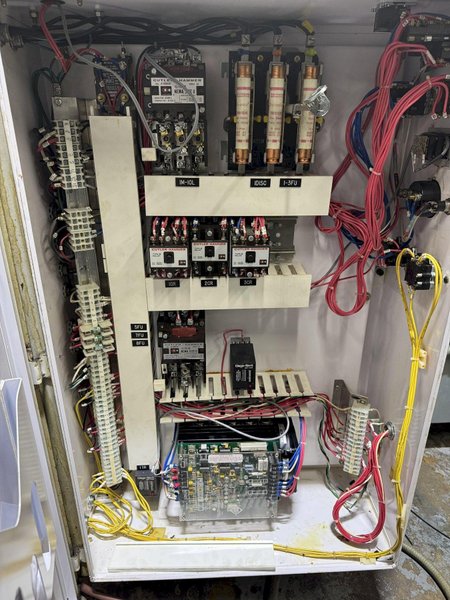

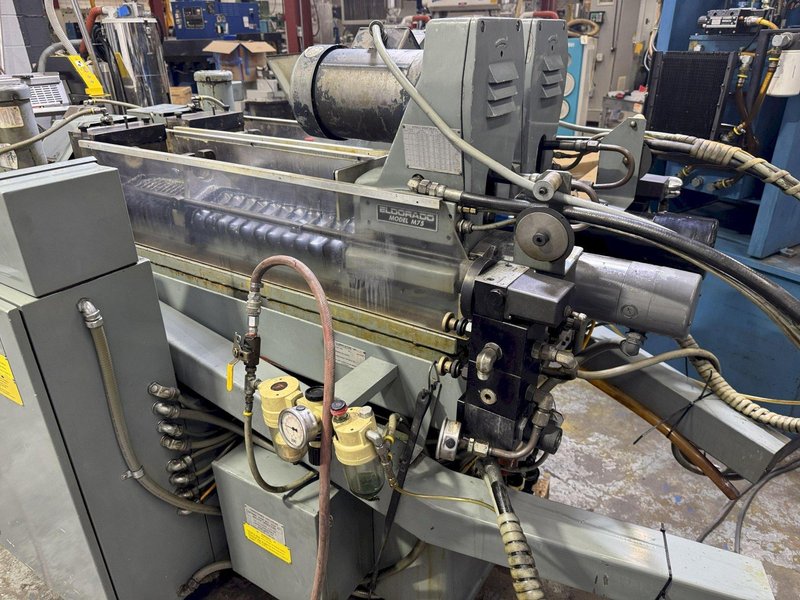

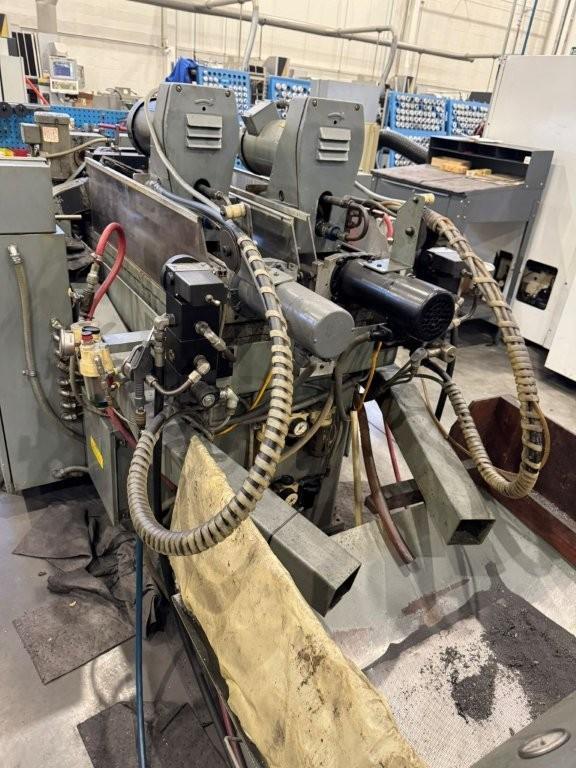

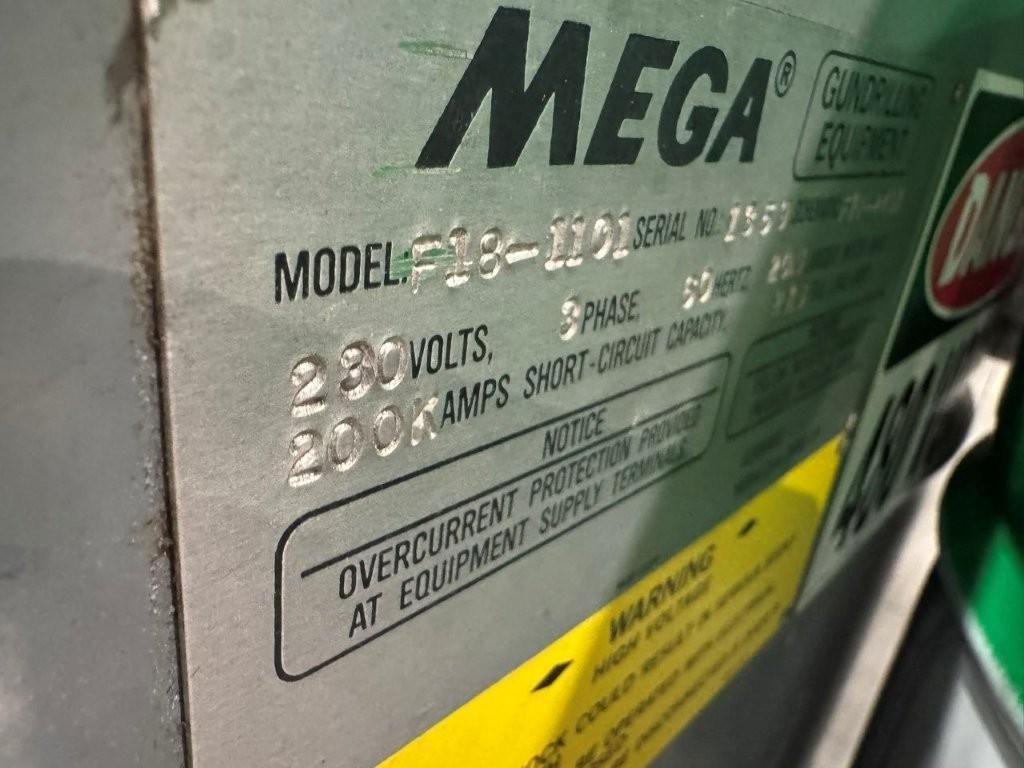

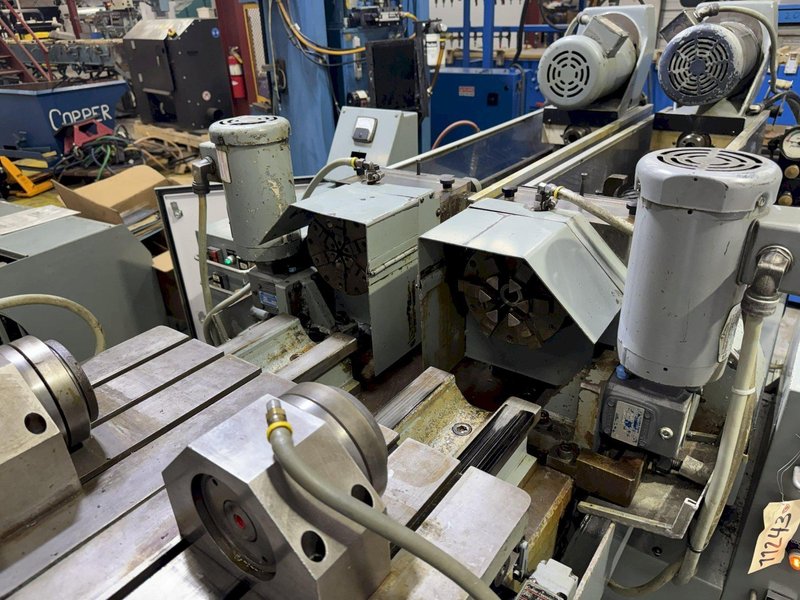

EQUIPPED WITH: Motor-Driven With 3 HP, 3 Phase, 60 Cycle, 460 Volt Spindle Drives with Automatic Direct. 7.5 HP, 3 Phase, 60 Cycle Coolant System. ¼ HP Counter Rotation Motors, Complete Electrical Controls. 1 HP DC Servo Feed Motors. Independent Controls for Each Spindle. (2) Tailstock Counter Rotation Spindles with Pneumatic Activation. (2) 6” 6-Jaw Chucks. (2) T-Slotted 12” x 14” Slide Table with 3” Stroke with Air Motor Positioning and Push Button Controls. End Work Supports. Flo-Minder Coolant Pressure Sensors. Eldorado F18 High-Pressure Coolant System with Filtration and Heat Exchanger. (2) Chip Boxes. Misc Tooling.
