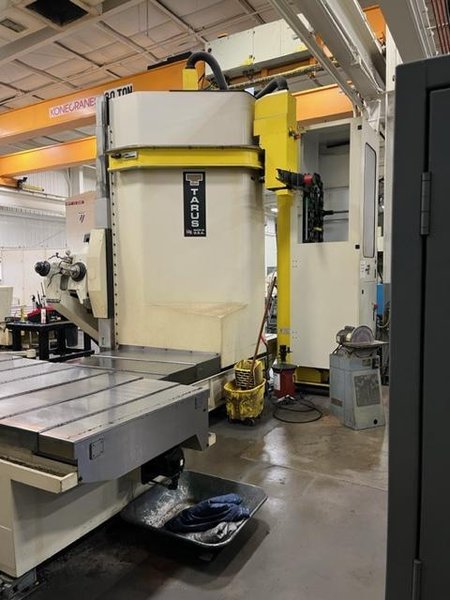

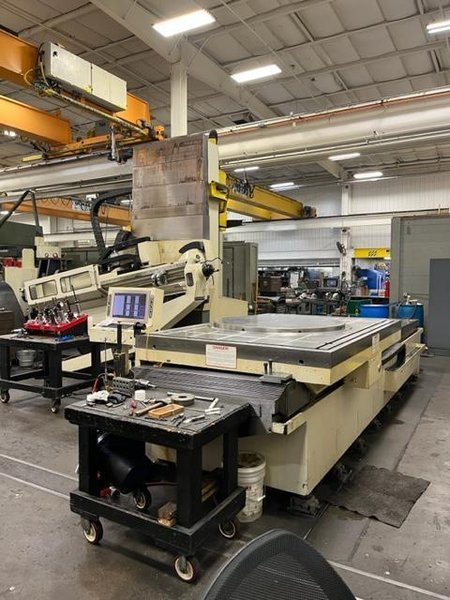

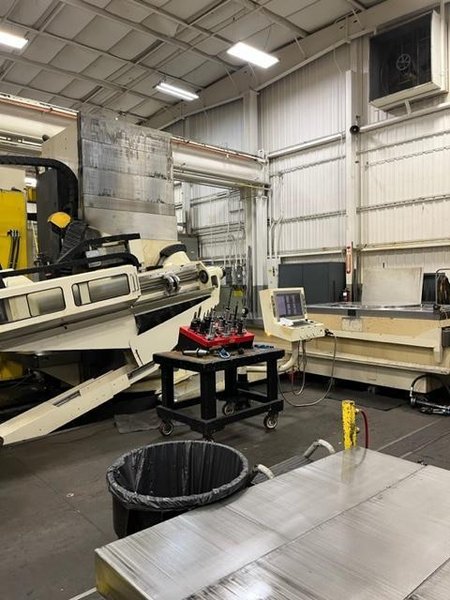

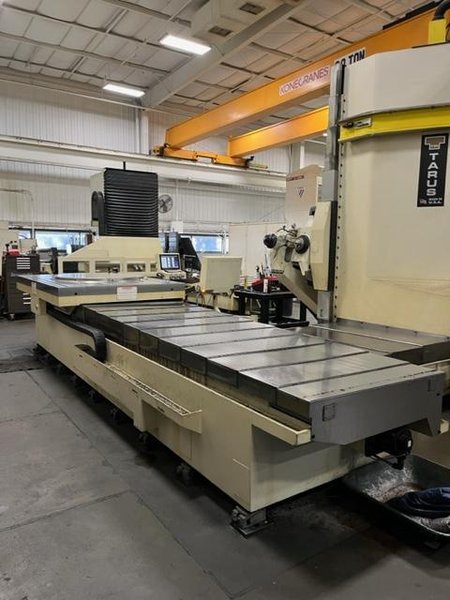

TARUS GDTTC510-6XRT 5-AXIS CNC GUN DRILL. STOCK # 0540226

CAPACITY:
Model Year..................................: 2013
Table Size..................................: 96" x 60"
Maximum Drilling Diameter...................: 2"
Maximum Stroke..............................: 77.992"
Max. Drill Speed............................: 3,000 RPM
X-Axis Travel...............................: 130"
Y-Axis Travel...............................: 59.015"
Z-Axis Travel...............................: 44.015"
Table Dimensions............................: 62.007" x 95.984"
Table Weight Capacity.......................: 60,000 lbs.

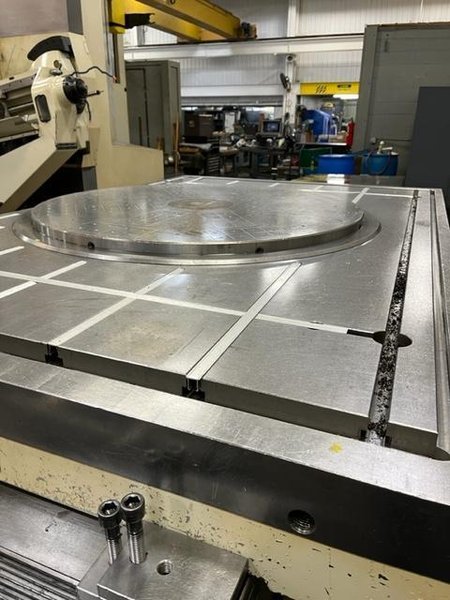

Built In Magnetic Rotary Table Diameter.....: 47.992"
Rotary Table Weight Capacity................: 60,000 lbs.
Auxiliary Spindle Speed.....................: 2,000 RPM
Auxiliary Spindle taper.....................: #50
Spindle Motor...............................: 25 KW

EQUIPPED WITH:
- Tarus Aldebaran 5-Axis CNC Control
- 1219 MM Built In Magnetic Rotary Table
- Tilting Head
- Auxiliary Milling Spindle (Not Operable)
- 40-Station Automatic Tool Changer
- Through Spindle Coolant System
- Magnetic Chip Conveyor
