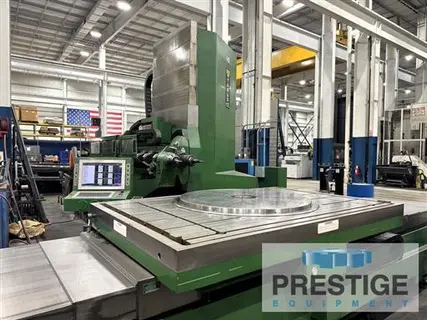

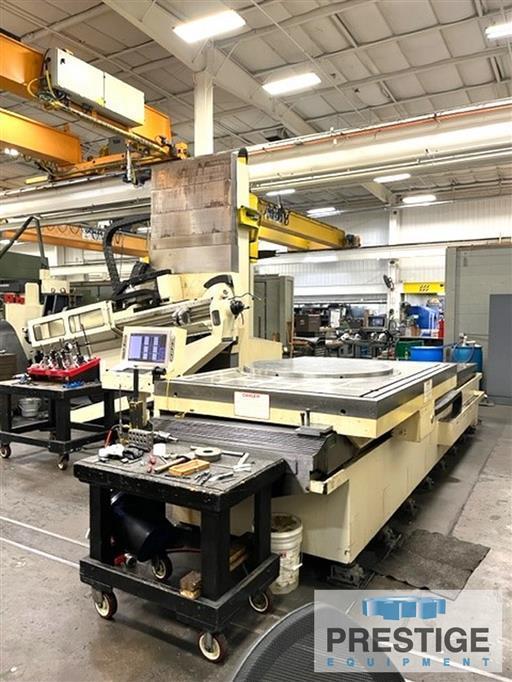

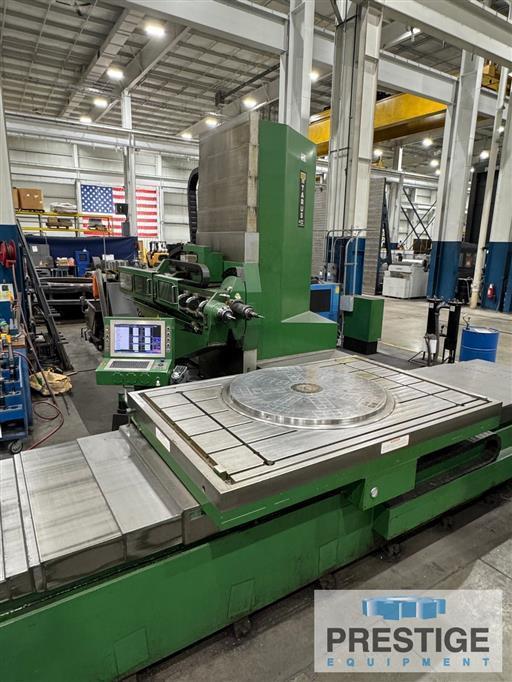

Drills Gun

SPECIFICATIONS:
Max. Drilling Diameter 2"
Maximum Drill Stroke 93.4"
X-Axis Travel, Table Travel 130"
Y-Axis Travel, Vertical Head Travel..... 60" 60"
Z-Axis Travel, Column In & Out.......... 46" 46"
B-Axis Table Rotation 360,000 Positions
Head Tilt, Infinite..................... +/- 15 Degrees +/- 15 Degrees

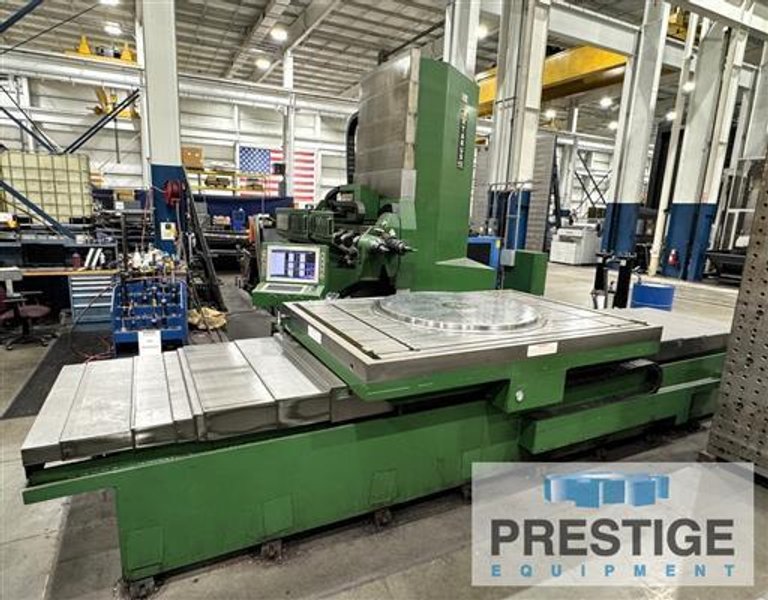

T-Slotted Table Size 62" x 96"
Built-In Magnetic B-Axis Rotary Table 52.75"
Table Weight Capacity 60,000 Lbs
Drilling Spindle Speeds, Inf Variable To 3,394 RPM
Auxiliary Spindle Milling Speed To 2,000 RPM
Spindle Motor 33 HP



Equipped With:

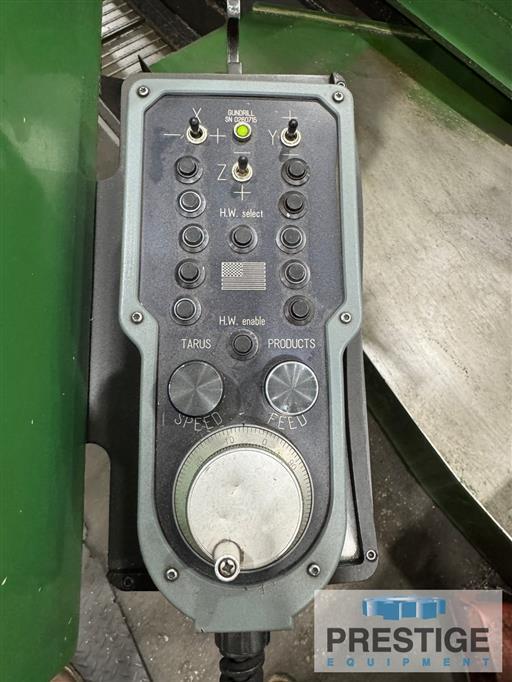

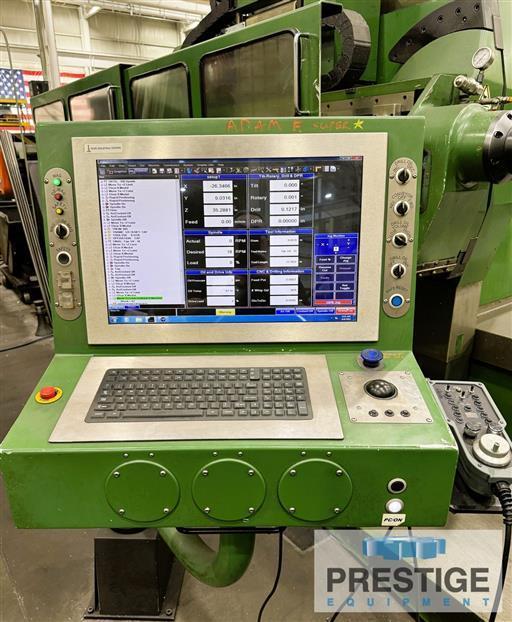

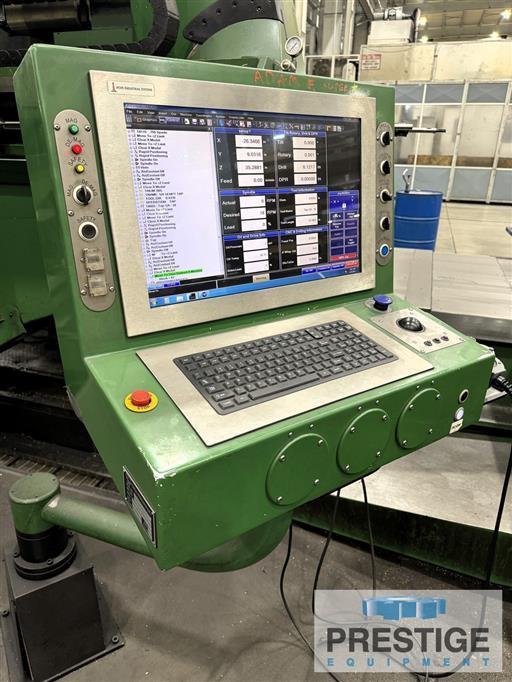

Tarus Aldebaran CNC Control

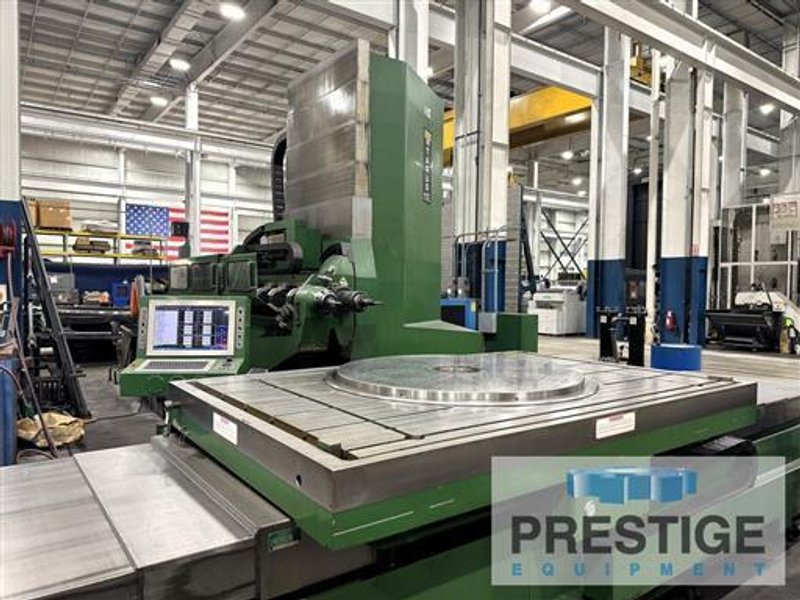

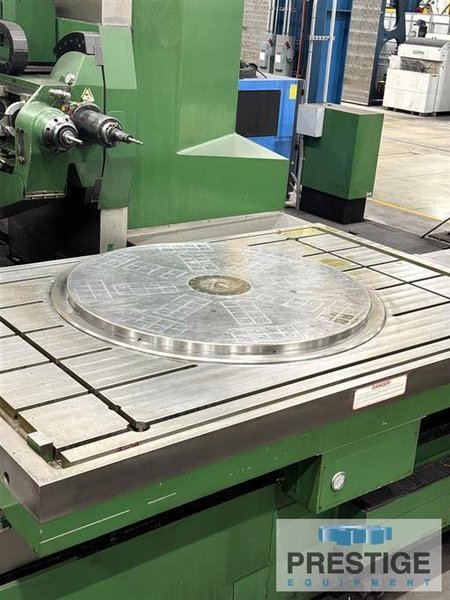

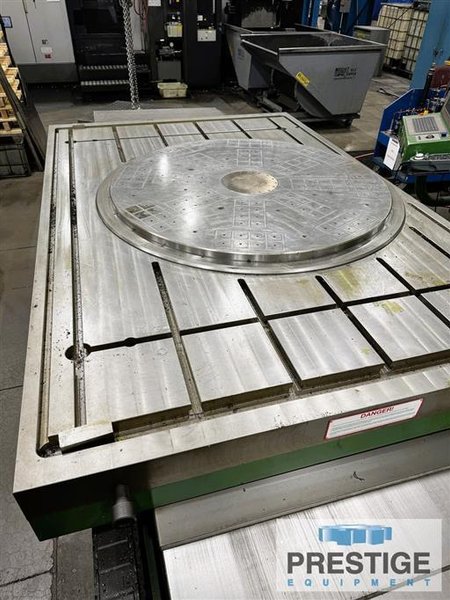

52.7" Built In Magnetic Rotary Table (Full B-Axis)
Tilting Head +/- 15 Degrees

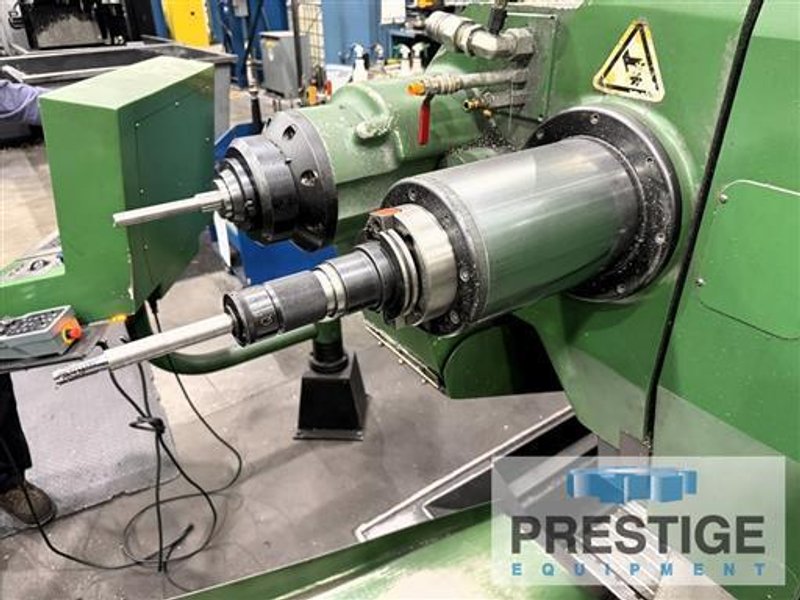

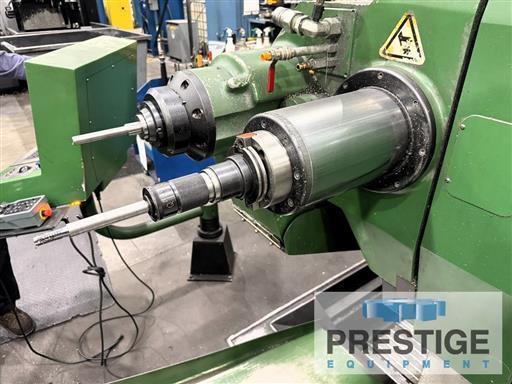

Cat 50 Auxiliary Milling Spindle
High Pressure Coolant System
3 Whip Guides

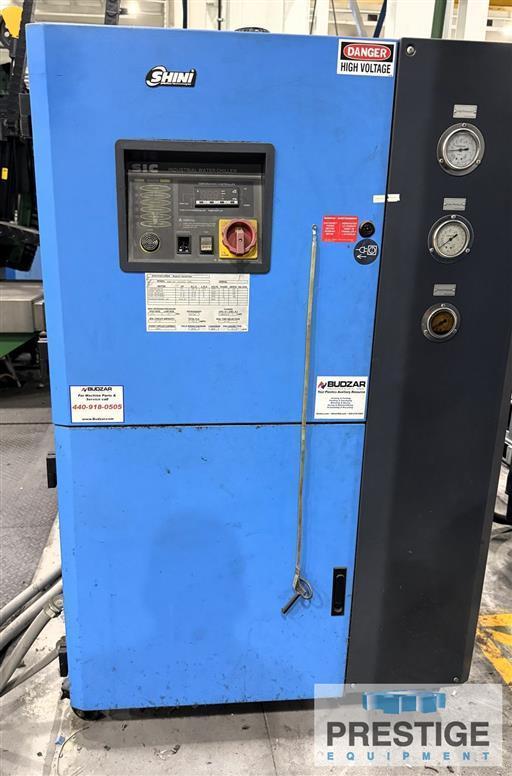

Coolant Chiller

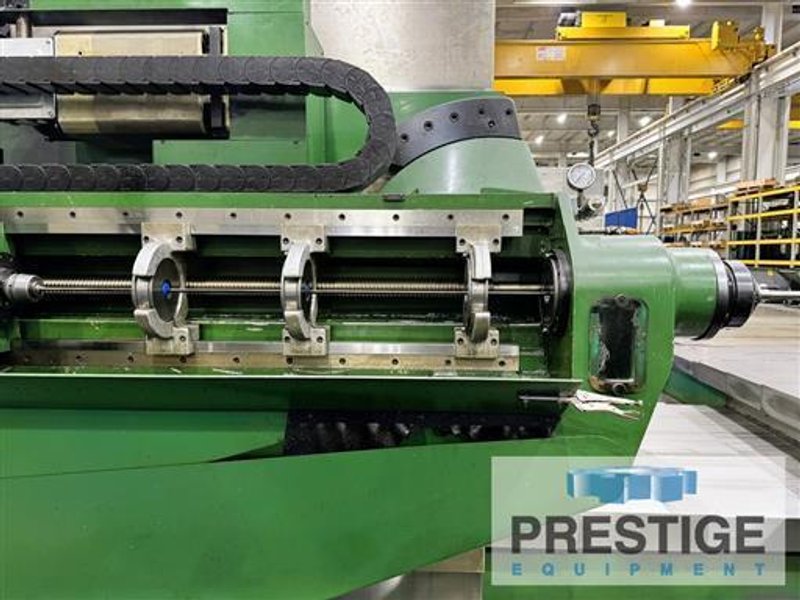

Precision Ground Ball Screws
Box Way Construction
Telescopic Steel Way Covers
CNC Machining, Tapping, Chamfering and Thread Milling

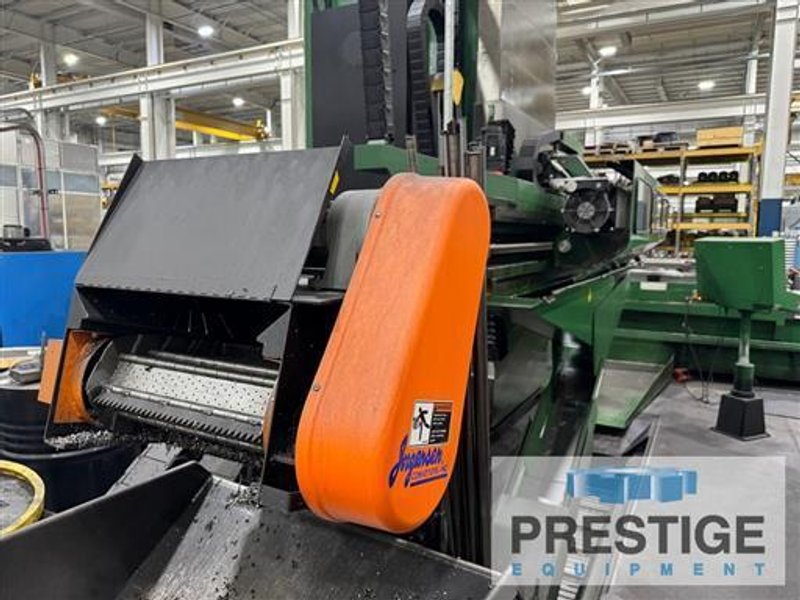

Jorgensen Chip Conveyor


Auction Message:
To Be Sold at Auction 4/9 - Surplus to Strohwig Industries




View The Auction
