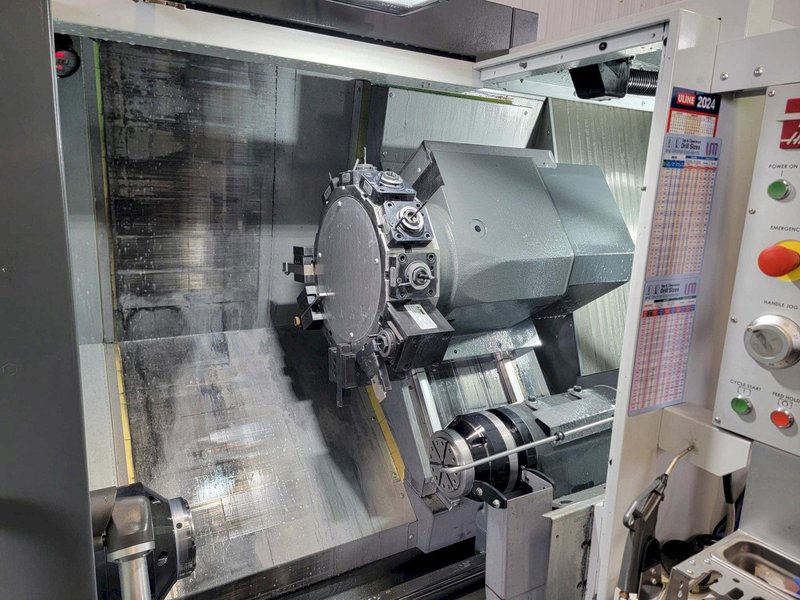

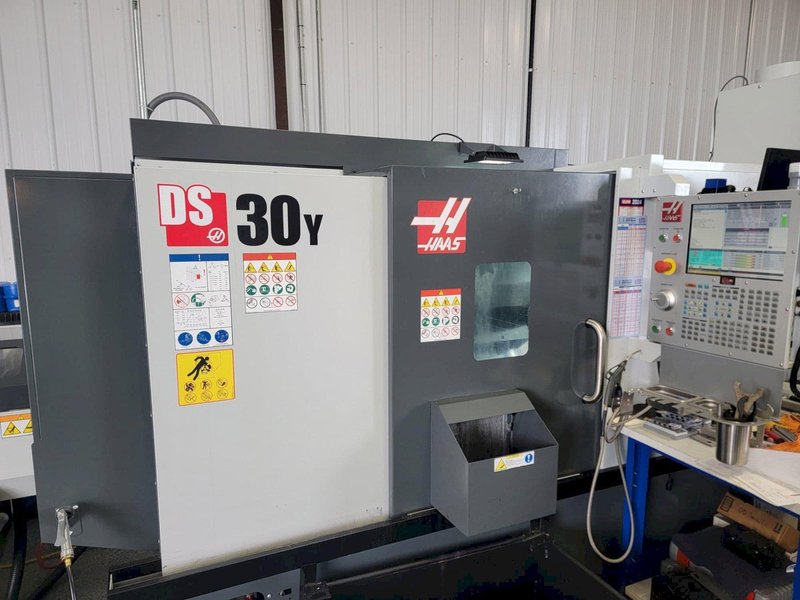

Haas DS-30Y CNC Lathe, 2023 – Fully Equipped, Bar Feeder, Low Hours, Tailstock

Swing Diameter: Over Front Apron: 31.8 in (806 mm) Over Cross Slide: 20.8 in (527 mm) Over Second Spindle: 21.8 in (552 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Capacities: Chuck Size: 10.0 in (254 mm) Max Cutting Diameter (varies with turret): 18.0 in (457 mm) Max Cutting Length (varies with workholding): 23.0 in (584 mm) Bar Capacity: 3.00 in (76 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Travels: X Axis: 12.5 in (318 mm) Z Axis: 23.0 in (584 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Feedrates: Rapids on X: 472 ipm (12.0 m/min) Rapids on Y: 472 ipm (12.0 m/min) Rapids on Z: 945 ipm (24.0 m/min)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Axis Motors: Max Thrust X: 4100 lbf (18238 N) Max Thrust Y: 2300 lbf (10231 N) Max Thrust Z: 5100 lbf (22686 N)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle: Spindle Nose: A2-6 Drive System: Direct Speed, Belt Drive Max Rating: 30.0 hp (22.4 kW) Max Speed: 4500 rpm Max Torque: 275 ft-lbf @ 600 rpm (373 Nm @ 600 rpm) Spindle Bore ø: 3.50 in (88.9 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Main Spindle C Axis: Max Rating: 5.0 hp (3.7 kW) Positioning (±) 0.01 ° Brake Clamp Force: 1000 lbf (4448 N) Brake Diameter: 14.4 in (366 mm) Control Type: Interpolated Motion and Positioning

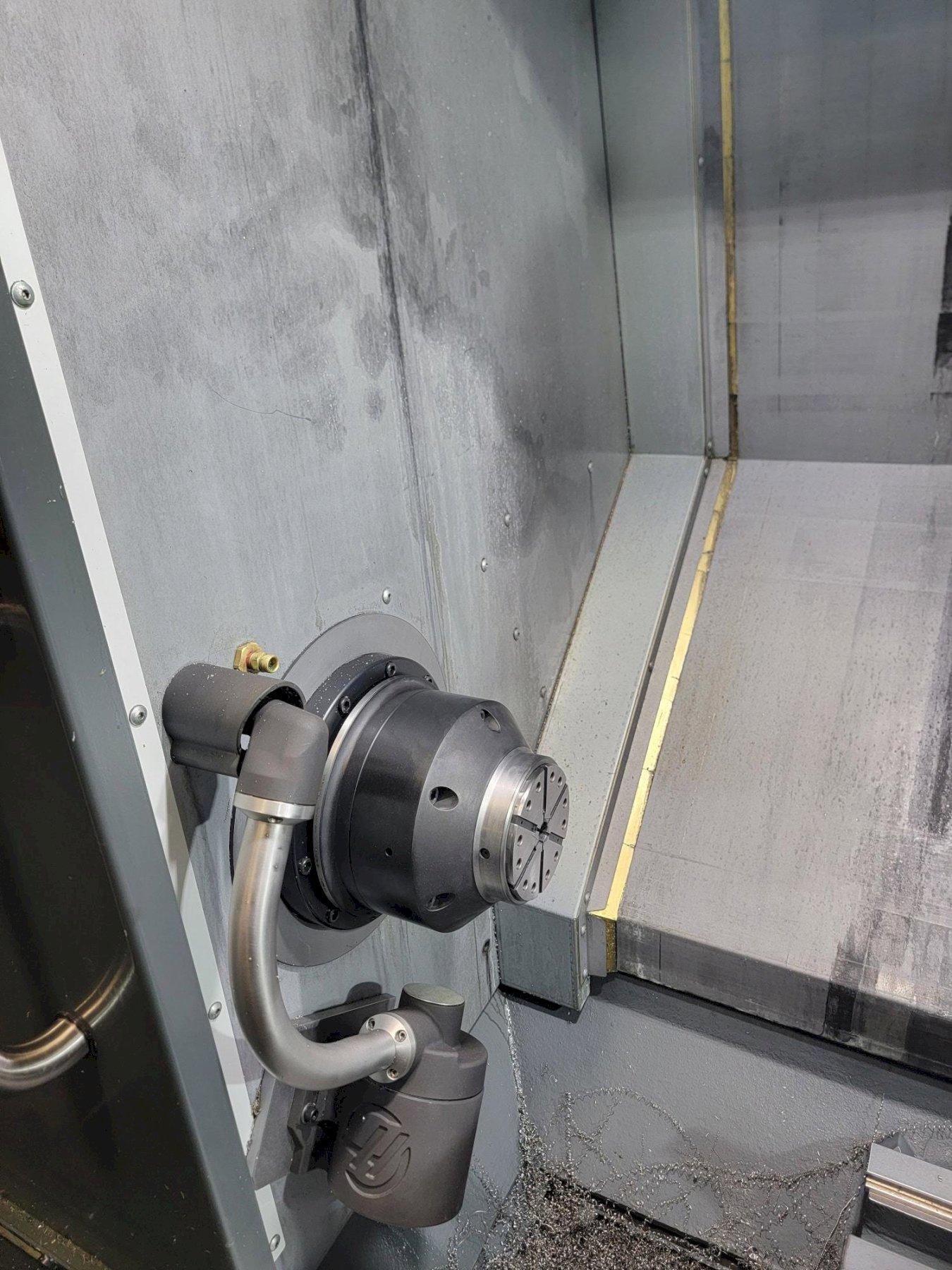

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Secondary Spindle: Chuck Size: 8.3 in (210 mm) Spindle Nose A2-5 Drive System: Direct Speed, Belt Drive Max Rating: 20.0 hp (14.9 kW) Max Speed: 4800 rpm Max Torque: 110 ft-lbf @ 700 rpm (149 Nm @ 700 rpm) Spindle Bore ø: 2.00 in (50.8 mm) Bar Capacity: 2.00 in (51 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Secondary Spindle Positioning: Brake Clamp Force: 500 lbf (2224 N) Brake Diameter: 7.0 in (178 mm) Control Type: Positioning Only

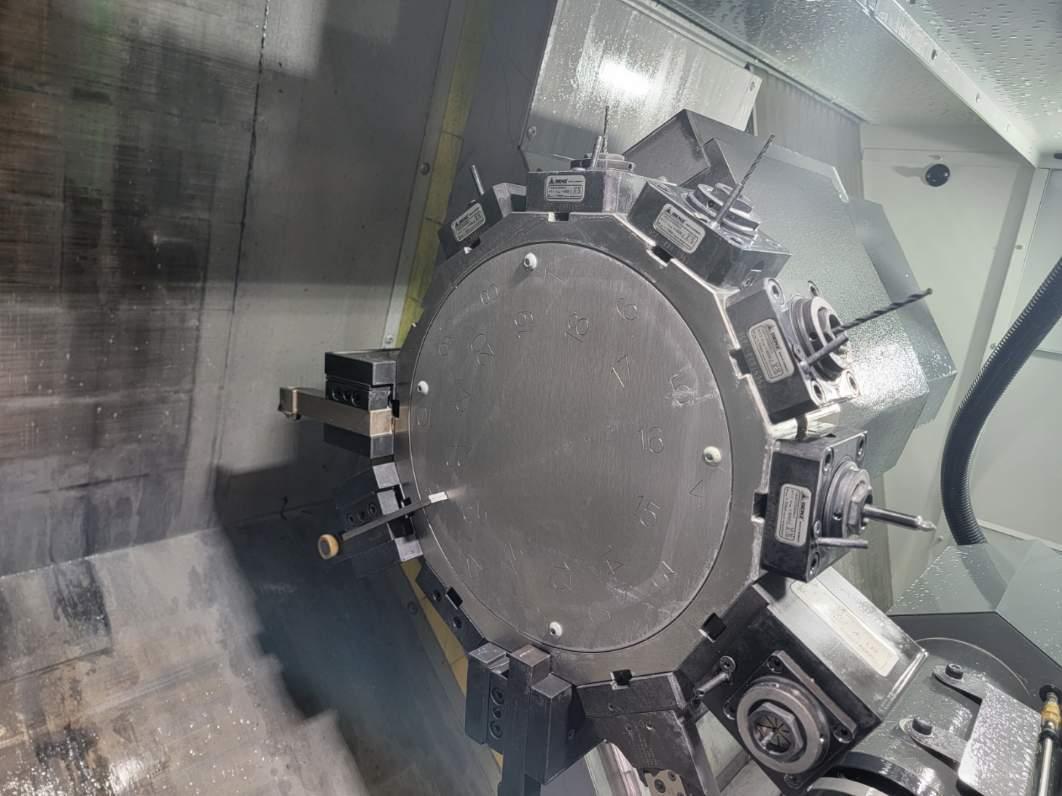

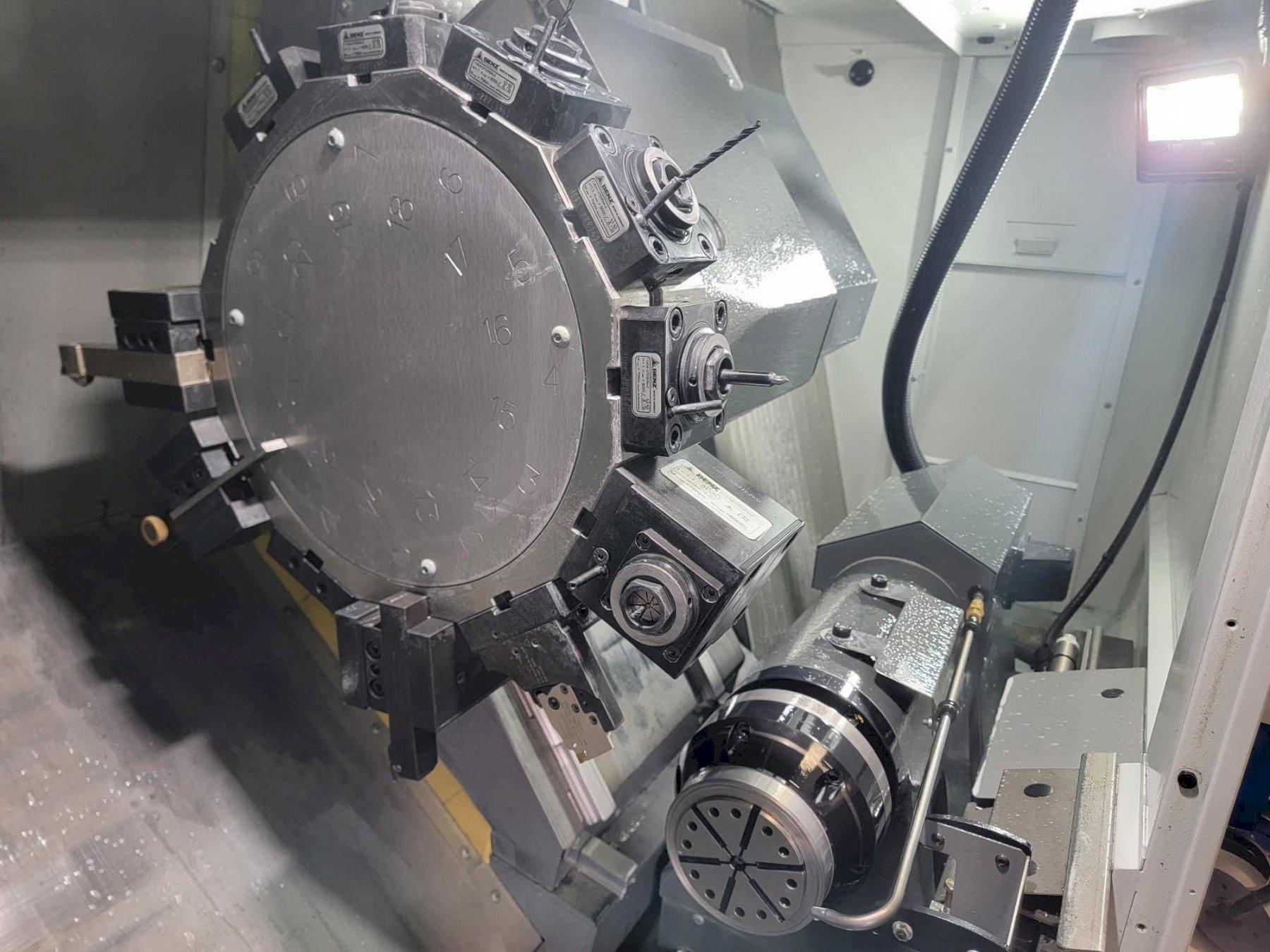

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Turret: Number of Tools: 12 Stations OD vs ID Tools: Any Combination (will vary with turret) Boring Bar Rear Clearance (from back of turret): 4.00 in (102.0 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Live Tooling: Max Speed: 6000 rpm Drive Ratio: 1:1 Tooling: BMT65

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General: Coolant Capacity: 55 gal (208 L)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Air Requirements: Air Required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar) Inline Air Hose: 3/8 in Coupler (Air): 3/8 in Air Pressure Min: 80 psi (5.5 bar)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Specification: Spindle Speed: 4500 rpm Drive System: Direct Speed, Belt Drive Spindle Power: 30.0 hp (22.4 kW) Input AC Voltage (3 Phase) – Low: 220 VAC Full Load Amps (3 Phase) – Low: 70 A Input AC Voltage (3 Phase) – High: 440 VAC Full Load Amps (3 Phase) – High: 35 A

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Dimensions – Shipping: Domestic Pallet: 171 in x 90 in x 92 in (435 cm x 229 cm x 234 cm) Export Pallet: 171 in x 90 in x 92 in (435 cm x 229 cm x 234 cm) Weight: 16000 lb (7258.0 kg)

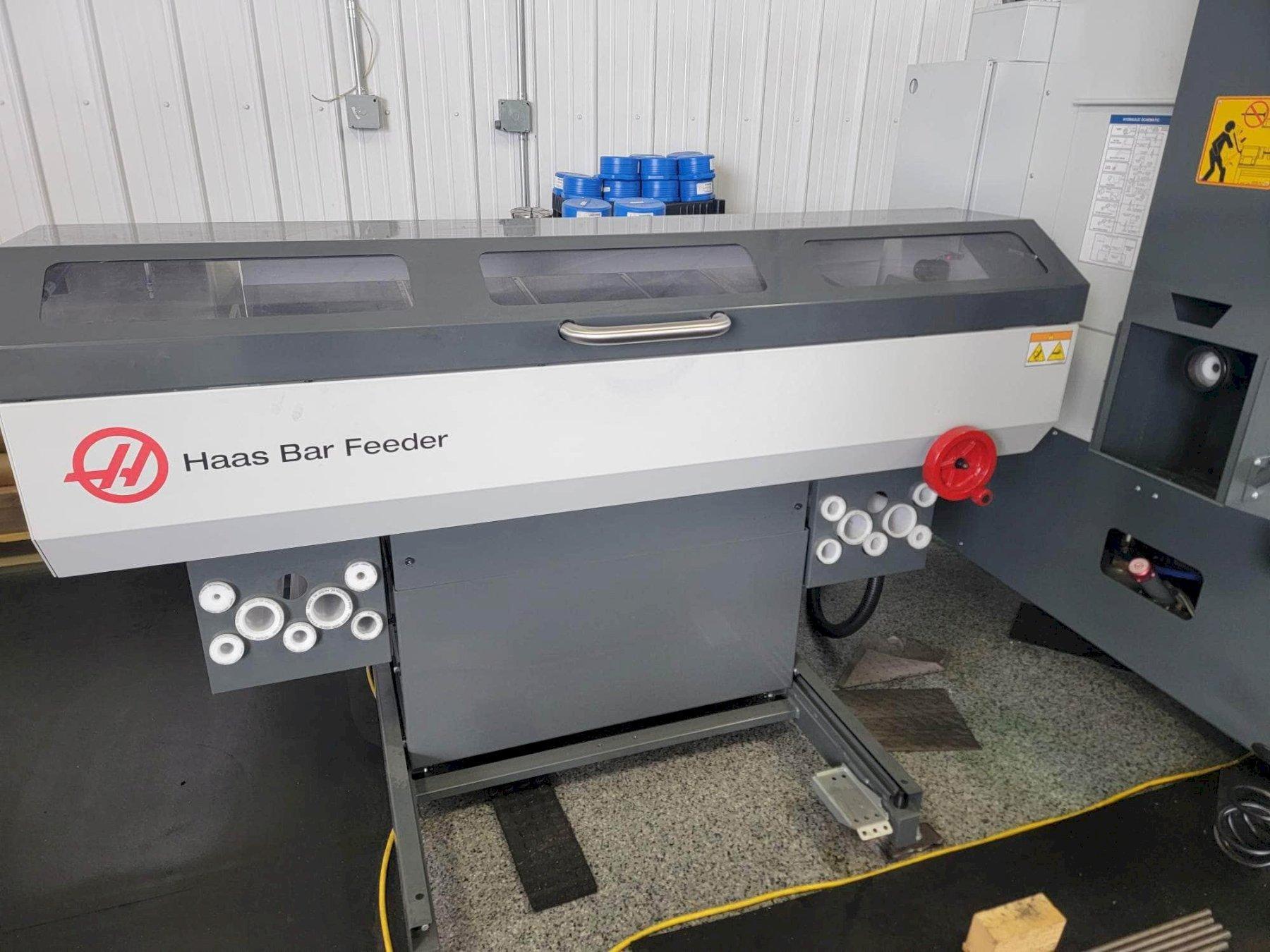

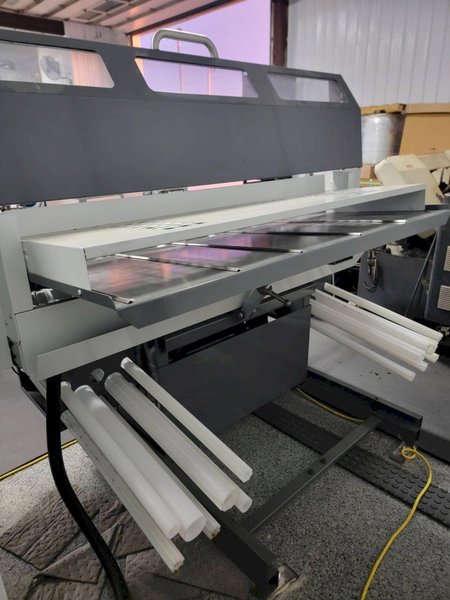

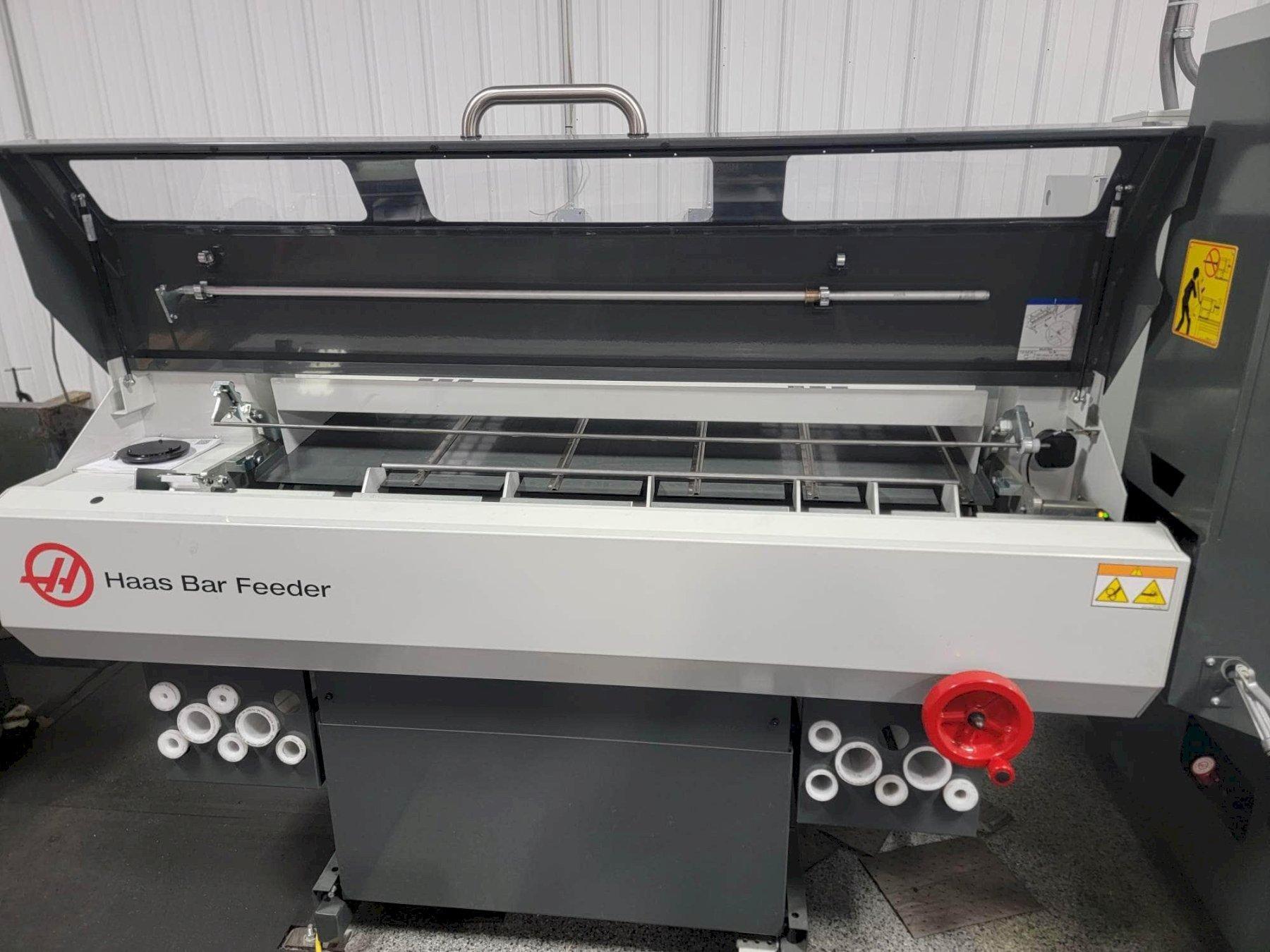

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Bar Capacities: Bar Diameter Range: 0.375″ to 3.125″ (9.5 mm to 79.4 mm) Bar Length Capacity: 48″ (1219 mm) Recommended Max Bar Length in Spindle *: 48″ (1219 mm) Minimum Bar Length: 10″ (254 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Charging Tray: Max Number of Bars to Load: Up to a 30″ (762 mm) width when staged in charging tray; any combination of bar diameters Max Weight of Total Bars: 650 lb 295 kg

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Max Bar weight Capacity: Lift Arm Max Weight Limit: 80 lb (36 kg)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Pushrod: Maximum Thrust Push Limit: 100 lb (445 N)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Accuracy: Positioning Without Deadstop **: ± 0.01″ ± (0.25 mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,General: Interface: Directly to the Haas Control only Power Requirements: Connects directly to the Haas Electrical Cabinet Machine Weight: 900 lb (408 kg)
