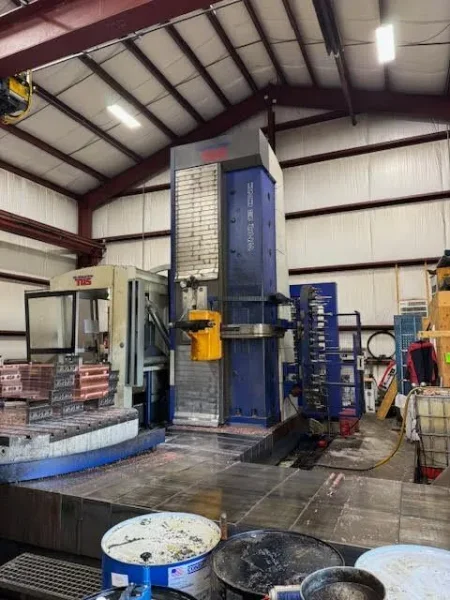

2012 TOS WHQ-13 CNC Horizontal Boring Mill

2012 TOS WHQ-13 CNC Horizontal Boring Mill

Name: 2012 TOS WHQ-13 CNC Horizontal Boring Mill
Brand: TOS
SKU: 34115
Availability: PreOrder

Brand

TOS

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Boring Mills, Horizontal, Table Type

Manufacturer:

TOS

Model:

WHQ13

Year:

2012

Stock #:

34115

Status:

For Sale

Description

2012 TOS WHQ-13 CNC Horizontal Boring Mill
5M x 3M x 1M, 87" W-Axis, Bull B-Axis, 5.1" Spindle Diameter, #50 Taper, 3K RPM
Heidenhain i530 Control, Probe, Chip Conveyor, & More

ImperialMetric

Spindle Size	5.1"	129.54 mm
X-Horiz Tvl of Table	3,225 mm	126.97"
Y-Vert Tvl of Head	2,490 mm	98.032"
Power	37.3 kW	50 hp
RPM	3,000 RPM	3,000 RPM
Table-W	1,800 mm	70.866"
Table-L	2,500 mm	98.425"

TOS WHQ-13 CNC Horizontal Boring Mill
NEW 2012

Specifications:
Control ..........................: Heidenhain TNC i530
Spindle Diameter .................: 5.1"
Spindle Taper ....................: #50
Maximum Spindle Speed ...........: 3,000 RPM
Spindle Drive Motor ..............: 50 HP
Travels X-Axis ...................: 197" (5 Meter)
Y-Axis (Vertical).........: 118" (3 Meter)
Z-Axis (Spindle) .........: 39" (1 Meter)
W-Axis Column in/out .....: 86"

Table Size .......................: 71" x 98" (Rotary) Full Contouring
Maximum Load .....................: 56,000 Lbs.

Equipped With::
Rotary Table Index: 360,000 Degrees Full Contouring B Axis
T-Type (Column In/Out)
All Hardened Ways
Spindle Oil Temp. Compensation
Coolant Filter Paper Roll Type
Coolant Through Spindle
Renishaw Probe
Chip Conveyor
Auto Lube System
Mist Collector
Spindle Nose Support
40 ATC Tool Changer
