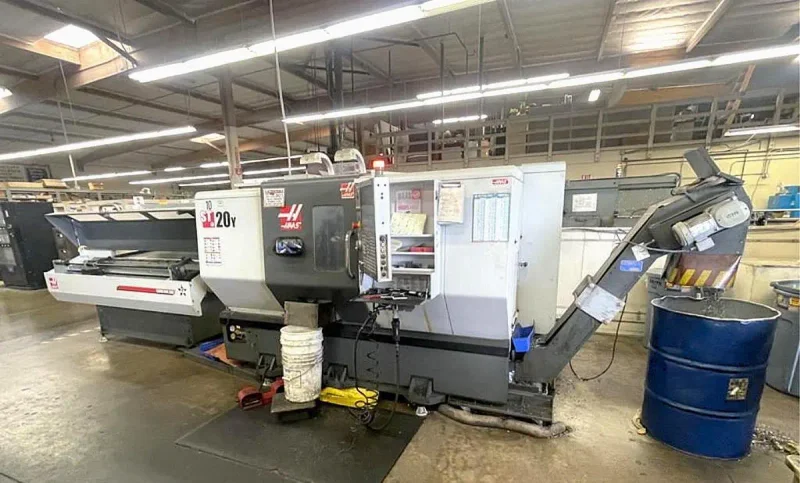

2013 HAAS ST-20Y | Lathes, CNC (3-Axis or More)

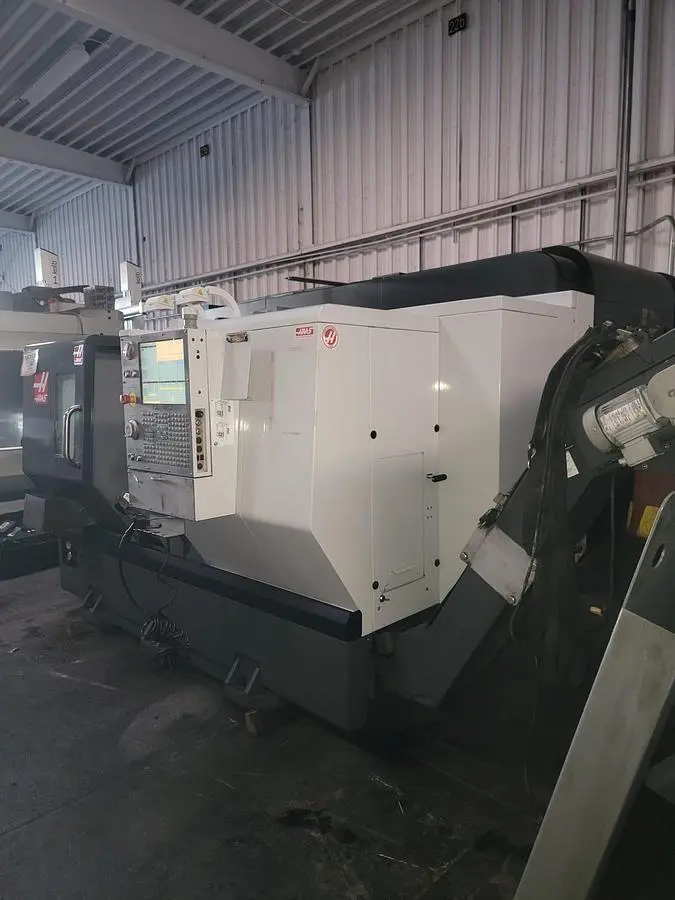

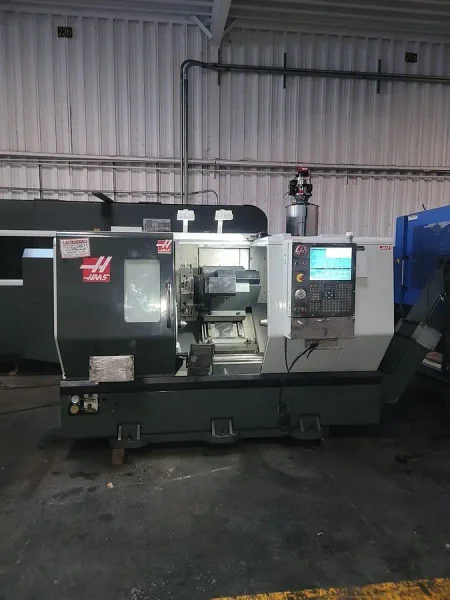

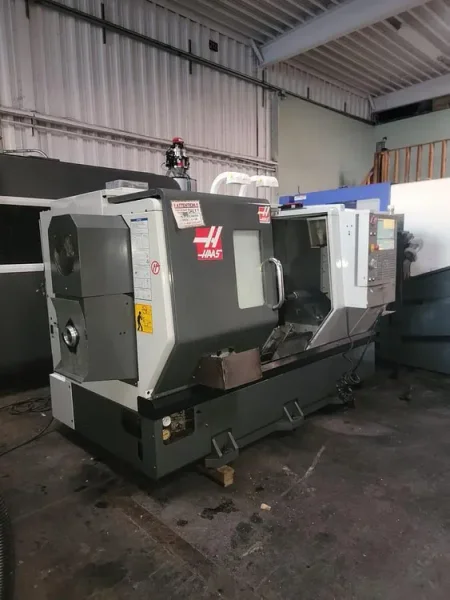

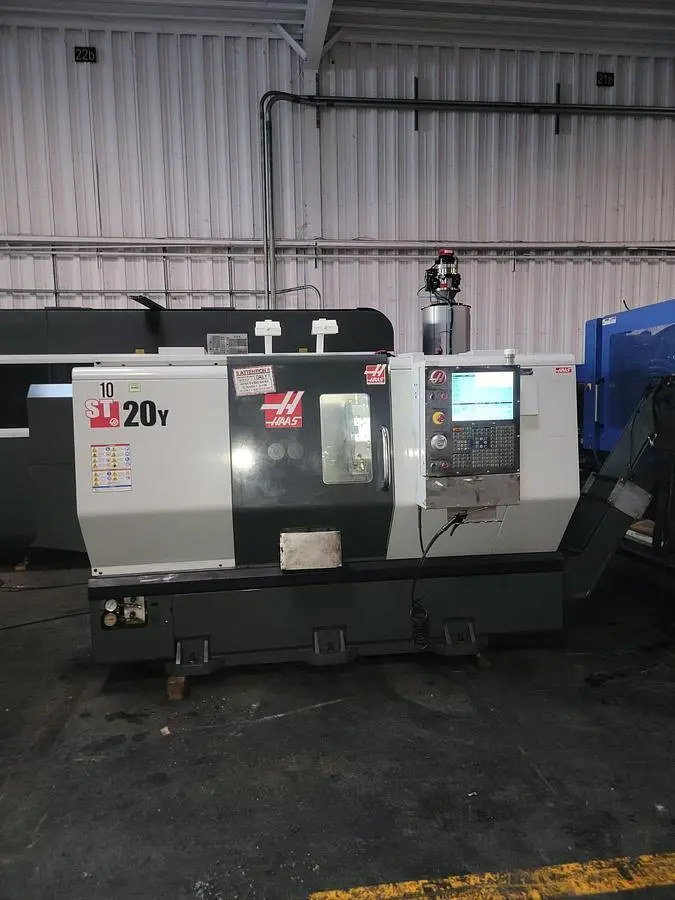

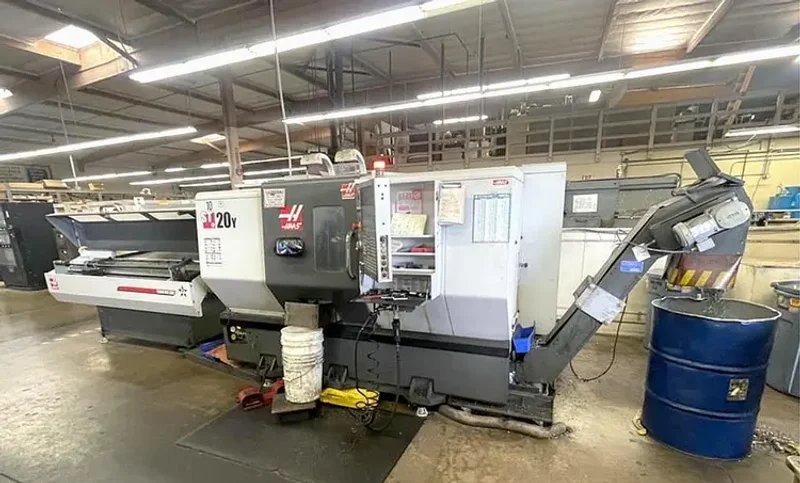

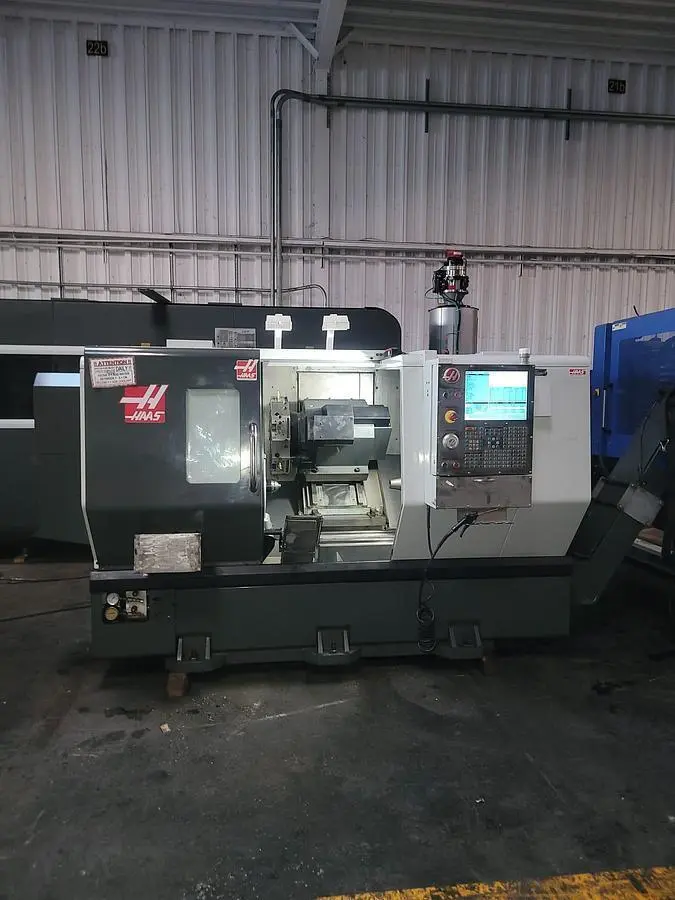

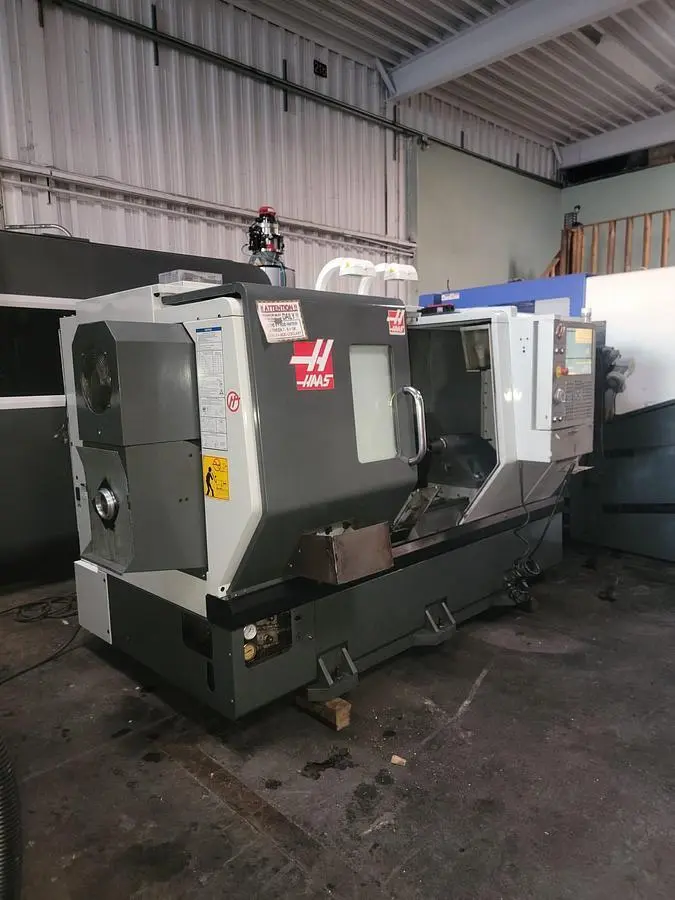

Haas ST-20Y CNC Lathe w/ Y-Axis, Live Tooling, & Bar Feeder
New: 2013

Specifications:
3-Jaw Hydraulic Chuck: 8.3"
Bar Capacity: 2.5"
Spindle Bore: 3.5"
X-Axis Travel: 9.3"
Z-Axis Travel: 21"

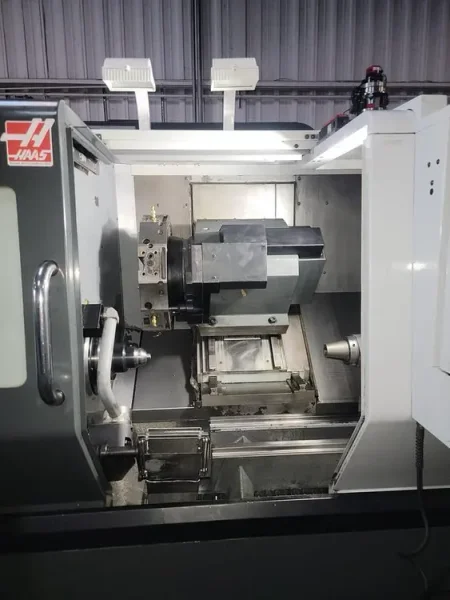

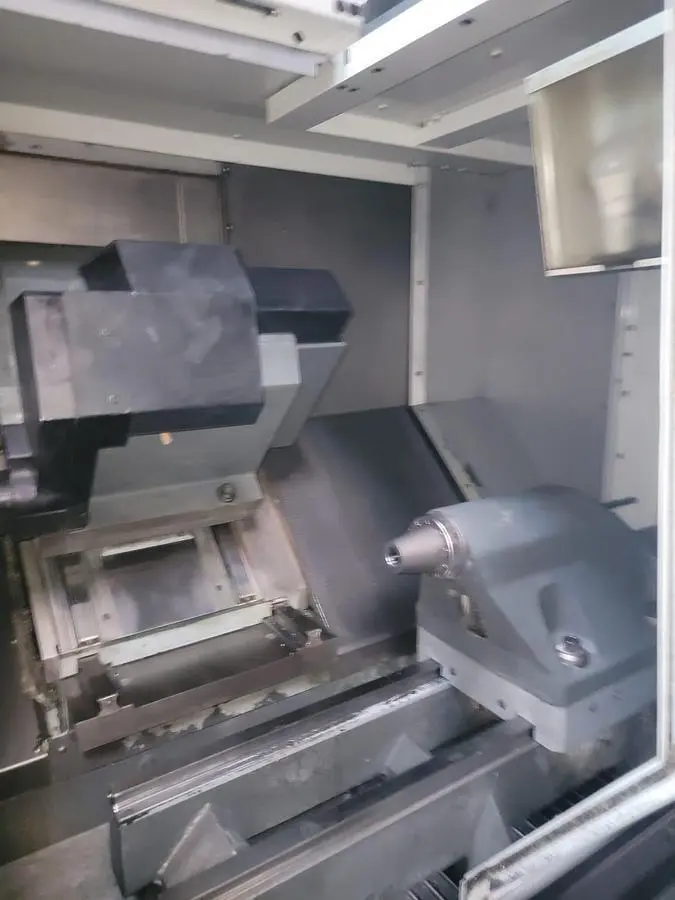

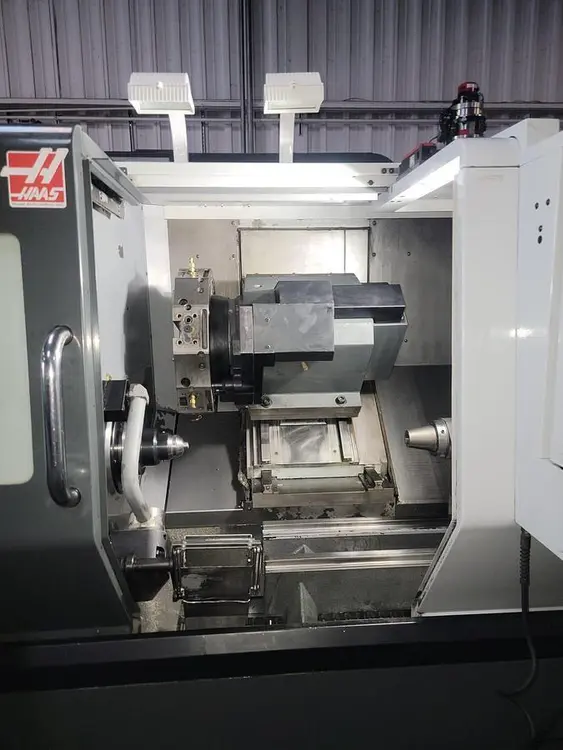

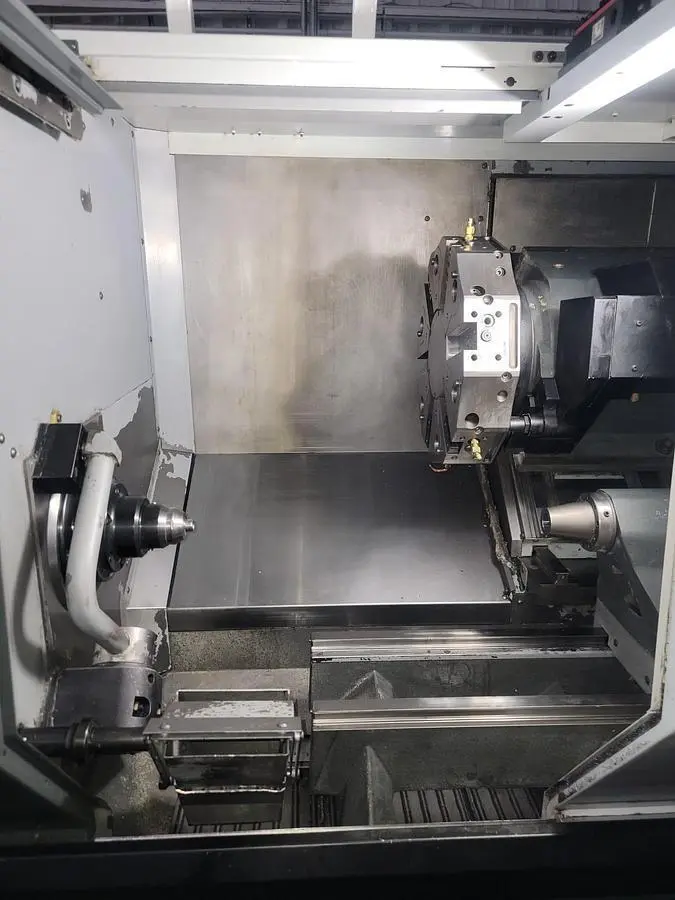

Turret: 12 Station VDI/BOT
Spindle: 4,000 RPM A2-6
Turning Length: 21"
Max Swing: 31.75"
Spindle Motor: 20 HP
Rapid Traverse Rate: 472 IPM (X, Y), 945 IPM (Z)

Equipped With::
Y-Axis
HT Live Tooling C-Axis
1 Radial Live Tool Holder
1 Axial Live Tool Holder
Programmable Hydraulic Tailstock
Automatic Tool Pre-Setter
Parts Catcher
Rigid Tapping
Macros
Spindle Orientation

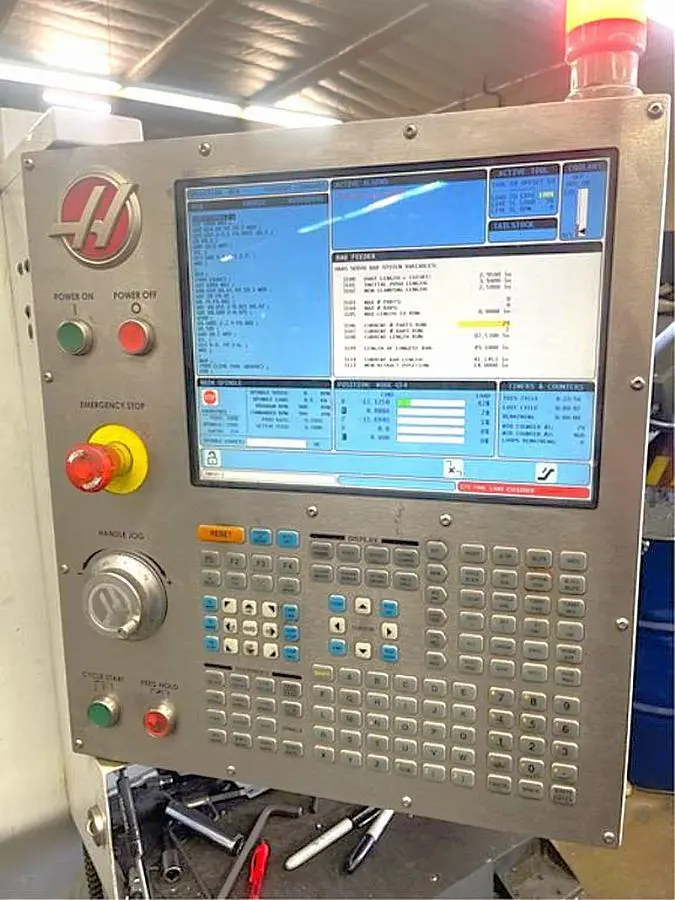

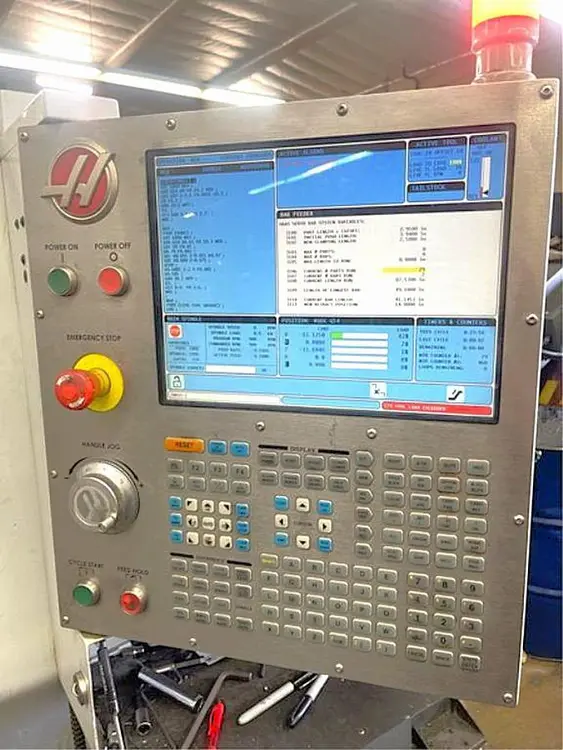

Media Display
Intuitive Programming System
High Pressure 300psi Coolant System
48 Gallon Coolant Tank and Pumps
High Intensity Lighting
Internal High Voltage Transformer

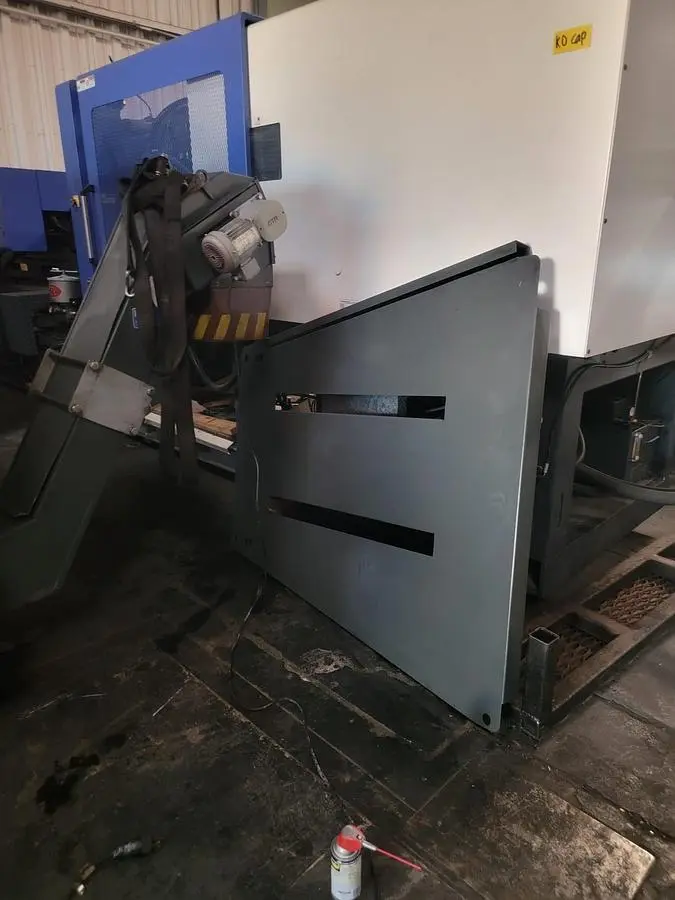

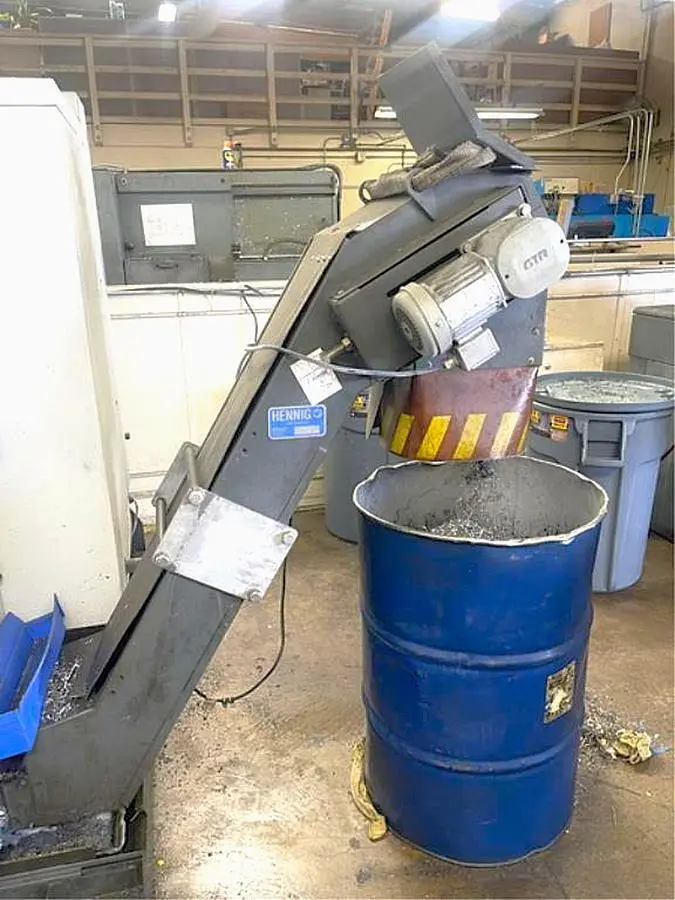

Hennig Chip Conveyor

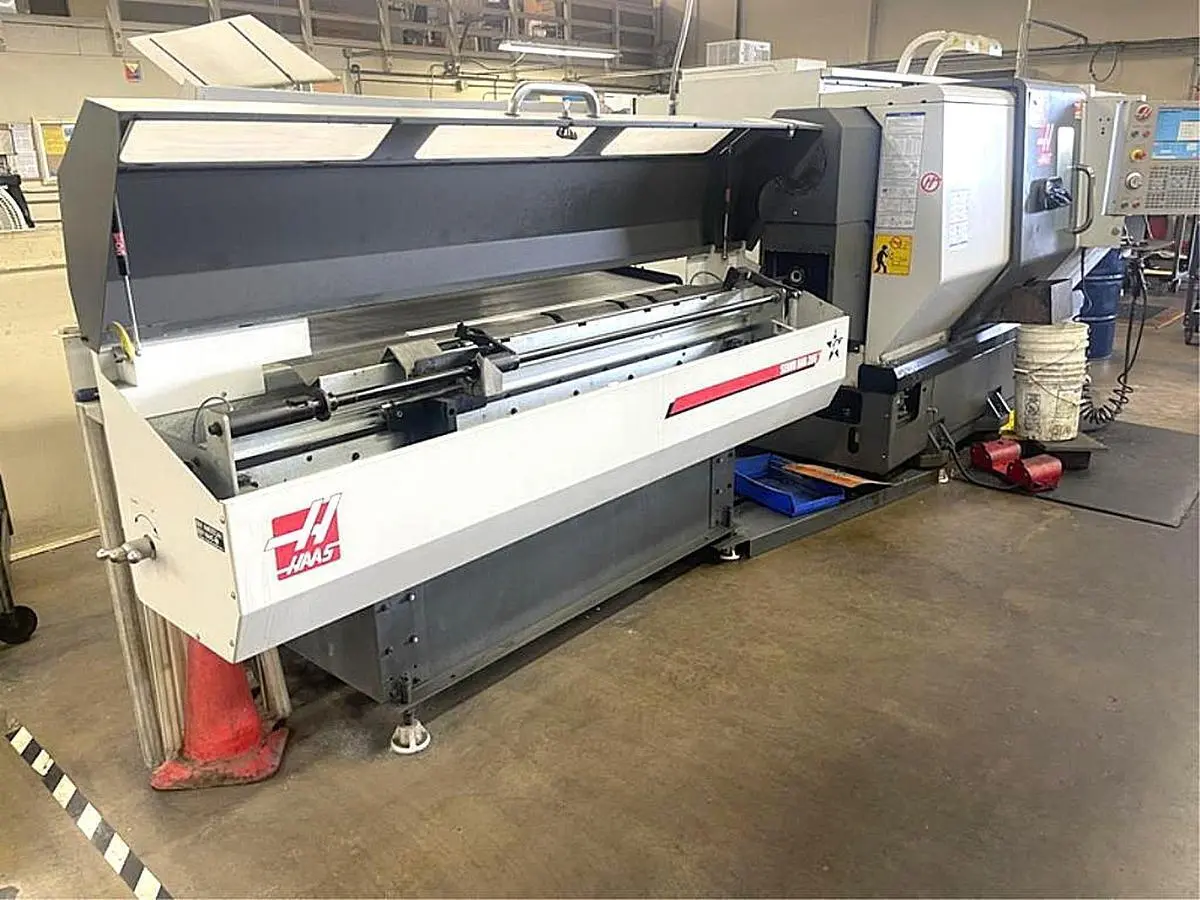

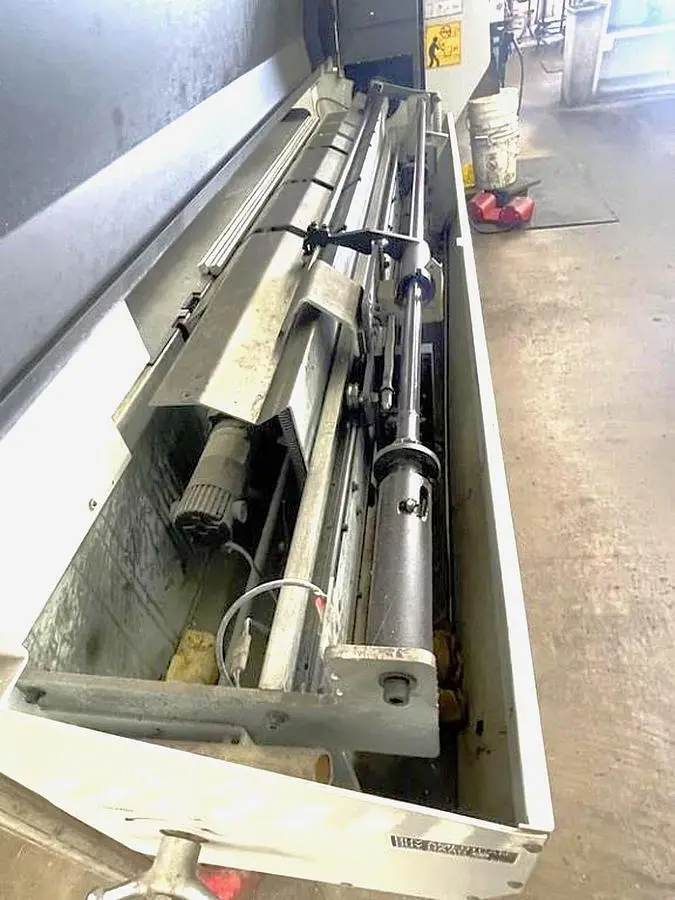

HAAS 48A Bar Feeder & Spindle Liners

Excellent Condition

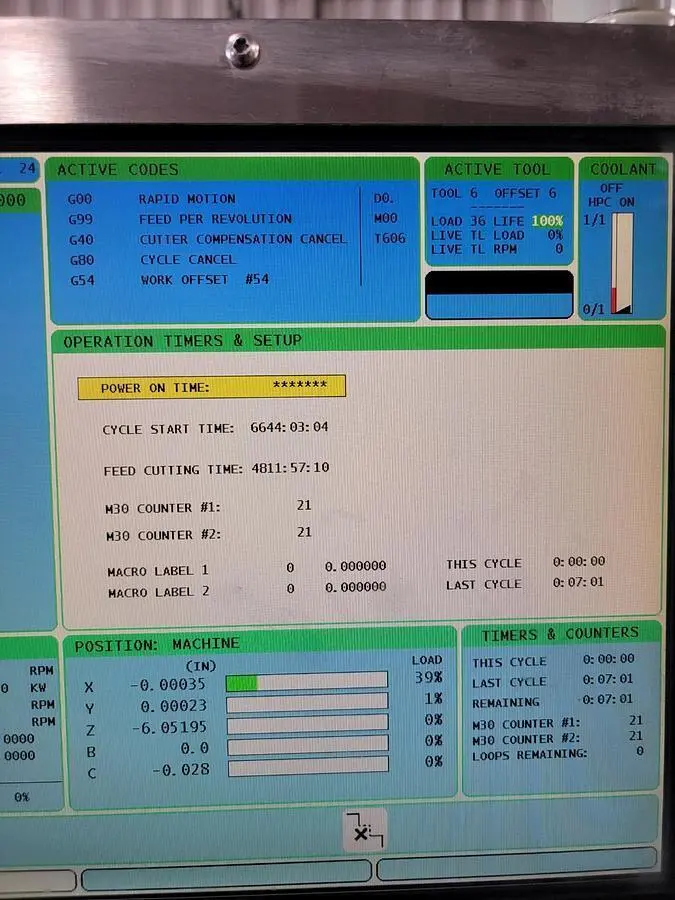

Only 4,800 Feed Cutting Hours
