Name: 2013 DMG MORI DMU 50 ECOLINE | Machining Centers, Horizontal, (5-Axis or More)
Brand: DMG MORI
SKU: 34116
Availability: PreOrder

Brand

DMG MORI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Overview

Type:

Machining Centers, Horizontal, (5-Axis or More)

Manufacturer:

DMG MORI

Model:

DMU 50 ECOLINE

Year:

2013

Stock #:

34116

Status:

For Sale

Description

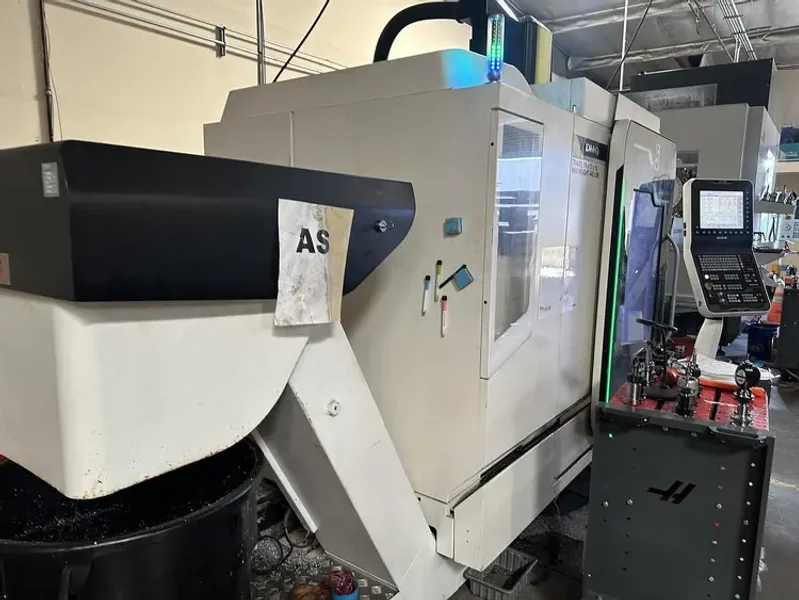

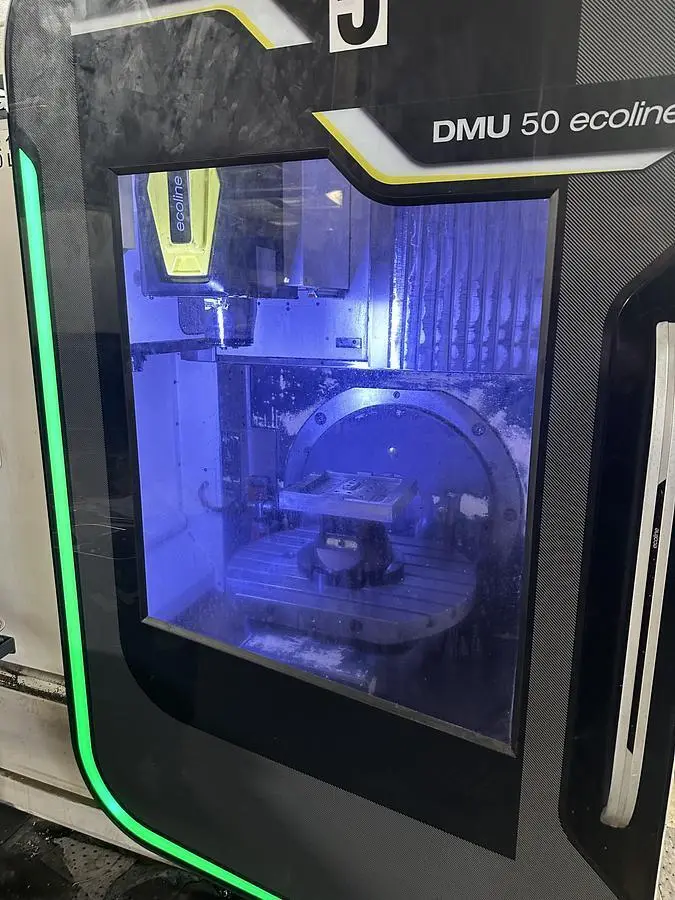

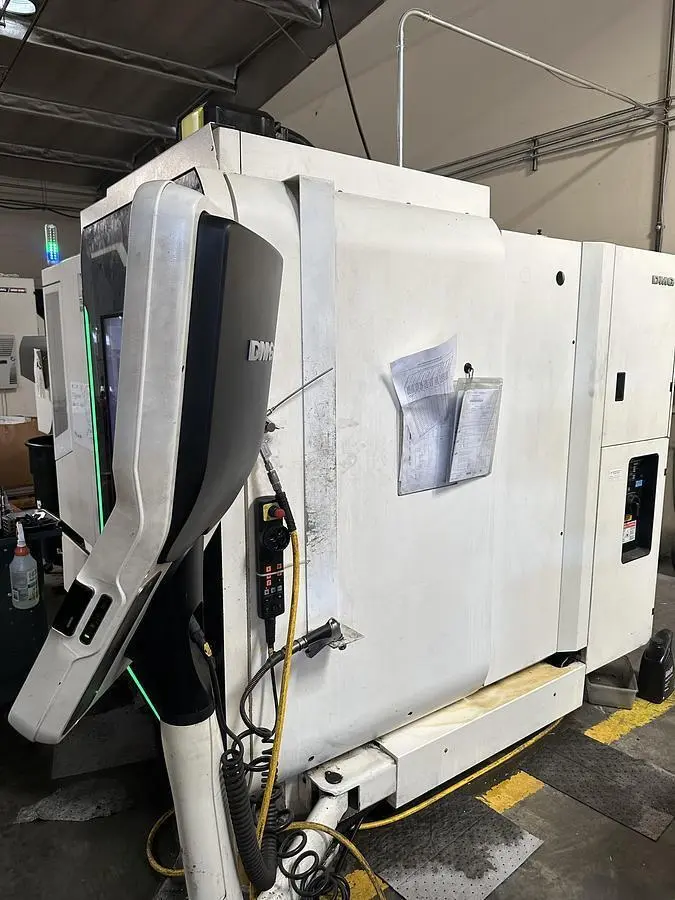

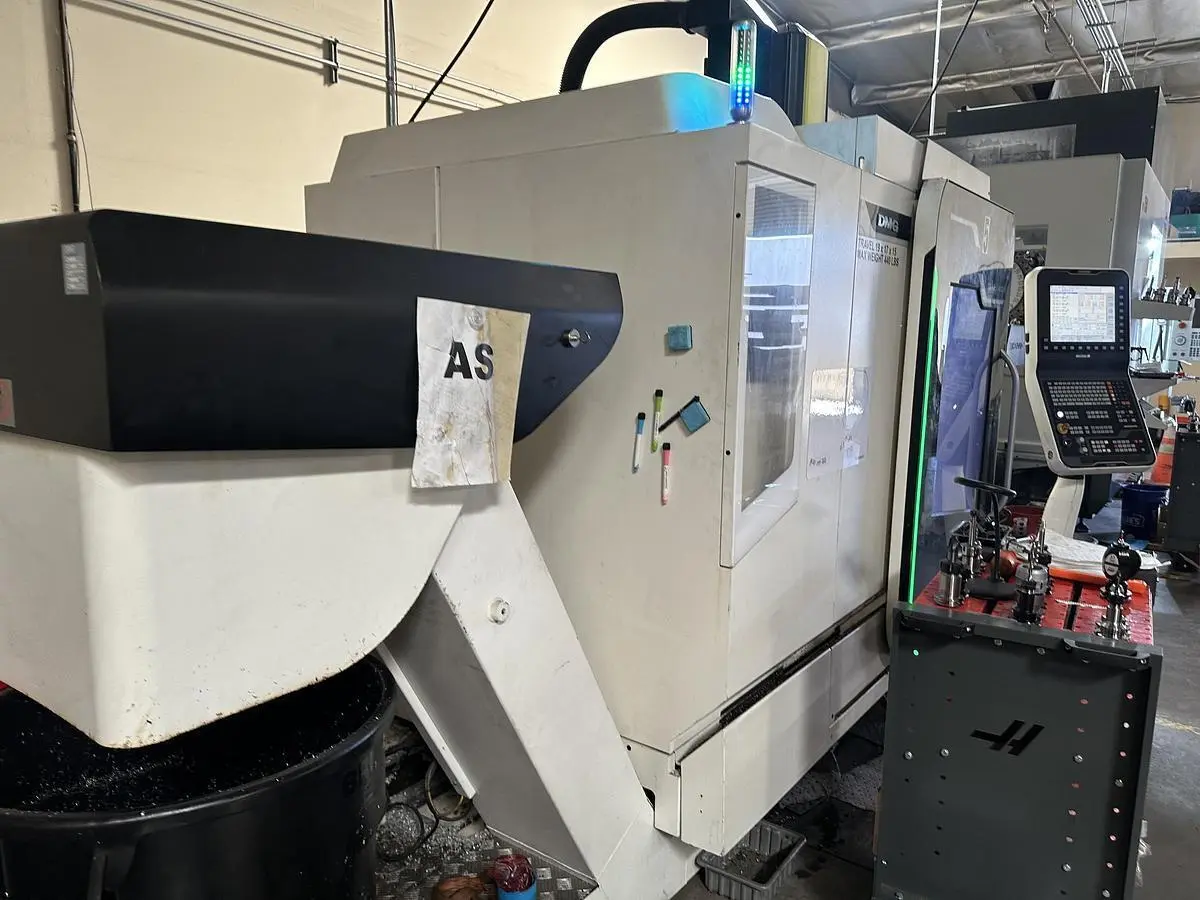

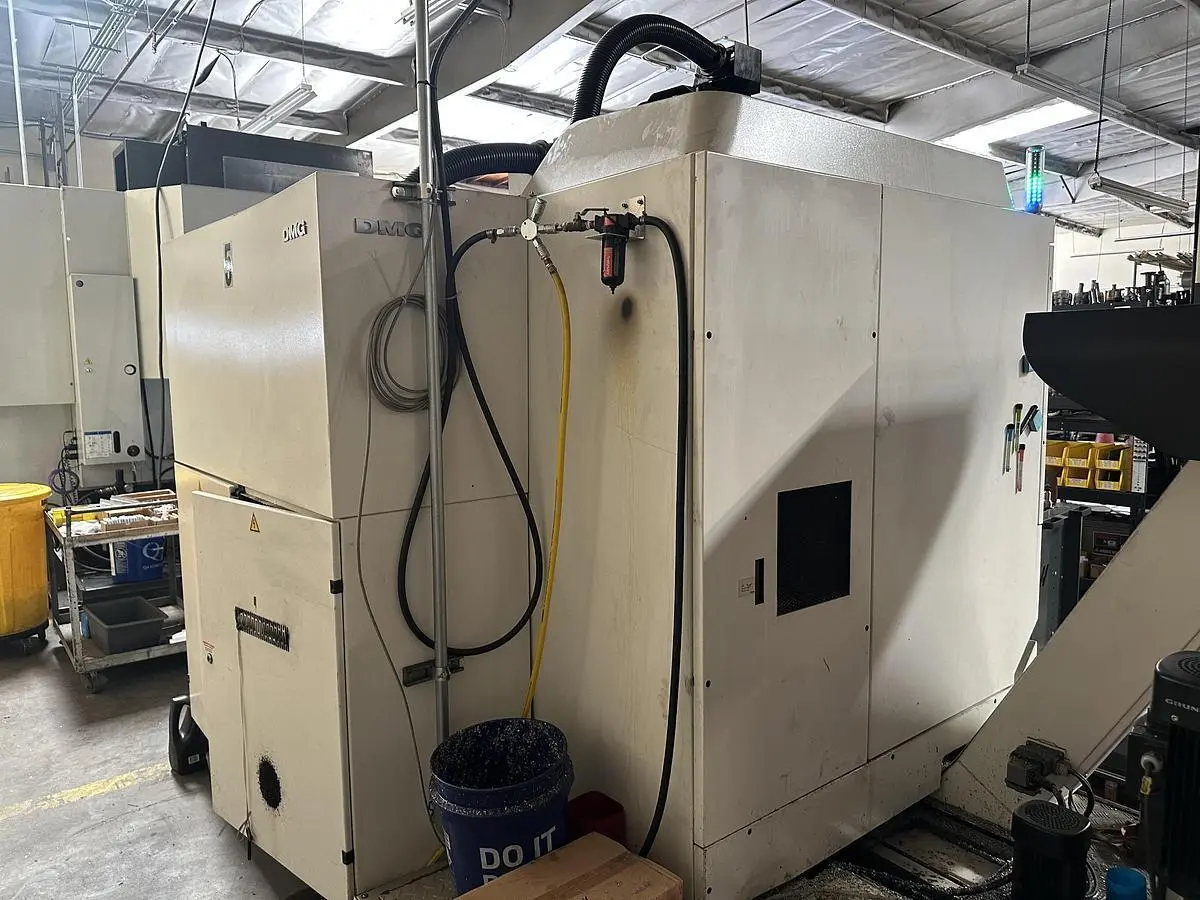

2013 DMG Mori DMU 50 Eco Line 5-Axis VMC
19.7" x 17.7" x 15.7", B & C-Axes, Rigid Tapping, Thermal Comp, Chip Conveyor & More

ImperialMetric

X	500 mm	19.685"
Y	450 mm	17.717"
Z	400 mm	15.748"
Power	17.4 hp	13 kW
RPM	8,000 RPM	8,000 RPM
# ATC	16	16
Table-W	530 mm	20.866"
Table-L	630 mm	24.803"

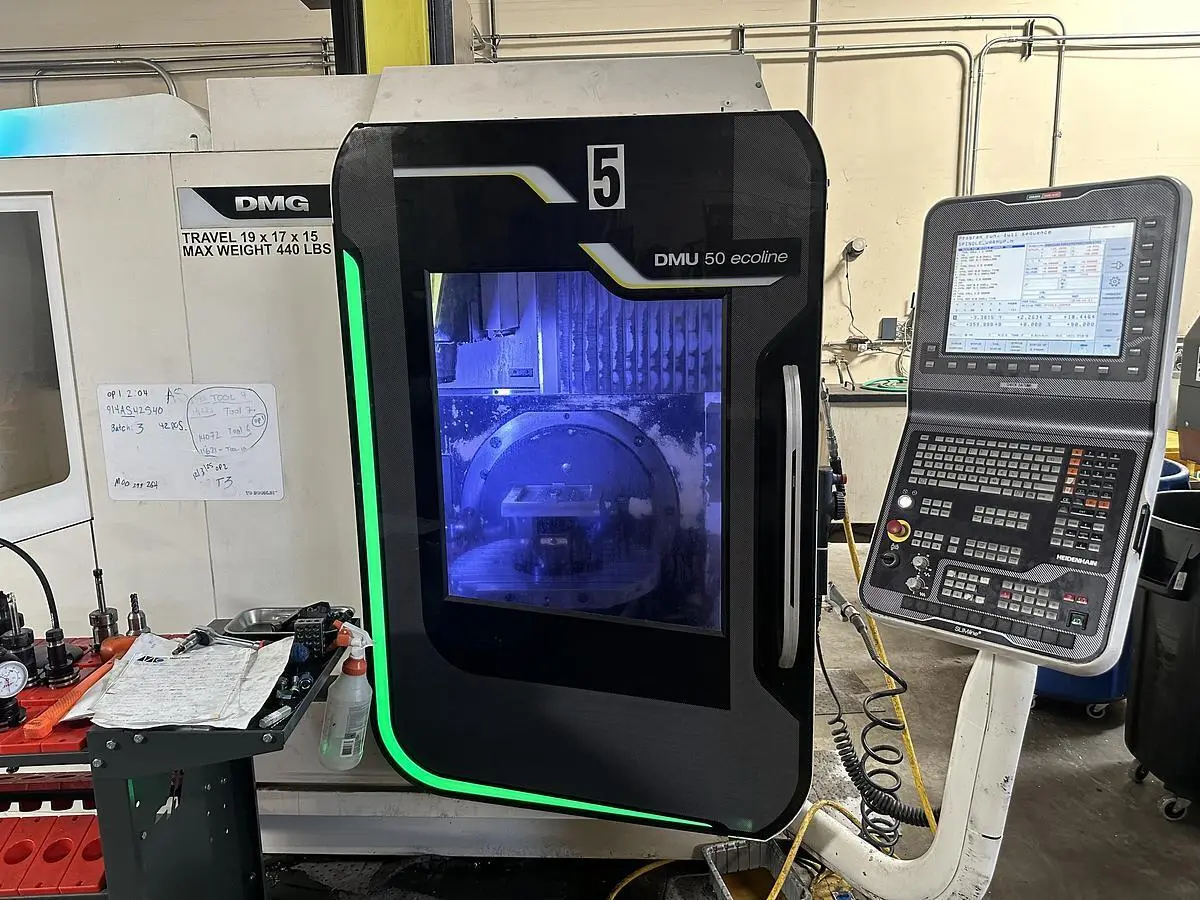

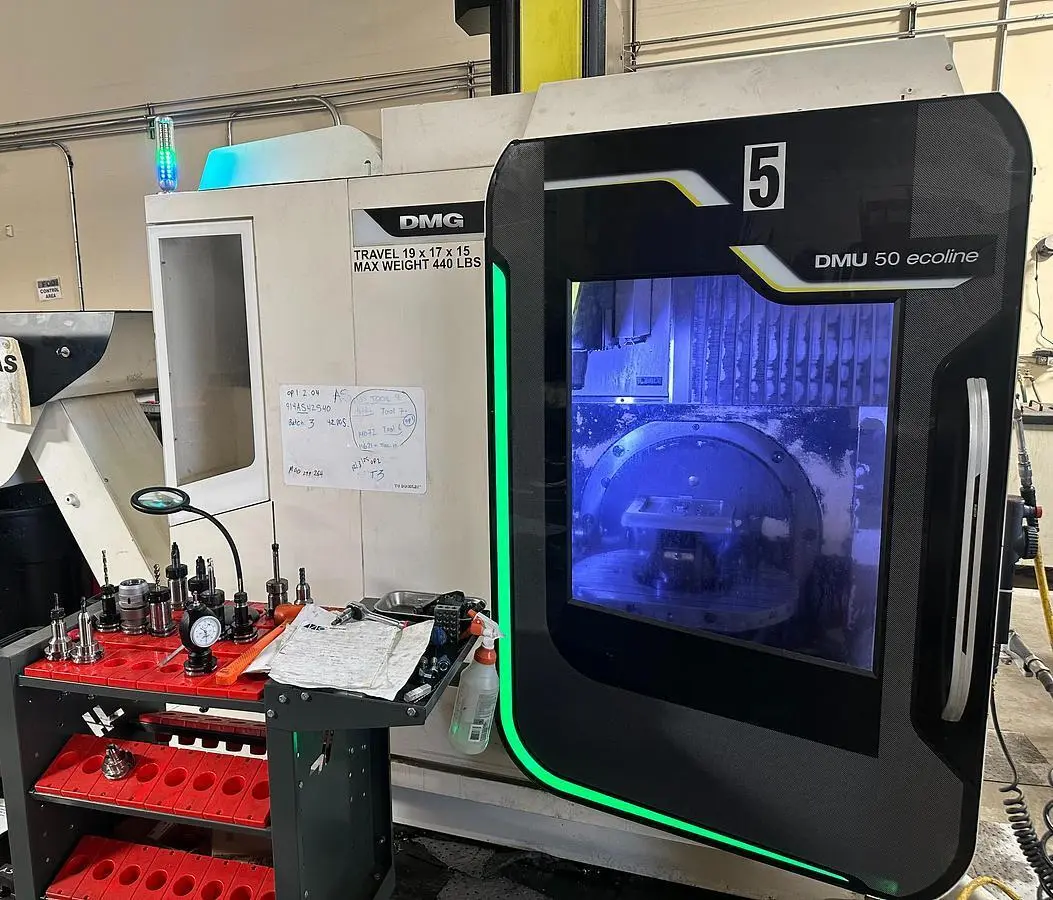

DMG Mori DMU 50 ECO Line CNC 5-Axis Vertical Machining Center
New: 2013

Specifications:
Travels:
X-Axis: 19.7"
Y-Axis: 17.7"
Z-Axis: 15.7"
B-Axis: -5° +110°

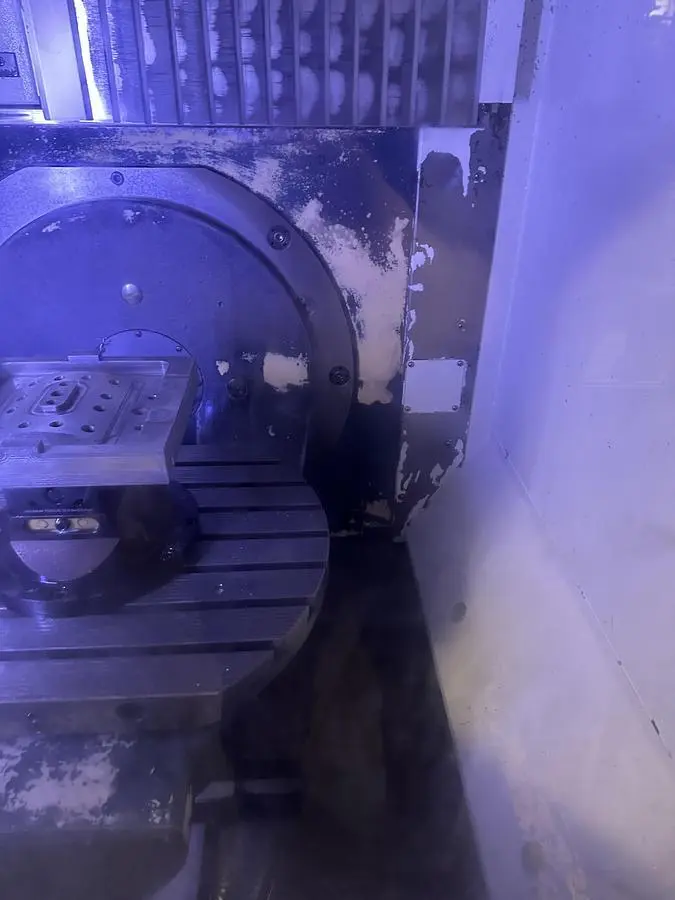

C-Axis: 360° Platter Rotation
Table Size: 24.8" x 19.7"
Spindle Speed: 10,000 RPM
Spindle Taper: CAT 40

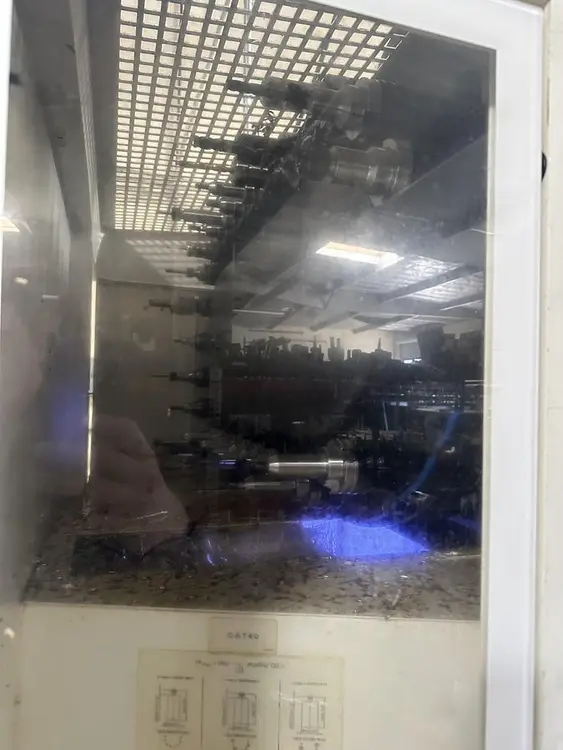

Tool Changer: 30 ATC
Max Weight on Table: 440.9 lbs
Rapid Traverse Rate: 945 IPM (XYZ)
Max Tool Size: 3.1" x 11.08"
Max Tool Weight: 13.2 Lbs
Max Height: 31.1"

Equipped With::
High Pressure Through Spindle Coolant
Probe & Tool Pre-Setter
Spindle Orientation
Helical Interpolation
Rigid Tapping
Direct Scale Feedback
Thermal Compensation
PCMCIA Card Slot
Work light
Chip Conveyor

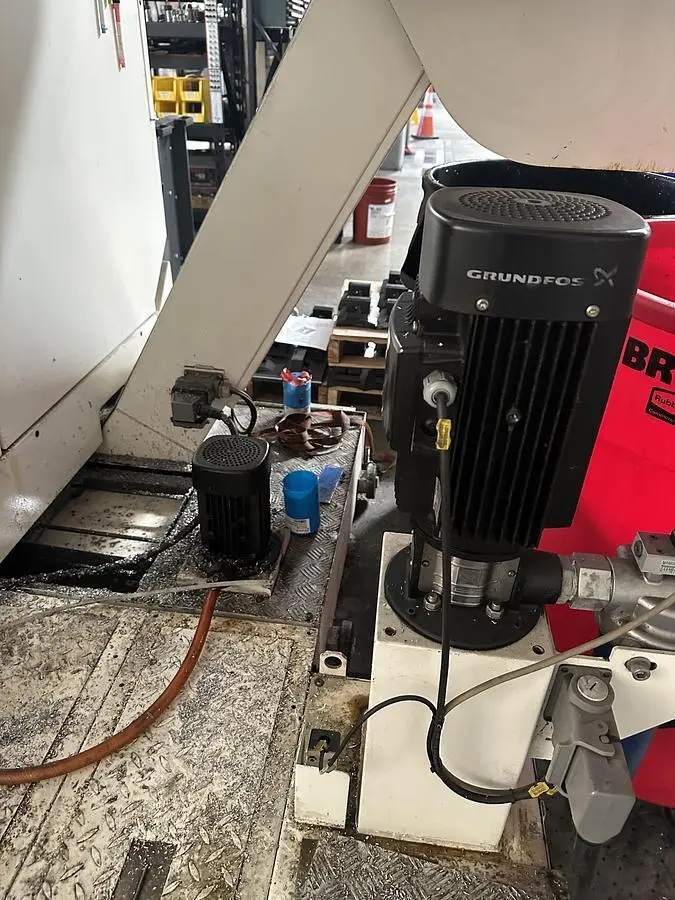

Coolant Tank and Coolant Pumps
