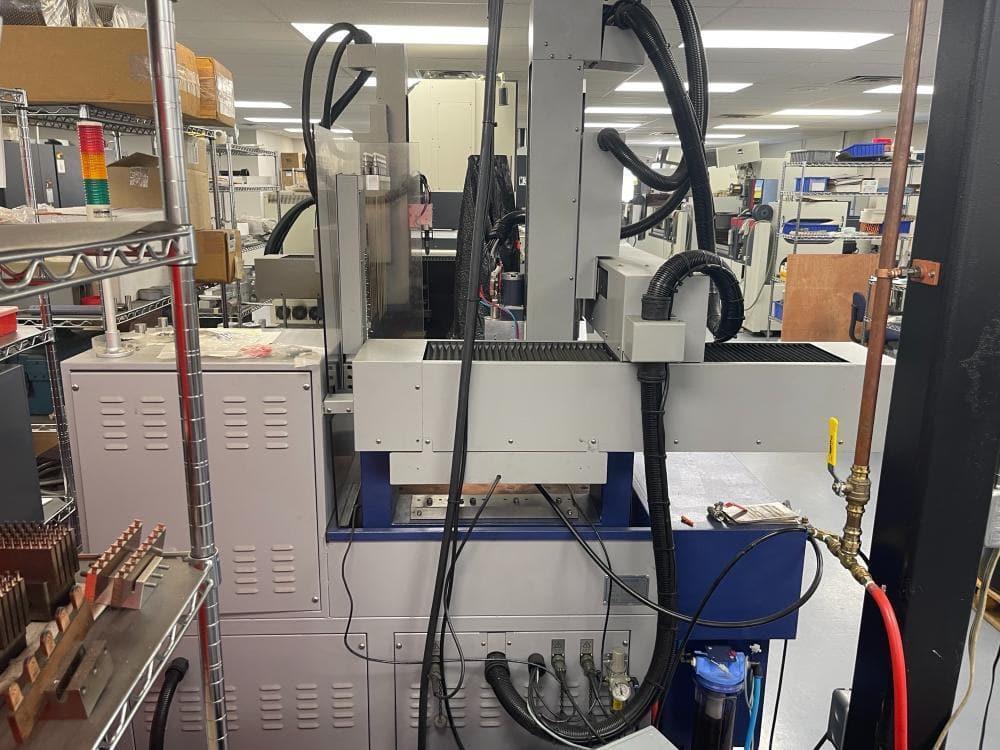

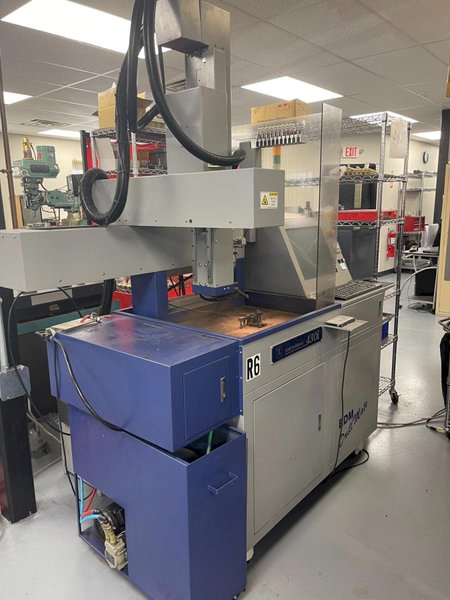

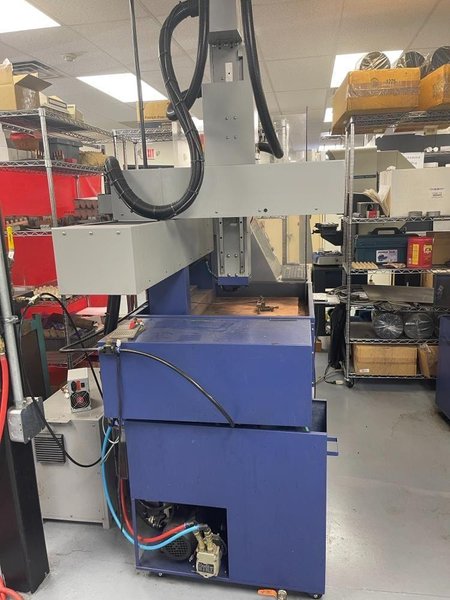

Perseo Erie 430i Drillmate CNC EDM, 2012 – 22 Station Tool Changer, PC Based CNC Controller, De-Ionized Water Filtration System, Transformer

X-Axis Travel: 21″ Y-Axis Travel: 12″ Z-Axis Travel: 25.6″ W-Axis Power Backslide: 11.3″ Electrode Size: 0.1-3.0 mm Table Size: 23.5″ x 17.25″ Table Travel: 21″ x 12″ Work Tank Size: 27.25″ x 19.25″ Min. Ram Height to Table: 1″ Electro-Guide Travel: 15.5″ Max. Workpiece Weight: 675 lbs Max. Workpiece Height: 15.5″ Pulse On/Off Time Settings: 0-100% Peak Current Selections: 10 Steps Electrode Spindle Speeds: 0-200 RPM Capacitors: 5 Steps Machine Size (LxWxH): 72″ x 48″ x 96″ Machine Weight: 3,000 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: PC Based CNC Controller De-Ionized Water Filtration System 15 Gallon Dielectric System Transformer 22 Station Tool Capacity

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
