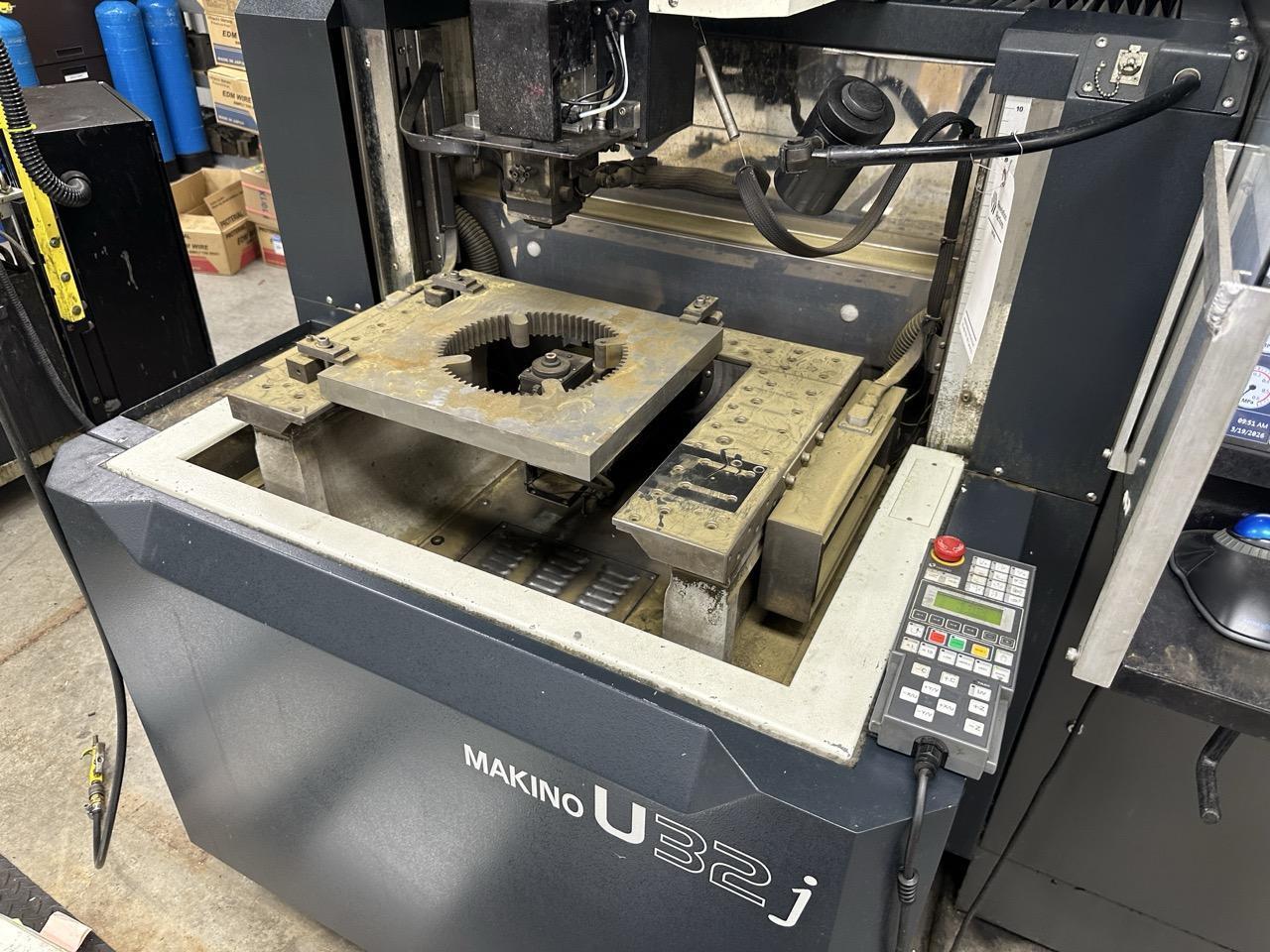

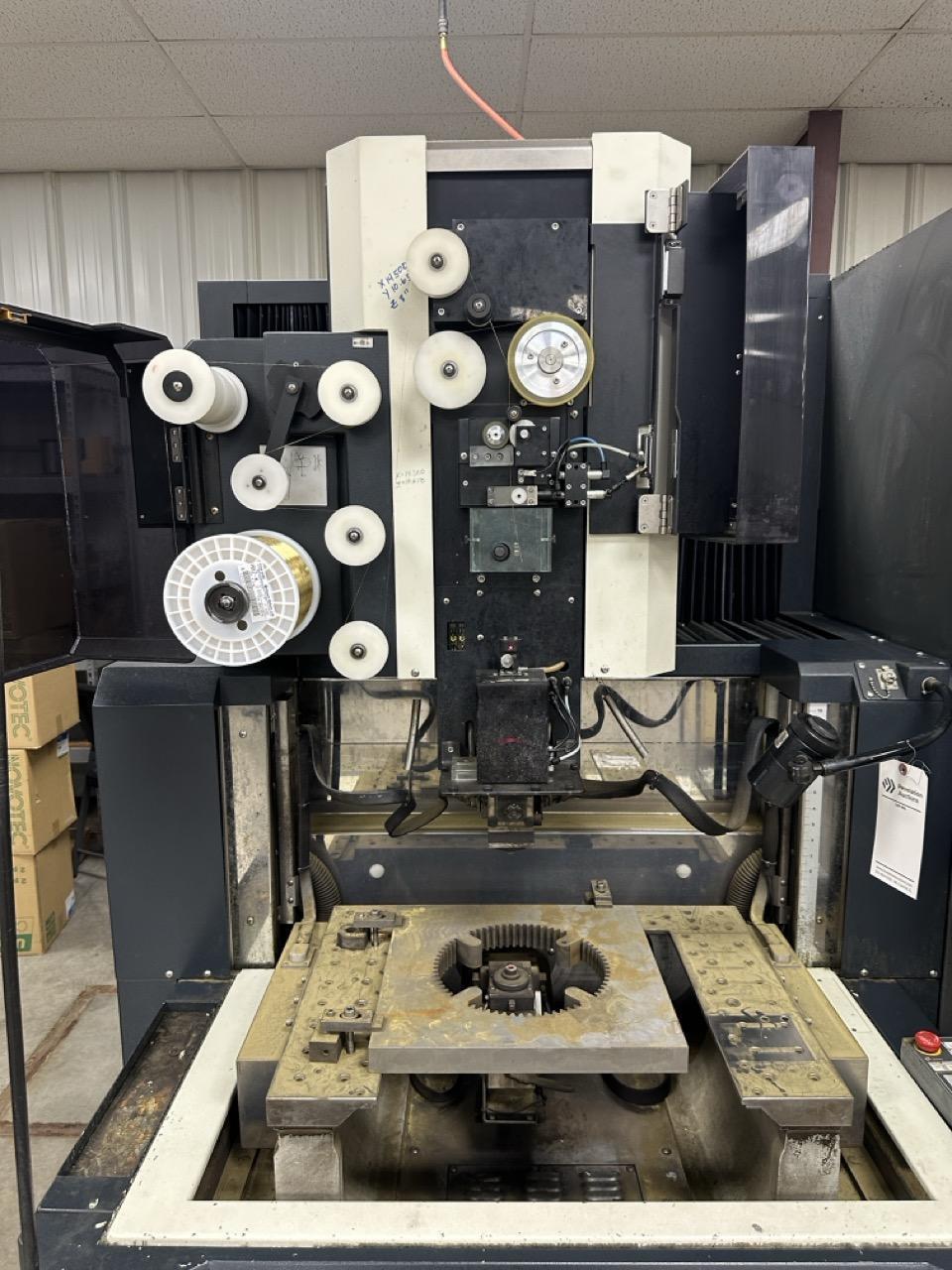

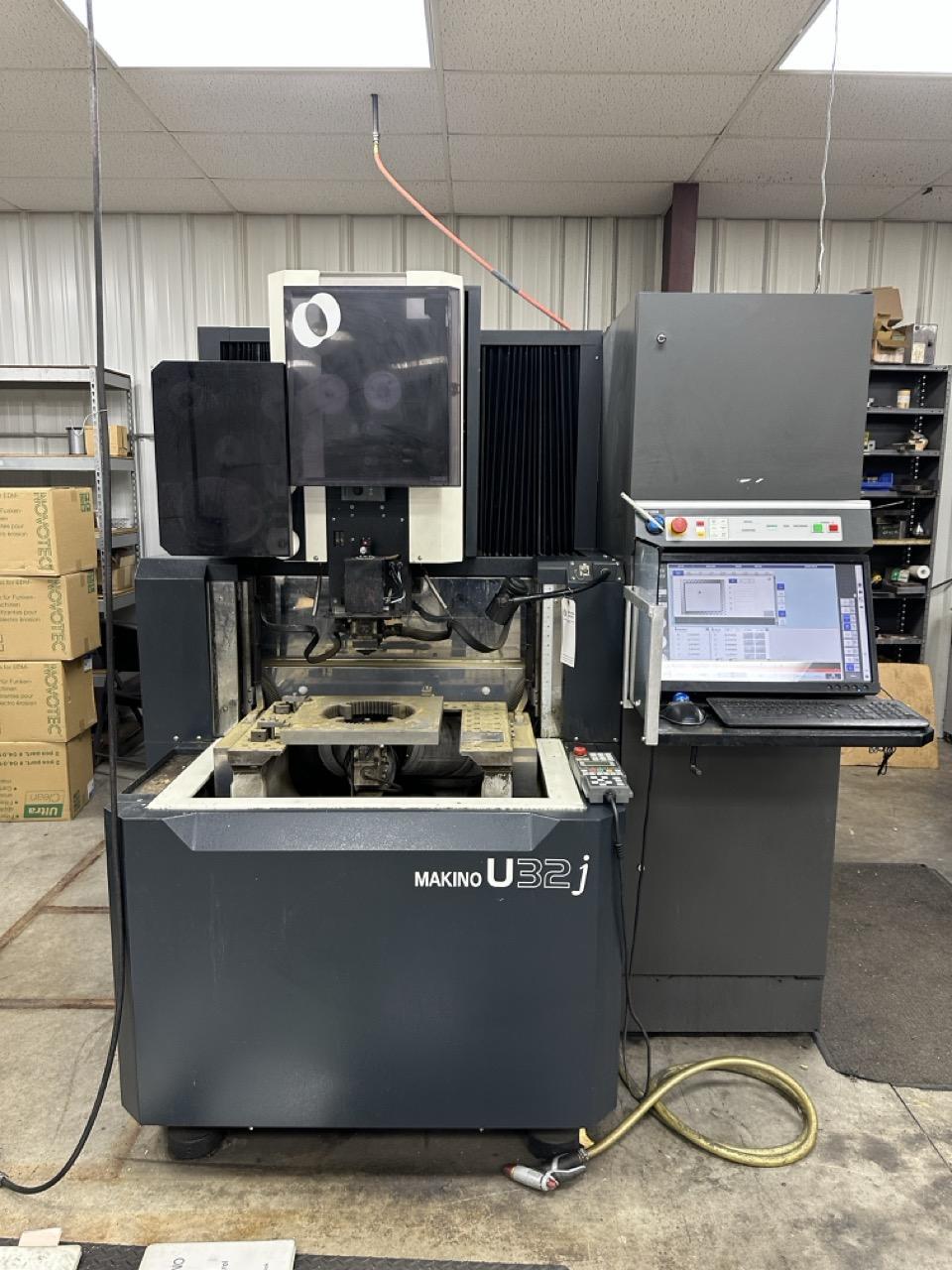

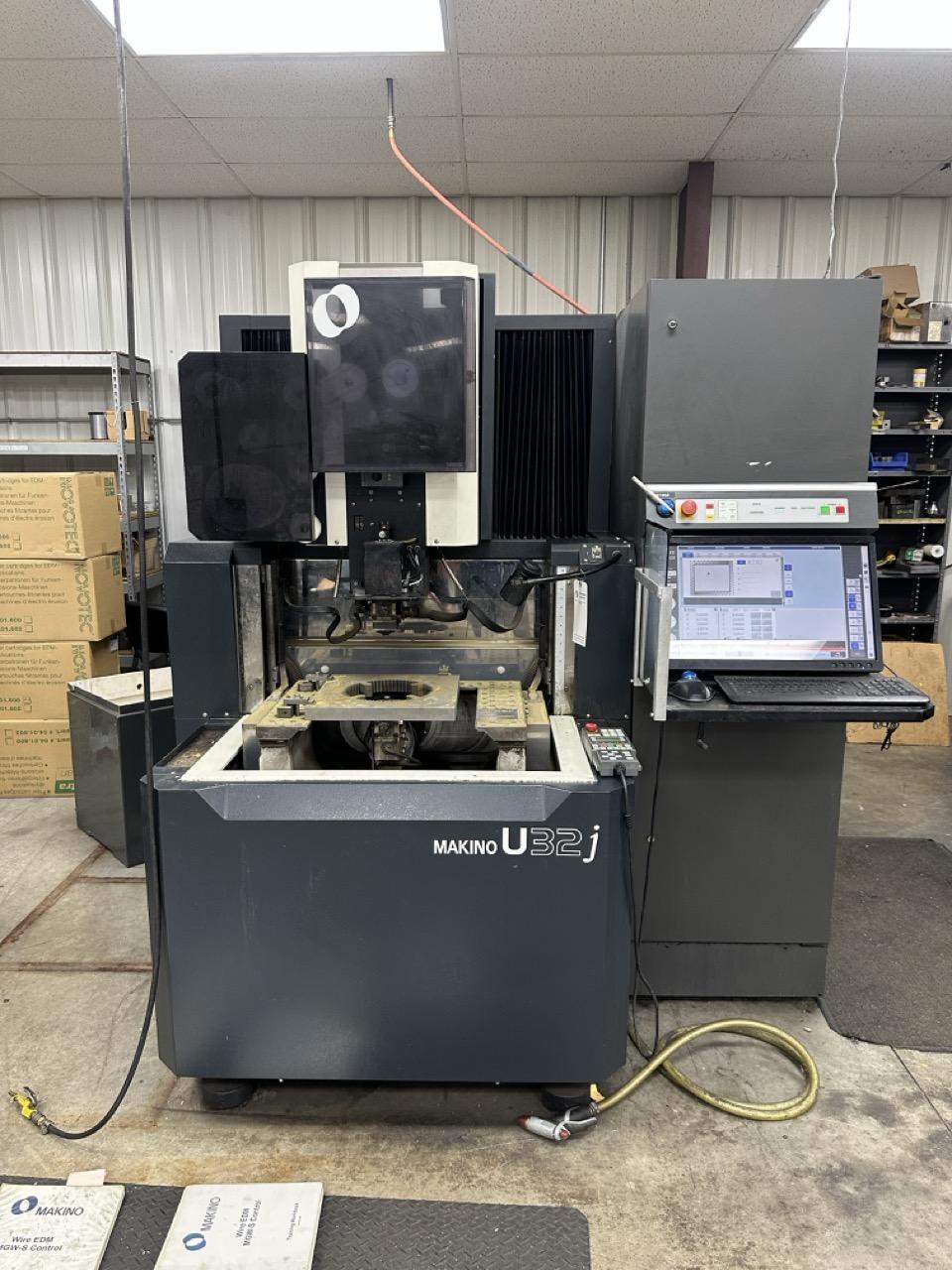

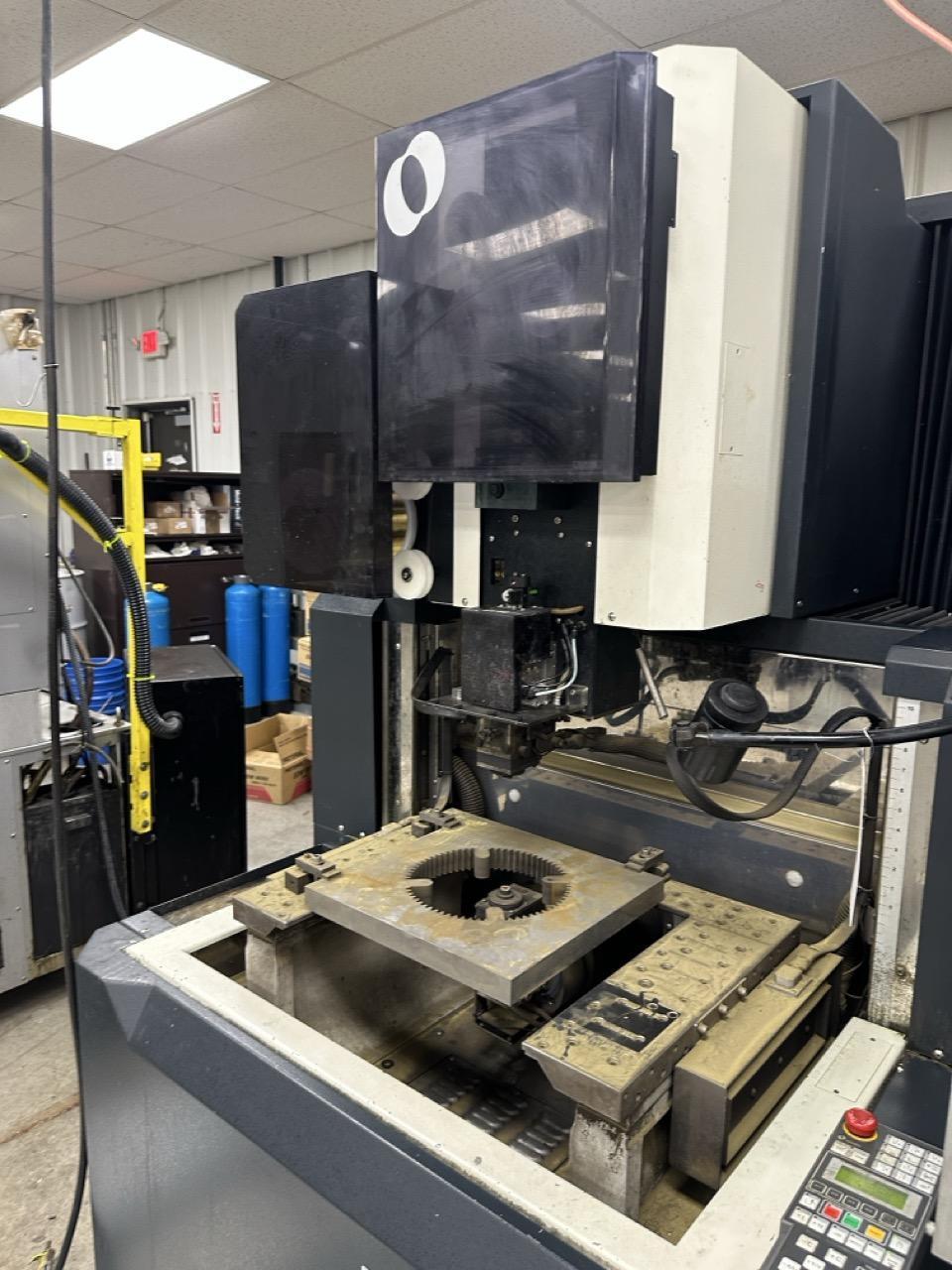

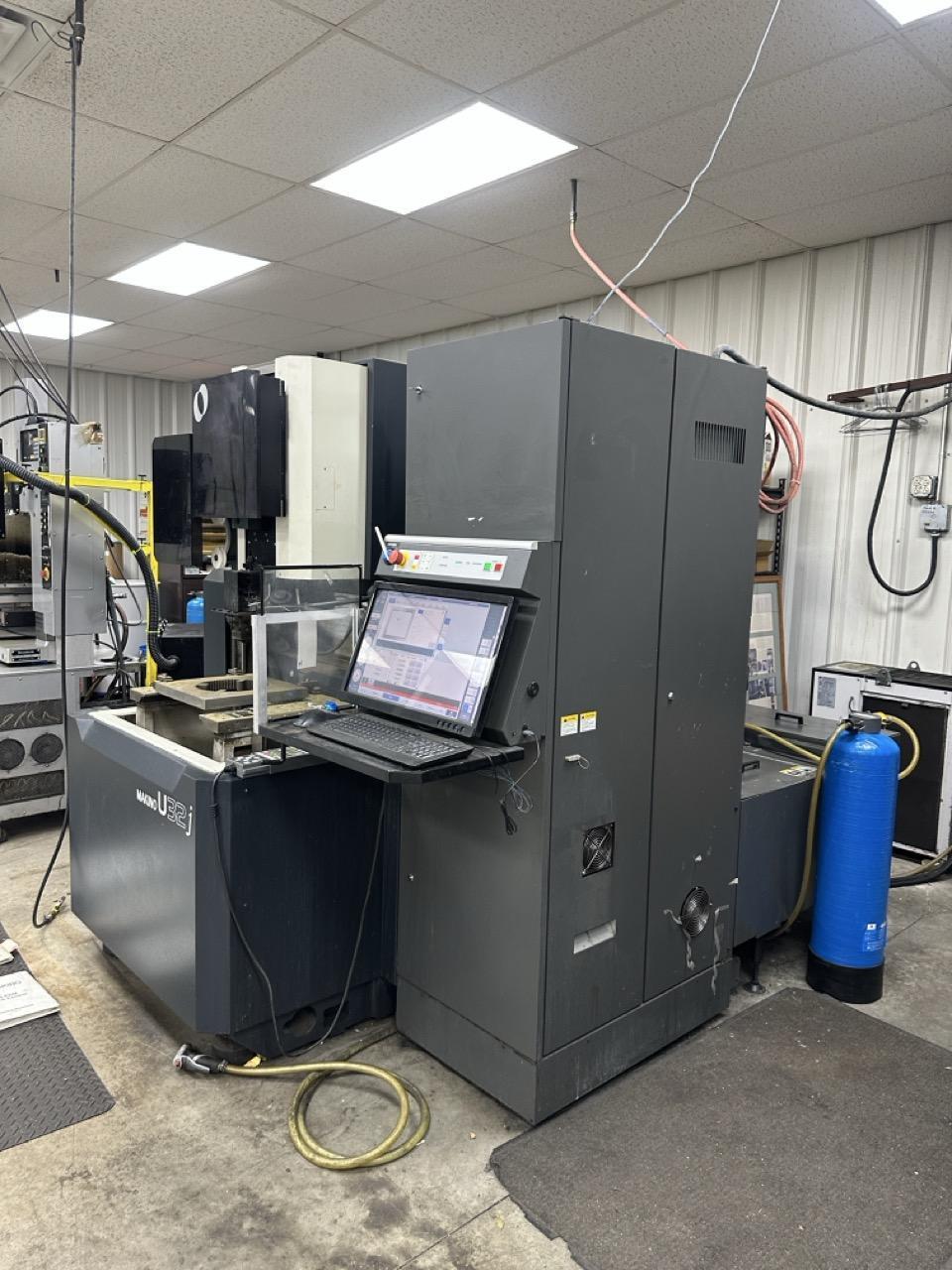

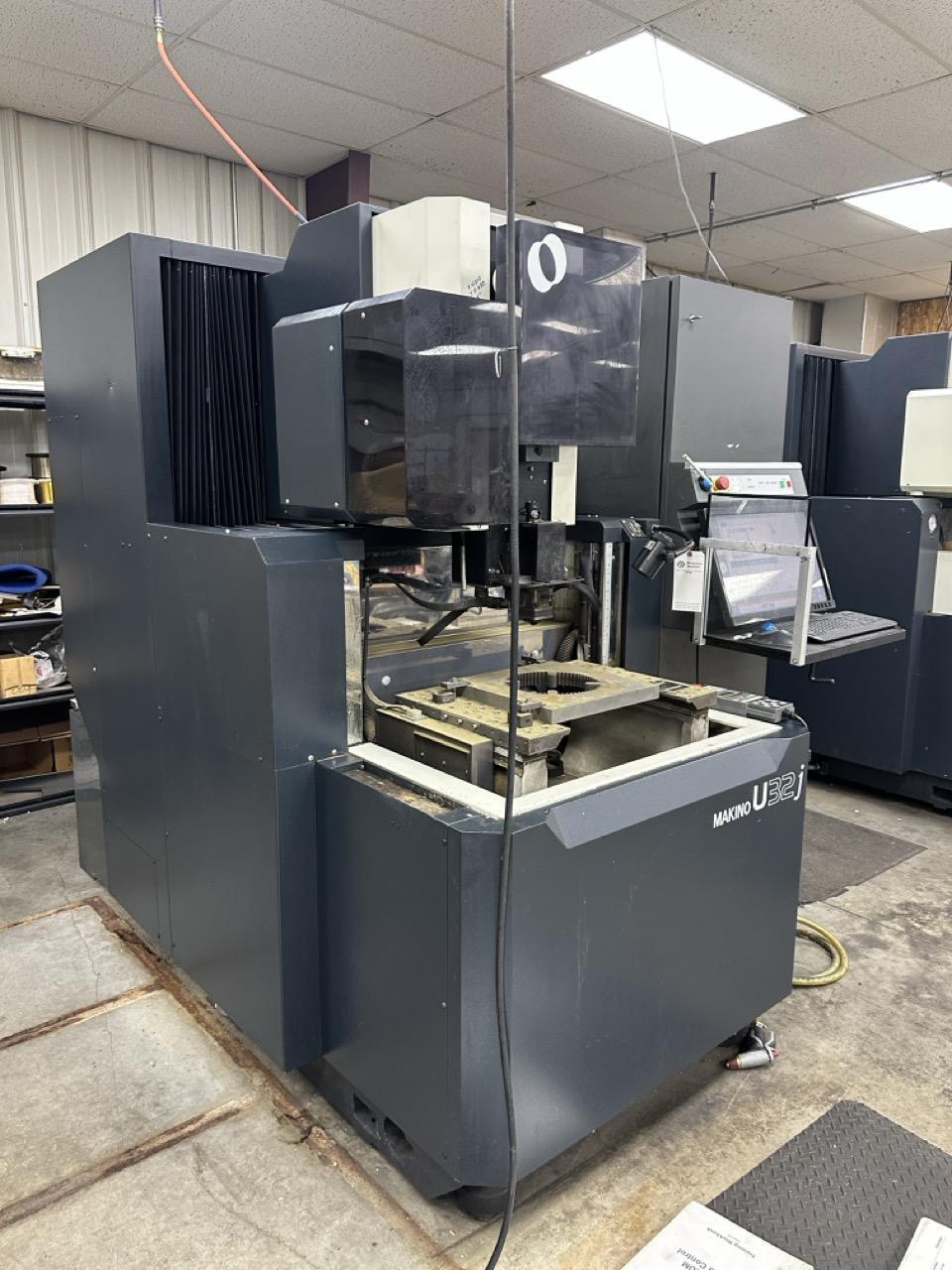

Makino U32J CNC Wire EDM, 2013

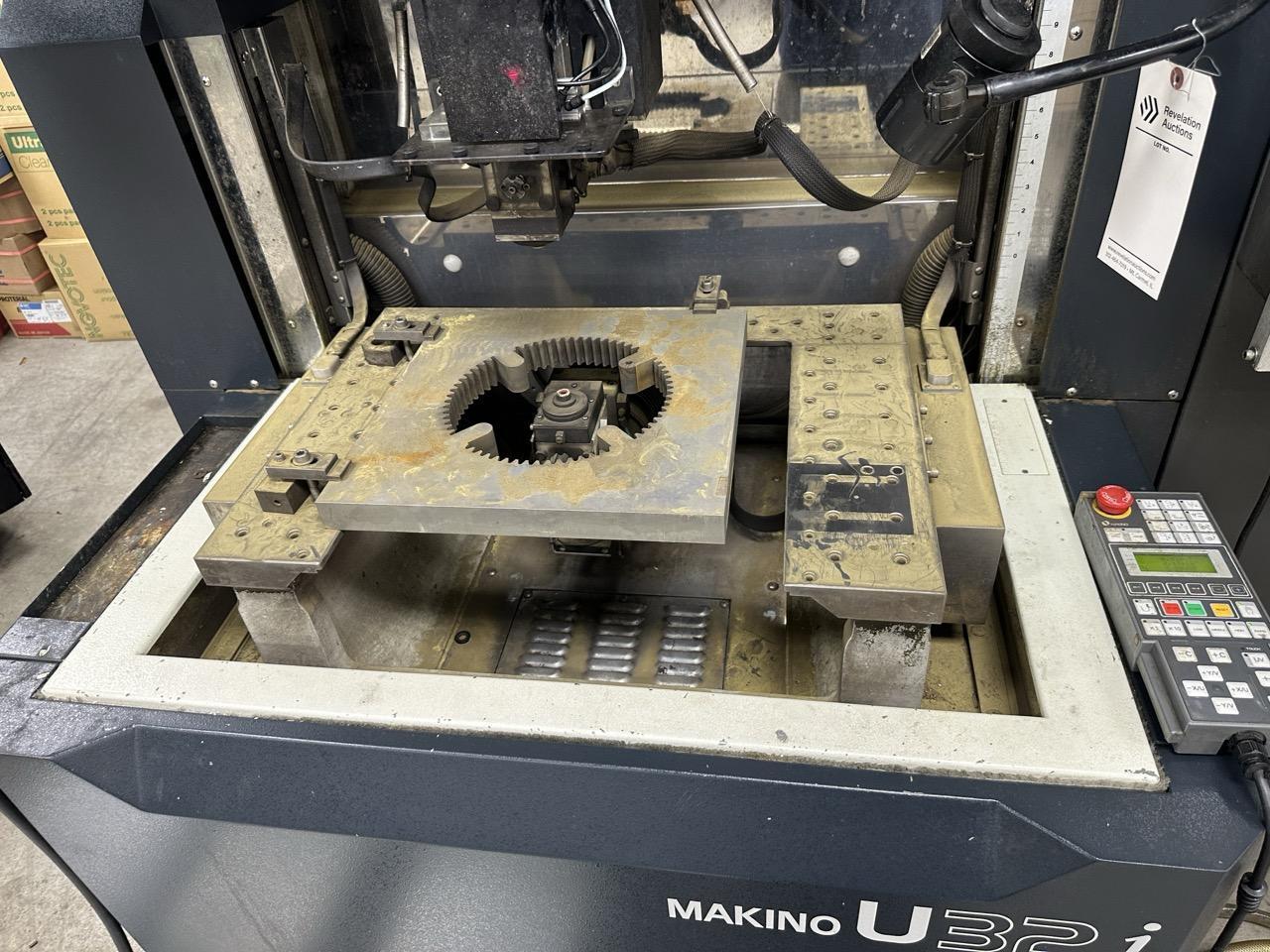

Travels & Capacity X / Y / Z Travels:  370 mm x 270 mm x 220 mm (14.6″ x 10.6″ x 8.7″) U / V Travels:  +/- 50 mm X +/- 50 mm (+/- 2.0″ x +/- 2.0″) Max Workpiece Size:  780 mm x 590 mm x 220 mm (30.7″ x 23.2″ x 8.7″) Max Workpiece Weight:  1,322 lbs Work Table Dimensions:  570 mm x 370 mm (22.4″ x 14.6″)

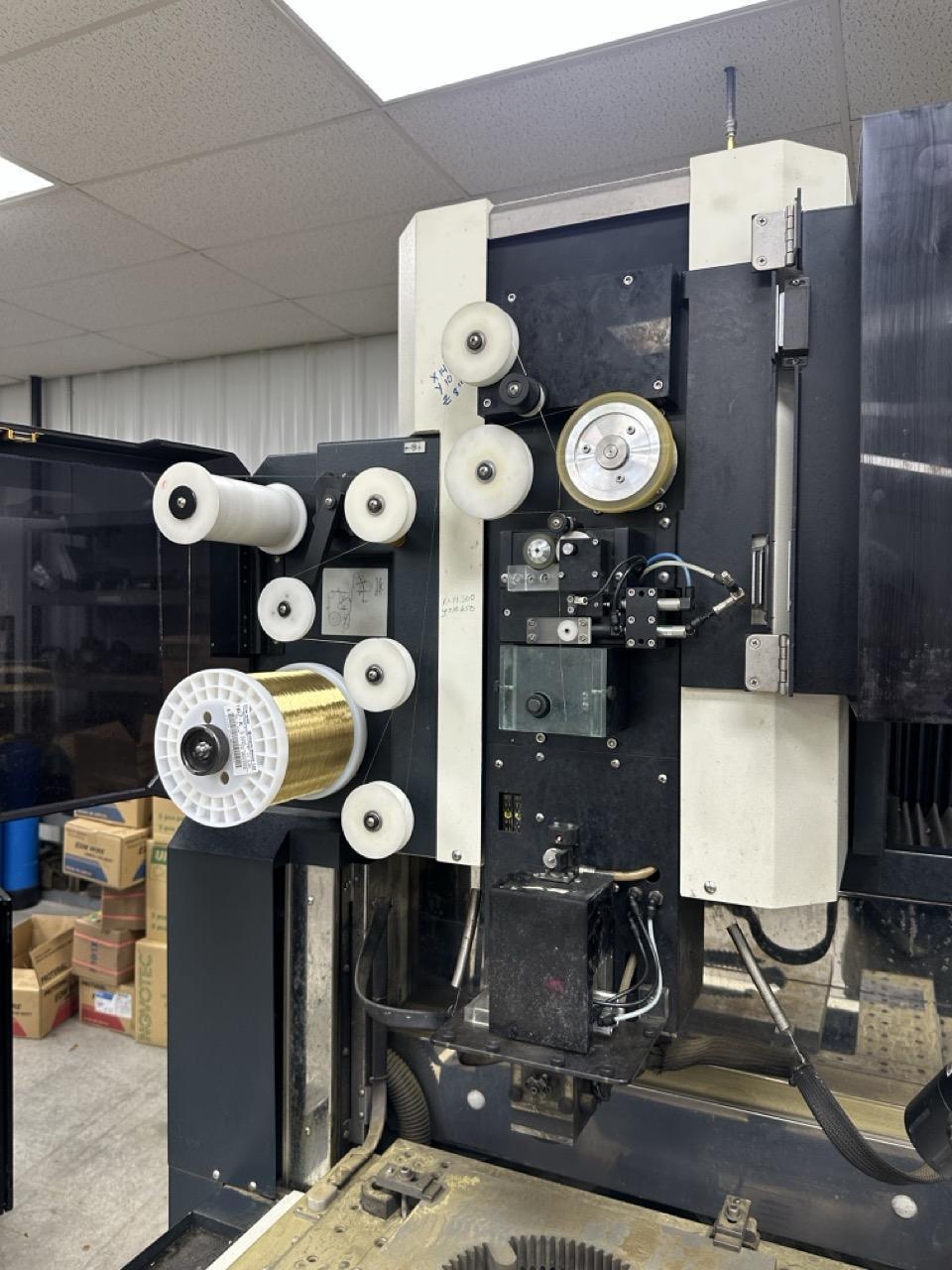

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machining Performance Surface Finish Capability:  Down to 0.07µmRa (34µinRa) with Crystal II Circuit Wire Diameter Support:  0.1 mm to 0.3 mm (Standard); 0.05 mm to 0.07 mm (Optional) Positioning Accuracy:  0.05mm Glass

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Scale Feedback System Taper Angle:  +/- 15° at 100 mm Thickness (Standard Guides)

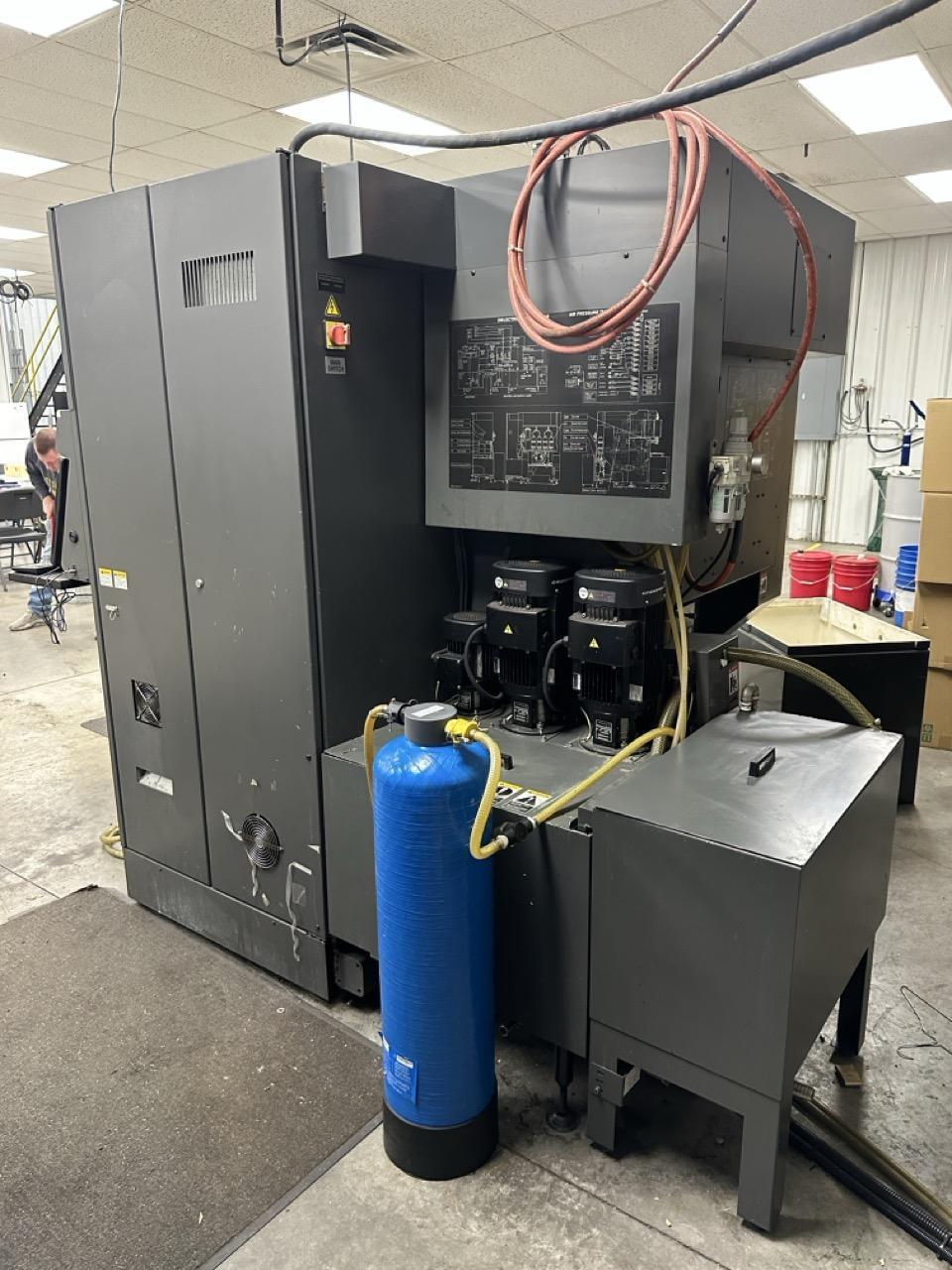

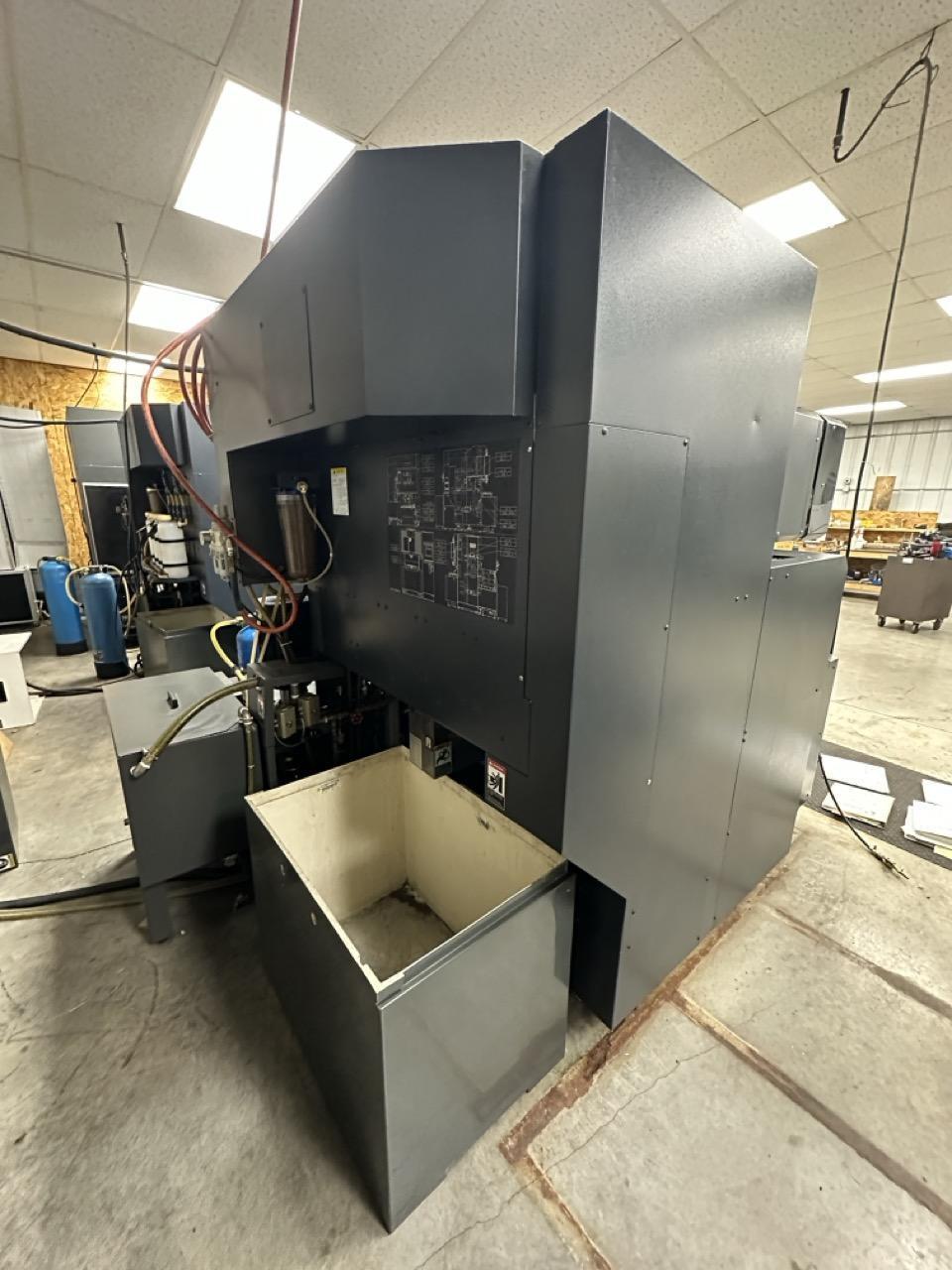

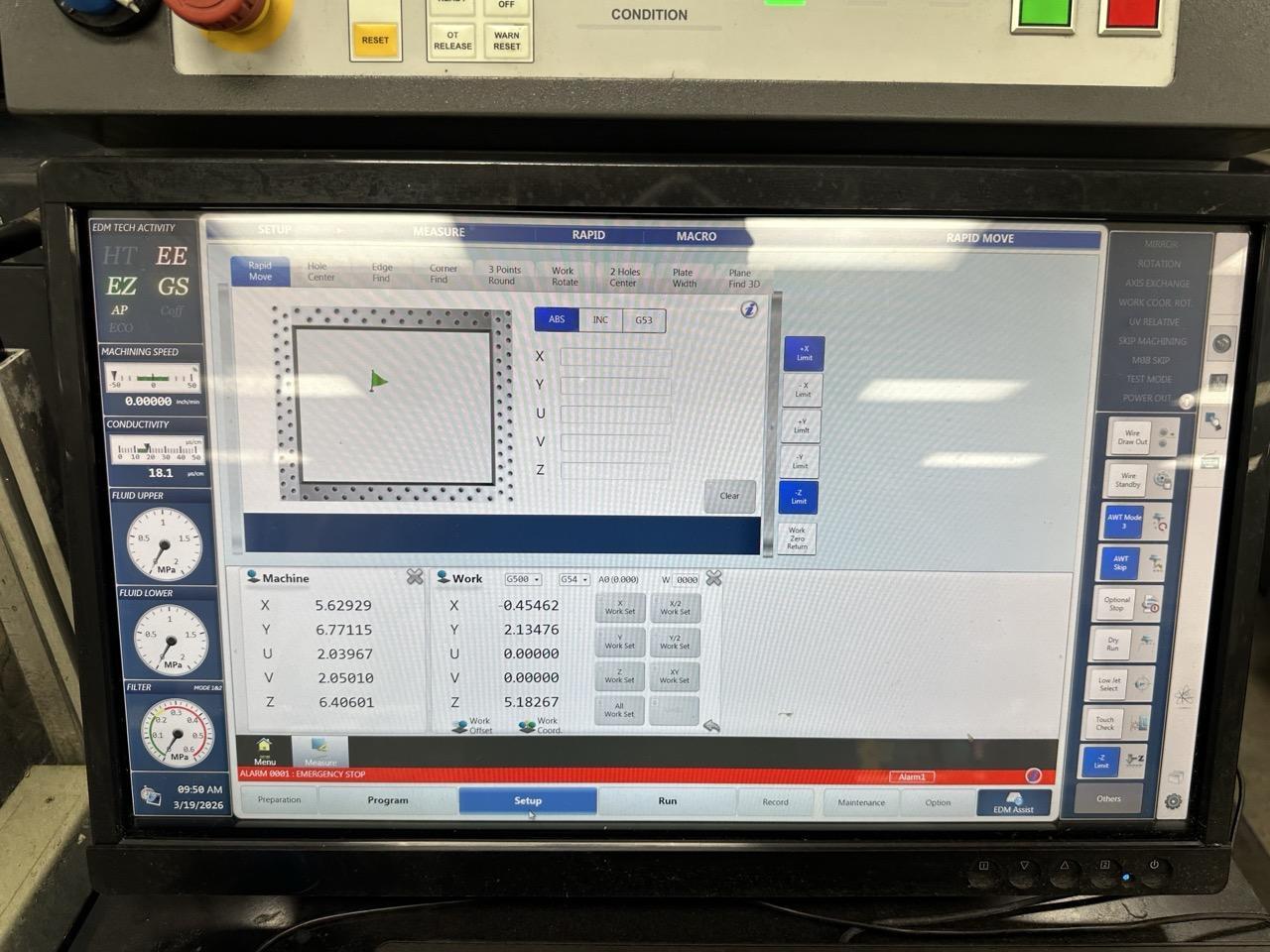

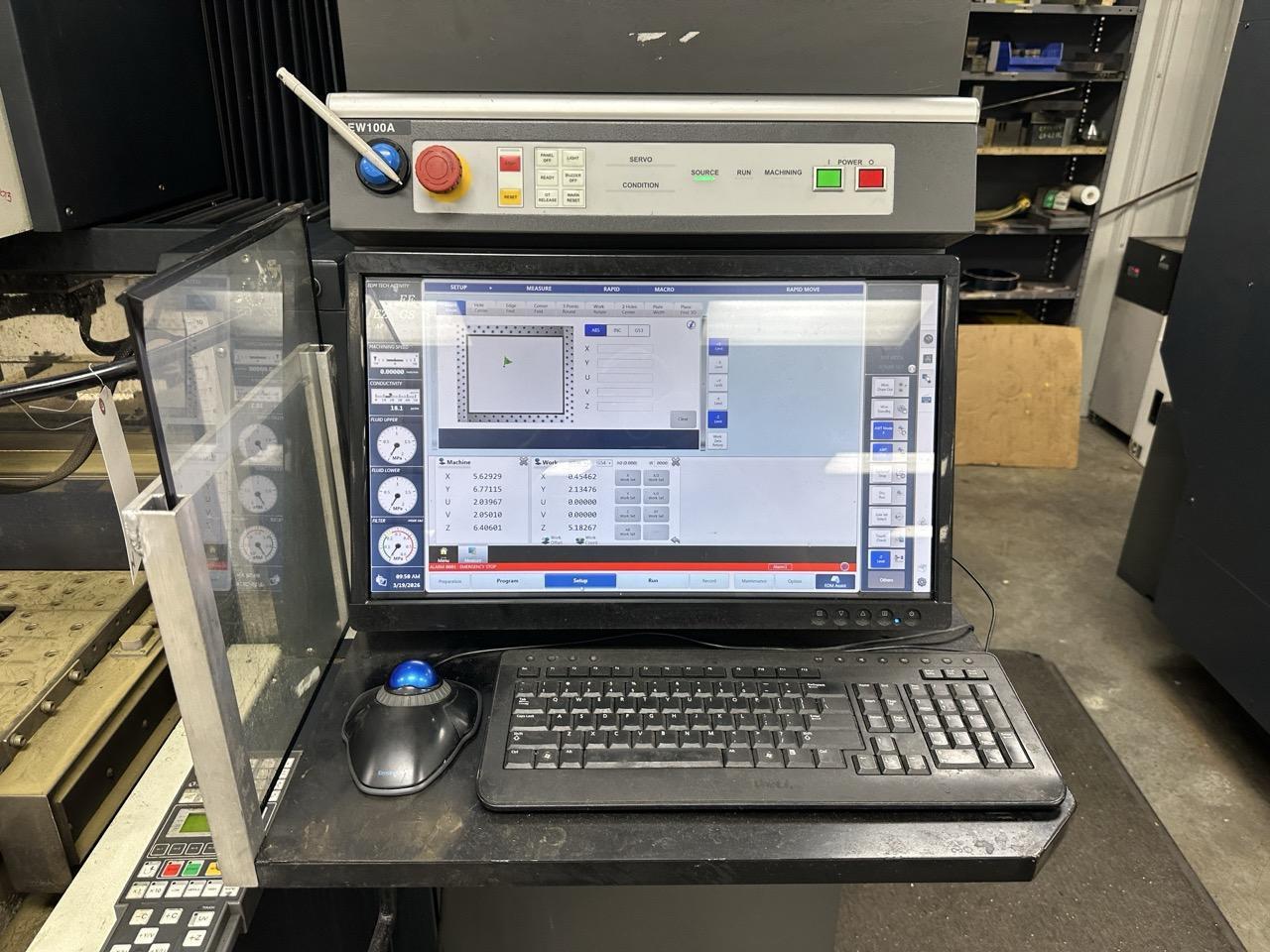

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine & Fluid System Machine Weight:  7,055 lbs Dielectric Capacity:  156 Gallons Filter Type:  Paper Filter (2 Elements) Tank Type:  Programmable 3-Sided Rise & Fall Work Tank Control System:  Makino Hyper I CNC (24″ HD Touch Screen)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Installation Requirements Power Supply:  200 V +/- 10%, 3-Phase, 50/60 Hz; 12 kva Total Capacity Air Supply:  0.5 mpa (72 psi) Minimum; 21 scfm Flow Rate Footprint (W x D):  80.7″ x 99.2″

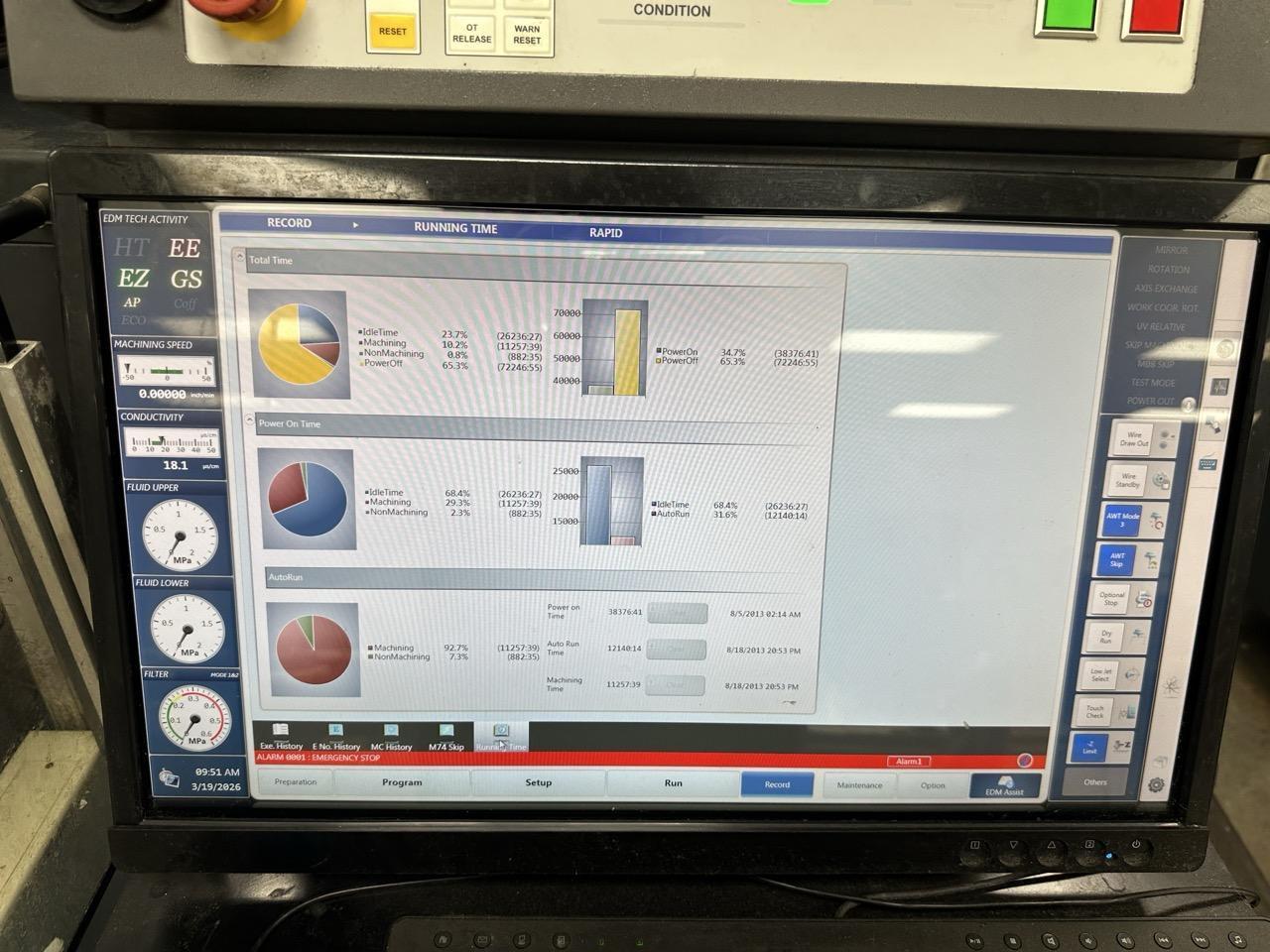

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Machine Timestamps & Totals Power On Time:  38,376:41 Auto Run Time:  12,140:14 Machining Time:  11,257:39

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
