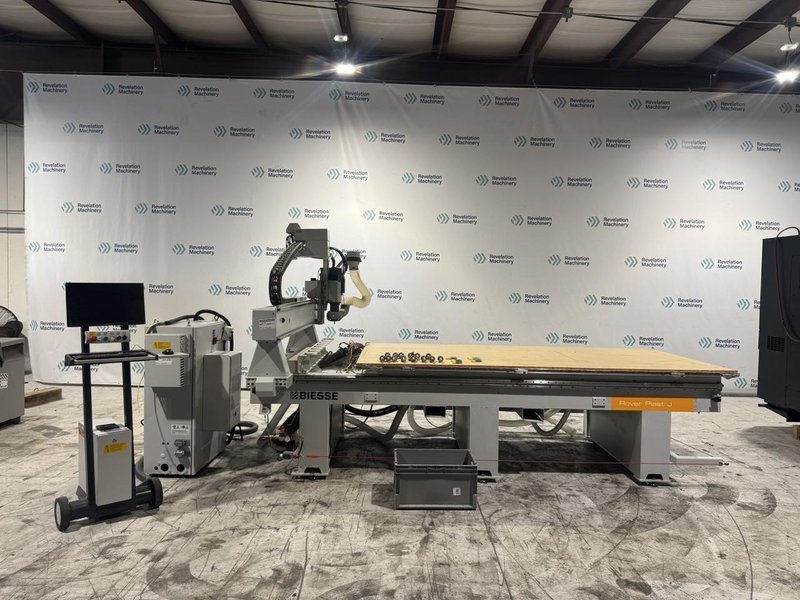

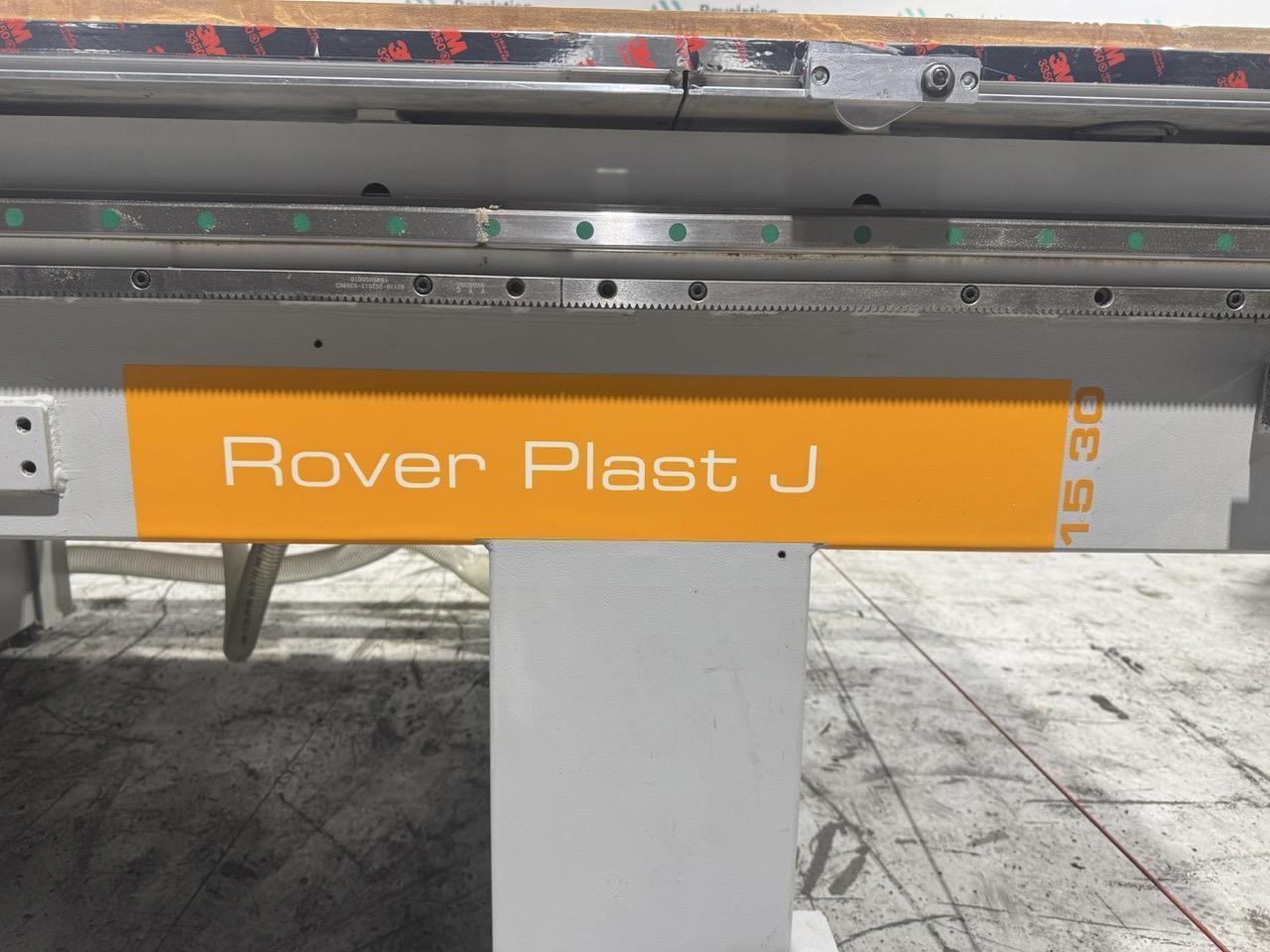

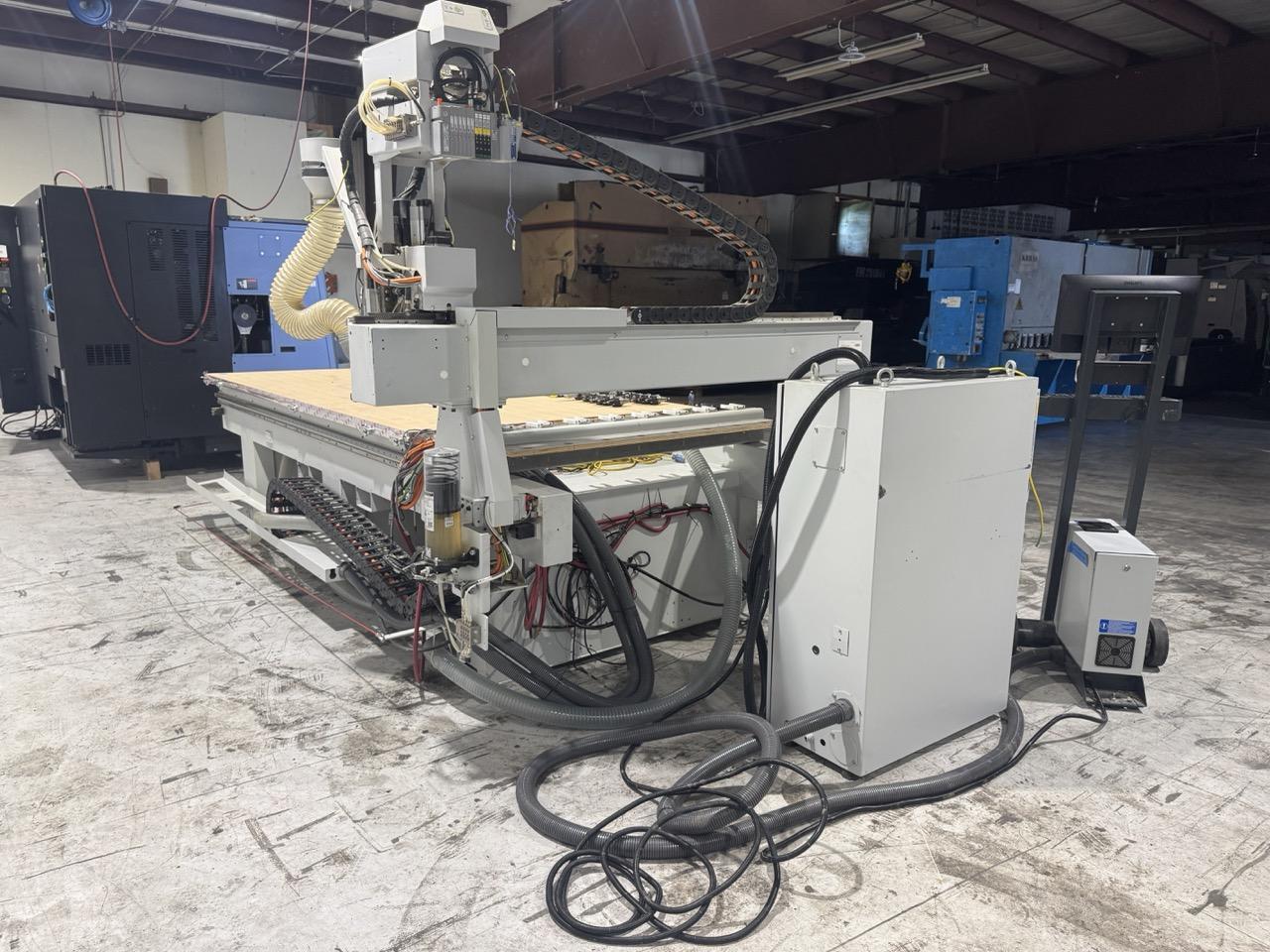

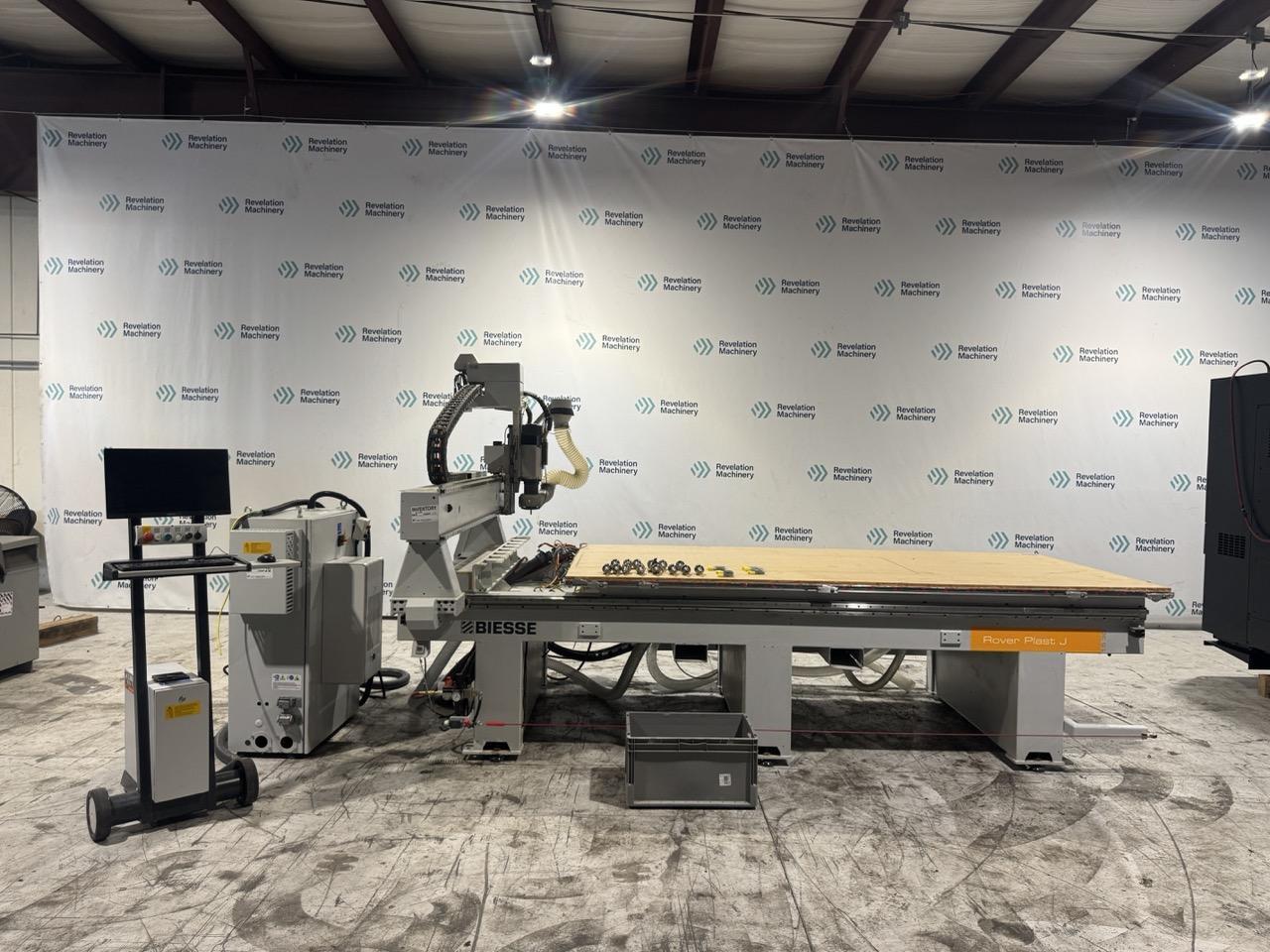

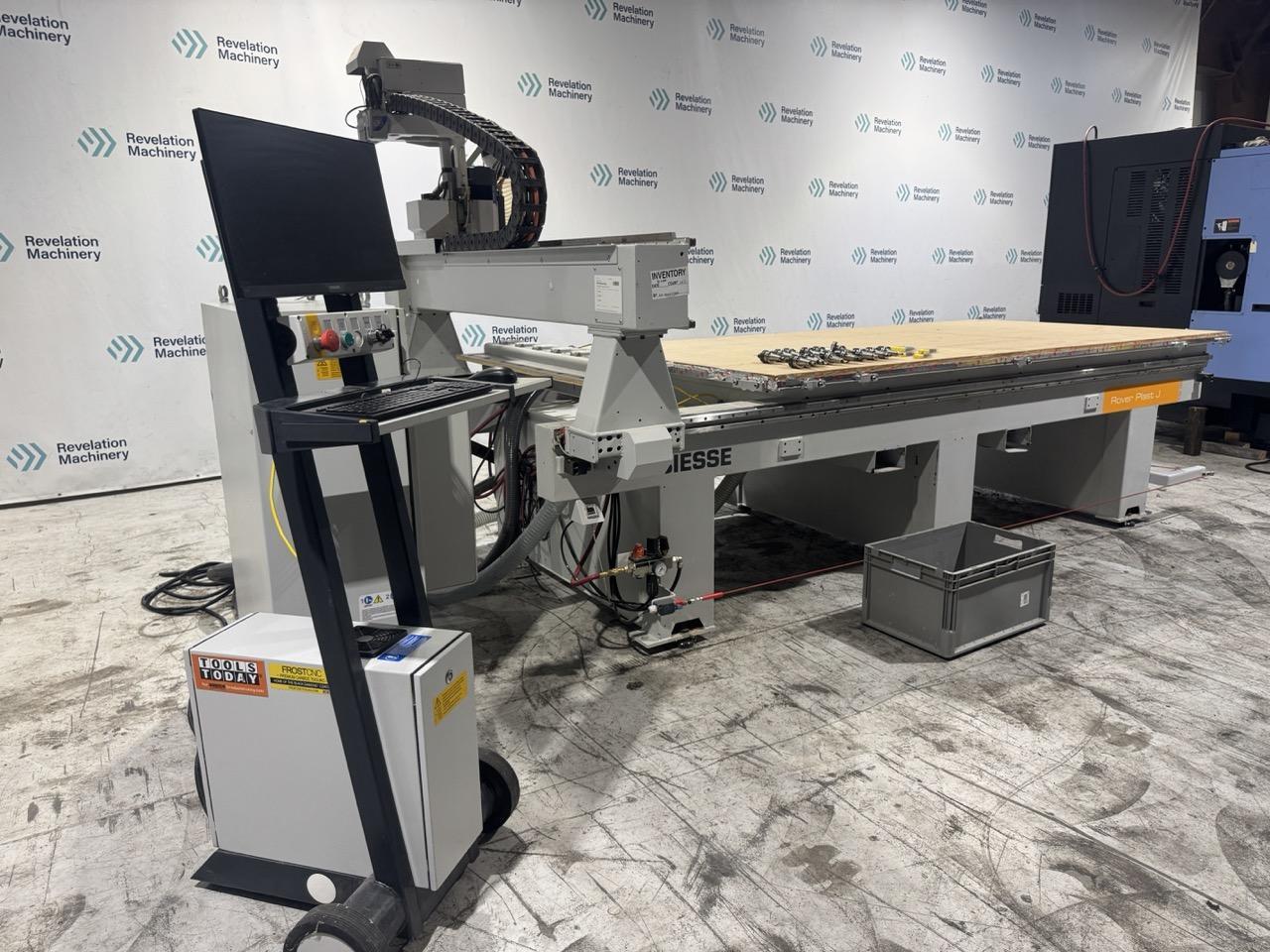

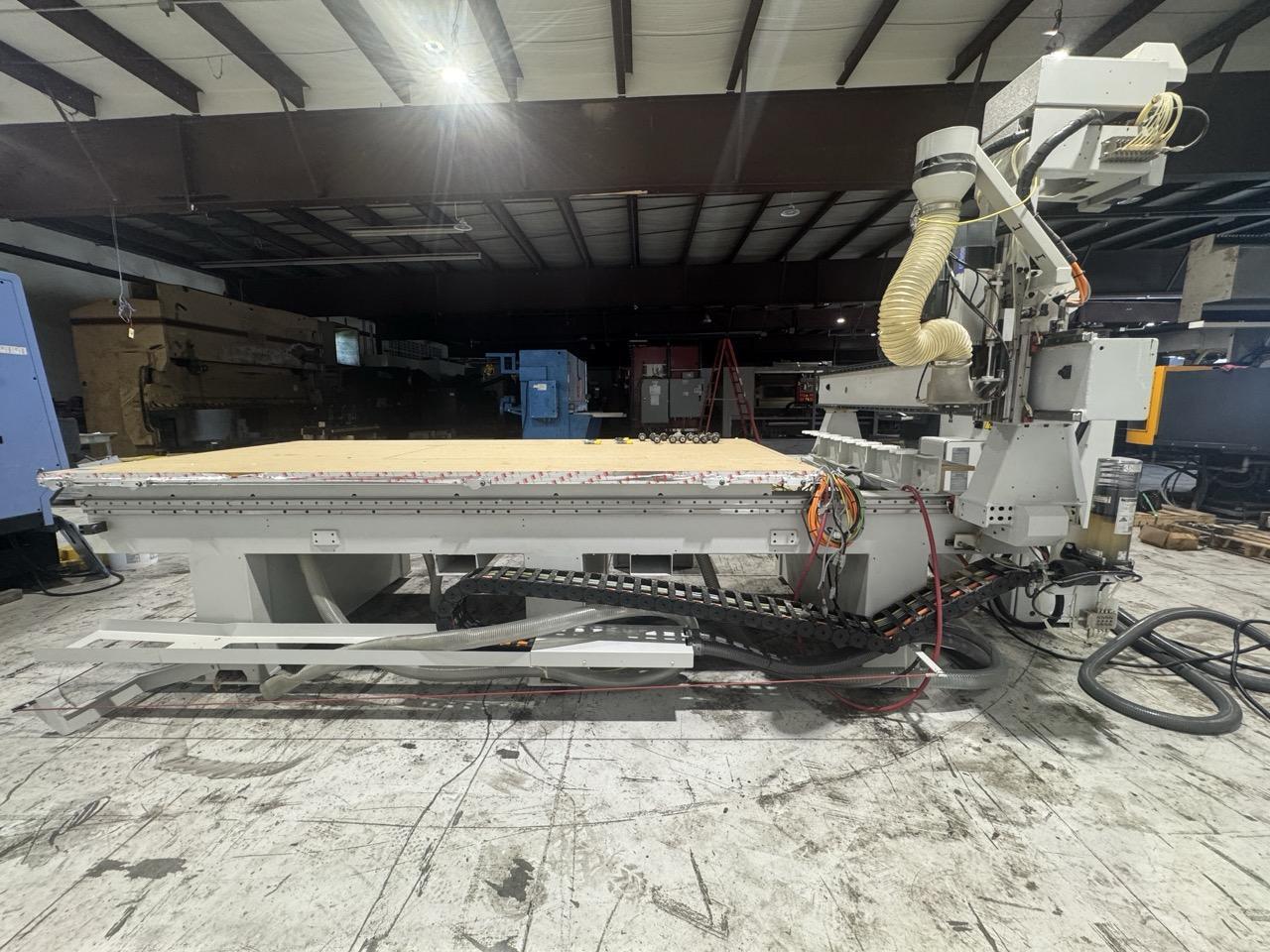

Biesse Rover Plast J FT 1530 5′ x 10′ CNC Router, 2021 – 12 HP Spindle, ATC, Vacuum Table

2021 Biesse Rover Plast J FT 1530 3-axis CNC machining center featuring a 5′ x 10′ vacuum worktable, high-speed 12 HP spindle, automatic tool changer and large 121″ x 62″ working envelope for precision routing, trimming and machining of plastics, composites, aluminum and other sheet materials.

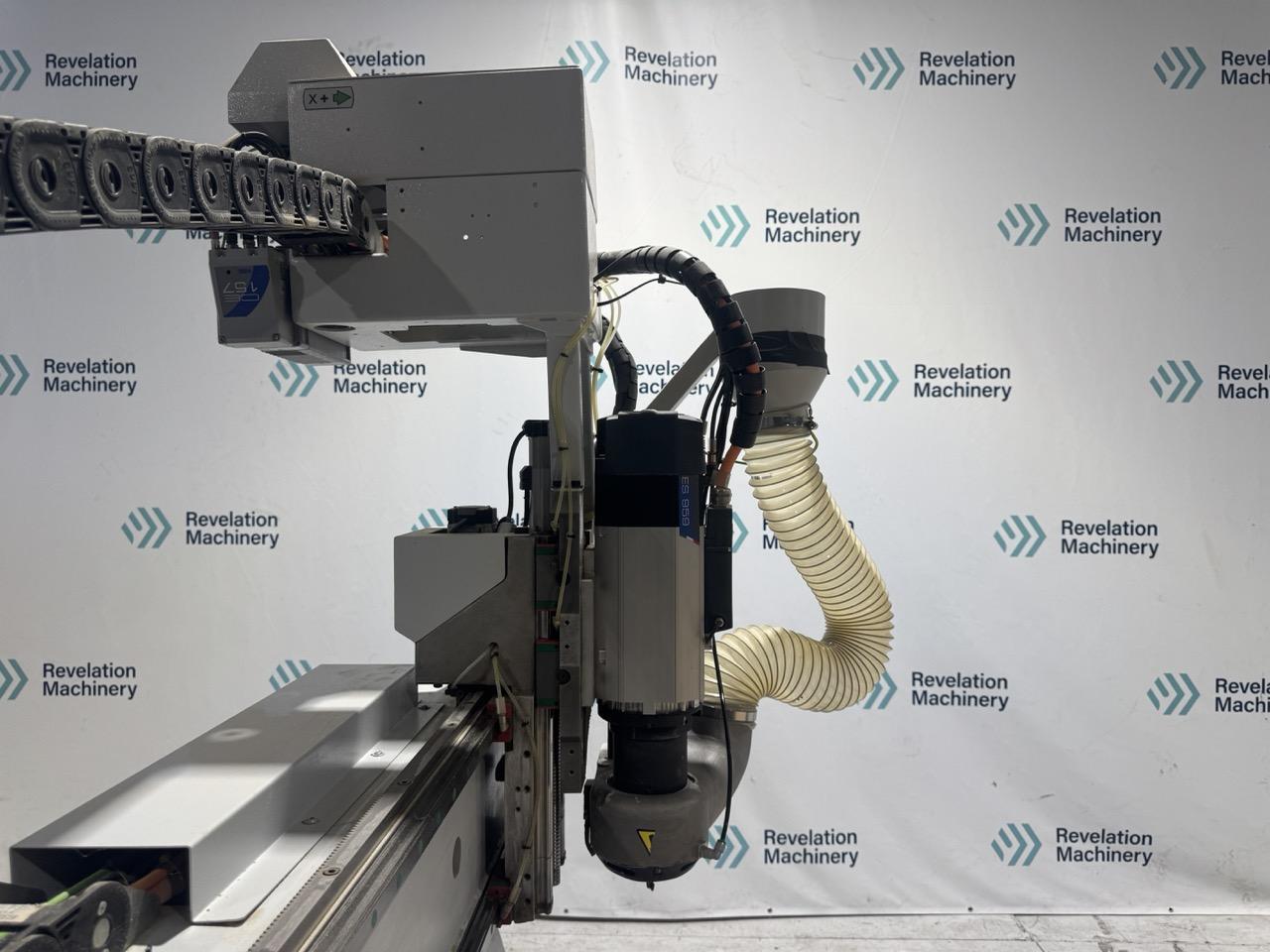

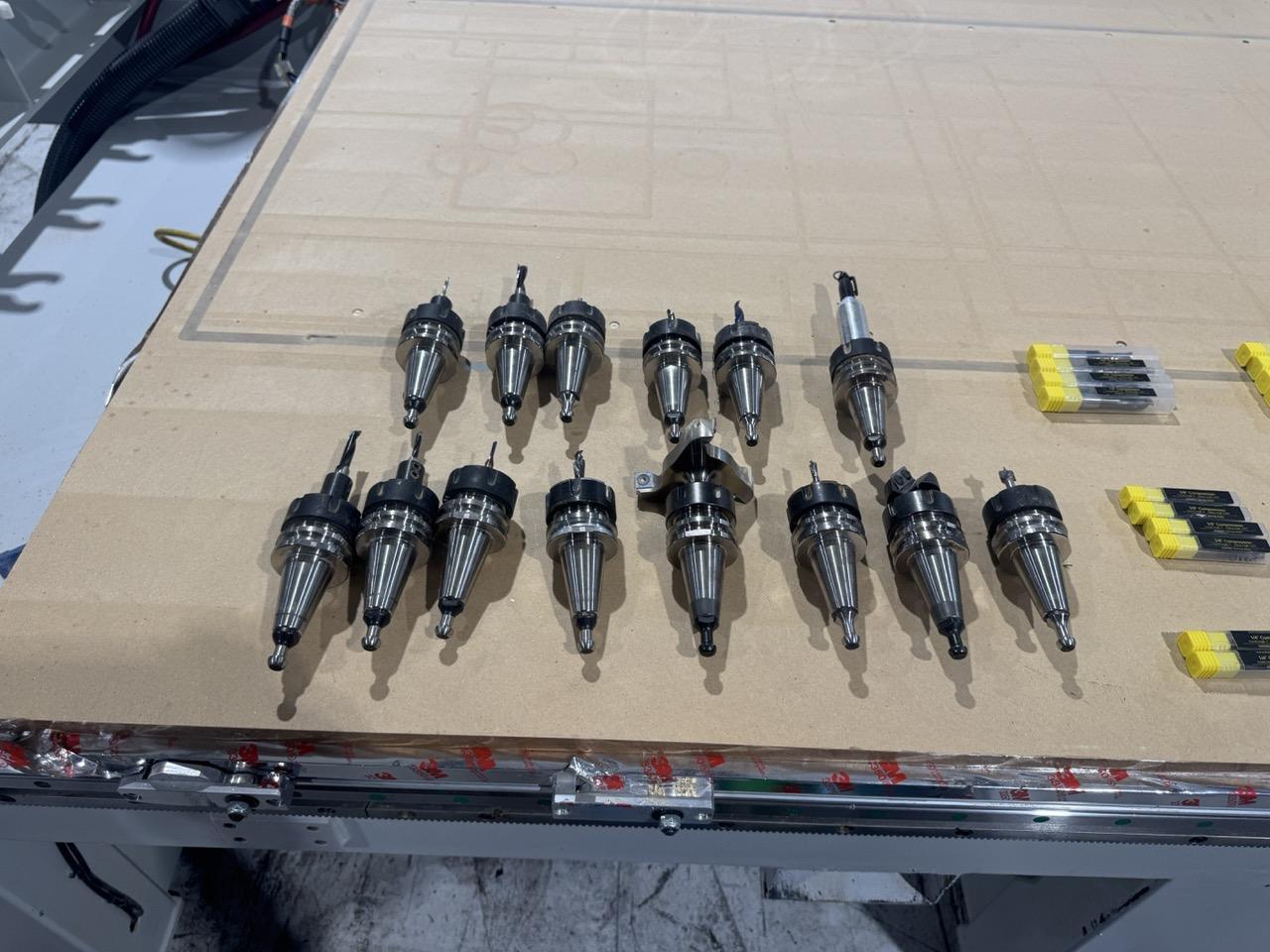

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,5 by 10 Aluminum Table w/ T-Slots for holding Material Working Fields: X = 3078 mm Y = 1563 mm Z = 260mm Machine Speeds: X = 22.5 m/min Y = 22.5 m/min Z = 12.5 m/min Manually Selected Independent Vacuum Zones PC Based Controller with Color Screen and Windows Operating System 12 HP Air Cooled Electro Spindle (ISO 30 ) Tool Pre-setting Device 8 Position Manual Tool Rack for ISO 30 Tool Holders (1) 250 m3/h Rotary Vein Vacuum Pump Automatic Lubrication System Multitap Transformer Included BiesseWorks Basic Software Included Approximate Machine Dimensions Length: 224″ Width: 172″ Height: 38″ Weight: Approximately 5,000 lb

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
